2023 HYUNDAI TUCSON HYBRID Owners Manual

2-11
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-8
4. Infotainment system .............................. 4-58
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ........................ 5-99
7. Air ventilation seat ................................ 3-20
8. Seat warmer .......................................... 3-18
9. Heated steering wheel ......................... 5-41
10. Parking Safety button ......................... 7-139
11. Parking/View button .......................... 7-153
12. Transmission shift button ..................... 6-1313. EPB (Electronic Parking Brake) switch ...6-19
14. Auto Hold switch ................................. 6-23
15. Drive mode button .............................. 6-46
16. Passenger’s front air bag ..................... 3-45
17. Glove box ..............................................5-119
18. USB port ................................................ 5-131
19. Power outlet ..........................................5-119
20. USB charger .......................................... 5-121
21. Wireless charging system pad ............ 5-123
22. DBC (Downhill Brake Control) button . 6-33
23. HEV button............................................. 1-53
24. 4WD lock button ................................... 6-37
,167580(173$1(/29(59,(:

2-12
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Lighting control lever ........................... 5-84
2. Wiper and washer control lever........... 5-95
3. Paddle shifter .........................................6-18
4. Audio remote control buttons ............ 5-132
5. Bluetooth® hands-free phone
button .................................................. 5-133 6. LCD display control .............................. 4-23
7. Lane Driving Assist button .................... 7-33
8. Driving Assist button ........................... 7-58
9. Vehicle Distance button ....................... 7-79
,167580(173$1(/29(59,(:

2-13
02

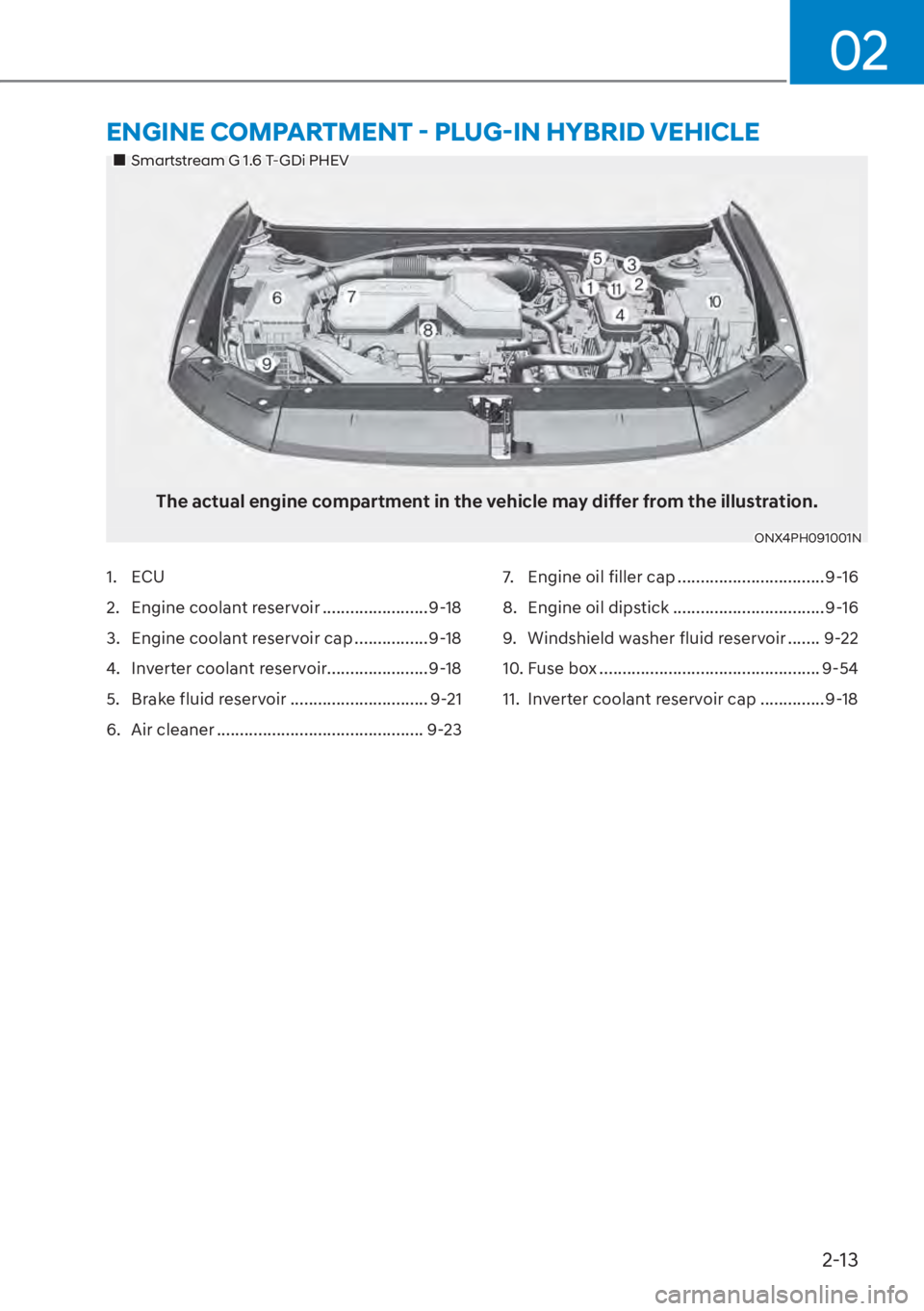

(1*,1(&203$570(17

Vehicle Information, Consumer Information and Reporting Safety Defects2-14
Items in. (mm)
Overall length 182.3 (4,630)
O
verall width 73.4 (1,865)
Overall height 65.55 (1,665) / 66.34 (1,685)*
Wheel tread Front
Rear
17’’ : 63.8 (1,620) 17’’ : 64.05 (1,627)
19” : 63.58 (1,615) 19” : 63.9 (1,622)
Wheelbase 108.5(2,755)
* : 4WD
ENGINE
EngineDisplacement
cu. in (cc) Bore x Stroke
in. (mm) Firing order No. of cylinders
Smartstream G 1.6 T
-GDi HEV/PHEV 97.51 (1,598)2.97 x 3.5
(75.6 x 89.0) 1-3-4-2 In-line 4 cylinder
',0(16,216

02
2-15
Light bulbBulb type Wattage
Front H
eadlight
High
LED LED
Low LED LED
Daytime running lamp (DRL) /
position lamp LED LED
Turn signal lamp LED LED
Turn signal lamp (Outside mirror) LED LED
Rear Type A
Tail lamp
P21/5W 5/21
Tail/Stop lamp P21/5W 5/21
Side marker lamp P21/5W 5/21
Type B Tail lamp
LED LED
Tail/Stop lamp LED LED
Side marker lamp LED LED
Turn signal lamp PY21W 21
Reverse lamp W16W 16
License plate lamp Type A W5W
5
Type B LED LED
High mounted stop lamp LED LED
Interior Map lamp
Type A W10W 10
Type B
LED LED
Room lamp* FESTOON 10
Personal lamp* LED LED
Glove box lamp W5W5
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
* : if equipped
%8/%:$77$*(

Vehicle Information, Consumer Information and Reporting Safety Defects2-16
Item Tire size Wheel
size Inflation pressure
psi (kPa) Wheel lug nut
torque
Kgf·m (N·m)
Normal load Maximum load
Front Rear Front Rear
Full size tir
e 235/65 R17 7.0J X 17
35 (240) 35 (240) 11~13
(107~127)
235/55 R19 7.5J X 19
NOTICE

[ It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 1 psi (7 kPa) for every
12°F(7°C) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.

[ An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level (Air inflation per altitude:
+2.4 psi/1 mile (+10 kPa/1 km)).

[ Must do not exceed maximum inflation pressure shown on equipped tire
sidewall.
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
7,5(6$1':+((/6

02
2-17

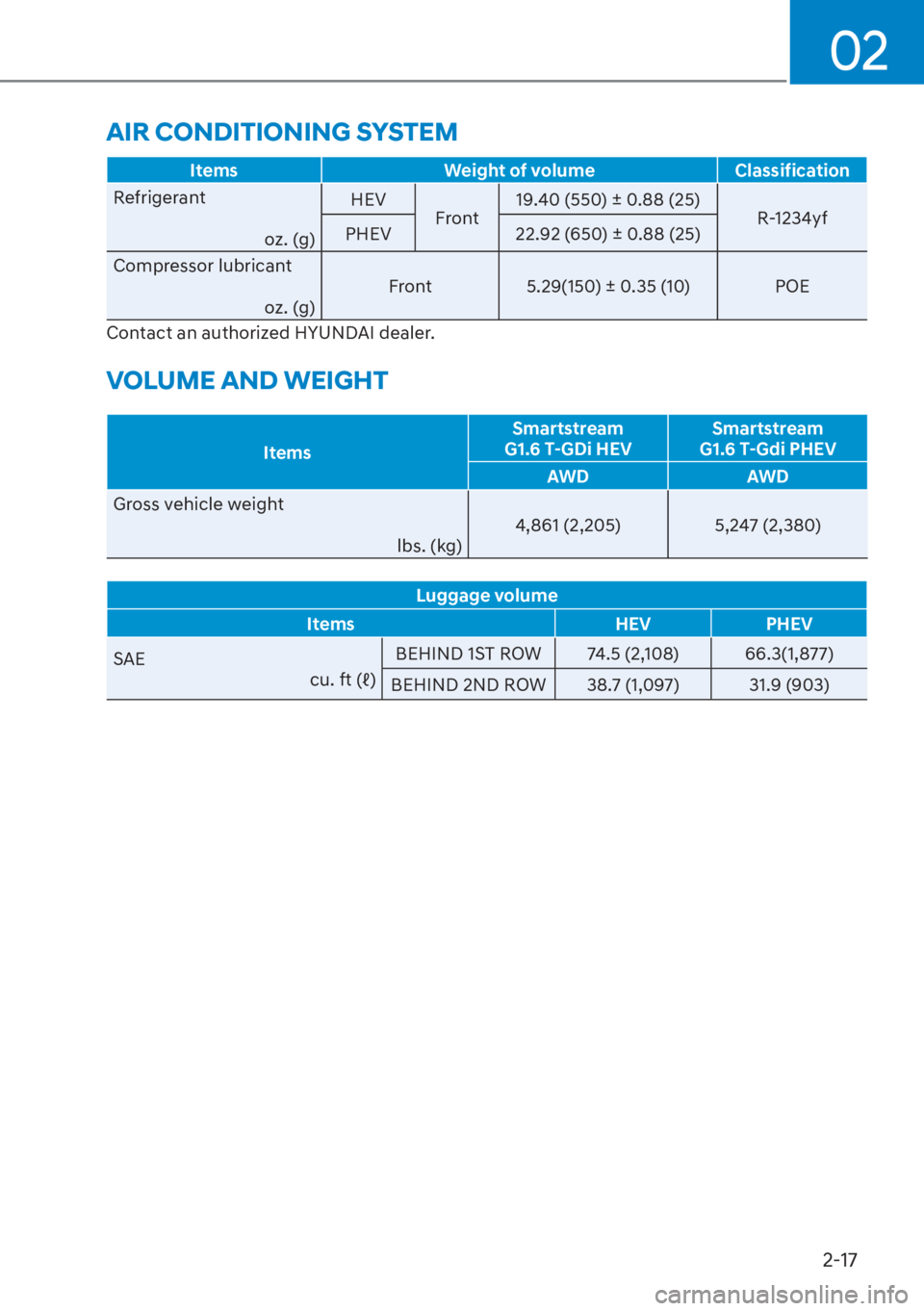

ItemsWeight of volume Classification
Refrigerant
o
z. (g)HEV
Front19.40 (550) ± 0.88 (25)
R-1234yf
PHEV 22.92 (650) ± 0.88 (25)
Compressor lubricant
oz. (g)Front
5.29(150) ± 0.35 (10) POE
Contact an authorized HYUNDAI dealer.
92/80($1':(,*+7
Items Smartstream
G1.6 T-GDi HEV Smartstream
G1.6 T-Gdi PHEV
AWD AWD
Gross vehicle weight
lbs. (k
g)4,861 (2,205)
5,247 (2,380)
Luggage volume
Items HEV PHEV
SAE FXIW
bBEHIND 1S

T ROW 74.5 (2,108) 66.3(1,877)
BEHIND 2ND ROW 38.7 (1,097) 31.9 (903)
$,5&21',7,21,1*6<67(0

Vehicle Information, Consumer Information and Reporting Safety Defects2-18
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil
*1 *2
(drain and refill) Recommends
86TW
b SAE 0W-20, API SN PLUS/SP or
ILSAC GF-6
Automatic transmission fluid
86TW
bSK ATF SP4M-1, MICHANG ATF
SP4M-1, S-OIL ATF SP4M-1,
Hyundai Genuine ATF SP4M-1
Coolant 86TW
bMixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Inverter Coolant HEV
86TW
b
PHEV 86TW
b Contact an authorized Hyundai
dealer/service partner
Rear differential oil (AWD) 0.56 ~ 0.67 US qt.
a
b HYPOID GEAR OIL API GL-5, SAE
75W/85 (SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT)
Transfer case oil (AWD) 0.65 ~ 0.71 US qt.
a
b
Brake fluid
*3As required SAE J1704 DOT-4 LV, FMVSS 116
DOT-4, ISO4925 CLASS-6
Fuel HEV
86JDO
b
Refer to “Fuel requirements” in
chapter 1.
PHEV 86JDO
b
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Requires grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*3 : To maintain the best braking performance and ABS/ESC performance, use genuine brake
fluid that conform to specifications.
5(&200(1'('/8%5,&$176$1'&$3$&,7,(6
