2023 HYUNDAI TUCSON HYBRID window

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-26

à Example for setting the ICCB charge level
The example is only for reference and may vary according to the surrounding
environment.
Outlet current ICCB charge level Control box display window
14-16A 12A
OOSEVQ018055OOSEVQ018055
13-12A10A
11-10A 8A
CAUTION
Please make sure that charge level selection matches the capacity of your circuit
breaker to avoid blown fuse.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-36

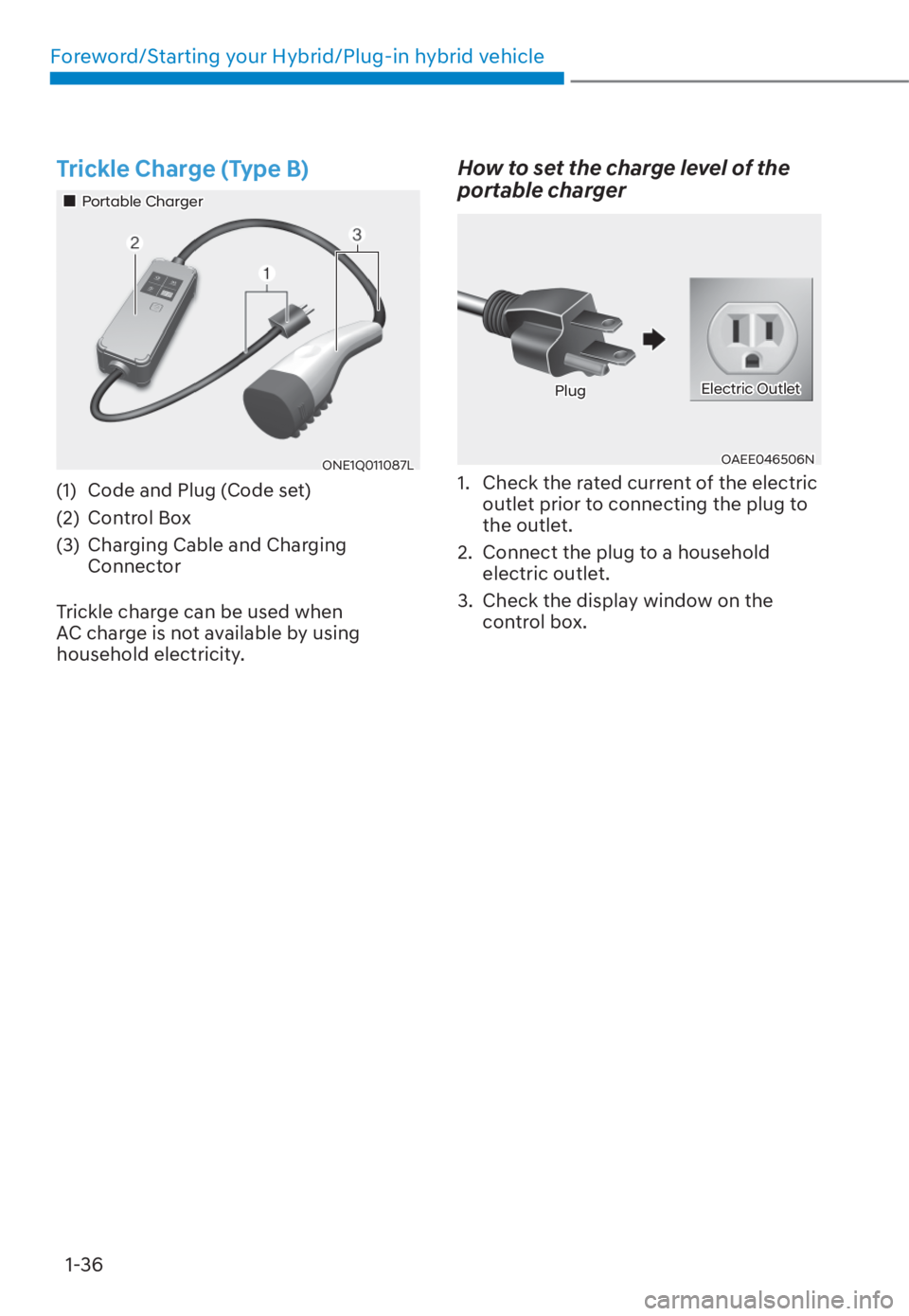

Trickle Charge (Type B)
„„Portable ChargerPortable Charger
ONE1Q011087LONE1Q011087L
(1) Code and Plug (Code set)
(2) Control Box
(3) Charging Cable and Charging Connector
Trickle charge can be used when
AC charge is not available by using
household electricity.
How to set the charge level of the
portable charger
OAEE046506NOAEE046506N
PlugPlugElectric OutletElectric Outlet
1. Check the rated current of the electric outlet prior to connecting the plug to
the outlet.
2. Connect the plug to a household electric outlet.
3. Check the display window on the control box.

01
1-37

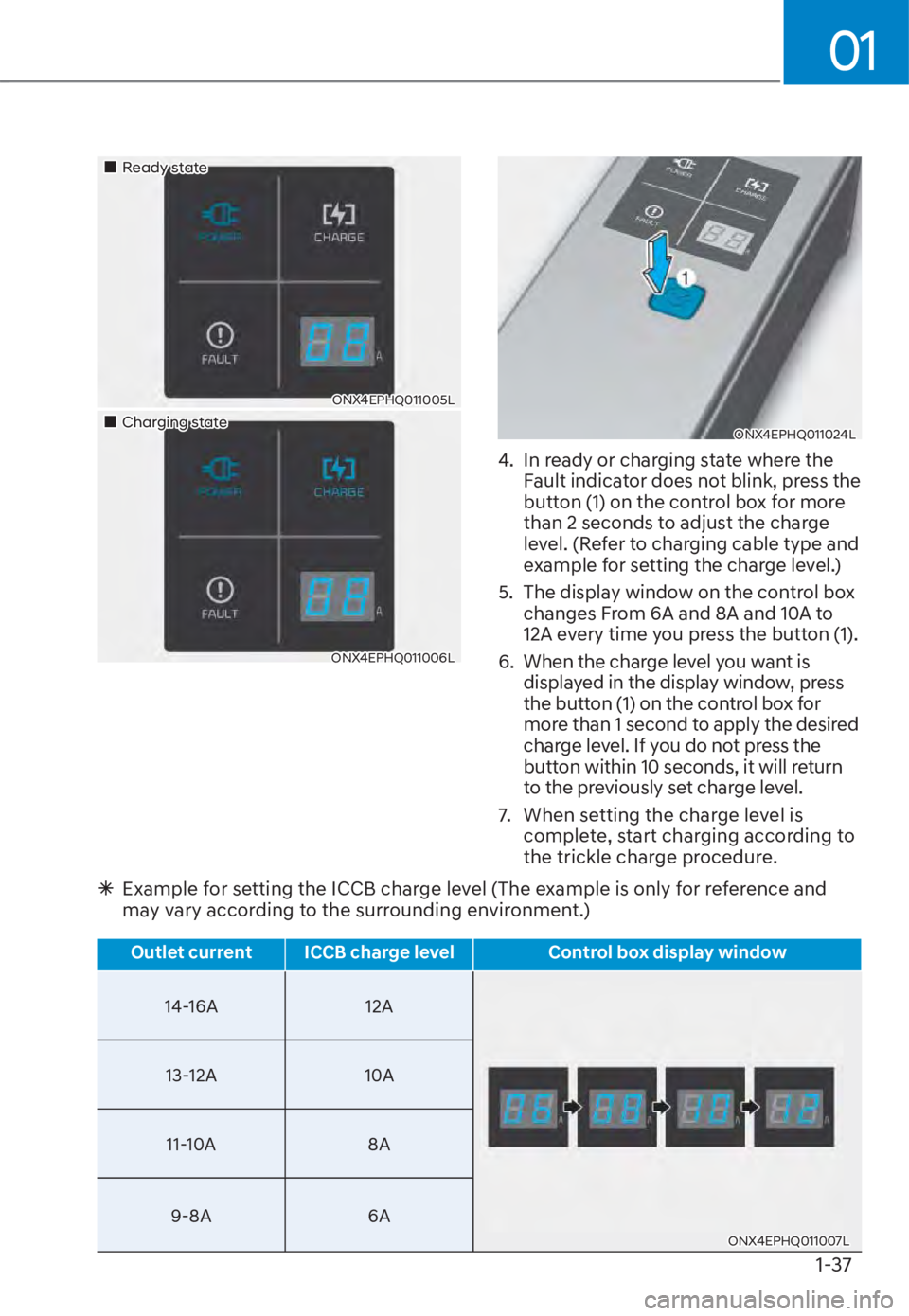

„„Ready stateReady state
ONX4EPHQ011005LONX4EPHQ011005L

„„Charging stateCharging state
ONX4EPHQ011006LONX4EPHQ011006L
ONX4EPHQ011024LONX4EPHQ011024L
4. In ready or charging state where the
Fault indicator does not blink, press the
button (1) on the control box for more
than 2 seconds to adjust the charge
level. (Refer to charging cable type and
example for setting the charge level.)
5. The display window on the control box changes From 6A and 8A and 10A to
12A every time you press the button (1).
6. When the charge level you want is displayed in the display window, press
the button (1) on the control box for
more than 1 second to apply the desired
charge level. If you do not press the
button within 10 seconds, it will return
to the previously set charge level.
7. When setting the charge level is complete, start charging according to
the trickle charge procedure.

à Example for setting the ICCB charge level (The example is only for reference and
may vary according to the surrounding environment.)
Outlet current ICCB charge level Control box display window
14-16A 12A
ONX4EPHQ011007LONX4EPHQ011007L
13-12A10A
11-10A 8A
9-8A 6A

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-46
ONX4EPHQ011009LONX4EPHQ011009L
Plugged into vehicle (Power indicator :
green ON, Fault indicator : red blink)
• Diagnostic device failure
• Current leakage
• Abnormal temperature
Contact an authorized HYUNDAI dealer.
ONX4EPHQ011010LONX4EPHQ011010L
A leakage current occurs with “E2” error
code (Power indicator : green ON, Fault
indicator : red blink, E2 displayed)
Contact an authorized HYUNDAI dealer.
ONX4EPHQ011024LONX4EPHQ011024L
After disconnecting and reconnecting
the power plug, the error is cleared by
pressing the button (1) for 2 seconds
or longer. If this doesn’t clear the error,
Contact an authorized HYUNDAI dealer.
ONX4EPHQ011011LONX4EPHQ011011L
Power saving mode
• Charge level display window turns off when the status is not changed for
more than 1 minute
Contact an authorized HYUNDAI dealer.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-72
WARNING
• Never clean the cooling duct of the
hybrid battery with a wet cloth. If
any water enters the cooling duct
of the hybrid battery, the hybrid
battery may cause an electric shock,
resulting in a serious damage, an
injury or a death.
• The hybrid battery is composed of
lithium-ion polymer. If the hybrid
battery is improperly handled, it is
dangerous to the environment. Also
it may cause electrical shock and
severe burns, resulting in a serious
injury or a death.
• Do not spill liquid over the cooling
duct of the hybrid battery. Doing
so is very dangerous. It may cause
electric shock or serious injury.
• Do not cover the cooling duct with
objects.
• Do not put any objects into the
cooling duct of the hybrid battery.
Doing so may cause loss of cooling
duct volume to the hybrid battery.
When the cooling duct is blocked
with any objects, immediately
contact your HYUNDAI dealer.
• Never place a container of liquid on
or near the cooling duct. If the liquid
spills, the hybrid battery located in
the under floor may be damaged.
• Do not obstruct the cooling duct
with any other objects.
If an accident occurs
WARNING
• For your safety, do not touch the
high voltage cables, connectors
and package modules. High voltage
components are orange in color.
• Exposed cables or wires may be
visible inside or outside of the
vehicle. Never touch the wires or
cables, because an electrical shock,
an injury, or a death may occur.
• Any gas or electrolyte leakage from
your vehicle is not only poisonous
but also flammable. Upon witnessing
one of those, open the windows,
and remain a safe distance from the
vehicle out of the road.
Immediately call an emergency
services or contact an authorized
HYUNDAI dealer and advise them
that a hybrid vehicle is involved.
• When the vehicle is severely
damaged, remain a safe distance of
49 feet or more between your vehicle
and other vehicles/flammables.

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
ONX4H010003N
1. Inside door handle ................................. 5-31
2. Power window switches .......................5-57
3. Power window lock switch ................. 5-58
4. Side view mirror folding switch ........... 5-55
5. Side view mirror control switch ........... 5-55
6. Central door lock switch ....................... 5-31
7. Instrument panel illumination control
switch ...................................................... 4-5
8. Power Liftgate button ........................... 5-71 9. ESC OFF button .................................... 6-28
10. 12V battery reset switch ......................... 8-5
11. Steering wheel ...................................... 5-40
12. Steering wheel tilt/telescopic lever ..... 5-41
13. Fuse box ............................................... 9-50
14. Hood release lever ................................ 5-66
15. Seat ......................................................... 3-6
,17(5,2529(59,(:

2-8
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Hood ...................................................... 5-66
2. Headlight ...............................................9-60
3. Tires and wheels ................................... 9-34
4. Side view mirror .................................... 5-54
5. Panoramic sunroof ................................ 5-61
6. Front windshield wiper blades ............ 9-26
7. Windows ............................................... 5-56
8. Front radar ............................................. 7-15
„Front view
The actual shape may differ from the illustration.
ONX4PH011001N
(;7(5,2529(59,(:

2-10
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Inside door handle ................................. 5-31
2. Power window switches .......................5-57
3. Power window lock switch ................. 5-58
4. Side view mirror folding switch ........... 5-55
5. Side view mirror control switch ........... 5-55
6. Central door lock switch ....................... 5-31
7. Instrument panel illumination control
switch ...................................................... 4-5
8. Power Liftgate button ........................... 5-71 9. ESC OFF button .................................... 6-28
10. Fuel filler door open button ................... 8-5
11. Steering wheel ...................................... 5-40
12. Steering wheel tilt/telescopic lever ..... 5-41
13. Fuse box ............................................... 9-50
14. Hood release lever ................................ 5-66
15. Seat ......................................................... 3-6
,17(5,2529(59,(:
