2023 HYUNDAI TUCSON HYBRID Battery

1
Vehicle Data Collection and Event Data Recorders ........................................ 1-8
HEV (Hybrid Electric Vehicle) System .............................................................. 1-9
PHEV (Plug-in Hybrid Electric Vehicle) System ............................................. 1-10
Charging the Plug-in Hybrid Vehicle ............................................................... 1-11
Charging Information ........................................................................\
........................... 1-11
Charging Time ........................................................................\
...................................... 1-11
Charging Types ........................................................................\
.................................... 1-12
Charging Status ........................................................................\
................................... 1-13
Scheduled Charging........................................................................\
............................ 1-14
Charging Connector Lock ........................................................................\
................... 1-15
Charging Precautions ..............................................................\
................................... 1-16
Electric Charging Label ........................................................................\
....................... 1-18
AC Charge ........................................................................\
............................................ 1-19
Trickle Charge (Type A) ........................................................................\
.......................1-24
Trickle Charge (Type B) ........................................................................\
...................... 1-36
Action to be Taken when Charging Stops Abruptly ................................................. 1-49
Driving the Hybrid Vehicle ........................................................................\
......1-50Starting the Vehicle ........................................................................\
............................ 1-50
Special Features ........................................................................\
................................. 1-50
Hybrid System Gauge ........................................................................\
........................ 1-52
Plug-in Hybrid Mode (Plug-in hybrid vehicle) .......................................................... 1-53
Aux. Battery Saver+ (Plug-in hybrid vehicle) ............................................................ 1-54
Warning and Indicator Lights ........................................................................\
............ 1-56
LCD Display Messages ........................................................................\
........................1-57
Energy Flow ........................................................................\
........................................ 1-65
Hybrid Driving System ........................................................................\
.............1-68e-Handling (Electrically Assisted Handling Performance)/e-EHA (Electrically
Evasive Handling Assist) ........................................................................\
.................... 1-68
Safety Precautions for Hybrid System ............................................................1-69Hybrid Vehicle Components ........................................................................\
............. 1-69
Service Interlock Connector ........................................................................\
............... 1-71
Hybrid Battery Cooling Duct ........................................................................\
.............. 1-71
If an accident occurs ........................................................................\
........................... 1-72
When the Hybrid Vehicle Shuts Off ........................................................................\
... 1-73
1. Foreword/Starting your Hybrid/Plug-in hybrid vehicle

01
1-7
VEHICLE MODIFICATIONS
• This vehicle should not be modified. Modification of your vehicle could affect its performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may
not be covered under warranty.
• If you use unauthorized electronic devices, it may cause the vehicle to operate abnormally, wire damage, battery discharge and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE
Some warning sounds (including welcome/good-bye sound, etc.) are generated
from the interior speakers or amplifiers. If necessary, purchase HYUNDAI Part to
replace an interior speaker or amplifier. Any unauthorized product may cause a
malfunction of the interior speakers or amplifiers.
VEHICLE BREAK-IN PROCESS
By following a few simple precautions for the first 600 miles (1,000 km) you may add to
the performance, economy and life of your vehicle.
• Do not race the engine.
• While driving, avoid sudden acceleration.
• Do not maintain a single speed for long periods of time, either fast or slow. Varying engine speed is needed to properly break-in the engine.
• Avoid hard stops, except in emergencies, to allow the brakes to seat properly.
• Fuel economy and engine performance may vary depending on vehicle break-in process and be stabilized after 4,000 miles (6,000 km). New engines may consume
more oil during the vehicle break-in period.
• Do not tow a trailer during the first 1,200 miles (2,000km) of operation.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Items contained in motor vehicles or emitted from them are known to the State of
California to cause cancer and birth defects or reproductive harm. These include:
• Gasoline and its vapors
• Engine exhaust
• Used engine oil
• Interior passenger compartment components and materials
• Component parts which are subject to heat and wear
In addition, battery posts, terminals and related accessories contain lead, lead
compounds and other chemicals known to the State of California to cause cancer
and reproductive harm.
For more information go to https://www.p65warnings.ca.gov/passenger-vehicle

1-9
01
HEV (HYBRID ELECTRIC VEHICLE) SYSTEM
The HYUNDAI Hybrid Electric Vehicle (HEV) uses both the gasoline engine and the
electric motor for power. The electric motor is run by a high-voltage HEV battery.
Depending on the driving conditions, the HEV computer selectively operates between
the engine and the electric motor or even both at the same time.
Fuel efficiency increases when the engine is at idle, or when the vehicle is driven by the
electric motor with the HEV battery.
The HEV battery charge must be maintained, so at times the engine will come on even
at idle to act as a generator. Charging also occurs when decelerating or by regenerative
braking.
ONX4H061001ONX4H061001
Startup/
Low speed cruise
Acceleration High speed cruise Deceleration Stop
Electric motorElectric motor + EngineElectric motor + EngineChargingEngine OFF

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-10

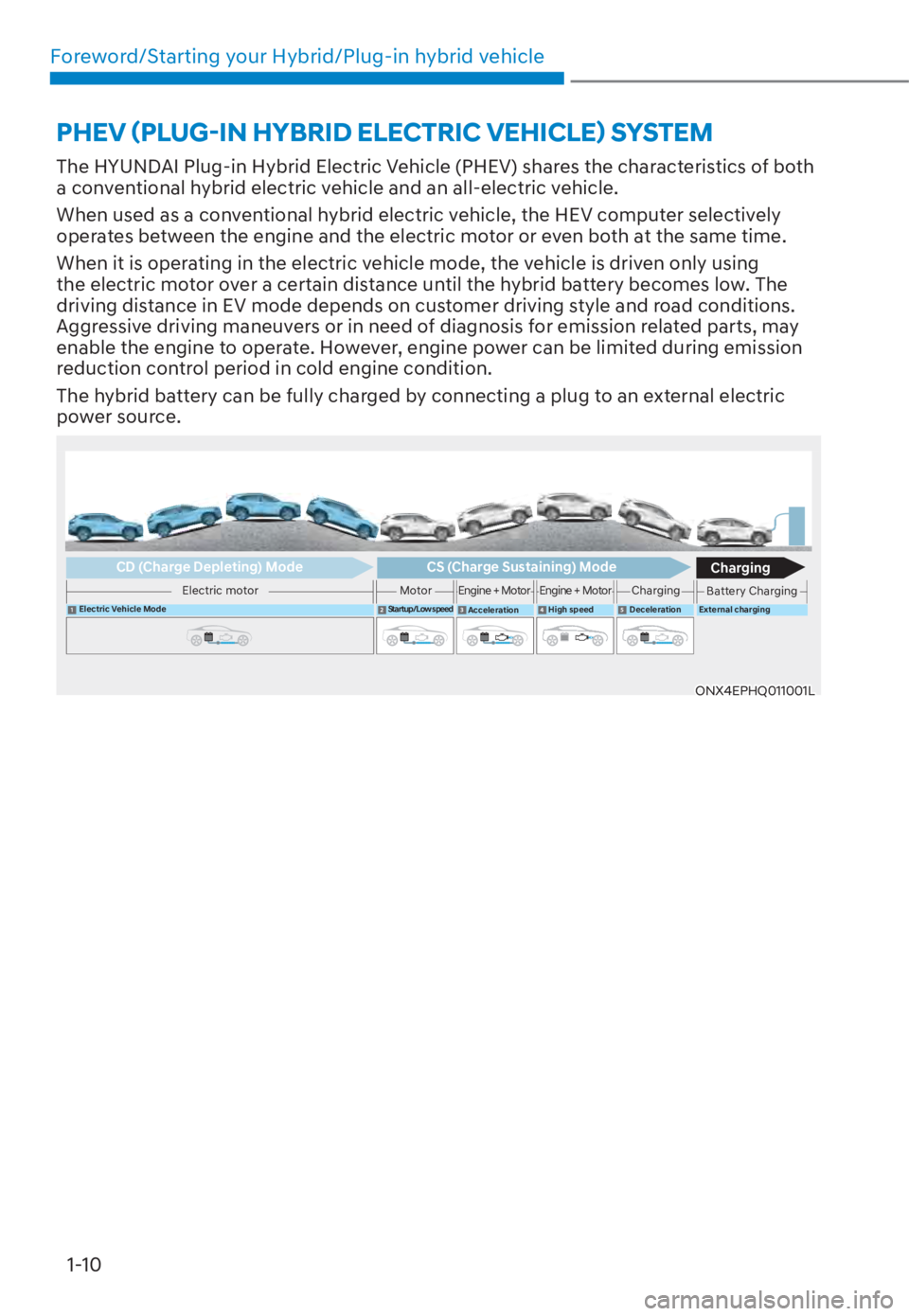

The HYUNDAI Plug-in Hybrid Electric Vehicle (PHEV) shares the characteristics of both
a conventional hybrid electric vehicle and an all-electric vehicle.
When used as a conventional hybrid electric vehicle, the HEV computer selectively
operates between the engine and the electric motor or even both at the same time.
When it is operating in the electric vehicle mode, the vehicle is driven only using
the electric motor over a certain distance until the hybrid battery becomes low. The
driving distance in EV mode depends on customer driving style and road conditions.
Aggressive driving maneuvers or in need of diagnosis for emission related parts, may
enable the engine to operate. However, engine power can be limited during emission
reduction control period in cold engine condition.
The hybrid battery can be fully charged by connecting a plug to an external electric
power source.
CD (Charge Depleting) Mode CS (Charge Sustaining) Mode
Charging
Electric motorMotorEngine + MotorEngine + MotorChargingBattery ChargingElectric Vehicle Mode Startup/Low speed
Acceleration High speed
Deceleration
External charging
ONX4EPHQ011001LONX4EPHQ011001L
PHEV (PLUG-IN HYBRID ELECTRIC VEHICLE) SYSTEM

01
1-11

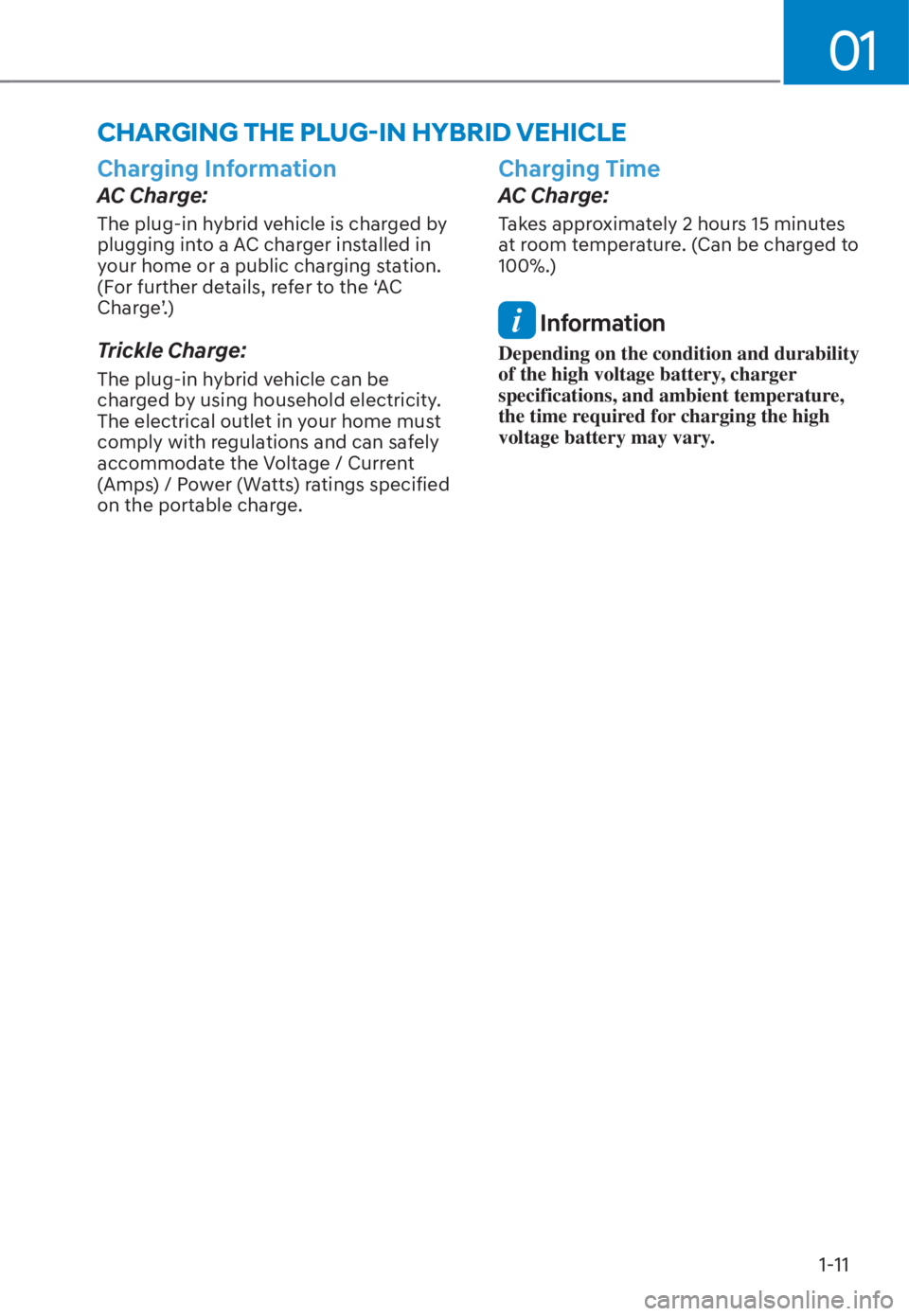

Charging Information
AC Charge:
The plug-in hybrid vehicle is charged by
plugging into a AC charger installed in
your home or a public charging station.
(For further details, refer to the ‘AC
Charge’.)
Trickle Charge:
The plug-in hybrid vehicle can be
charged by using household electricity.
The electrical outlet in your home must
comply with regulations and can safely
accommodate the Voltage / Current
(Amps) / Power (Watts) ratings specified
on the portable charge.
Charging Time
AC Charge:
Takes approximately 2 hours 15 minutes
at room temperature. (Can be charged to
100%.)
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the high
voltage battery may vary.
CHARGING THE PLUG-IN HYBRID VEHICLE

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-12

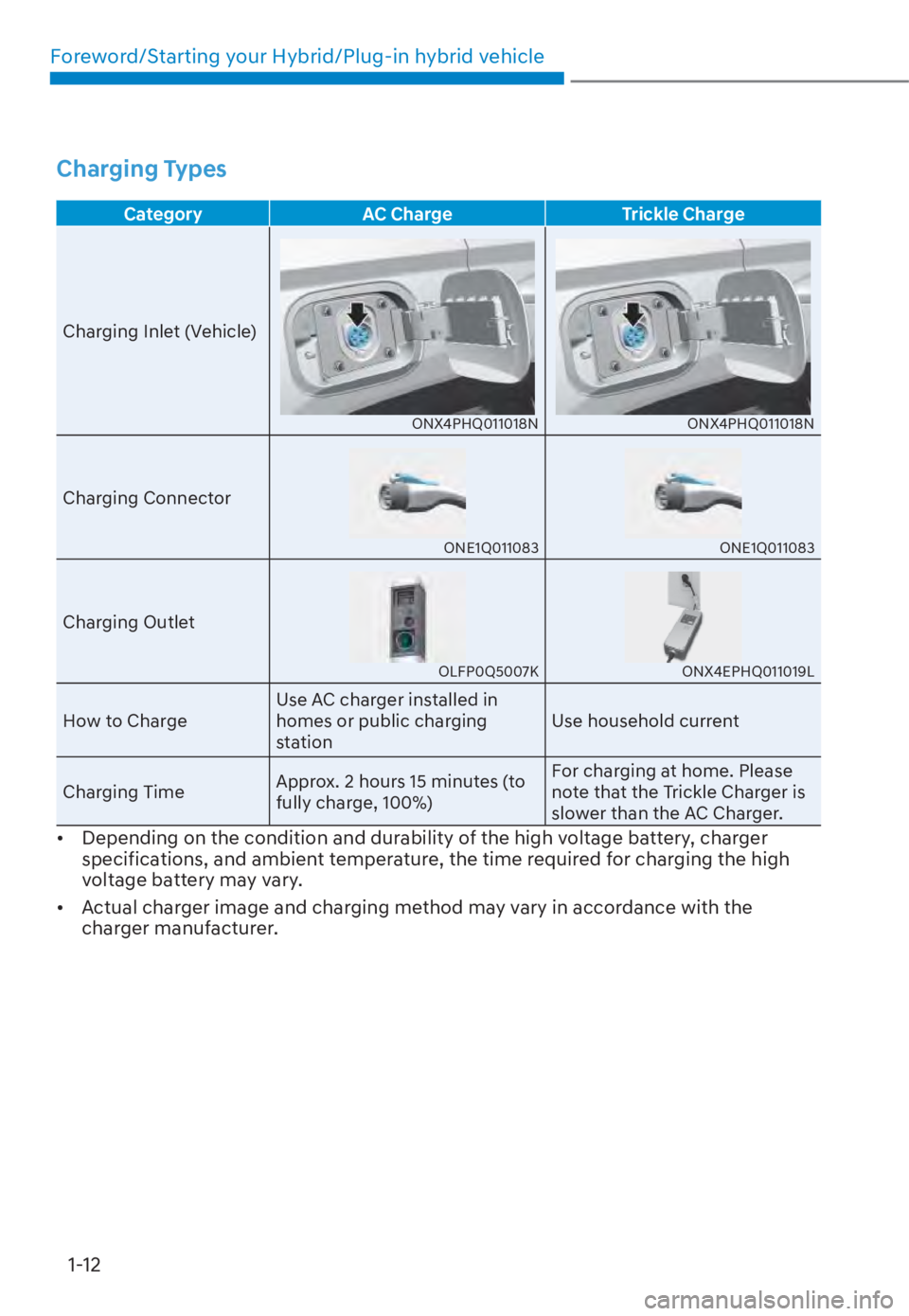

Charging Types
Category AC Charge Trickle Charge
Charging Inlet (Vehicle)
ONX4PHQ011018NONX4PHQ011018N
Charging Connector
ONE1Q011083ONE1Q011083
Charging Outlet
OLFP0Q5007KONX4EPHQ011019L
How to Charge Use AC charger installed in
homes or public charging
station Use household current
Charging Time Approx. 2 hours 15 minutes (to
fully charge, 100%) For charging at home. Please
note that the Trickle Charger is
slower than the AC Charger.
• Depending on the condition and durability of the high voltage battery, charger
specifications, and ambient temperature, the time required for charging the high
voltage battery may vary.
• Actual charger image and charging method may vary in accordance with the charger manufacturer.

01
1-13

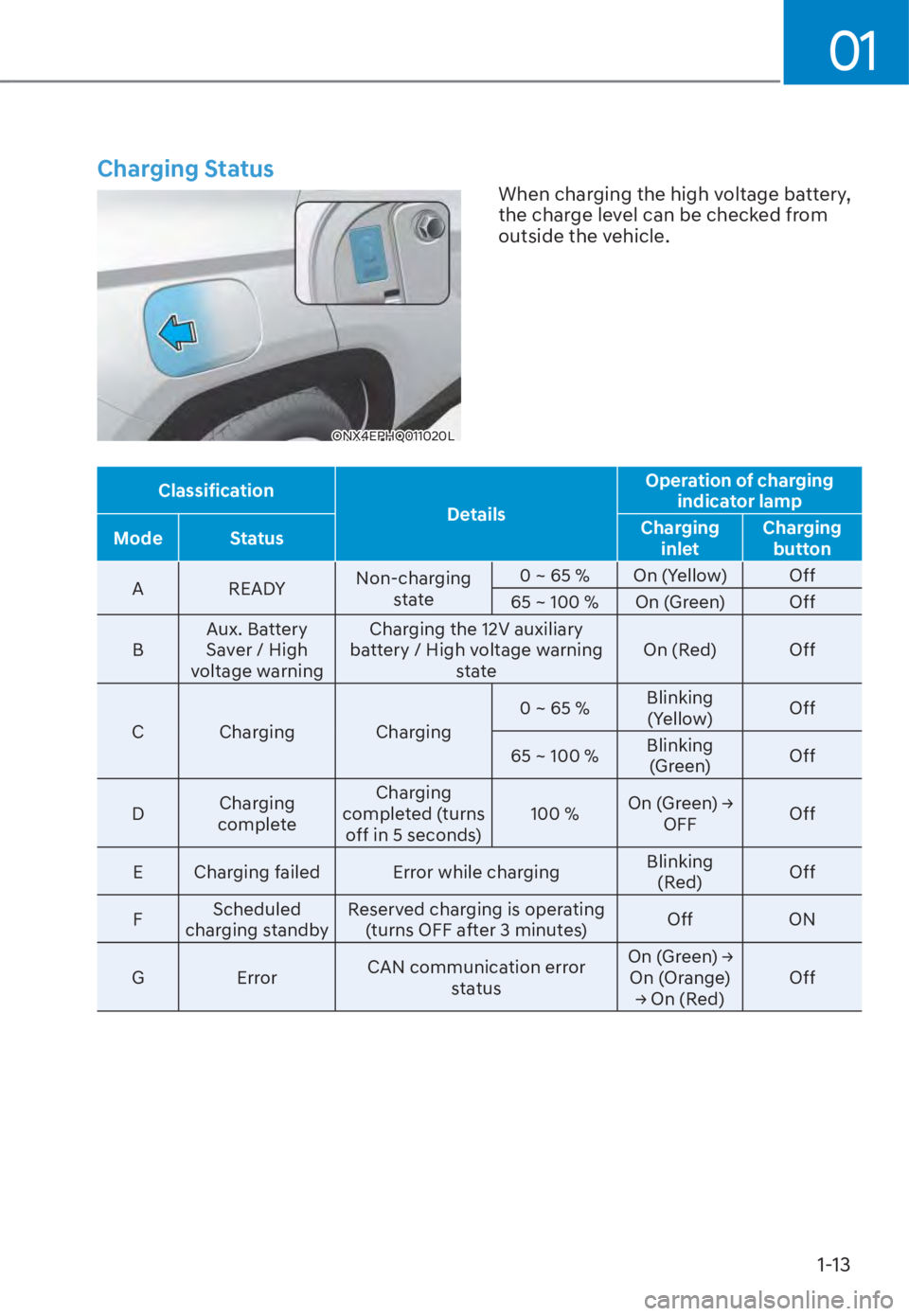

Charging Status
ONX4EPHQ011020LONX4EPHQ011020L
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
ClassificationDetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY N
on-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Battery
Saver / High
voltage warning Charging the 12V auxiliary
battery / High voltage warning
state On (Red) Off
C Charging Charging 0 ~ 65 %
Blinking
(Yellow) Off
65 ~ 100 % Blinking
(Green) Off
D Charging
complete Charging
completed (turns
off in 5 seconds) 100 %
On (Green)
Ÿ
OFF Off
E Charging failed Error while charging Blinking
(Red) Off
F Scheduled
charging standby Reserved charging is operating
(turns OFF after 3 minutes) Off
ON
G Error CAN communication error
status On (Green)
Ÿ
On (Orange)

Ÿ On (Red) Off

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-14

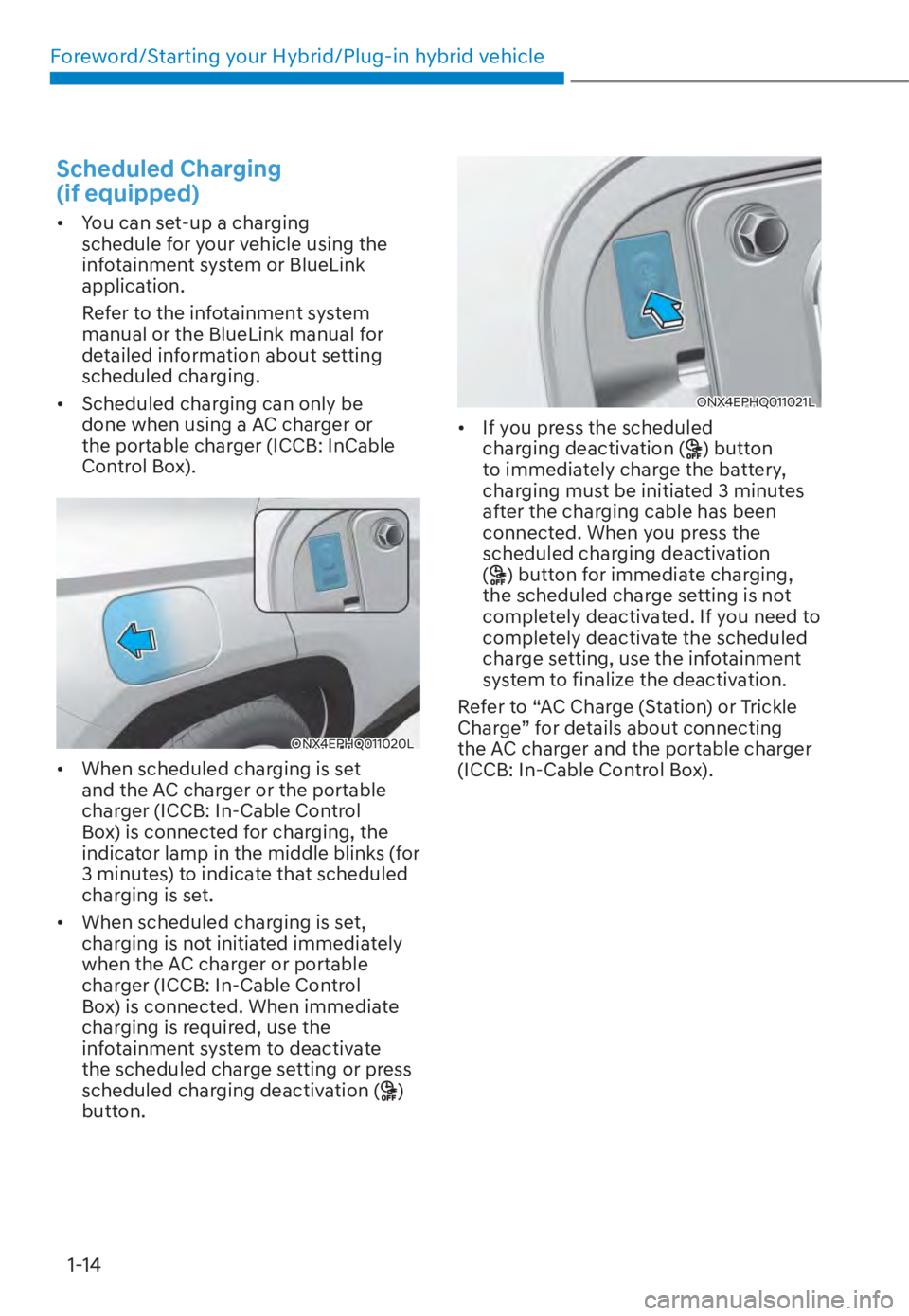

Scheduled Charging
(if equipped)
• You can set-up a charging schedule for your vehicle using the
infotainment system or BlueLink
application.
Refer to the infotainment system
manual or the BlueLink manual for
detailed information about setting
scheduled charging.
• Scheduled charging can only be done when using a AC charger or
the portable charger (ICCB: InCable
Control Box).
ONX4EPHQ011020LONX4EPHQ011020L
• When scheduled charging is set and the AC charger or the portable
charger (ICCB: In-Cable Control
Box) is connected for charging, the
indicator lamp in the middle blinks (for
3 minutes) to indicate that scheduled
charging is set.
• When scheduled charging is set, charging is not initiated immediately
when the AC charger or portable
charger (ICCB: In-Cable Control
Box) is connected. When immediate
charging is required, use the
infotainment system to deactivate
the scheduled charge setting or press
scheduled charging deactivation (
)
button.
ONX4EPHQ011021LONX4EPHQ011021L
• If you press the scheduled charging deactivation () button
to immediately charge the battery,
charging must be initiated 3 minutes
after the charging cable has been
connected. When you press the
scheduled charging deactivation
(
) button for immediate charging,
the scheduled charge setting is not
completely deactivated. If you need to
completely deactivate the scheduled
charge setting, use the infotainment
system to finalize the deactivation.
Refer to “AC Charge (Station) or Trickle
Charge” for details about connecting
the AC charger and the portable charger
(ICCB: In-Cable Control Box).
