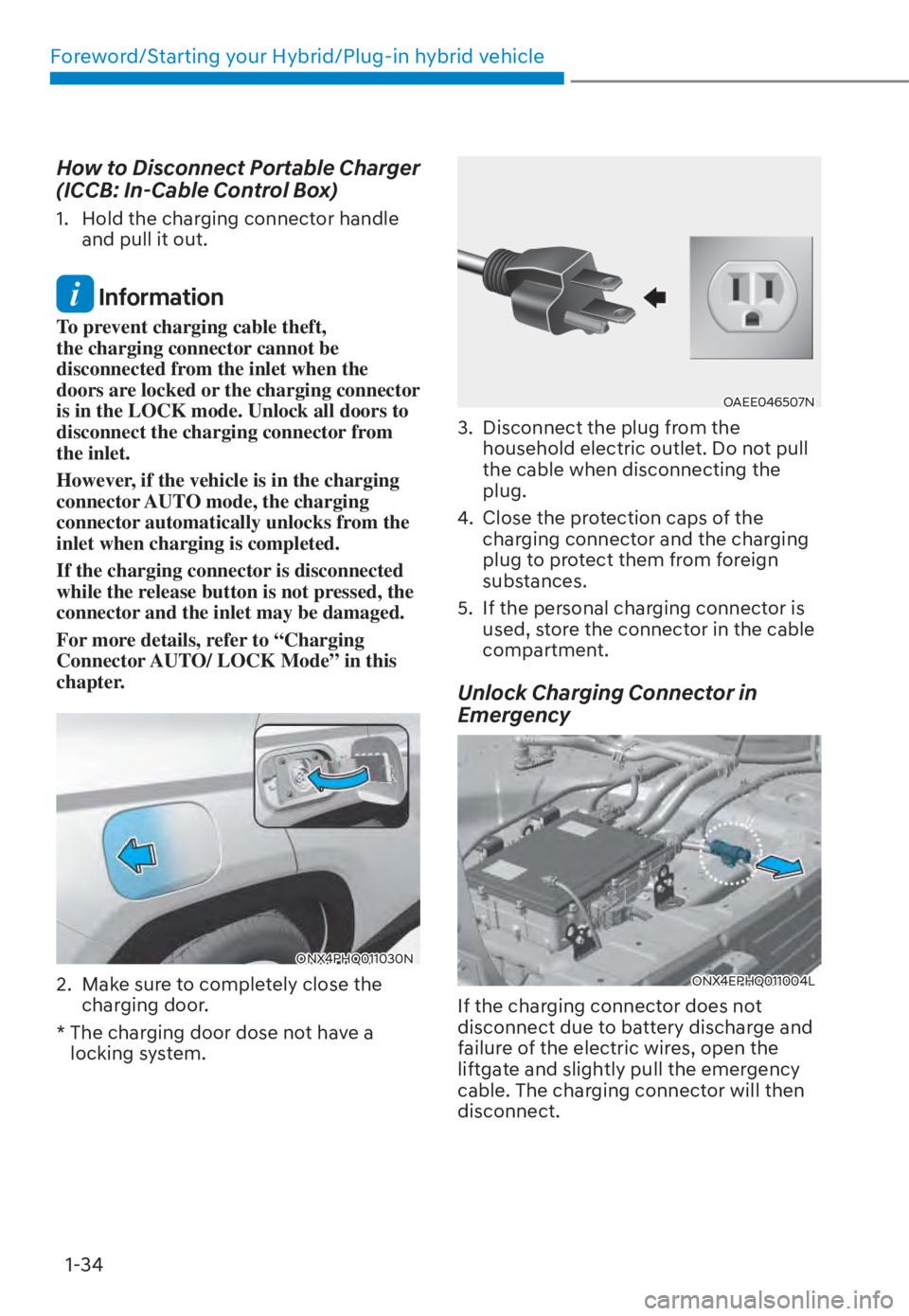

How to Disconnect Portable Charger
(ICCB: In-Cable Control Box)
1. Hold the charging connector handle and pull it out.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked or the charging connector
is in the LOCK mode. Unlock all doors to
disconnect the charging connector from
the inlet.
However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the
inlet when charging is completed.
If the charging connector is disconnected
while the release button is not pressed, the
connector and the inlet may be damaged.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
ONX4PHQ011030NONX4PHQ011030N
2. Make sure to completely close the charging door.
* The charging door dose not have a locking system.
OAEE046507NOAEE046507N
3. Disconnect the plug from the household electric outlet. Do not pull
the cable when disconnecting the
plug.
4. Close the protection caps of the charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is used, store the connector in the cable
compartment.
Unlock Charging Connector in
Emergency
ONX4EPHQ011004LONX4EPHQ011004L
If the charging connector does not
disconnect due to battery discharge and
failure of the electric wires, open the
liftgate and slightly pull the emergency
cable. The charging connector will then
disconnect.

01
1-39
Information
Charging connector AUTO/LOCK mode
The charging connector is locked in the
inlet at a different period according to
which mode is selected.
• LOCK mode : The connector locks
when the charging connector is plugged
into the charging inlet.
• AUTO mode : The connector locks
when charging starts.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
ONX4EPHQ011006LONX4EPHQ011006L
8. Charging starts automatically (charging lamp blinks).
„„Type AType A„„Type BType B
ONX4EPHQ011002LONX4EPHQ011002LONX4EPHQ011003LONX4EPHQ011003L
9. Check if the charging indicator light of the high voltage battery
on the instrument cluster is turned
ON. Charging is not done when the
charging indicator lamp is OFF.
When the charging connector is not
connected properly, reconnect the
charging cable to charge it again.
Information
• Even though charging is possible with
the ignition switch in the ON/START
position, for your safety, start charging
when the ignition switch is in the
LOCK/OFF position and the vehicle
shifted to P (Park).
After charging has started, you can use
electrical components such as the radio
by placing the ignition switch in ACC
or ON position.
• Moving the shift button from P (Park)
to R (Reverse)/N(Neutral)/D (Drive)
stops the charging process.
To restart the charging process, move
the shift button to P (Park), place the
ignition switch to the LOCK/OFF
position, and disconnect the charging
cable. Then, connect the charging cable.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-40
OAEPHQ049818LOAEPHQ049818L
10. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
When scheduled charging is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.
Checking Charging Status
ONX4EPHQ011020LONX4EPHQ011020L
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.

01
1-41

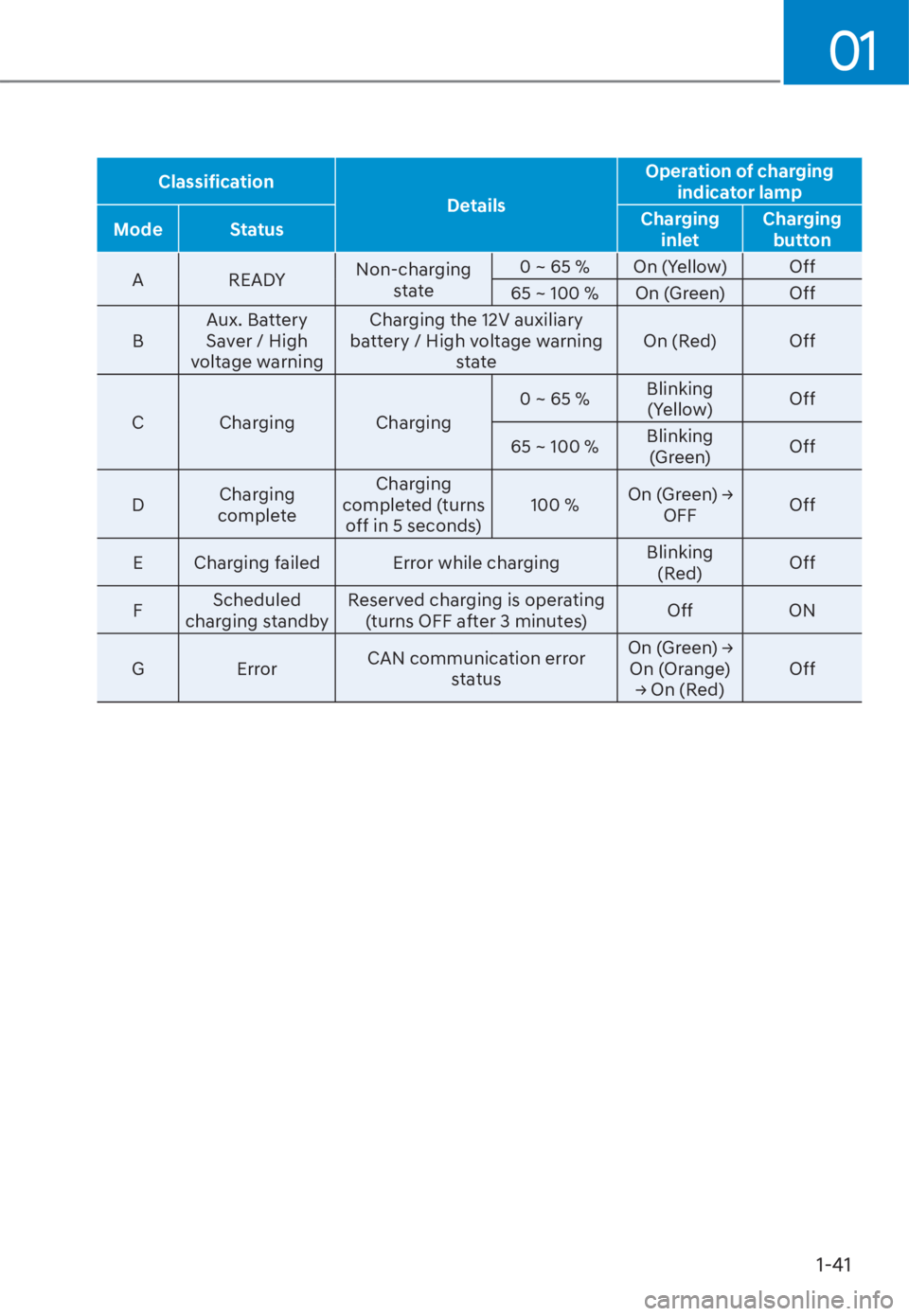

ClassificationDetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY N
on-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Battery
Saver / High
voltage warning Charging the 12V auxiliary
battery / High voltage warning
state On (Red) Off
C Charging Charging 0 ~ 65 %
Blinking
(Yellow) Off
65 ~ 100 % Blinking
(Green) Off
D Charging
complete Charging
completed (turns
off in 5 seconds) 100 %
On (Green)
Ÿ
OFF Off
E Charging failed Error while charging Blinking
(Red) Off
F Scheduled
charging standby Reserved charging is operating
(turns OFF after 3 minutes) Off
ON
G Error CAN communication error
status On (Green)
Ÿ
On (Orange)

Ÿ On (Red) Off

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-48
Unlock Charging Connector in
Emergency
„„Luggage compartmentLuggage compartment
ONX4EPHQ011004LONX4EPHQ011004L
If the charging connector does not
disconnect due to battery discharge and
failure of the electric wires, open the
liftgate and slightly pull the emergency
cable. The charging connector will then
disconnect.
Precautions for Portable Charger
(ICCB: In-Cable Control Box)
• Use the portable charger that is certified by HYUNDAI Motors.
• Do not try to repair, disassemble, or adjust the portable charger.
• Do not use an extension cord or adapter.
• Stop using immediately when failure occurs.
• Do not touch the plug and charging connector with wet hands.
• Do not touch the terminal part of the AC charging connector and the AC
charging inlet on the vehicle.
• Do not connect the charging connector to voltage that does not
comply with regulations.
• Do not use the portable charger if it is worn out, exposed, or there exists
any type of damage on the portable
charger.
• If the ICCB case and AC charging connector is damaged, cracked, or the
wires are exposed in any way, do not
use the portable charger.
• Do not let children operate or touch the portable charger.

01
1-49
• Keep the control box free of water.
• Keep the AC charging connector or plug terminal free of foreign
substances.
• Do not step on the cable or cord. Do not pull the cable or cord and do not
twist or bend it.
• Do not charge when there is lightning.
• Do not drop the control box or place a heavy object on the control box.
• Do not place an object that can generate high temperatures near the
charger when charging.
• Charging with the worn out or damaged household electric outlet
can result in a risk of electric shock.
If you are in doubt to the household
electric outlet condition, have it
checked by a licensed electrician.
• Stop using the portable charger immediately if the household
electric outlet or any components is
overheated or you notice burnt odors.Action to be Taken when
Charging Stops Abruptly
When the high voltage battery does not
charge, check the followings:
1. Check the charging setting for the vehicle.
(for example, When scheduled
charging is set, charging is not
initiated immediately when the AC
charger or portable charger (ICCB: In-
Cable Control Box) is connected.)
2. Check the operation status of AC charger, portable charger.
(Charging Status Indicator Lamp for
Portable Charger, refer to “Checking
Charging Status” for trickle charge in
this chapter.)

à Actual method for indicating
the charging status may vary
in accordance with the charger
manufacturer.
3. When the vehicle does not charge and a warning message appears on
the cluster, check the corresponding
message. Refer to “LCD Display
Messages”, in this chapter.
4. If the vehicle is properly charged when charged with another normally
working charger, contact the charger
manufacturer.
5. If the vehicle does not charge when charged with another normally
working charger, contact an
authorized HYUNDAI dealer for
inspection.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-50
Starting the Vehicle
Vehicles with smart key system
1. Carry the smart key or leave it inside the vehicle.
2. Make sure the parking brake is firmly applied.
3. Make sure the shift button is in P (Park). With the shift button in N
(Neutral), you cannot start the vehicle.
4. Depress the brake pedal.
5. Press the Engine Start/Stop button. If the hybrid system starts, the “
”
indicator will come on.
Whether the engine is cold or warm, it
should be started without depressing
the accelerator.
After following the start procedures,
“
” indicator on the instrument
cluster will turn on. For more details,
please check chapter 6.
ECONOMICAL and SAFE OPERATION of
Hybrid system
• Drive smoothly. Accelerate at a moderate rate and maintain a steady
cruising speed. Do not make “jack-
rabbit” starts. Do not race between
stoplights.
Avoid heavy traffic whenever possible.
Always maintain a safe distance
from other vehicles so you can
avoid unnecessary braking. This also
reduces brake wear out.
• The regenerative brake generates energy when the vehicle decelerates.
• When the hybrid battery power is low, the hybrid system automatically
recharges the hybrid battery.
• When the engine is running with the shift button in N (Neutral), the hybrid
system cannot generate electricity.
The hybrid battery cannot recharge
with the shift button in N (Neutral).
Information
In the hybrid system, the engine
automatically runs and stops. When
the hybrid system operates, the “
”
indicator is illuminated.
In the following situation, the engine may
operate automatically.
- When the engine is ready to run
- When the hybrid battery is being
charged
- Depending on the temperature
condition of the hybrid battery
Special Features
Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may
hear a sound from the hybrid battery
system under the floor. If you apply
the accelerator pedal rapidly, you may
hear an unconventional sound. When
you apply the brake pedal, you may
hear a sound from the regenerative
brake system. When the hybrid system
is turned off or on, you may hear a
sound in the engine compartment. If
you depress the brake pedal repeatedly
when the hybrid system is turned on,
you may hear a sound in the engine
compartment. None of these sounds
indicate a problem. These are normal
characteristics of hybrid vehicles.
If any of following occur, it’s a normal
condition if you hear a motor sound in
the engine compartment:
- After turning off the hybrid system, the brake pedal is released.
- When the hybrid system is turned off, the brake pedal is applied.
- When the driver door is opened.
DRIVING THE HYBRID VEHICLE

01
1-51
When the hybrid system is turned ON,
the gasoline engine may run or may not.
In this situation, you may feel a vibration.
This does not indicate a malfunction.
When the “
” indicator illuminates, the
hybrid system is ready to begin driving.
Even if the engine is off, you can operate
the vehicle as long as the “
” indicator
is illuminated.
NOTICE
The hybrid system contains many
electronic components. High voltage
components, such as cables and other
parts, may emit electromagnetic waves.
Even when the electromagnetic cover
blocks electromagnetic emissions,
electromagnetic waves may have an
effect on electronic devices. When your
vehicle is not used for a long period of
time, the hybrid system will discharge.
You need to drive the vehicle several
times a month. Drive at least for 1 hour
or 10 miles. When the hybrid battery
is discharged, or when it is impossible
to jump start the vehicle, contact your
authorized HYUNDAI dealer.
WARNING
• When you start the hybrid system
with the shift button in P (Parking),
the “
” indicator illuminates on
the instrument cluster. The driver
can drive the vehicle, even when the
gasoline engine is off.
• When you leave the vehicle, you
should turn OFF the hybrid system
or locate the shift button in P (Park).
When you depress the accelerator
pedal by mistake, or when the shift
button is not in P (Park), the vehicle
will abruptly move, possibly resulting
in serious injury or death.
Virtual Engine Sound System (VESS)
The Virtual Engine Sound System
generates engine sound for pedestrians
to hear vehicle sound because there is
limited sound while motor power is used.
• When the engine is running, the gear
shift button is not in P (Park), the VESS
will operate.
• When the gear is shifted to R (Reverse), an additional warning
sound will be heard.
What does regenerative braking do?
It uses an electric motor when
decelerating and when braking and
transforms kinetic energy to electrical
energy in order to charge the high
voltage battery.
Battery
• Hybrid
- The vehicle is composed of a high
voltage battery that drives the motor
and air conditioner, and an integrated
12V lead battery with the HEV battery
that drives the lamps, wipers, and audio
system.
- The integrated 12V battery is automatically charged when the vehicle
is in the ready (
) mode.
• Plug-in hybrid vehicle
- The vehicle is composed of a high voltage battery that drives the
motor and air-conditioner, and an
auxiliary battery (12 V) that drives
the lamps, wipers, and audio
system.
- The auxiliary battery is automatically charged when the
vehicle is in the ready (
) mode.
