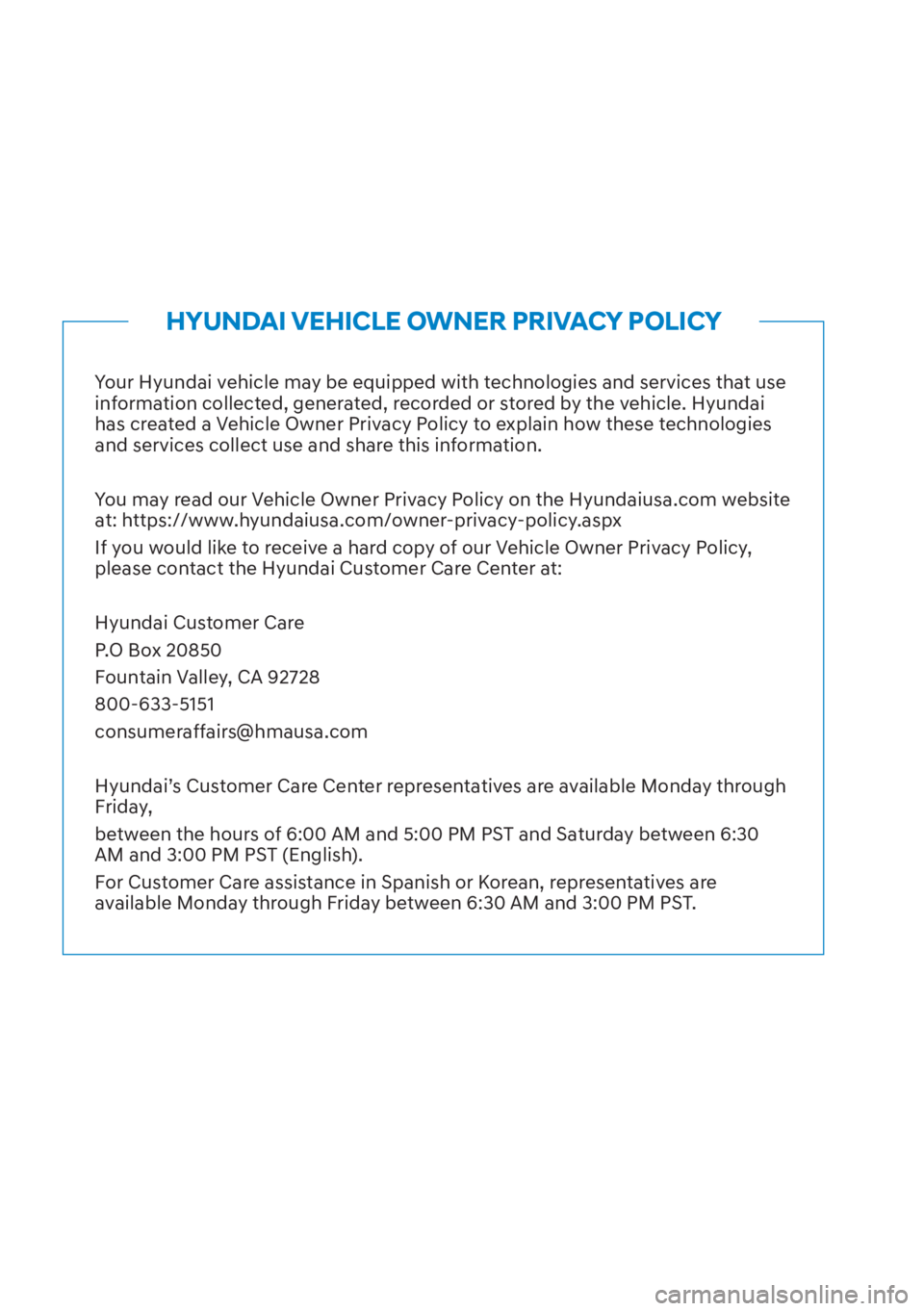

2023 HYUNDAI TUCSON HYBRID service

Your Hyundai vehicle may be equipped with technologies and services that use
information collected, generated, recorded or stored by the vehicle. Hyundai
has created a Vehicle Owner Privacy Policy to explain how these technologies
and services collect use and share this information.
You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website
at: https://www.hyundaiusa.com/owner-privacy-policy.aspx
If you would like to receive a hard copy of our Vehicle Owner Privacy Policy,
please contact the Hyundai Customer Care Center at:
Hyundai Customer Care
P.O Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care Center representatives are available Monday through
Friday,
between the hours of 6:00 AM and 5:00 PM PST and Saturday between 6:30
AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.
HYUNDAI VEHICLE OWNER PRIVACY POLICY

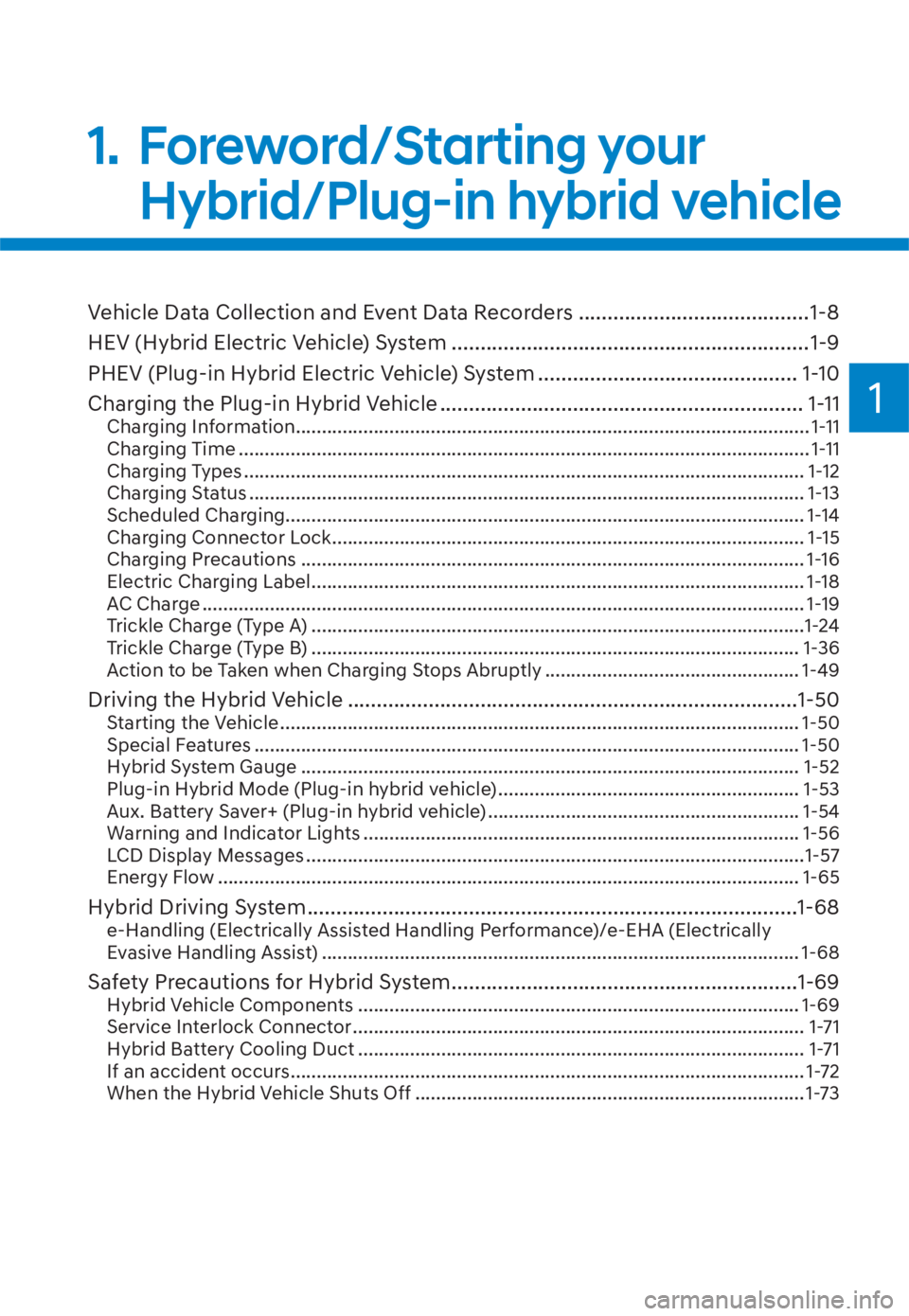

1
Vehicle Data Collection and Event Data Recorders ........................................ 1-8
HEV (Hybrid Electric Vehicle) System .............................................................. 1-9
PHEV (Plug-in Hybrid Electric Vehicle) System ............................................. 1-10
Charging the Plug-in Hybrid Vehicle ............................................................... 1-11
Charging Information ........................................................................\
........................... 1-11
Charging Time ........................................................................\
...................................... 1-11
Charging Types ........................................................................\
.................................... 1-12
Charging Status ........................................................................\
................................... 1-13
Scheduled Charging........................................................................\
............................ 1-14
Charging Connector Lock ........................................................................\
................... 1-15
Charging Precautions ..............................................................\
................................... 1-16
Electric Charging Label ........................................................................\
....................... 1-18
AC Charge ........................................................................\
............................................ 1-19
Trickle Charge (Type A) ........................................................................\
.......................1-24
Trickle Charge (Type B) ........................................................................\
...................... 1-36
Action to be Taken when Charging Stops Abruptly ................................................. 1-49
Driving the Hybrid Vehicle ........................................................................\
......1-50Starting the Vehicle ........................................................................\
............................ 1-50
Special Features ........................................................................\
................................. 1-50
Hybrid System Gauge ........................................................................\
........................ 1-52
Plug-in Hybrid Mode (Plug-in hybrid vehicle) .......................................................... 1-53
Aux. Battery Saver+ (Plug-in hybrid vehicle) ............................................................ 1-54
Warning and Indicator Lights ........................................................................\
............ 1-56
LCD Display Messages ........................................................................\
........................1-57
Energy Flow ........................................................................\
........................................ 1-65
Hybrid Driving System ........................................................................\
.............1-68e-Handling (Electrically Assisted Handling Performance)/e-EHA (Electrically
Evasive Handling Assist) ........................................................................\
.................... 1-68
Safety Precautions for Hybrid System ............................................................1-69Hybrid Vehicle Components ........................................................................\
............. 1-69
Service Interlock Connector ........................................................................\
............... 1-71
Hybrid Battery Cooling Duct ........................................................................\
.............. 1-71
If an accident occurs ........................................................................\
........................... 1-72
When the Hybrid Vehicle Shuts Off ........................................................................\
... 1-73
1. Foreword/Starting your Hybrid/Plug-in hybrid vehicle

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-2

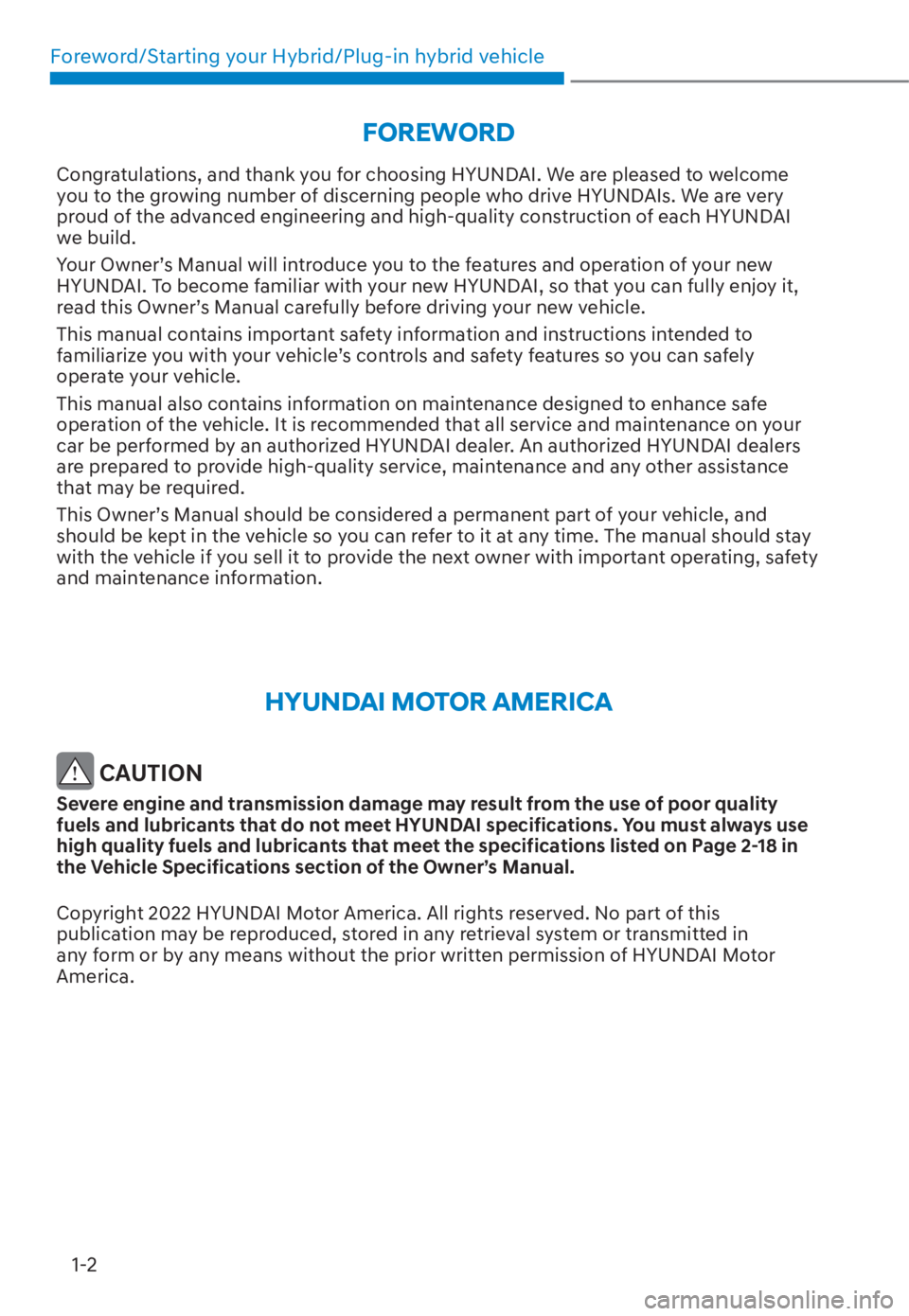

FOREWORD
Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome
you to the growing number of discerning people who drive HYUNDAIs. We are very
proud of the advanced engineering and high-quality construction of each HYUNDAI
we build.
Your Owner’s Manual will introduce you to the features and operation of your new
HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,
read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle’s controls and safety features so you can safely
operate your vehicle.
This manual also contains information on maintenance designed to enhance safe
operation of the vehicle. It is recommended that all service and maintenance on your
car be performed by an authorized HYUNDAI dealer. An authorized HYUNDAI dealers
are prepared to provide high-quality service, maintenance and any other assistance
that may be required.
This Owner’s Manual should be considered a permanent part of your vehicle, and
should be kept in the vehicle so you can refer to it at any time. The manual should stay
with the vehicle if you sell it to provide the next owner with important operating, safety
and maintenance information.
HYUNDAI MOTOR AMERICA
CAUTION
Severe engine and transmission damage may result from the use of poor quality
fuels and lubricants that do not meet HYUNDAI specifications. You must always use
high quality fuels and lubricants that meet the specifications listed on Page 2-18 in
the Vehicle Specifications section of the Owner’s Manual.
Copyright 2022 HYUNDAI Motor America. All rights reserved. No part of this
publication may be reproduced, stored in any retrieval system or transmitted in
any form or by any means without the prior written permission of HYUNDAI Motor
America.

01
1-35

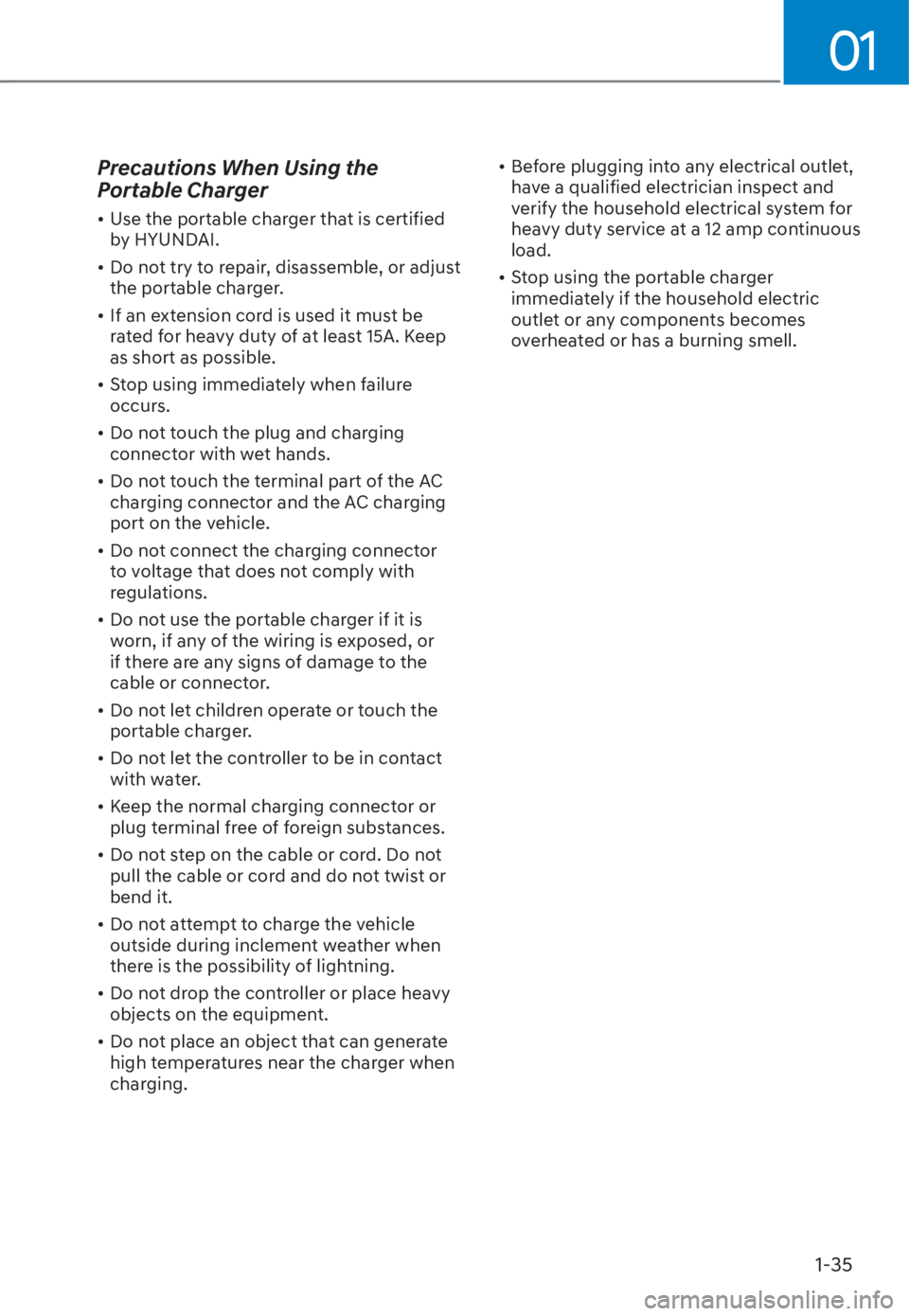

Precautions When Using the
Portable Charger
• Use the portable charger that is certified by HYUNDAI.
• Do not try to repair, disassemble, or adjust the portable charger.
• If an extension cord is used it must be rated for heavy duty of at least 15A. Keep
as short as possible.
• Stop using immediately when failure occurs.
• Do not touch the plug and charging connector with wet hands.
• Do not touch the terminal part of the AC charging connector and the AC charging
port on the vehicle.
• Do not connect the charging connector to voltage that does not comply with
regulations.
• Do not use the portable charger if it is worn, if any of the wiring is exposed, or
if there are any signs of damage to the
cable or connector.
• Do not let children operate or touch the portable charger.
• Do not let the controller to be in contact with water.
• Keep the normal charging connector or plug terminal free of foreign substances.
• Do not step on the cable or cord. Do not pull the cable or cord and do not twist or
bend it.
• Do not attempt to charge the vehicle outside during inclement weather when
there is the possibility of lightning.
• Do not drop the controller or place heavy objects on the equipment.
• Do not place an object that can generate high temperatures near the charger when
charging. • Before plugging into any electrical outlet,
have a qualified electrician inspect and
verify the household electrical system for
heavy duty service at a 12 amp continuous
load.
• Stop using the portable charger immediately if the household electric
outlet or any components becomes
overheated or has a burning smell.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-52
Hybrid System Gauge
Power gauge
„„4.2-Inch4.2-Inch
ONX4H040004ONX4H040004
„„10.25-inch10.25-inch
OCN7H040002OCN7H040002
The hybrid system gauge indicates
whether the current driving condition is
fuel efficient or not.
• CHARGE: Shows that the energy made by the
vehicle is being converted to electrical
energy. (Regenerated energy)
• ECO: Shows that the vehicle is being driven
in an Eco-friendly manner.
• POWER:
Shows that the vehicle is exceeding
the Eco-friendly range.
According to the hybrid system gauge
area, the “EV” indicator comes on or off. - “EV” indicator ON : Vehicle is driven using the electric motor or the
gasoline engine is stopped.
- “EV” indicator OFF : Vehicle is driven using the gasoline engine.
Hybrid battery SOC (State of Charge)
gauge
„„4.2-Inch4.2-Inch
ONX4HQ010016NONX4HQ010016N
„„10.25-inch10.25-inch
OCN7H040003OCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is
near the “L (Low)” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is
near the “L (Low)” level, have the vehicle
be checked by an authorized HYUNDAI
dealer.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-56

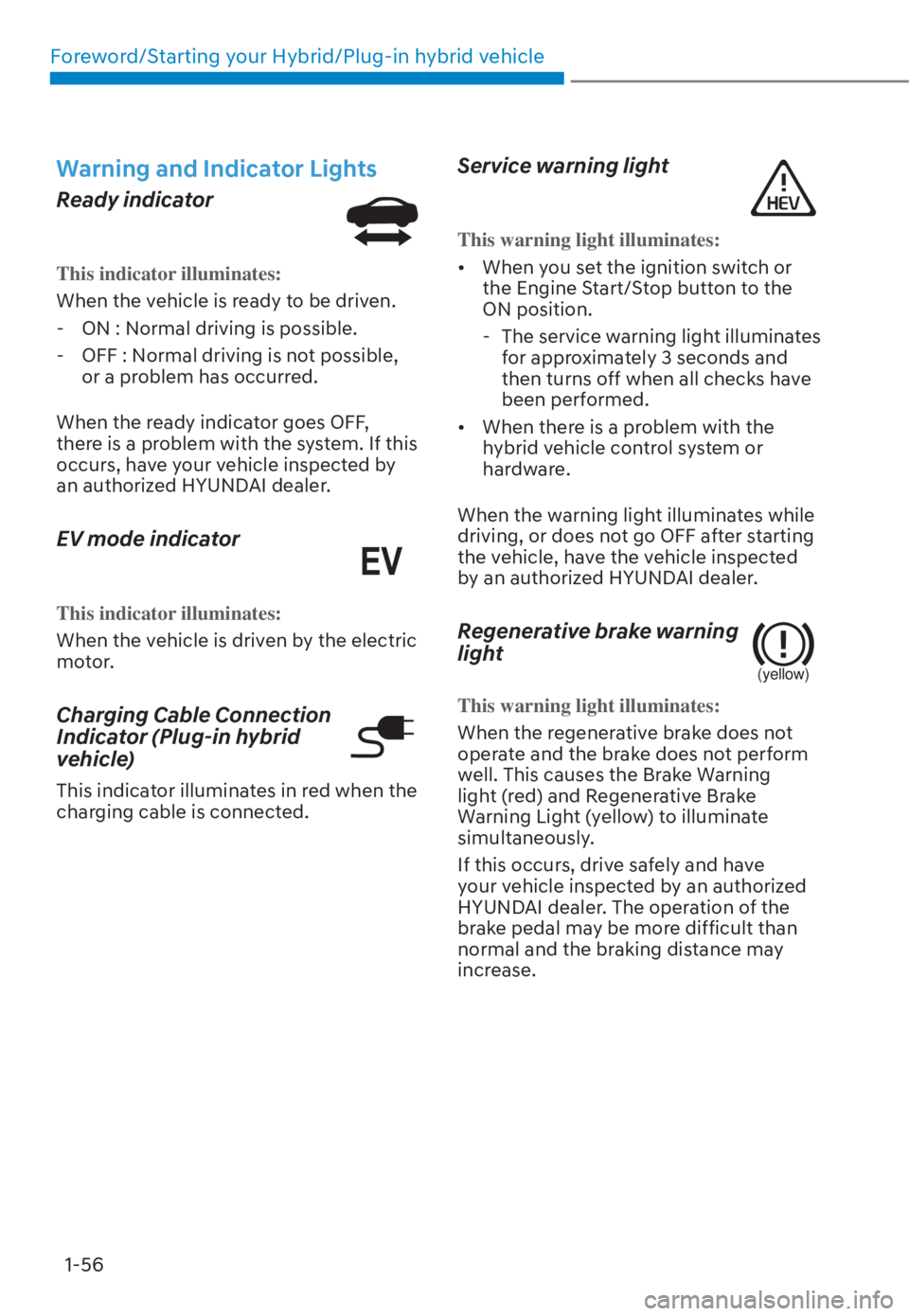

Warning and Indicator Lights
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
When the ready indicator goes OFF,
there is a problem with the system. If this
occurs, have your vehicle inspected by
an authorized HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
Charging Cable Connection
Indicator (Plug-in hybrid
vehicle)
This indicator illuminates in red when the
charging cable is connected.
Service warning light
This warning light illuminates:
• When you set the ignition switch or the E
ngine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.
• When there is a problem with the hybrid vehicle control system or
hardware.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have the vehicle inspected
by an authorized HYUNDAI dealer.
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
your vehicle inspected by an authorized
HYUNDAI dealer. The operation of the
brake pedal may be more difficult than
normal and the braking distance may
increase.

01

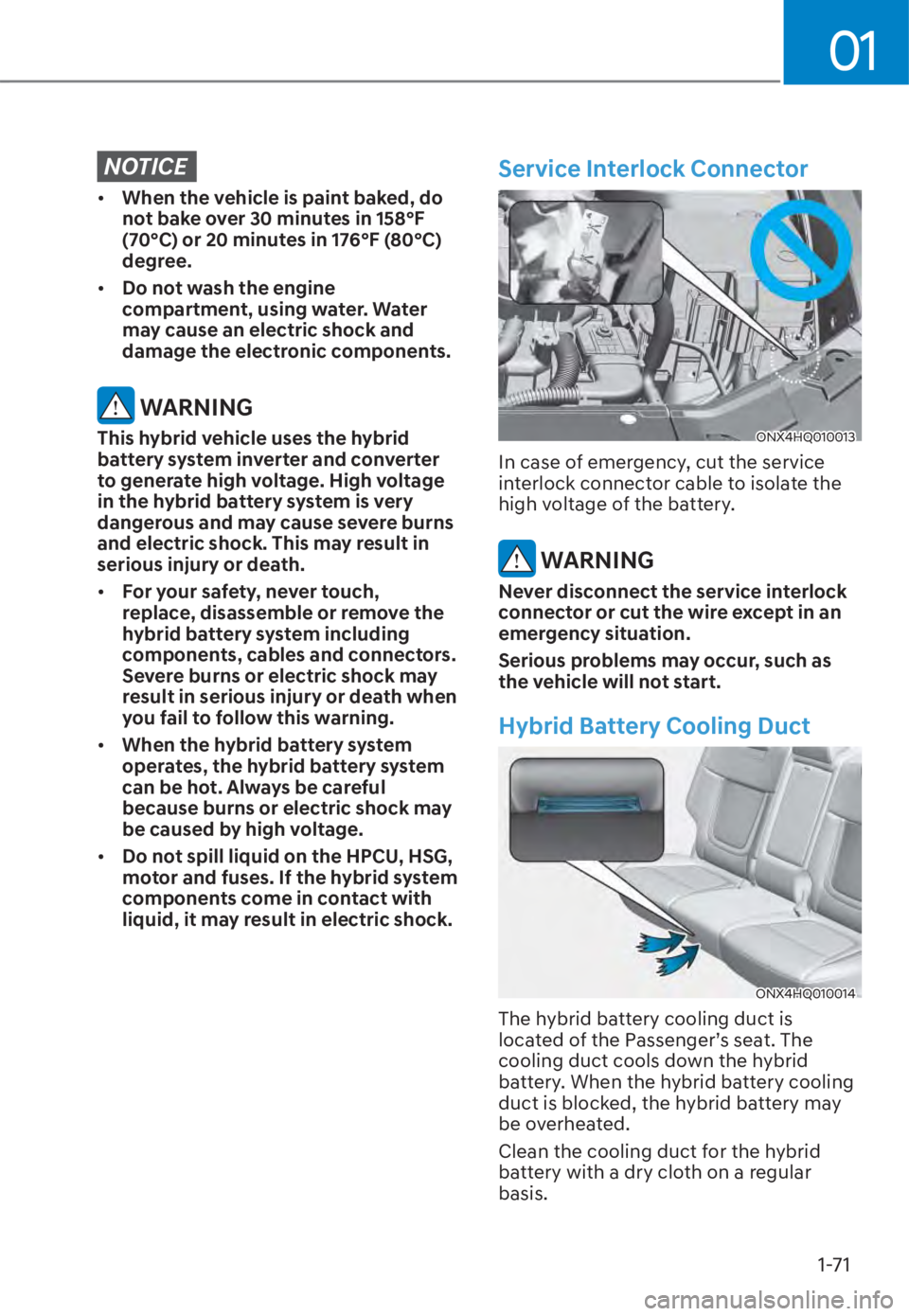

1-71
NOTICE
• When the vehicle is paint baked, do
not bake over 30 minutes in 158°F
(70°C) or 20 minutes in 176°F (80°C)
degree.
• Do not wash the engine
compartment, using water. Water
may cause an electric shock and
damage the electronic components.
WARNING
This hybrid vehicle uses the hybrid
battery system inverter and converter
to generate high voltage. High voltage
in the hybrid battery system is very
dangerous and may cause severe burns
and electric shock. This may result in
serious injury or death.
• For your safety, never touch,
replace, disassemble or remove the
hybrid battery system including
components, cables and connectors.
Severe burns or electric shock may
result in serious injury or death when
you fail to follow this warning.
• When the hybrid battery system
operates, the hybrid battery system
can be hot. Always be careful
because burns or electric shock may
be caused by high voltage.
• Do not spill liquid on the HPCU, HSG,
motor and fuses. If the hybrid system
components come in contact with
liquid, it may result in electric shock.
Service Interlock Connector
ONX4HQ010013ONX4HQ010013
In case of emergency, cut the service
interlock connector cable to isolate the
high voltage of the battery.
WARNING
Never disconnect the service interlock
connector or cut the wire except in an
emergency situation.
Serious problems may occur, such as
the vehicle will not start.
Hybrid Battery Cooling Duct
ONX4HQ010014ONX4HQ010014
The hybrid battery cooling duct is
located of the Passenger’s seat. The
cooling duct cools down the hybrid
battery. When the hybrid battery cooling
duct is blocked, the hybrid battery may
be overheated.
Clean the cooling duct for the hybrid
battery with a dry cloth on a regular
basis.

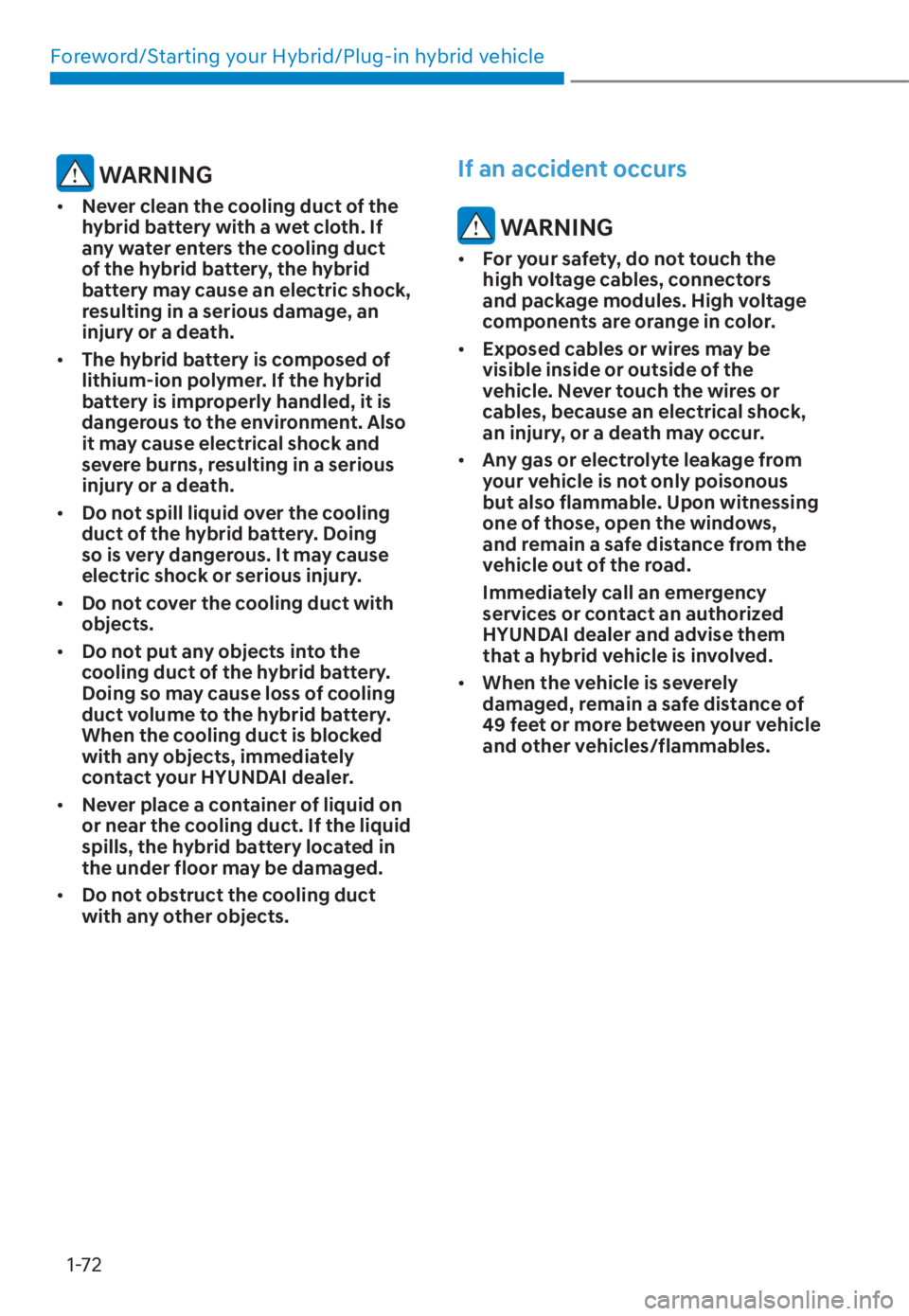

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-72
WARNING
• Never clean the cooling duct of the
hybrid battery with a wet cloth. If
any water enters the cooling duct
of the hybrid battery, the hybrid
battery may cause an electric shock,
resulting in a serious damage, an
injury or a death.
• The hybrid battery is composed of
lithium-ion polymer. If the hybrid
battery is improperly handled, it is
dangerous to the environment. Also
it may cause electrical shock and
severe burns, resulting in a serious
injury or a death.
• Do not spill liquid over the cooling
duct of the hybrid battery. Doing
so is very dangerous. It may cause
electric shock or serious injury.
• Do not cover the cooling duct with
objects.
• Do not put any objects into the
cooling duct of the hybrid battery.
Doing so may cause loss of cooling
duct volume to the hybrid battery.
When the cooling duct is blocked
with any objects, immediately
contact your HYUNDAI dealer.
• Never place a container of liquid on
or near the cooling duct. If the liquid
spills, the hybrid battery located in
the under floor may be damaged.
• Do not obstruct the cooling duct
with any other objects.
If an accident occurs
WARNING
• For your safety, do not touch the
high voltage cables, connectors
and package modules. High voltage
components are orange in color.
• Exposed cables or wires may be
visible inside or outside of the
vehicle. Never touch the wires or
cables, because an electrical shock,
an injury, or a death may occur.
• Any gas or electrolyte leakage from
your vehicle is not only poisonous
but also flammable. Upon witnessing
one of those, open the windows,
and remain a safe distance from the
vehicle out of the road.
Immediately call an emergency
services or contact an authorized
HYUNDAI dealer and advise them
that a hybrid vehicle is involved.
• When the vehicle is severely
damaged, remain a safe distance of
49 feet or more between your vehicle
and other vehicles/flammables.
