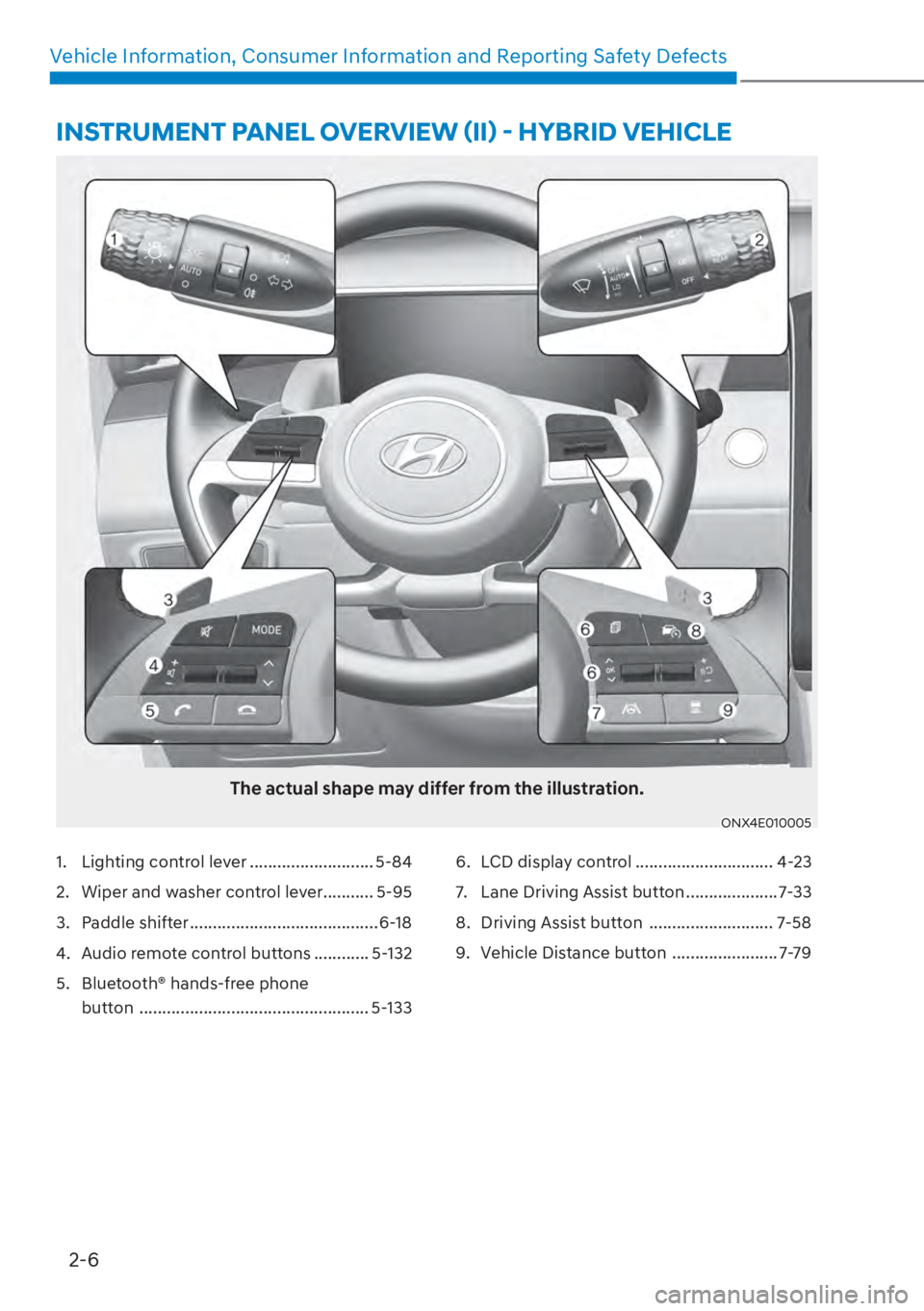

2023 HYUNDAI TUCSON HYBRID phone

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Lighting control lever ........................... 5-84
2. Wiper and washer control lever........... 5-95
3. Paddle shifter .........................................6-18
4. Audio remote control buttons ............ 5-132
5. Bluetooth® hands-free phone
button .................................................. 5-133 6. LCD display control .............................. 4-23
7. Lane Driving Assist button .................... 7-33
8. Driving Assist button ........................... 7-58
9. Vehicle Distance button ....................... 7-79
,167580(173$1(/29(59,(:

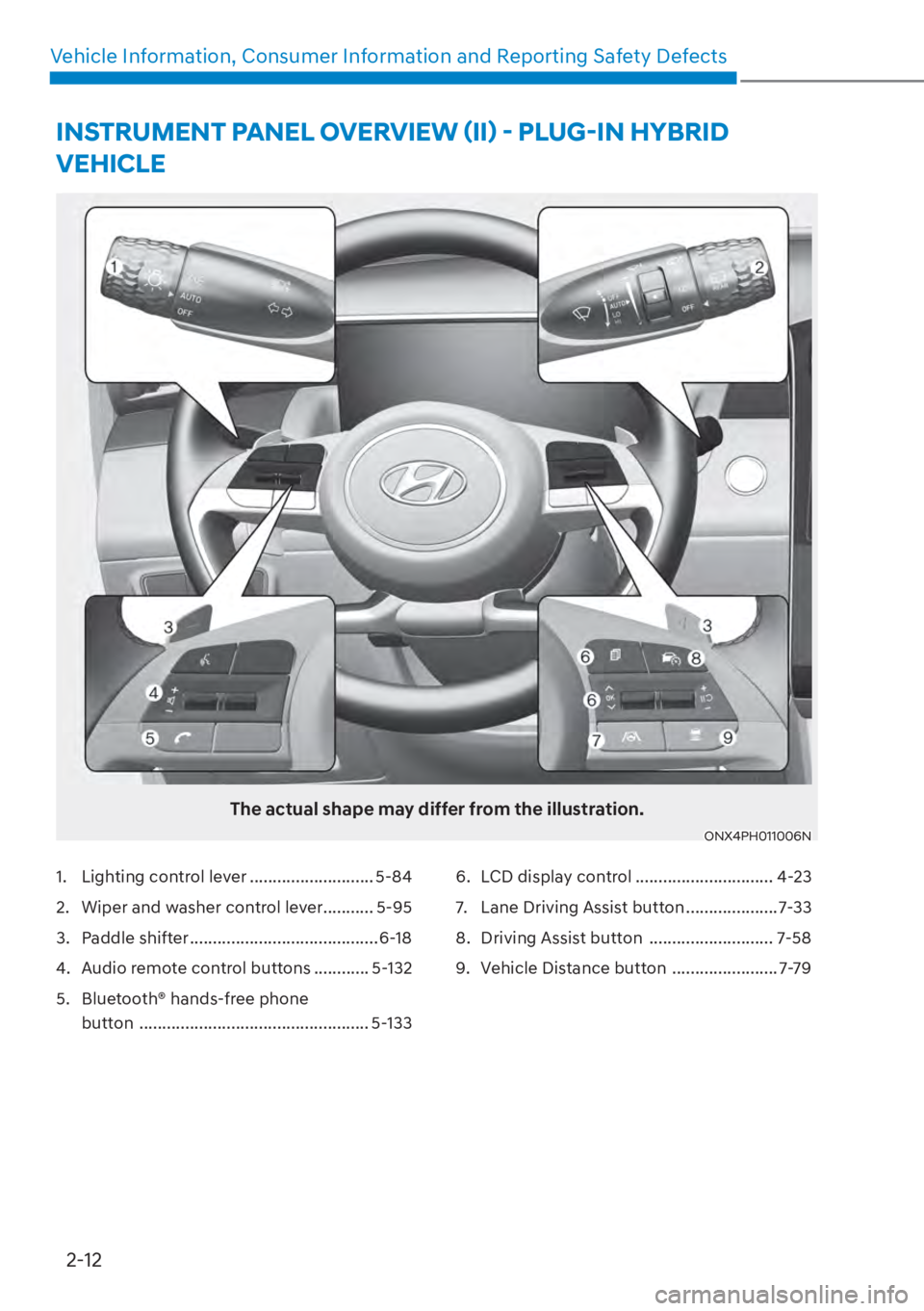

2-12
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Lighting control lever ........................... 5-84
2. Wiper and washer control lever........... 5-95
3. Paddle shifter .........................................6-18
4. Audio remote control buttons ............ 5-132
5. Bluetooth® hands-free phone
button .................................................. 5-133 6. LCD display control .............................. 4-23
7. Lane Driving Assist button .................... 7-33
8. Driving Assist button ........................... 7-58
9. Vehicle Distance button ....................... 7-79
,167580(173$1(/29(59,(:

Seats & Safety System3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones. Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:

[
Set up your mobile devices (for
example, MP3 players, phones,
navigation units, etc.) ONLY when
your vehicle is parked or safely
stopped.

[ ONLY use your mobile device when
allowed by laws and conditions
permit safe use. NEVER text or email
while driving. Most states have laws
prohibiting drivers from texting. Some
states and cities also prohibit drivers
from using handheld phones.

[ NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

Seats & Safety System3-46
WARNING
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:

[ Seat belts must be worn at all times
to help keep occupants positioned
properly.

[ Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.

[ Never lean against the door or center
console.

[ Do not allow the front passenger
to place their feet or legs on the
dashboard.

[ No objects (such as crash pad cover,
mobile phone holder, cup holder,
air fresheners or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
and the front passenger’s panel
above the glove box. Such objects
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.

[ Do not attach any objects on the
front windshield and inside mirror.
Side air bags
„Side air bag
ONX4030039
OTM030030
Your vehicle is equipped with a side air
bag in each front seat. The purpose of
the air bag is to provide the vehicle’s
driver and the front passenger with
additional protection than that offered by
the seat belt alone.
The side air bags are designed to deploy
during certain side impact collisions,
depending on the crash severity.
The side air bags on both sides of the
vehicle are designed to deploy when a
rollover is detected by a rollover sensor.
(if equipped with rollover sensor)
The side air bags are not designed to
deploy in all side impact or rollover
situations.

Instrument Cluster4-44
6. Convenience
Items Explanation
Seat Easy
Access

[ Off : The seat easy access function is deactivated.

[ Normal/Extended : When you turn off the engine, the driver's seat will
automatically move rearward short (Normal) or long (Extended) for you to
enter or exit the vehicle more comfortably.
For more details, refer to "Driver Position Memory System" in chapter 5.
Rear
Occupant AlertTo activate or deactivate the Rear Occupant Alert.
For more details, refer to "Rear Occupant Alert (ROA) system" in chapter
3.
Welcome
Mirror/Light

[ On door unlock : The outside rearview mirrors are unfolded and the
welcome light turns on automatically when the doors are unlocked.

[ On driver approach : The outside rearview mirrors are unfolded and the
welcome light turns on automatically when the vehicle is approached
with the smart key.
For more details, refer to ''Welcome System'' in chapter 5."
Wireless
Charging SystemTo activate or deactivate the wireless charging system in the front seat.
For more details, refer to "Wireless cellular phone charging system" in
chapter 5.
Auto Rear
Wiper (in R)To activate or deactivate the Auto Rear Wiper function.
If you move the gear from D to R when the front wiper operates, the rear
wiper will operate automatically. Then, if you move the gear from R to D,
the rear wiper will stop."
Advanced
Anti-TheftTo activate or deactivate the Advanced Anti-Theft function.
Service
Interval

[ Service Interval
To activate or deactivate the service interval function.

[ Adjust Interval
If the service interval menu is activated, you may adjust the time and
distance.

[ Reset
To reset the service interval.

à The information provided may differ depending on which functions are applicable
to your vehicle.

5
Climate Control Additional Features .............................................................5-116A/C Automatic Drying ........................................................................\
....................... 5-116
Auto Defogging System on Models with Automatic Temperature Control ........... 5-116
Auto Dehumidify ........................................................................\
............................... 5-117
Recirculating Air when Washer Fluid is Used .......................................................... 5-118
Sunroof Inside Air Recirculation ........................................................................\
....... 5-118
Automatic Controls for the Driver Based on Climate Control System Settings .... 5-118
Storage Compartment ........................................................................\
............5-119Center Console Storage ........................................................................\
.................... 5-119
Glove Box ........................................................................\
........................................... 5-119
Luggage Tray ........................................................................\
..................................... 5-119
Interior Features ........................................................................\
..................... 5-120Cup Holder ........................................................................\
........................................ 5-120
Sunvisor ..................................................................\
................................................... 5-121
Power Outlet ........................................................................\
...................................... 5-121
USB Charger ........................................................................\
......................................5-122
Wireless Smart Phone Charging System .................................................................5-123
Clock ..................................................................\
....................................................... 5-126
Coat Hook ........................................................................\
......................................... 5-126
Floor Mat Anchor(s) ........................................................................\
........................... 5-127
Luggage Net Holder ........................................................................\
.......................... 5-127
Cargo Security Screen ........................................................................\
..................... 5-128
Exterior Features ........................................................................\
....................5-130Roof Side Rails ........................................................................\
.................................. 5-130
Infotainment System ........................................................................\
..............5-131USB Port ........................................................................\
............................................. 5-131
Antenna ...................................................................\
...................................................5 -132
Steering Wheel Remote Controls ........................................................................\
.....5-132
Infotainment System ........................................................................\
........................ 5-133
Voice Recognition ........................................................................\
............................ 5-133
Bluetooth® Wireless Technology ........................................................................\
..... 5-134
5. Convenience Features

Convenience Features5-10

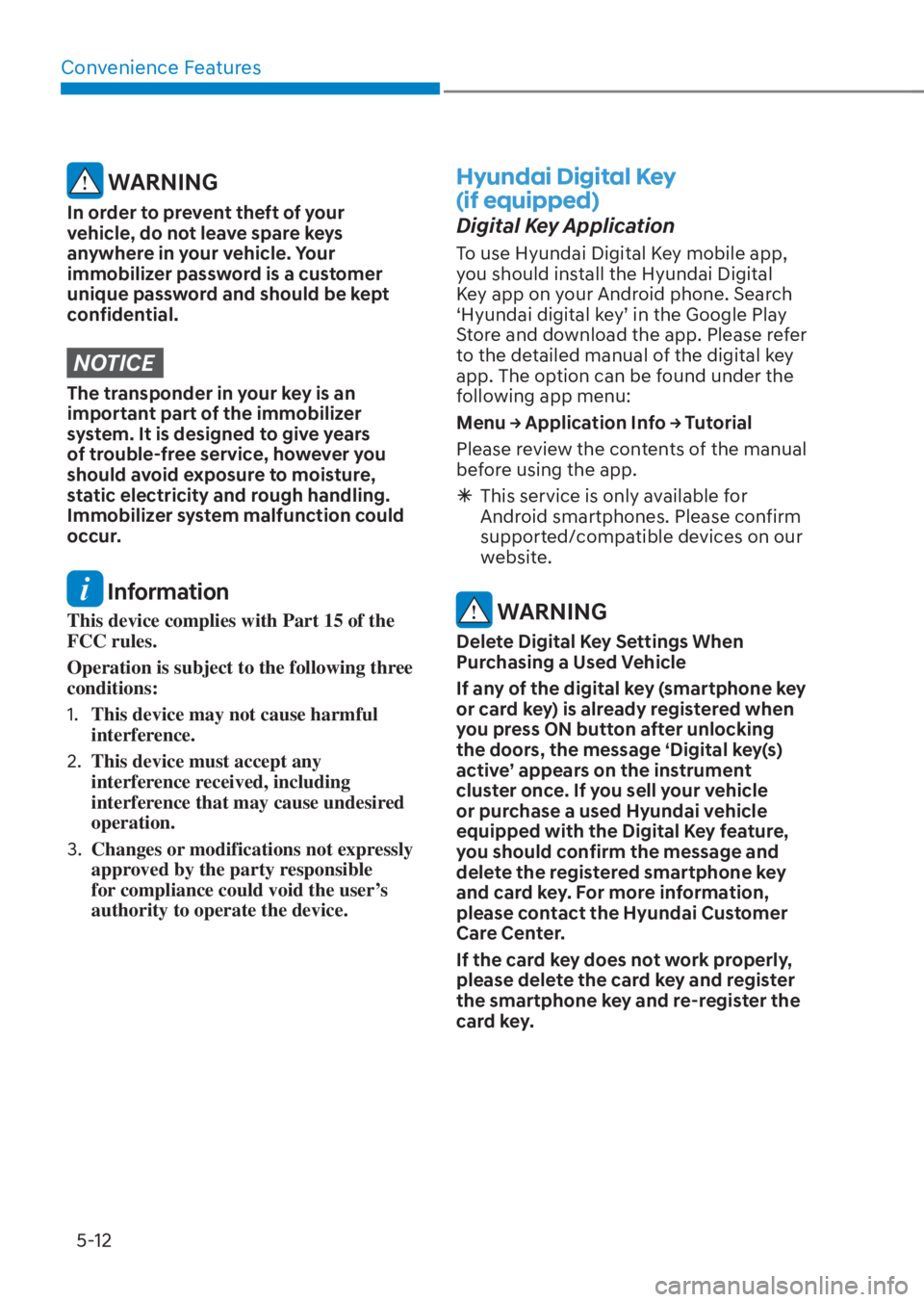

Loss of a smart key
A maximum of two smart keys can be
registered to a single vehicle. If you
happen to lose your smart key, it is
recommended that you immediately take
the vehicle and remaining key to your
authorized HYUNDAI dealer or tow the
vehicle, if necessary.
Smart key precautions
The smart key may not work if any of the
following occur:
• The smart key is close to a radio transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
• The smart key is near a mobile two way radio system or a mobile phone.
• Another vehicle’s smart key is being operated close to your vehicle.
• The vehicle battery is discharged.
If the smart key does not work correctly,
open and close the door with the
mechanical key. If you have a problem
with the smart key, it is recommended to
contact an authorized HYUNDAI dealer.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such
as making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping
the smart key and your mobile phone in
the same location such as pants or jacket
pocket in order to avoid interference
between the two devices.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
NOTICE
• Keep the smart key away from
electromagnetic materials that
blocks electromagnetic waves to the
key surface.
• Always keep the smart key with you
when you leave your vehicle. If the
smart key is left near or inside the
vehicle, the vehicle’s 12V battery may
be discharged.
• For example, if you park your vehicle
in a garage and leave it unlocked,
take the smart key out of the vehicle
to prevent the vehicle’s battery from
being discharged

Convenience Features5-12
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a customer
unique password and should be kept
confidential.
NOTICE
The transponder in your key is an
important part of the immobilizer
system. It is designed to give years
of trouble-free service, however you
should avoid exposure to moisture,
static electricity and rough handling.
Immobilizer system malfunction could
occur.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
Hyundai Digital Key
(if equipped)
Digital Key Application
To use Hyundai Digital Key mobile app,
you should install the Hyundai Digital
Key app on your Android phone. Search
‘Hyundai digital key’ in the Google Play
Store and download the app. Please refer
to the detailed manual of the digital key
app. The option can be found under the
following app menu:
Menu
Ÿ Application Info
Ÿ Tutorial
Please review the contents of the manual
before using the app.

à This service is only available for
Android smartphones. Please confirm
supported/compatible devices on our
website.
WARNING
Delete Digital Key Settings When
Purchasing a Used Vehicle
If any of the digital key (smartphone key
or card key) is already registered when
you press ON button after unlocking
the doors, the message ‘Digital key(s)
active’ appears on the instrument
cluster once. If you sell your vehicle
or purchase a used Hyundai vehicle
equipped with the Digital Key feature,
you should confirm the message and
delete the registered smartphone key
and card key. For more information,
please contact the Hyundai Customer
Care Center.
If the card key does not work properly,
please delete the card key and register
the smartphone key and re-register the
card key.
