2023 HYUNDAI TUCSON HYBRID phone

05
5-21
CAUTION
• Hyundai digital key app on the
smartphone and card key may not
work if any of the following occurs:
- Hyundai digital key app on the
smartphone is deleted. (Required
to reinstall the app)
- Account log in information of
Hyundai digital key app is expired.
(Required to re-log in)
- When you try to log in to another
smartphone instead of the
registered smartphone with same
user account.
- Smartphone rooting or app
hacking is detected.
- Smartphone battery or the vehicle
battery is discharged.
- Smartphone’s screen is off or
locked.
- NFC or Bluetooth is turned off on
the smartphone settings.
- Smartphone’s mobile network
setting is off or airplane mode is
activated.
- A credit card is overlapped in the
back of your smartphone or metal
or thick case is used.
- Use the card key with insert it
into the wallet or card holder or
overlapping with other cards.
- If you use a smart phone cover that
uses wireless communication or is
made of metal, the digital key NFC
function may not work properly.
Remove the smart phone cover
before using the digital key NFC
function.
• The vehicle may not be controlled by
the smartphone if any of the following
occurs:
-Basic and necessary functions of
the smartphone manufacturer are
operating. (General call, urgent
call, audio or NFC payment)
- Wireless earphone is operating.
(General call, urgent call or audio)
- The digital key app function such
as basic setting or app launching
is limited by prior policy according
to the manufacturer while using a
smartphone produced by domestic
and foreign manufactures.

à If you change the smartphone
number, you should modify the user
account information on the HYUNDAI
customer web site to use the digital
key app.

à If the vehicle owner changes
the smartphone device, the new
smartphone should be registered in
the car after deleting the registered
digital key(smartphone).

à If a sharer changes or reset the
smartphone, the key should be re-
shared from owner.

à Some of the old smartphone may
not work properly. Please check the
available smartphone models with
your dealer.

à NFC antenna position on the
smartphone can be confirmed
on each smartphone’s manual or
contact to customer service center
of the smartphone manufacture.

Convenience Features5-22
Digital Key Card Key (Optional
feature)
ODN8A059243ODN8A059243
ODN8A059131ODN8A059131
Digital key (Card key) save
1. Install Hyundai digital key app inmain user’
s smartphone and registerthe
digital key (smartphone). Pleaserefer
to the registration method of
thedigital key (smartphone).
2. Using the [Pair Card Key] menu onthe digital key application,
you canactivate the Card Key
registrationmode.

à NFC authentication : enter the NFC
authentication menu and contact
the smartphone on the outside door
handle.

à Bluetooth authentication : enter the
Bluetooth authentication menu and
press the [OK] button for activation.
If you activate the registration mode,
you should complete the Card saving
process within 5 minutes.
à If you have not registered the digital
key (smartphone), please register the
digital key (card key) with two smart
keys.
3. Place the NFC card key onto theinterior authentication pad
(wirelesscharger). The saving process
willbegin automatically.
4. Register the NFC card key on theUser’s Settings menu after turning
onthe vehicle.

à With Navigation screen : From
theinfotainment screen menu, go
to[Setup] - [Vehicle] - [Digital Key]
-[Card Key] then select the [Save]
fromsubmenu.

à Without navigation screen :
Fromcluster menu, go to [Digital Key]
-[Card Key] and select [Save].The
[Save] button will be disabled ifthe
digital key (Card key) is alreadysaved.
Please refer to “Digital Key Delete”
inthis manual and follow the digital
keydelete procedure in your car
beforeDigital key save.
5. If the key is enrolled, the messagewill be displayed on the
infotainmentscreen or instrument
cluster.
• Once the card key registration mode is activated, the process should be
completed within 5 minutes. After
then, you should reactivate once
again for registration.
• For the digital key(card key) saving, the smart key(fob) must be exist inside
of vehicle.
• Once a Card key is registered, it cannot be reuse onto another vehicle.

05
5-25
Start-up with Card key
After placing your registered card key
ont
o the interior authentication pad
(wireless charger), step on the brake and
press the Engine Start/Stop button.
WARNING
• If you do not place the digital key
(card key) onto the center of the
interior authentication pad (wireless
charger) exactly, the card key may
not be recognized. If the engine is
not turned on, adjust and place the
key again.
• If you overlap and use the key
with NFC-enabled cards such as
transportation card or credit card,
the card key may not be recognized.
• If the digital key (card key) does not
work, please detach the key around
4 inches (0.1 m) from the handle
authentication pad and retry to
contact.
• The card key may be damaged due to
impact. It would not work properly if
the key is damaged. You should buy a
new card and register again.
For more information, refer to the
Engine Start/Stop button in chapter 6.
„„Type AType A
ODN8A059133ODN8A059133
„„Type BType B
ODN8A059247ODN8A059247
Enabling or Disabling the Digital Key
Feature
Enabling or Disabling the Digital Key
F
eature If you want to temporarily
disable the digital key feature
(smarphone app and NFC card key), you
can do so in the user settings menu.

à With Navigation screen :
From the infotainment screen menu,
go to [Setup] - [Vehicle] - [Digital Key]
- [Enable Digital Keys] (deselect)

à Without navigation screen :
From cluster menu, go to [Digital Key]
- [Enable Digital Keys] (deselect)
Information
In order to disable the digital key feature
in the user settings menu, you must have
the smart key in your possession inside the
car.

Convenience Features5-26
CAUTION
If you uncheck Enable digital keys, it is
impossible to lock or unlock the doors
or start up the vehicle with digital keys
such as smartphone and card key. If
you check Enable digital keys again, the
registered digital keys(smartphone and
card key) are available. Even though
you stop the digital key function, the
registered keys (smartphone and card
key) are not deleted.
Personalized profile and vehicle
settings
You have the ability to set the registered
digital key with one of two personalized
profiles. Then, when you use the digital
card key or the Digital Key App, the
vehicle will be set to the user-defined
personalized profile (which includes
such items as driver settings, audio
preferences, etc.).
There are two profile connections and
personalization settings available for
Driver 1 and Driver 2. Connecting a Profile to Your Digital Key
App
Linking a Profile
1. Select

Setup
Ÿ User Profile
Ÿ Profile
Settings
Ÿ Link Digital Key on the
infotainment screen menu.
2. Make sure your smartphone is unlocked. Place your smartphone on
the wireless charger authentication
pad. Once your smartphone is
detected the profile link process will
be enabled.
3. A pop-up message will be displayed on the screen requesting if you would
like to link the user profile to your
Digital Key smartphone.
4. If you select Link, the digital key smartphone and the user profile will
be linked.
5. A message will be displayed confirming the link process.
Unlinking Your Profile
1. Select Digital Key Information from the Vehicle Settings menu on the
infotainment screen. If a profile is
linked, you’ll see an option to unlink
your profile.
Information
If you connect both Driver 1 and Driver 2
with a single smartphone, the smartphone
digital key always works as Driver 1.
If you unlink the Driver 1, personalization
function will operate as Driver 2.

05
5-27

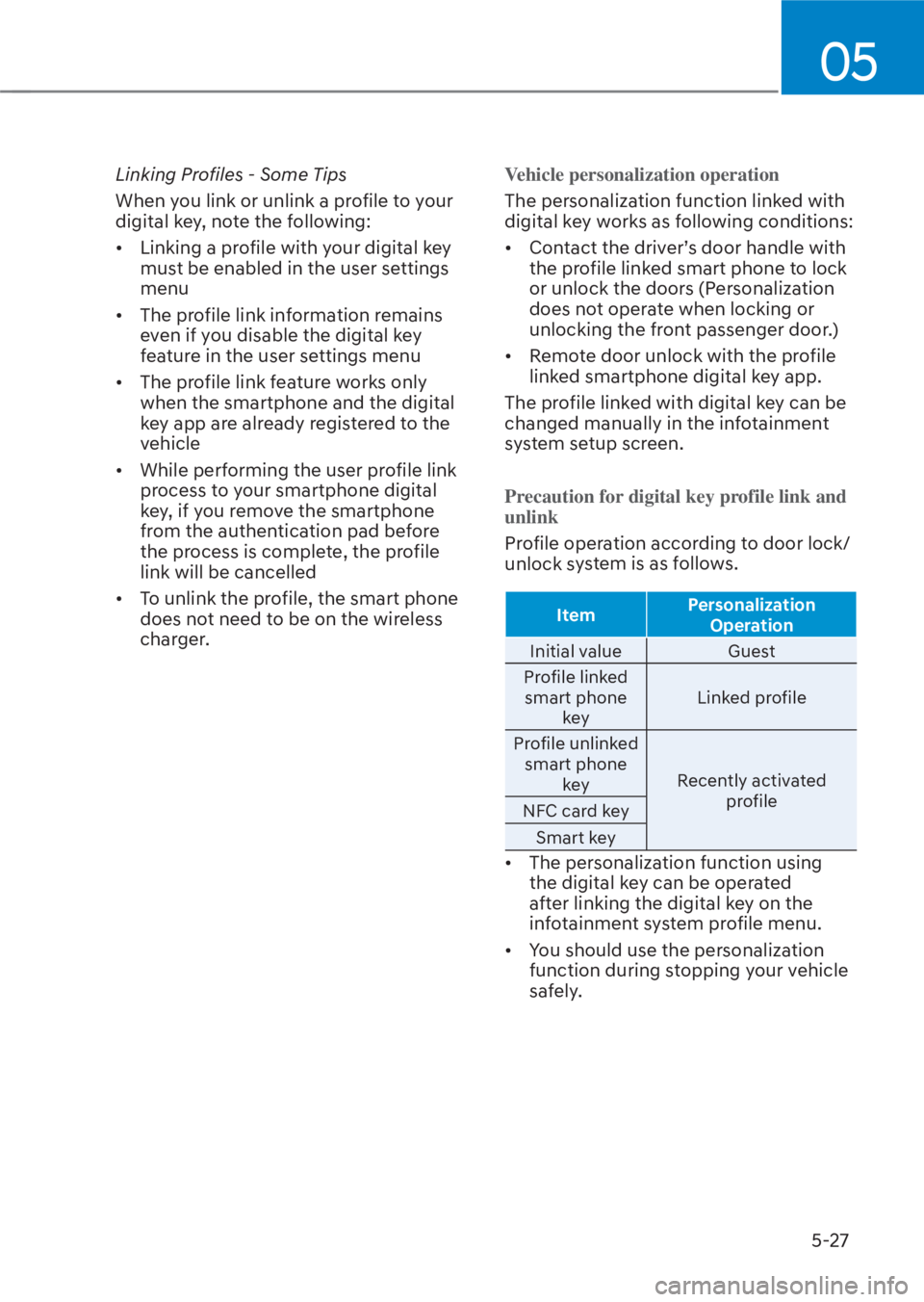

Linking Profiles - Some Tips
When you link or unlink a profile to your
digital key, note the following:
• Linking a profile with your digital key must be enabled in the user settings
menu
• The profile link information remains even if you disable the digital key
feature in the user settings menu
• The profile link feature works only when the smartphone and the digital
key app are already registered to the
vehicle
• While performing the user profile link process to your smartphone digital
key, if you remove the smartphone
from the authentication pad before
the process is complete, the profile
link will be cancelled
• To unlink the profile, the smart phone does not need to be on the wireless
charger. Vehicle personalization operation
The personalization function linked with
digital k

ey works as following conditions:
• Contact the driver’s door handle with the profile linked smart phone to lock
or unlock the doors (Personalization
does not operate when locking or
unlocking the front passenger door.)
• Remote door unlock with the profile linked smartphone digital key app.
The profile linked with digital key can be
changed manually in the infotainment
system setup screen.
Precaution for digital key profile link and
unlink
Profile operation according to door lock/
unlock s
ystem is as follows.
Item Personalization
Operation
Initial value Guest
Pr
ofile linked
smart phone
key Linked profile
Profile unlinked smart phone key Recently activated
profile
NFC card key
Smart key
• The personalization function using the digital key can be operated
after linking the digital key on the
infotainment system profile menu.
• You should use the personalization function during stopping your vehicle
safely.

Convenience Features5-28
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows.
System Personalization Item
USM Lamp
Blink number of one-touch signal lamps
Cluster Information display on the cluster, Voice volume,
Welcome sound
Seat/Mirror Seat position, O/S mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock, Two Press Unlock
Infotainment system Navigation
Preferred volume of the navigation system, Recent
destination
User preset My menu list settings, Radio preset Phone
connectivity Bluetooth preferential connect
CarPlay/Android Auto On/Off
Air conditioning Operating
condition Latest operation setup of the following functions:
Temperature, AUTO, air flow direction, air volume,
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
For more information of personalization, refer to the infotainment system manual.
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry around the digital key all the time.

Convenience Features5-46
1. Programming HomeLink®
The following steps show how to
program HomeLink. If you have any
questions or are having difficulty
programming your HomeLink buttons,
refer to the HomeLink website or call the
HomeLink customer support toll-free
number. Do this before going back to the
dealer who sold you the car.
• Visit the HomeLink website at: www. homelink.com. Then at the top of the
page, choose your vehicle make. Then
watch the You Tube video, and/or
access additional website information.
• If you choose to access the website via your cell phone, scan the QR code.
• Or call HomeLink customer support at 1-800-355-3515 (Please have the
vehicle make/model and the opener
device make/model readily available.)
1) Programming Preparation
ODN8H050340NODN8H050340N
1. When programming a garage door opener, it is advised to park the
vehicle outside of the garage.
2. It is recommended that a new battery be placed in the handheld transmitter
of the device being programmed to
HomeLink for quicker training and
accurate transmission of the radio-
frequency signal.
3. Place the ignition switch to the ACC (Accessory) position for programming
of HomeLink.
2) Programming a New HomeLink®
ODN8H050136N ODN8H050136N
1. Press and release the HomeLink button (1), (2) or (3), you would like
to program. The HomeLink indicator
light (7) will flash orange slowly (if
not, perform the steps of “Erasing
HomeLink Buttons” section, and start
over).

Convenience Features5-76
Deactivating smart liftgate
„„Type AType A„„Type BType B
OTMA050009OTMA050009OTMA050010OTMA050010
1. Door lock
2. Door unlock
3. Liftgate open/close (Power liftgate)
If you press any button on the smart key
during the Detect and Alert stage, the
smart liftgate will be deactivated.
Make sure to be aware of how to
deactivate the smart liftgate for
emergency situations.
• If you press the door unlock button (2), the smart liftgate will be
deactivated temporarily. But, if you do
not open any door for 30 seconds, the
smart liftgate will be activated again.
• If you press the liftgate open button (3) for more than 1 second, the liftgate
opens.
• The smart liftgate will still be activated if you press the door lock button (1) or
liftgate open/close button (3) on the
smart key as long as the smart liftgate
is not already in the Detect and Alert
stage.
• In case you have deactivated the smart liftgate by pressing the smart
key button and opened a door, the
smart liftgate can be activated again
by closing and locking all doors.
Detecting area
ONX4050032ONX4050032
• The smart liftgate detecting area extends approximately 20-40 in. (50-
100 cm) behind the vehicle. If you are
positioned in the detecting area and
are carrying the smart key, the hazard
warning lights will blink and the chime
will sound for about 3 seconds to alert
you that the liftgate will open.
• The alert stops once the smart key is moved outside of the detecting area
within the 3 second period.
Information
• Smart liftgate may not operate
properly if any of the following occur:
- The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
- The smart key is near a mobile two
way radio system or a mobile phone.
- Another vehicle’s smart key is being
operated close to your vehicle.
• Smart liftgate detecting area may
change when:
- The vehicle is parked on an incline
or slope.
- One side of the vehicle is raised or
lowered relative to the opposite side.
