2023 HYUNDAI TUCSON HYBRID fuse box

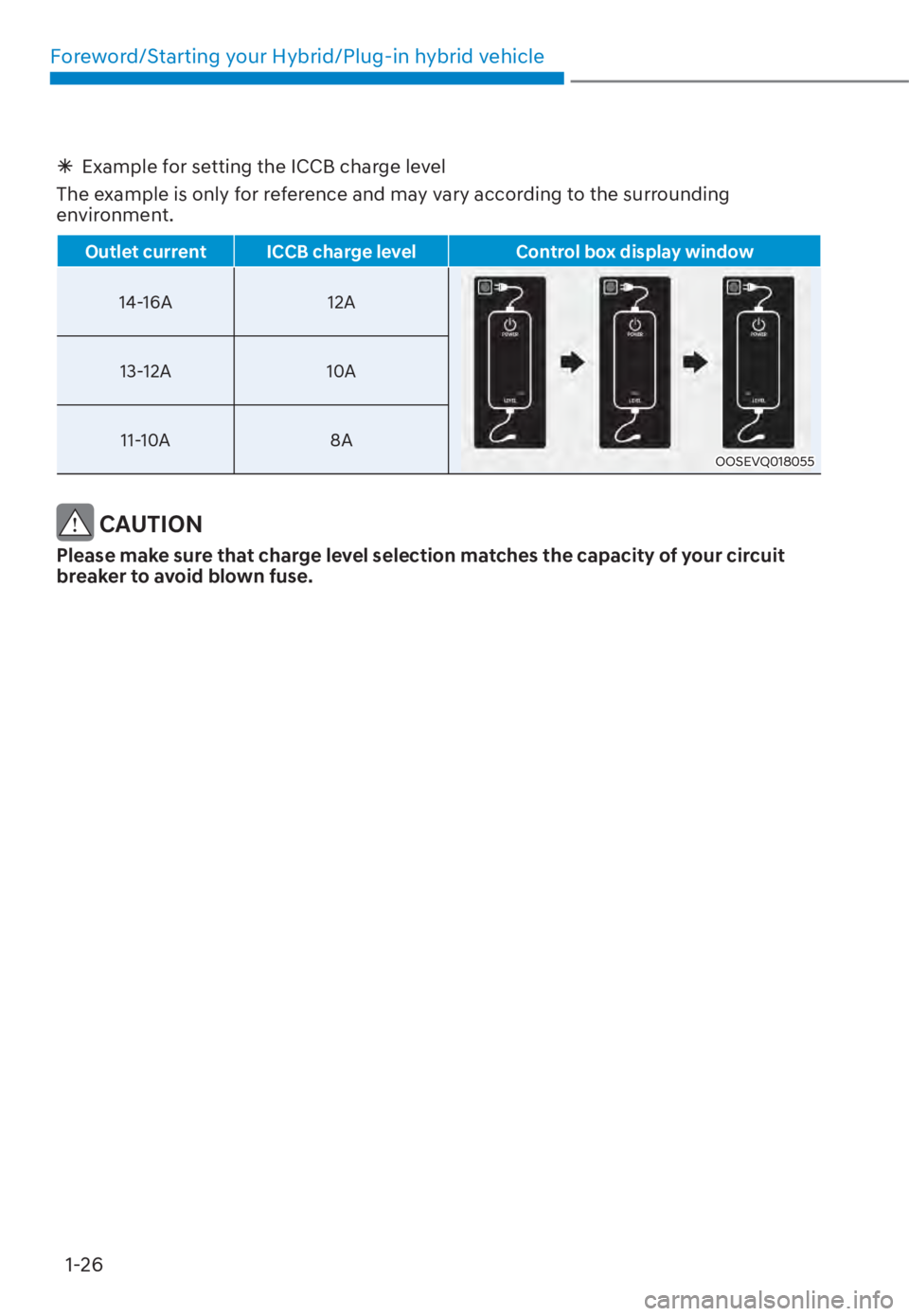

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-26

à Example for setting the ICCB charge level
The example is only for reference and may vary according to the surrounding
environment.
Outlet current ICCB charge level Control box display window
14-16A 12A
OOSEVQ018055OOSEVQ018055
13-12A10A
11-10A 8A
CAUTION
Please make sure that charge level selection matches the capacity of your circuit
breaker to avoid blown fuse.

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
ONX4H010003N
1. Inside door handle ................................. 5-31
2. Power window switches .......................5-57
3. Power window lock switch ................. 5-58
4. Side view mirror folding switch ........... 5-55
5. Side view mirror control switch ........... 5-55
6. Central door lock switch ....................... 5-31
7. Instrument panel illumination control
switch ...................................................... 4-5
8. Power Liftgate button ........................... 5-71 9. ESC OFF button .................................... 6-28
10. 12V battery reset switch ......................... 8-5
11. Steering wheel ...................................... 5-40
12. Steering wheel tilt/telescopic lever ..... 5-41
13. Fuse box ............................................... 9-50
14. Hood release lever ................................ 5-66
15. Seat ......................................................... 3-6
,17(5,2529(59,(:

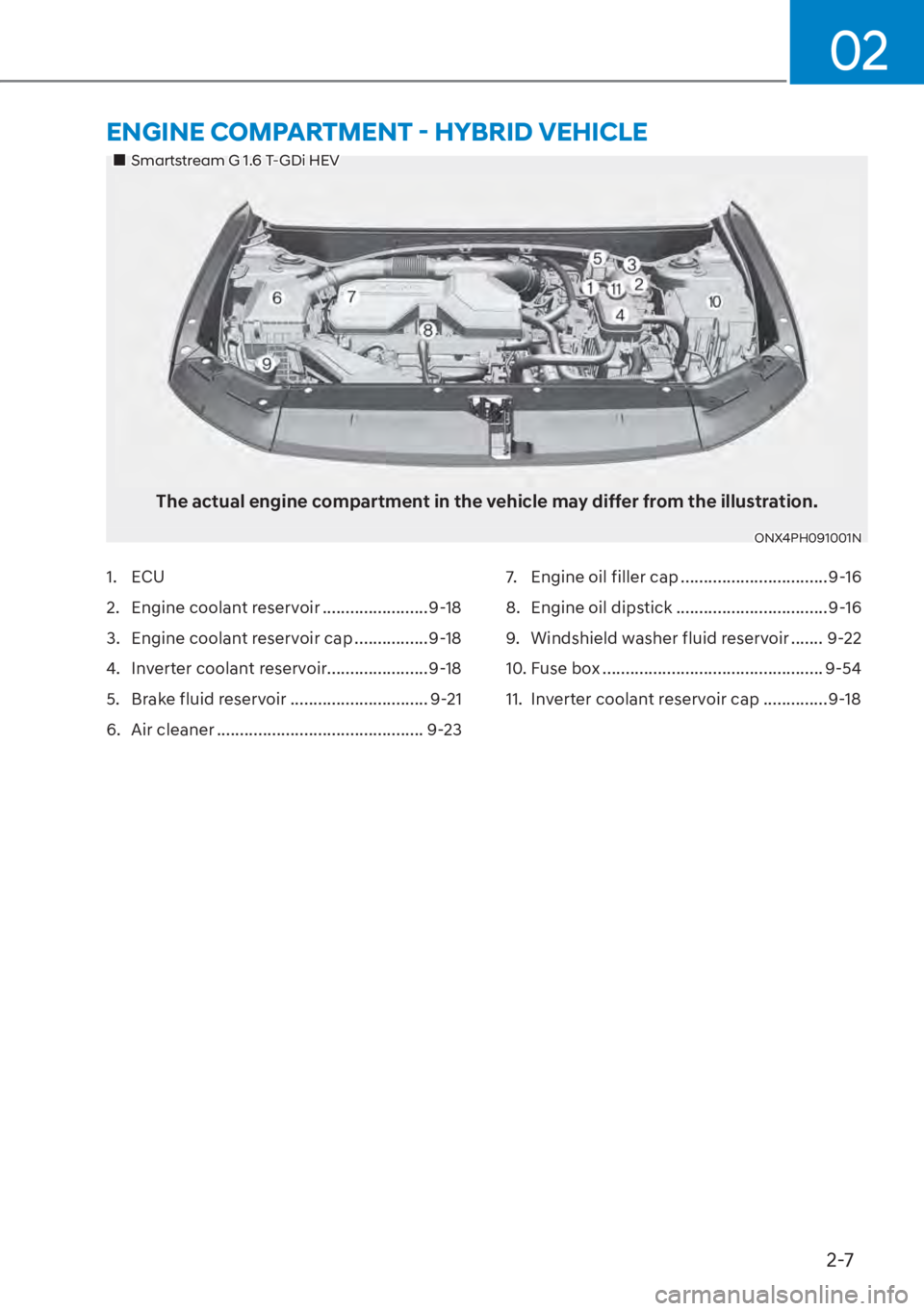

2-7
02
„Smartstream G 1.6 T-GDi HEV
The actual engine compartment in the vehicle may differ from the illustration.
ONX4PH091001N
1. ECU
2. Engine coolant reservoir .......................9-18
3. Engine coolant reservoir cap ................9-18
4. Inverter coolant reservoir......................9-18
5. Brake fluid reservoir .............................. 9-21
6. Air cleaner ............................................. 9-237. Engine oil filler cap ................................ 9-16
8. Engine oil dipstick ................................. 9-16
9. Windshield washer fluid reservoir ....... 9-22
10. Fuse box ................................................ 9-54
11. Inverter coolant reservoir cap ..............9-18
(1*,1(&203$570(17

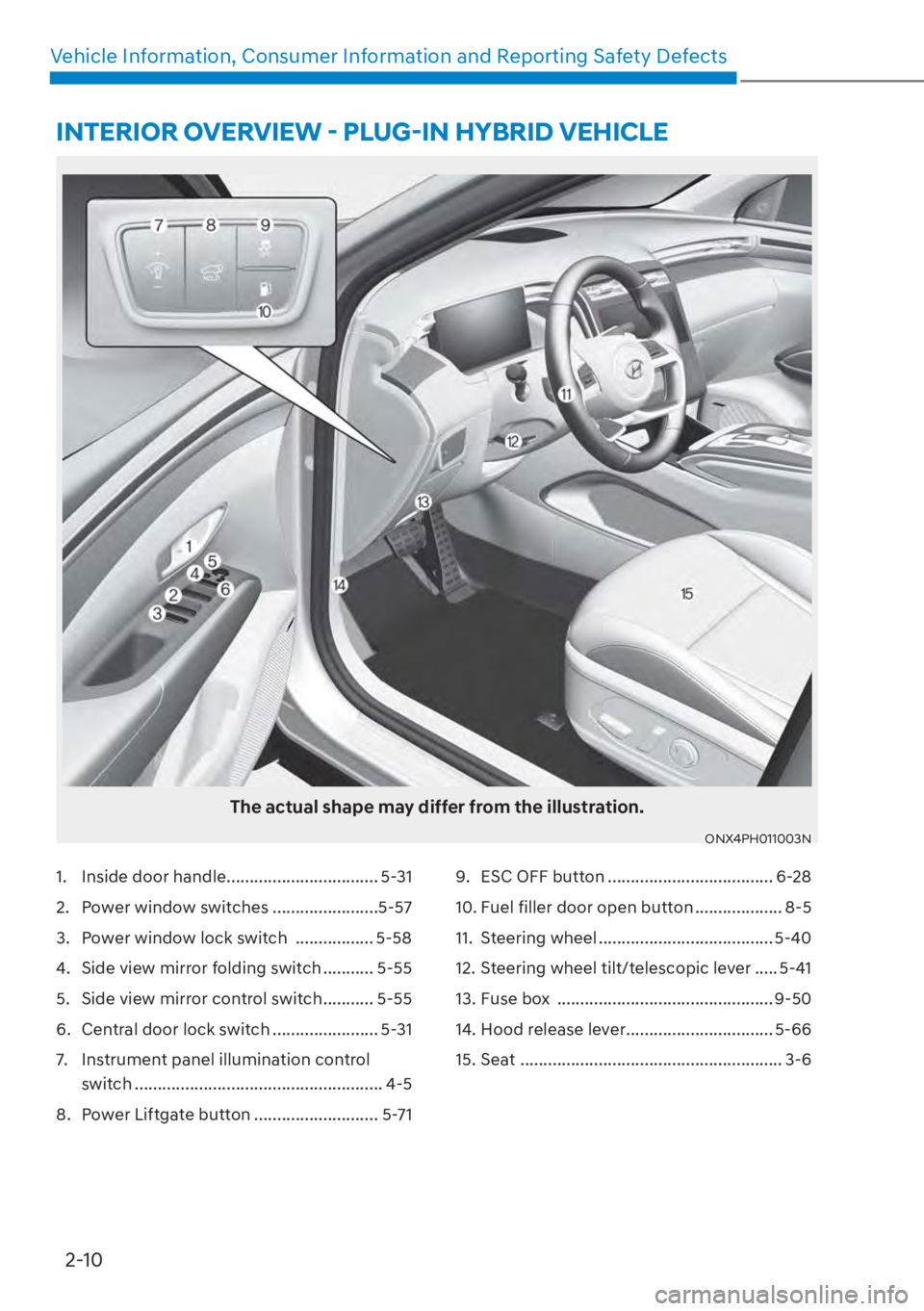

2-10
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Inside door handle ................................. 5-31
2. Power window switches .......................5-57
3. Power window lock switch ................. 5-58
4. Side view mirror folding switch ........... 5-55
5. Side view mirror control switch ........... 5-55
6. Central door lock switch ....................... 5-31
7. Instrument panel illumination control
switch ...................................................... 4-5
8. Power Liftgate button ........................... 5-71 9. ESC OFF button .................................... 6-28
10. Fuel filler door open button ................... 8-5
11. Steering wheel ...................................... 5-40
12. Steering wheel tilt/telescopic lever ..... 5-41
13. Fuse box ............................................... 9-50
14. Hood release lever ................................ 5-66
15. Seat ......................................................... 3-6
,17(5,2529(59,(:

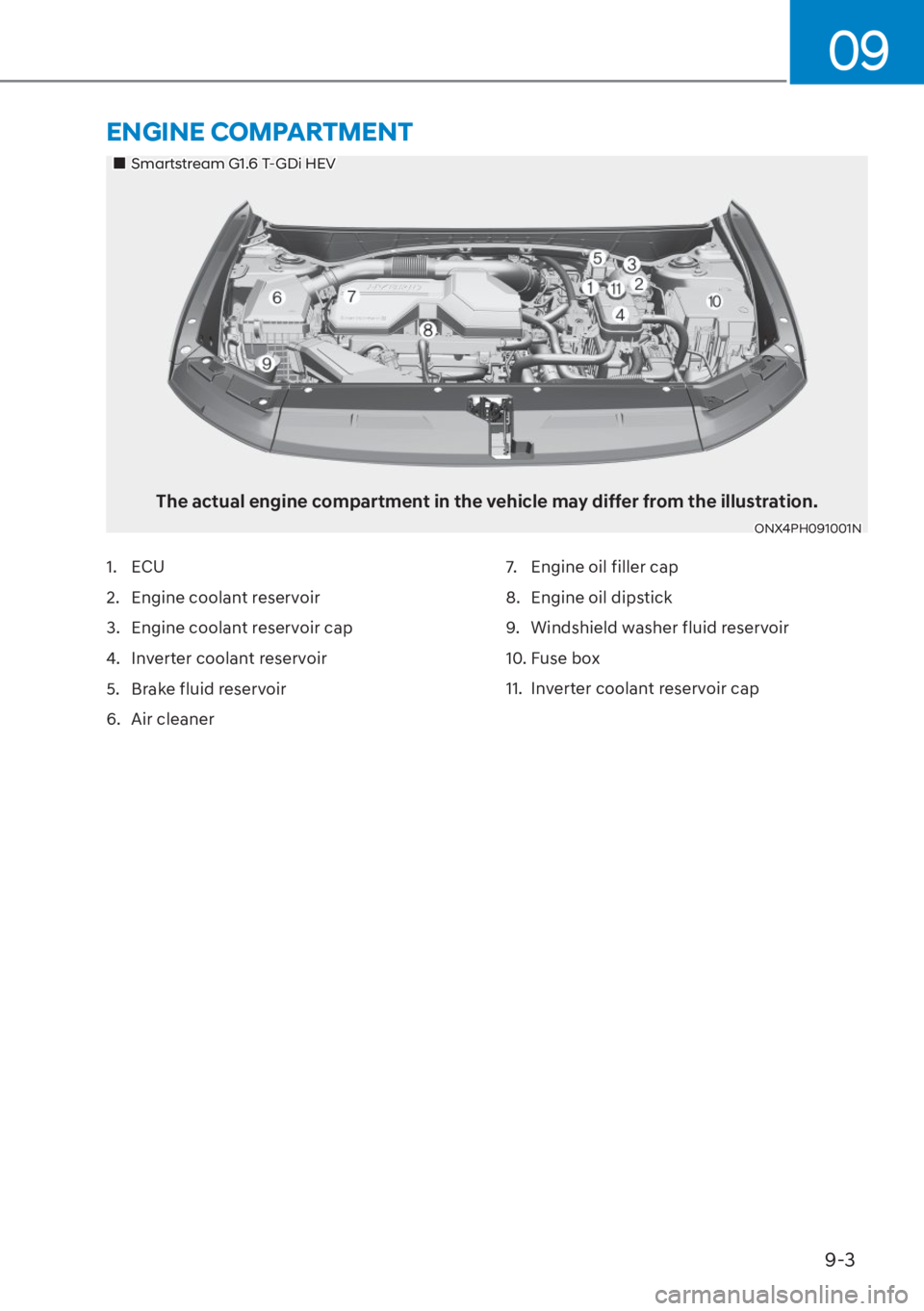

9-3
09
„„Smartstream G1.6 T-GDi HEVSmartstream G1.6 T-GDi HEV
The actual engine compartment in the vehicle may differ from the illustration.
ONX4PH091001NONX4PH091001N
1. ECU
2. Engine coolant reservoir
3. Engine coolant reservoir cap
4. Inverter coolant reservoir
5. Brake fluid reservoir
6. Air cleaner7. Engine oil filler cap
8. Engine oil dipstick
9. Windshield washer fluid reservoir
10. Fuse box
11. Inverter coolant reservoir cap
ENGINE COMPARTMENT

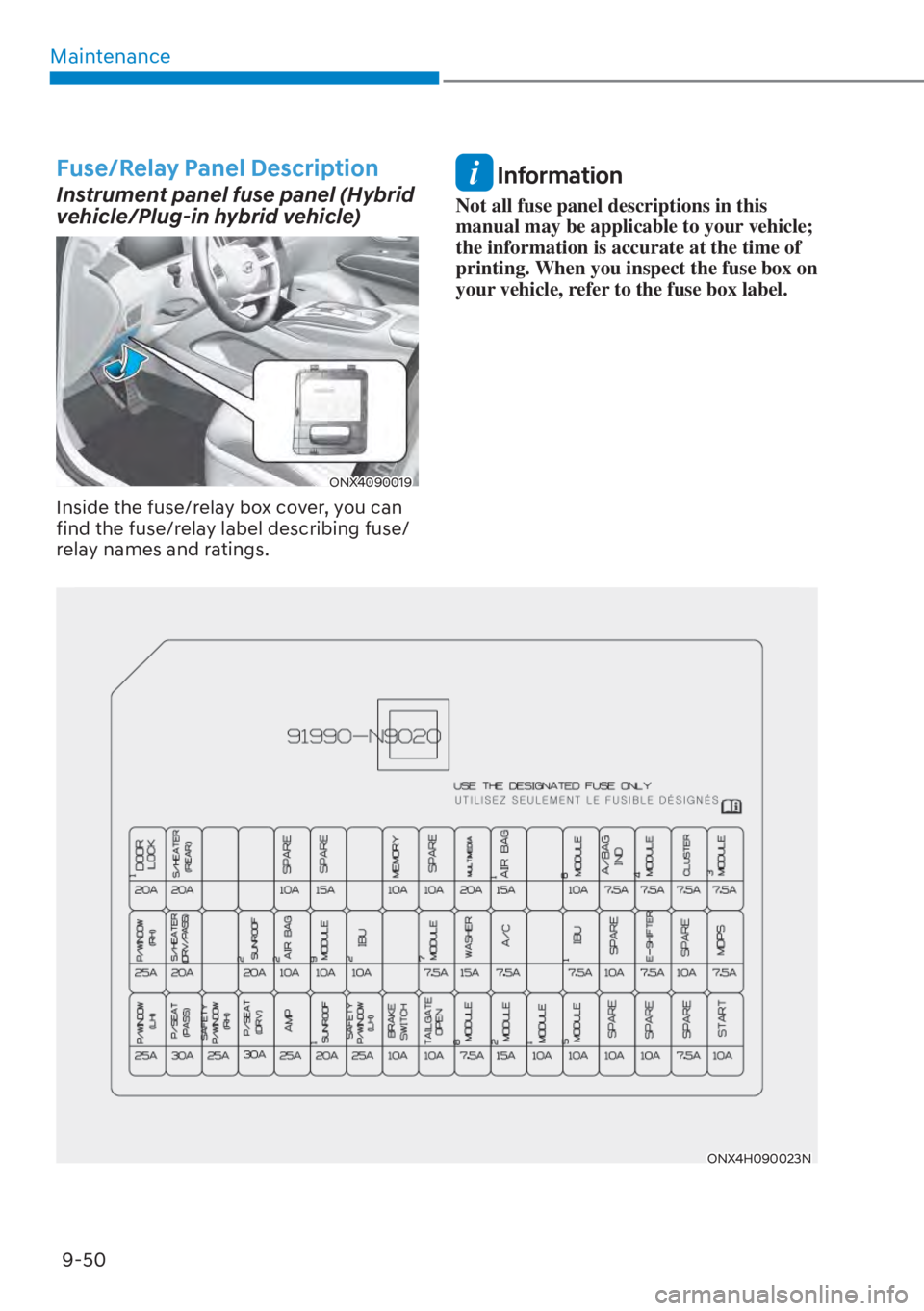

Maintenance9-50
Fuse/Relay Panel Description
Instrument panel fuse panel (Hybrid
vehicle/Plug-in hybrid vehicle)
ONX4090019ONX4090019
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
ONX4H090023NONX4H090023N

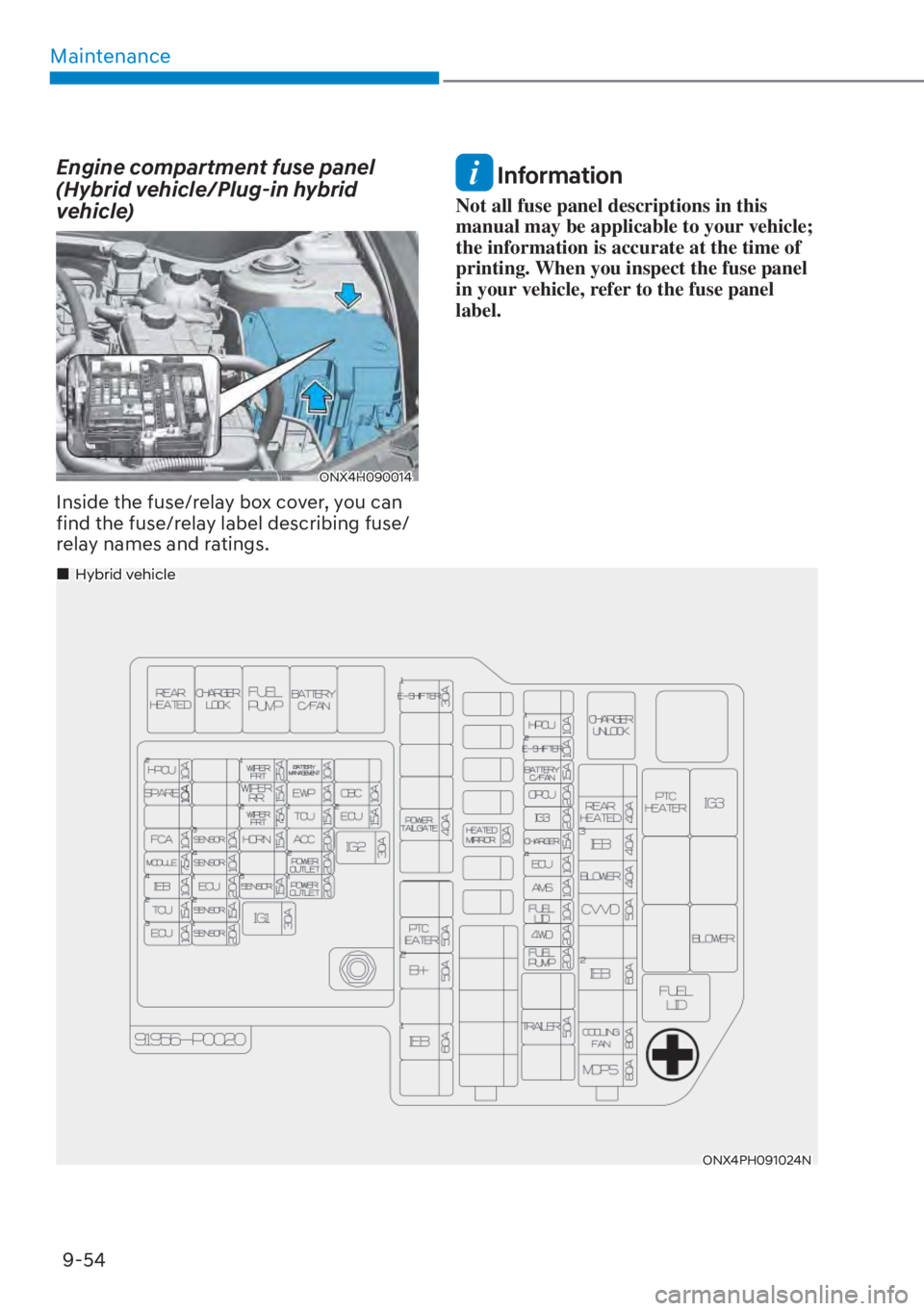

Maintenance9-54
Engine compartment fuse panel
(Hybrid vehicle/Plug-in hybrid
vehicle)
ONX4H090014ONX4H090014
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
„„Hybrid vehicleHybrid vehicle
ONX4PH091024NONX4PH091024N
