2023 HYUNDAI TUCSON HYBRID service indicator

1
Vehicle Data Collection and Event Data Recorders ........................................ 1-8
HEV (Hybrid Electric Vehicle) System .............................................................. 1-9
PHEV (Plug-in Hybrid Electric Vehicle) System ............................................. 1-10
Charging the Plug-in Hybrid Vehicle ............................................................... 1-11
Charging Information ........................................................................\
........................... 1-11
Charging Time ........................................................................\
...................................... 1-11
Charging Types ........................................................................\
.................................... 1-12
Charging Status ........................................................................\
................................... 1-13
Scheduled Charging........................................................................\
............................ 1-14
Charging Connector Lock ........................................................................\
................... 1-15
Charging Precautions ..............................................................\
................................... 1-16
Electric Charging Label ........................................................................\
....................... 1-18
AC Charge ........................................................................\
............................................ 1-19
Trickle Charge (Type A) ........................................................................\
.......................1-24
Trickle Charge (Type B) ........................................................................\
...................... 1-36
Action to be Taken when Charging Stops Abruptly ................................................. 1-49
Driving the Hybrid Vehicle ........................................................................\
......1-50Starting the Vehicle ........................................................................\
............................ 1-50
Special Features ........................................................................\
................................. 1-50
Hybrid System Gauge ........................................................................\
........................ 1-52
Plug-in Hybrid Mode (Plug-in hybrid vehicle) .......................................................... 1-53
Aux. Battery Saver+ (Plug-in hybrid vehicle) ............................................................ 1-54
Warning and Indicator Lights ........................................................................\
............ 1-56
LCD Display Messages ........................................................................\
........................1-57
Energy Flow ........................................................................\
........................................ 1-65
Hybrid Driving System ........................................................................\
.............1-68e-Handling (Electrically Assisted Handling Performance)/e-EHA (Electrically
Evasive Handling Assist) ........................................................................\
.................... 1-68
Safety Precautions for Hybrid System ............................................................1-69Hybrid Vehicle Components ........................................................................\
............. 1-69
Service Interlock Connector ........................................................................\
............... 1-71
Hybrid Battery Cooling Duct ........................................................................\
.............. 1-71
If an accident occurs ........................................................................\
........................... 1-72
When the Hybrid Vehicle Shuts Off ........................................................................\
... 1-73
1. Foreword/Starting your Hybrid/Plug-in hybrid vehicle

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-52
Hybrid System Gauge
Power gauge
„„4.2-Inch4.2-Inch
ONX4H040004ONX4H040004
„„10.25-inch10.25-inch
OCN7H040002OCN7H040002
The hybrid system gauge indicates
whether the current driving condition is
fuel efficient or not.
• CHARGE: Shows that the energy made by the
vehicle is being converted to electrical
energy. (Regenerated energy)
• ECO: Shows that the vehicle is being driven
in an Eco-friendly manner.
• POWER:
Shows that the vehicle is exceeding
the Eco-friendly range.
According to the hybrid system gauge
area, the “EV” indicator comes on or off. - “EV” indicator ON : Vehicle is driven using the electric motor or the
gasoline engine is stopped.
- “EV” indicator OFF : Vehicle is driven using the gasoline engine.
Hybrid battery SOC (State of Charge)
gauge
„„4.2-Inch4.2-Inch
ONX4HQ010016NONX4HQ010016N
„„10.25-inch10.25-inch
OCN7H040003OCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is
near the “L (Low)” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is
near the “L (Low)” level, have the vehicle
be checked by an authorized HYUNDAI
dealer.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-56
Warning and Indicator Lights
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
When the ready indicator goes OFF,
there is a problem with the system. If this
occurs, have your vehicle inspected by
an authorized HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
Charging Cable Connection
Indicator (Plug-in hybrid
vehicle)
This indicator illuminates in red when the
charging cable is connected.
Service warning light
This warning light illuminates:
• When you set the ignition switch or the E
ngine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.
• When there is a problem with the hybrid vehicle control system or
hardware.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have the vehicle inspected
by an authorized HYUNDAI dealer.
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
your vehicle inspected by an authorized
HYUNDAI dealer. The operation of the
brake pedal may be more difficult than
normal and the braking distance may
increase.

4
4. Instrument Cluster
Instrument Cluster ........................................................................\
.................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination ........................................................................\
...........4-5
Gauges and Meters ........................................................................\
..............................4-5 Speedometer .....................................................................\
........................................4-5
Power gauge ........................................................................\
..................................... 4-6
Fuel gauge ........................................................................\
......................................... 4-6
Hybrid battery SOC (State of Charge) gauge ........................................................... 4-7
Plug-in hybrid mode indicator ........................................................................\
.......... 4-7
Outside temperature gauge ........................................................................\
............. 4-8
Odometer .....................................................................\
............................................. 4-8
Distance to empty ........................................................................\
............................ 4-9
Fuel economy (for 10.25-inch cluster) ..................................................................... 4-9
Transmission Shift Indicator ........................................................................\
.............. 4-10 Automatic transmission shift indicator .................................................................. 4-10
Warning and Indicator Lights ........................................................................\
............ 4-10 Seat belt warning light ........................................................................\
.................... 4-10
Air bag warning light ........................................................................\
....................... 4-10
Parking brake warning light ........................................................................\
............. 4-11
Regenerative brake warning light ........................................................................\
... 4-12
Anti-lock Brake System (ABS) warning light .......................................................... 4-12
Electronic Brake Force Distribution (EBD) system warning light ......................... 4-12
Electric Power Steering (EPS) warning light .......................................................... 4-13
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-13
Electronic Parking Brake (EPB) warning light ........................................................ 4-14
AUTO HOLD indicator light ........................................................................\
............. 4-15
Charging system warning light ........................................................................\
....... 4-15
Engine oil pressure warning light ........................................................................\
... 4-15
Low fuel level warning light ........................................................................\
............ 4-16
Service warning light ........................................................................\
....................... 4-16
Charging Cable Connection Indicator (Plug-in hybrid vehicle) ............................ 4-16
Master warning light ........................................................................\
.........................4-17
Low tire pressure warning light ......................................................................\
.........4-17
Forward Safety warning light ........................................................................\
.......... 4-18
Lane Safety indicator light ........................................................................\
.............. 4-18
All Wheel Drive (AWD) warning light ...................................................................... 4-18
All Wheel Drive (AWD) LOCK indicator light .......................................................... 4-18
LED headlight warning light ........................................................................\
............ 4-19
Icy road warning light ........................................................................\
...................... 4-19
Ready indicator ........................................................................\
................................ 4-19
EV mode indicator ........................................................................\
...........................4-20
Electronic Stability Control (ESC) indicator light ...................................................4-20

04
4-7

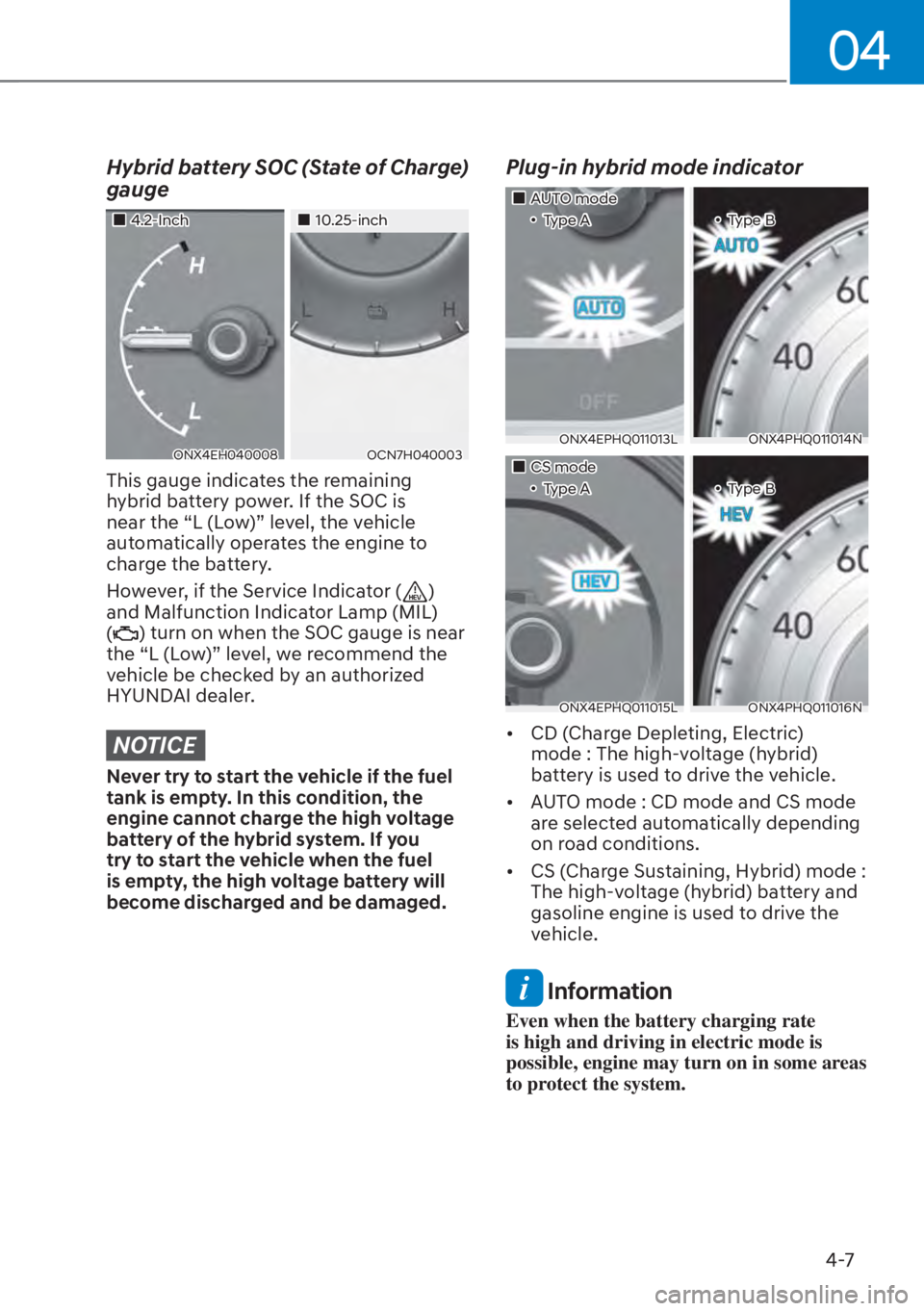

Hybrid battery SOC (State of Charge)
gauge
„4.2-Inch„10.25-inch
ONX4EH040008OCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is
near the “L (Low)” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is near
the “L (Low)” level, we recommend the
vehicle be checked by an authorized
HYUNDAI dealer.
NOTICE
Never try to start the vehicle if the fuel
tank is empty. In this condition, the
engine cannot charge the high voltage
battery of the hybrid system. If you
try to start the vehicle when the fuel
is empty, the high voltage battery will
become discharged and be damaged.
Plug-in hybrid mode indicator
„AUTO mode
‡Type A ‡Type B
ONX4EPHQ011013LONX4PHQ011014N
„CS mode
‡Type A ‡Type B
ONX4EPHQ011015LONX4PHQ011016N

[CD (Charge Depleting, Electric)
mode : The high-voltage (hybrid)
battery is used to drive the vehicle.

[ AUTO mode : CD mode and CS mode
are selected automatically depending
on road conditions.

[ CS (Charge Sustaining, Hybrid) mode :
The high-voltage (hybrid) battery and
gasoline engine is used to drive the
vehicle.
Information
Even when the battery charging rate
is high and driving in electric mode is
possible, engine may turn on in some areas
to protect the system.

Instrument Cluster4-16
NOTICE
If the engine is not stopped
immediately after the Engine Oil
Pressure warning light is illuminated,
severe damage could result.
Low fuel level warning light
This warning light illuminates:
When the fuel tank is nearly empty.
A
dd fuel as soon as possible.
NOTICE
Driving with the Low Fuel Level warning
light on or with the fuel level below “E”
can cause the engine to misfire and
damage the catalytic converter.
Service warning light
This warning light illuminates:

[ When y
ou set the ignition switch or
the Engine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.

[ When there is a problem with the
hybrid vehicle control system or
hardware.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have the vehicle inspected
by an authorized HYUNDAI dealer.
Charging Cable Connection
Indicator (Plug-in hybrid
vehicle)
This indicator illuminates in red when the
charging cable is connected.

8
8. Emergency Situations
Hazard Warning Flasher ........................................................................\
........... 8-2
In Case of an Emergency While Driving .......................................................... 8-3
If the Engine Stalls while Driving........................................................................\
.........8-3
If the Engine Stalls at a Crossroad or Crossing ..........................................................8-3
If you have a Flat Tire while Driving ........................................................................\
....8-3
If the Engine will not Start ........................................................................\
........ 8-4
If the 12 Volt Battery is Discharged (Hybrid Vehicle) ...................................... 8-5
Before Jump Starting ........................................................................\
...........................8-5
Jump Starting ........................................................................\
...................................... 8-6
If the 12 Volt Battery is Discharged (Plug-In Hybrid Vehicle) ......................... 8-8Jump Strating ........................................................................\
...................................... 8-8
If the Engine Overheats ........................................................................\
...........8-10
Tire Pressure Monitoring System (TPMS) ....................................................... 8-12
Check Tire Pressure ........................................................................\
............................ 8-12
Tire Pressure Monitoring System ........................................................................\
...... 8-13
Low Tire Pressure Warning Light ........................................................................\
....... 8-14
Low Tire Pressure Position and Tire Pressure Telltale .............................................. 8-14
TPMS (Tire Pressure Monitoring System) malfunction indicator ............................ 8-15
Changing a Tire with TPMS ........................................................................\
............... 8-15
If You Have a Flat Tire (with Tire Mobility Kit) ................................................ 8-17Introduction ...............................................................\
..................................................8-17
Notes on the safe use of the Tire Mobility Kit .......................................................... 8-18
Components of the Tire Mobility Kit ........................................................................\
. 8-19
Using the Tire Mobility Kit ........................................................................\
................ 8-20
Checking the Tire Inflation Pressure ........................................................................\
. 8-23
Towing ...................................................................\
.......................................... 8-25Towing Service ........................................................................\
................................... 8-25
Removable Towing Hook ........................................................................\
...................8-26
Emergency Towing ........................................................................\
............................. 8-27
Emergency/Roadside Assistance Accessories ............................................ 8-29Fire Extinguisher ........................................................................\
.................................8-29
First Aid Kit ........................................................................\
..........................................8-29
Triangle Reflector ........................................................................\
...............................8-29
Tire Pressure Gauge ........................................................................\
...........................8-29

08
8-7
ONX4HQ010015
7. Press the 12V Battery Reset switch.
8. Start the engine of the assisting vehicle and let it run for a few
minutes.
9. Start your vehicle as soon as possible. After starting the vehicle
(
indicator on), operate the vehicle
safely outdoors in ready mode
stopped and/or drive it for 30 minutes
total to charge the 12V battery fully.
If your vehicle will not start after a few
attempts, it probably requires service.
In this event please seek qualified
assistance. If the cause of your battery
discharging is not apparent, have your
vehicle checked by an authorized
HYUNDAI dealer.
Disconnect the jumper cables in the
exact reverse order you connected them:
1. Disconnect the jumper cable from the black, negative (-) chassis ground of
your vehicle (4).
2. Disconnect the other end of the jumper cable from the black, negative
(-) battery/chassis ground of the
assisting vehicle (3).
3. Disconnect the second jumper cable from the red, positive (+) battery/
jumper terminal of the assisting
vehicle (2).
4. Disconnect the other end of the jumper cable from the red,
charging terminal inside the engine
compartment fuse panel (1).
Information
The voltage range of the charger should be
13.3~14V and its current range should be
less than 60A. (13.8V is recommended).
CAUTION

[The use of an improper charger with a
voltage and current range higher than
specified may cause overheating and
damage to the 12V battery.

[ The use of an incorrect charger will
lead to a power shut-off to save the
12V battery. Stop using the incorrect
charger once the power of the
vehicle is shut off.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
NOTICE
To prevent damage to your vehicle:

[Only use a 12-volt power supply
(battery or jumper system) to jump
start your vehicle.

[ Do not attempt to jump start your
vehicle by push-starting.
CAUTION
Do not jump start another vehicle with
your hybrid vehicle. Jump starting
another vehicle will damage the
hybrid vehicle’s 12 volt battery (lithium
polymer type).
WARNING
While jump starting your vehicle, avoid
the positive (+) and negative (-) cables
to come in contact. A spark could cause
personal injury.
