2023 HYUNDAI TUCSON HYBRID infotainment

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-14
Scheduled Charging
(if equipped)
• You can set-up a charging schedule for your vehicle using the
infotainment system or BlueLink
application.
Refer to the infotainment system
manual or the BlueLink manual for
detailed information about setting
scheduled charging.
• Scheduled charging can only be done when using a AC charger or
the portable charger (ICCB: InCable
Control Box).
ONX4EPHQ011020LONX4EPHQ011020L
• When scheduled charging is set and the AC charger or the portable
charger (ICCB: In-Cable Control
Box) is connected for charging, the
indicator lamp in the middle blinks (for
3 minutes) to indicate that scheduled
charging is set.
• When scheduled charging is set, charging is not initiated immediately
when the AC charger or portable
charger (ICCB: In-Cable Control
Box) is connected. When immediate
charging is required, use the
infotainment system to deactivate
the scheduled charge setting or press
scheduled charging deactivation (
)
button.
ONX4EPHQ011021LONX4EPHQ011021L
• If you press the scheduled charging deactivation () button
to immediately charge the battery,
charging must be initiated 3 minutes
after the charging cable has been
connected. When you press the
scheduled charging deactivation
(
) button for immediate charging,
the scheduled charge setting is not
completely deactivated. If you need to
completely deactivate the scheduled
charge setting, use the infotainment
system to finalize the deactivation.
Refer to “AC Charge (Station) or Trickle
Charge” for details about connecting
the AC charger and the portable charger
(ICCB: In-Cable Control Box).

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-54
Infotainment system Screen (Plug-in
hybrid vehicle) (if equipped)
OTMPHQ010018LOTMPHQ010018L
Press [PHEV] on the [Home] screen or
the [All menus] screen and the menus
related to plug-in hybrid ([ECO driving],
[Energy information], [EV range], [Set
charging times], [Charging stations],
[Petrol stations]) are displayed.
For more information, please refer to
the Infotainment System Manual that
was separately supplied with your
vehicle.
Aux. Battery Saver+ (Plug-in
hybrid vehicle)
The Aux. Battery Saver+ is a function that
monitors the charging status of the 12 V
auxiliary battery. If the auxiliary battery
level is low, the main high voltage battery
charges the auxiliary battery.
Information
The Aux. Battery Saver+ function will
be ON when the vehicle is delivered. If
the function is not needed, you may turn
it off in the Users Settings mode on the
cluster. For more information, refer to the
following page.
Mode
• Cycle Mode:
When the vehicle is OFF with all doors,
hood and liftgate closed, the Aux. Battery
Saver+ periodically activates according
to the auxiliary battery status.
• Automatic Mode:
When the ignition switch is in the ON
position with the charging connector
plugged in, the function activates
according to the auxiliary battery status
to prevent overdischarge of the auxiliary
battery.

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-8
4. Infotainment system .............................. 4-58
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ........................ 5-99
7. Air ventilation seat ................................ 3-20
8. Seat warmer .......................................... 3-18
9. Heated steering wheel ......................... 5-41
10. Parking Safety button ......................... 7-139
11. Parking/View button .......................... 7-153
12. Transmission shift button ..................... 6-1313. EPB (Electronic Parking Brake) switch ...6-19
14. Auto Hold switch ................................. 6-23
15. Drive mode button .............................. 6-46
16. Passenger’s front air bag ..................... 3-45
17. Glove box ..............................................5-119
18. USB port ................................................ 5-131
19. Power outlet ..........................................5-119
20. USB charger .......................................... 5-121
21. Wireless charging system pad ............ 5-123
22. DBC (Downhill Brake Control) button . 6-33
The actual shape may differ from the illustration.
ONX4H010005N
,167580(173$1(/29(59,(:

2-11
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-45
3. Engine Start/Stop button ....................... 6-8
4. Infotainment system .............................. 4-58
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ........................ 5-99
7. Air ventilation seat ................................ 3-20
8. Seat warmer .......................................... 3-18
9. Heated steering wheel ......................... 5-41
10. Parking Safety button ......................... 7-139
11. Parking/View button .......................... 7-153
12. Transmission shift button ..................... 6-1313. EPB (Electronic Parking Brake) switch ...6-19
14. Auto Hold switch ................................. 6-23
15. Drive mode button .............................. 6-46
16. Passenger’s front air bag ..................... 3-45
17. Glove box ..............................................5-119
18. USB port ................................................ 5-131
19. Power outlet ..........................................5-119
20. USB charger .......................................... 5-121
21. Wireless charging system pad ............ 5-123
22. DBC (Downhill Brake Control) button . 6-33
23. HEV button............................................. 1-53
24. 4WD lock button ................................... 6-37
,167580(173$1(/29(59,(:

Seats & Safety System3-20

[ Auto Comfort Control (for driver’s
seat) (if equipped)
- The seat warmer automatically controls the seat temperature
depending on the ambient
temperature and the set climate
control temperature when the
engine is running. If the seat
warmer switch is pushed, the seat
warmer will have to be controlled
manually.
To use this function, it must be
activated from the Settings menu in
the infotainment system screen.
- The seat warmer defaults to the OFF position whenever the ignition
switch is ON. However, if the Auto
Comfort Control function is ON, the
driver’s seat warmer will turn on
and off depending on the ambient
temperature and the set climate
control temperature.
For more details, refer to the separately
supplied Infotainment manual with
your vehicle.
Information
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending on
the seat temperature.
Air Ventilation Seat (if equipped)
ONX4030027
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the switches in
the OFF position.
While the engine is running, push the
switch to cool the driver's seat or the
front passenger's seat (if equipped).
NOTICE
To prevent damage to the air ventilation
seats:

[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Avoid spilling liquids on the surface
of the front seats and seatbacks; this
may cause the air vent holes to block
and not work properly.

[ Do not place materials such as
plastic bags or newspapers under
the seats. They may block the air
intake causing the malfunction of the
air vent.

[ Do not change the seat covers. It may
damage the air ventilation seat.

[ If the air vents do not operate, restart
the vehicle. If there is no change,
Have your vehicle inspected by an
authorized HYUNDAI dealer.

03
3-21

[Each time you push the switch, the
airflow changes as follows:
OFF
LOW ( )HIGH ( )
MEDIUM ( )

[ When pressing the switch for
more than 1.5 seconds with the
air ventilation seat operating, the
operation will turn OFF.

[ The air ventilation seat defaults to the
OFF position whenever the ignition
switch is placed to the ON position.

[ Auto Comfort Control (for driver’s
seat) (if equipped)

- The air ventilation seat
automatically controls the seat
temperature depending on the
ambient temperature and the set
climate control temperature when
the engine is running. If the air
ventilation seat switch is pushed,
the air ventilation seat will have to
be controlled manually.
To use this function, it must be
activated from the Settings menu in
the infotainment system screen.

- The air ventilation seat defaults
to the OFF position whenever the
ignition switch is ON. However, if
the Auto Comfort Control function
is ON, the air ventilation seat will
turn on and off depending on the
ambient temperature and the set
climate control temperature.
For more details, refer to the separately
supplied Infotainment manual with
your vehicle.

4
4. Instrument Cluster
Check Hybrid system. Do not start engine ............................................................ 4-27
Stop safely and check power supply ......................................................................4-28
Check virtual engine sound system........................................................................\
4-28
Refill inverter coolant ........................................................................\
......................4-28
Park with engine On to charge battery ..................................................................4-28
Start engine to avoid battery discharge .................................................................4-28
Check regenerative brakes......................................................................\
................4-29
Check virtual engine sound system........................................................................\
4-29
Unplug vehicle to start (Plug-in hybrid vehicle) ....................................................4-29
Remaining time (Plug-in hybrid vehicle) ................................................................4-29
Wait until fuel door unlocks (Plug-in hybrid vehicle) ........................................... 4-30
Check fuel door (Plug-in hybrid vehicle) ............................................................... 4-30
Fuel door open (Plug-in hybrid vehicle) ................................................................. 4-31
Shift to P to charge (Plug-in hybrid vehicle) .......................................................... 4-31
Switching to Hybrid mode to allow heating or air conditioning
(Plug-in hybrid vehicle) ........................................................................\
................... 4-31
Maintaining Hybrid mode to allow heating or air conditioning
(Plug-in hybrid vehicle) ........................................................................\
................... 4-32
Low/High System Temp. Maintaining Hybrid mode (Plug-in hybrid vehicle) ..... 4-32
Low/High System Temp. Switching to Hybrid mode (Plug-in hybrid vehicle) .... 4-32
Switching to Hybrid mode to lubricate engine (Plug-in hybrid vehicle) ..............4-33
Maintaining Hybrid mode to protect engine (Plug-in hybrid vehicle) .................4-33
Exit SPORT mode to switch to EV (Plug-in hybrid vehicle) ...................................4-33
LCD Display ........................................................................\
............................. 4-34LCD Display Control ........................................................................\
...........................4-34
View Modes ........................................................................\
........................................ 4-35Trip computer mode ........................................................................\
........................4-36
Turn By Turn (TBT) mode ........................................................................\
.................4-36
Driving Assist mode ........................................................................\
.........................4-36
Master warning group ........................................................................\
..................... 4-37
User settings mode ........................................................................\
..........................4-39
Trip Computer (4.2-inch) - Hybrid Vehicle ............................................................... 4-46 Trip modes ........................................................................\
....................................... 4-46
Trip Computer (10.25-inch) - Hybrid Vehicle ........................................................... 4-49 Trip modes ........................................................................\
....................................... 4-49
Trip Computer (4.2-inch) - Plug-in Hybrid Vehicle ...................................................4-52 Trip modes ........................................................................\
........................................4-52
Trip Computer (10.25-inch) - Plug-in Hybrid Vehicle ...............................................4-55 Trip modes ........................................................................\
........................................4-55
Vehicle Settings (Infotainment System) ........................................................ 4-58Setting Your Vehicle ........................................................................\
.......................... 4-58

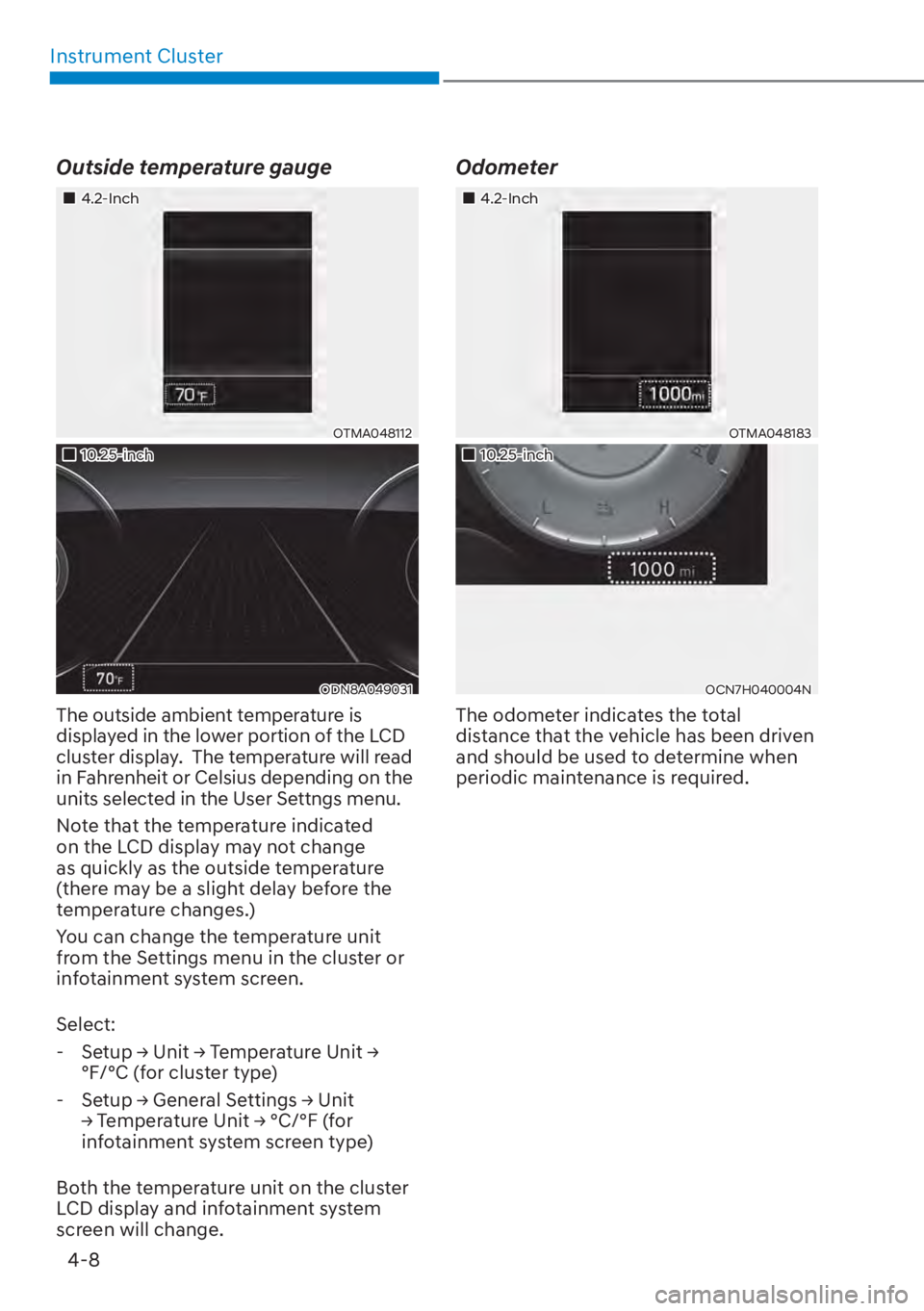

Instrument Cluster4-8
Outside temperature gauge
„4.2-Inch
OTMA048112
„10.25-inch
ODN8A049031
The outside ambient temperature is
displayed in the lower portion of the LCD
cluster display. The temperature will read
in Fahrenheit or Celsius depending on the
units selected in the User Settngs menu.
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature unit
from the Settings menu in the cluster or
infotainment system screen.
Select: - 6HWXS
