2023 HYUNDAI TUCSON HYBRID Battery

01
1-17
CAUTION
• Always keep the charging connector
and charging plug in clean and
dry condition. Be sure to keep the
charging cable in a condition where
there is no water or moisture.
• Make sure to use the designated
charger for charging the electric
vehicle. Using any other charger may
cause failure.
• Before charging the battery, turn the
vehicle OFF
• When the vehicle is switched OFF
while charging, the cooling fan
inside the motor compartment may
automatically operate. Do not touch
the cooling fan while charging.
• Be careful not to drop the charging
connector. The charging connector
can be damaged.
WARNING
• Immediately stop charging when
you find abnormal symptoms (odor,
smoke).
• Replace the charging cable if the
cable coating is damaged to prevent
electrical shock.
• When connecting or removing the
charging cable, make sure to hold
the charging connector handle and
charging plug.
If you pull the cable itself (without
using the handle), the internal wires
may disconnect or get damaged. This
may lead to electric shock or fire.
CAUTION
• Always keep the charging connector
and charging plug in clean and
dry condition. Be sure to keep the
charging cable in a condition where
there is no water or moisture.
• Before charging the battery, turn the
vehicle OFF.
• When the vehicle is switched OFF
while charging, the cooling fan
inside the motor compartment may
automatically operate. Do not touch
the cooling fan while charging.
• Be careful not to drop the charging
connector. The charging connector
can be damaged.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-20
„„AC ChargerAC Charger
OLFP0Q5007KOLFP0Q5007K
6. Connect the charging plug to the electric outlet at a AC charging station
to start charging.
„„Type AType A„„Type BType B
ONX4EPHQ011002LONX4EPHQ011002LONX4EPHQ011003LONX4EPHQ011003L
7. Check if the charging indicator light of the high voltage battery
on the instrument cluster is turned
ON. Charging is not done when the
charging indicator lamp is OFF.
When the charging connector and
charging plug are not connected
properly, reconnect the charging
cable to charge.
Information
• Even though charging is possible with
the ignition switch in the ON/START
position, for your safety, start charging
when the ignition switch is in the
LOCK/OFF position and the vehicle
shifted to P (Park). After charging
has started, you can use electrical
components such as the radio by
placing the ignition switch in the ACC
or ON position.
• During AC charging, the radio
reception may be bad.
• Moving the shift button from P (Park)
to R (Reverse)/N(Neutral)/D (Drive)
stops the charging process.
To restart the charging process, move
the shift button to P (Park), place the
ignition switch to the LOCK/OFF
position, and disconnect the charging
cable. Then, connect the charging cable.

01
1-21
OAEPHQ049818LOAEPHQ049818L
8. After charging has started, the estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
When scheduled charging is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.
Information
To control the temperature of the high
voltage battery while charging or when
the battery temperature is high, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be degraded due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.
Checking Charging Status
ONX4EPHQ011020LONX4EPHQ011020L
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-22

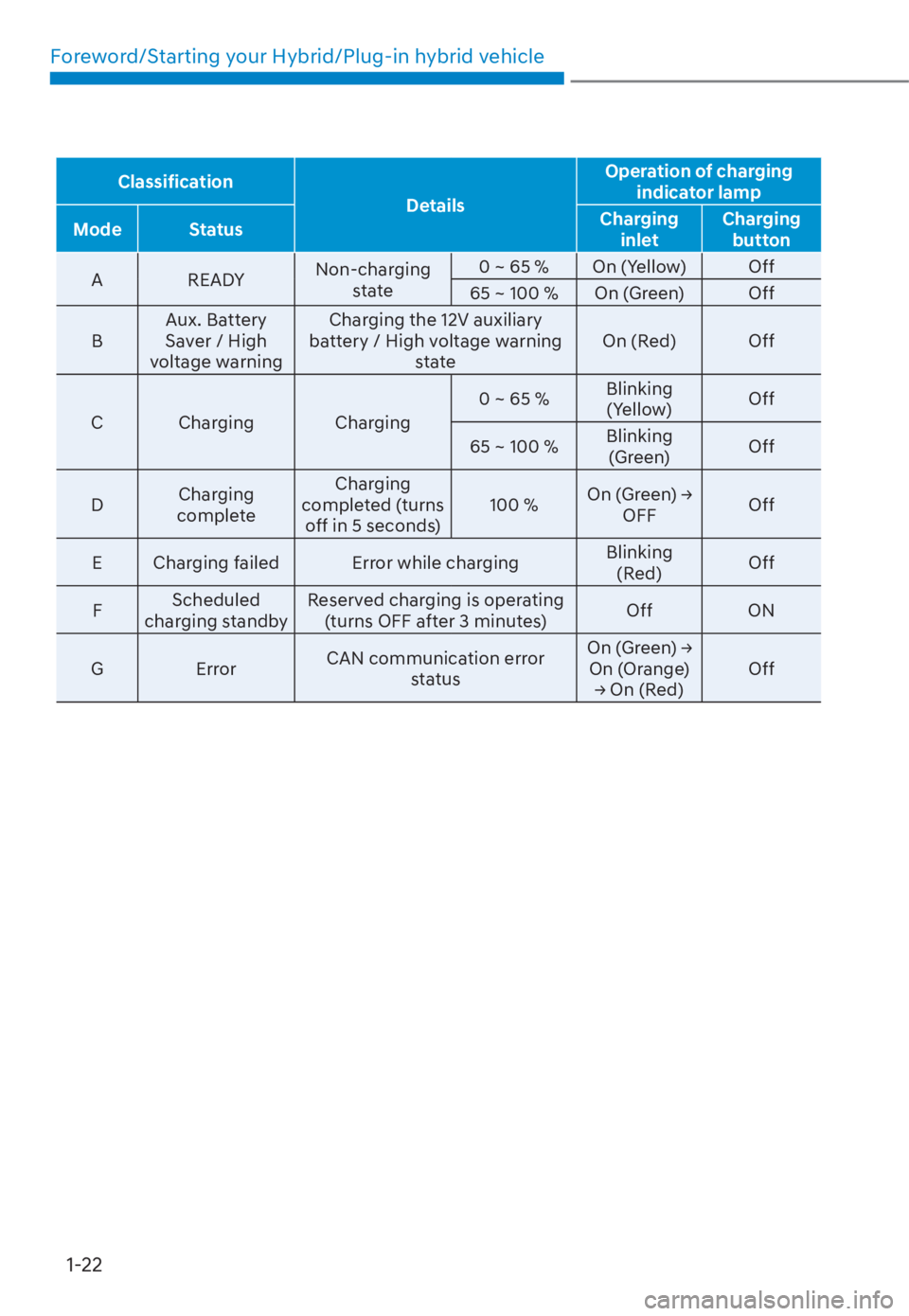

Classification DetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY N
on-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Battery
Saver / High
voltage warning Charging the 12V auxiliary
battery / High voltage warning
state On (Red) Off
C Charging Charging 0 ~ 65 %
Blinking
(Yellow) Off
65 ~ 100 % Blinking
(Green) Off
D Charging
complete Charging
completed (turns
off in 5 seconds) 100 %
On (Green)
Ÿ
OFF Off
E Charging failed Error while charging Blinking
(Red) Off
F Scheduled
charging standby Reserved charging is operating
(turns OFF after 3 minutes) Off
ON
G Error CAN communication error
status On (Green)
Ÿ
On (Orange)

Ÿ On (Red) Off

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-24
Unlock Charging Connector in
Emergency
„„Luggage compartmentLuggage compartment
ONX4EPHQ011004LONX4EPHQ011004L
If the charging connector does not
disconnect due to battery discharge and
failure of the electric wires, open the
liftgate and slightly pull the emergency
cable. The charging connector will then
disconnect.
Trickle Charge (Type A)
„„Portable ChargerPortable Charger
OOSEVQ018047LOOSEVQ018047L
(1) Code and Plug (Code set)
(2) Control Box
(3) Charging Cable and Charging Connector
Portable Charge can be used when
AC Charge is not available by using
household electricity.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-28
Information
Charging connector AUTO/LOCK mode
The charging connector is locked in the
inlet at a different period according to
which mode is selected.
• LOCK mode : The connector locks
when the charging connector is plugged
into the charging inlet.
• AUTO mode : The connector locks
when charging starts.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
OOSEVQ018057OOSEVQ018057
8. Charging starts automatically (charging lamp blinks).
„„Type AType A
ONX4EPHQ011002LONX4EPHQ011002L
„„Type BType B
ONX4EPHQ011003LONX4EPHQ011003L
9. Check if the charging indicator light () of the high voltage battery in
the instrument cluster is turned ON.
Charging is not active when the
charging indicator light (
) is OFF.
When the charging connector is not
connected properly, reconnect the
charging cable to charge it again.

01
1-29
Information
To control the temperature of the high
voltage battery while charging or when
the battery temperature is high, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be degraded due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.
Information
Even though charging is possible with
the Start/Stop button in the ON/START
position, for you safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to P
(Park). After charging has started, you
can use electrical components such as the
radio by pressing the Start/Stop button to
the START or ON position.
During charging, the gear cannot be
shifted from P (Park) to any other gear.
OAEPHQ049818LOAEPHQ049818L
10. After charging has started, the estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
When scheduled charging is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-30

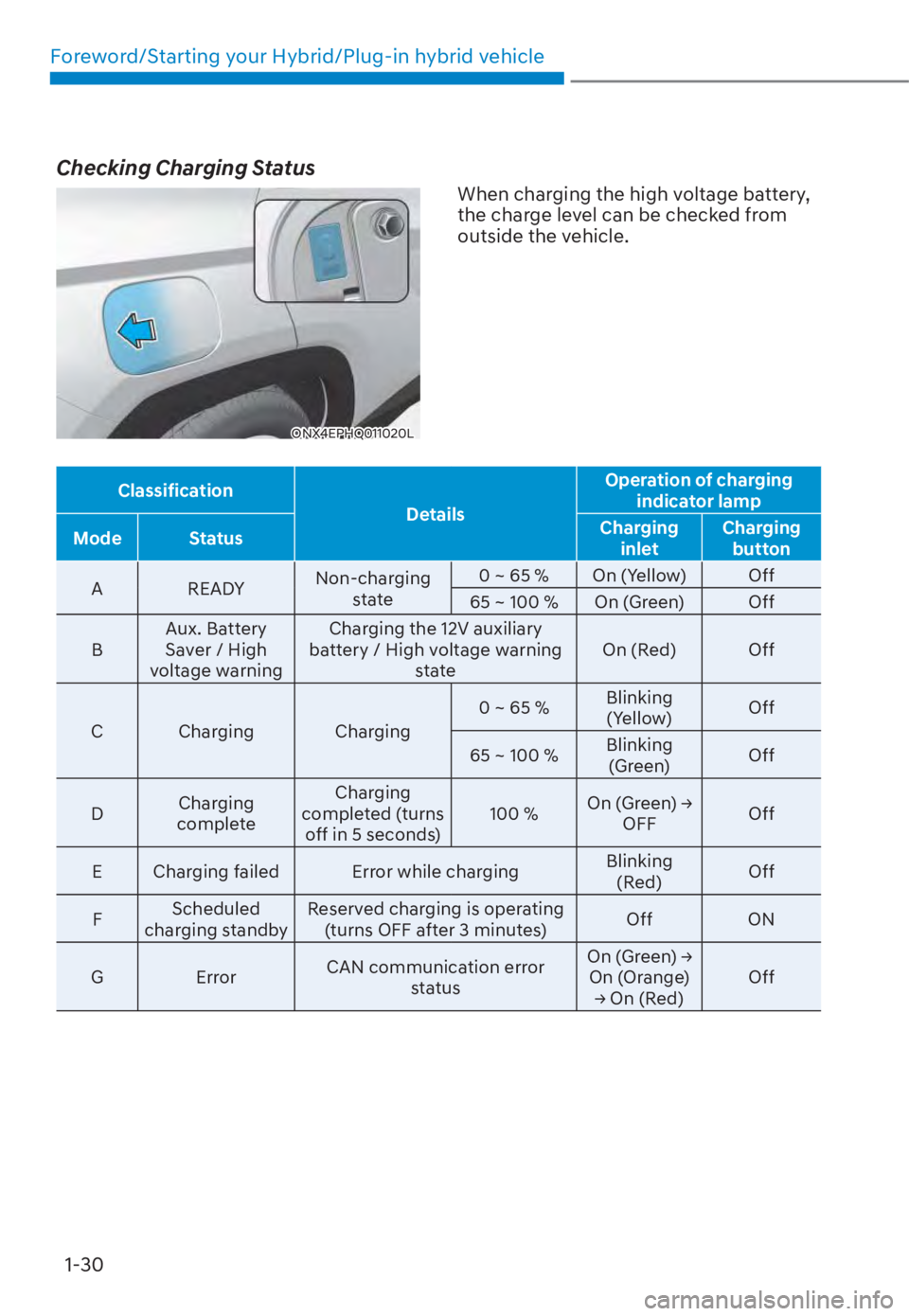

Checking Charging Status
ONX4EPHQ011020LONX4EPHQ011020L
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
Classification DetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY N
on-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Battery
Saver / High
voltage warning Charging the 12V auxiliary
battery / High voltage warning state On (Red) Off
C Charging Charging 0 ~ 65 %
Blinking
(Yellow) Off
65 ~ 100 % Blinking
(Green) Off
D Charging
complete Charging
completed (turns off in 5 seconds) 100 %
On (Green)
Ÿ
OFF Off
E Charging failed Error while charging Blinking
(Red) Off
F Scheduled
charging standby Reserved charging is operating
(turns OFF after 3 minutes) Off
ON
G Error CAN communication error
status On (Green)
Ÿ
On (Orange)
Ÿ On (Red) Off
