2023 HYUNDAI TUCSON HYBRID reset sun roof

5

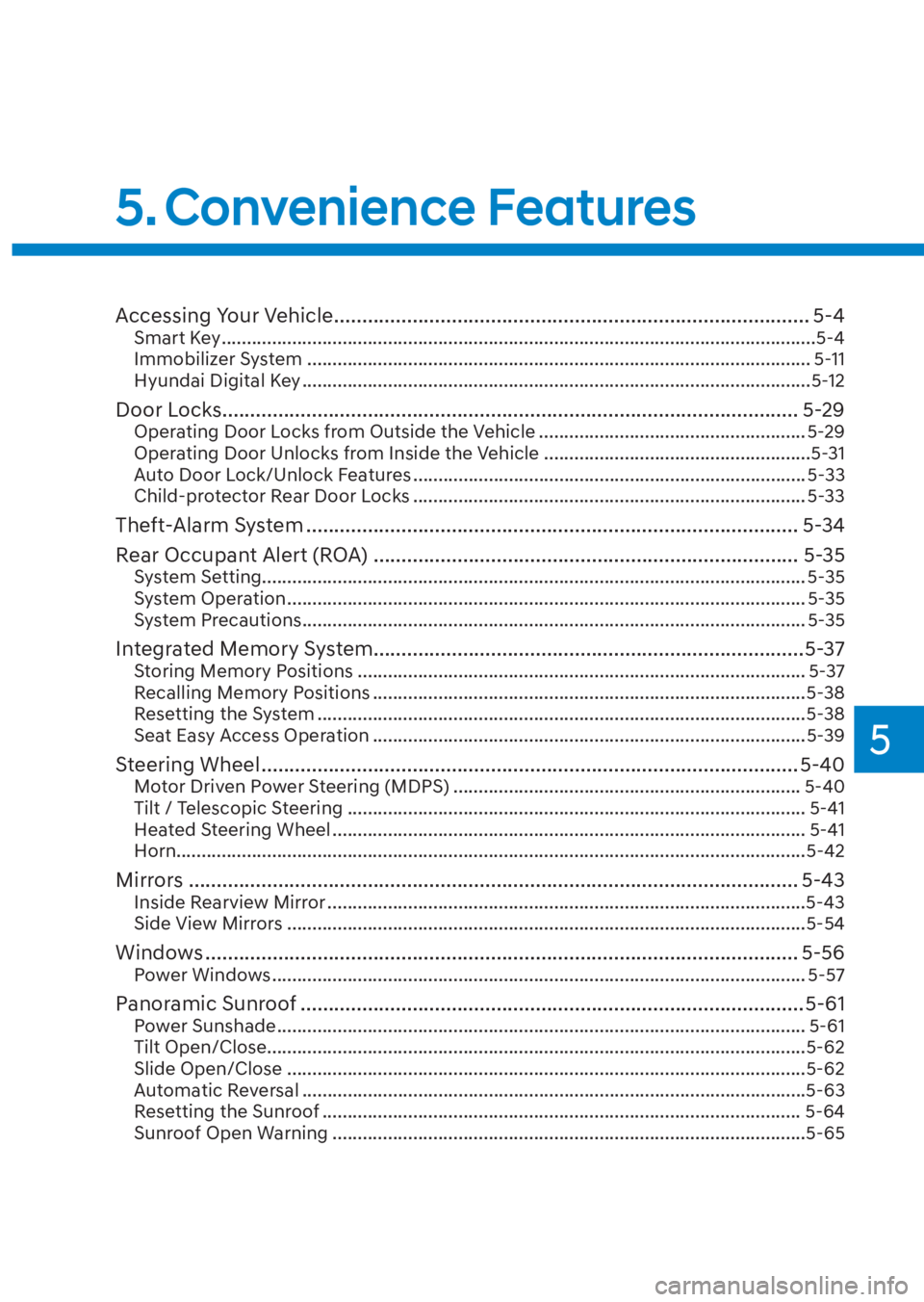

Accessing Your Vehicle ........................................................................\
............. 5-4Smart Key ........................................................................\
..............................................5-4
Immobilizer System ........................................................................\
............................ 5-11
Hyundai Digital Key ........................................................................\
.............................5-12
Door Locks ........................................................................\
............................... 5-29Operating Door Locks from Outside the Vehicle ..................................................... 5-29
Operating Door Unlocks from Inside the Vehicle .....................................................5-31
Auto Door Lock/Unlock Features ........................................................................\
...... 5-33
Child-protector Rear Door Locks ........................................................................\
...... 5-33
Theft-Alarm System ........................................................................\
................ 5-34
Rear Occupant Alert (ROA) ........................................................................\
.... 5-35
System Setting........................................................................\
.................................... 5-35
System Operation ........................................................................\
............................... 5-35
System Precautions ........................................................................\
............................ 5-35
Integrated Memory System......................................................................\
.......5-37Storing Memory Positions ........................................................................\
................. 5-37
Recalling Memory Positions ........................................................................\
..............5-38
Resetting the System ........................................................................\
.........................5-38
Seat Easy Access Operation ........................................................................\
..............5-39
Steering Wheel ........................................................................\
........................ 5-40Motor Driven Power Steering (MDPS) ..................................................................... 5-40
Tilt / Telescopic Steering ........................................................................\
................... 5-41
Heated Steering Wheel ........................................................................\
...................... 5-41
Horn........................................................................\
.....................................................5-42
Mirrors ......................................................................\
....................................... 5-43Inside Rearview Mirror ........................................................................\
.......................5-43
Side View Mirrors ........................................................................\
...............................5-54
Windows ......................................................................\
.................................... 5-56Power Windows ........................................................................\
.................................. 5-57
Panoramic Sunroof ........................................................................\
..................5-61Power Sunshade ........................................................................\
................................. 5-61
Tilt Open/Close........................................................................\
...................................5-62
Slide Open/Close .......................................................\
................................................5-62
Automatic Reversal ........................................................................\
............................5-63
Resetting the Sunroof ........................................................................\
....................... 5-64
Sunroof Open Warning ........................................................................\
......................5-65
5. Convenience Features

Convenience Features5-64

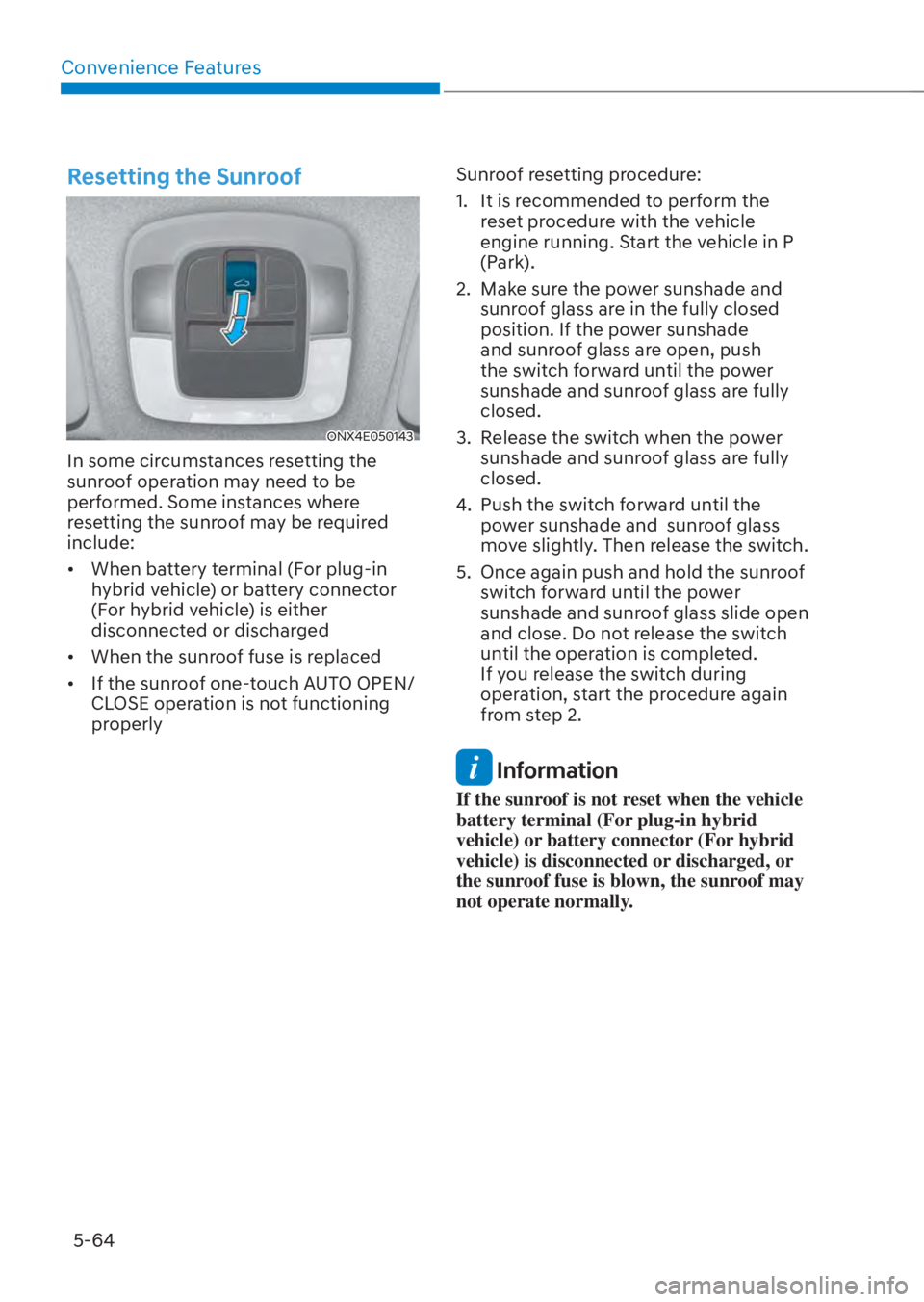

Resetting the Sunroof
ONX4E050143ONX4E050143
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
• When battery terminal (For plug-in hybrid vehicle) or battery connector
(For hybrid vehicle) is either
disconnected or discharged
• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO OPEN/ CLOSE operation is not functioning
properly Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the power sunshade and sunroof glass are in the fully closed
position. If the power sunshade
and sunroof glass are open, push
the switch forward until the power
sunshade and sunroof glass are fully
closed.
3. Release the switch when the power sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the power sunshade and sunroof glass
move slightly. Then release the switch.
5. Once again push and hold the sunroof switch forward until the power
sunshade and sunroof glass slide open
and close. Do not release the switch
until the operation is completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information
If the sunroof is not reset when the vehicle
battery terminal (For plug-in hybrid
vehicle) or battery connector (For hybrid
vehicle) is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.

09
9-33
NOTICE
AGM battery (if equipped)
• Absorbent Glass Mat (AGM) batteries
are maintenance-free and have
the AGM battery serviced by an
authorized HYUNDAI dealer. For
charging your AGM battery, use only
fully automatic battery chargers that
are specially developed for AGM
batteries.
• When replacing the AGM battery,
use parts for replacement from an
authorized HYUNDAI dealer.
• Do not open or remove the cap on
top of the battery. This may cause
leaks of internal electrolyte that
could result in severe injury.
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
9 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.
Reset Items
The following items may need to be reset
after the battery has been discharged or
the battery terminal (For plug-in hybrid
vehicle) or battery connector (For hybrid
vehicle) has been disconnected.
• Auto up/down window (see chapter 5)
• Sunroof (see chapter 5)
• Trip computer (see chapter 5)
• Climate control system (see chapter 5)
• Driver position memory system (see
chapter 5)
• Clock (see chapter 5)
• Infotainment system (see infotainment system manual)
