2023 HYUNDAI TUCSON HYBRID change time

All information in this Owner’s Manual is current at the time
of publication. However, HYUNDAI reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all models of this vehicle and includes
descriptions and explanations of optional as well as standard
equipment.
As a result, you may find material in this manual that does not
apply to your specific vehicle.
OWNER’S MANUAL
Operation
Maintenance
Specifications

01
1-25

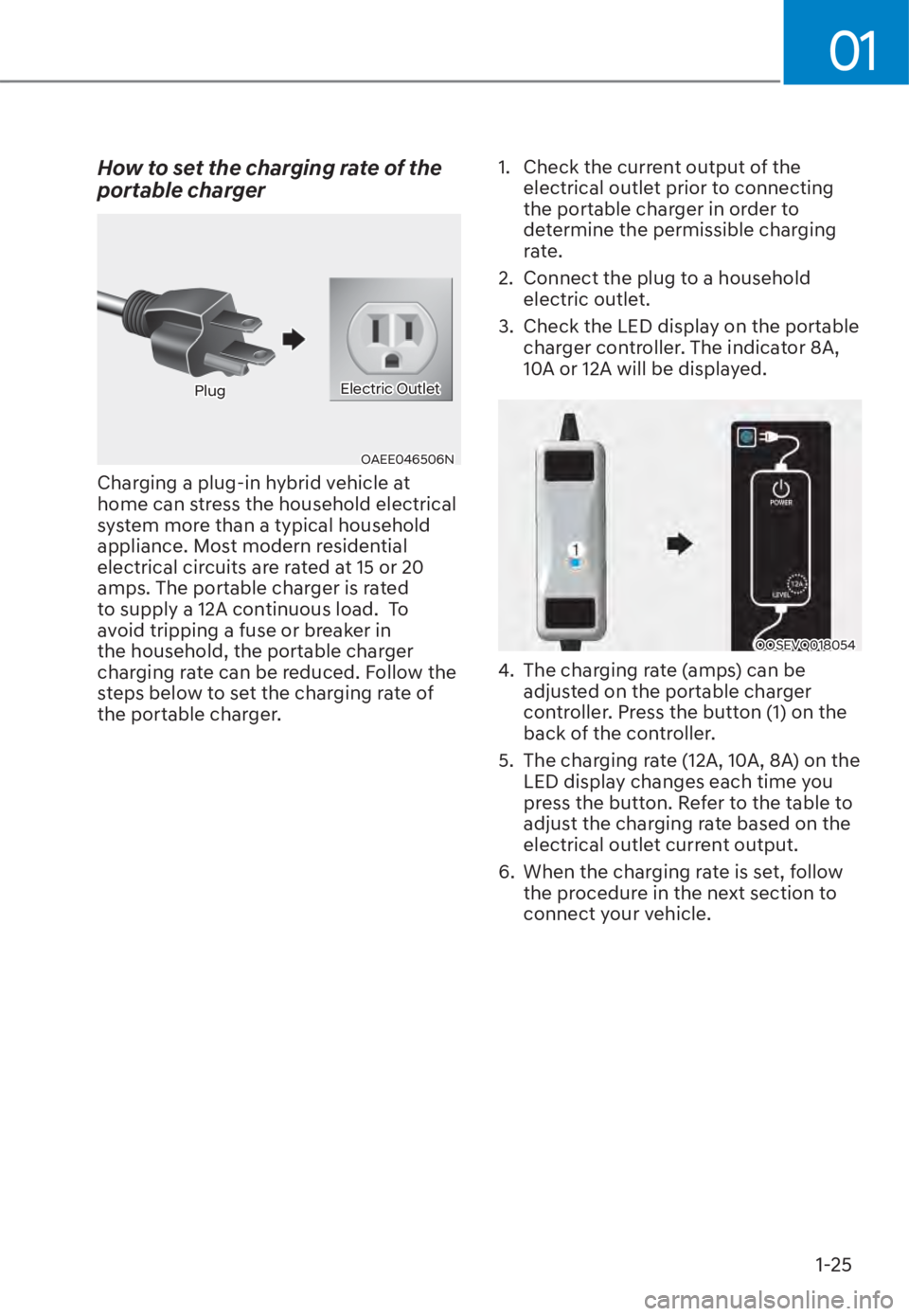

How to set the charging rate of the
portable charger
OAEE046506NOAEE046506N
PlugPlugElectric OutletElectric Outlet
Charging a plug-in hybrid vehicle at
home can stress the household electrical
system more than a typical household
appliance. Most modern residential
electrical circuits are rated at 15 or 20
amps. The portable charger is rated
to supply a 12A continuous load. To
avoid tripping a fuse or breaker in
the household, the portable charger
charging rate can be reduced. Follow the
steps below to set the charging rate of
the portable charger.1. Check the current output of the
electrical outlet prior to connecting
the portable charger in order to
determine the permissible charging
rate.
2. Connect the plug to a household electric outlet.
3. Check the LED display on the portable charger controller. The indicator 8A,
10A or 12A will be displayed.
OOSEVQ018054OOSEVQ018054
4. The charging rate (amps) can be adjusted on the portable charger
controller. Press the button (1) on the
back of the controller.
5. The charging rate (12A, 10A, 8A) on the LED display changes each time you
press the button. Refer to the table to
adjust the charging rate based on the
electrical outlet current output.
6. When the charging rate is set, follow the procedure in the next section to
connect your vehicle.

01
1-37
„„Ready stateReady state
ONX4EPHQ011005LONX4EPHQ011005L

„„Charging stateCharging state
ONX4EPHQ011006LONX4EPHQ011006L
ONX4EPHQ011024LONX4EPHQ011024L
4. In ready or charging state where the
Fault indicator does not blink, press the
button (1) on the control box for more
than 2 seconds to adjust the charge
level. (Refer to charging cable type and
example for setting the charge level.)
5. The display window on the control box changes From 6A and 8A and 10A to
12A every time you press the button (1).
6. When the charge level you want is displayed in the display window, press
the button (1) on the control box for
more than 1 second to apply the desired
charge level. If you do not press the
button within 10 seconds, it will return
to the previously set charge level.
7. When setting the charge level is complete, start charging according to
the trickle charge procedure.

à Example for setting the ICCB charge level (The example is only for reference and
may vary according to the surrounding environment.)
Outlet current ICCB charge level Control box display window
14-16A 12A
ONX4EPHQ011007LONX4EPHQ011007L
13-12A10A
11-10A 8A
9-8A 6A

01
1-53
Plug-in Hybrid Mode (Plug-in
hybrid vehicle)
„„EV/HEV buttonEV/HEV button
ONX4EPHQ011012LONX4EPHQ011012L
Pressing the [EV/HEV] button changes
the plug-in hybrid system modes,
between Electric (CD) mode and Hybrid
(CS) mode.
Each time the mode is changed a
corresponding indicator is displayed on
the instrument cluster as follows.
„„AUTO mode AUTO mode ••Type AType A••Type BType B
ONX4EPHQ011013LONX4EPHQ011013LONX4EPHQ011014LONX4EPHQ011014L
„„CS mode CS mode ••Type AType A••Type BType B
ONX4EPHQ011015LONX4EPHQ011015LONX4EPHQ011016LONX4EPHQ011016L
Plug-in hybrid mode indicator
• CD (Charge Depleting, Electric) mode : The high-
voltage (hybrid)
battery is used to drive the vehicle.
• AUTO mode : CD mode and CS mode are selected automatically depending
on road conditions.
• CS (Charge Sustaining, Hybrid) mode : The high-voltage (hybrid) battery and
gasoline engine is used to drive the
vehicle.
Information
Even when the battery charging rate
is high and driving in electric mode is
possible, engine may turn on in some areas
to protect the system.

03
3-7
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts
and/or air bags) is greatly reduced by
reclining your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.ONX4030004
Seat height (if equipped)
To change the height of the seat:

[Push do

wn the lever several times, to
lower the seat.

[ Pull up the lever several times, to raise
the seat.
ONX4030005
Lumbar support
(for driver’s seat, if equipped)

[The lumbar support can be adjus
ted
by pressing the lumbar support
switch.

[ Press the front portion of the switch
(1) to increase support or the rear
portion of the switch (2) to decrease
support.

Seats & Safety System3-18
Seat Warmers (if equipped)
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[ Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[ Do not change the seat cover. It may
damage the seat warmer.

03
3-19

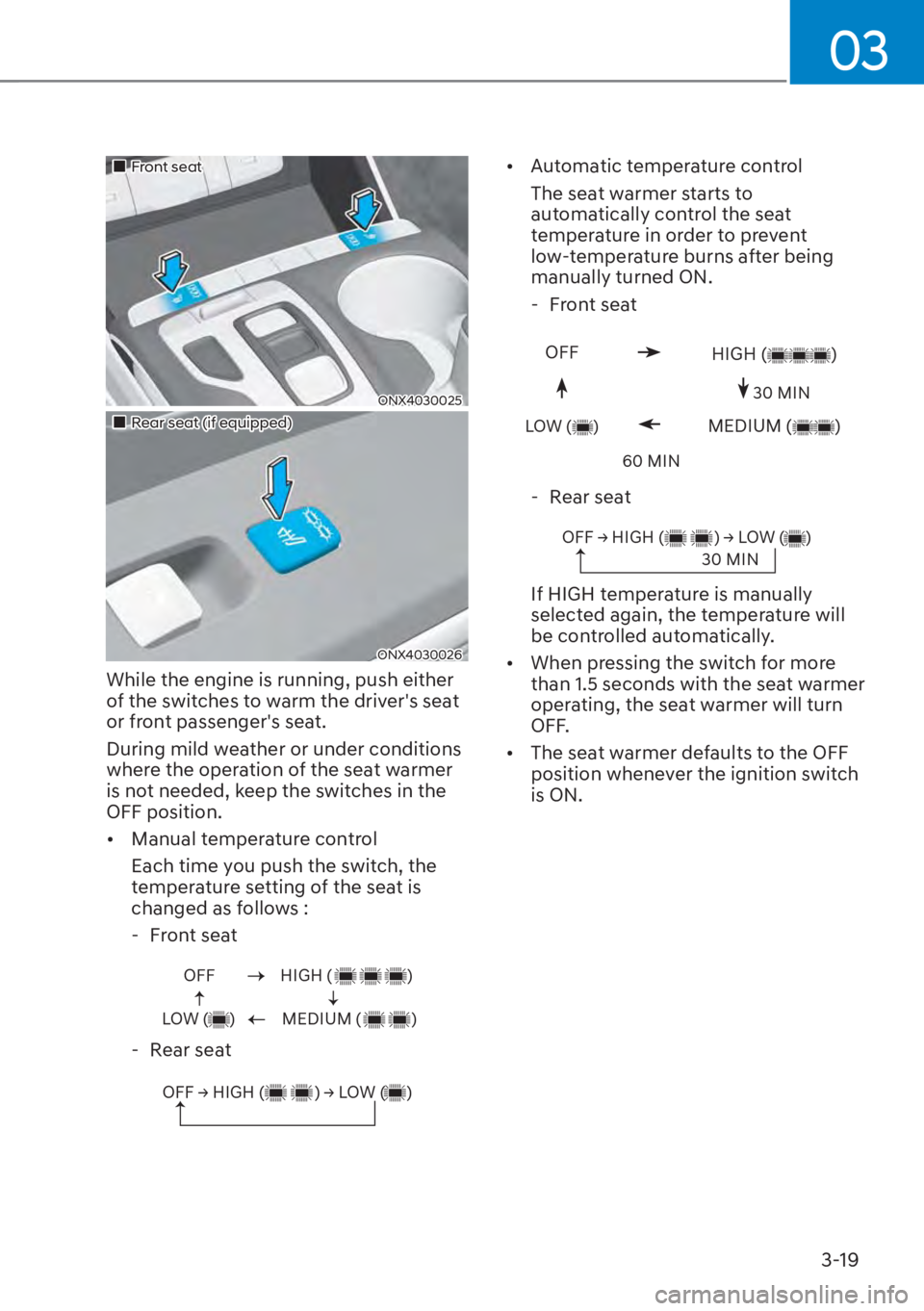

„Front seat
ONX4030025
„Rear seat (if equipped)
ONX4030026
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.

[Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows :

- Front seat
OFF
LOW ( )HIGH ( )
MEDIUM ( )
- Rear seat
OFF
Ÿ HIGH ( )
Ÿ LOW ( )

[ Automatic temperature control
The seat warmer starts to
automatically control the seat
temperature in order to prevent
low-temperature burns after being
manually turned ON.

- Front seat
OFFHIGH ()
30 MIN
LOW (
)MEDIUM ()
60 MIN
- Rear seat
OFF
Ÿ HIGH ( )
Ÿ LOW ( )30 MIN
If HIGH temperature is manually
selected again, the temperature will
be controlled automatically.

[ When pressing the switch for more
than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.

[ The seat warmer defaults to the OFF
position whenever the ignition switch
is ON.

03
3-21

[Each time you push the switch, the
airflow changes as follows:
OFF
LOW ( )HIGH ( )
MEDIUM ( )

[ When pressing the switch for
more than 1.5 seconds with the
air ventilation seat operating, the
operation will turn OFF.

[ The air ventilation seat defaults to the
OFF position whenever the ignition
switch is placed to the ON position.

[ Auto Comfort Control (for driver’s
seat) (if equipped)

- The air ventilation seat
automatically controls the seat
temperature depending on the
ambient temperature and the set
climate control temperature when
the engine is running. If the air
ventilation seat switch is pushed,
the air ventilation seat will have to
be controlled manually.
To use this function, it must be
activated from the Settings menu in
the infotainment system screen.

- The air ventilation seat defaults
to the OFF position whenever the
ignition switch is ON. However, if
the Auto Comfort Control function
is ON, the air ventilation seat will
turn on and off depending on the
ambient temperature and the set
climate control temperature.
For more details, refer to the separately
supplied Infotainment manual with
your vehicle.
