2023 HYUNDAI TUCSON HYBRID window

05
5-31
Operating Door Unlocks from
Inside the Vehicle
With the door inside handle
ONX4050004ONX4050004
Driver door & Passenger door
If the inner door handle is pulled when
the door is lock
ed, the door will unlock
and open.
Rear Door - Two Pull Operation
If the inner door handle is pulled once
when the door is lock
ed, the door will
unlock. If the inner door handle is pulled
once more, the door will open.
If any door is opened, the doors will not
lock even though the central door lock
switch is pressed.
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:
• Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.
• Operate the other door locks and
handles.
• Lower a front window and use the
mechanical key to unlock the door from
outside.
With the door lock/unlock switch
„„Driver’s doorDriver’s door
ONX4050005ONX4050005
„„Passenger’s doorPassenger’s door
OCN7050083NOCN7050083N
• When pressing the () portion (1) on
the switch, all vehicle doors will lock.
- If any door is opened, the doors will not lock even though the lock
button (1) of the driver door lock
switch is pressed.
- If any door is opened, the doors will not lock even though the central
door lock switch (1) is pressed.
• When pressing the (
) portion (2)
on the switch, all vehicle doors will
unlock.
• All Doors Locked LED Indicator (3) When all vehicle doors are locked, the
indicating lights on the driver’s door
and passenger’s door will turn on. If
any door is unlocked, the indicator will
turn off.

Convenience Features5-32
WARNING
• The doors should always be fully
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.
• Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
WARNING
Do not leave the elderly, children or
animals unattended in your vehicle. An
enclosed vehicle can become extremely
hot, causing death or serious injury
to the elderly, unattended children
or animals who cannot escape from
the vehicle. Children might operate
features of the vehicle that could injure
them, or they could encounter other
harm, possibly from someone gaining
entry to the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake, shift the gear
to the P (Park) position, engage the
parking brake, and press the Engine
Start/Stop button to the OFF position,
close all windows, lock all doors, and
always take the key with you.
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
WARNING
Do not remain in your vehicle for long
periods of time during inclement
weather or in extreme temperature
conditions (cold or hot). Doing so may
risk possible injury or even death. Do
not lock the vehicle from the outside
when someone is in the vehicle.
In case of an emergency
ONX4050074ONX4050074
If the electrical power door lock switch
is not operating (for example, dead car
battery) the only way to lock the door(s)
is with the mechanical key from the
outside key hole.
Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency
door lock hole and turn the key
horizontally to lock.
3. Close the door securely.
Information
If the electrical power to door lock switch
is not operating (ex. dead car battery) and
the liftgate is closed, you will not be able to
open the liftgate until power is restored.

05
5-35
Rear Occupant Alert is provided to
prevent a driver from leaving a vehicle
with the rear passenger left in the
vehicle.
System Setting
To use Rear Occupant Alert, it must be
enabled from the Settings menu in the
infotainment system screen. Select: - Setup
Ÿ Vehicle Settings
Ÿ Convenience
Ÿ Rear Occupant Alert
For more details, refer to the separately
supplied Infotainment manual with
your vehicle.
System Operation
• First alert When you turn off the engine and
open the driver’s door after opening
and closing the rear door or liftgate,
the ‘Check rear seats’ warning
message appears on the cluster.
• Second alert After the first alert, the second alert
operates when any movement is
detected in the vehicle after the
driver’s door is closed and all the
doors are locked. The horn will sound
for approximately 25 seconds. If
the system continues to detect a
movement, the alert operates up to 8
times.
Unlock the doors with the smart key
to stop the alert.
• The system detects movement in the vehicle for 8 hours after the door is
locked.
• The second alert is activated only after the prior activation of the first alert.
System Precautions
• Make sure that all the windows are closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(for example, wind or bugs).
• „„ClusterCluster„„Steering wheelSteering wheel
OTMH030009NOTMH030009NOCN7050079OCN7050079
If you do not want to use Rear
Occupant Alert, press the OK button
on the steering wheel when the first
alert is displayed on the cluster. Doing
so will deactivate the second alert one
time.
• An alert can occur if there is an impact on the roof.
• If boxes or objects are stacked in the vehicle, the system may not detect
the boxes or objects. Or, the alert may
operate if the boxes or objects fall off.
• The sensor may not operate normally if the sensor is blocked with foreign
substances.
• The alert may operate if movement in the driver or passenger seat is
detected.
• The alert may operate with the doors locked due to car wash or surrounding
vibration or noise.
• If the vehicle is started remotely (if equipped with Remote Start), inside
movement detection will stop.
REAR OCCUPANT ALERT
ãROA
ä
ãIF EQUIPPED
ä

05
5-43
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
head restraint which could interfere
with your vision through the rear
window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror (if
equipped)
ODN8059025LODN8059025L[A] : Day, [B] : Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
MIRRORS

Convenience Features5-56

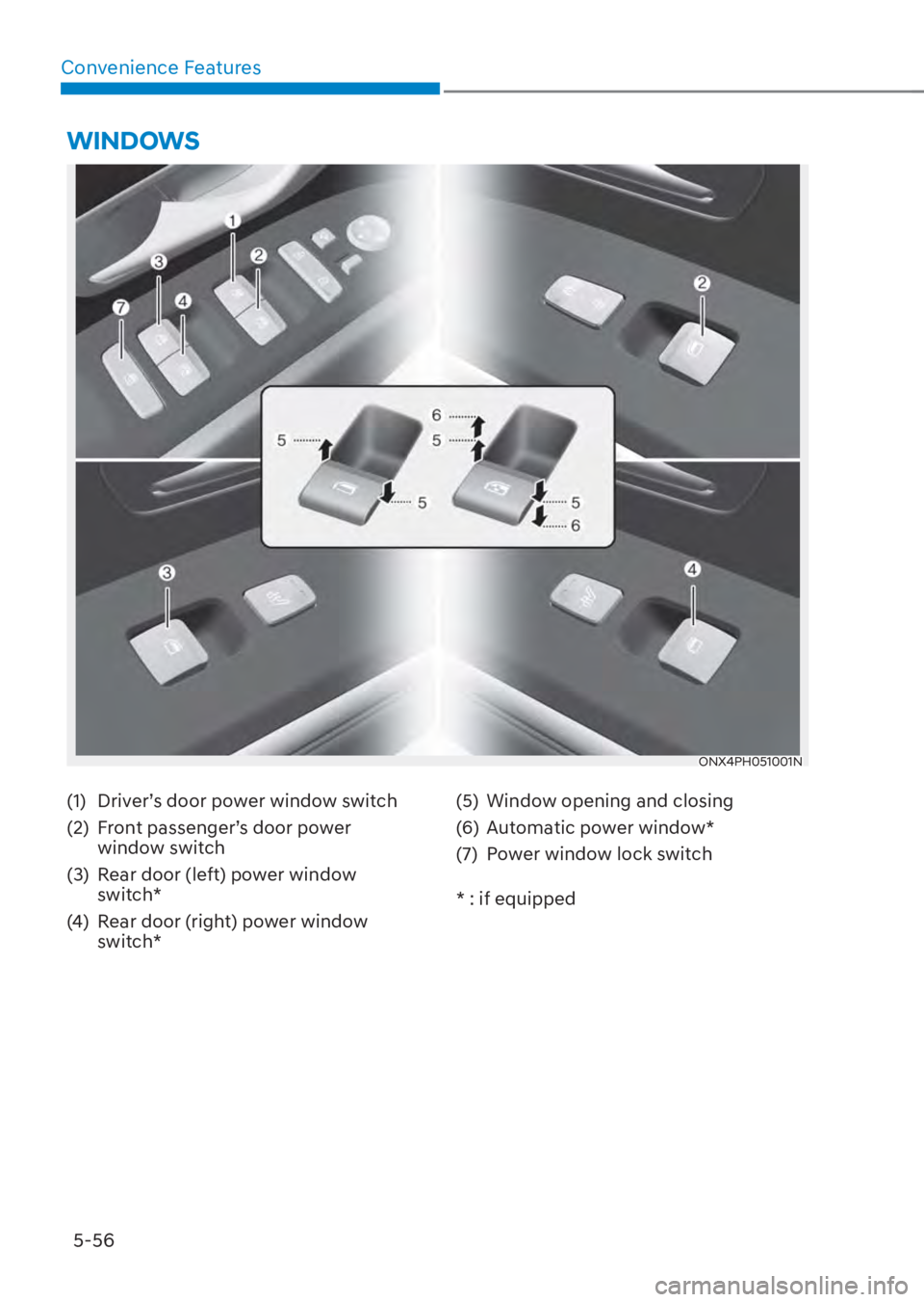

ONX4PH051001NONX4PH051001N
WINDOWS
(1) Driver’s door power window switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch*
(4) Rear door (right) power window switch* (5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch
* : if equipped

05
5-57
Power Windows
The ignition switch must be in the ON
position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that door’s
window. The driver has a Power Window
Lock switch which can block the
operation of rear passenger windows.
The power windows will operate for
about 3 minutes after the ignition is
turned OFF or if the ignition is placed
in the ACC position, as long as the front
doors remain closed.
If the front doors are opened, battery
power is turned OFF and the Power
Windows will not operate.
Window opening and closing
OCN7050082OCN7050082
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto down window
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers the
window even when the switch is
released.
To stop the window at the desired
position while the window is in
operation, pull up or press down and
release the switch.
Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the ignition switch to the ON position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
be inspected by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows toavoid
injuries or vehicle damage.

Convenience Features5-58

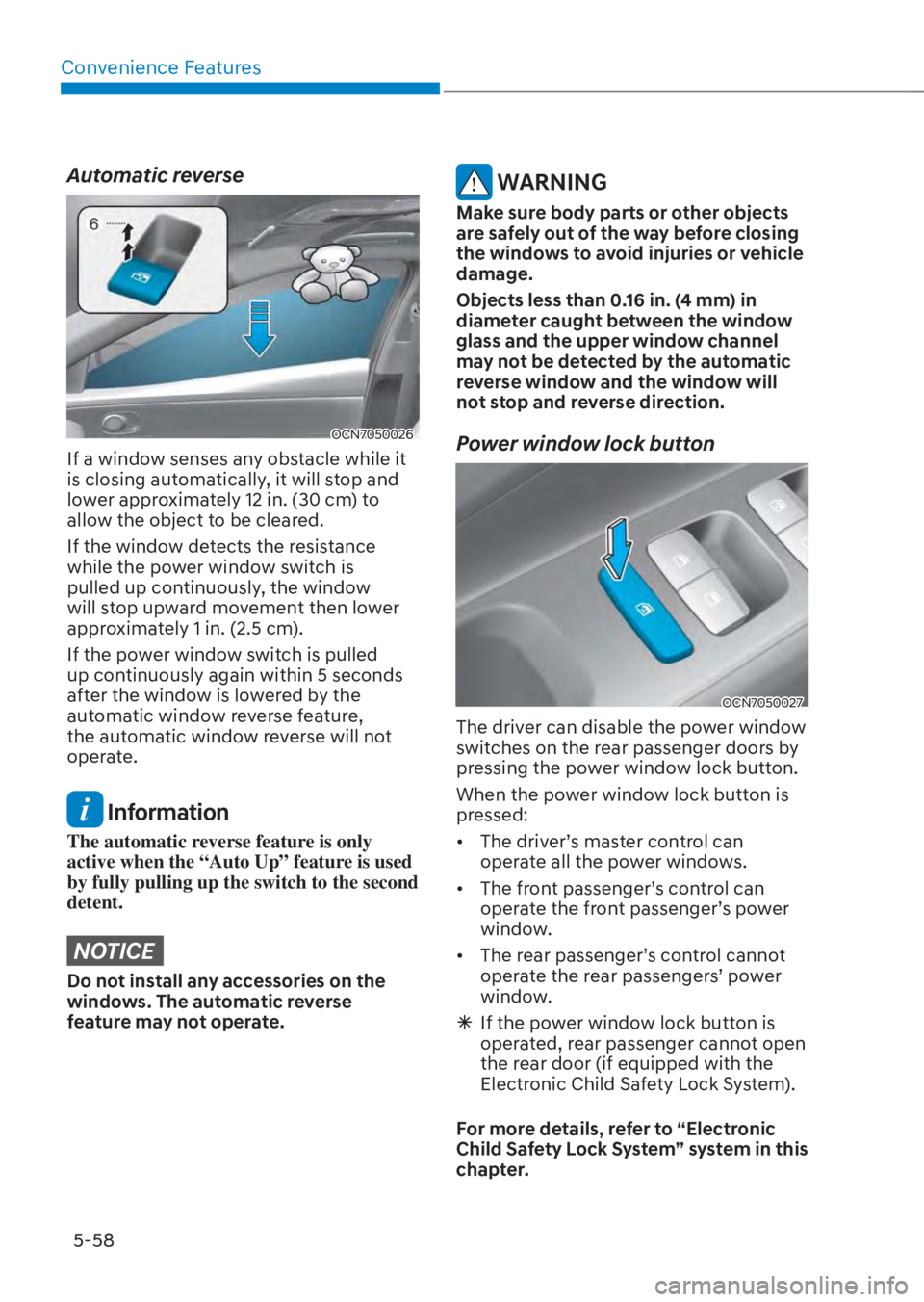

Automatic reverse
OCN7050026OCN7050026
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.
Power window lock button
OCN7050027OCN7050027
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:
• The driver’s master control can operate all the power windows.
• The front passenger’s control can operate the front passenger’s power
window.
• The rear passenger’s control cannot operate the rear passengers’ power
window.

à If the power window lock button is
operated, rear passenger cannot open
the rear door (if equipped with the
Electronic Child Safety Lock System).
For more details, refer to “Electronic
Child Safety Lock System” system in this
chapter.

05
5-59
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
Remote window opening function
(if equipped)
„„Type AType A
ONX4050079NONX4050079N
„„Type BType B
ONX4050082NONX4050082N
You can still control the window
movement with the engine turned off.
• Hold the Door Unlock button (1) for
more than 3 seconds. The window
moves down after the doors are
unlocked, as long as you press the
door unlock button. The window
movement stops when you release
the door lock button.
