2023 HYUNDAI TUCSON HYBRID Owners Manual

Convenience Features5-56
ONX4PH051001NONX4PH051001N
WINDOWS
(1) Driver’s door power window switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch*
(4) Rear door (right) power window switch* (5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch
* : if equipped

05
5-57
Power Windows
The ignition switch must be in the ON
position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that door’s
window. The driver has a Power Window
Lock switch which can block the
operation of rear passenger windows.
The power windows will operate for
about 3 minutes after the ignition is
turned OFF or if the ignition is placed
in the ACC position, as long as the front
doors remain closed.
If the front doors are opened, battery
power is turned OFF and the Power
Windows will not operate.
Window opening and closing
OCN7050082OCN7050082
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto down window
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers the
window even when the switch is
released.
To stop the window at the desired
position while the window is in
operation, pull up or press down and
release the switch.
Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the ignition switch to the ON position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
be inspected by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows toavoid
injuries or vehicle damage.

Convenience Features5-58
Automatic reverse
OCN7050026OCN7050026
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.
Power window lock button
OCN7050027OCN7050027
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:
• The driver’s master control can operate all the power windows.
• The front passenger’s control can operate the front passenger’s power
window.
• The rear passenger’s control cannot operate the rear passengers’ power
window.

à If the power window lock button is
operated, rear passenger cannot open
the rear door (if equipped with the
Electronic Child Safety Lock System).
For more details, refer to “Electronic
Child Safety Lock System” system in this
chapter.

05
5-59
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
Remote window opening function
(if equipped)
„„Type AType A
ONX4050079NONX4050079N
„„Type BType B
ONX4050082NONX4050082N
You can still control the window
movement with the engine turned off.
• Hold the Door Unlock button (1) for
more than 3 seconds. The window
moves down after the doors are
unlocked, as long as you press the
door unlock button. The window
movement stops when you release
the door lock button.

Convenience Features5-60
WARNING
If you stay on the function after
operating the Remote window opening
function, it is likely to cause a theft.
In addition, please use caution there
might be a malfunction due to the
inflow of water while raining.
Information
• The remote window opening function
may abruptly stop when you move
away from your vehicle during
operation. Stay in close proximity
to your vehicle while monitoring the
window movement.
• One of the windows may stop
operating, when the window is
interrupted by certain force. However,
the other windows will continue to
operate. Thus, you should check that all
windows are opened.
• Please be aware that the doors unlock
when using the remote window opening
function.

05
5-61
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
ONX4H050005NONX4H050005N
The sunroof can only be operated when
the Engine Start/Stop button is in the ON
or START position.
The sunroof can be operated for
approximately 3 minutes after the
ignition switch or Engine Start/Stop
button is in the ACC or LOCK/OFF
position. However, if the front door is
open, the sunroof cannot be operated
even within the 3 minutes period.
WARNING
• Adjust the sunroof or sunshade when
your vehicle stops. Adjusting the
sunroof while driving could result
in loss of control and an accident
that may cause injury, or property
damage.
• Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
Power Sunshade
ONX4C051005ONX4C051005
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
- Push the sunroof switch rearward to the first detent position, the power
sunshade automatically slides open.
- Push the sunroof switch forward to the first detent position, the power
sunshade automatically closes.
However, if the sunroof glass is open,
the glass will close first.
To stop the power sunshade at any point,
push the sunroof switch in any direction.
NOTICE
Do not pull or push the power sunshade
by hand as such action may damage
the power sunshade or cause it to
malfunction.
Information
Wrinkles formed on the power sunshade
are normal due to material characteristic.
PANORAMIC SUNROOF
ãIF EQUIPPED
ä

Convenience Features5-62

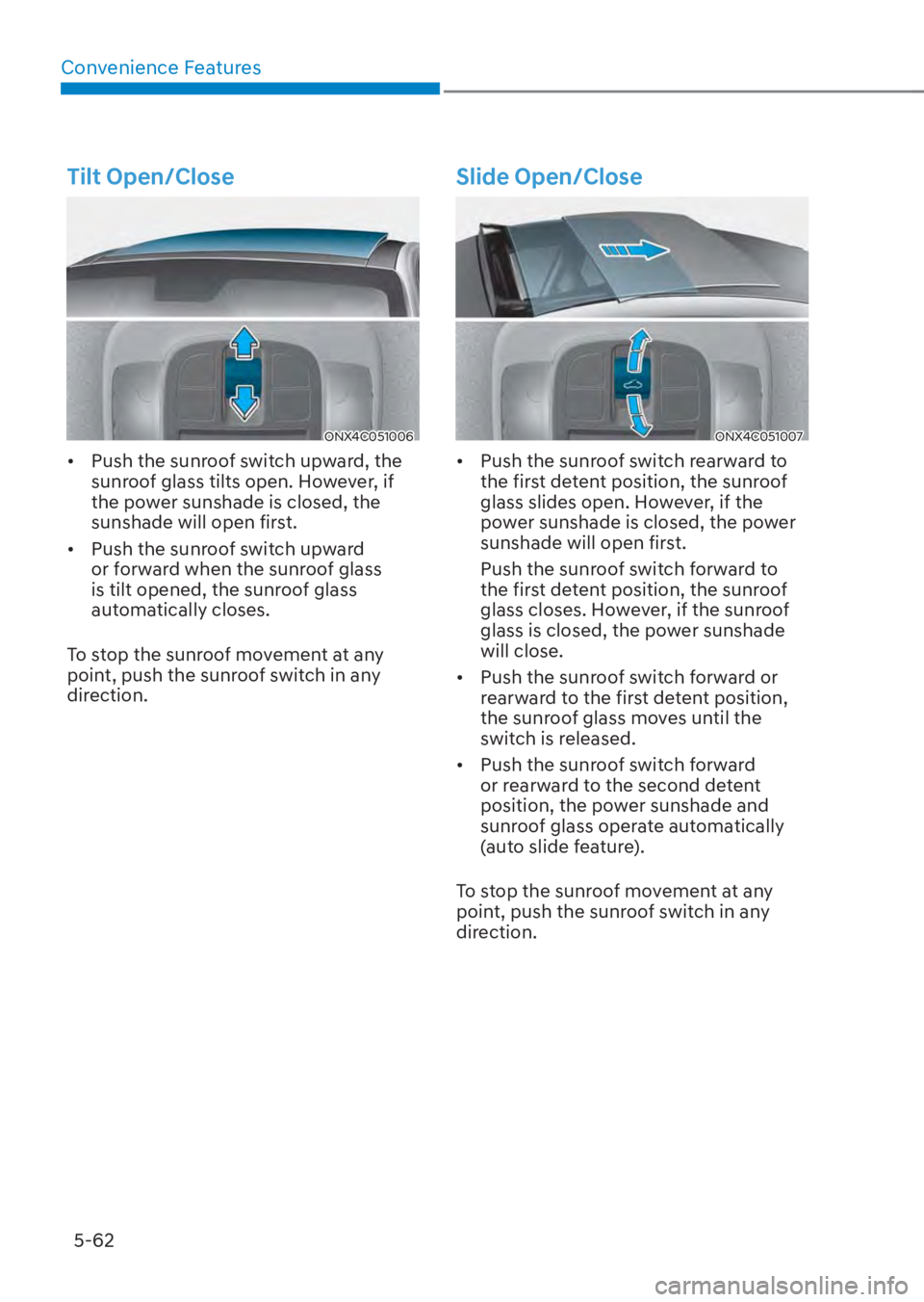

Tilt Open/Close
ONX4C051006ONX4C051006
• Push the sunroof switch upward, the sunroof glass tilts open. However, if
the power sunshade is closed, the
sunshade will open first.
• Push the sunroof switch upward or forward when the sunroof glass
is tilt opened, the sunroof glass
automatically closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Slide Open/Close
ONX4C051007ONX4C051007
• Push the sunroof switch rearward to the first detent position, the sunroof
glass slides open. However, if the
power sunshade is closed, the power
sunshade will open first.
Push the sunroof switch forward to
the first detent position, the sunroof
glass closes. However, if the sunroof
glass is closed, the power sunshade
will close.
• Push the sunroof switch forward or rearward to the first detent position,
the sunroof glass moves until the
switch is released.
• Push the sunroof switch forward or rearward to the second detent
position, the power sunshade and
sunroof glass operate automatically
(auto slide feature).
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.

05
5-63

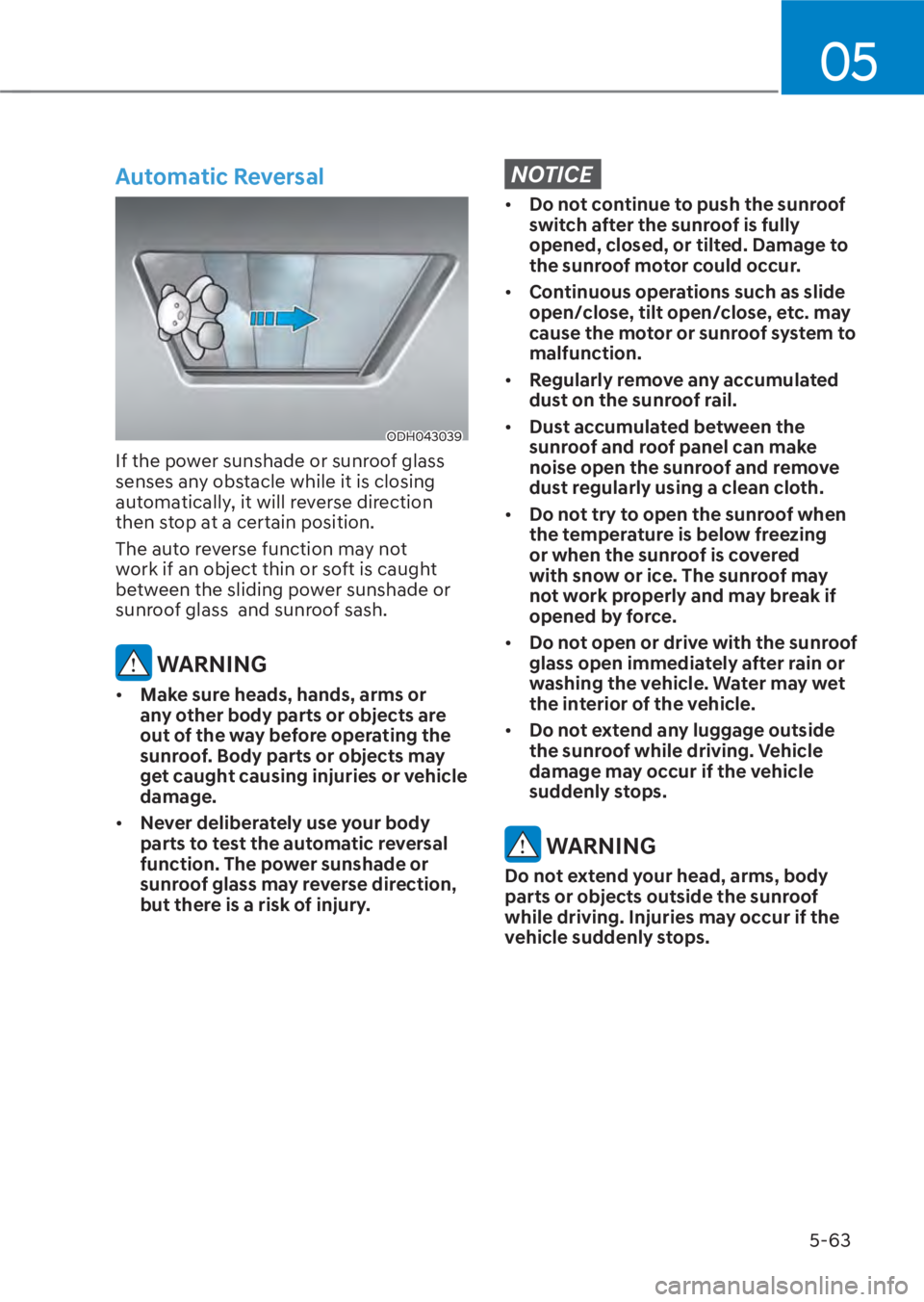

Automatic Reversal
ODH043039ODH043039
If the power sunshade or sunroof glass
senses any obstacle while it is closing
automatically, it will reverse direction
then stop at a certain position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding power sunshade or
sunroof glass and sunroof sash.
WARNING
• Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.
• Never deliberately use your body
parts to test the automatic reversal
function. The power sunshade or
sunroof glass may reverse direction,
but there is a risk of injury.
NOTICE
• Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.
• Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.
• Regularly remove any accumulated
dust on the sunroof rail.
• Dust accumulated between the
sunroof and roof panel can make
noise open the sunroof and remove
dust regularly using a clean cloth.
• Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.
• Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.
• Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.
