Driver Assistance System7-116
SURROUND VIEW MONITOR (SVM) (IF EQUIPPED)
Surround View Monitor can assist in
parking by allowing the driver to see
around the vehicle.
ONX4070043ONX4070043
ONX4PH072025NONX4PH072025N
Detecting sensor
ONX4070045ONX4070045
ONX4070046ONX4070046[1] : Wide-front view camera,
[2],[3] : Wide-side view camera (under the side view mirror),
[4] : Wide-rear view camera
Refer to the picture above for the
detailed location of the detecting
sensors.

07
7-117
Surround View Monitor Settings
Warning Volume
ONX4072108NONX4072108N
With the engine on, select ‘Setup
Ÿ
Vehicle Settings
Ÿ Driver Assistance
Ÿ
Warning Sound and Haptic
Ÿ Warning
Volume’ from the Settings menu in the
infotainment system to change the
Warning Volume.
If 'Parking Safety Priority' is selected,
the vehicle lowers all other audio
volumes when Surround View Monitor is
operating for safe parking.
Camera settings
ONX4PH072023NONX4PH072023N
• You can change Surround View Monitor ‘Display Contents’ or ‘Display
Settings’ by touching the setup icon
(
) on the screen while Surround
View Monitor is operating, or selecting
‘Driver Assistance
Ÿ Parking safety
Ÿ
Camera settings’ from the Settings
menu while the engine is on.
• In the Display Contents, you can change settings for ‘Top View Parking
Guidance’, ‘Rear View Parking
Guidance’ and ‘Parking Distance
Warning’.

Driver Assistance System7-118

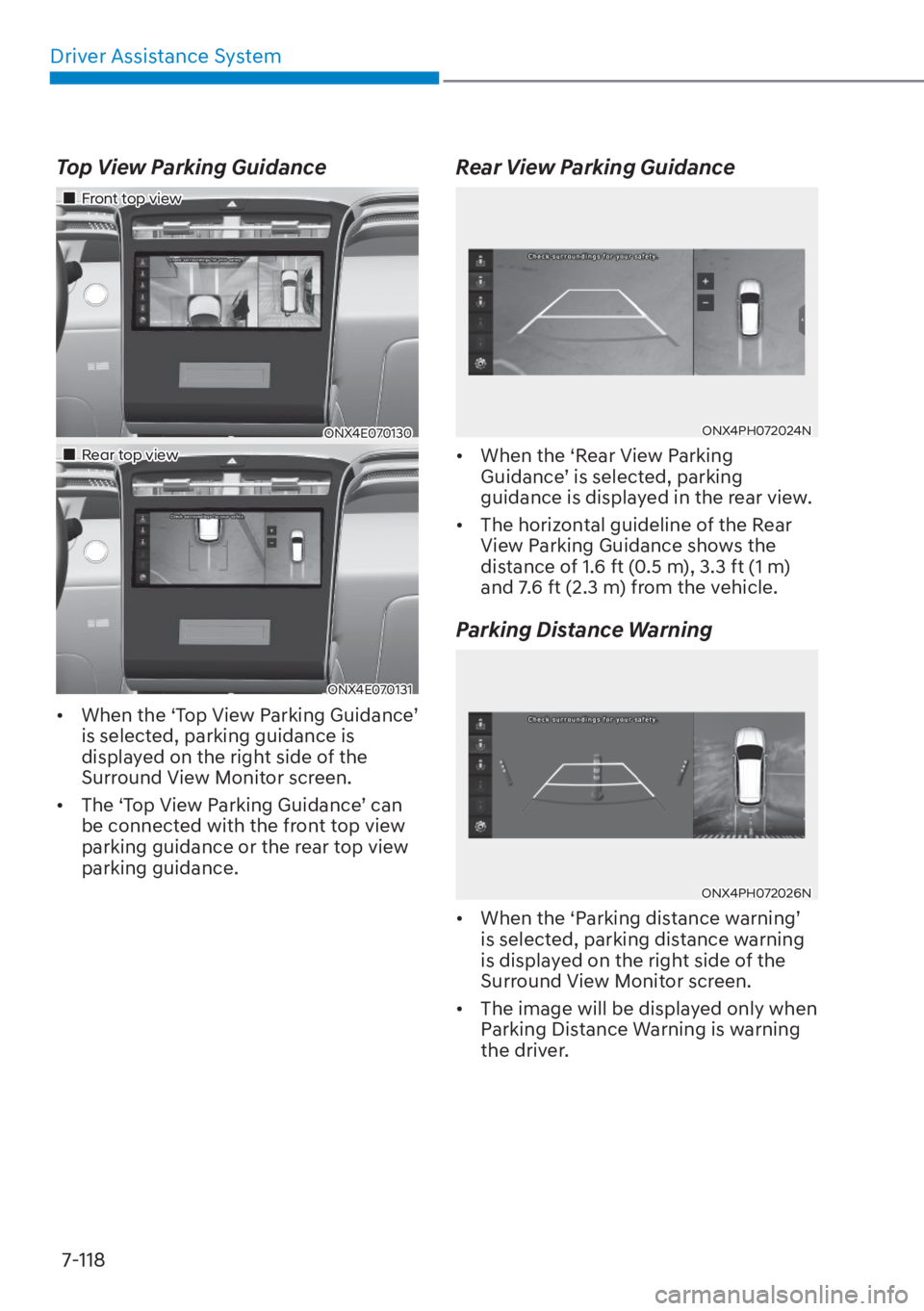

Top View Parking Guidance
„„Front top viewFront top view
ONX4E070130ONX4E070130
„„Rear top viewRear top view
ONX4E070131ONX4E070131
• When the ‘Top View Parking Guidance’ is selected, parking guidance is
displayed on the right side of the
Surround View Monitor screen.
• The ‘Top View Parking Guidance’ can be connected with the front top view
parking guidance or the rear top view
parking guidance.
Rear View Parking Guidance
ONX4PH072024NONX4PH072024N
• When the ‘Rear View Parking Guidance’ is selected, parking
guidance is displayed in the rear view.
• The horizontal guideline of the Rear View Parking Guidance shows the
distance of 1.6 ft (0.5 m), 3.3 ft (1 m)
and 7.6 ft (2.3 m) from the vehicle.
Parking Distance Warning
ONX4PH072026NONX4PH072026N
• When the ‘Parking distance warning’ is selected, parking distance warning
is displayed on the right side of the
Surround View Monitor screen.
• The image will be displayed only when Parking Distance Warning is warning
the driver.

07
7-119
Surround View Monitor Auto On
With the engine on, select ‘Driver
Assistance
Ÿ Parking safety
Ÿ Surround
view monitor auto on’ from the Settings
menu to use the function.
To use this function, refer to “System
Operation”.
Surround View Monitor
Operation
Parking/View button
ONX4070040ONX4070040
ONX4PH072027NONX4PH072027N
• Press the Parking/View button (1) to turn on Surround View Monitor.
Press the button again to turn off the
function.
• Other view modes can be selected by touching the view icons (2) on the
Surround View Monitor screen.
• When one of the infotainment system button (3) is pressed without the gear
in R (Reverse), Surround View Monitor
will turn off.
Front view
The front image is displayed on the
screen when the gear is in N (Neutral) or
D (Drive) to assist in parking. The front
view has a top view/front view/side view.
Operating conditions
• When the gear is shifted from R (R
everse) to N (Neutral) or D (Drive),
the last set mode of front view
function will be selected.
• Front view function will operate when the following conditions are satisfied:

- While the infotainment system
screen is being displayed, press the
Parking/View button (1) briefly when
the gear is in D (Drive) or N (Neutral)
and vehicle speed is below 6 mph
(10 km/h).
• Surround View Monitor Auto On function will operate when the
following conditions are satisfied:
- With ‘Driver Assistance
Ÿ Parking Safety
Ÿ Surround View Monitor
Auto On’ selected from the Settings
menu, the front parking assist view
screen is displayed when Parking
Distance Warning warns the driver
while driving in D (Drive).
Off conditions
• Press the Parking/View button (1) again, the image will turn o
ff.
• When vehicle speed is above 6 mph (10 km/h) with the gear in D (Drive),
Surround View Monitor will turn off
and the screen will change back to the
previous infotainment system screen.
Although you drive below 6 mph (10
km/h) again, Surround View Monitor
will not turn on.
• Press one of the infotainment system button (3), the screen will change to
the infotainment system screen.
• Shift the gear to P (Park), the image will turn off.

Driver Assistance System7-120
Rear view
The rear image is displayed on the screen
when the gear is in R (Reverse) or P
(Park) to assist in parking. The rear view
has a top view/rear view/side view.
Operating conditions
• Shift the gear to R (Reverse), the image will appear on the scr
een.
• Press the Parking/View button (1) while the gear is in P (Park), the image
will appear on the screen.
Off conditions
• The image cannot be turned off when the gear is in R (R
everse).
• Shift the gear from R (Reverse) to P (Park), the image will turn off.
• Press the Parking/View button (1) again while the gear is in P (Park) with
the image on the screen.
Information
When the gear is in R (Reverse), the rear
view does not turn off.
Surround View Monitor
Malfunction and Limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
properly, have the vehicle inspected by
an authorized HYUNDAI dealer.
Limitations of Surround View
Monitor
• When the vehicle is stopped for a long time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur
the image.
• The screen may be displayed abnormally, and an icon will appear at
the top left side of the screen under
the following circumstances:
- The liftgate is opened

- The driver or front passenger door
is opened
- The side view mirror is folded

07
7-121
WARNING
• ALWAYS look around your vehicle
to make sure there are no objects
or obstacles before moving the
vehicle. What you see on the screen
may differ from the actual vehicle’s
location.
• The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.
• Surround View Monitor is designed
to be used on a flat surface.
Therefore, if used on roads with
different heights such as curbs
and speed bumps, the image in the
screen may not look correct.
• Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Surround
View Monitor may not operate
normally. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

Driver Assistance System7-122
Rear Cross-Traffic Collision-Avoidance
Assist is designed to help detect vehicles
approaching from the rear left and right
side while your vehicle is reversing,
and warn the driver that a collision is
imminent with a warning message and
an audible warning. Also, braking is
assisted to help prevent a collision.
OJX1079108OJX1079108[A] : Rear Cross-Traffic Collision Warning operating range,
[B] : Rear Cross-Traffic Collision-Avoidance Assist operating range
CAUTION
The time of warning may vary
depending on the speed of the
approaching vehicle.
Detecting sensor
ONX4PH071005NONX4PH071005N[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
Information
For more details on the precautions of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in this chapter.
REAR CROSS-TRAFFIC COLLISION-AVOIDANCE ASSIST
(RCCA) (IF EQUIPPED)

07
7-123
Rear Cross-Traffic Collision-
Avoidance Assist Settings
Setting features
OTM070194NOTM070194N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
Assis
tance
Ÿ Parking Safety
Ÿ Rear Cross-
Traffic Safety’ from the Settings menu
to turn on Rear Cross-Traffic Collision-
Avoidance Assist and deselect to turn off
the function.
WARNING
When the engine is restarted, Rear
Cross-Traffic Collision-Avoidance Assist
will always turn on. However, if ‘Off’ is
selected after the engine is restarted,
the driver should always be aware of
the surroundings and drive safely.
OTM070140NOTM070140N
Warning Timing
With the engine on, select ‘Driver
Assis
tance
Ÿ Warning Timing’ from the
Settings menu to change the initial
warning activation time for Rear Cross-
Traffic Collision-Avoidance Assist.
When the vehicle is first delivered,
Warning Timing is set to ‘Normal’. If you
change the Warning Timing, the warning
time of other Driver Assistance systems
may change.
