Electronic Stability Control (ESC) OFF indicator light ...........................................4-20
Immobilizer Indicator Light (without smart key) ...................................................4-20
Immobilizer indicator light (with smart key) ...........................................................4-21
Downhill Brake Control (DBC) indicator light .........................................................4-21
Turn signal indicator light ........................................................................\
................ 4-22
High beam indicator light ........................................................................\
............... 4-22
Low beam indicator light ........................................................................\
................ 4-22
Light ON indicator light ........................................................................\
................... 4-22
High Beam Assist indicator light ........................................................................\
..... 4-22
Cruise indicator light ........................................................................\
....................... 4-22
SPORT Mode indicator light ........................................................................\
............ 4-23
SMART Mode indicator light ........................................................................\
........... 4-23
LCD Display Messages ........................................................................\
....................... 4-23 Shift to P ........................................................................\
........................................... 4-23
Low key battery ........................................................................\
................................ 4-23
Press START button while turning wheel ............................................................... 4-23
Check steering wheel lock system ........................................................................\
. 4-23
Press brake pedal to start engine ........................................................................\
... 4-24
Key not in vehicle ........................................................................\
............................. 4-24
Key not detected ........................................................................\
.............................. 4-24
Press START button again ........................................................................\
............... 4-24
Press START button with key ........................................................................\
........... 4-24
Check BRAKE SWITCH fuse ........................................................................\
............ 4-24
Shift to P to start engine ........................................................................\
.................. 4-24
12V battery discharging due to additional electrical devices ............................... 4-24
Door, Hood, Liftgate open indicator ....................................................................... 4-25
Sunroof open indicator ........................................................................\
.................... 4-25
Low pressure ........................................................................\
.................................... 4-25
Wiper/Lights display ........................................................................\
........................4-26
Low washer fluid ........................................................................\
..............................4-26
Low fuel ........................................................................\
............................................4-26
Engine has overheated ........................................................................\
....................4-26
Low engine oil ........................................................................\
..................................4-26
Check headlight ........................................................................\
...............................4-26
Check turn signal ........................................................................\
............................. 4-27
Check brake light ........................................................................\
............................. 4-27
Check headlight LED ........................................................................\
....................... 4-27
Ready to start driving ........................................................................\
...................... 4-27
Check regenerative brakes......................................................................\
................ 4-27
Stop vehicle and check brakes ........................................................................\
....... 4-27
Check Hybrid system ........................................................................\
....................... 4-27
Stop safely and check Hybrid system .................................................................... 4-27

4
4. Instrument Cluster
Check Hybrid system. Do not start engine ............................................................ 4-27
Stop safely and check power supply ......................................................................4-28
Check virtual engine sound system........................................................................\
4-28
Refill inverter coolant ........................................................................\
......................4-28
Park with engine On to charge battery ..................................................................4-28
Start engine to avoid battery discharge .................................................................4-28
Check regenerative brakes......................................................................\
................4-29
Check virtual engine sound system........................................................................\
4-29
Unplug vehicle to start (Plug-in hybrid vehicle) ....................................................4-29
Remaining time (Plug-in hybrid vehicle) ................................................................4-29
Wait until fuel door unlocks (Plug-in hybrid vehicle) ........................................... 4-30
Check fuel door (Plug-in hybrid vehicle) ............................................................... 4-30
Fuel door open (Plug-in hybrid vehicle) ................................................................. 4-31
Shift to P to charge (Plug-in hybrid vehicle) .......................................................... 4-31
Switching to Hybrid mode to allow heating or air conditioning
(Plug-in hybrid vehicle) ........................................................................\
................... 4-31
Maintaining Hybrid mode to allow heating or air conditioning
(Plug-in hybrid vehicle) ........................................................................\
................... 4-32
Low/High System Temp. Maintaining Hybrid mode (Plug-in hybrid vehicle) ..... 4-32
Low/High System Temp. Switching to Hybrid mode (Plug-in hybrid vehicle) .... 4-32
Switching to Hybrid mode to lubricate engine (Plug-in hybrid vehicle) ..............4-33
Maintaining Hybrid mode to protect engine (Plug-in hybrid vehicle) .................4-33
Exit SPORT mode to switch to EV (Plug-in hybrid vehicle) ...................................4-33
LCD Display ........................................................................\
............................. 4-34LCD Display Control ........................................................................\
...........................4-34
View Modes ........................................................................\
........................................ 4-35Trip computer mode ........................................................................\
........................4-36
Turn By Turn (TBT) mode ........................................................................\
.................4-36
Driving Assist mode ........................................................................\
.........................4-36
Master warning group ........................................................................\
..................... 4-37
User settings mode ........................................................................\
..........................4-39
Trip Computer (4.2-inch) - Hybrid Vehicle ............................................................... 4-46 Trip modes ........................................................................\
....................................... 4-46
Trip Computer (10.25-inch) - Hybrid Vehicle ........................................................... 4-49 Trip modes ........................................................................\
....................................... 4-49
Trip Computer (4.2-inch) - Plug-in Hybrid Vehicle ...................................................4-52 Trip modes ........................................................................\
........................................4-52
Trip Computer (10.25-inch) - Plug-in Hybrid Vehicle ...............................................4-55 Trip modes ........................................................................\
........................................4-55
Vehicle Settings (Infotainment System) ........................................................ 4-58Setting Your Vehicle ........................................................................\
.......................... 4-58

4-4
Instrument Cluster
„4.2 inch
„10.25-inch
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
ONX4PH042009N/ONX4PH042010N
1. Power gauge
2. Speedometer
3. Battery SOC (State of Charge) gauge 4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including Trip computer)
INSTRUMENT CLUSTER

04
4-5

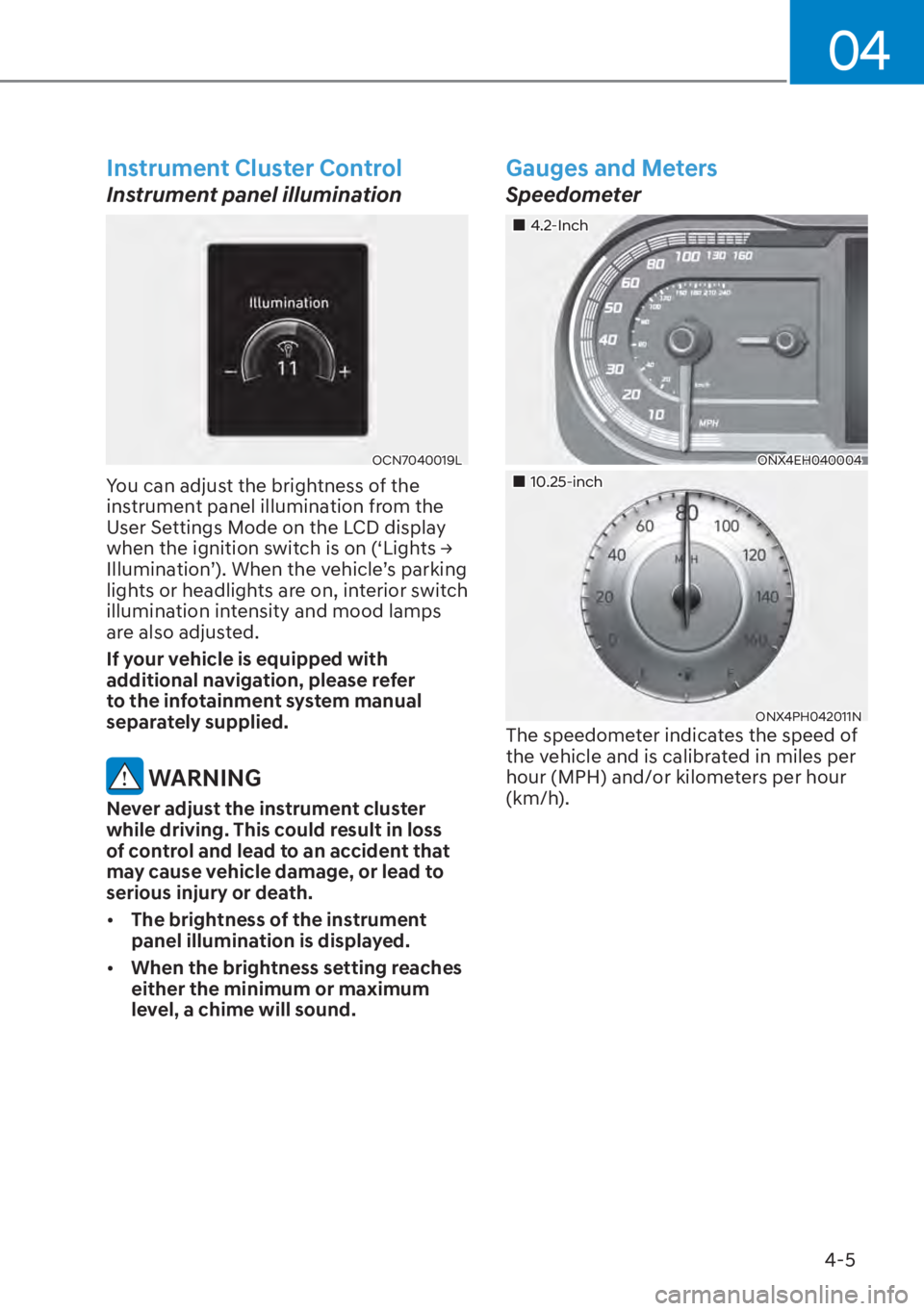

Instrument Cluster Control
Instrument panel illumination
OCN7040019L
You can adjust the brightness of the
instrument panel illumination from the
User Settings Mode on the LCD display
ZKHQWKHLJQLWLRQVZLWFKLVRQ
S/LJKWV

Instrument Cluster4-6
Power gauge
„4.2-Inch „10.25-inch
ONX4H040004OCN7H040002
The power gauge indicates whether the
current driving condition is fuel efficient
or not.

[CHARGE : Shows that the energy
made by the vehicle is being
converted to electrical energy.
(Regenerated energy)

[ ECO : Shows that the vehicle is being
driven in an Eco-friendly manner.

[ POWER : Shows that the vehicle is
exceeding the Eco-friendly range.
Information
Accordance to the power gauge area the
“EV” indicator comes on or off.
- “EV” indicator ON : Vehicle is driven
using the electric motor or the gasoline
engine is stopped.
- “EV” indicator OFF : Vehicle is driven
using the gasoline engine.
Fuel gauge
„4.2-Inch „10.25-inch
ONX4040008OCN7H040016N
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information

[The fuel tank capacity is given in
chapter 2.

[ The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.

[ On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in
the tank.
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “E
(Empty)” level.
NOTICE
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.

04
4-7
Hybrid battery SOC (State of Charge)
gauge
„4.2-Inch„10.25-inch
ONX4EH040008OCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is
near the “L (Low)” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is near
the “L (Low)” level, we recommend the
vehicle be checked by an authorized
HYUNDAI dealer.
NOTICE
Never try to start the vehicle if the fuel
tank is empty. In this condition, the
engine cannot charge the high voltage
battery of the hybrid system. If you
try to start the vehicle when the fuel
is empty, the high voltage battery will
become discharged and be damaged.
Plug-in hybrid mode indicator
„AUTO mode
‡Type A ‡Type B
ONX4EPHQ011013LONX4PHQ011014N
„CS mode
‡Type A ‡Type B
ONX4EPHQ011015LONX4PHQ011016N

[CD (Charge Depleting, Electric)
mode : The high-voltage (hybrid)
battery is used to drive the vehicle.

[ AUTO mode : CD mode and CS mode
are selected automatically depending
on road conditions.

[ CS (Charge Sustaining, Hybrid) mode :
The high-voltage (hybrid) battery and
gasoline engine is used to drive the
vehicle.
Information
Even when the battery charging rate
is high and driving in electric mode is
possible, engine may turn on in some areas
to protect the system.

Instrument Cluster4-8
Outside temperature gauge
„4.2-Inch
OTMA048112
„10.25-inch
ODN8A049031
The outside ambient temperature is
displayed in the lower portion of the LCD
cluster display. The temperature will read
in Fahrenheit or Celsius depending on the
units selected in the User Settngs menu.
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature unit
from the Settings menu in the cluster or
infotainment system screen.
Select: - 6HWXS

04
4-9
Distance to empty
„4.2-Inch
OCN7040084N
„10.25-inch
OCN7040016N

[The distance to empty is the
estimated mileage the vehicle can be
driven with the remaining fuel.

[ If the estimated distance is below 1 mi.
(1 km), the trip computer will display
“---” as distance to empty. When this
occurs, the remaining fuel is very low.
Refuel the vehicle immediately.
Information

[If the vehicle is not on level ground or
the battery power has been interrupted,
the distance to empty function may not
operate correctly.

[ The distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.

[ The Distance to Empty indicator may
not change accurately if less than 1.5
gallons of fuel are added to the vehicle.

[ The distance to empty may vary
significantly based on driving
conditions, driving habits, and
condition of the vehicle.
Fuel economy (for 10.25-inch
cluster)
OTMA040002
The average fuel economy (1) and instant
fuel economy (2) is displayed at the
bottom of the cluster.
Automatic reset
To automatically reset the average fuel
econom

y, select between "After Ignition"
or "After Refueling" from the Settings
menu in the infotainment system screen.
