2023 HYUNDAI TUCSON HYBRID Owners Manual

Driver Assistance System7-68
• The driver’s attention level is displayed on the scale of 1 to 5. The lower the
level is, the more inattentive the driver
is.
• The level decreases when the driver does not take a break for a certain
period of time.
Taking a break
OTM070105LOTM070105L
• The ‘Consider taking a break’ message will appear on the cluster and an
audible warning will sound to suggest
that the driver take a break, when the
driver’s attention level is below 1.
• Driver Attention Warning will not suggest a break when the total driving
time is shorter than 10 minutes or 10
minutes has not passed after the last
break was suggested.
WARNING
For your safety, only change the
Settings after parking the vehicle at a
safe location.
CAUTION
• Driver Attention Warning may
suggest a break depending on the
driver’s driving pattern or habits,
even if the driver doesn’t feel
fatigued.
• Driver Attention Warning is a
supplemental function and may not
be able to determine whether the
driver is inattentive.
• A driver who feels fatigued should
take a break at a safe location, even
though there is no break suggestion
by Driver Attention Warning.
Information
• You may change settings from the
instrument cluster (User Settings) or
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"User Settings" section in chapter 4, or
"Vehicle Settings" section in supplied
Infotainment Manual.
• Driver Attention Warning resets in the
following situations:
- The engine is turned off
- The driver unfastens the seat belt
and opens the driver’s door
- The vehicle is stopped for more than
10 minutes

07
7-69
Leading Vehicle Departure Alert
function
ONX4E070099ONX4E070099
When a detected vehicle in front departs
from a stop, Leading Vehicle Departure
Alert will inform the driver by displaying
the ‘Leading vehicle is driving away’
message on the cluster and an audible
warning will sound.
WARNING
• If any other system’s warning
message is displayed or audible
warning is generated, Leading
Vehicle Departure Alert's warning
message may not be displayed
and audible warning may not be
generated.
• The driver has the responsibility to
safely drive and control the vehicle.
CAUTION
• Leading Vehicle Departure Alert is a
supplemental function and may not
alert the driver whenever the front
vehicle departs from a stop.
• Always check the front of the
vehicle and road conditions before
departure.
Information
The images and colors in the cluster may
differ depending on the cluster type or
theme selected from the cluster.
Driver Attention Warning
Malfunction and Limitations
Driver Attention Warning
malfunction
OTM070107LOTM070107L
When Driver Attention Warning is not
working properly, the ‘Check Driver
Attention Warning (DAW) system’
warning message will appear on the
cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If this occurs, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Limitations of Driver Attention
Warning
Driver Attention Warning may not work
properly in the following situations:
• The vehicle is driven violently
• The vehicle intentionally crosses over lanes frequently
• The vehicle is controlled by Driver Assistance system, such as Lane
Keeping Assist

Driver Assistance System7-70

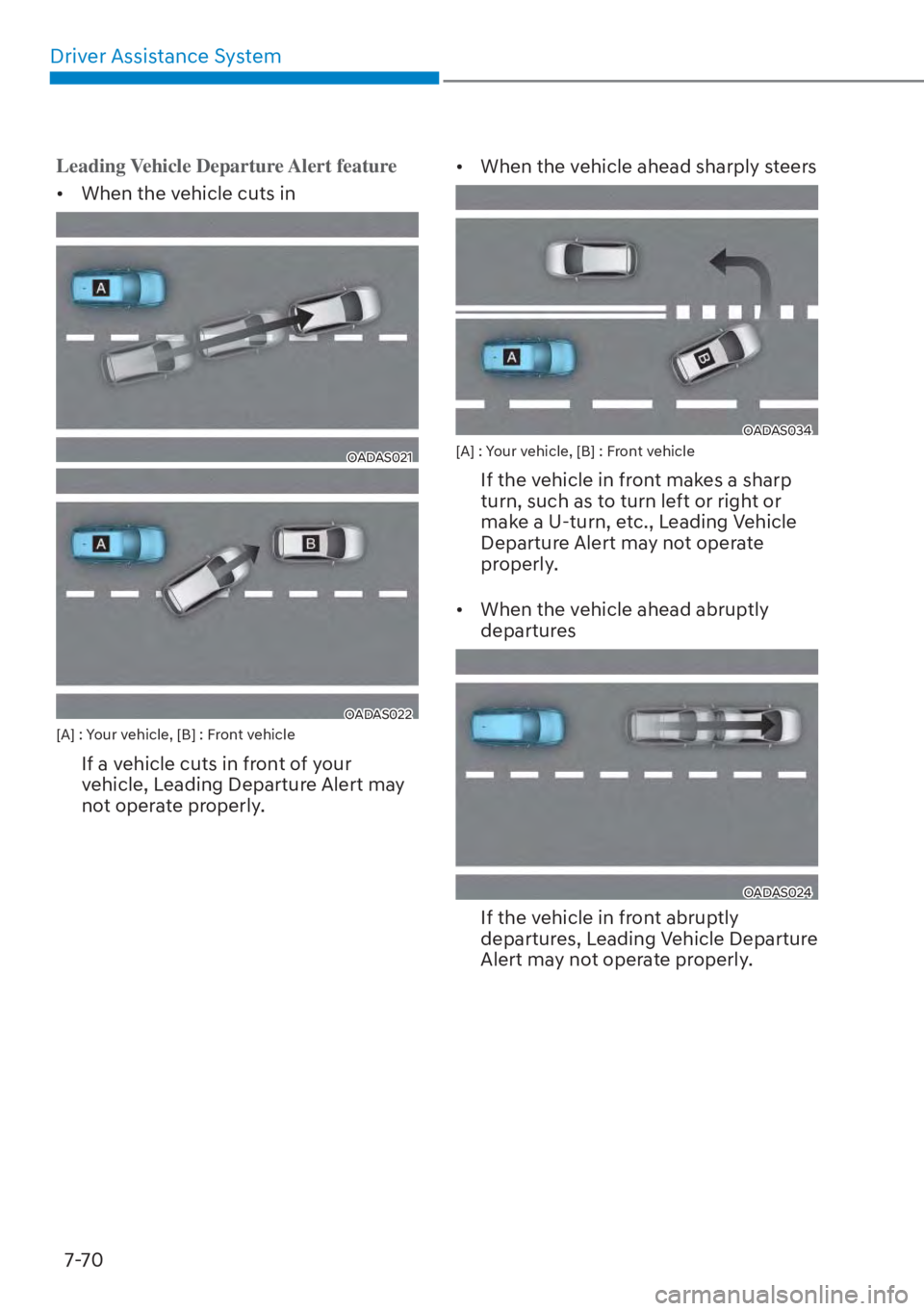

Leading Vehicle Departure Alert feature
• When the vehicle cuts in
OADAS021OADAS021
OADAS022OADAS022[A] : Your vehicle, [B] : Front vehicle
If a vehicle cuts in front of your
vehicle, Leading Departure Alert may
not operate properly. • When the vehicle ahead sharply steers
OADAS034OADAS034[A] : Your vehicle, [B] : Front vehicle
If the vehicle in front makes a sharp
turn, such as to turn left or right or
make a U-turn, etc., Leading Vehicle
Departure Alert may not operate
properly.
• When the vehicle ahead abruptly departures
OADAS024OADAS024
If the vehicle in front abruptly
departures, Leading Vehicle Departure
Alert may not operate properly.

07
7-71

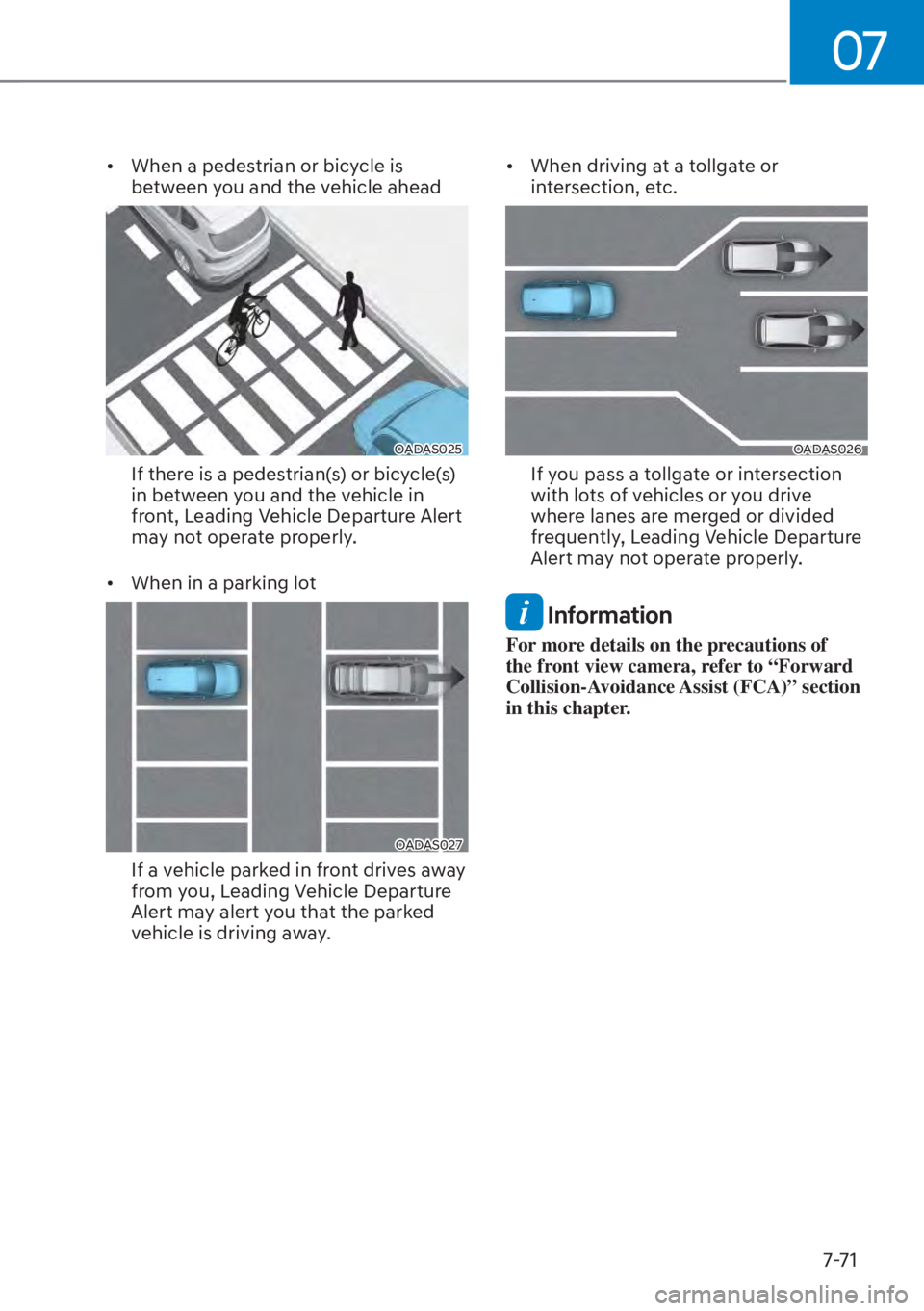

• When a pedestrian or bicycle is between you and the vehicle ahead
OADAS025OADAS025
If there is a pedestrian(s) or bicycle(s)
in between you and the vehicle in
front, Leading Vehicle Departure Alert
may not operate properly.
• When in a parking lot
OADAS027OADAS027
If a vehicle parked in front drives away
from you, Leading Vehicle Departure
Alert may alert you that the parked
vehicle is driving away. • When driving at a tollgate or
intersection, etc.
OADAS026OADAS026
If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
Information
For more details on the precautions of
the front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.

Driver Assistance System7-72
„„Left sideLeft side„„Right sideRight side
ONX4PH072017NONX4PH072017NONX4PH072018NONX4PH072018N
Blind-Spot View Monitor displays the
rear blind spot area of the vehicle in the
cluster when the turn signal is turned on
to help change lanes.
Detecting sensor
ONX4070031ONX4070031[1], [2] : Wide-side view camera (camera located at bottom of the mirror)
Refer to the picture above for the
detailed location of the detecting
sensors.
Blind-Spot View Monitor
Settings
Setting features
Blind-Spot View
With the engine on, select ‘Driver
Assis
tance
Ÿ Blind-Spot Safety
Ÿ Blind-
Spot View’ from the Settings menu to
turn on Blind-Spot View Monitor and
deselect to turn off Blind-Spot View
Monitor.
Blind-Spot View Monitor
Pperation
Operating switch
ONX4AOB052047ONX4AOB052047
Turn signal switch
Blind-Spot View Monitor will turn on and
o
ff when the turn signal is turned on and
off.
BLIND-SPOT VIEW MONITOR (BVM) (IF EQUIPPED)

07
7-73
Blind-Spot View Monitor
Operating conditions
When the left or right side turn signal
turns on, the image in tha
t direction is
displayed on the instrument cluster.
Off conditions
• When the turn signal turns off, the image on the ins
trument cluster will
turn off.
• When the hazard warning flasher is on, Blind-Spot View Monitor will
turn off, regardless of the turn signal
status.
• When other important warning is displayed on the instrument cluster,
Blind-Spot View Monitor may turn off.
Blind-Spot View Monitor
Malfunction
When Blind-Spot View Monitor is not
working properly, or the cluster display
flickers, or the camera image does
not display normally, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
• The image shown on the cluster may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.
• Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Blind-
Spot View Monitor may not operate
properly.

Driver Assistance System7-74
OTM058156EOTM058156E
(1) Cruise indicator
(2) Set speed
Cruise Control will allow you to drive at
speeds above 20 mph (30 km/h) without
depressing the accelerator pedal.
Cruise Control Operation
Setting feature
1. Accelerate to the desired speed, which must be more than 20 mph (30
km/h).
ONX4070032ONX4070032
2. Press the Driving Assist ()button
at the desired speed. The set speed
and Cruise (
) indicator will
illuminate on the cluster.
3. Release the accelerator pedal. Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
On a steep slope, the vehicle may slightly
slow down or speed up while driving uphill
or downhill.
CRUISE CONTROL (CC) (IF EQUIPPED)

07
7-75
Increasing set speed
OCN7060143OCN7060143
• Push the + switch up and release it immediately. The set speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.
• Push the + switch up and hold it while monitoring the set speed on the
cluster. The set speed will increase to
the nearest multiple of ten (multiple of
five in mph) at first, and then increase
by 5 mph (10 km/h) each time the
switch is operated in this manner.
Release the switch when the desired
set speed is shown and the vehicle
will accelerate to that speed.
Decreasing set speed
OCN7060144OCN7060144
• Push the - switch down and release it immediately. The set speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.
• Push the - switch down and hold it while monitoring the set speed on the
cluster. The set speed will decrease to
the nearest multiple of ten (multiple of
five in mph) at first, and then decrease
by 5 mph (10 km/h) each time the
switch is operated in this manner.
Release the switch at the set speed
you want to maintain.
To temporarily accelerate
If you want to speed up temporarily
when Cruise Control is on, depress the
accelerator pedal.
To return to the set speed, take your foot
off the accelerator pedal.
If you push the + switch up or - switch
down at increased speed, the set speed
will be set to the current increased
speed.
