2022 TOYOTA SUPRA Owners Manual

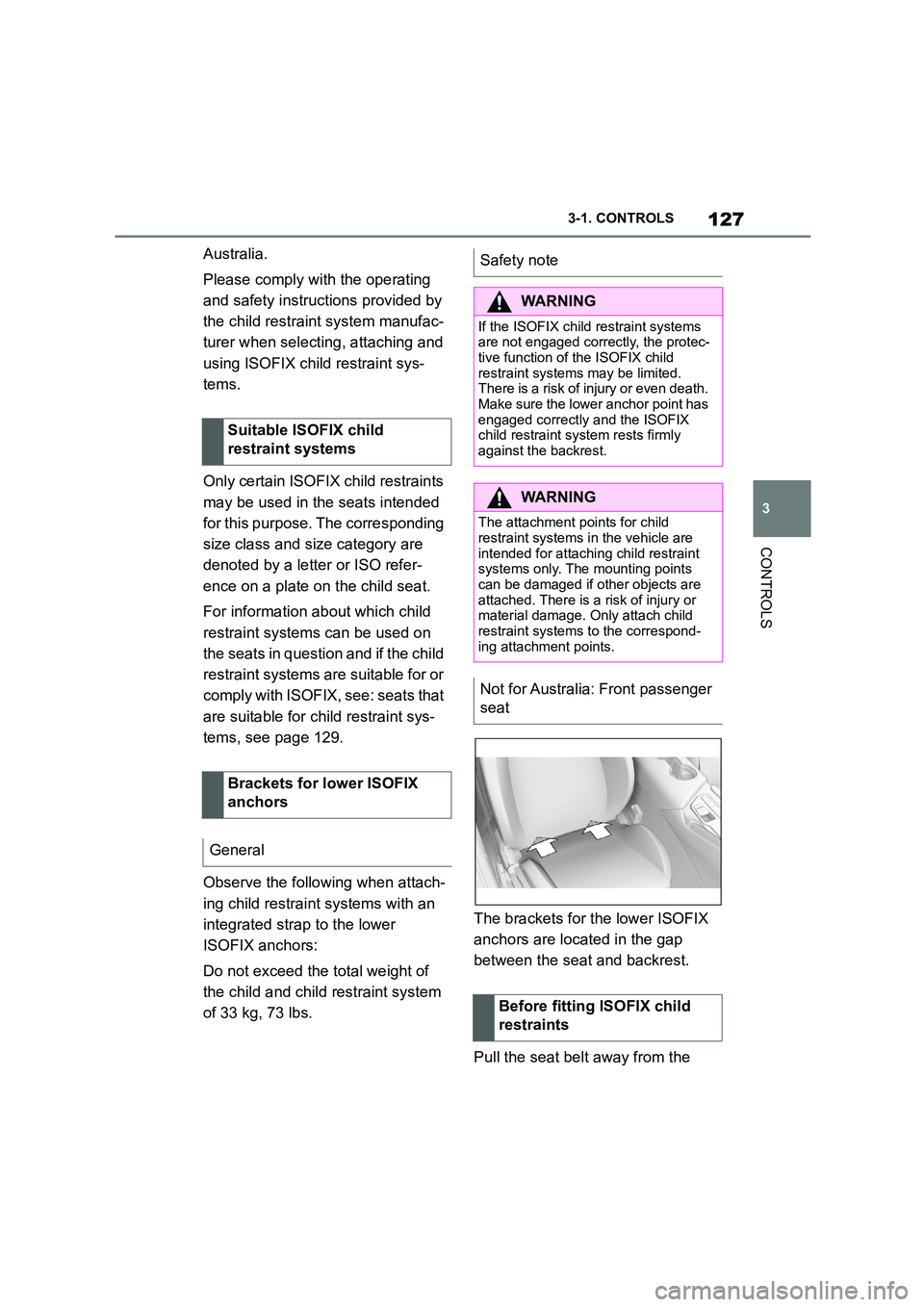

127
3
3-1. CONTROLS
CONTROLS
Australia.
Please comply with the operating
and safety instructions provided by
the child restraint system manufac-
turer when selecting, attaching and
using ISOFIX child restraint sys-
tems.
Only certain ISOFIX child restraints
may be used in the seats intended
for this purpose. The corresponding
size class and size category are
denoted by a letter or ISO refer-
ence on a plate on the child seat.
For information about which child
restraint systems can be used on
the seats in question and if the child
restraint systems are suitable for or
comply with ISOFIX, see: seats that
are suitable for ch ild restraint sys-
tems, see page 129.
Observe the following when attach-
ing child restraint systems with an
integrated strap to the lower
ISOFIX anchors:
Do not exceed the total weight of
the child and child restraint system
of 33 kg, 73 lbs.
The brackets for the lower ISOFIX
anchors are located in the gap
between the seat and backrest.
Pull the seat belt away from the
Suitable ISOFIX child
restraint systems
Brackets for lower ISOFIX
anchors
General
Safety note
WA R N I N G
If the ISOFIX child restraint systems
are not engaged correctly, the protec- tive function of the ISOFIX child
restraint systems may be limited.
There is a risk of injury or even death. Make sure the lower anchor point has
engaged correctly and the ISOFIX
child restraint system rests firmly
against the backrest.
WA R N I N G
The attachment points for child
restraint systems in the vehicle are intended for attaching child restraint
systems only. The mounting points
can be damaged if other objects are attached. There is a risk of injury or
material damage. Only attach child
restraint systems to the correspond- ing attachment points.
Not for Australia: Front passenger
seat
Before fitting ISOFIX child
restraints

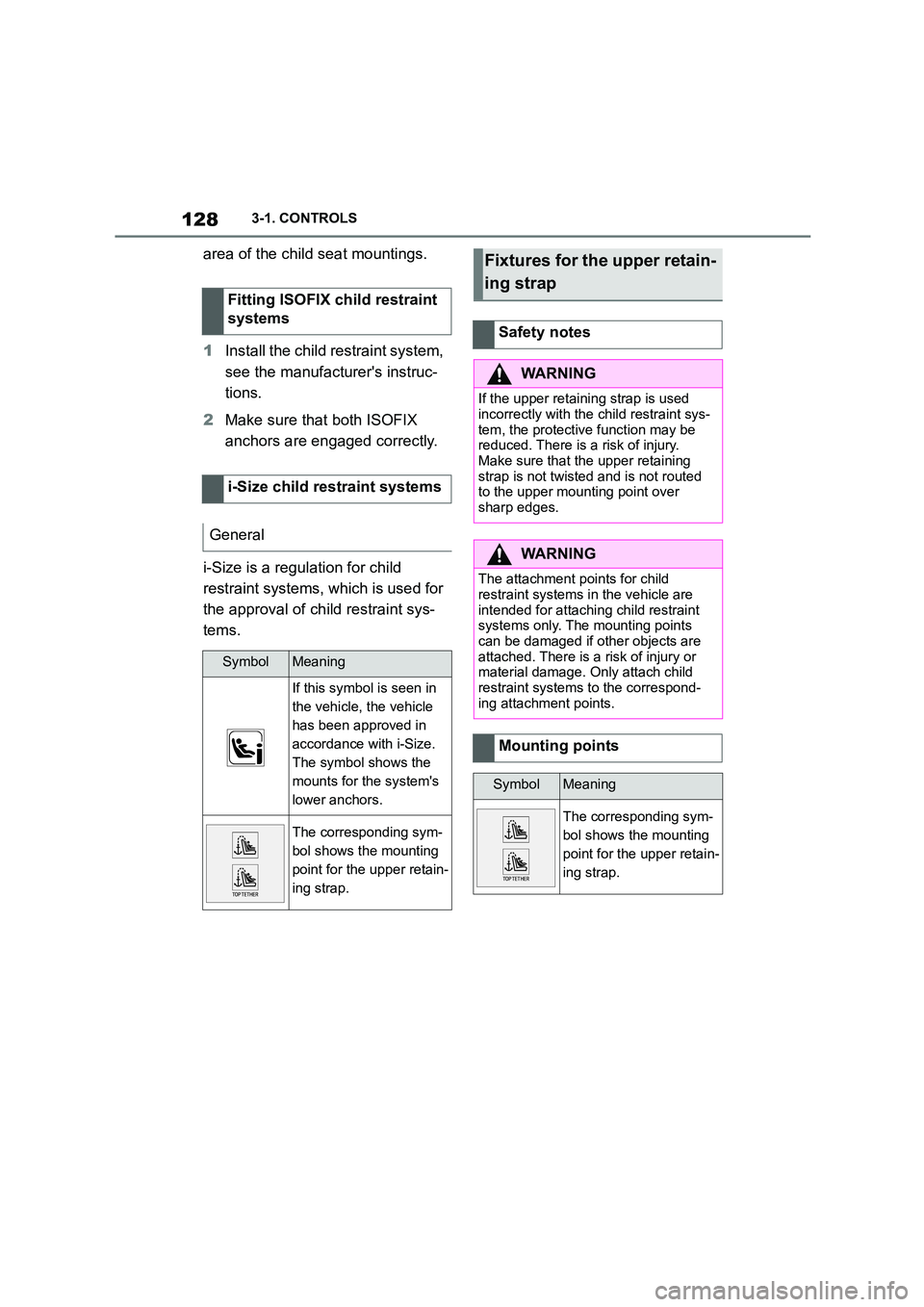

1283-1. CONTROLS
area of the child seat mountings.
1 Install the child restraint system,
see the manufacturer's instruc-
tions.
2 Make sure that both ISOFIX
anchors are engaged correctly.
i-Size is a regulation for child
restraint systems, which is used for
the approval of child restraint sys-
tems.
Fitting ISOFIX child restraint
systems
i-Size child restraint systems
General
SymbolMeaning
If this symbol is seen in
the vehicle, the vehicle
has been approved in
accordance with i-Size.
The symbol shows the
mounts for the system's
lower anchors.
The corresponding sym-
bol shows the mounting
point for the upper retain-
ing strap.
Fixtures for the upper retain-
ing strap
Safety notes
WA R N I N G
If the upper retaining strap is used
incorrectly with the child restraint sys-
tem, the protective function may be reduced. There is a risk of injury.
Make sure that the upper retaining
strap is not twisted and is not routed to the upper mounting point over
sharp edges.
WA R N I N G
The attachment points for child
restraint systems in the vehicle are
intended for attaching child restraint systems only. The mounting points
can be damaged if other objects are
attached. There is a risk of injury or material damage. Only attach child
restraint systems to the correspond-
ing attachment points.
Mounting points
SymbolMeaning
The corresponding sym-
bol shows the mounting
point for the upper retain-
ing strap.

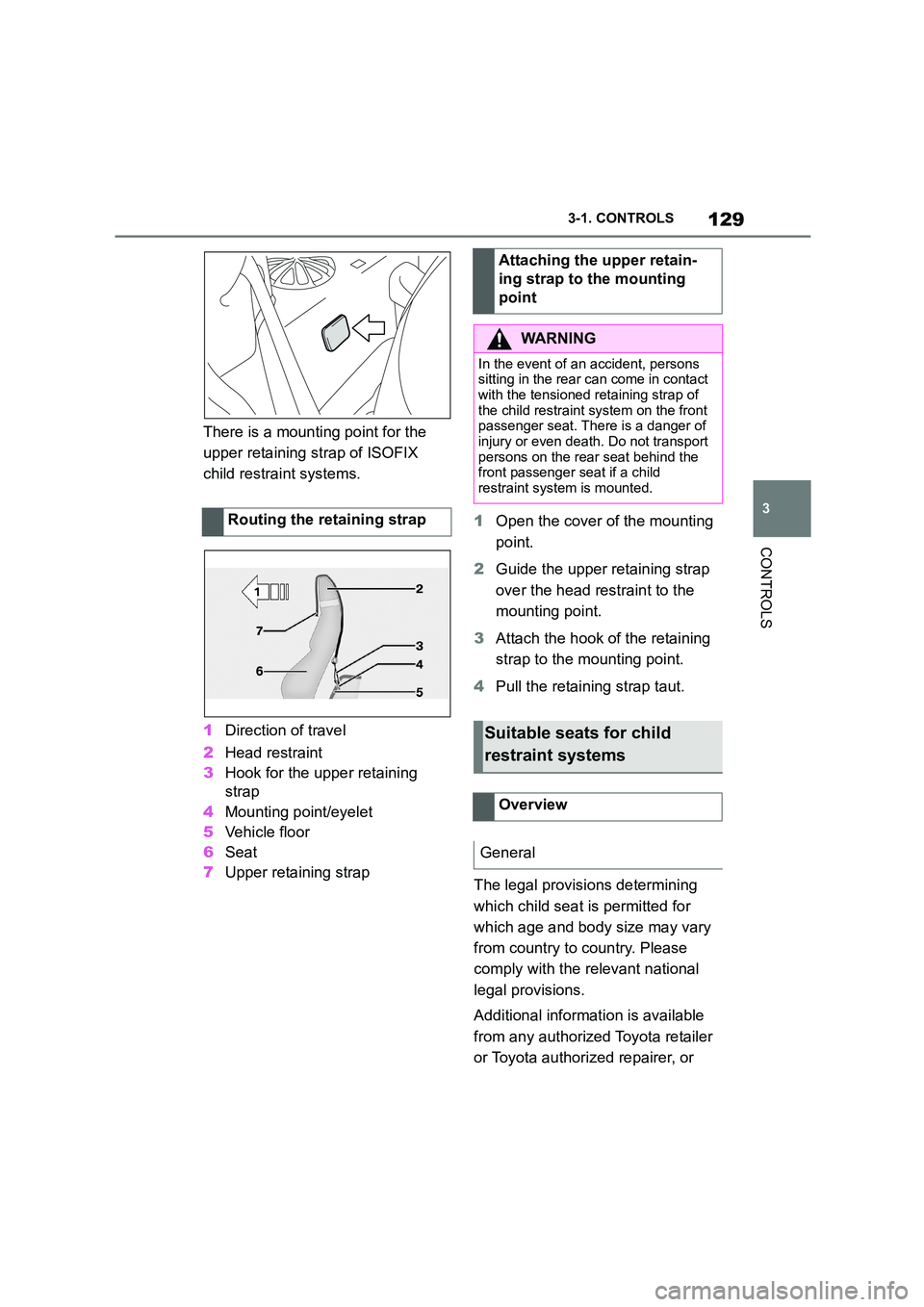

129
3
3-1. CONTROLS
CONTROLS
There is a mounting point for the
upper retaining strap of ISOFIX
child restraint systems.
1 Direction of travel
2 Head restraint
3 Hook for the upper retaining
strap
4 Mounting point/eyelet
5 Vehicle floor
6 Seat
7 Upper retaining strap
1 Open the cover of the mounting
point.
2 Guide the upper retaining strap
over the head restraint to the
mounting point.
3 Attach the hook of the retaining
strap to the mounting point.
4 Pull the retaining strap taut.
The legal provisions determining
which child seat is permitted for
which age and body size may vary
from country to country. Please
comply with the relevant national
legal provisions.
Additional informat ion is available
from any authorized Toyota retailer
or Toyota authorized repairer, or
Routing the retaining strap
Attaching the upper retain-
ing strap to the mounting
point
WA R N I N G
In the event of an accident, persons
sitting in the rear can come in contact with the tensioned retaining strap of
the child restraint system on the front
passenger seat. There is a danger of
injury or even death. Do not transport persons on the rear seat behind the
front passenger seat if a child
restraint system is mounted.
Suitable seats for child
restraint systems
Overview
General

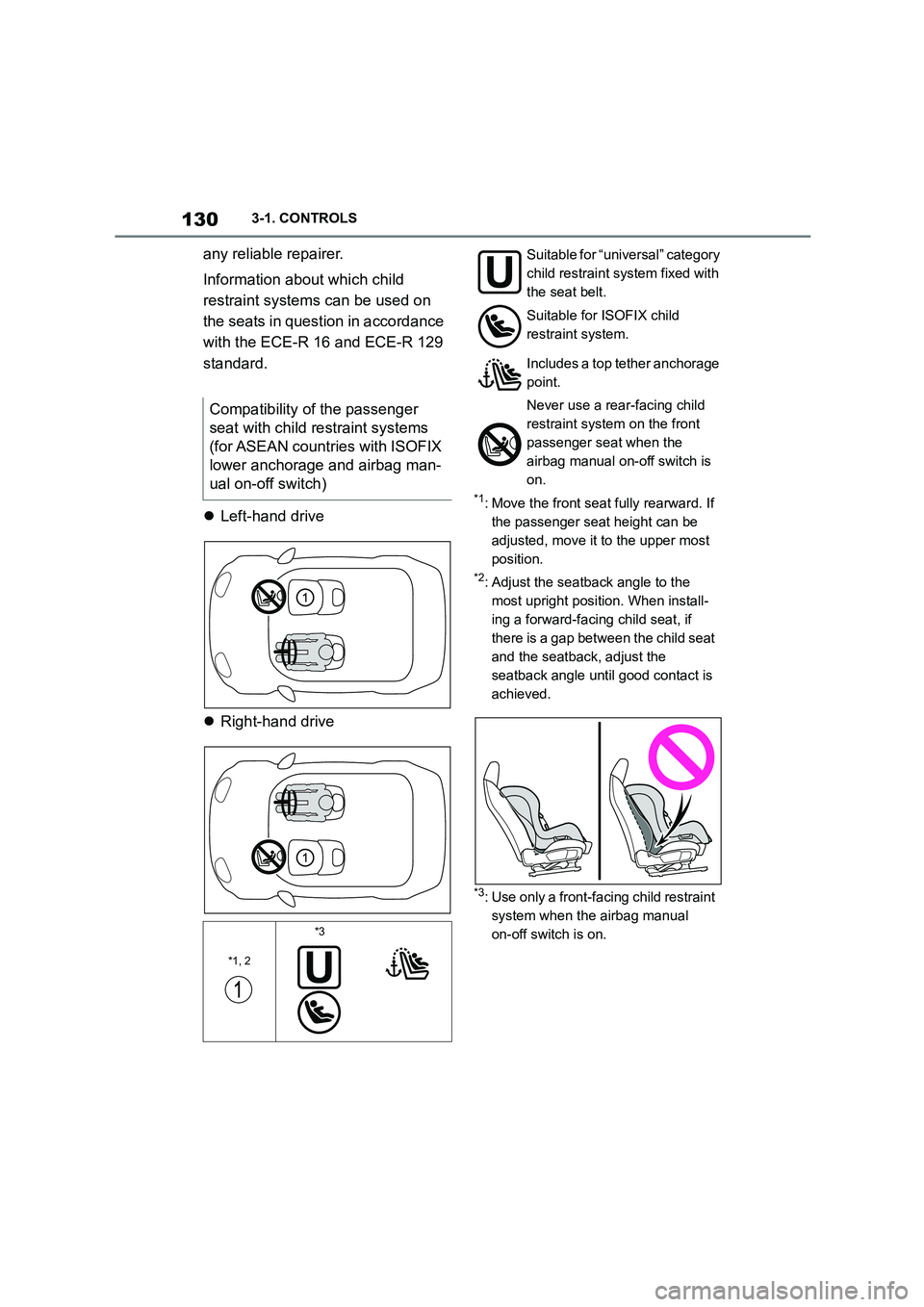

1303-1. CONTROLS
any reliable repairer.
Information about which child
restraint systems can be used on
the seats in question in accordance
with the ECE-R 16 and ECE-R 129
standard.
 Left-hand drive
 Right-hand drive
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-fa cing child restraint
system when the airbag manual
on-off switch is on.
Compatibility of the passenger
seat with child restraint systems
(for ASEAN countries with ISOFIX
lower anchorage and airbag man-
ual on-off switch)
*1, 2
*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for ISOFIX child
restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the
airbag manual on-off switch is
on.

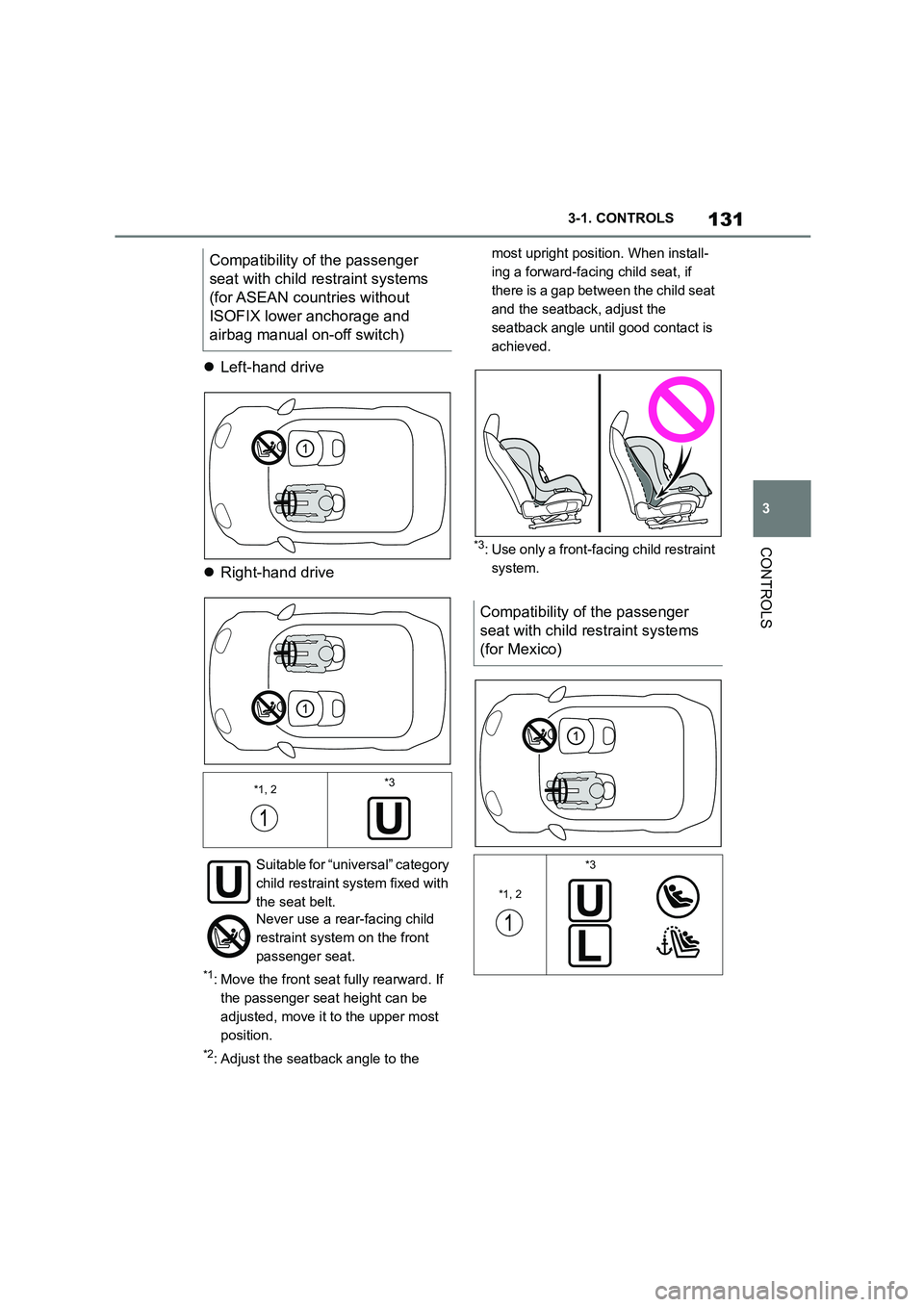

131
3
3-1. CONTROLS
CONTROLS
 Left-hand drive
 Right-hand drive
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-fa cing child restraint
system.
Compatibility of the passenger
seat with child restraint systems
(for ASEAN countries without
ISOFIX lower anchorage and
airbag manual on-off switch)
*1, 2*3
Suitable for “universal” category
child restraint syst em fixed with
the seat belt.
Never use a rear-facing child
restraint system on the front
passenger seat.
Compatibility of the passenger
seat with child restraint systems
(for Mexico)
*1, 2
*3

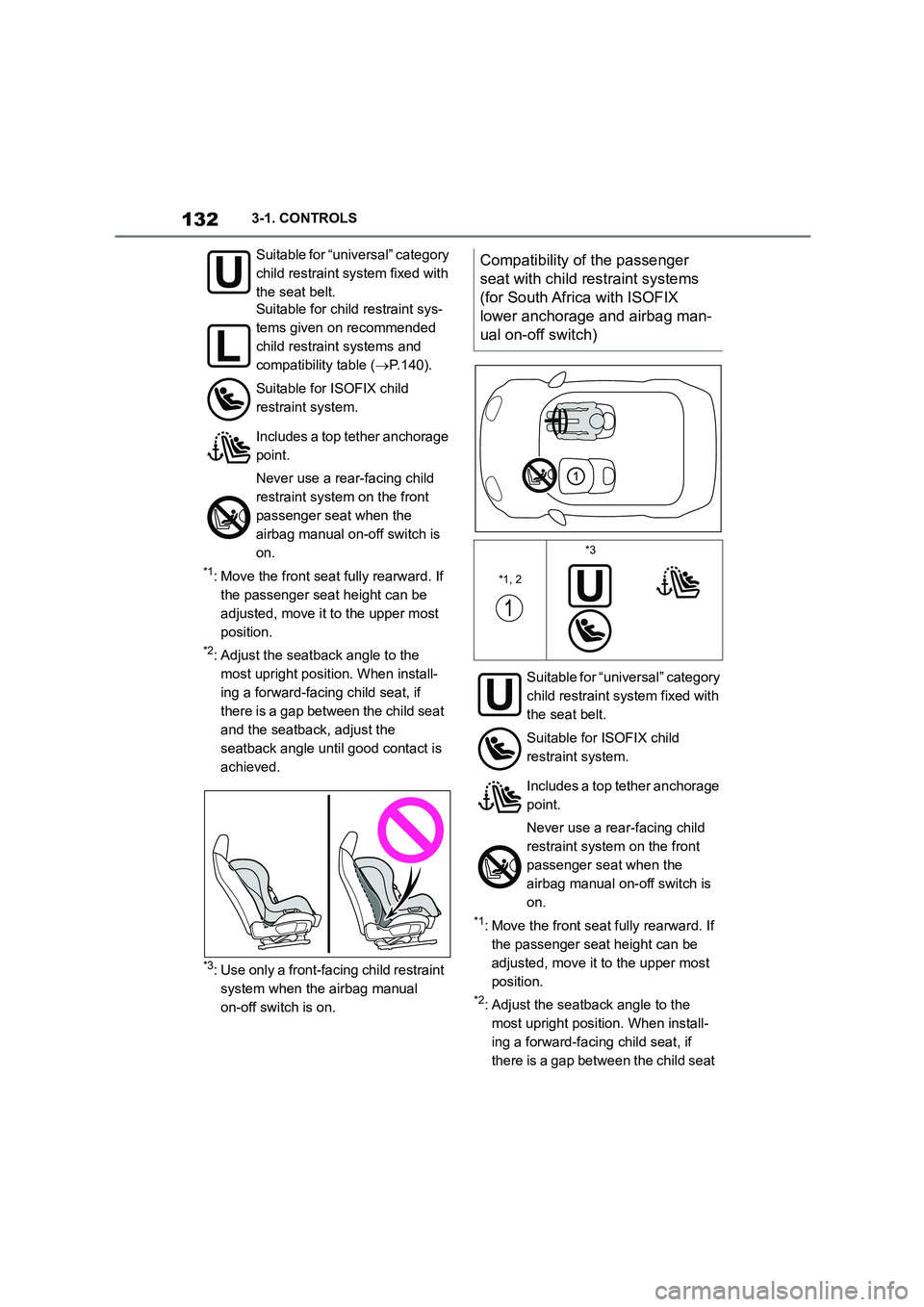

1323-1. CONTROLS
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-facing child restraint
system when the airbag manual
on-off switch is on.
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
Suitable for “universal” category
child restraint syst em fixed with
the seat belt.
Suitable for child restraint sys-
tems given on recommended
child restraint systems and
compatibility table ( P.140).
Suitable for ISOFIX child
restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the
airbag manual on-off switch is
on.
Compatibility of the passenger
seat with child restraint systems
(for South Africa with ISOFIX
lower anchorage and airbag man-
ual on-off switch)
*1, 2
*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for ISOFIX child
restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the
airbag manual on-off switch is
on.

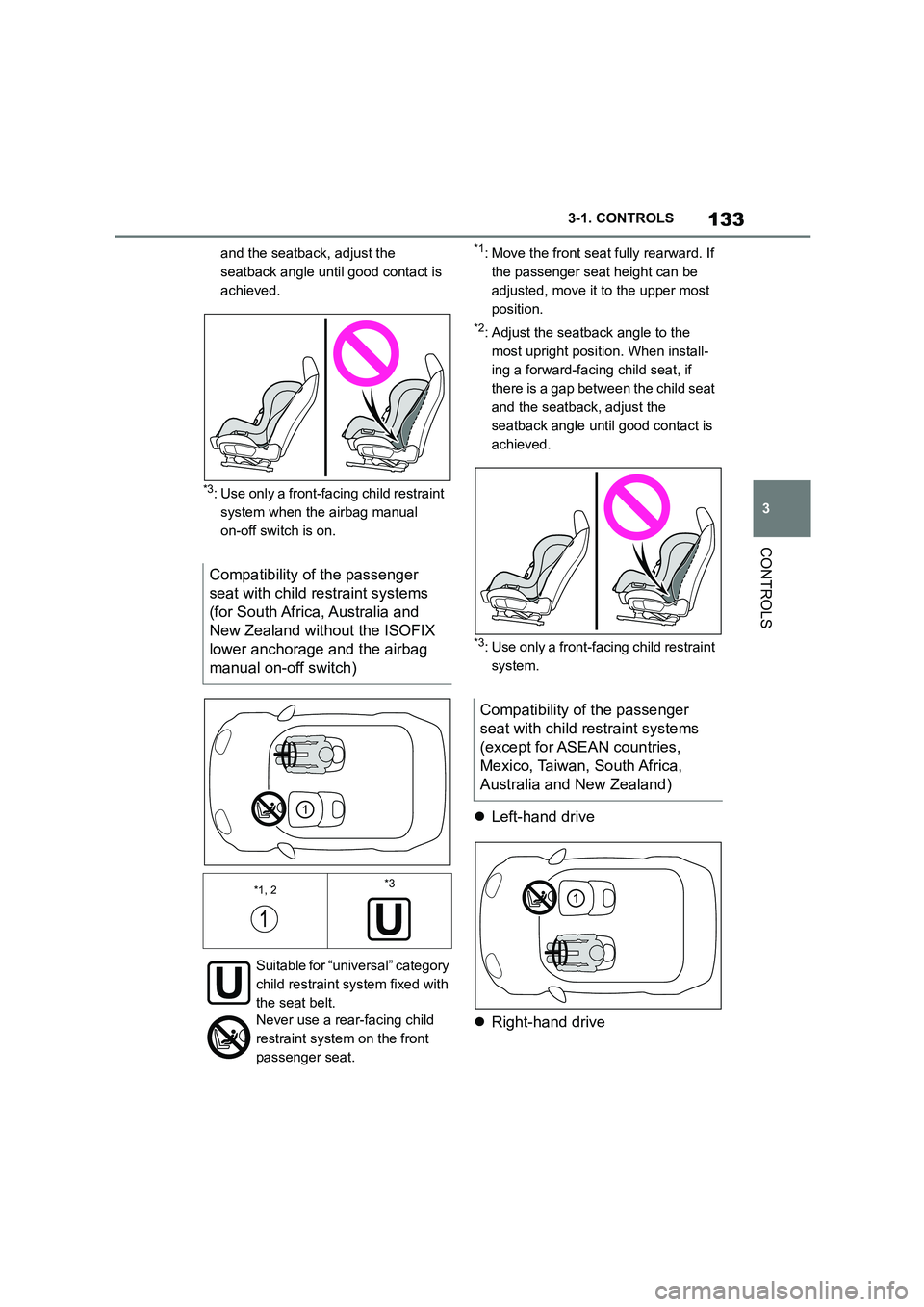

133
3
3-1. CONTROLS
CONTROLS
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-facing child restraint
system when the airbag manual
on-off switch is on.
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-fa cing child restraint
system.
 Left-hand drive
 Right-hand drive
Compatibility of the passenger
seat with child restraint systems
(for South Africa, Australia and
New Zealand without the ISOFIX
lower anchorage and the airbag
manual on-off switch)
*1, 2*3
Suitable for “universal” category
child restraint syst em fixed with
the seat belt.
Never use a rear-facing child
restraint system on the front
passenger seat.
Compatibility of the passenger
seat with child restraint systems
(except for ASEAN countries,
Mexico, Taiwan, South Africa,
Australia and New Zealand)

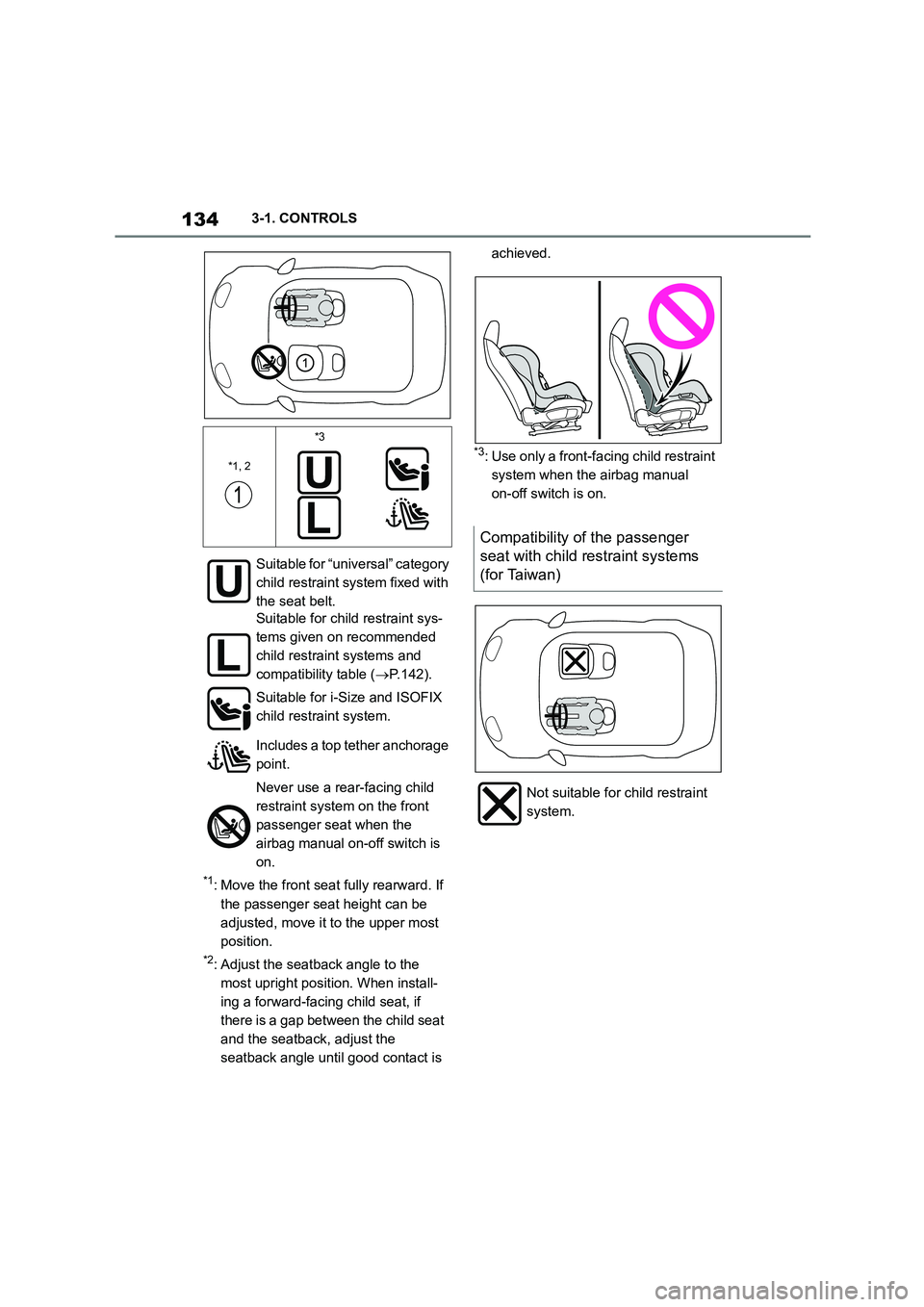

1343-1. CONTROLS
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-fa cing child restraint
system when the airbag manual
on-off switch is on.
*1, 2
*3
Suitable for “universal” category
child restraint syst em fixed with
the seat belt.
Suitable for child restraint sys-
tems given on recommended
child restraint systems and
compatibility table ( P.142).
Suitable for i-Size and ISOFIX
child restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the
airbag manual on-off switch is
on.
Compatibility of the passenger
seat with child restraint systems
(for Taiwan)
Not suitable for child restraint
system.
