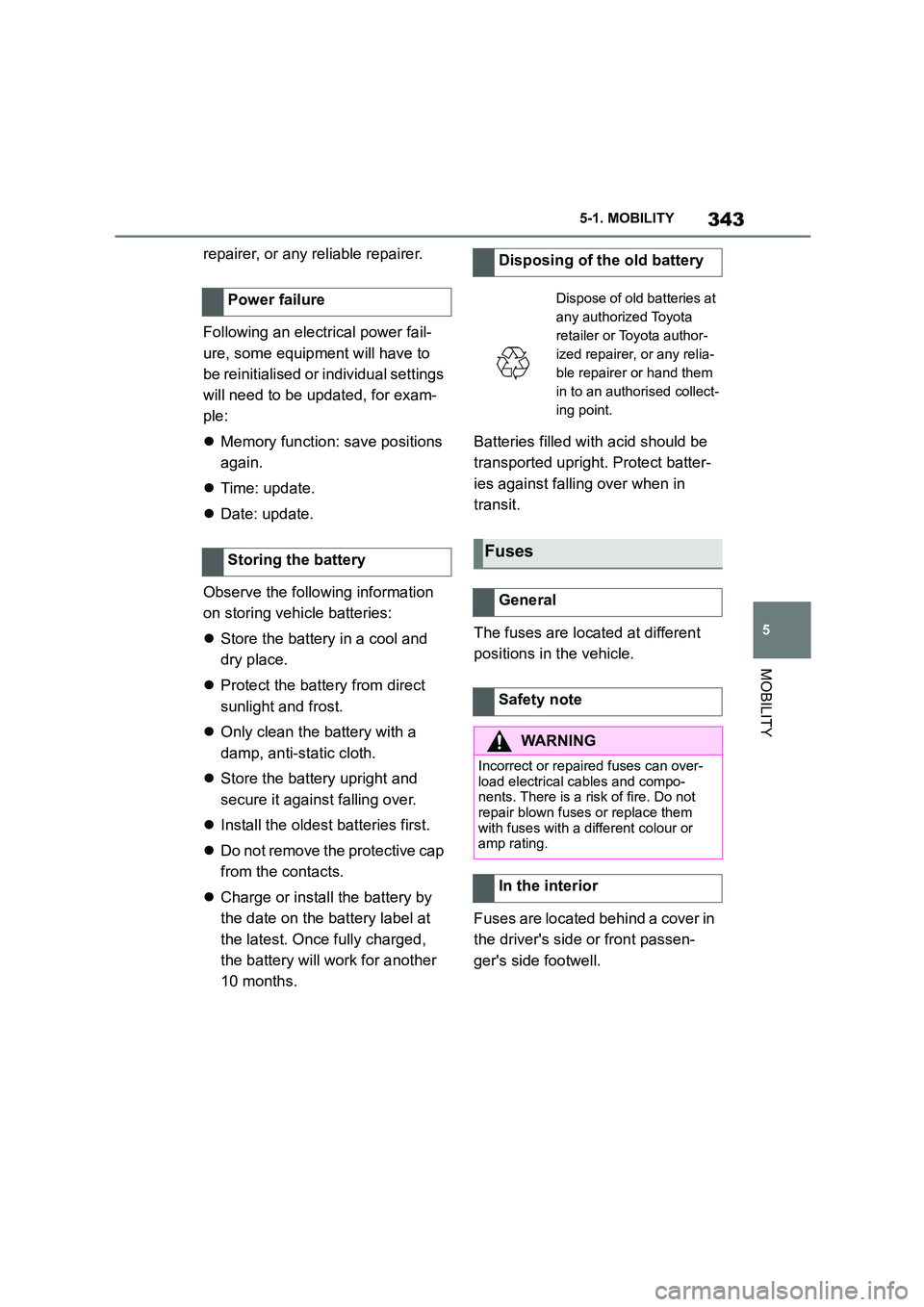

5-1. MOBILITY
MOBILITY
repairer, or any reliable repairer.
Following an electrical power fail-
ure, some equipme nt will have to
be reinitialised or in dividual settings
will need to be updated, for exam-
ple:
 Memory function: save positions
again.
 Time: update.
 Date: update.
Observe the following information
on storing vehicle batteries:
 Store the battery in a cool and
dry place.
 Protect the battery from direct
sunlight and frost.
 Only clean the battery with a
damp, anti-static cloth.
 Store the battery upright and
secure it against falling over.
 Install the oldest batteries first.
 Do not remove the protective cap
from the contacts.
 Charge or install the battery by
the date on the battery label at
the latest. Once fully charged,
the battery will wo rk for another
10 months.
Batteries filled with acid should be
transported upright. Protect batter-
ies against falling over when in
transit.
The fuses are located at different
positions in the vehicle.
Fuses are located behind a cover in
the driver's side or front passen-
ger's side footwell.
Power failure
Storing the battery
Disposing of the old battery
Dispose of old batteries at
any authorized Toyota
retailer or Toyota author-
ized repairer, or any relia-
ble repairer or hand them
in to an authorised collect-
ing point.
Fuses
General
Safety note
WA R N I N G
Incorrect or repaired fuses can over-
load electrical cables and compo- nents. There is a risk of fire. Do not
repair blown fuses or replace them
with fuses with a different colour or amp rating.
In the interior

3445-1. MOBILITY
Undo fastenings, arrow, and open
cover.
The fuse box is lo cated at the front
right.
The fuses are located behind a
cover on the right-hand side in the
boot.
Unlock the cover on the right-hand
side trim, arrow 1, and open, arrow
2 .
There are other fuse boxes in the
vehicle. In the event of a fault, con-
tact any authorized Toyota retailer
or Toyota authorized repairer, or
any reliable repairer.
The manufacturer of the vehicle
recommends having fuses changed
by any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
 BDC
Inside the boot
Other fuse boxes
Replacing fuses
Fuse informations

345
5
5-1. MOBILITY
MOBILITY

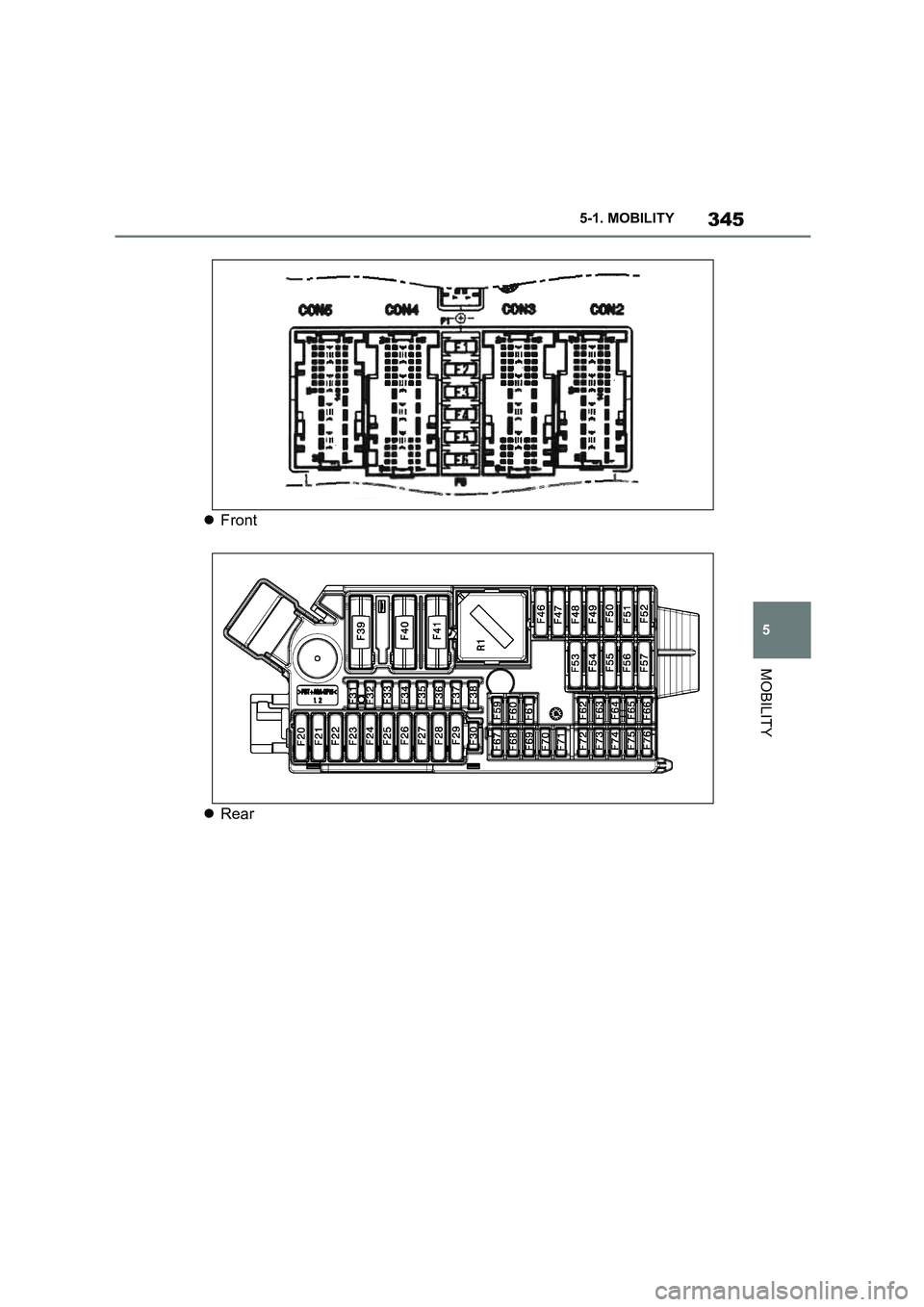

 Front
 Rear

3465-1. MOBILITY

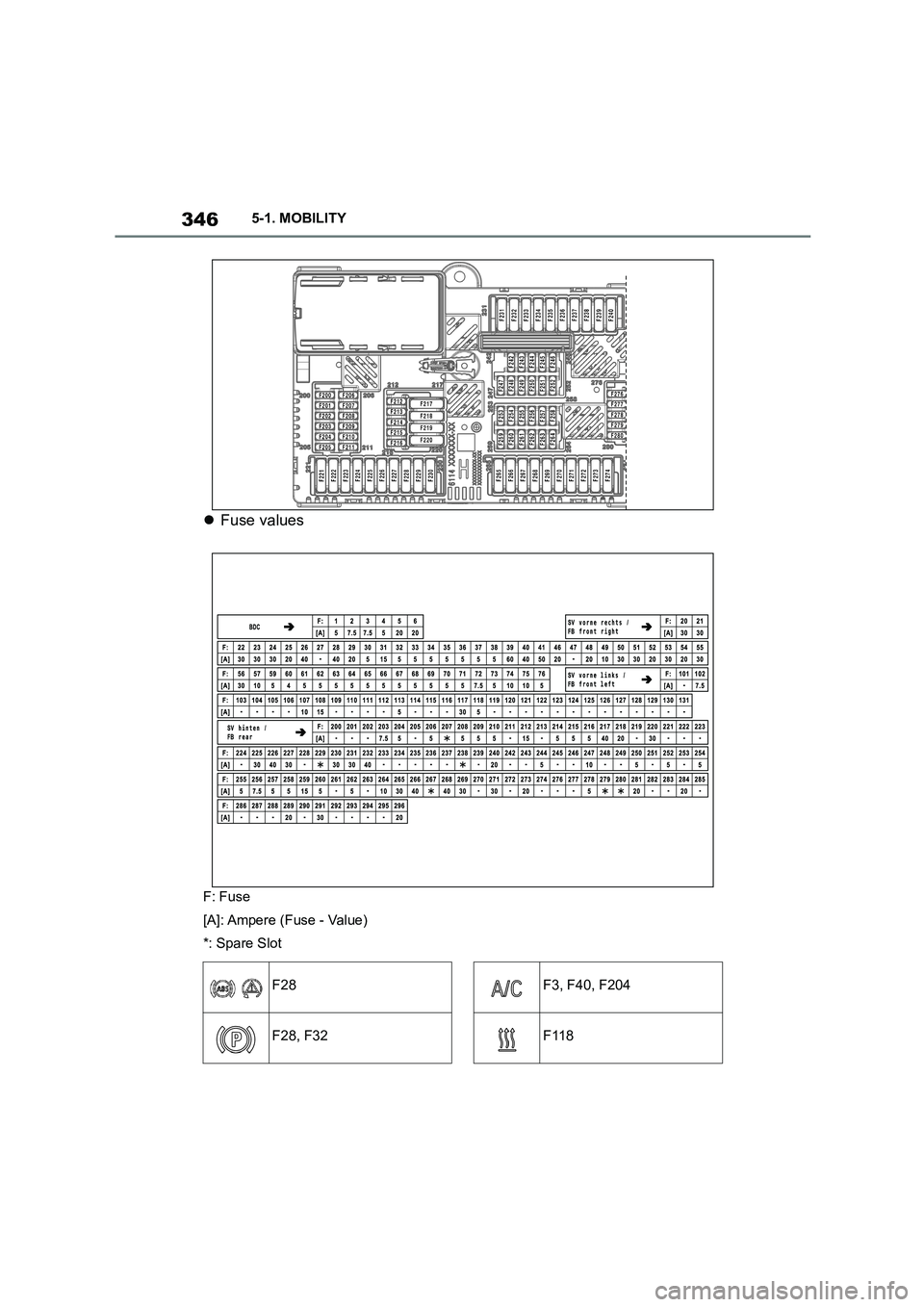

Fuse values
F: Fuse
[A]: Ampere (Fuse - Value)
*: Spare Slot
F28
F28, F32
F3, F40, F204
F118

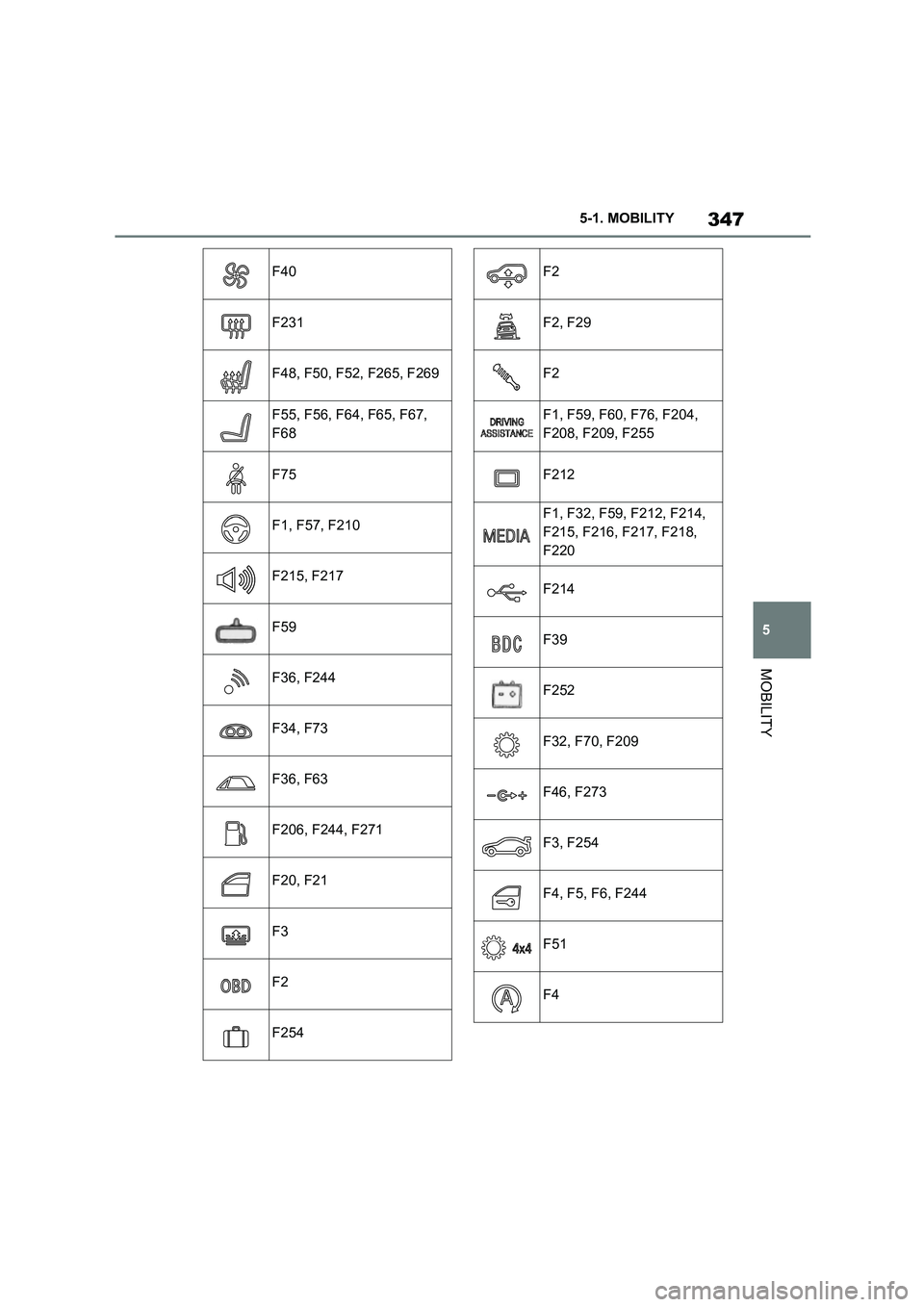

347
5
5-1. MOBILITY
MOBILITY
F40
F231
F48, F50, F52, F265, F269
F55, F56, F64, F65, F67,
F68
F75
F1, F57, F210
F215, F217
F59
F36, F244
F34, F73
F36, F63
F206, F244, F271
F20, F21
F3
F2
F254
F2
F2, F29
F2
F1, F59, F60, F76, F204,
F208, F209, F255
F212
F1, F32, F59, F212, F214,
F215, F216, F217, F218,
F220
F214
F39
F252
F32, F70, F209
F46, F273
F3, F254
F4, F5, F6, F244
F51
F4

3485-1. MOBILITY
F69, F70
F203, F206, F209, F271
F1, F3, F39
F36, F61, F62, F67, F68,
F71
F4
F67, F68
SymbolMeaning
VSC Vehicle Stability Con-
trol System
Parking brake
Air conditioning
Defrost the windscreen and
remove condensation
Blower motor, Interior venti-
lation
Rear window heating
Seat heating
Seat setting
Crash-security module
Switching center column,
Light switch element, steer-
ing Operating panel Audio
HiFi amplifier, Video module
TV
Rear-view mirror
Overhead function center,
Exterior door handle elec-
tronics
Instrument cluster
Additional battery: Dual
Accumulator System (DSS)
Fuel pump control electron-
ics, Natural Vacuum Leak
Detection, Gas generator for
battery safety terminal,
Remote control receiver
Electric window opener
Heating and air-condition-
ing system
Vehicle's diagnostic port
(interface)
Interior lights in the boot
Vertical Dynamic platform
Vertical Dynamic platform
Vertical Dynamic platform
SymbolMeaning

349
5
5-1. MOBILITY
MOBILITY
Mono Camera (Kafas)
Head Unit
Active Sound Design
USB Hub
Body Domain Controller
Controller (Toyota Supra
Command)
Electric fan (air cooler), Con-
trolled differential lock
12 V socket, Cigarette
lighter
Interior lights in the boot
Door lock, Exterior door
handle electronics, Telem-
atic Communication Box
Electronic gear box control
Telematic Communication
Box, Exterior door handle
electronics
Electric fan, Rear Power dis-
tributor
Engine control
SymbolMeaning
Switching center column,
Light switch element, Body
Domain Controller
Control panels centre con-
sole, Interior light in the
glove box, Interior light, Inte-
rior light in the sunvisor,
Exterior mirror, Selector
lever
Telematic Communication
Box, Exterior door handle
electronics passenger side
Switcher block driver's door,
Exterior mirror
SymbolMeaning

3505-1. MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the special equip-
ment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
Breakdown Assist
Vehicle equipment
If a malfunction occurs
while driving
WA R N I N G
If a malfunction occurs while driving,
immediately stop the vehicle in a safe
place.
If a warning light illuminates or flashes, or a warning message is dis-
played, immediately stop the vehicle
in a safe place. Do not open the hood to inspect the engine, as doing so
may lead to serious injury, such as
steam burns. If a warning message is displayed, perform the necessary pro-
cedures according to the displayed
message or explanation in the owner’s manual.
These warning messages indicate that a malfunction has occurred in a
system or function of the vehicle. If
you continue to drive the vehicle, the engine may stop suddenly, possibly
leading to an accident. Also, even if
no warning lights are illuminated or messages are displayed, if any
abnormal sounds, smells or vibrations
are detected, or of the engine stops suddenly, refrain from opening the
hood to inspect the engine and con-
sult any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
WA R N I N G
If you hear a loud noise or feel some-
thing impact the underside of the vehicle while driving, immediately
stop the vehicle in a safe place.
After stopping the vehicle in a safe
place, check the underside of the
vehicle for any leaking brake fluid, oil or fuel. If any fluid is leaking, stop
driving immediately and have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
