2022 TOYOTA SUPRA Owners Manual

351
5
5-1. MOBILITY
MOBILITY
WA R N I N G
Brake and fuel lines run under the
floor of the vehicle. If any of these
lines are damaged, the brakes may
fail or leaking fuel may ignite and cause a fire.
WA R N I N G
If the engine stalls while driving, sev-
eral warning lights will illuminate. Depending on vehicle specifications,
the power-assisted brakes and power
steering may stop operating. In this case the braking power will be
reduced and operation of the steering
wheel will become heavy. Although the operation of the brakes and steer-
ing will not be totally lost, they will
require stronger than normal input to
operate. Stop the vehicle in a safe place as soon as possible.
WA R N I N G
While driving, if a tire has been punc-
tured or has ruptured, firmly grip the
steering wheel, gradually reduce the vehicle speed and stop the vehicle in
a safe place. Avoid sudden braking
and steering operations as doing so may cause you to lo se control of the
vehicle. Gradually reduce the vehicle
speed and stop the vehicle in a safe
place.
●Vehicles equipped with run-flat tires
As the sidewalls of run-flat tires are
especially stiff, it may be difficult to
feel when a tire is punctured or if the tire pressure has decreased sud-
denly. It may also be difficult to vis-
ually tell that a tire is flat or the inflation pressure is low.
If the tire pressure warning indicator illuminates, while avoiding sudden
braking or steering operations,
decelerate to 80 km /h or less, care- fully stop the vehicle in a safe place
and check the condition of each tire.
For details on how to check the condi- tion of the tires, see page 292. If any
tire is damaged, contact any author-
ized Toyota retailer or Toyota author- ized repairer, or any reliable repairer
for assistance.
The tire pressure warning indicator
may not illuminate if the inflation pres-
sure of a tire drops rapidly, such as when a tire has burst.

3525-1. MOBILITY
If you have been involved in a colli-
sion, perform the following:
1 Immediately leave the vehicle
and move to a safe place in
order to avoid secondary colli-
sions. Make sure to turn the
engine switch off to help prevent
the vehicle from catching fire. If
the airbags have deployed
(inflated), the airbag related
parts will be extremely hot.
Avoid touching the parts with
your hands or any part of your
body.
2 If someone has been injured,
contact emergency services and
request assistance. If someone
has no obvious external injuries,
but they may have a head injury,
keep their airway open while
moving them as little as possi-
ble. If there is danger of the
vehicle being involved in a sec-
ondary collision, move the
injured person to a safe place
while keeping them as horizon-
tal as possible.
The button is located in the centre
console.
The red light in the button flashes
when the hazard warning lights are
switched on.
*: if equipped
1 Unlock the cover, arrow 1, and
fold open, arrow 2.
If you have been involved in
a collision
Hazard warning lights
Warning triangle*

353
5
5-1. MOBILITY
MOBILITY
2 Remove the warning triangle.
Roadside assistance can be con-
tacted if you require help in the
event of a breakdown.
In the case of a breakdown, data on
the vehicle condition can be trans-
ferred to the roadside assistance. It
is possible that malfunctions can be
remedied directly.
Contact with roadside assistance
can also be made via a vehicle
message, see page 164.
 Activated Toyota Supra Connect
contract.
 Mobile reception.
 Standby state is switched on.
Via Toyota Supra Command:
1 "Connected Serv."
2 "Toyota Supra Assistance"
3 "Roadside assistance"
A voice connection is established.
The system can be used to trigger
an emergency call automatically or
manually in emergency situations.
Depending on the equipment and
the nationalmarket version, the
vehicle may have an emergency
call system.
Press the SOS button in an emer-
gency only.
The emergency call establishes a
connection to a public emergency
call number.
This depends on factors such as
the specific mobile telephone net-
work and the national regulations.
The emergency call is placed using
the SIM card integrated in the vehi-
cle and cannot be switched off.
For technical reasons, it might not
be possible to make an emergency
call in highly adverse conditions.
Roadside assistance
Principle
General
Operating requirements
Starting roadside assistance
Emergency call
Statutory emergency call
Principle
General

3545-1. MOBILITY
Standby state is switched on.
 Emergency call system is func-
tional.
 If the vehicle is equipped with
automatic emergency call: the
SIM card integrated in the vehi-
cle is activated.
In certain circumstances, for exam-
ple deployment of the airbags, an
emergency call may be placed
automatically immediately after an
accident of corresponding severity.
An automatic emergency call is not
influenced by pressing the SOS
button.
1 Tap on cover flap.
2 Press and hold the SOS button
until the LED in the button area
is illuminated green.
 The LED is illuminated green
when the emergency call has
been activated.
If a cancellation request is displayed on
the Control Display, the emergency call
can be cancelled.
If the situation permits, wait in the vehi-
cle until voice contact has been estab-
lished.
 The LED flashes green when the
connection to the emergency
number has been established.
In the case of an emergency call, data
is sent to the public rescue coordination
centre in order to decide what rescue
measures are required. The data may
include, for example, the current posi-
tion of the vehicle, if this can be deter-
mined.
For information on data transfer and
storage, see page 16.
Even if you can no longer hear the res-
cue coordination centre through the
loudspeakers, the rescue coordination
centre may still be able to hear you
speak.
The rescue coordination centre
ends the emergency call.
The emergency call function may
be impaired.
The LED in the SOS button area
illuminates for appr ox. 30 seconds.
A vehicle message is shown.
Overview
SOS button.
Operating requirements
Automatic triggering
Manual triggering
Malfunction

355
5
5-1. MOBILITY
MOBILITY

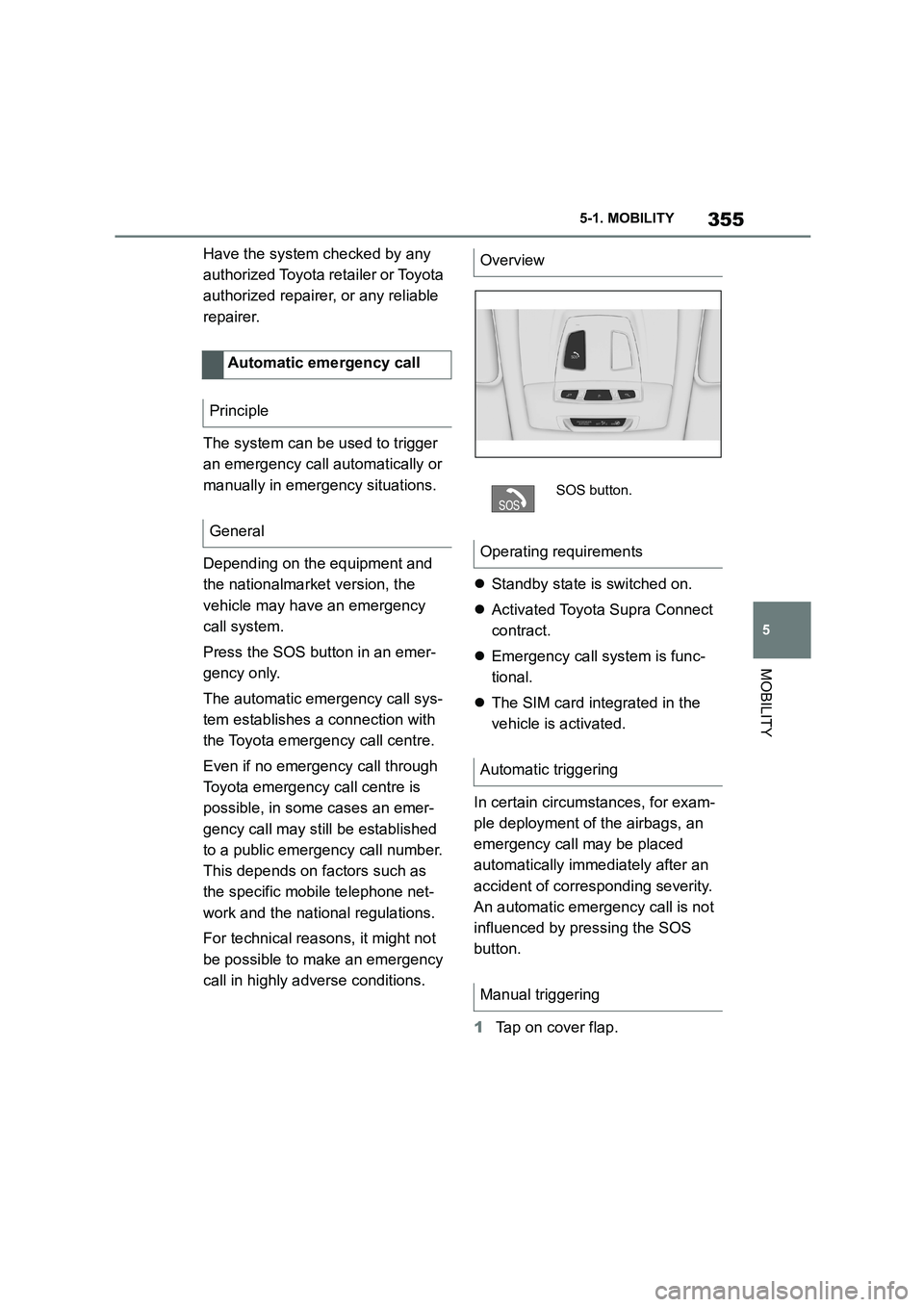

Have the system checked by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The system can be used to trigger
an emergency call automatically or
manually in emergency situations.
Depending on the equipment and
the nationalmarket version, the
vehicle may have an emergency
call system.
Press the SOS button in an emer-
gency only.
The automatic emergency call sys-
tem establishes a connection with
the Toyota emergency call centre.
Even if no emergency call through
Toyota emergency call centre is
possible, in some cases an emer-
gency call may still be established
to a public emergency call number.
This depends on factors such as
the specific mobile telephone net-
work and the national regulations.
For technical reasons, it might not
be possible to make an emergency
call in highly ad verse conditions.
 Standby state is switched on.
 Activated Toyota Supra Connect
contract.
 Emergency call system is func-
tional.
 The SIM card integrated in the
vehicle is activated.
In certain circumstances, for exam-
ple deployment of the airbags, an
emergency call may be placed
automatically immediately after an
accident of corres ponding severity.
An automatic emergency call is not
influenced by pressing the SOS
button.
1 Tap on cover flap.
Automatic emergency call
Principle
General
Overview
SOS button.
Operating requirements
Automatic triggering
Manual triggering

3565-1. MOBILITY
2Press and hold the SOS button
until the LED in the button area
is illuminated green.
 The LED is illuminated green
when the emergency call has
been activated.
If a cancellation request is displayed on
the Control Display, the emergency call
can be cancelled.
If the situation permits, wait in the vehi-
cle until voice contact has been estab-
lished.
 The LED flashes green when the
connection to the emergency
number has been established.
When an emergency call is sent via
Toyota Emergency Call Centre, data is
sent to the Toyota Emergency Call
Centre in order to decide what rescue
measures are required. The data may
include, for example, the current posi-
tion of the vehicle, if this can be deter-
mined.
If questions posed by the Toyota Emer-
gency Call Centre remain unanswered,
rescue measures are automatically ini-
tiated.
Even if you can no longer hear the
Toyota Emergency Call Centre through
the loudspeakers, the Toyota Emer-
gency Call Centre may still be able to
hear you speak.
The Toyota Emergency Call Centre
ends the emergency call.
*: if equipped
The fire extinguisher can be used to
put out vehicle fires.
Depending on the vehicle's equip-
ment and national-market version,
the vehicle may have a fire extin-
guisher.
The fire extinguisher is located in
the vehicle interiour, e.g. behind the
cupholder or in the glove box.
Fire extinguisher*
Principle
General
Overview
Safety note
WA R N I N G
Incorrect use of the fire extinguisher
can cause injury. There is a danger of
injury. Observe the information below when using the fire extinguisher:
●Do not inhale the extinguishing agent. If the extinguishing agent is
inhaled, move the casualty out into
the fresh air. If the casualty experi- ences breathing difficulties, contact
a doctor immediately.
●Do not allow the extinguishing
agent to come into contact with the
skin. Prolonged contact with the extinguishing agent can cause the
skin to dry out.
●Do not allow the extinguishing
agent to come into contact with the
eyes. In the event of contact with the eyes, rinse them immediately
with plenty of water. In case of pro-
longed discomfort, contact a doctor.

357
5
5-1. MOBILITY
MOBILITY
Open the buckles on the retaining
strap.
To use the fire extinguisher, follow
the manufacturer's instructions on
the fire extinguisher and the infor-
mation supplied with it.
1 Insert the fire extinguisher into
the holder.
2 Hook in and close the buckles.
Have the fire extinguisher checked
every 2 years by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Take note of the next maintenance
date for the fire extinguisher.
Replace the fire extinguisher after
use or have it refilled.
If the vehicle battery is discharged,
the engine can be started from
another vehicle's battery using two
jump leads. Only use jump leads
with fully insulated terminal clamps.
1 Check whether the battery in the
other vehicle shows 12 volts.
Information about the voltage is
provided on the battery.
2 Switch off the engine of the
other vehicle.
WA R N I N G
Objects in the driver's footwell can
restrict the pedal travel or block a
pedal that has been pressed. There is a risk of accident. Ensure that items in
the vehicle are stowed securely and
cannot get into the driver's footwell.
Taking out the fire extin-
guisher
Using the fire extinguisher
Stowing the fire extinguisher
Maintenance and refilling
Starting assistance
General
Safety notes
WA R N I N G
Touching live components can result
in an electric shock. There is a danger
of injury or even death. Do not touch any components that could be live.
WA R N I N G
Connecting the jump leads in the wrong sequence can cause sparks.
There is a danger of injury. Please
comply with the correct sequence
when connecting up.
NOTICE
Contact between the bodywork of the
two vehicles can result in a short cir- cuit during starting assistance. There
is a danger of damage to property.
Make sure there is no contact between the bodywork.
Preparations

3585-1. MOBILITY
3Switch off any power consumers
in both vehicles.
The jump-starting connection in the
engine compartment serves as the
battery positive terminal.
A special connection on the body
serves as the negative battery ter-
minal in the engine compartment.
For further information:
Overview of the engine compart-
ment, see page 320.
Open the lid of the positive battery
terminal.
Before starting, switch off all unnec-
essary power consumers, for
example the radio, on both vehi-
cles.
1 Open the cover of the
jump-starting connection.
2 Connect a terminal clamp on the
positive/+ jump lead to the posi-
tive terminal of the battery or the
corresponding jump-starting
connection on the donor vehicle.
3 Connect the second terminal
clamp to the battery's positive
terminal or to the corresponding
jump-starting connection on the
vehicle to be started.
4 Connect a terminal clamp on the
negative/– jump lead to the neg-
ative terminal of the battery or
the corresponding engine or
body earth connection on the
donor vehicle.
5 Connect the second terminal
clamp to the negative terminal of
the battery or to a corresponding
engine or body earth connection
on the vehicle to be started.
Do not use spray products sold as
starting aids.
1 Start the engine of the donor
vehicle and allow it to run for a
few minutes at a slightly
increased idle speed.
2 Start the engine of the vehicle to
be started as normal.
If an initial attempt to start the engine
fails, wait several minutes until the dis-
charged battery has been recharged somewhat.
3 Allow both engines to run for a
few minutes.
4 Disconnect the jump leads in
reverse order to connection.
Check the battery and have it
recharged if necessary.
Jump-starting connections
Connecting the cables
Starting the engine
