2022 TOYOTA SUPRA Owners Manual

255
3
3-1. CONTROLS
CONTROLS
A number of assistance functions
can be active simultaneously.
The assistance functions can be
activated manually.
1 If necessary, tilt the Controller to
the left.
2 With the corresponding equip-
ment: "Camera picture"
3
 "Parking guide lines".
Driving path lines and turning circle
lines are shown, see page 255.
 "Obstacle marking."
Depending on the equipment, the
obstacles detected by Parking Sensors
are displayed, see page 256, by mark-
ings.
■Driving path lines
The driving path lines help you to
estimate the space required when
parking and manoeuvring on a level
road surface.
The driving path lines are depend-
ent on the steering angle and are
continuously adapted to the steer-
ing wheel movements.
■Turning circle lines
The turning circle lines can only be
shown in the camera image
together with driving path lines.
The turning circle lines show the
course of the smallest possible
turning circle on a level road sur-
face.
Once the steering wheel has been
turned beyond a certain angle, only
one turning circle line is displayed.
■Parking with the help of driv-
ing path and tu rning circle
lines
1 Position the vehicle so that the
red turning circle line is within
the boundaries of the parking
space.
2 Turn the steering wheel so that
the green driving path line cov-
ers the corresponding turning
circle line.
Display on the Control Dis-
play
General
Parking aid lines

2563-1. CONTROLS
Depending on the equipment,
obstacles behind the vehicle are
detected by the Parking Sensors.
Obstacle markers can be shown in
the image from the rear-view cam-
era.
The colour incrementation corre-
sponds to the markings of Parking
Sensors.
With rear-view camera switched on:
1 If necessary, tilt the Controller to
the left.
2 "Camera picture"
3
 "Brightness"
 "Contrast"
4 Set the desired value.
For further information:
• Cameras, see page 50.
If the camera is deactivated, for
example when the boot lid is
opened, the camera image is dis-
played as grey hatching.
Very low obstacles and higher, pro-
truding objects such as ledges can-
not be detected by the system.
Depending on the equipment, some
assistance functions also take
account of Parking Sensors data.
Observe the notes in the chapter on
Parking Sensors.
The objects shown in the Control
Display may be closer than they
appear. Do not estimate the dis-
tance to objects based on the dis-
play.
*: if equipped
At blind exits or when leaving per-
pendicular parking spaces, the sys-
Obstacle marker
Setting brightness and con-
trast via Toyota Supra Com-
mand
System limits
System limits of the sensors
Deactivated camera
Detection of objects
RCTA (Rear cross traffic
alert) function*
Principle

257
3
3-1. CONTROLS
CONTROLS
tem detects other road users
approaching from the side earlier
than is possible from the driver's
seat.
Two radar sensors in the rear
bumper monitor the area behind
the vehicle.
The system indicates when other
road users are approaching.
The system is controlled using the
following sensors:
• Side radar sensors, rear.
For further information:
Sensors of the vehicle, see page
50.
1 Press the Park Assistant
button.
2 Tilt the Controller to the left.
3 "Settings"
4 "Cross-traffic alert"
5 "Cross-traffic alert"
Or via Toyota Supra Command:
1 "My vehicle"
General
Safety note
WA R N I N G
The system does not relieve you of
your personal responsibility to assess the visibility conditions and traffic situ-
ation correctly. There is a danger of
accidents. Adapt your driving style to the traffic conditions. Observe the
traffic situation and intervene actively
if the situation warrants it.
Overview
Button in the vehicle
Park Assistant button
Sensors
Switching on/off
Activating/deactivating the system

2583-1. CONTROLS
2"Vehicle settings"
3 "Parking"
4 "Cross-traffic alert"
5 "Cross-traffic alert"
If the system was activated on the
Control Display, it is switched on
automatically as soon as Parking
Sensors or Panorama View is
active and a gear is engaged.
The system is switched on at the
rear when reverse gear is engaged.
The system switches off automati-
cally in the following situations:
 If walking speed is exceeded.
 When a certain distance is
exceeded.
 During active parking with the
Park Assistant.
The Control Display shows the cor-
responding display, an acoustic sig-
nal may sound and the light in the
exterior mirror flashes.
The light in the exterior mirror
flashes if other vehicles are
detected by the rear sensors when
the vehicle is moving backwards.
In the Parking Sensors view, the
relevant boundary area flashes red
if the sensors detect vehicles.
In addition to the visual display, a
warning signal sounds when your
own vehicle is moving in the corre-
sponding direction.
Switching on automatically
Switching off automatically
Warning
General
Light in the exterior mirror
Display in the Parking Sensors
view
Acoustic warning

259
3
3-1. CONTROLS
CONTROLS
For further information:
• Radar sensors, see page 51.
The system may have limited func-
tionality in the fo llowing situations,
for example:
 On sharp bends.
 If crossing objects are moving
very slowly or very quickly.
 If there are other objects in the
field of view of the sensors that
conceal the crossing traffic.
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the special equip-
ment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
The suspension components have
been optimised for the vehicle and
its area of use, thus ensuring the
best possible driving experience.
*: if equipped
The Adaptive variable suspension
is an intelligent, controllable sport
suspension.
The suspension reduces body
movements with a sporty driving
style or on an uneven road.
System limits
System limits of the sensors
Functional limitations
Driving comfor t
Vehicle equipment
Suspension components
Adaptive variable suspen-
sion*
Principle

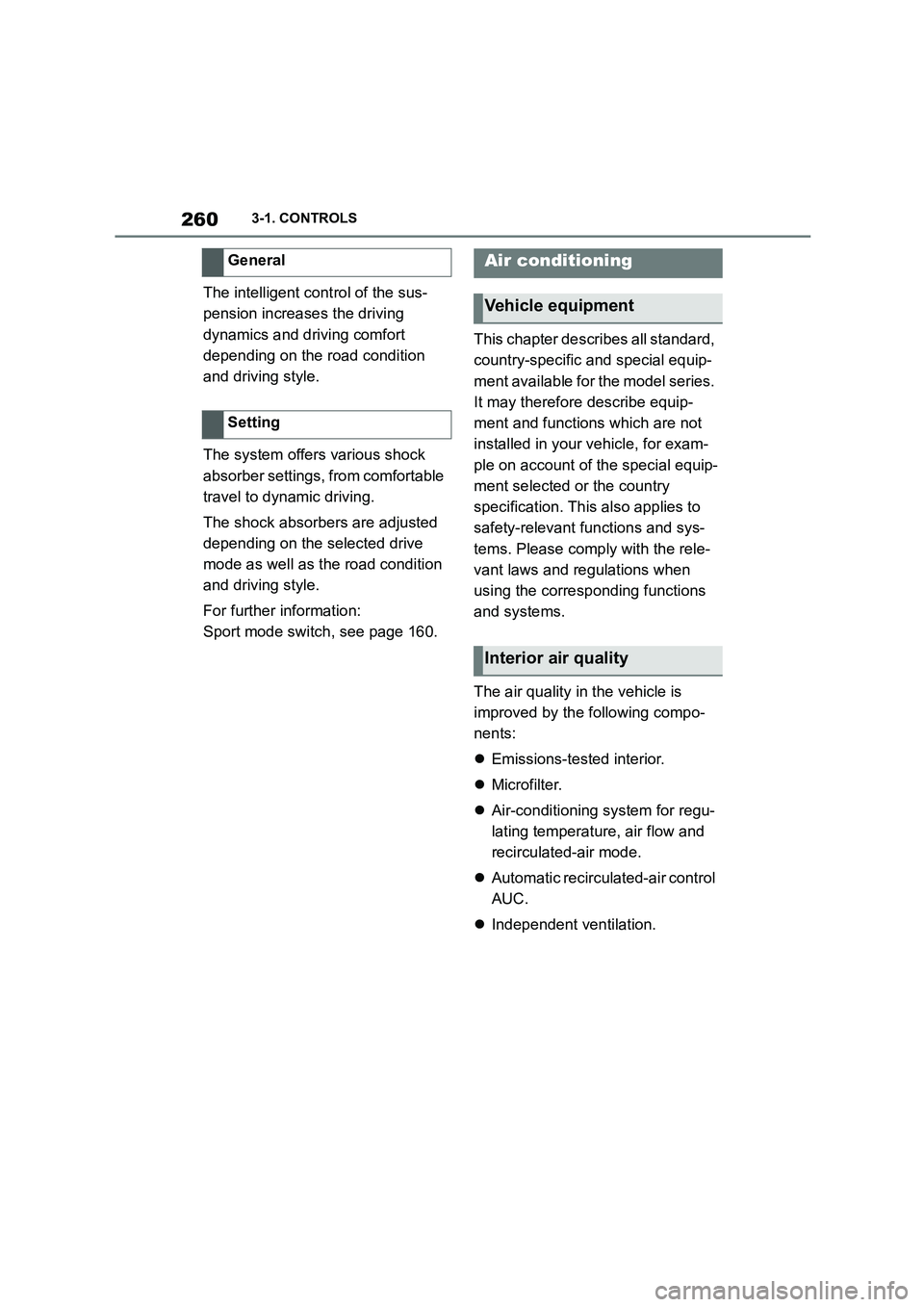

2603-1. CONTROLS
The intelligent control of the sus-
pension increases the driving
dynamics and driving comfort
depending on the road condition
and driving style.
The system offers various shock
absorber settings, from comfortable
travel to dynamic driving.
The shock absorbers are adjusted
depending on the selected drive
mode as well as the road condition
and driving style.
For further information:
Sport mode switch, see page 160.
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the special equip-
ment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
The air quality in the vehicle is
improved by the following compo-
nents:
 Emissions-tested interior.
 Microfilter.
 Air-conditioning system for regu-
lating temperature, air flow and
recirculated-air mode.
 Automatic recirculated-air control
AUC.
 Independent ventilation.
General
Setting
Air conditioning
Vehicle equipment
Interior air quality

261
3
3-1. CONTROLS
CONTROLS
Safety notes
WA R N I N G
When using the air conditioning sys- tem, seat heaters, etc. for a long
period of time, make sure that no
body parts are kept near the air out- lets or in direct contact with the seat,
as doing so may lead to minor burns
or chill burns. If you feel unusual while
using the air conditioning system or seat heaters, stop use or change the
setting immediately.
Automatic air conditioning
Overview
Buttons in the vehicle
Climate functions
ButtonFunction
Temperature, see page
262.
Air-conditioning mode,
see page 262.
Maximum cooling, see
page 263.
AUTO programme, see
page 263.
Recirculated-air mode,
see page 264.
Switch off, see page 262.
Air distribution, manual,
see page 265.
Defrost the windscreen
and remove condensa-
tion, see page 265.
Rear window heating, see
page 265.

2623-1. CONTROLS
Press any button, with the following
exceptions:
 Switch off.
 Rear window heating.
 Seat heating.
Complete system:
The automatic air conditioning
adjusts to the set temperature as
quickly as possible, using maxi-
mum cooling or heating power if
necessary. The temperature is then
maintained.
Via Toyota Supra Command:
1 "My Vehicle"
2 "Vehicle settings"
3 "Climate comfort"
4 "Temperature adjustment, upper
body"
5 Set the desired temperature.
Avoid switching between different
temperature settings in rapid suc-
cession. The automatic air condi-
tioning may not have sufficient time
to establish the temperature
selected.
Interior air is cooled and dried, then
reheated to suit the temperature
setting.
The interior can only be cooled
when drive-ready state is switched
on.
Seat heating, see page
120.
Air flow, manual, see page
264.
Switching on/off
Switching on
Switching off
Press and hold the button.
Temperature
Principle
ButtonFunctionAdjusting
Turn the dial clockwise to
increase the temperature
and counterclockwise to
decrease the temperature.
Cooling function
Principle
