2022 TOYOTA SUPRA glove box

483-1. CONTROLS
13 Horn, entire area
14 To release the bonnet
P. 3 2 1
15 Unlocking the boot lid P.91
1 Control Display P.59
2 Hazard warning lights
P. 3 5 2
3 Ventilation P.266
4 Glove box P.274
5 Radio/multimedia, see Naviga-
tion system Owner's manual
6 Automatic air conditioning P.261
7 Controller with buttons P.60,
P. 6 1
8 Sport mode switch P.160
SPORT drive mode
Toyota Supra Safety P.205
Auto Start/Stop P.145
Parking Sensors P.50
Rear-view camera P.253
RCTA (Rear cross traffic alert)
function P.256
Park Assistant P.50
Vehicle Stability Control,
VSC P.229
9 Parking brake P.148
10 Automatic transmission selector
lever P.154
Around the centre console
1
4
23
5
6
7
89
10
11

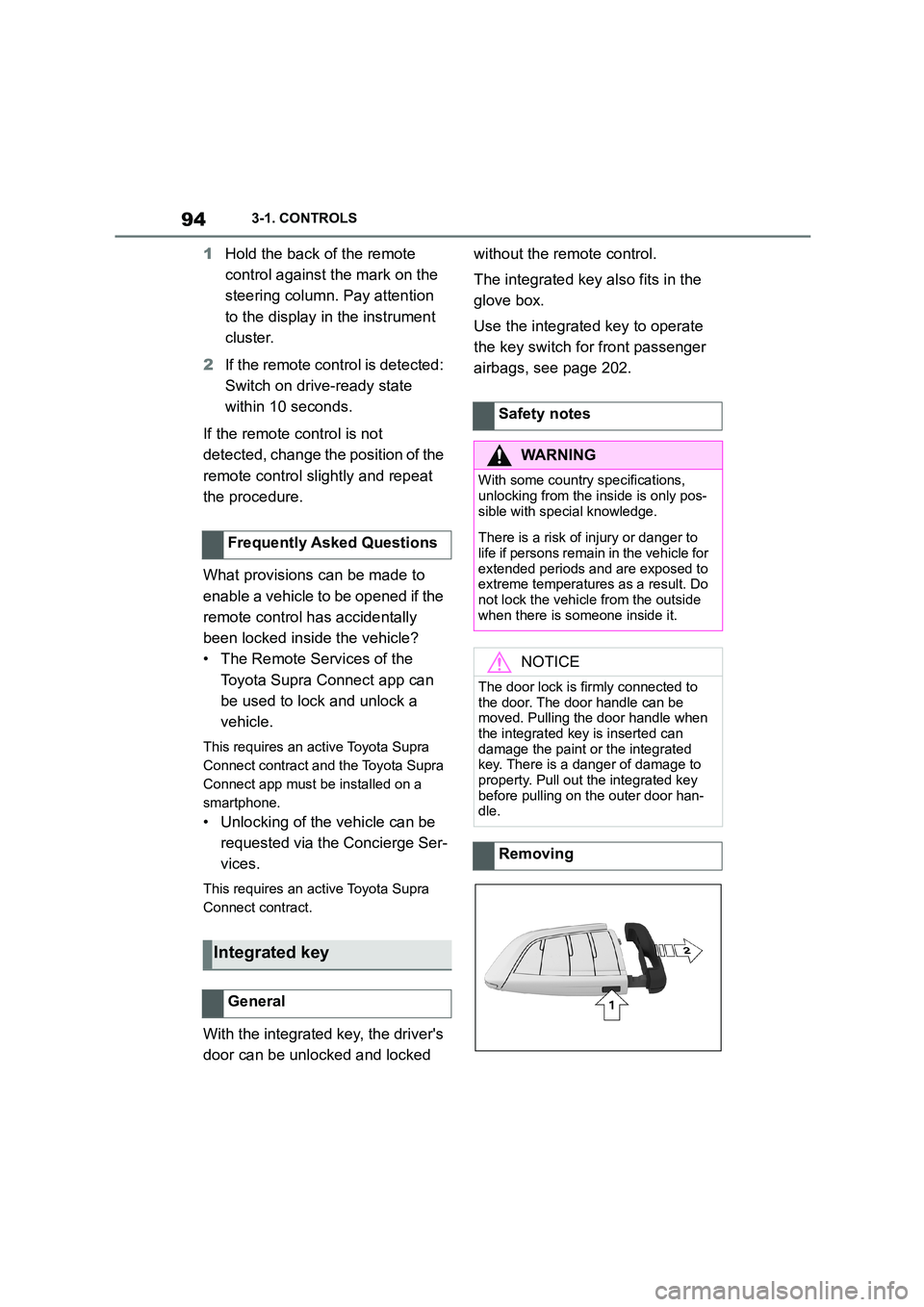

943-1. CONTROLS
1Hold the back of the remote
control against the mark on the
steering column. Pay attention
to the display in the instrument
cluster.
2 If the remote control is detected:
Switch on drive-ready state
within 10 seconds.
If the remote control is not
detected, change the position of the
remote control slightly and repeat
the procedure.
What provisions can be made to
enable a vehicle to be opened if the
remote control has accidentally
been locked inside the vehicle?
• The Remote Services of the
Toyota Supra Connect app can
be used to lock and unlock a
vehicle.
This requires an active Toyota Supra
Connect contract and the Toyota Supra
Connect app must be installed on a
smartphone.
• Unlocking of the vehicle can be
requested via the Concierge Ser-
vices.
This requires an active Toyota Supra
Connect contract.
With the integrated key, the driver's
door can be unlocked and locked
without the remote control.
The integrated key also fits in the
glove box.
Use the integrated key to operate
the key switch for front passenger
airbags, see page 202.
Frequently Asked Questions
Integrated key
General
Safety notes
WA R N I N G
With some country specifications,
unlocking from the inside is only pos-
sible with special knowledge.
There is a risk of injury or danger to
life if persons remain in the vehicle for extended periods and are exposed to
extreme temperatures as a result. Do
not lock the vehicle from the outside when there is someone inside it.
NOTICE
The door lock is firmly connected to
the door. The door handle can be moved. Pulling the door handle when
the integrated key is inserted can
damage the paint or the integrated key. There is a danger of damage to
property. Pull out the integrated key
before pulling on the outer door han- dle.
Removing

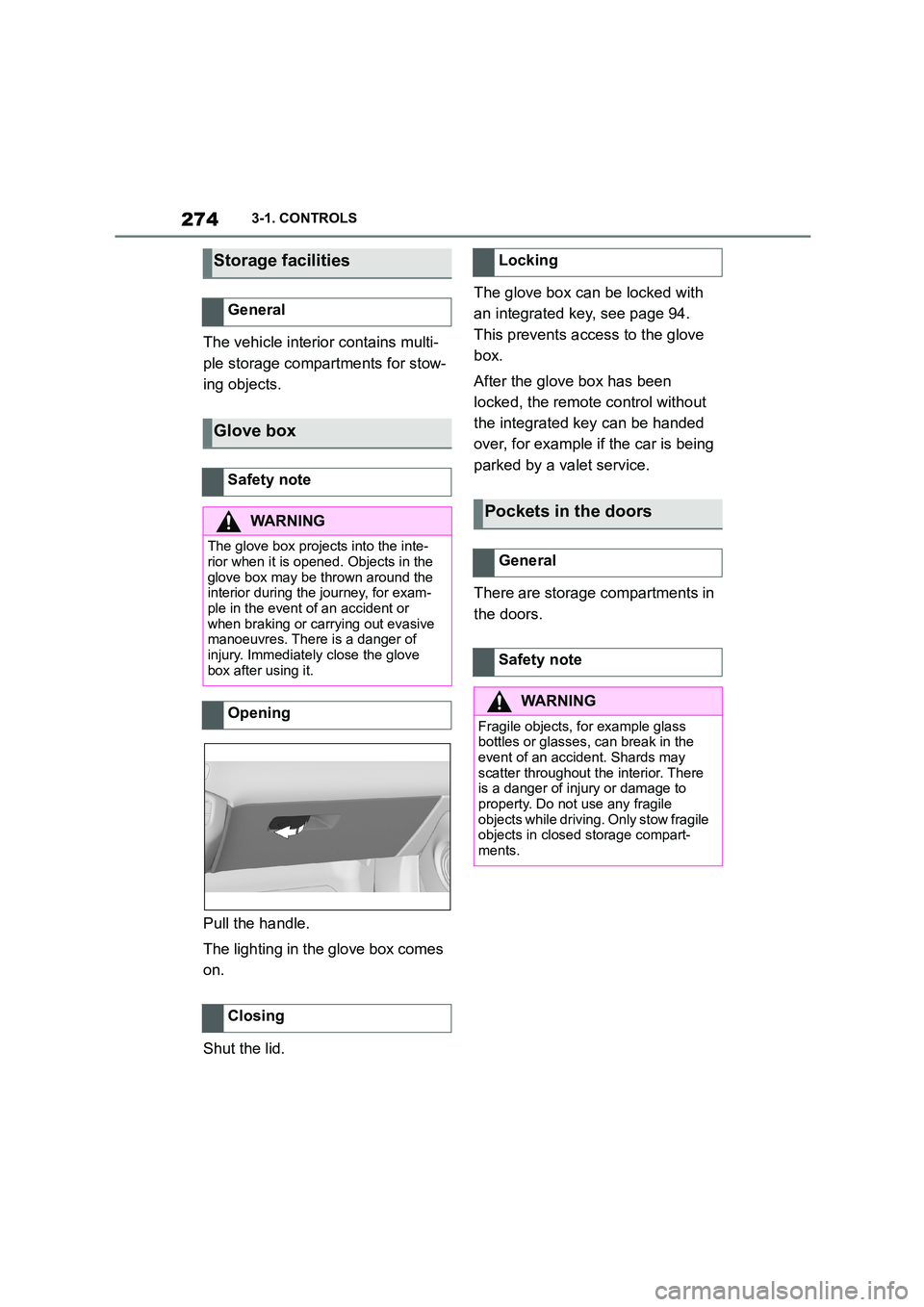

2743-1. CONTROLS
The vehicle interior contains multi-
ple storage compartments for stow-
ing objects.
Pull the handle.
The lighting in the glove box comes
on.
Shut the lid.
The glove box can be locked with
an integrated key, see page 94.
This prevents access to the glove
box.
After the glove box has been
locked, the remote control without
the integrated key can be handed
over, for example if the car is being
parked by a valet service.
There are storage compartments in
the doors.
Storage facilities
General
Glove box
Safety note
WA R N I N G
The glove box projects into the inte- rior when it is opened. Objects in the
glove box may be thrown around the
interior during the journey, for exam- ple in the event of an accident or
when braking or carrying out evasive
manoeuvres. There is a danger of injury. Immediately close the glove
box after using it.
Opening
Closing
Locking
Pockets in the doors
General
Safety note
WA R N I N G
Fragile objects, for example glass
bottles or glasses, can break in the event of an accident. Shards may
scatter throughout the interior. There
is a danger of injury or damage to property. Do not use any fragile
objects while driving. Only stow fragile
objects in closed storage compart- ments.

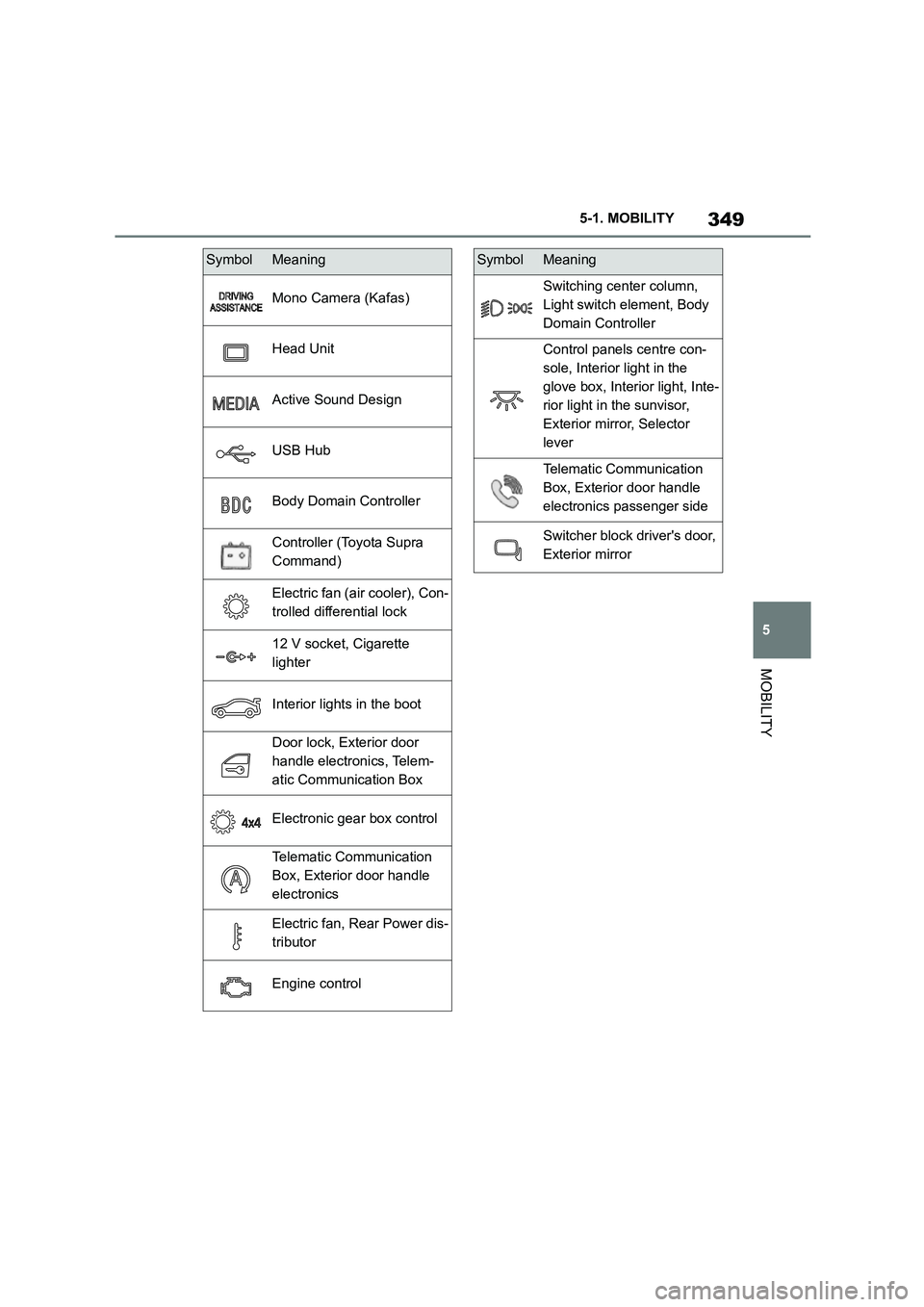

349
5
5-1. MOBILITY
MOBILITY
Mono Camera (Kafas)
Head Unit
Active Sound Design
USB Hub
Body Domain Controller
Controller (Toyota Supra
Command)
Electric fan (air cooler), Con-
trolled differential lock
12 V socket, Cigarette
lighter
Interior lights in the boot
Door lock, Exterior door
handle electronics, Telem-
atic Communication Box
Electronic gear box control
Telematic Communication
Box, Exterior door handle
electronics
Electric fan, Rear Power dis-
tributor
Engine control
SymbolMeaning
Switching center column,
Light switch element, Body
Domain Controller
Control panels centre con-
sole, Interior light in the
glove box, Interior light, Inte-
rior light in the sunvisor,
Exterior mirror, Selector
lever
Telematic Communication
Box, Exterior door handle
electronics passenger side
Switcher block driver's door,
Exterior mirror
SymbolMeaning

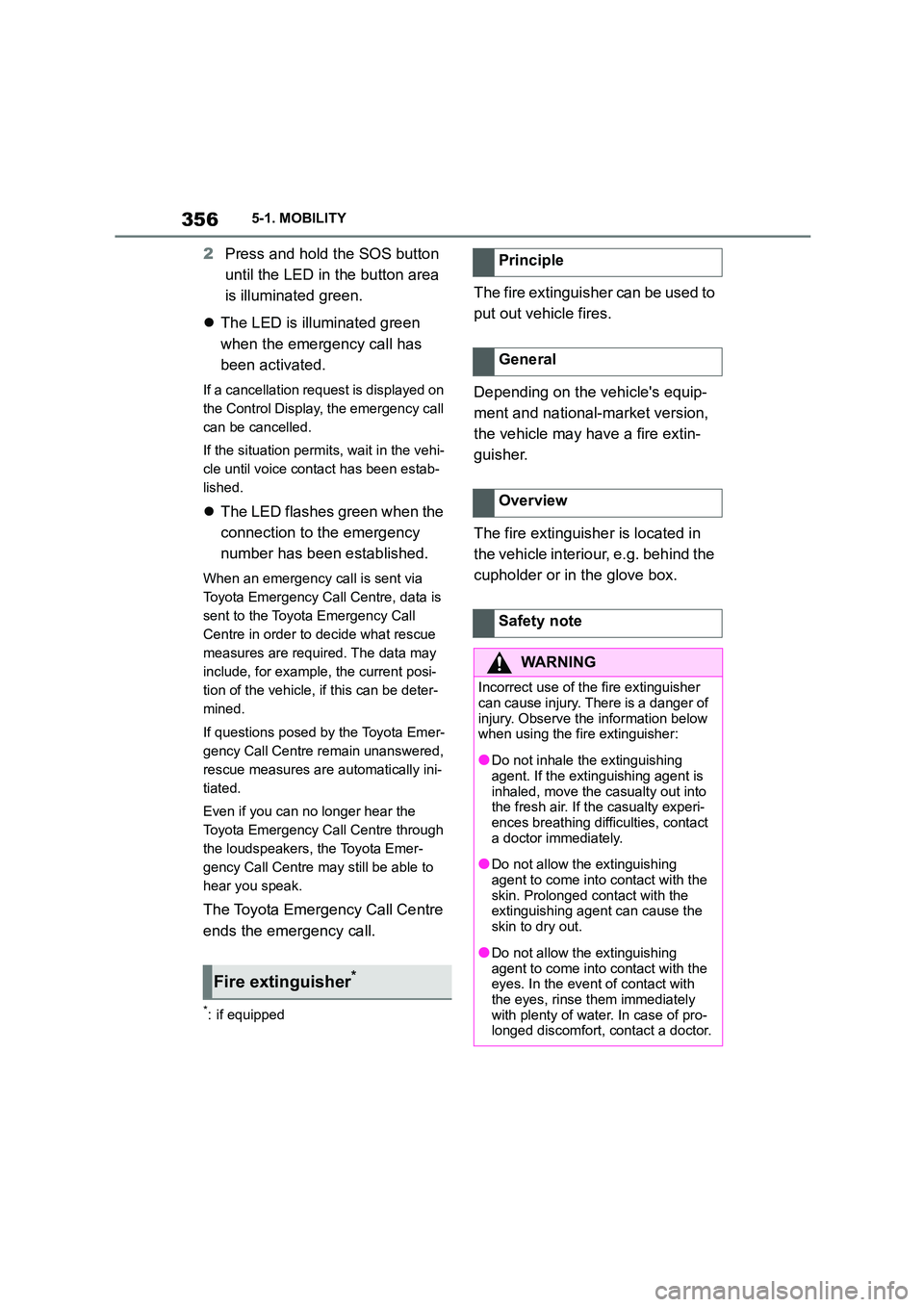

3565-1. MOBILITY
2Press and hold the SOS button
until the LED in the button area
is illuminated green.
 The LED is illuminated green
when the emergency call has
been activated.
If a cancellation request is displayed on
the Control Display, the emergency call
can be cancelled.
If the situation permits, wait in the vehi-
cle until voice contact has been estab-
lished.
 The LED flashes green when the
connection to the emergency
number has been established.
When an emergency call is sent via
Toyota Emergency Call Centre, data is
sent to the Toyota Emergency Call
Centre in order to decide what rescue
measures are required. The data may
include, for example, the current posi-
tion of the vehicle, if this can be deter-
mined.
If questions posed by the Toyota Emer-
gency Call Centre remain unanswered,
rescue measures are automatically ini-
tiated.
Even if you can no longer hear the
Toyota Emergency Call Centre through
the loudspeakers, the Toyota Emer-
gency Call Centre may still be able to
hear you speak.
The Toyota Emergency Call Centre
ends the emergency call.
*: if equipped
The fire extinguisher can be used to
put out vehicle fires.
Depending on the vehicle's equip-
ment and national-market version,
the vehicle may have a fire extin-
guisher.
The fire extinguisher is located in
the vehicle interiour, e.g. behind the
cupholder or in the glove box.
Fire extinguisher*
Principle
General
Overview
Safety note
WA R N I N G
Incorrect use of the fire extinguisher
can cause injury. There is a danger of
injury. Observe the information below when using the fire extinguisher:
●Do not inhale the extinguishing agent. If the extinguishing agent is
inhaled, move the casualty out into
the fresh air. If the casualty experi- ences breathing difficulties, contact
a doctor immediately.
●Do not allow the extinguishing
agent to come into contact with the
skin. Prolonged contact with the extinguishing agent can cause the
skin to dry out.
●Do not allow the extinguishing
agent to come into contact with the
eyes. In the event of contact with the eyes, rinse them immediately
with plenty of water. In case of pro-
longed discomfort, contact a doctor.

488Alphabetical Index
Filler neck for engine oil .............. 325
Filter, see Microfilter/activated car-
bon filter ...................................... 266
Fire extinguisher .......................... 356
Flank protection without Surround
View ............................................. 252
Flat tyre message, TPM ............... 308
Flat tyre warning lamp, TPM ........ 308
Flat tyre, continuing a journey .... 311
Flat tyre, see Tyre Pressure Monitor
..................................................... 304
Flat tyre, wheel change ................ 313
Flooding ........................................ 284
Floor carpet, care ......................... 367
Fog lights, see Bulbs and lights . 340
Fold-out position of windscreen wip-
ers ................................................ 153
Foot brake ..................................... 284
Foot mats, care ............................. 367
Front airbags ................................ 193
Front head restraints.................... 116
Front lights, see Bulbs and lights340
Front neck supports, see Head
restraints ..................................... 116
Front passenger airbags, deactivat-
ing/activating .............................. 202
Front passenger airbags, indicator
lamp ............................................. 204
Front passenger's mirror, tilting
down, see Automati c parking func-
tion............................................... 118
Front seats .................................... 107
Front-end collision warning with City
braking function ......................... 207
Fuel ................................................ 322
Fuel filler flap ................................ 290
Fuel gauge .................................... 168
Fuel quality ................................... 322
Fuel recommendation .................. 322
Fuel tank cap ................................ 290
Fuel, tank capacity ....................... 372
Fuses ............................................. 343
G
Gearbox, see Automatic transmis-
sion ..............................................154
General driving information.........281
General settings.............................. 71
Glare protection, see Sun visor... 269
Glove box ......................................274
Go function.................................... 238
Go function ACC ...........................238
GPS positioning, vehicle position. 73
H
Handbrake, see Parking brake .... 148
Hazard warning lights ..................352
Headlight cleaning system, see
Wiper system ..............................151
Headlight courtesy delay feature 187
Headlight flasher...........................150
Headlight glass .............................340
Headlights, care ............................ 363
Headlights, see Bulbs and lights 340
Head-Up Display ...........................182
Head-Up Display, care ..................368
Head-Up Display, see Memory func-
tion ............................................... 119
Head-Up Display, standard view . 182
Height, vehicle ..............................370
Help in driving off, see Hill-start
assist control .............................. 229
High-beam headlights ..................150
Hill Start Assist, see Hill-start assist
control .........................................229
Hill-start assist control ................. 229
Holder for beverages .................... 275
Horn ................................................. 46
Hot exhaust system ...................... 281
I
Ice warning, see Outside tempera-
ture warning ................................169
Identification number, see Vehicle
identification number ................... 22
