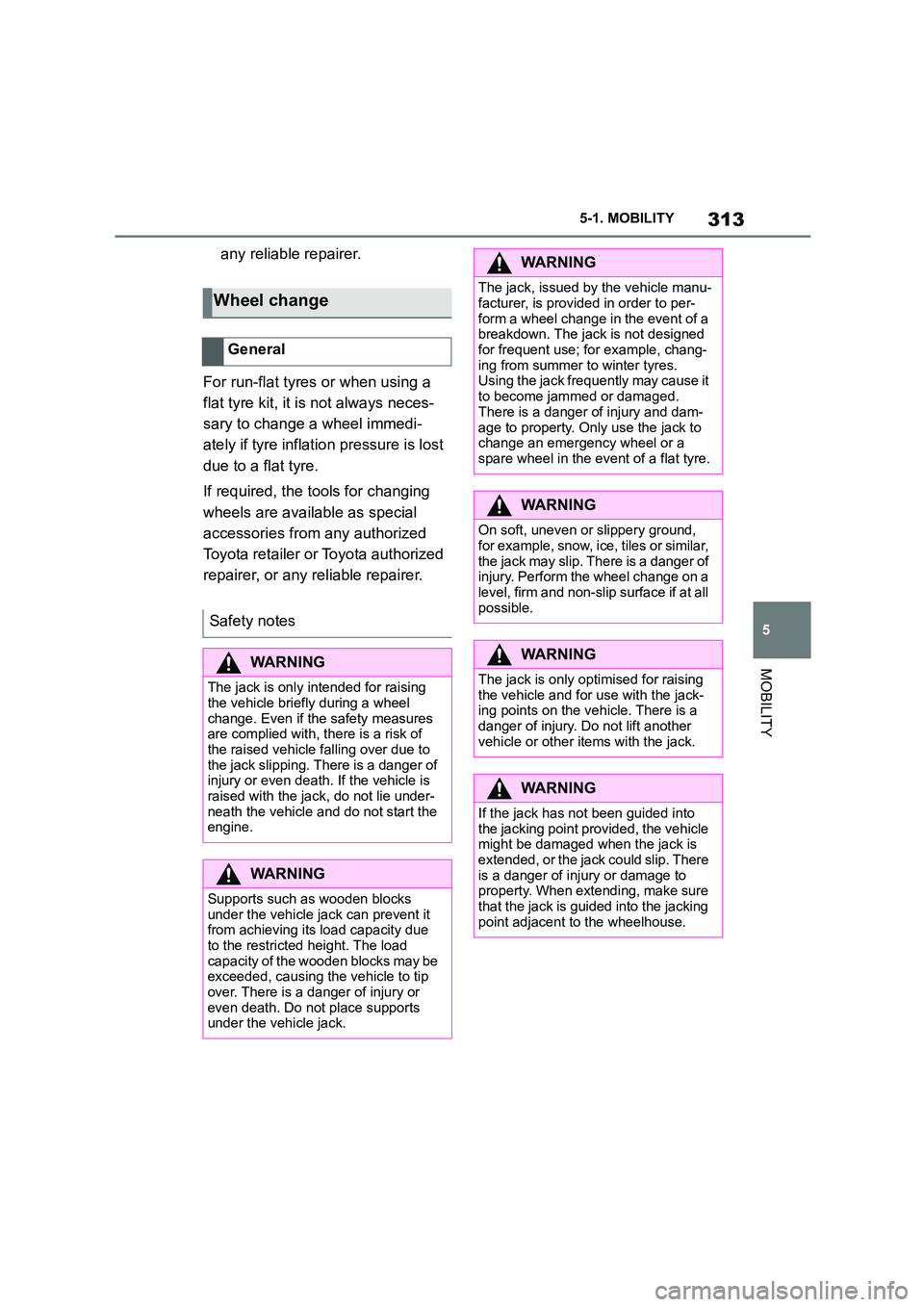

313
5
5-1. MOBILITY
MOBILITY
any reliable repairer.
For run-flat tyres or when using a
flat tyre kit, it is not always neces-
sary to change a wheel immedi-
ately if tyre inflatio n pressure is lost
due to a flat tyre.
If required, the tools for changing
wheels are available as special
accessories from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Wheel change
General
Safety notes
WA R N I N G
The jack is only intended for raising
the vehicle briefly during a wheel
change. Even if the safety measures are complied with, there is a risk of
the raised vehicle falling over due to
the jack slipping. There is a danger of injury or even death. If the vehicle is
raised with the jack, do not lie under-
neath the vehicle and do not start the engine.
WA R N I N G
Supports such as wooden blocks
under the vehicle jack can prevent it from achieving its load capacity due
to the restricted height. The load
capacity of the wooden blocks may be exceeded, causing the vehicle to tip
over. There is a danger of injury or
even death. Do not place supports under the vehicle jack.
WA R N I N G
The jack, issued by the vehicle manu-
facturer, is provided in order to per-
form a wheel change in the event of a breakdown. The jack is not designed
for frequent use; for example, chang-
ing from summer to winter tyres. Using the jack frequently may cause it
to become jammed or damaged.
There is a danger of injury and dam-
age to property. Only use the jack to change an emergency wheel or a
spare wheel in the event of a flat tyre.
WA R N I N G
On soft, uneven or slippery ground,
for example, snow, ice, tiles or similar,
the jack may slip. There is a danger of injury. Perform the wheel change on a
level, firm and non-slip surface if at all
possible.
WA R N I N G
The jack is only optimised for raising
the vehicle and for use with the jack-
ing points on the vehicle. There is a danger of injury. Do not lift another
vehicle or other items with the jack.
WA R N I N G
If the jack has not been guided into the jacking point provided, the vehicle
might be damaged when the jack is
extended, or the jack could slip. There is a danger of injury or damage to
property. When extending, make sure
that the jack is guided into the jacking point adjacent to the wheelhouse.

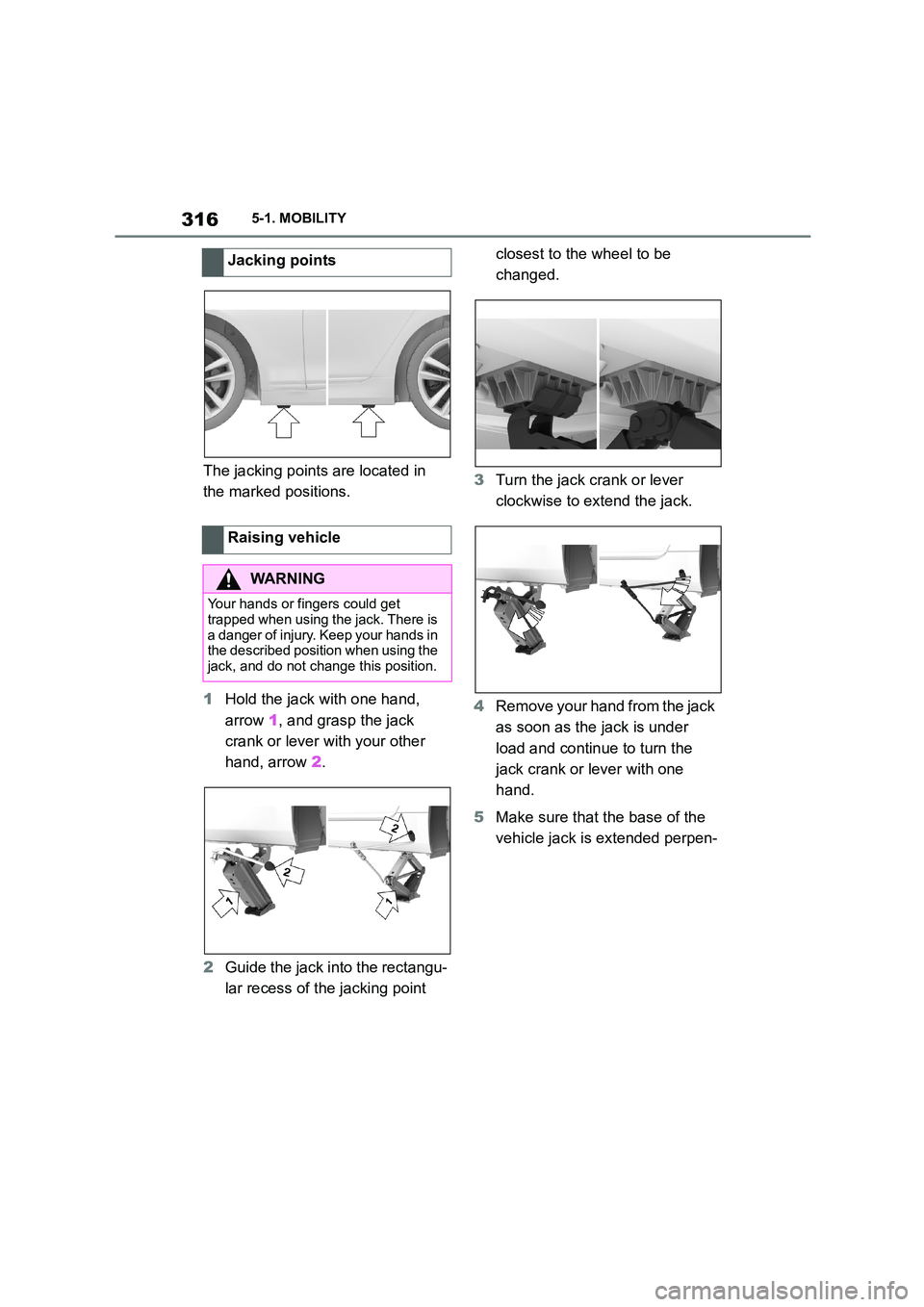

3165-1. MOBILITY
The jacking points are located in
the marked positions.
1 Hold the jack with one hand,
arrow 1, and grasp the jack
crank or lever with your other
hand, arrow 2.
2 Guide the jack into the rectangu-
lar recess of the jacking point
closest to the wheel to be
changed.
3 Turn the jack crank or lever
clockwise to extend the jack.
4 Remove your hand from the jack
as soon as the jack is under
load and continue to turn the
jack crank or lever with one
hand.
5 Make sure that the base of the
vehicle jack is extended perpen-
Jacking points
Raising vehicle
WA R N I N G
Your hands or fingers could get
trapped when using the jack. There is a danger of injury. Keep your hands in
the described position when using the
jack, and do not change this position.

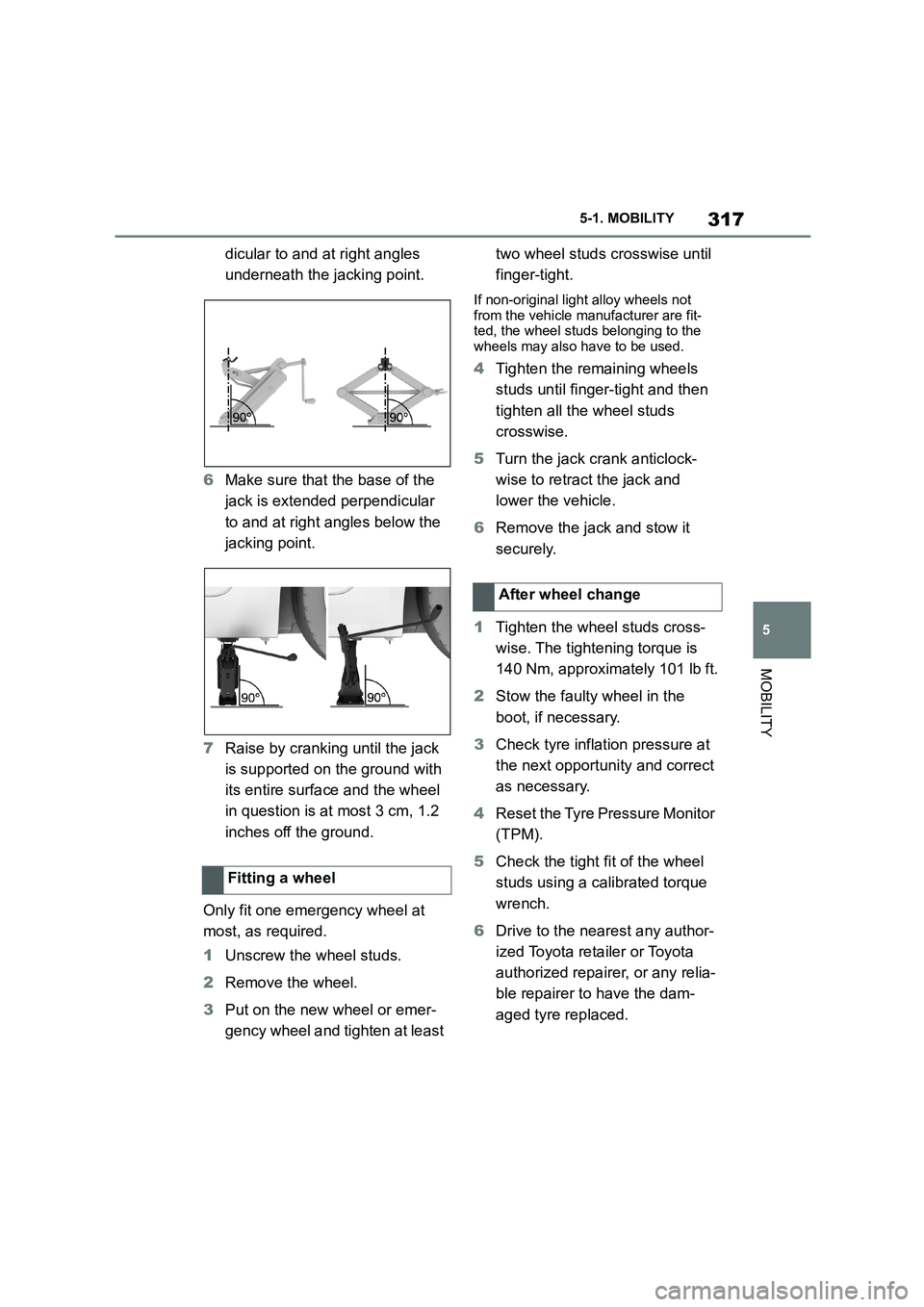

317
5
5-1. MOBILITY
MOBILITY
dicular to and at right angles
underneath the jacking point.
6 Make sure that the base of the
jack is extended perpendicular
to and at right angles below the
jacking point.
7 Raise by cranking until the jack
is supported on the ground with
its entire surface and the wheel
in question is at most 3 cm, 1.2
inches off the ground.
Only fit one emergency wheel at
most, as required.
1 Unscrew the wheel studs.
2 Remove the wheel.
3 Put on the new wheel or emer-
gency wheel and tighten at least
two wheel studs crosswise until
finger-tight.
If non-original light alloy wheels not
from the vehicle manufacturer are fit- ted, the wheel studs belonging to the
wheels may also have to be used.
4 Tighten the remaining wheels
studs until finger-tight and then
tighten all the wheel studs
crosswise.
5 Turn the jack crank anticlock-
wise to retract the jack and
lower the vehicle.
6 Remove the jack and stow it
securely.
1 Tighten the wheel studs cross-
wise. The tightening torque is
140 Nm, approximately 101 lb ft.
2 Stow the faulty wheel in the
boot, if necessary.
3 Check tyre inflation pressure at
the next opportunity and correct
as necessary.
4 Reset the Tyre Pressure Monitor
(TPM).
5 Check the tight fit of the wheel
studs using a calibrated torque
wrench.
6 Drive to the nearest any author-
ized Toyota reta iler or Toyota
authorized repairer, or any relia-
ble repairer to have the dam-
aged tyre replaced.
Fitting a wheel
After wheel change
