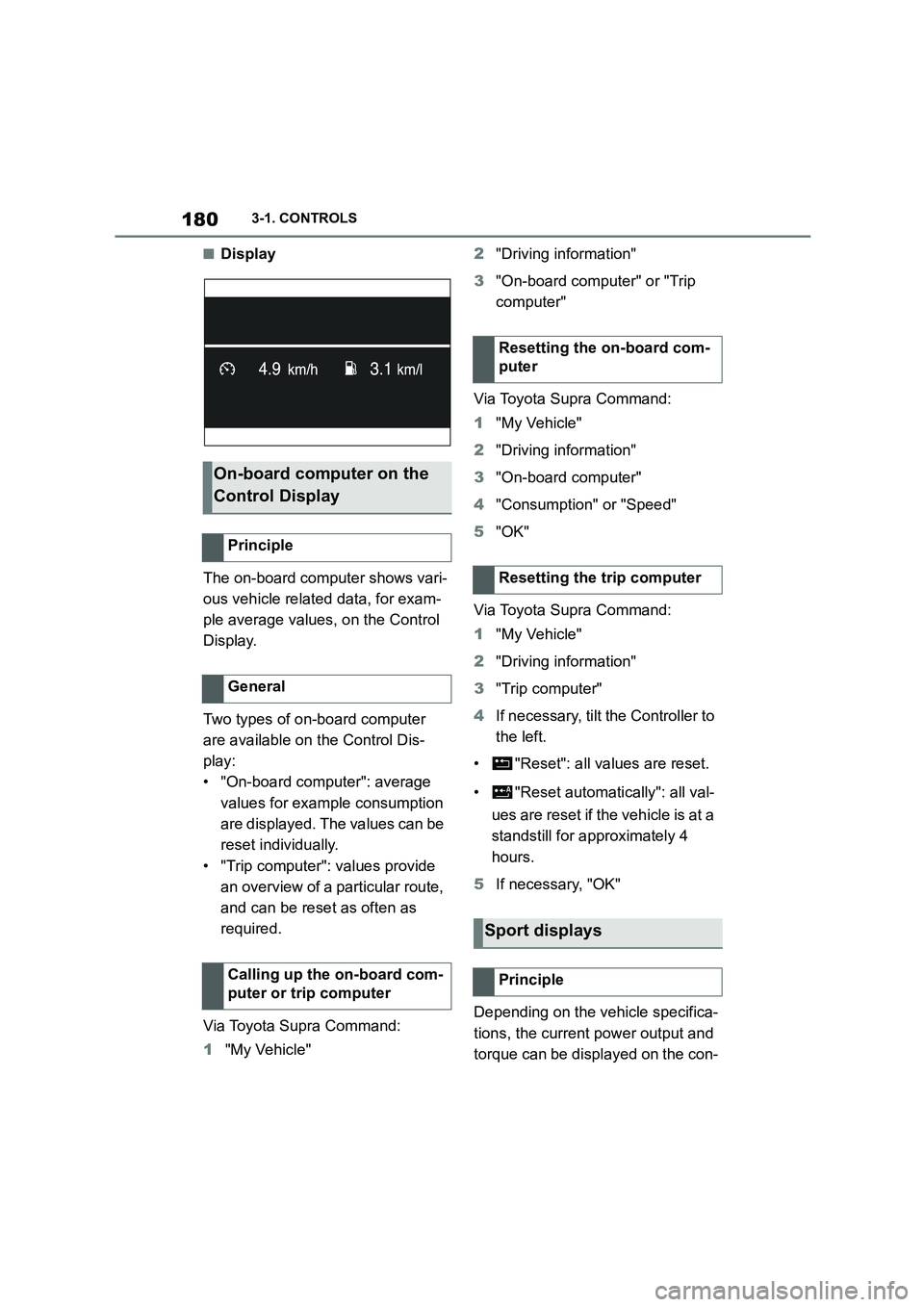

1803-1. CONTROLS
■Display
The on-board computer shows vari-
ous vehicle related data, for exam-
ple average values, on the Control
Display.
Two types of on-board computer
are available on the Control Dis-
play:
• "On-board computer": average
values for example consumption
are displayed. The values can be
reset individually.
• "Trip computer": values provide
an overview of a pa rticular route,
and can be reset as often as
required.
Via Toyota Supra Command:
1 "My Vehicle"
2 "Driving information"
3 "On-board computer" or "Trip
computer"
Via Toyota Supra Command:
1 "My Vehicle"
2 "Driving information"
3 "On-board computer"
4 "Consumption" or "Speed"
5 "OK"
Via Toyota Supra Command:
1 "My Vehicle"
2 "Driving information"
3 "Trip computer"
4 If necessary, tilt the Controller to
the left.
• "Reset": all va lues are reset.
• "Reset automatically": all val-
ues are reset if the vehicle is at a
standstill for ap proximately 4
hours.
5 If necessary, "OK"
Depending on the vehicle specifica-
tions, the current power output and
torque can be displayed on the con-
On-board computer on the
Control Display
Principle
General
Calling up the on-board com-
puter or trip computer
Resetting the on-board com-
puter
Resetting the trip computer
Sport displays
Principle

181
3
3-1. CONTROLS
CONTROLS

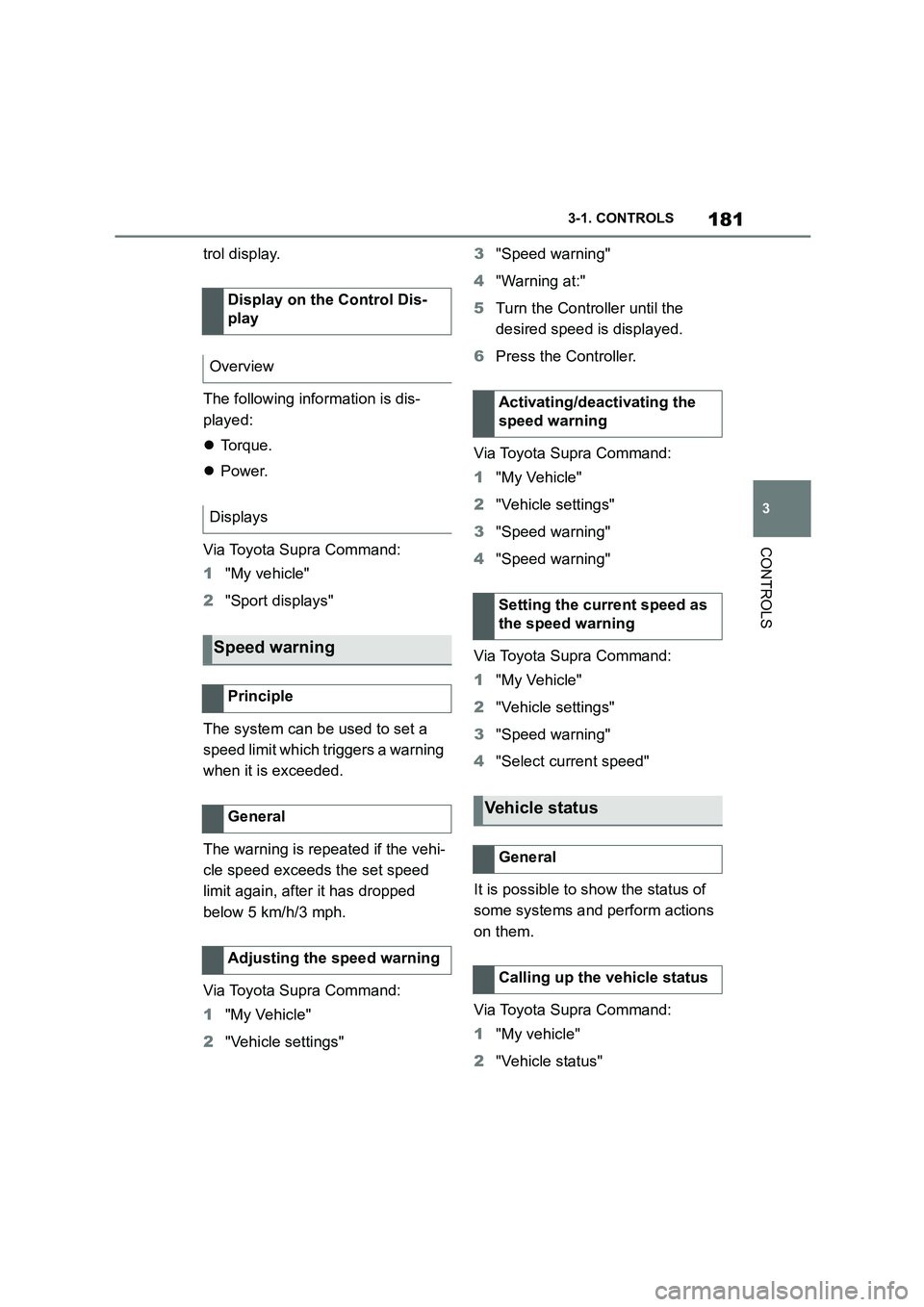

trol display.
The following info rmation is dis-
played:
 Torque.
 Power.
Via Toyota Supra Command:
1 "My vehicle"
2 "Sport displays"
The system can be used to set a
speed limit which triggers a warning
when it is exceeded.
The warning is repeated if the vehi-
cle speed exceeds the set speed
limit again, after it has dropped
below 5 km/h/3 mph.
Via Toyota Supra Command:
1 "My Vehicle"
2 "Vehicle settings"
3 "Speed warning"
4 "Warning at:"
5 Turn the Controller until the
desired speed is displayed.
6 Press the Controller.
Via Toyota Supra Command:
1 "My Vehicle"
2 "Vehicle settings"
3 "Speed warning"
4 "Speed warning"
Via Toyota Supra Command:
1 "My Vehicle"
2 "Vehicle settings"
3 "Speed warning"
4 "Select current speed"
It is possible to show the status of
some systems and perform actions
on them.
Via Toyota Supra Command:
1 "My vehicle"
2 "Vehicle status"
Display on the Control Dis-
play
Overview
Displays
Speed warning
Principle
General
Adjusting the speed warning
Activating/deactivating the
speed warning
Setting the current speed as
the speed warning
Vehicle status
General
Calling up the vehicle status

315
5
5-1. MOBILITY
MOBILITY

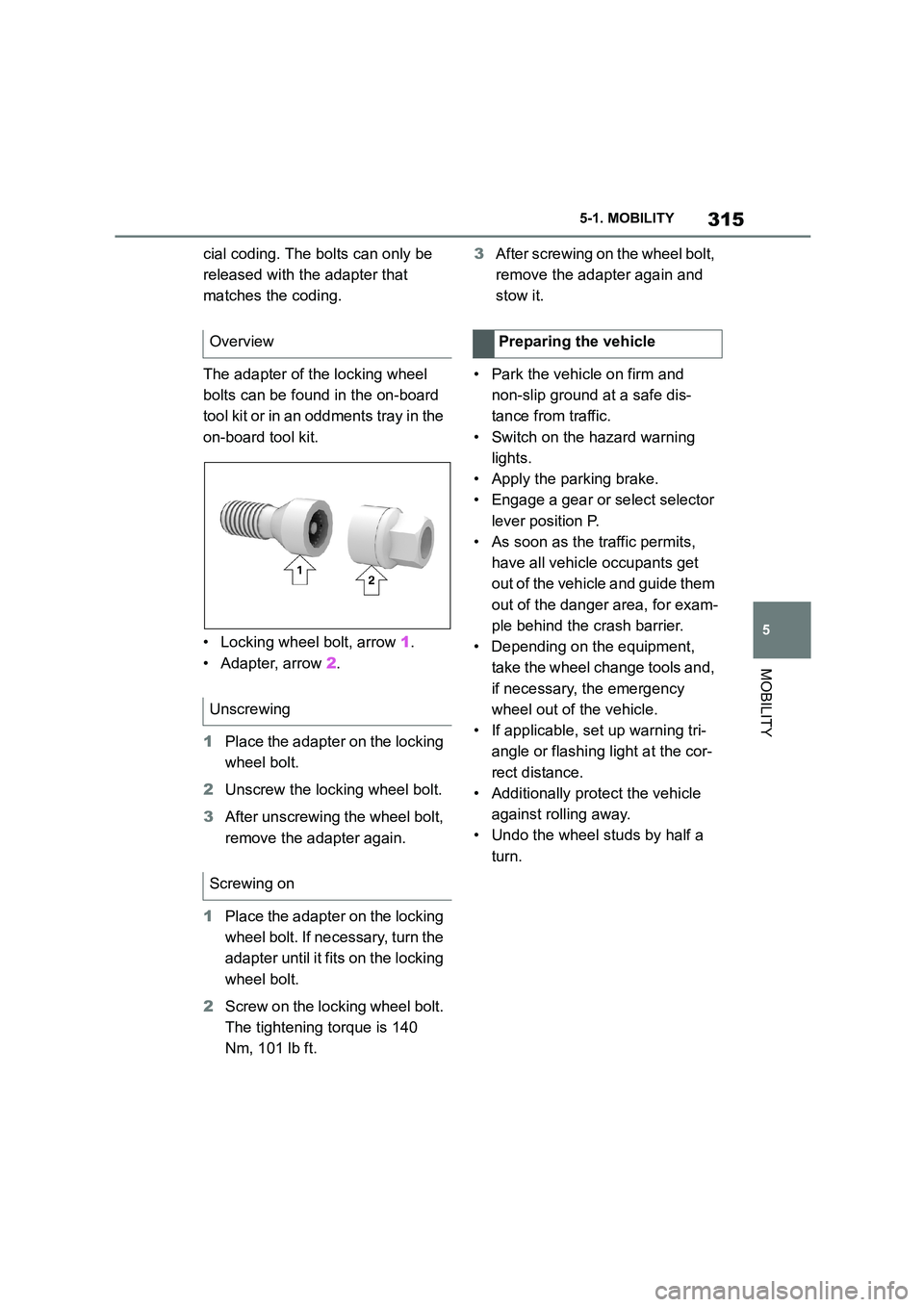

cial coding. The bolts can only be
released with the adapter that
matches the coding.
The adapter of the locking wheel
bolts can be found in the on-board
tool kit or in an oddments tray in the
on-board tool kit.
• Locking wheel bolt, arrow 1.
• Adapter, arrow 2.
1 Place the adapter on the locking
wheel bolt.
2 Unscrew the locking wheel bolt.
3 After unscrewing the wheel bolt,
remove the adapter again.
1 Place the adapter on the locking
wheel bolt. If necessary, turn the
adapter until it fi ts on the locking
wheel bolt.
2 Screw on the locking wheel bolt.
The tightening torque is 140
Nm, 101 lb ft.
3 After screwing on the wheel bolt,
remove the adapter again and
stow it.
• Park the vehicle on firm and
non-slip ground at a safe dis-
tance from traffic.
• Switch on the hazard warning
lights.
• Apply the parking brake.
• Engage a gear or select selector
lever position P.
• As soon as the traffic permits,
have all vehicle occupants get
out of the vehicle and guide them
out of the danger area, for exam-
ple behind the crash barrier.
• Depending on the equipment,
take the wheel change tools and,
if necessary, the emergency
wheel out of the vehicle.
• If applicable, set up warning tri-
angle or flashing light at the cor-
rect distance.
• Additionally protect the vehicle
against rolling away.
• Undo the wheel studs by half a
turn.
Overview
Unscrewing
Screwing on
Preparing the vehicle

317
5
5-1. MOBILITY
MOBILITY
dicular to and at right angles
underneath the jacking point.
6 Make sure that the base of the
jack is extended perpendicular
to and at right angles below the
jacking point.
7 Raise by cranking until the jack
is supported on the ground with
its entire surface and the wheel
in question is at most 3 cm, 1.2
inches off the ground.
Only fit one emergency wheel at
most, as required.
1 Unscrew the wheel studs.
2 Remove the wheel.
3 Put on the new wheel or emer-
gency wheel and tighten at least
two wheel studs crosswise until
finger-tight.
If non-original light alloy wheels not
from the vehicle manufacturer are fit- ted, the wheel studs belonging to the
wheels may also have to be used.
4 Tighten the remaining wheels
studs until finger-tight and then
tighten all the wheel studs
crosswise.
5 Turn the jack crank anticlock-
wise to retract the jack and
lower the vehicle.
6 Remove the jack and stow it
securely.
1 Tighten the wheel studs cross-
wise. The tightening torque is
140 Nm, approximately 101 lb ft.
2 Stow the faulty wheel in the
boot, if necessary.
3 Check tyre inflation pressure at
the next opportunity and correct
as necessary.
4 Reset the Tyre Pressure Monitor
(TPM).
5 Check the tight fit of the wheel
studs using a calibrated torque
wrench.
6 Drive to the nearest any author-
ized Toyota reta iler or Toyota
authorized repairer, or any relia-
ble repairer to have the dam-
aged tyre replaced.
Fitting a wheel
After wheel change

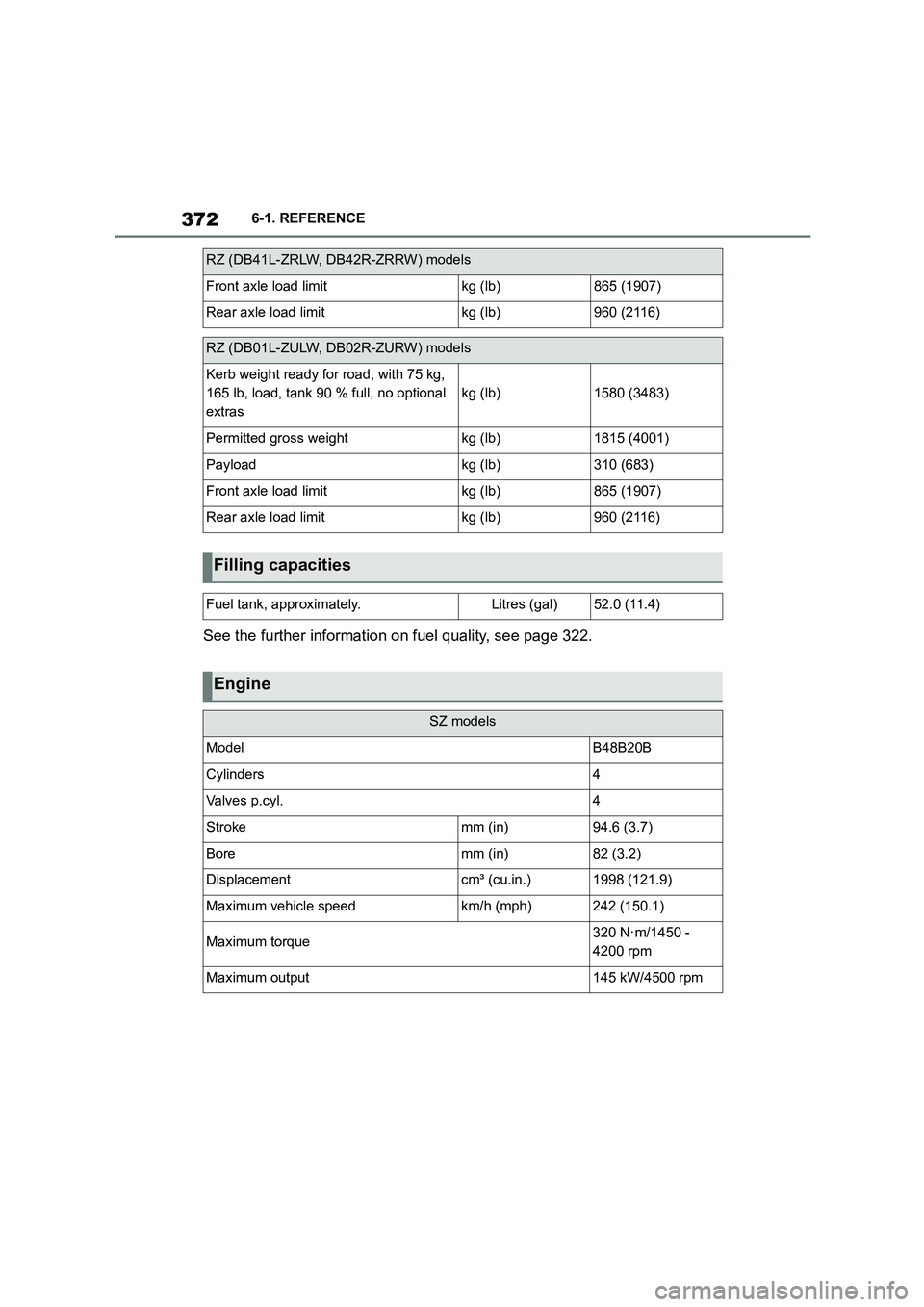

3726-1. REFERENCE
See the further information on fuel quality, see page 322.
Front axle load limitkg (lb)865 (1907)
Rear axle load limitkg (lb)960 (2116)
RZ (DB01L-ZULW, DB02R-ZURW) models
Kerb weight ready for road, with 75 kg,
165 lb, load, tank 90 % full, no optional
extras
kg (lb)1580 (3483)
Permitted gross weightkg (lb)1815 (4001)
Payloadkg (lb)310 (683)
Front axle load limitkg (lb)865 (1907)
Rear axle load limitkg (lb)960 (2116)
Filling capacities
Fuel tank, approximately.Litres (gal)52.0 (11.4)
RZ (DB41L-ZRLW, DB42R-ZRRW) models
Engine
SZ models
ModelB48B20B
Cylinders4
Valves p.cyl.4
Strokemm (in)94.6 (3.7)
Boremm (in)82 (3.2)
Displacementcm³ (cu.in.)1998 (121.9)
Maximum vehicle speedkm/h (mph)242 (150.1)
Maximum torque320 N·m/1450 -
4200 rpm
Maximum output145 kW/4500 rpm

373
6
6-1. REFERENCE
REFERENCE

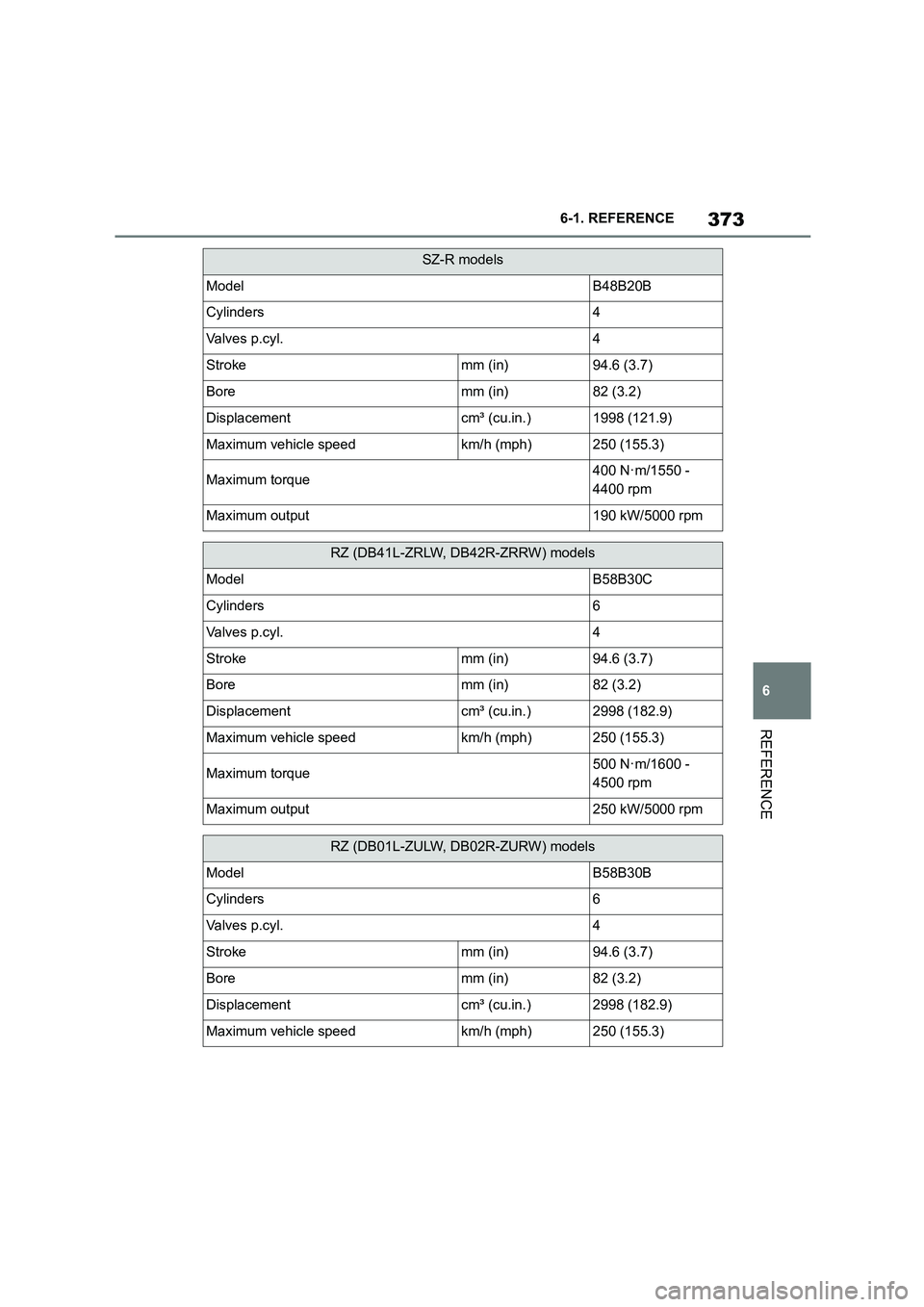

SZ-R models
ModelB48B20B
Cylinders4
Valves p.cyl.4
Strokemm (in)94.6 (3.7)
Boremm (in)82 (3.2)
Displacementcm³ (cu.in.)1998 (121.9)
Maximum vehicle speedkm/h (mph)250 (155.3)
Maximum torque400 N·m/1550 -
4400 rpm
Maximum output190 kW/5000 rpm
RZ (DB41L-ZRLW, DB42R-ZRRW) models
ModelB58B30C
Cylinders6
Valves p.cyl.4
Strokemm (in)94.6 (3.7)
Boremm (in)82 (3.2)
Displacementcm³ (cu.in.)2998 (182.9)
Maximum vehicle speedkm/h (mph)250 (155.3)
Maximum torque500 N·m/1600 -
4500 rpm
Maximum output250 kW/5000 rpm
RZ (DB01L-ZULW, DB02R-ZURW) models
ModelB58B30B
Cylinders6
Valves p.cyl.4
Strokemm (in)94.6 (3.7)
Boremm (in)82 (3.2)
Displacementcm³ (cu.in.)2998 (182.9)
Maximum vehicle speedkm/h (mph)250 (155.3)

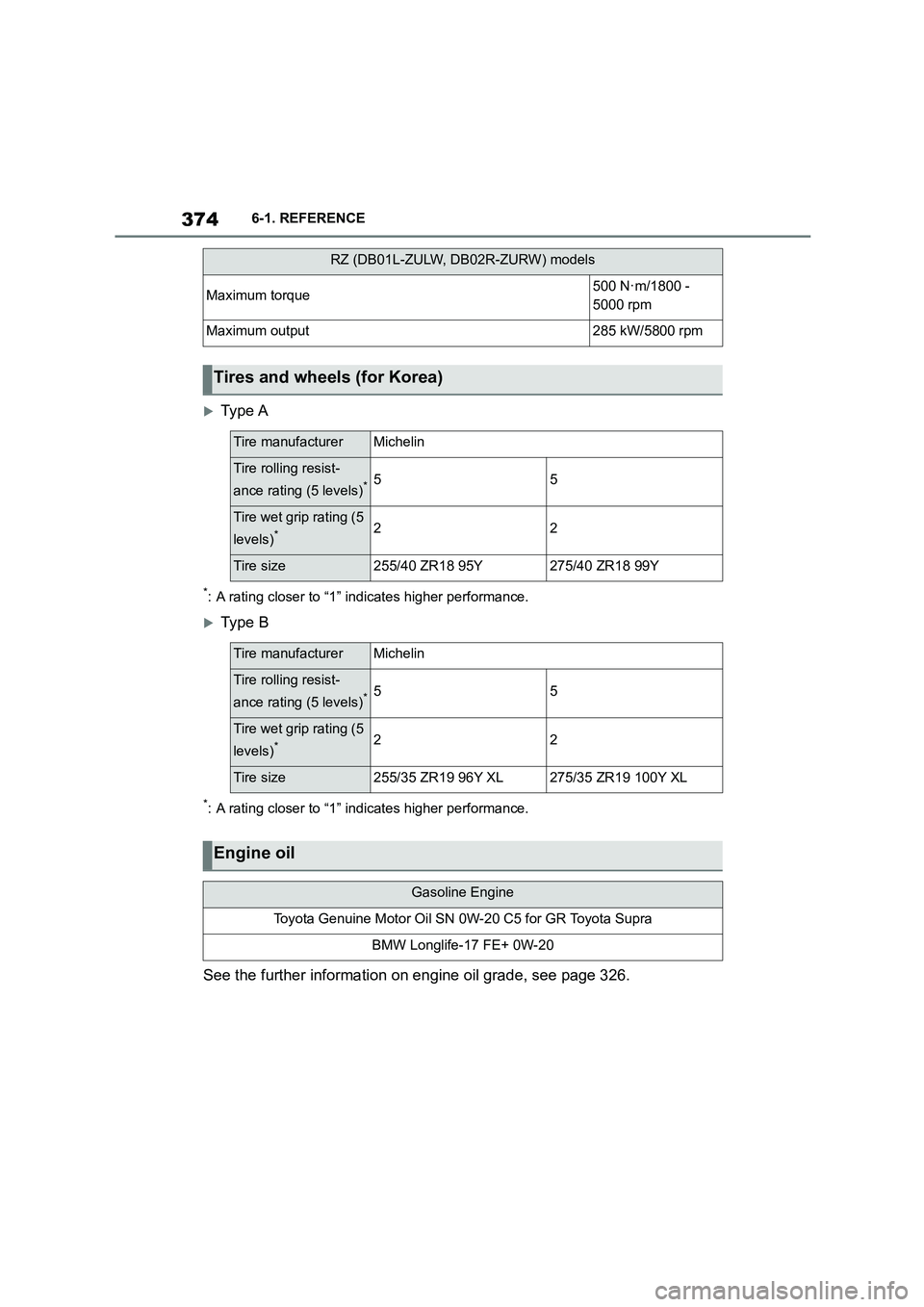

3746-1. REFERENCE
Type A
*: A rating closer to “1” indicates higher performance.
Type B
*: A rating closer to “1” indicates higher performance.
See the further information on engine oil grade, see page 326.
Maximum torque500 N·m/1800 -
5000 rpm
Maximum output285 kW/5800 rpm
Tires and wheels (for Korea)
Tire manufacturerMichelin
Tire rolling resist-
ance rating (5 levels)*55
Tire wet grip rating (5
levels)*22
Tire size255/40 ZR18 95Y275/40 ZR18 99Y
Tire manufacturerMichelin
Tire rolling resist-
ance rating (5 levels)*55
Tire wet grip rating (5
levels)*22
Tire size255/35 ZR19 96Y XL275/35 ZR19 100Y XL
Engine oil
RZ (DB01L-ZULW, DB02R-ZURW) models
Gasoline Engine
Toyota Genuine Motor Oil SN 0W-20 C5 for GR Toyota Supra
BMW Longlife-17 FE+ 0W-20

493Alphabetical Index
Spare wheel, see Emergency wheel
..................................................... 318
Special equipment, see Vehicle
equipment ....................................... 4
Speed Limit Assist ....................... 246
Speed Limit Device, see Manual
Speed Limiter ............................. 232
Speed Limit Info ........................... 173
Speed limit, display, see Speed Limit
Info............................................... 173
Speed Limiter, manual ................. 232
Sport displays............................... 180
Sport mode switch ............... 154, 160
Sport programme, Automatic trans-
mission........................................ 154
Sport suspension, see Adaptive vari-
able suspension ......................... 259
SPORT, see Sport mode switch .. 160
Stability control systems ............. 228
Standard equipment, see Vehicle
equipment ....................................... 4
Standard view, Head-Up Display. 182
Standby state, idle state and
drive-ready state .......................... 53
Start/stop button........................... 144
Starting assistance ...................... 357
Starting assistance, see VSC ...... 229
Status Control Display, tyres....... 306
Status information, Toyota Supra
Command...................................... 58
Status of the Owner's Manual ......... 5
Status, vehicle .............................. 181
Steering wheel, adjusting ............ 119
Steering wheel, buttons ................. 46
Steering wheel, see Memory function
..................................................... 119
Storage facilities........................... 274
Storage, see Laying up the vehicle
..................................................... 368
Storage, tyres ............................... 298
Stowing and securing a transported
load .............................................. 276
Stowing heavy transported loads276
Summer tyres, tread ..................... 294
Sun visor ....................................... 269
Supplementary text message ...... 164
Suspension settings, see Sport
mode switch................................160
Switch for driving dynamics, see
Sport mode switch .....................160
Switches, see Driving area ............ 46
Switching on the headlight courtesy
delay feature ................................. 92
Symbols and displays ......................4
T
Tail lights, see Bulbs and lights .. 340
Tailgate, see Boot lid .................... 100
Tank display .................................. 168
Technical changes, see Your own
safety ...............................................6
Technical data ............................... 370
Teleservice call .............................220
Temperature display, see Outside
temperature................................. 169
Temperature, automatic air condi-
tioning .........................................262
Temperature, engine oil ...............169
Tension belt, see Lashing eyes in the
boot..............................................276
Text message, supplementary..... 164
Thiefproof wheel studs ................314
Tilt alarm sensor ...........................104
Tilting down front passenger's mir-
ror, see Automatic parking function
..................................................... 118
Time ................................................. 72
Tire inflation pressure
Maintenance data....................... 374
Tires
Size ............................................374
Tool ................................................ 339
Topping up engine oil................... 325
Torque display, see Sport displays
..................................................... 180
Total weight, permitted................. 371
Touchscreen.................................... 65
Touchscreen, see Operation by
touchscreen .................................. 65
