2022 TOYOTA COROLLA Owners Manual (in English)

247
4
4-5. Using the driving support systems
Driving
or Toyota authorized repairer, or any reli-
able repairer.
■Automatic cancelation of constant speed control mode
Constant speed control mode is auto-
matically canceled in the following situa- tions:
●Actual vehicle speed is more than approximately 16 km/h (10 mph)
below the set vehicle speed.
●Actual vehicle speed falls below
approximately 30 km/h (20 mph).
●VSC is activated.
●TRC is activated for a period of time.
●When the VSC or TRC system is
turned off.
●Pre-collision braking is activated.
●When the shift lever is in N or the
clutch pedal is depressed for a certain
amount of time or more.
If constant speed control mode is auto-
matically canceled for any reasons other
than the above, there may be a malfunc- tion in the system. Contact any author-
ized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■The Dynamic Radar Cruise Control with Road Sign Assist may not
operate properly when
As the Dynamic Radar Cruise Control with Road Sign Assist may not operate
properly in conditions in which RSA may
not operate or detect correctly ( P.257), when using this function,
make sure to check the speed limit sign
displayed.
In the following situations, the set speed
may not be changed to the recognized
speed limit by pressing and holding the
“+RES”/“-SET” switch.
●If speed limit information is not availa-
ble
●When the recognized speed limit is
the same as the set speed
●When the recognized speed limit is
outside of the speed range that the
dynamic radar cruise control system
can operate
■Brake operation
A brake operation sound may be heard
and the brake pedal response may
change, but these are not malfunctions.
■Warning messages and buzzers for dynamic radar cruise control
Warning messages and buzzers are
used to indicate a system malfunction or to inform the driver of the need for cau-
tion while driving. If a warning message
is shown on the multi-information dis- play, read the message and follow the
instructions. ( P.200, 480)
■When the sensor may not be cor-
rectly detecting the vehicle ahead
In the case of the following and depend-
ing on the conditions, operate the brake
pedal when deceleration of the system is insufficient or operate the accelerator
pedal when acceleration is required.
As the sensor may not be able to cor- rectly detect these types of vehicles, the
approach warning ( P.244) may not be
activated.
●Vehicles that cut in suddenly
●Vehicles traveling at low speeds
●Vehicles that are not moving in the same lane
●Vehicles with small rear ends (trailers with no load on board, etc.)
●Motorcycles traveling in the same lane
●When water or snow thrown up by the
surrounding vehicles hinders the
detecting of the sensor
●When your vehicle is pointing
upwards (caused by a heavy load in

2484-5. Using the driving support systems
the luggage compartment, etc.)
●Preceding vehicle has an extremely
high ground clearance
■Conditions under which the vehi-
cle-to-vehicle distance control
mode may not function correctly
In the case of the following conditions,
operate the brake pedal (or accelerator
pedal, depending on the situation) as necessary.
As the sensor may not be able to cor-
rectly detect vehicles ahead, the system may not operate properly.
●When the road curves or when the lanes are narrow
●When steering wheel operation or your position in the lane is unstable
●When the vehicle ahead of you decel-
erates suddenly
●When driving on a road surrounded by
a structure, such as in a tunnel or on a bridge
●While the vehicle speed is decreasing to the set speed after the vehicle
accelerates by depr essing the accel-
erator pedal

249
4
4-5. Using the driving support systems
Driving
*: If equipped
■Meter display
Set speed
Indicators
■Operation switches
“+RES” switch
Cruise control main switch
Cancel switch
“-SET” switch
1 Press the cruise control main
switch to activate the cruise con-
trol.
Cruise control indicator will come on.
Press the switch again to deactivate the
cruise control.
2 Accelerate or decelerate the
vehicle to the desired speed,
and press the “-SET” switch to
set the speed.
Cruise control “SET” indicator will come
on.
Set speed will be displayed on the
multi-information display.
The vehicle speed at the moment the switch is released becomes the set
speed.
To change the set speed, press the
“+RES” or “-SET” switch until the
Cruise control*
Use the cruise control to main-
tain a set speed without
depressing the accelerator
pedal.
System components
Setting the vehicle speed
Adjusting the set speed

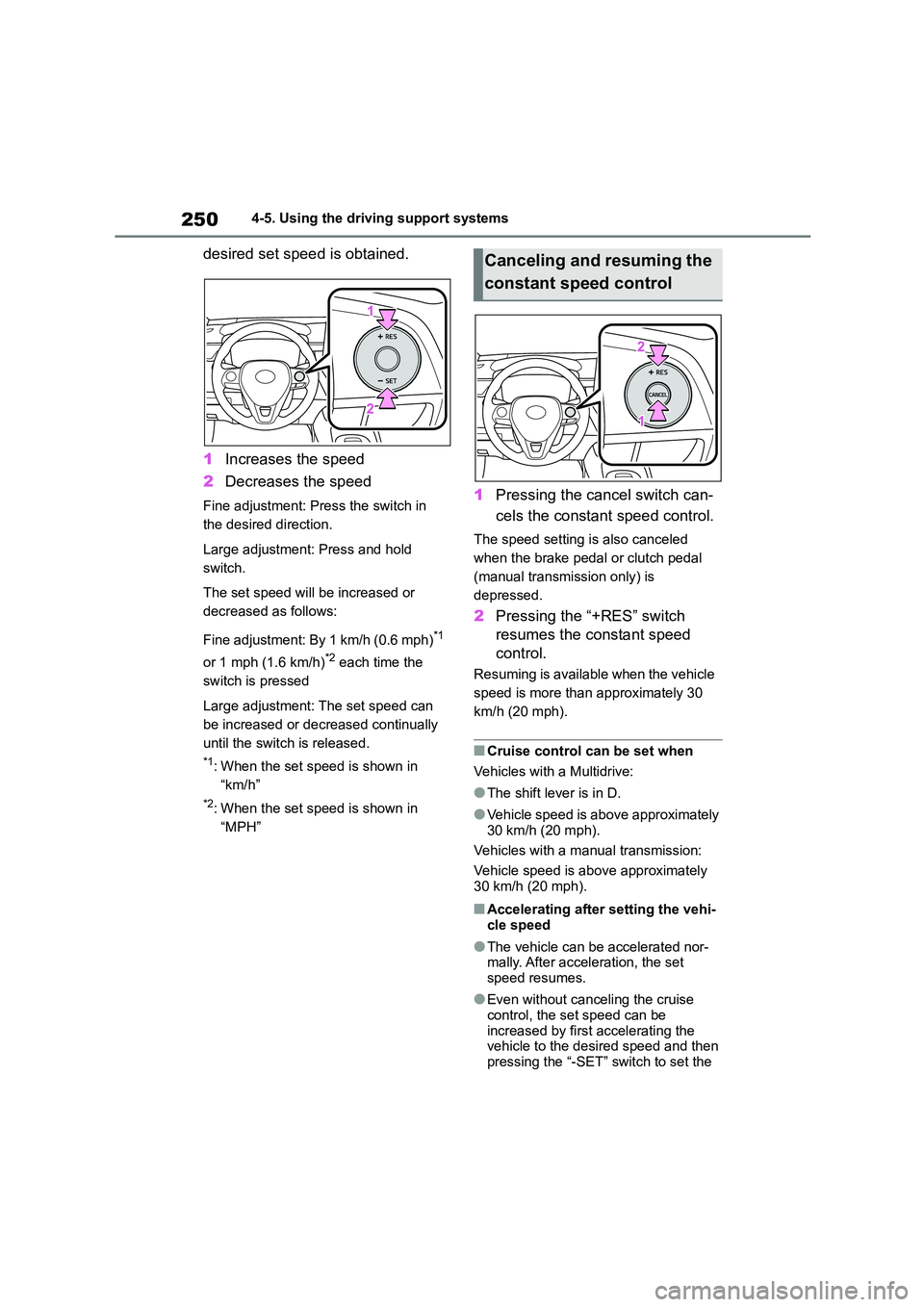

2504-5. Using the driving support systems
desired set speed is obtained.
1 Increases the speed
2 Decreases the speed
Fine adjustment: Press the switch in
the desired direction.
Large adjustment: Press and hold
switch.
The set speed will be increased or
decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1
or 1 mph (1.6 km/h)*2 each time the
switch is pressed
Large adjustment: The set speed can
be increased or decreased continually
until the switch is released.
*1: When the set speed is shown in
“km/h”
*2: When the set speed is shown in
“MPH”
1 Pressing the cancel switch can-
cels the constant speed control.
The speed setting is also canceled
when the brake pedal or clutch pedal
(manual transmission only) is
depressed.
2 Pressing the “+RES” switch
resumes the constant speed
control.
Resuming is available when the vehicle
speed is more than approximately 30
km/h (20 mph).
■Cruise control can be set when
Vehicles with a Multidrive:
●The shift lever is in D.
●Vehicle speed is above approximately 30 km/h (20 mph).
Vehicles with a manual transmission:
Vehicle speed is above approximately 30 km/h (20 mph).
■Accelerating after setting the vehi-
cle speed
●The vehicle can be accelerated nor- mally. After acceleration, the set
speed resumes.
●Even without canceling the cruise
control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pressing the “-SET” switch to set the
Canceling and resuming the
constant speed control

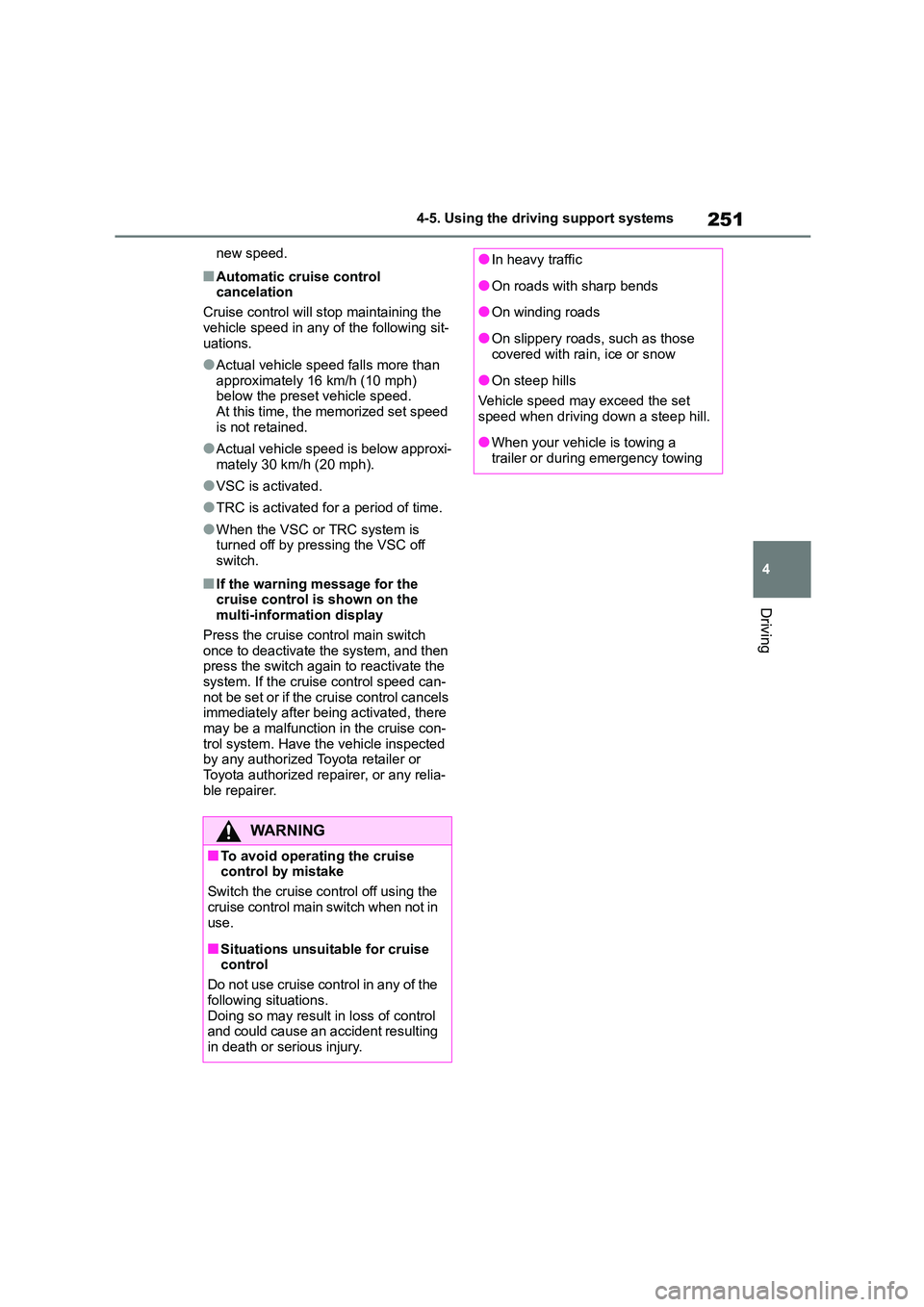

251
4
4-5. Using the driving support systems
Driving
new speed.
■Automatic cruise control
cancelation
Cruise control will stop maintaining the
vehicle speed in any of the following sit-
uations.
●Actual vehicle speed falls more than
approximately 16 km/h (10 mph) below the preset vehicle speed.
At this time, the memorized set speed
is not retained.
●Actual vehicle speed is below approxi-
mately 30 km/h (20 mph).
●VSC is activated.
●TRC is activated for a period of time.
●When the VSC or TRC system is turned off by pressing the VSC off
switch.
■If the warning message for the
cruise control is shown on the multi-information display
Press the cruise control main switch
once to deactivate the system, and then press the switch again to reactivate the
system. If the cruise control speed can-
not be set or if the cruise control cancels immediately after being activated, there
may be a malfunction in the cruise con-
trol system. Have t he vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any relia-
ble repairer.
WA R N I N G
■To avoid operating the cruise control by mistake
Switch the cruise control off using the
cruise control main switch when not in use.
■Situations unsuitable for cruise control
Do not use cruise control in any of the
following situations. Doing so may result in loss of control
and could cause an accident resulting
in death or serious injury.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as those covered with rain, ice or snow
●On steep hills
Vehicle speed may exceed the set
speed when driving down a steep hill.
●When your vehicle is towing a
trailer or during emergency towing

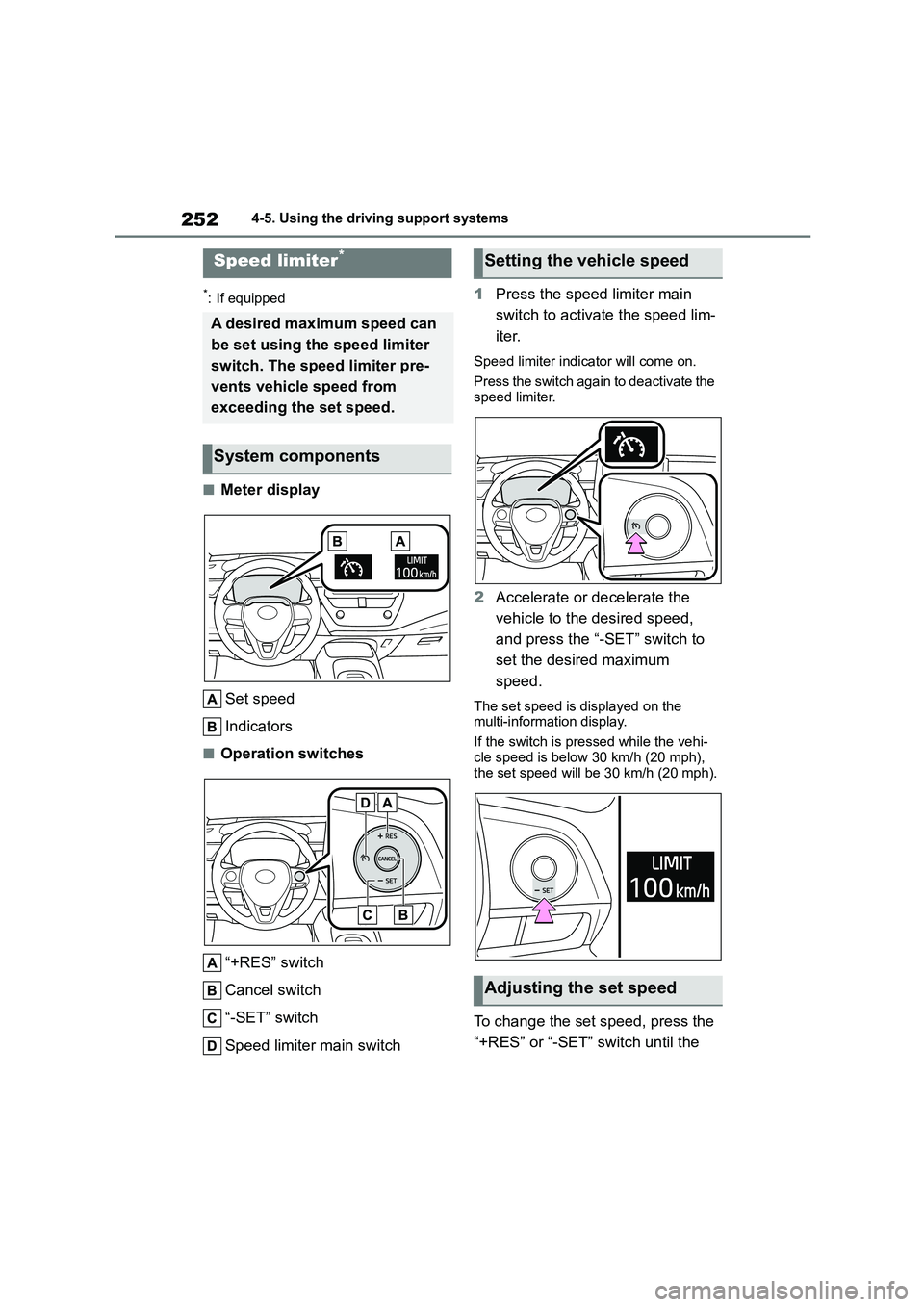

2524-5. Using the driving support systems
*: If equipped
■Meter display
Set speed
Indicators
■Operation switches
“+RES” switch
Cancel switch
“-SET” switch
Speed limiter main switch
1 Press the speed limiter main
switch to activate the speed lim-
iter.
Speed limiter indicator will come on.
Press the switch again to deactivate the
speed limiter.
2 Accelerate or decelerate the
vehicle to the desired speed,
and press the “-SET” switch to
set the desired maximum
speed.
The set speed is displayed on the
multi-information display.
If the switch is pressed while the vehi-
cle speed is below 30 km/h (20 mph),
the set speed will be 30 km/h (20 mph).
To change the set speed, press the
“+RES” or “-SET” switch until the
Speed limiter*
A desired maximum speed can
be set using the speed limiter
switch. The speed limiter pre-
vents vehicle speed from
exceeding the set speed.
System components
Setting the vehicle speed
Adjusting the set speed

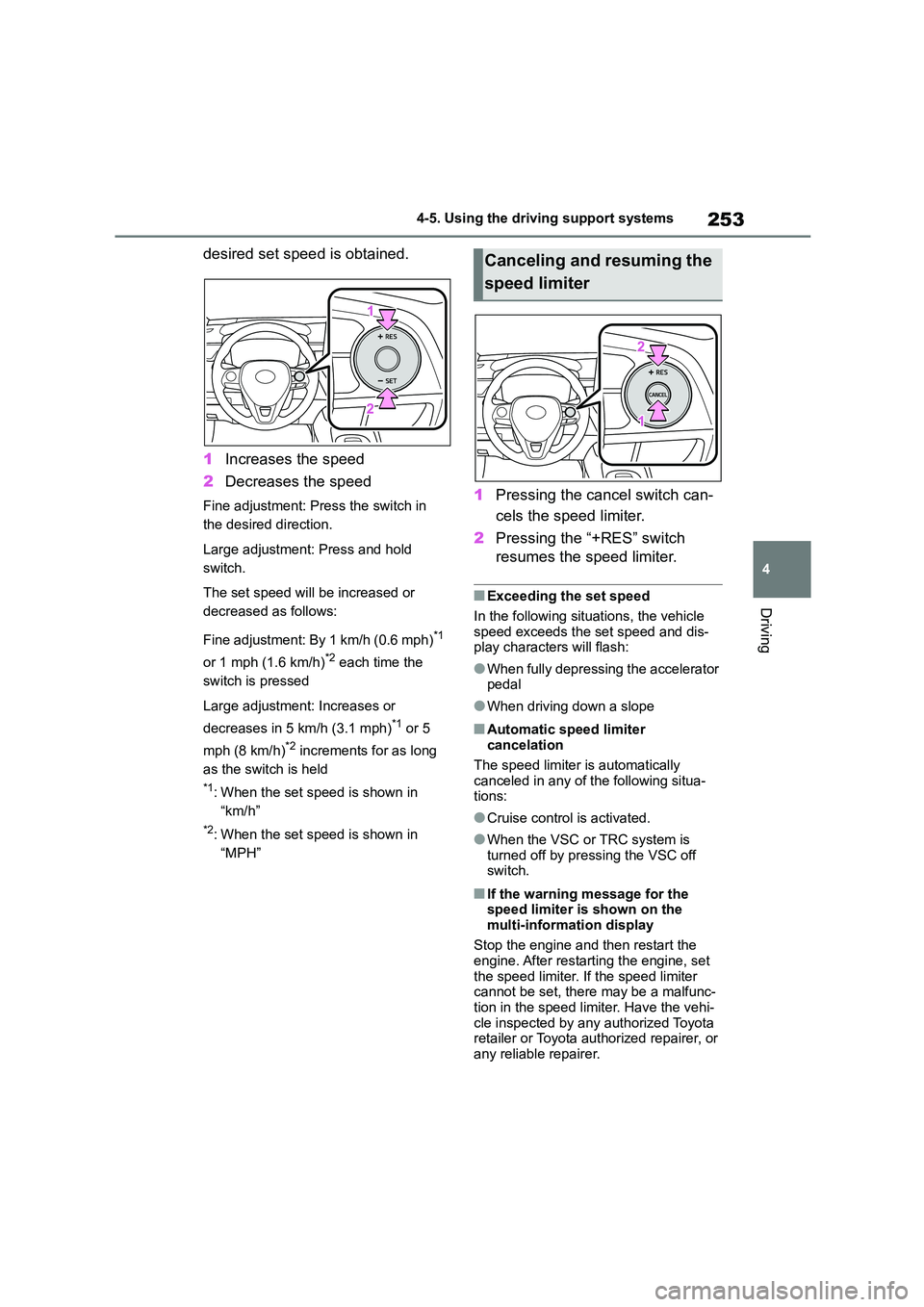

253
4
4-5. Using the driving support systems
Driving
desired set speed is obtained.
1 Increases the speed
2 Decreases the speed
Fine adjustment: Press the switch in
the desired direction.
Large adjustment: Press and hold
switch.
The set speed will be increased or
decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1
or 1 mph (1.6 km/h)*2 each time the
switch is pressed
Large adjustment: Increases or
decreases in 5 km/h (3.1 mph)*1 or 5
mph (8 km/h)*2 increments for as long
as the switch is held
*1: When the set speed is shown in
“km/h”
*2: When the set speed is shown in
“MPH”
1 Pressing the cancel switch can-
cels the speed limiter.
2 Pressing the “+RES” switch
resumes the speed limiter.
■Exceeding the set speed
In the following situations, the vehicle
speed exceeds the set speed and dis-
play characters will flash:
●When fully depressing the accelerator
pedal
●When driving down a slope
■Automatic speed limiter
cancelation
The speed limiter is automatically
canceled in any of the following situa-
tions:
●Cruise control is activated.
●When the VSC or TRC system is
turned off by pressing the VSC off
switch.
■If the warning message for the speed limiter is shown on the
multi-information display
Stop the engine and then restart the
engine. After restarting the engine, set the speed limiter. If the speed limiter
cannot be set, there may be a malfunc-
tion in the speed limiter. Have the vehi- cle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or
any reliable repairer.
Canceling and resuming the
speed limiter

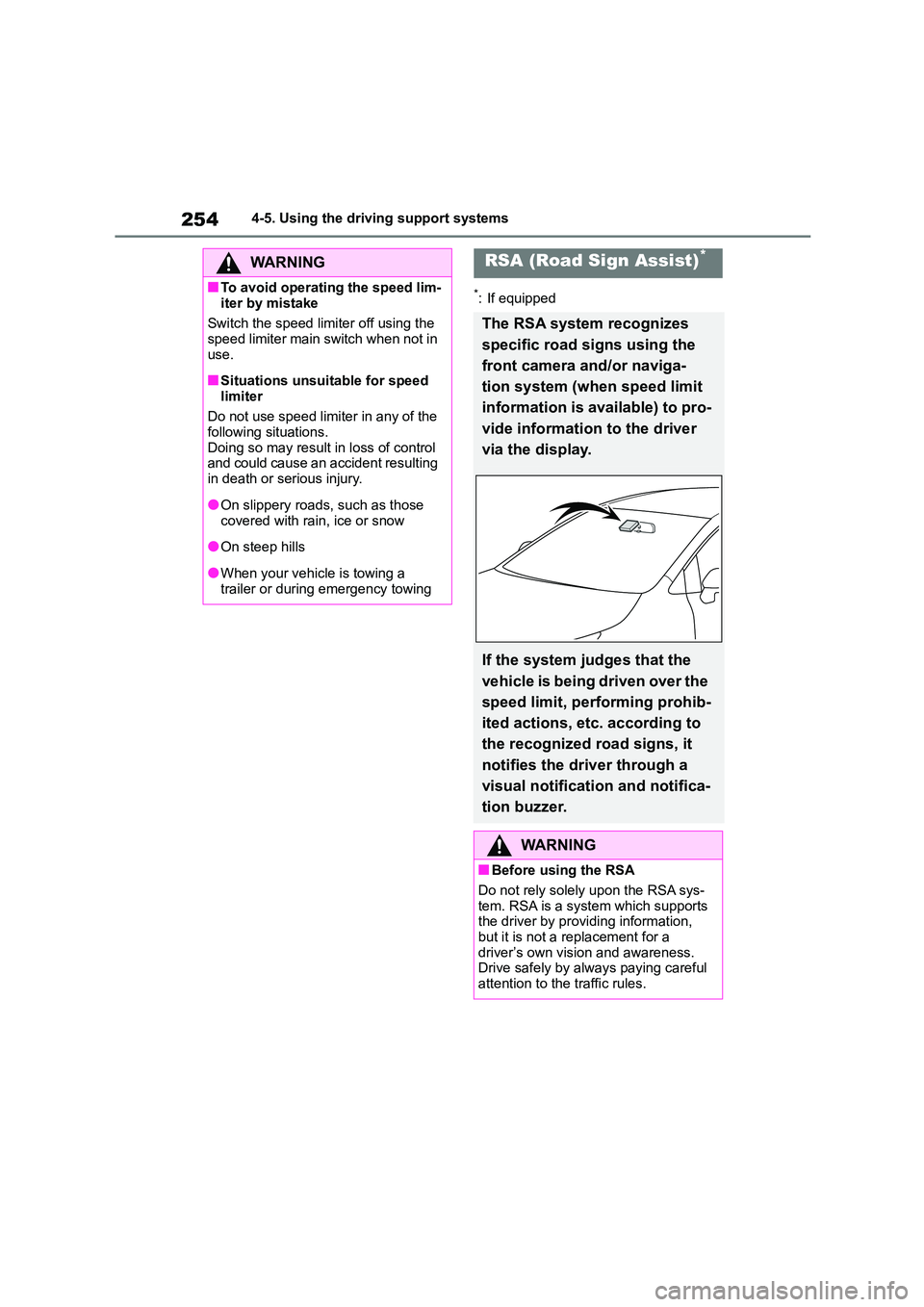

2544-5. Using the driving support systems
*: If equipped
WA R N I N G
■To avoid operating the speed lim-
iter by mistake
Switch the speed limiter off using the speed limiter main switch when not in
use.
■Situations unsuitable for speed
limiter
Do not use speed limiter in any of the
following situations. Doing so may result in loss of control
and could cause an accident resulting
in death or serious injury.
●On slippery roads, such as those
covered with rain, ice or snow
●On steep hills
●When your vehicle is towing a
trailer or during emergency towing
RSA (Road Sign Assist)*
The RSA system recognizes
specific road signs using the
front camera and/or naviga-
tion system (when speed limit
information is available) to pro-
vide information to the driver
via the display.
If the system judges that the
vehicle is being driven over the
speed limit, performing prohib-
ited actions, etc. according to
the recognized road signs, it
notifies the driver through a
visual notification and notifica-
tion buzzer.
WA R N I N G
■Before using the RSA
Do not rely solely upon the RSA sys-
tem. RSA is a system which supports the driver by providing information,
but it is not a replacement for a
driver’s own vision and awareness. Drive safely by always paying careful
attention to the traffic rules.
