2022 TOYOTA COROLLA Owners Manual (in English)

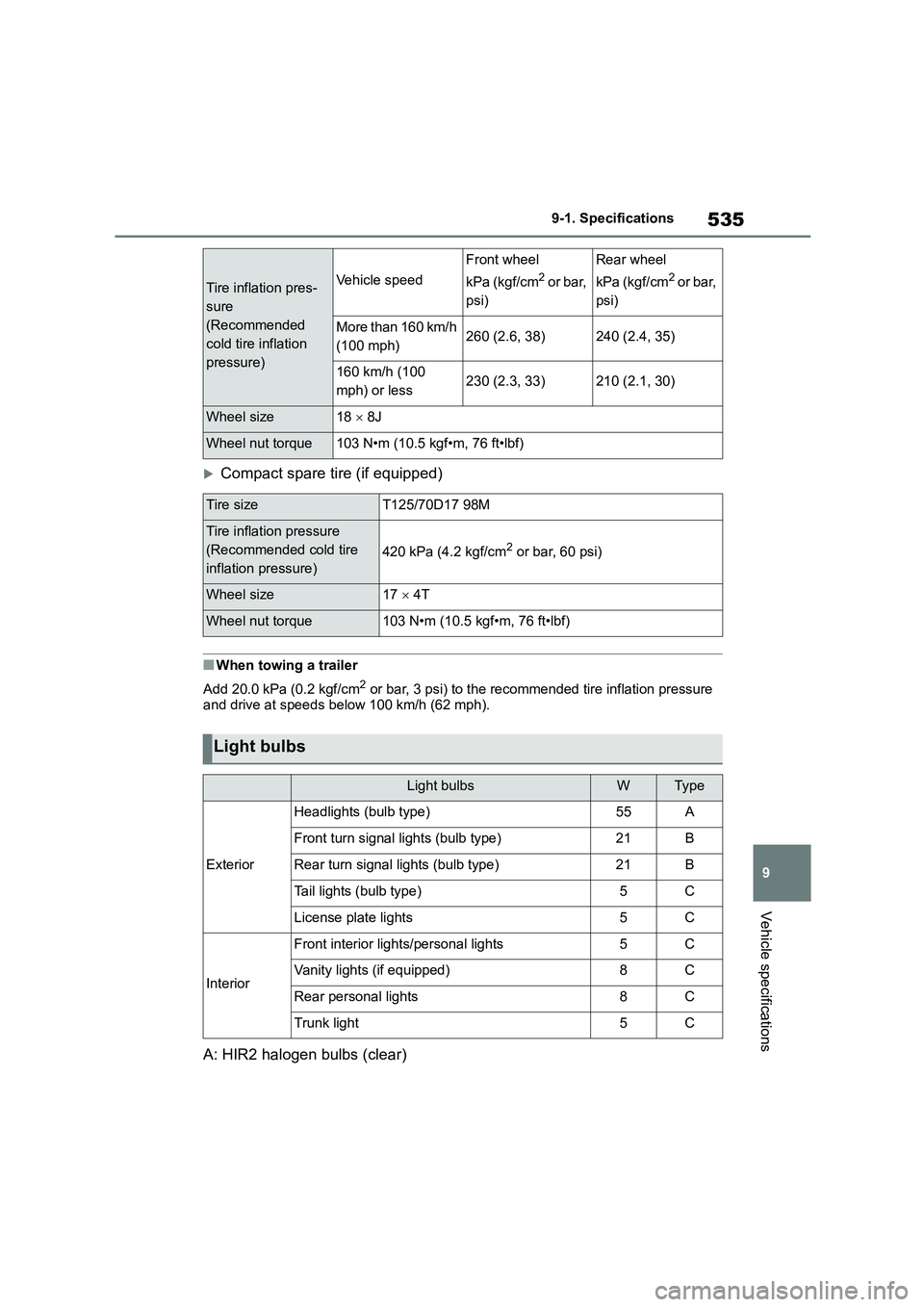

535
9
9-1. Specifications
Vehicle specifications
Compact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation pressure
and drive at speeds below 100 km/h (62 mph).
A: HIR2 halogen bulbs (clear)
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2 or bar,
psi)
Rear wheel
kPa (kgf/cm2 or bar,
psi)
More than 160 km/h
(100 mph)260 (2.6, 38)240 (2.4, 35)
160 km/h (100
mph) or less230 (2.3, 33)210 (2.1, 30)
Wheel size18  8J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTy p e
Exterior
Headlights (bulb type)55A
Front turn signal lights (bulb type)21B
Rear turn signal lights (bulb type)21B
Tail lights (bulb type)5C
License plate lights5C
Interior
Front interior lights/personal lights5C
Vanity lights (if equipped)8C
Rear personal lights8C
Trunk light5C

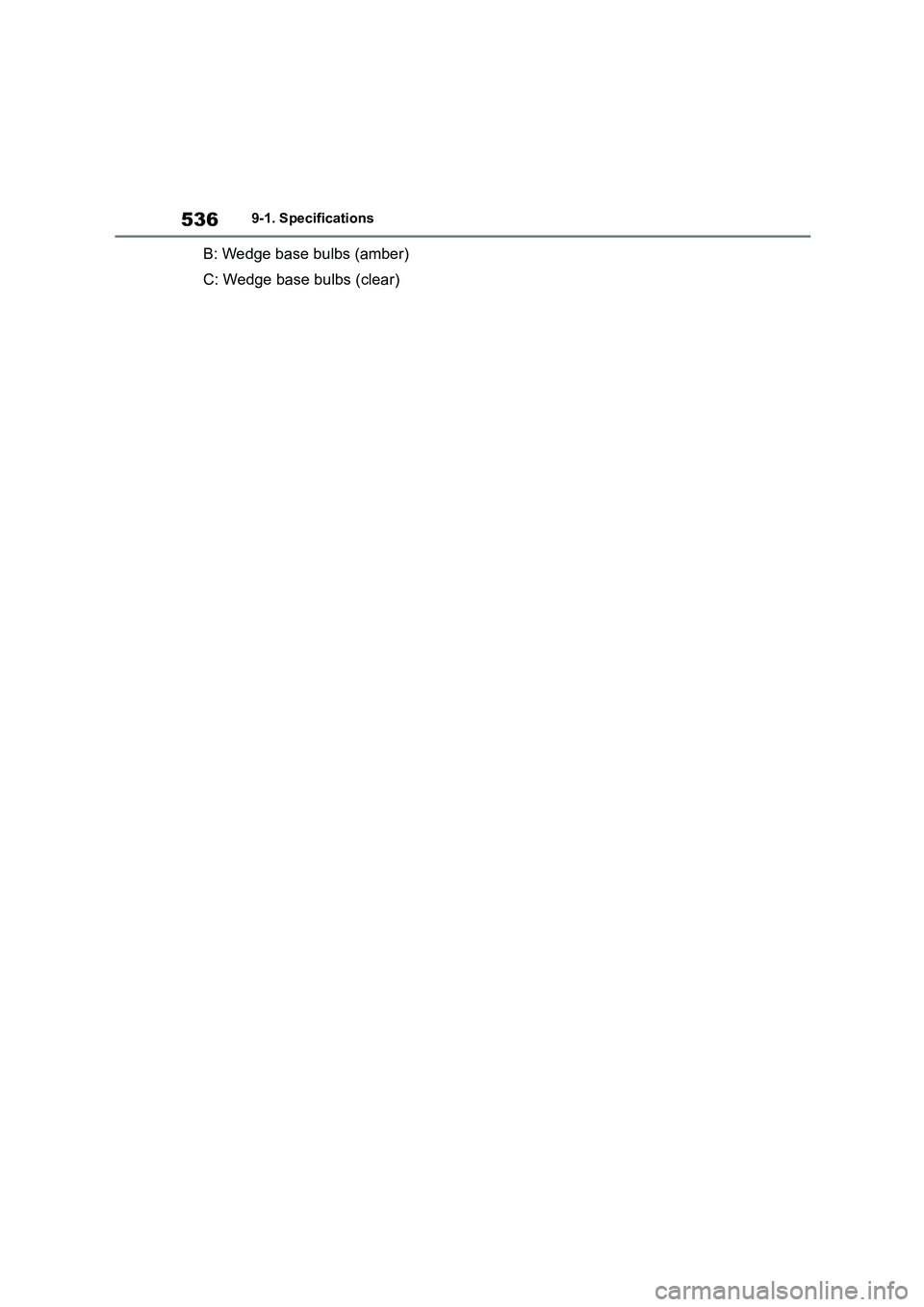

5369-1. Specifications
B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)

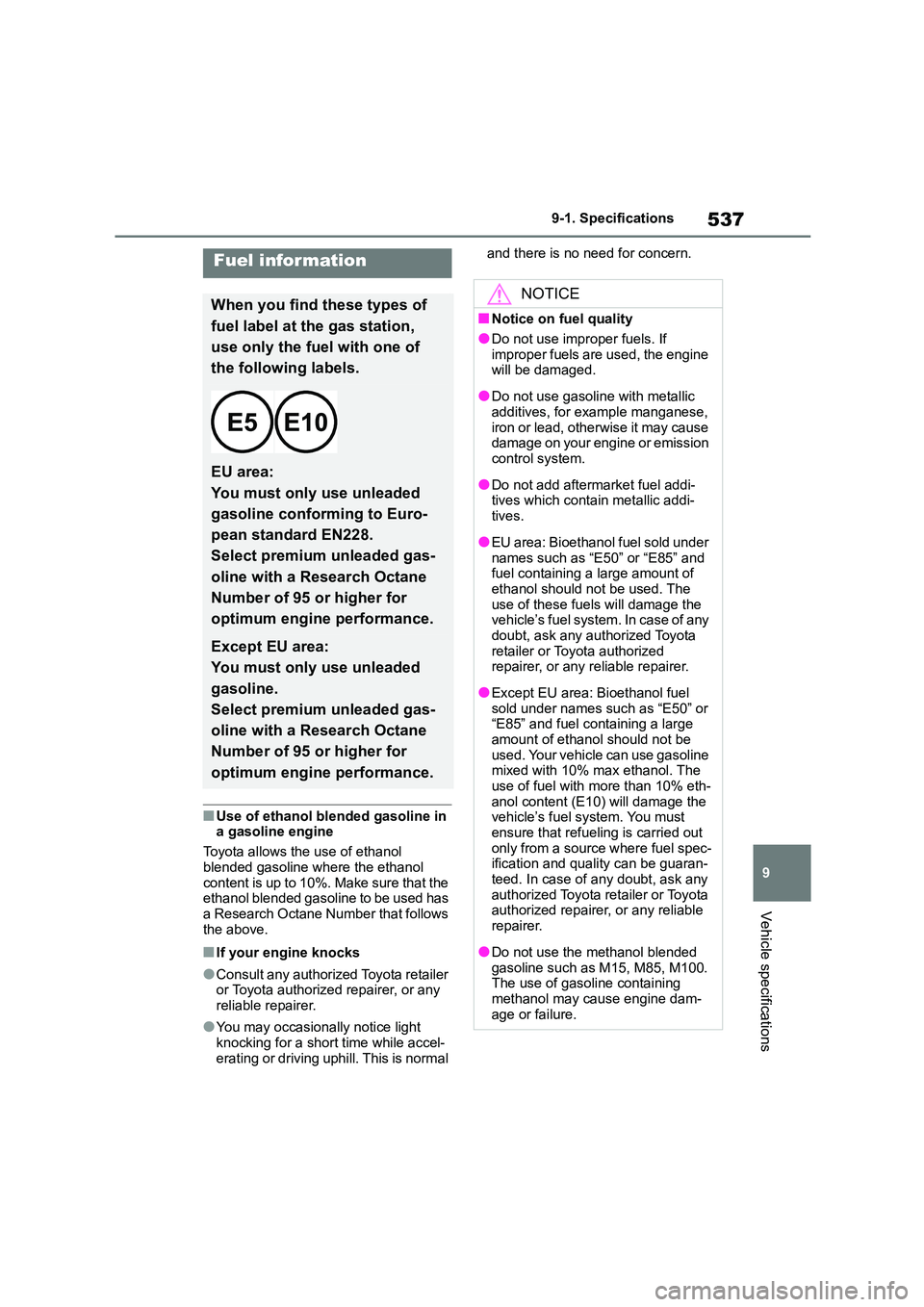

537
9
9-1. Specifications
Vehicle specifications
■Use of ethanol blended gasoline in
a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol
content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows
the above.
■If your engine knocks
●Consult any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel infor mation
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area:
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select premium unleaded gas-
oline with a Research Octane
Number of 95 or higher for
optimum engine performance.
Except EU area:
You must only use unleaded
gasoline.
Select premium unleaded gas-
oline with a Research Octane
Number of 95 or higher for
optimum engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If
improper fuels are used, the engine
will be damaged.
●Do not use gasoline with metallic
additives, for example manganese,
iron or lead, otherwise it may cause damage on your engine or emission
control system.
●Do not add aftermarket fuel addi-
tives which contain metallic addi-
tives.
●EU area: Bioethanol fuel sold under
names such as “E50” or “E85” and fuel containing a large amount of
ethanol should not be used. The
use of these fuels will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel sold under names such as “E50” or
“E85” and fuel containing a large
amount of ethanol should not be used. Your vehicle can use gasoline
mixed with 10% max ethanol. The
use of fuel with more than 10% eth- anol content (E10) will damage the
vehicle’s fuel system. You must
ensure that refue ling is carried out only from a source where fuel spec-
ification and quality can be guaran-
teed. In case of any doubt, ask any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
●Do not use the methanol blended
gasoline such as M15, M85, M100. The use of gasoline containing
methanol may cause engine dam-
age or failure.

5389-2. Customization
9-2.Customization
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with navigation/mul-
timedia system)
Type A
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
Various setting can be changed. Refer
to the list of settings that can be
changed for details.
Type B
1 Select on the main menu.
2 Select “Vehicle customise”.
3 Select the item to change the
settings of from the list.
For functions that can be turned on/off,
select (ON)/ (OFF).
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter
control switches
1 Press or of the meter
control switch to select .
2 Press or of the meter
control switch to select the
desired item to be customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc- tions on the display.
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the navigation/multi-
media system screen or at any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
Customizing vehicle fea-
tures
WA R N I N G
■During customization
As the engine needs to be running
during customization, ensure that the vehicle is parked in a place with ade-
quate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehi-
cle. This may lead to death or a seri- ous health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

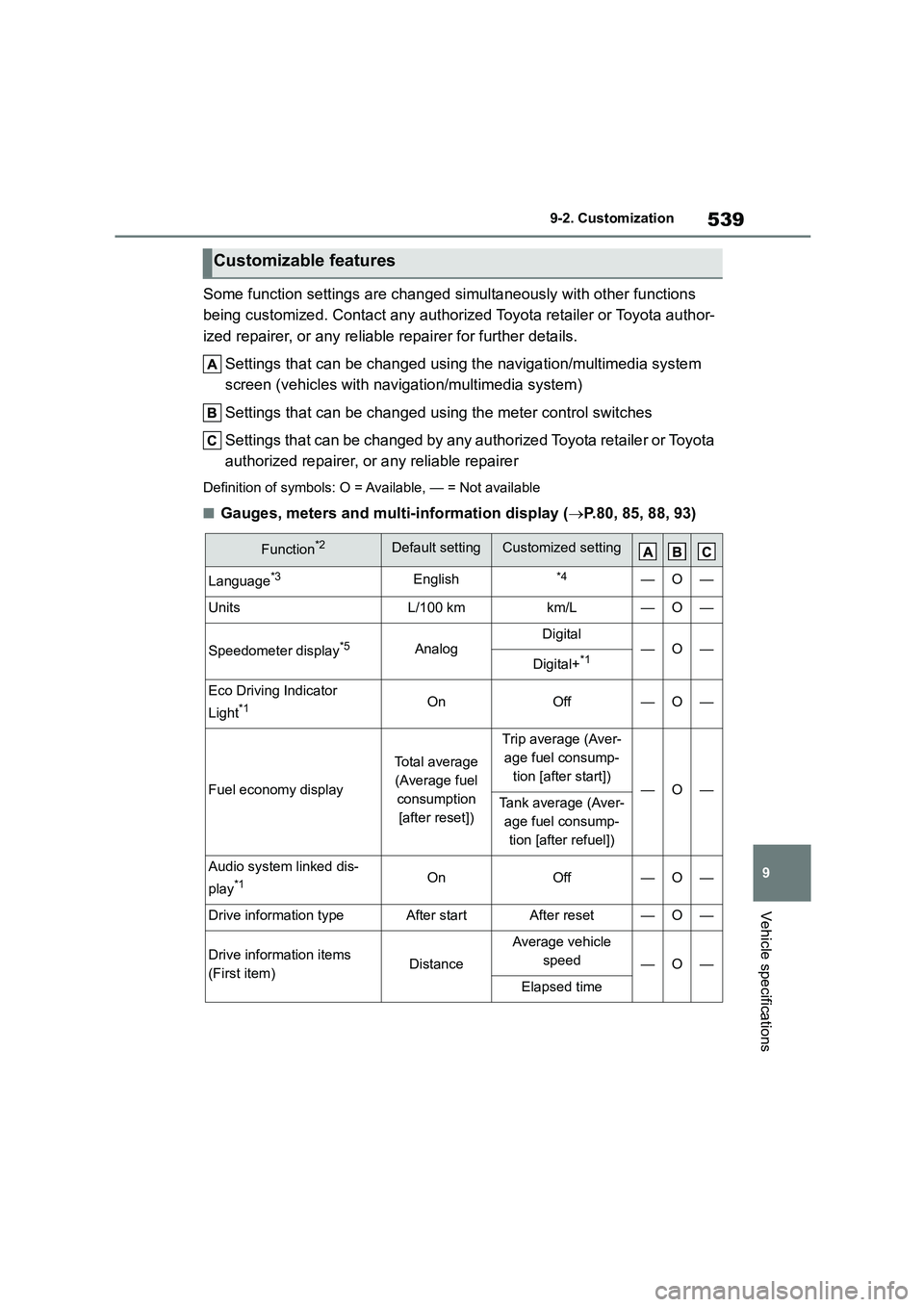

539
9
9-2. Customization
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact any authorize d Toyota retailer or Toyota author-
ized repairer, or any reliable repairer for further details.
Settings that can be changed using the navigation/multimedia system
screen (vehicles with navigation/multimedia system)
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Gauges, meters and mult i-information display (P.80, 85, 88, 93)
Customizable features
Function*2Default settingCustomized setting
Language*3English*4—O—
UnitsL/100 kmkm/L—O—
Speedometer display*5AnalogDigital—O—Digital+*1
Eco Driving Indicator
Light*1OnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])—O—Tank average (Aver-
age fuel consump-
tion [after refuel])
Audio system linked dis-
play*1OnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle
speed—O—
Elapsed time

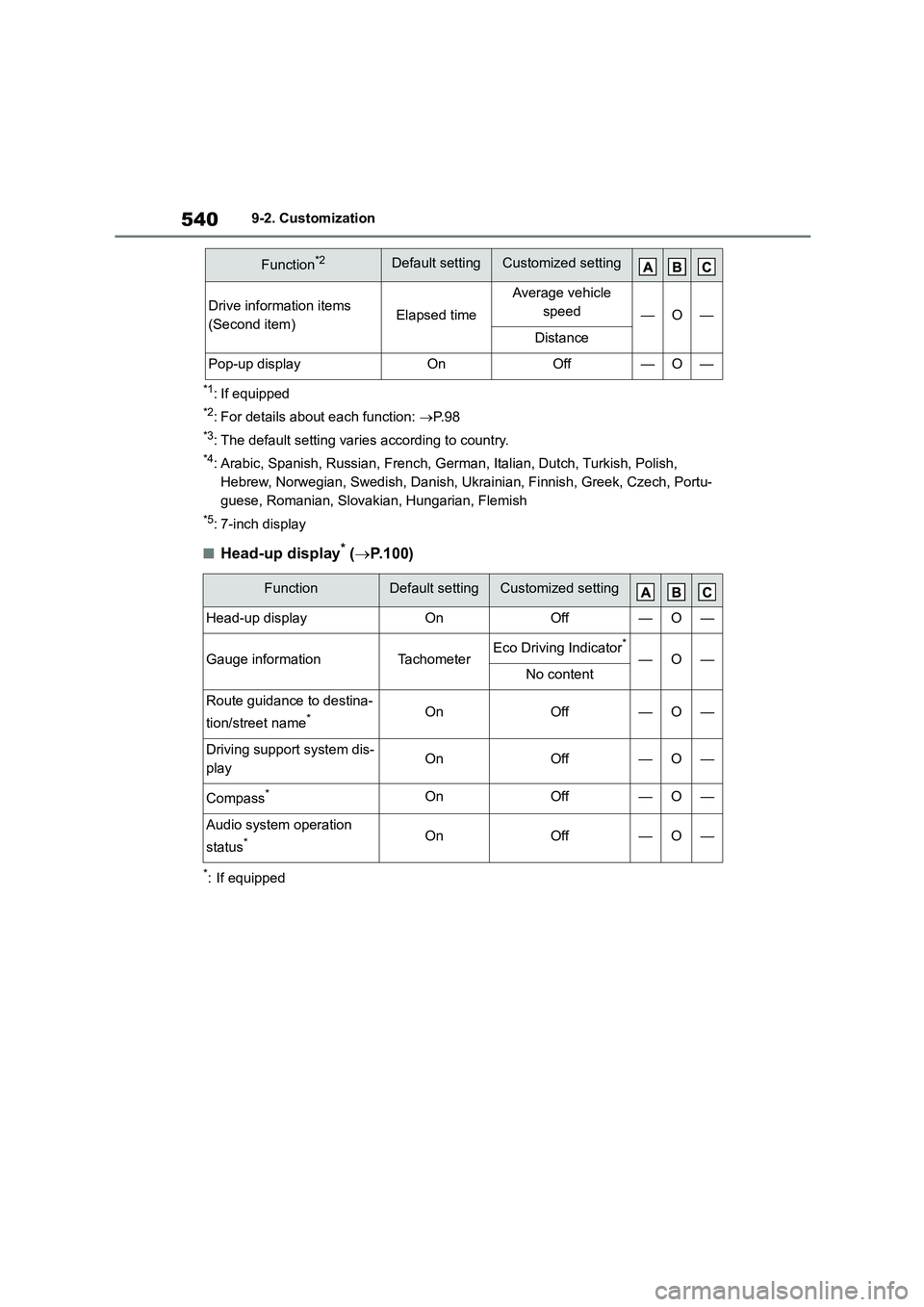

5409-2. Customization
*1: If equipped
*2: For details about each function: P. 9 8
*3: The default setting varies according to country.
*4: Arabic, Spanish, Russian, French, German, Italian, Dutch, Turkish, Polish,
Hebrew, Norwegian, Swedish, Danish, Ukrainian, Finnish, Greek, Czech, Portu-
guese, Romanian, Slovakian, Hungarian, Flemish
*5: 7-inch display
■Head-up display* ( P.100)
*: If equipped
Drive information items
(Second item)Elapsed time
Average vehicle
speed—O—
Distance
Pop-up displayOnOff—O—
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometerEco Driving Indicator*
—O—No content
Route guidance to destina-
tion/street name*OnOff—O—
Driving support system dis-
playOnOff—O—
Compass*OnOff—O—
Audio system operation
status*OnOff—O—
Function*2Default settingCustomized setting

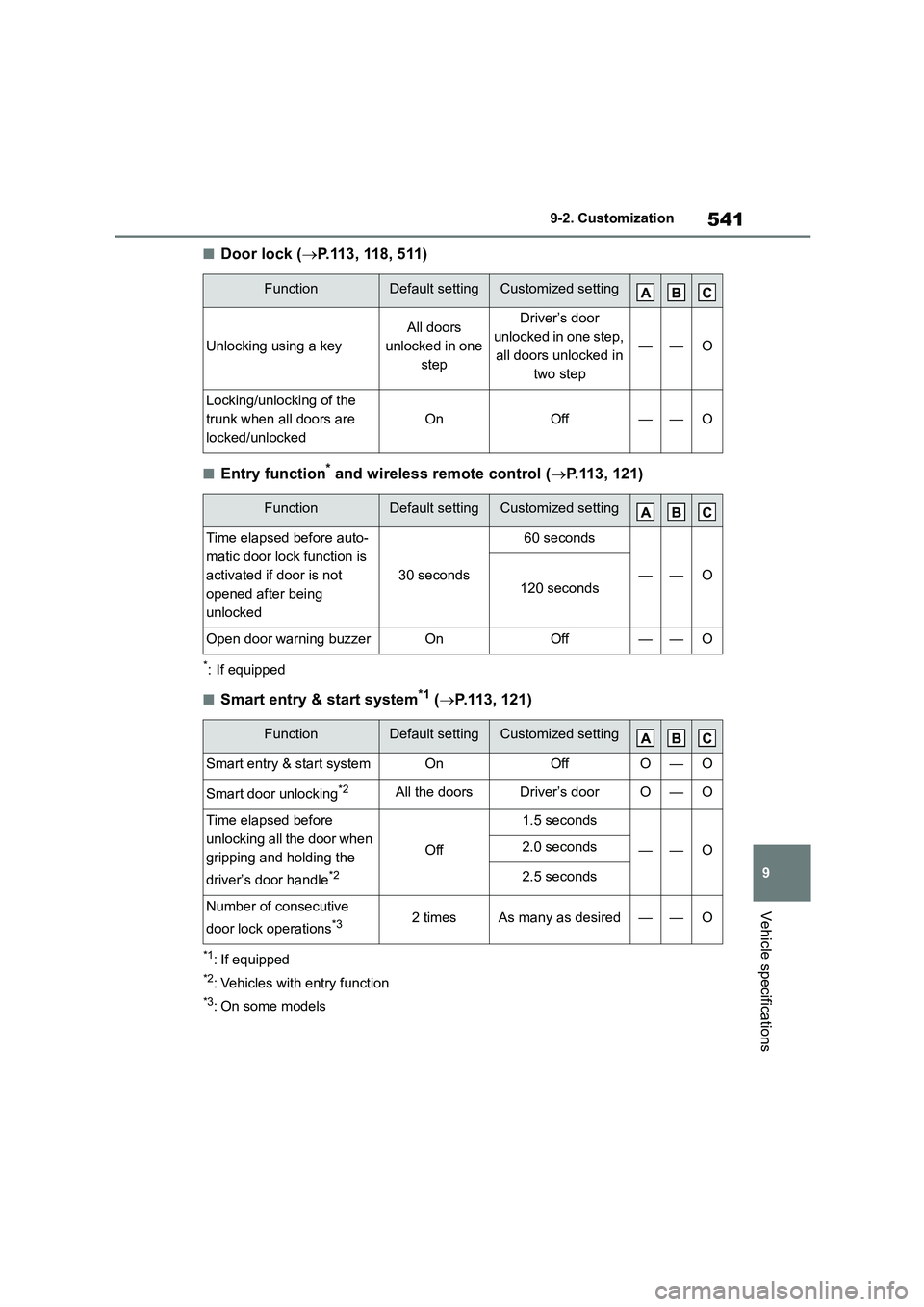

541
9
9-2. Customization
Vehicle specifications
■Door lock ( P.113, 118, 511)
■Entry function* and wireless remote control (P.113, 121)
*: If equipped
■Smart entry & start system*1 (P.113, 121)
*1: If equipped
*2: Vehicles with entry function
*3: On some models
FunctionDefault settingCustomized setting
Unlocking using a key
All doors
unlocked in one
step
Driver’s door
unlocked in one step,
all doors unlocked in
two step
——O
Locking/unlocking of the
trunk when all doors are
locked/unlocked
OnOff——O
FunctionDefault settingCustomized setting
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Smart door unlocking*2All the doorsDriver’s doorO—O
Time elapsed before
unlocking all the door when
gripping and holding the
driver’s door handle*2
Off
1.5 seconds
——O2.0 seconds
2.5 seconds
Number of consecutive
door lock operations*32 timesAs many as desired——O

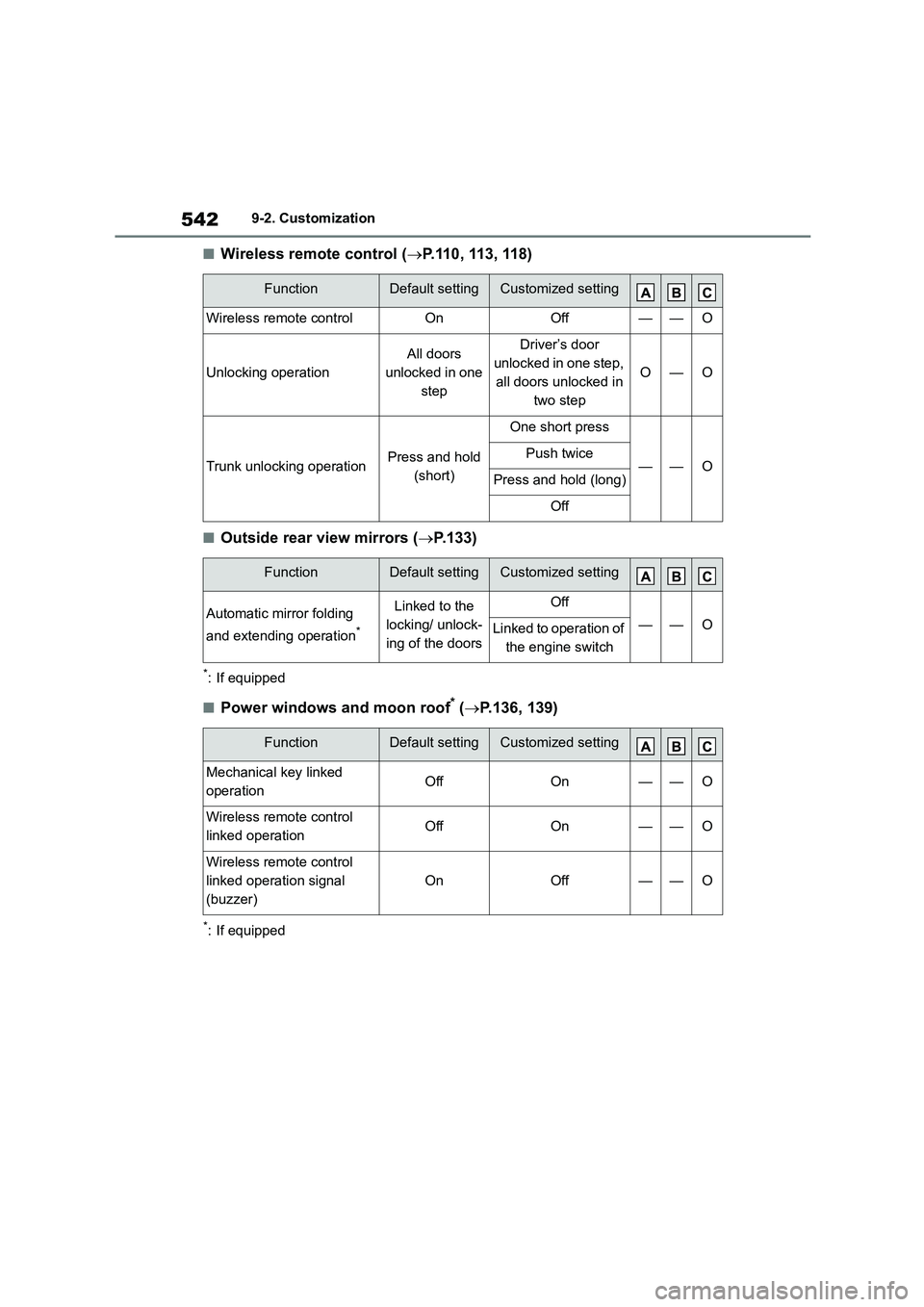

5429-2. Customization
■Wireless remote control (P.110, 113, 118)
■Outside rear view mirrors (P.133)
*: If equipped
■Power windows and moon roof* (P.136, 139)
*: If equipped
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
All doors
unlocked in one
step
Driver’s door
unlocked in one step,
all doors unlocked in
two step
O—O
Trunk unlocking operationPress and hold
(short)
One short press
——OPush twice
Press and hold (long)
Off
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the engine switch
FunctionDefault settingCustomized setting
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
