8-2. Steps to take in an emergency
When trouble arises
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add engine coolant if necessary.
Water can be used in an emergency if
engine coolant is unavailable.
6 Start the engine and turn the air
conditioning system on to check
that the radiator cooling fan
operates and to check for cool-
ant leaks from the radiator or
hoses.
The fan operates when the air condi-
tioning system is turned on immediately
after a cold start. Confirm that the fan is operating by checking the fan sound
and air flow. If it is difficult to check
these, turn the air conditioning system on and off repeatedly. (The fan may not
operate in freezing temperatures.)
7 If the fan is not operating: Stop
the engine immediately and
contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
If the fan is operating: Have the
vehicle inspected at the nearest
any authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
WA R N I N G
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so ma y result in serious injury such as burns.

5208-2. Steps to take in an emergency
1Stop the engine. Set the parking
brake and shift the shift lever to
P (Multidrive) or N (manual
transmission).
2 Remove the mud, snow or sand
from around the front wheels.
3 Place wood, stones or some
other material under the front
wheels to help provide traction.
4 Restart the engine.
5 Shift the shift lever to D or R
(Multidrive) or 1 or R (manual
transmission) and release the
parking brake. Then, while exer-
cising caution, depress the
accelerator pedal.
■When it is difficult to free the vehi- cle
Press the switch to turn off TRC.
WA R N I N G

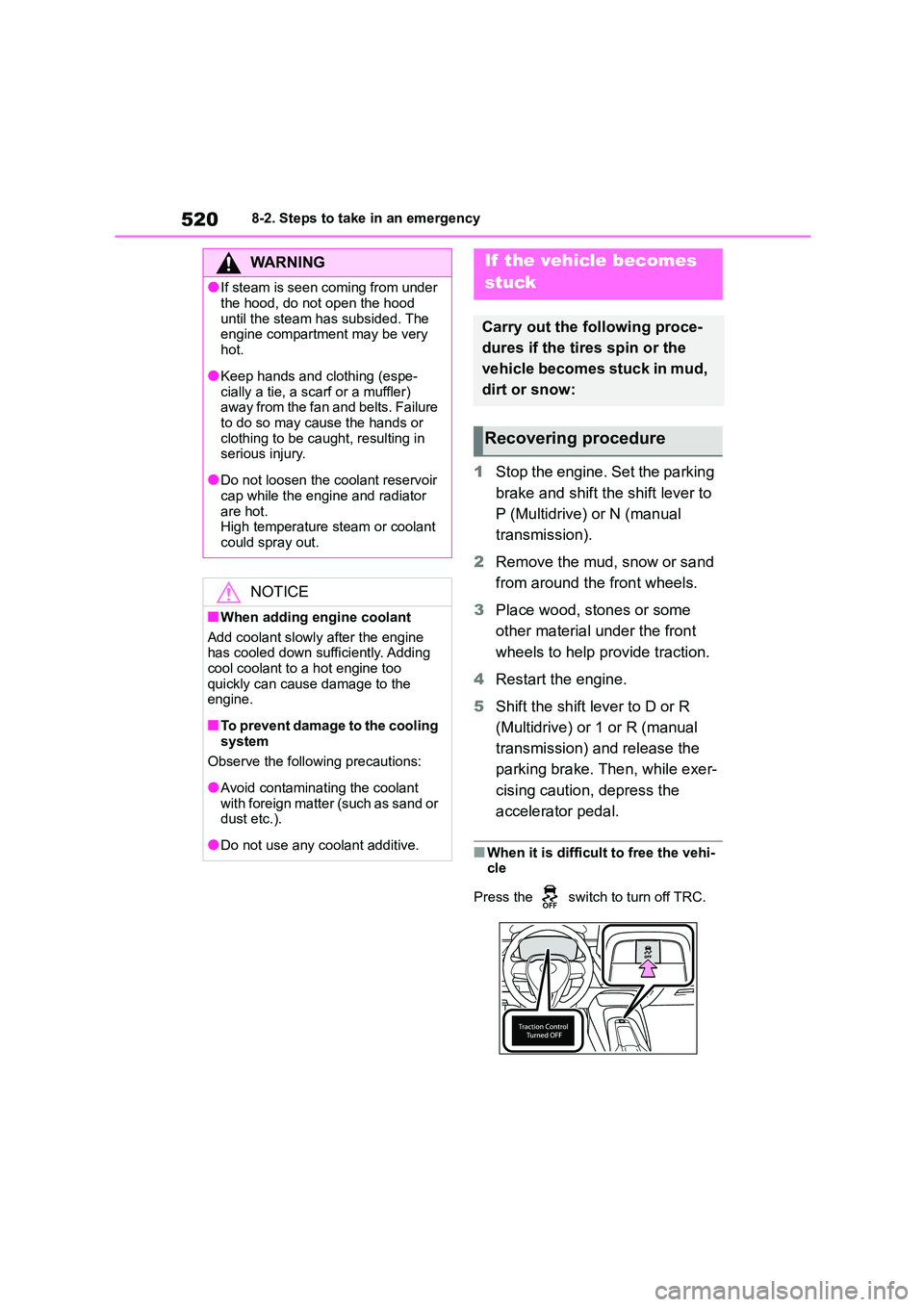

●If steam is seen coming from under
the hood, do not open the hood
until the steam has subsided. The engine compartment may be very
hot.
●Keep hands and clothing (espe-
cially a tie, a scarf or a muffler)
away from the fan and belts. Failure
to do so may cause the hands or clothing to be caught, resulting in
serious injury.
●Do not loosen the coolant reservoir
cap while the engine and radiator
are hot. High temperature steam or coolant
could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine
has cooled down sufficiently. Adding
cool coolant to a hot engine too
quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant
with foreign matter (such as sand or
dust etc.).
●Do not use any coolant additive.
If the vehicle becomes
stuck
Carry out the following proce-
dures if the tires spin or the
vehicle becomes stuck in mud,
dirt or snow:
Recovering procedure

521
8
8-2. Steps to take in an emergency
When trouble arises

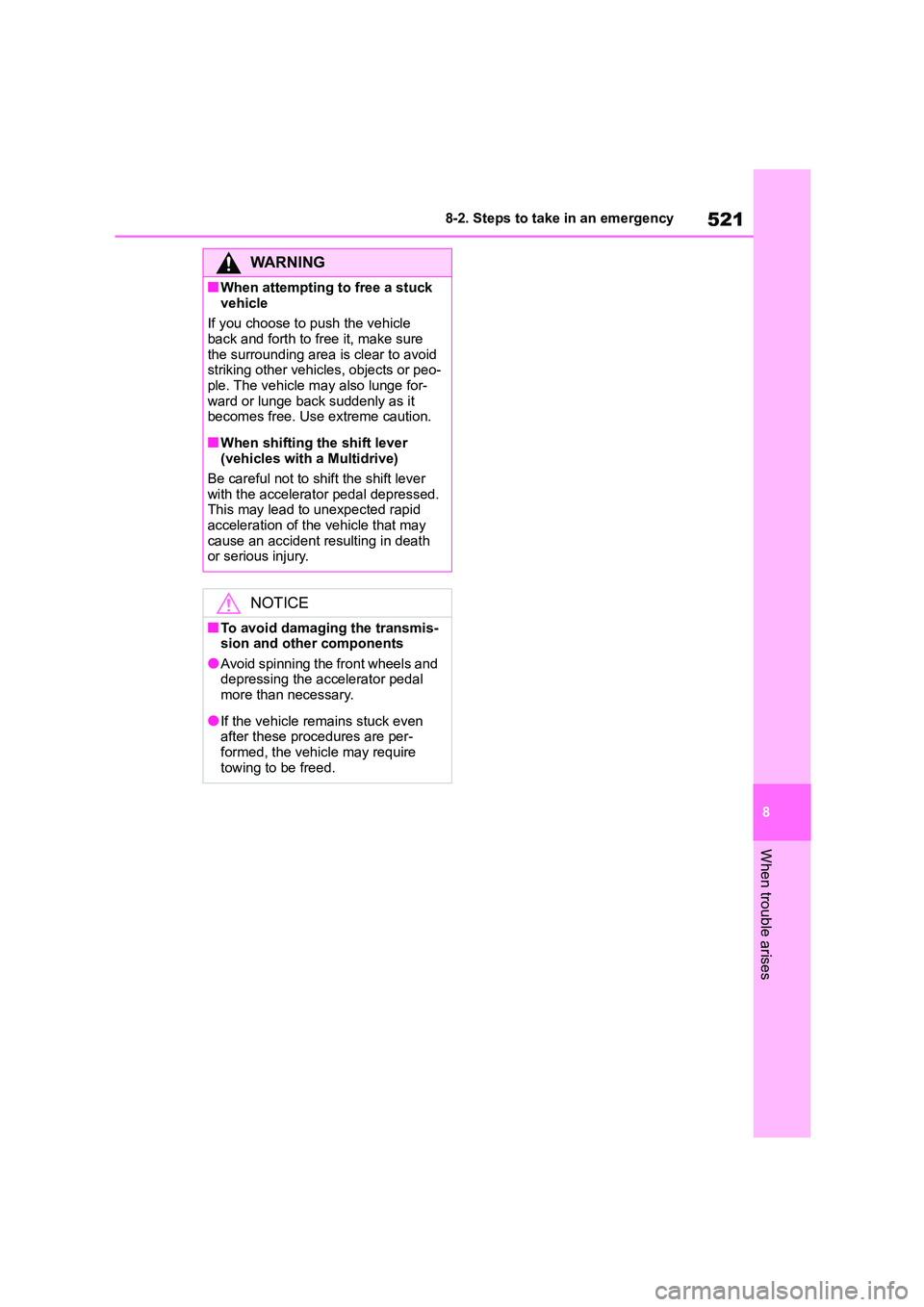

WA R N I N G
■When attempting to free a stuck
vehicle
If you choose to push the vehicle back and forth to free it, make sure
the surrounding area is clear to avoid
striking other vehicl es, objects or peo- ple. The vehicle may also lunge for-
ward or lunge back suddenly as it
becomes free. Use extreme caution.
■When shifting the shift lever
(vehicles with a Multidrive)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid
acceleration of the vehicle that may cause an accident resulting in death
or serious injury.
NOTICE
■To avoid damaging the transmis-
sion and other components
●Avoid spinning the front wheels and
depressing the accelerator pedal more than necessary.
●If the vehicle remains stuck even after these procedures are per-
formed, the vehicle may require
towing to be freed.

5228-2. Steps to take in an emergency

9
523
9

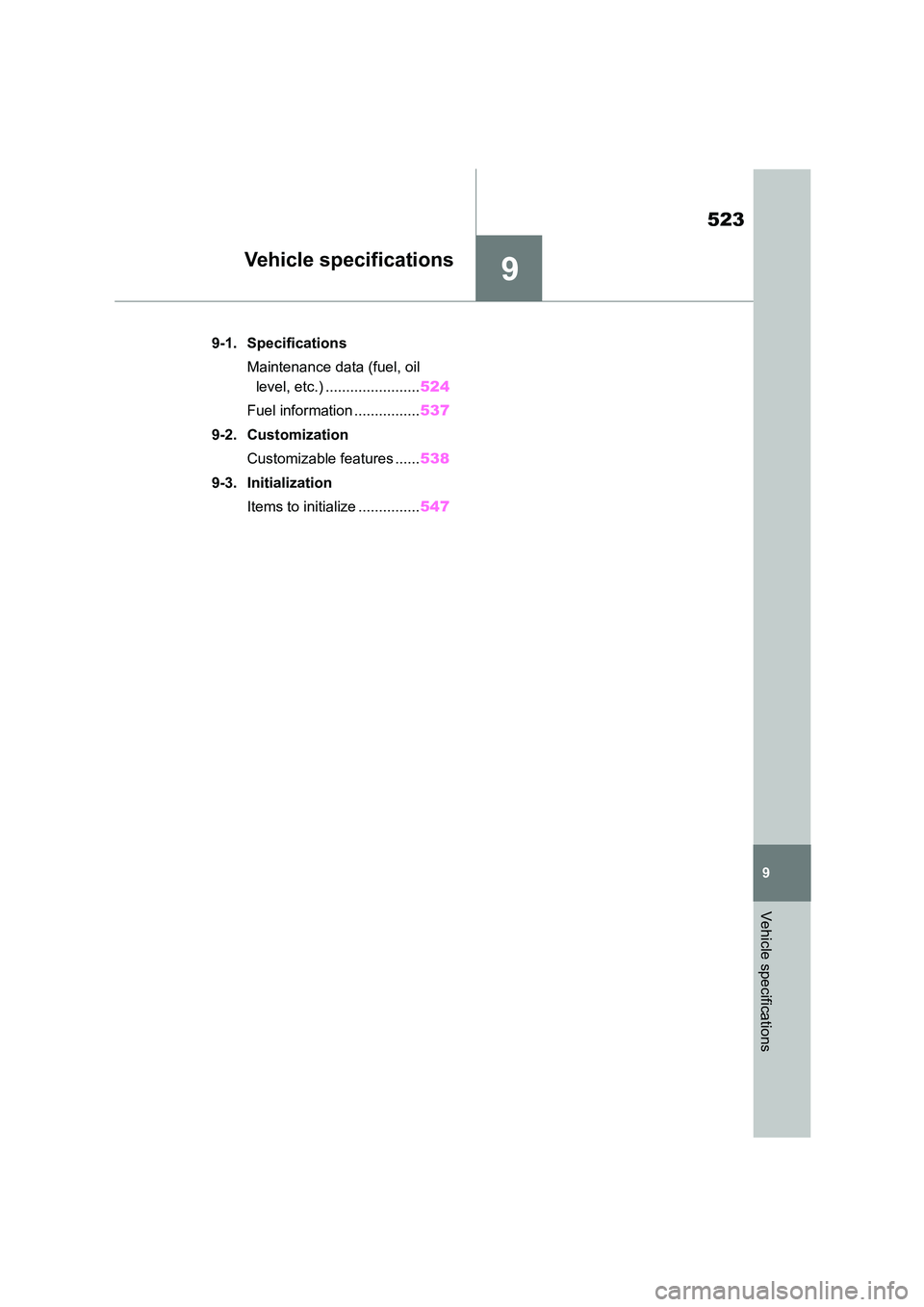

Vehicle specifications
Vehicle specifications
.9-1. Specifications
Maintenance data (fuel, oil
level, etc.) ....................... 524
Fuel information ................ 537
9-2. Customization
Customizable features ...... 538
9-3. Initialization
Items to initialize ............... 547

5249-1. Specifications
9-1.Specifications
*1: Unladen vehicles
*2: M15A-FKS engine
*3: Vehicles with rough road package
*4: 1ZR-FAE engine with Multidrive
*5: 1ZR-FAE engine with manual transmission
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
This number is stamped under the
right-hand front seat.

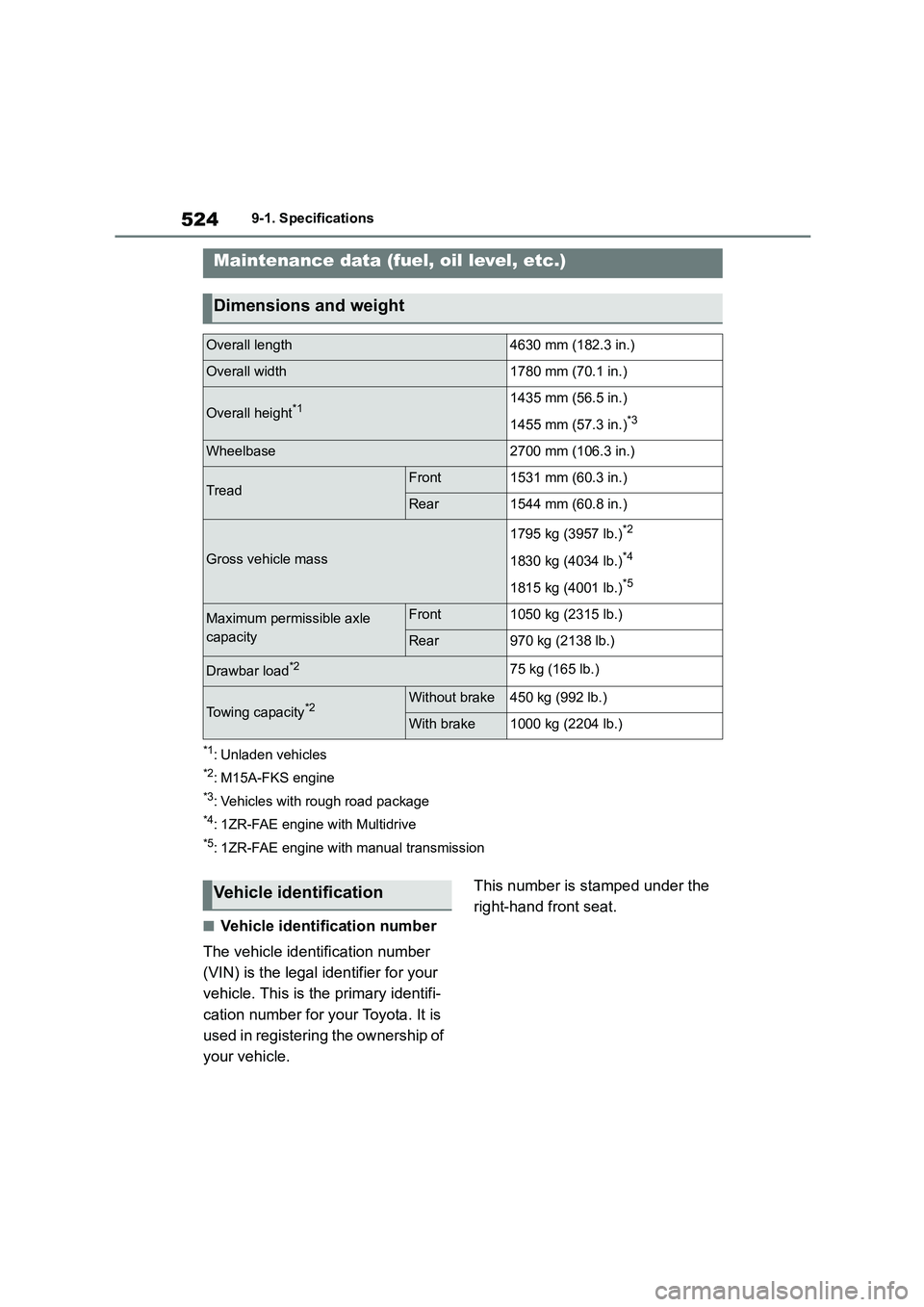

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length4630 mm (182.3 in.)
Overall width1780 mm (70.1 in.)
Overall height*11435 mm (56.5 in.)
1455 mm (57.3 in.)*3
Wheelbase2700 mm (106.3 in.)
TreadFront1531 mm (60.3 in.)
Rear1544 mm (60.8 in.)
Gross vehicle mass
1795 kg (3957 lb.)*2
1830 kg (4034 lb.)*4
1815 kg (4001 lb.)*5
Maximum permissible axle
capacity
Front1050 kg (2315 lb.)
Rear970 kg (2138 lb.)
Drawbar load*275 kg (165 lb.)
Towing capacity*2Without brake450 kg (992 lb.)
With brake1000 kg (2204 lb.)
Vehicle identification

525
9
9-1. Specifications
Vehicle specifications

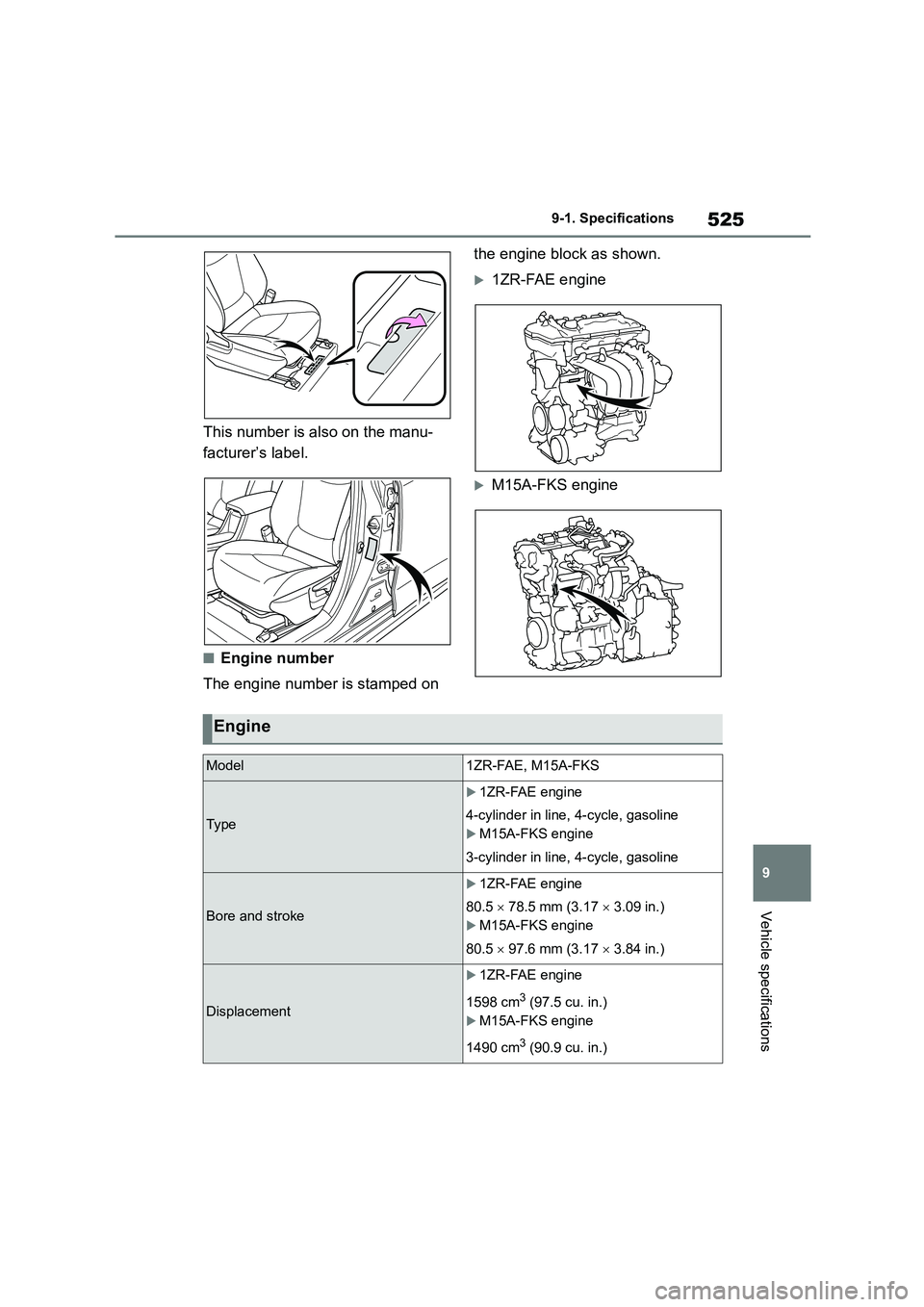

This number is also on the manu-
facturer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
1ZR-FAE engine
M15A-FKS engine
Engine
Model1ZR-FAE, M15A-FKS
Ty p e
1ZR-FAE engine
4-cylinder in line, 4-cycle, gasoline
M15A-FKS engine
3-cylinder in line, 4-cycle, gasoline
Bore and stroke
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
M15A-FKS engine
80.5  97.6 mm (3.17  3.84 in.)
Displacement
1ZR-FAE engine
1598 cm3 (97.5 cu. in.)
M15A-FKS engine
1490 cm3 (90.9 cu. in.)

5269-1. Specifications

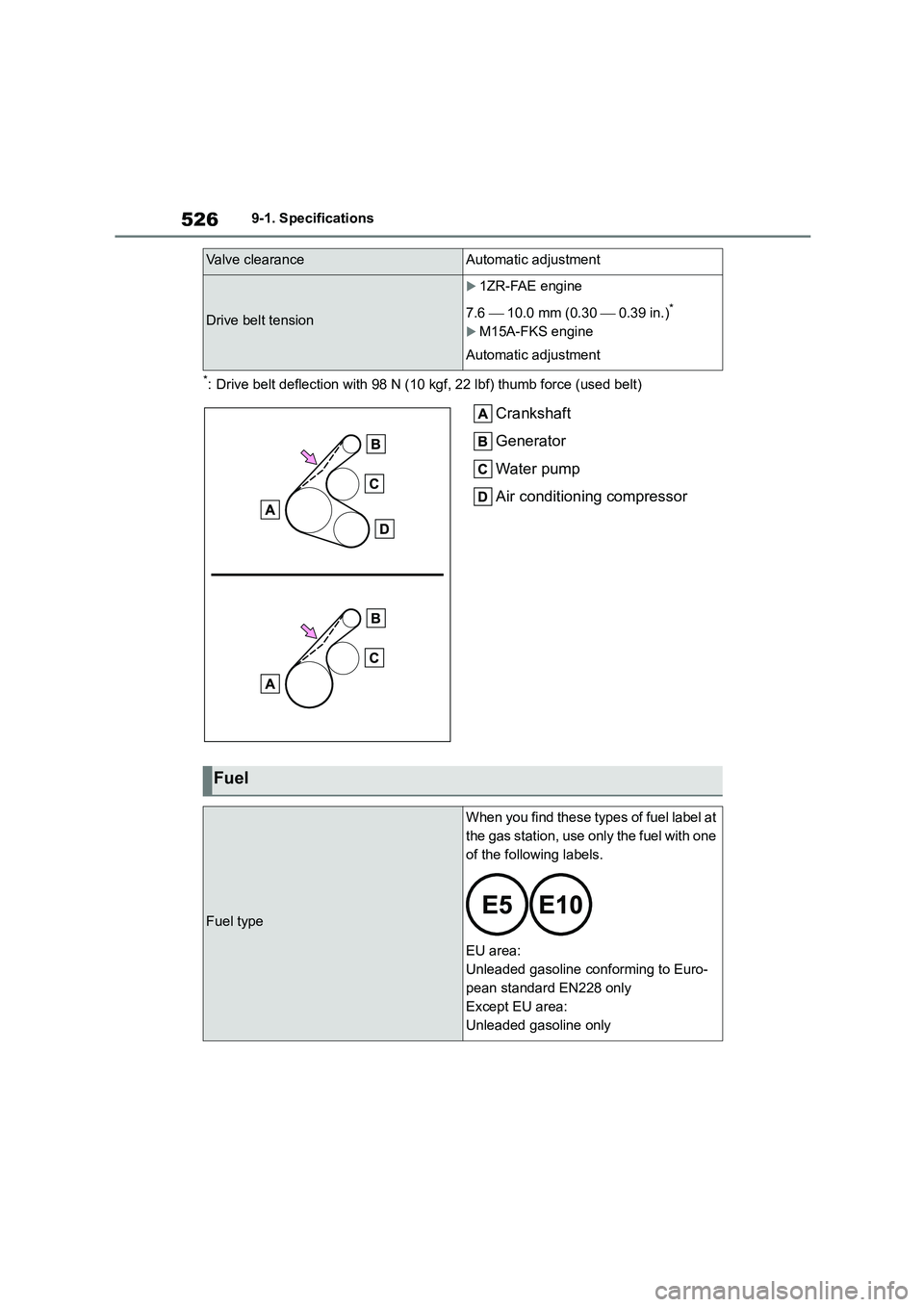

*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb force (used belt)
Crankshaft
Generator
Water pump
Air conditioning compressor
Valve clearanceAutomatic adjustment
Drive belt tension
1ZR-FAE engine
7.6  10.0 mm (0.30  0.39 in.)*
M15A-FKS engine
Automatic adjustment
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
