2022 TOYOTA COROLLA Owners Manual (in English)

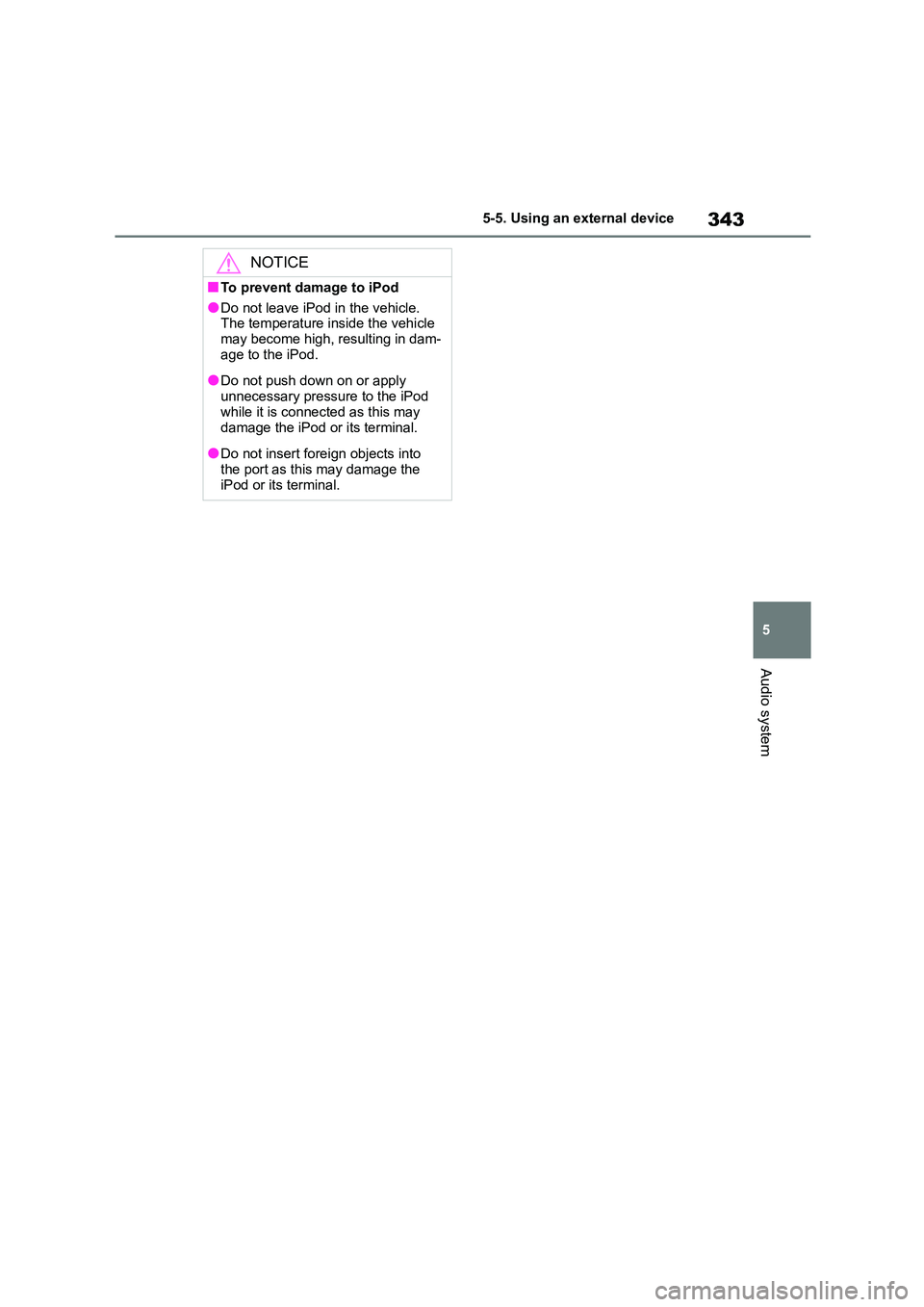

343
5
5-5. Using an external device
Audio system
NOTICE
■To prevent damage to iPod
●Do not leave iPod in the vehicle.
The temperature inside the vehicle may become high, resulting in dam-
age to the iPod.
●Do not push down on or apply
unnecessary pressure to the iPod
while it is connected as this may
damage the iPod or its terminal.
●Do not insert foreign objects into
the port as this may damage the iPod or its terminal.

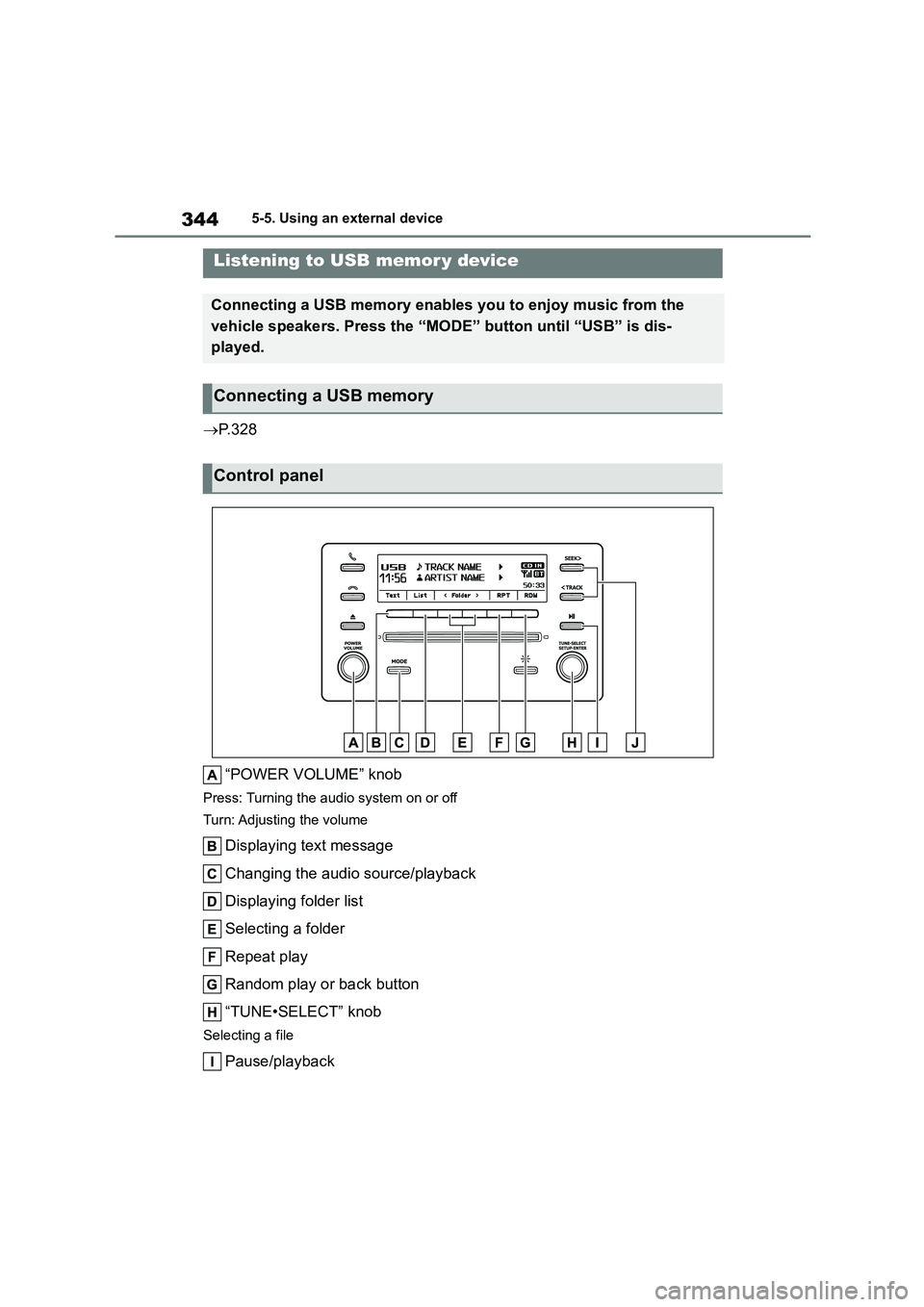

3445-5. Using an external device
P. 3 2 8
“POWER VOLUME” knob
Press: Turning the audio system on or off
Turn: Adjusting the volume
Displaying text message
Changing the audio source/playback
Displaying folder list
Selecting a folder
Repeat play
Random play or back button
“TUNE•SELECT” knob
Selecting a file
Pause/playback
Listening to USB memor y device
Connecting a USB memory enables you to enjoy music from the
vehicle speakers. Press the “MOD E” button until “USB” is dis-
played.
Connecting a USB memory
Control panel

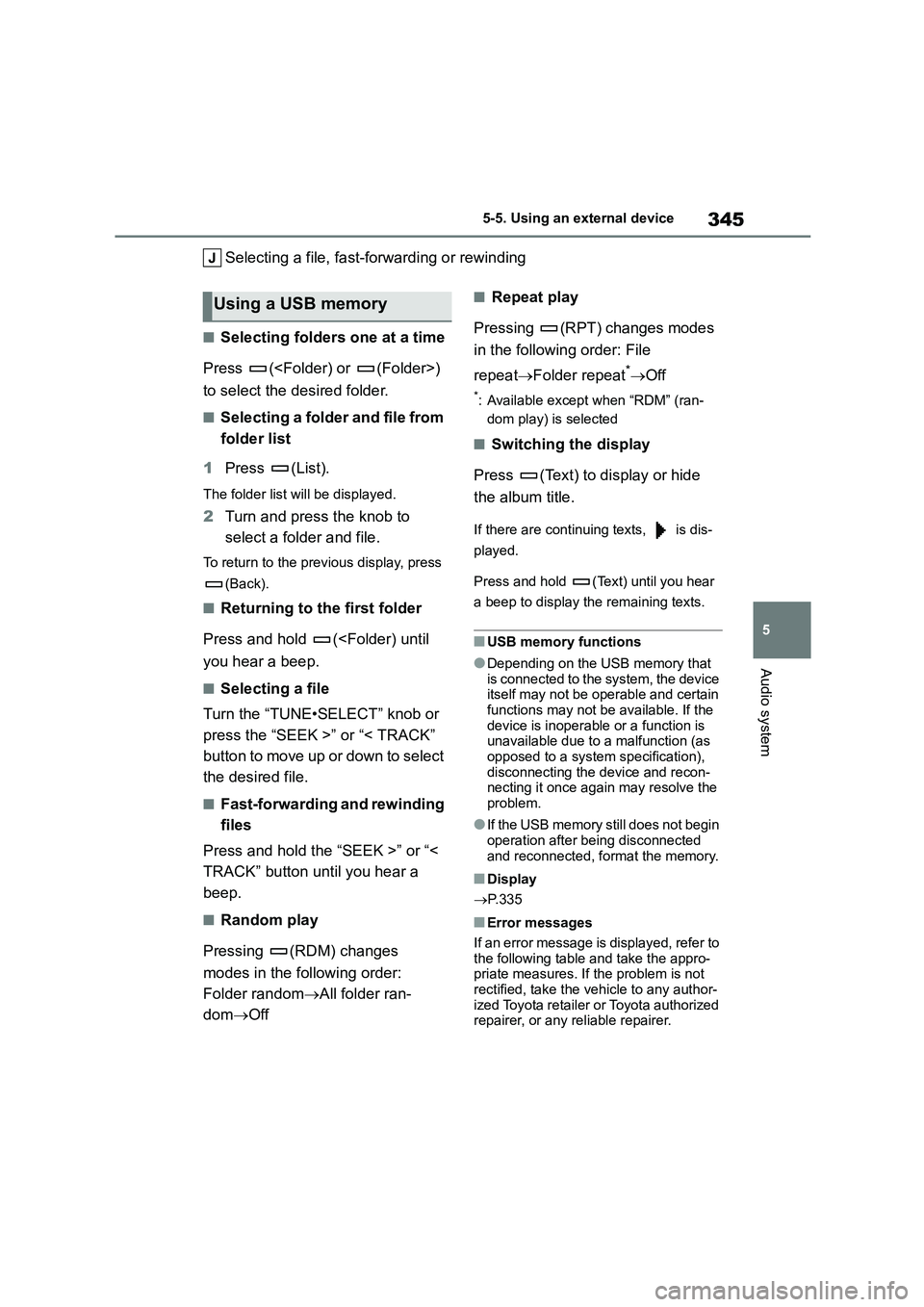

345
5
5-5. Using an external device
Audio system
Selecting a file, fast-f orwarding or rewinding
■Selecting folders one at a time
Press ()
to select the desired folder.
■Selecting a folder and file from
folder list
1 Press (List).
The folder list will be displayed.
2Turn and press the knob to
select a folder and file.
To return to the previous display, press
(Back).
■Returning to the first folder
Press and hold ( you hear a beep.
■Selecting a file
Turn the “TUNE•SELECT” knob or
press the “SEEK >” or “< TRACK”
button to move up or down to select
the desired file.
■Fast-forwarding and rewinding
files
Press and hold the “SEEK >” or “<
TRACK” button until you hear a
beep.
■Random play
Pressing (RDM) changes
modes in the following order:
Folder random All folder ran-
dom Off
■Repeat play
Pressing (RPT) changes modes
in the following order: File
repeat Folder repeat*Off
*: Available except when “RDM” (ran-
dom play) is selected
■Switching the display
Press (Text) to display or hide
the album title.
If there are continuing texts, is dis-
played.
Press and hold (Text) until you hear
a beep to display the remaining texts.
■USB memory functions
●Depending on the USB memory that
is connected to t he system, the device
itself may not be operable and certain functions may not be available. If the
device is inoperable or a function is
unavailable due to a malfunction (as opposed to a system specification),
disconnecting the device and recon-
necting it once again may resolve the problem.
●If the USB memory still does not begin operation after being disconnected
and reconnected, format the memory.
■Display
 P. 3 3 5
■Error messages
If an error message is displayed, refer to
the following table and take the appro-
priate measures. If the problem is not rectified, take the vehicle to any author-
ized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Using a USB memory

3465-5. Using an external device
■USB memory
●Compatible devices
USB memory that can be used for MP3,
WMA and AAC playback
●Compatible device formats
The following device formats can be
used:
• USB communication formats: USB2.0 FS (12mbps)
• File formats: FAT16/32 (Windows)
• Correspondence class: Mass storage class
MP3, WMA and AAC files written in any
format other than those listed above
may not play correctly, and their file
names and folder names may not be
displayed correctly.
Items related to standards and limita-
tions are as follows:
• Maximum directory hierarchy: 8 levels
(including the root) • Maximum number of folders in a
device: 3000
• Maximum number of files in a device: 9999
• Maximum number of files per folder:
255
●MP3, WMA and AAC files
MP3 (MPEG Audio LAYER3) is a stan-
dard audio compression format.
Files can be compressed to approxi-
mately 1/10 of their original size by
using MP3 compression.
WMA (Windows Media Audio) is a
Microsoft audio compression format.
This format compresses audio data to a
size smaller than that of the MP3 format.
AAC is short for Advanced Audio Cod-
ing and refers to an audio compression
technology standard used with MPEG2
and MPEG4.
There is a limit to the MP3, WMA and
AAC file standards and to the media/for-
mats recorded by them that can be
used.
●MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with
VBR) MPEG1 LAYER3: 32-320 (kbps)
MPEG2 LSF LAYER3: 8-160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and monau-
MessageCause/Correction
procedures
“USB error”
This indicates that
the data in the
USB memory can-
not be read.
“Error 3”
This indicates that
the USB memory
may be malfunc-
tioning.
“Error 4”
This indicates that
an over current
error has occurred.
“Error 5”
This indicates that
the USB memory
communication
error has occurred.
“No music”
This indicates that
no
MP3/WMA/AAC
files are included
on the USB mem-
ory device.
“Hubs are not sup-
ported”
This indicates that
the hub connect
error occurs.

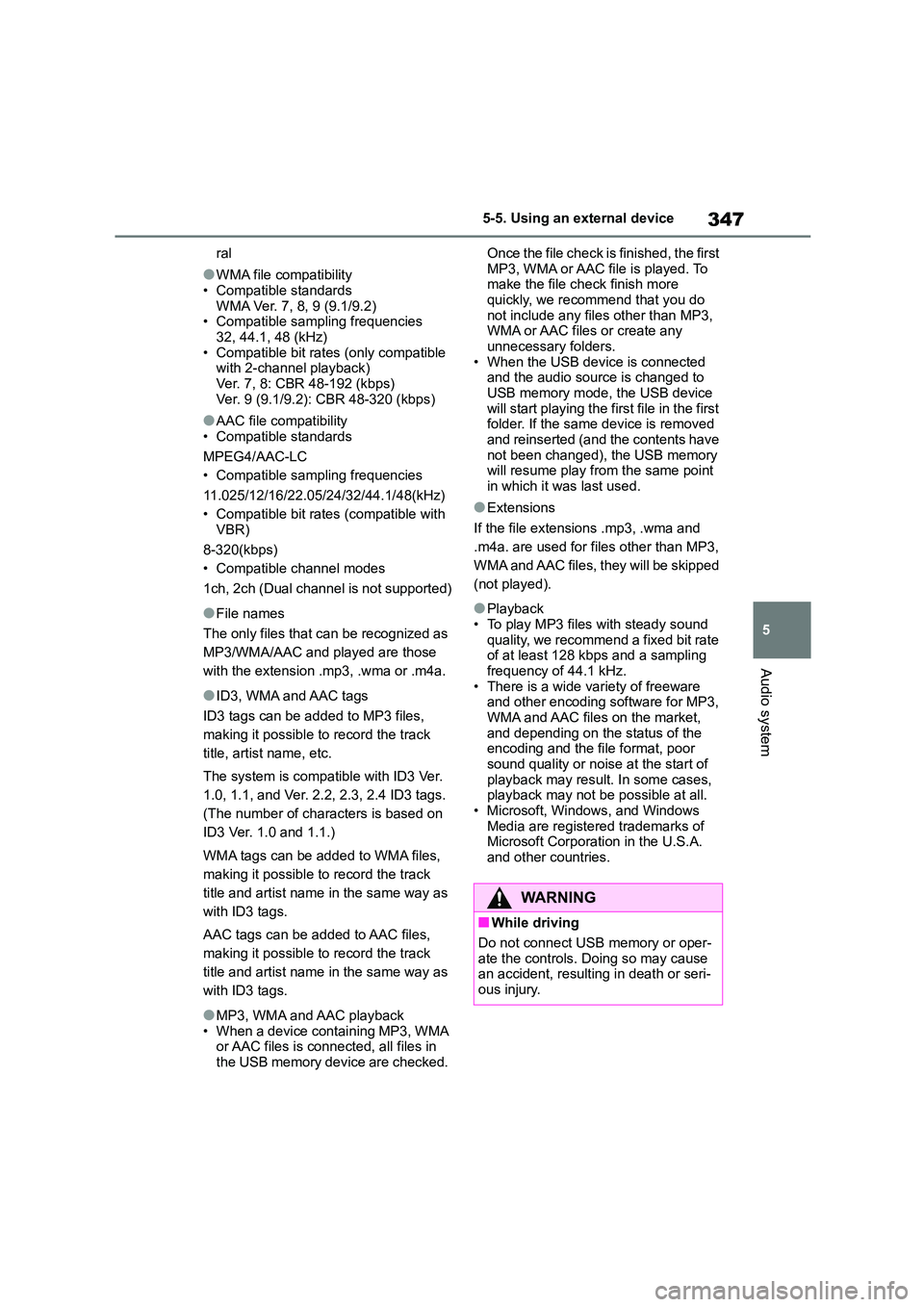

347
5
5-5. Using an external device
Audio system
ral
●WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9 (9.1/9.2) • Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48-192 (kbps)
Ver. 9 (9.1/9.2): CBR 48-320 (kbps)
●AAC file compatibility
• Compatible standards
MPEG4/AAC-LC
• Compatible sampling frequencies
11.025/12/16/22.05/24/32/44.1/48(kHz)
• Compatible bit rates (compatible with
VBR)
8-320(kbps)
• Compatible channel modes
1ch, 2ch (Dual channel is not supported)
●File names
The only files that can be recognized as
MP3/WMA/AAC and played are those
with the extension .mp3, .wma or .m4a.
●ID3, WMA and AAC tags
ID3 tags can be added to MP3 files,
making it possible to record the track
title, artist name, etc.
The system is compatib le with ID3 Ver.
1.0, 1.1, and Ver. 2.2, 2.3, 2.4 ID3 tags.
(The number of characters is based on
ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files,
making it possible to record the track
title and artist name in the same way as
with ID3 tags.
AAC tags can be added to AAC files,
making it possible to record the track
title and artist name in the same way as
with ID3 tags.
●MP3, WMA and AAC playback • When a device containing MP3, WMA
or AAC files is connected, all files in
the USB memory device are checked.
Once the file check is finished, the first
MP3, WMA or AAC file is played. To make the file check finish more
quickly, we recommend that you do
not include any files other than MP3, WMA or AAC files or create any
unnecessary folders.
• When the USB device is connected and the audio source is changed to
USB memory mode, the USB device
will start playing the first file in the first folder. If the same device is removed
and reinserted (and the contents have
not been changed), the USB memory will resume play from the same point
in which it was last used.
●Extensions
If the file extensions .mp3, .wma and
.m4a. are used for files other than MP3,
WMA and AAC files, they will be skipped
(not played).
●Playback • To play MP3 files with steady sound
quality, we recommend a fixed bit rate
of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware
and other encoding software for MP3, WMA and AAC files on the market,
and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases,
playback may not be possible at all. • Microsoft, Windows, and Windows
Media are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
WA R N I N G
■While driving
Do not connect USB memory or oper-
ate the controls. Doing so may cause an accident, resulting in death or seri-
ous injury.

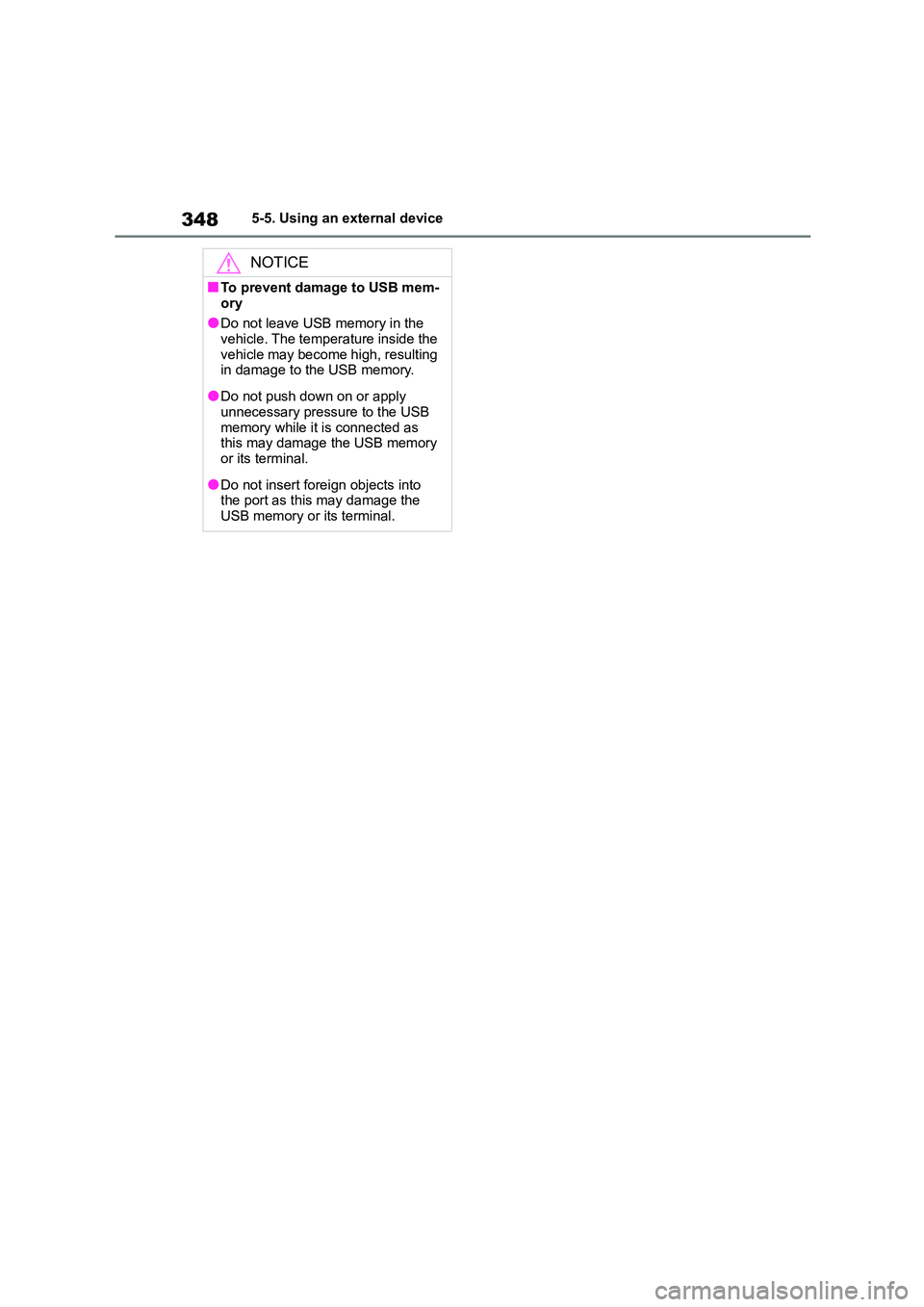

3485-5. Using an external device
NOTICE
■To prevent damage to USB mem-
ory
●Do not leave USB memory in the vehicle. The temperature inside the
vehicle may become high, resulting
in damage to the USB memory.
●Do not push down on or apply
unnecessary pressure to the USB
memory while it is connected as this may damage the USB memory
or its terminal.
●Do not insert foreign objects into
the port as this may damage the
USB memory or its terminal.

349
5
5-6. Using Bluetooth® devices
Audio system
5-6.Using Bluetooth® devices
The Bluetooth® audio system ena-
bles you to enjoy music played on a
portable digital audio player (porta-
ble player) from the vehicle speak-
ers via wireless communication.
This audio system supports
Bluetooth®, a wireless data system
capable of playing portable audio
music without cables. If your porta-
ble player does not support
Bluetooth®, the Bluetooth® audio
system will no t function.
This system supports Bluetooth®,
which allows you to make or
receive calls without using cables
to connect a cellular phone and the
system, and without operating the
cellular phone.
1 Register the Bluetooth® device
to be used with audio system
( P.354)
2 Select the Bluetooth® device to
be used ( P.356, 358)
3 Set automatic connection of the
device ( P.357)
4 Check Bluetooth® connection
condition ( P. 3 4 9 )
 To be used for audio: P.362
 To be used for hands-free phone:
 P.364
Off-hook button
Turns the hands-free system on/starts a
call
On-hook button
Turns the hands-free system off/ends a
call/refuses a call
“POWER VOLUME” knob
Press: Turning the audio system on or
off
Turn: Adjusting the volume
Function button
“TUNE•SELECT” knob
Displays setup menu or selects items
such as menu and number
Turn: Selects an item
Press: Inputs the selected item
Bluetooth® audio/phone
The following can be per-
formed using Bluetooth® wire-
less communication:
Bluetooth® audio
Bluetooth® phone
(hands-free phone system)
Device registration/connec-
tion flow
Audio unit

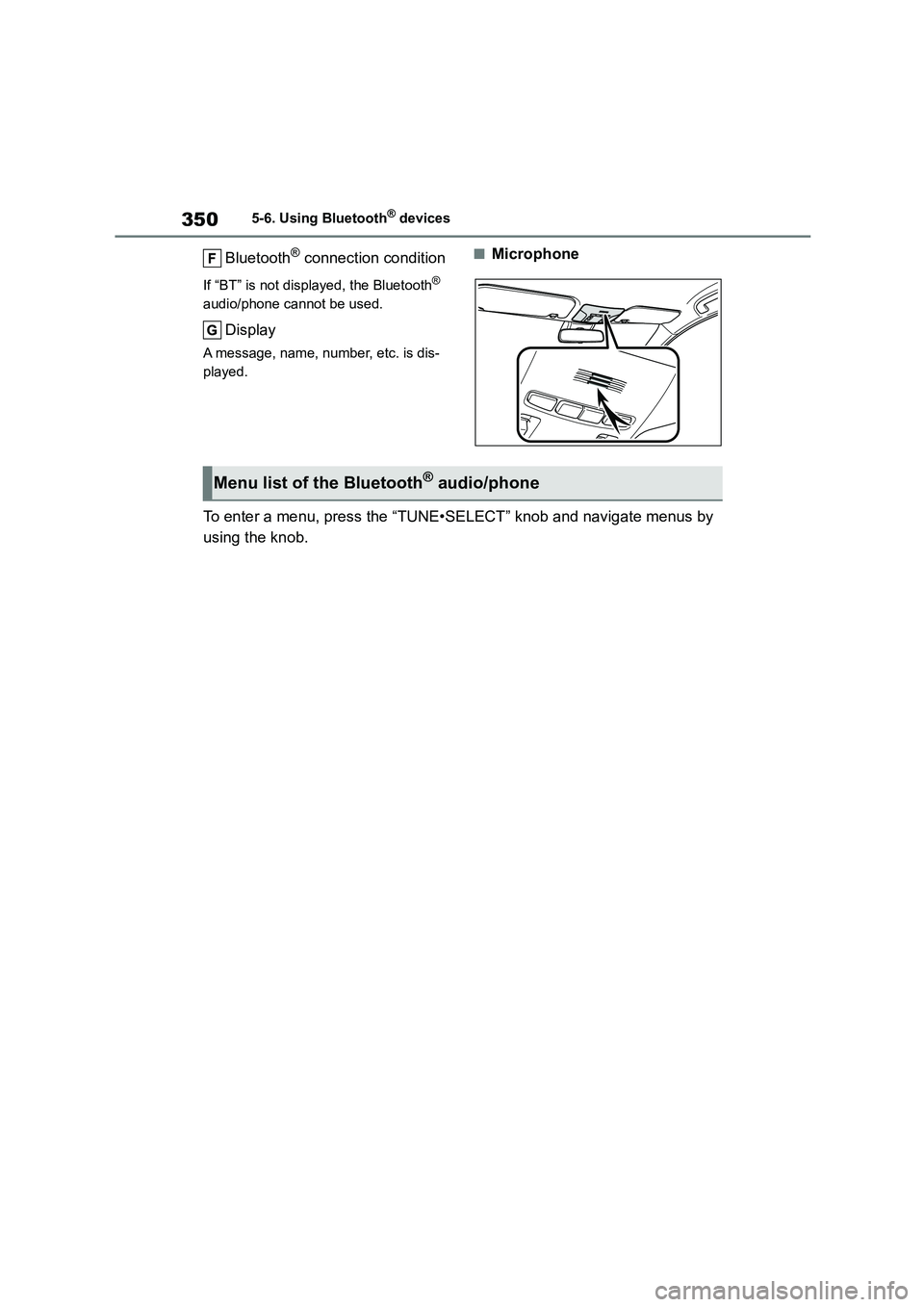

3505-6. Using Bluetooth® devices
Bluetooth® connection condition
If “BT” is not displayed, the Bluetooth®
audio/phone cannot be used.
Display
A message, name, number, etc. is dis-
played.
■Microphone
To enter a menu, press the “TUNE•SELECT” knob and navigate menus by
using the knob.
Menu list of the Bluetooth® audio/phone
