2022 TOYOTA COROLLA Owners Manual (in English)

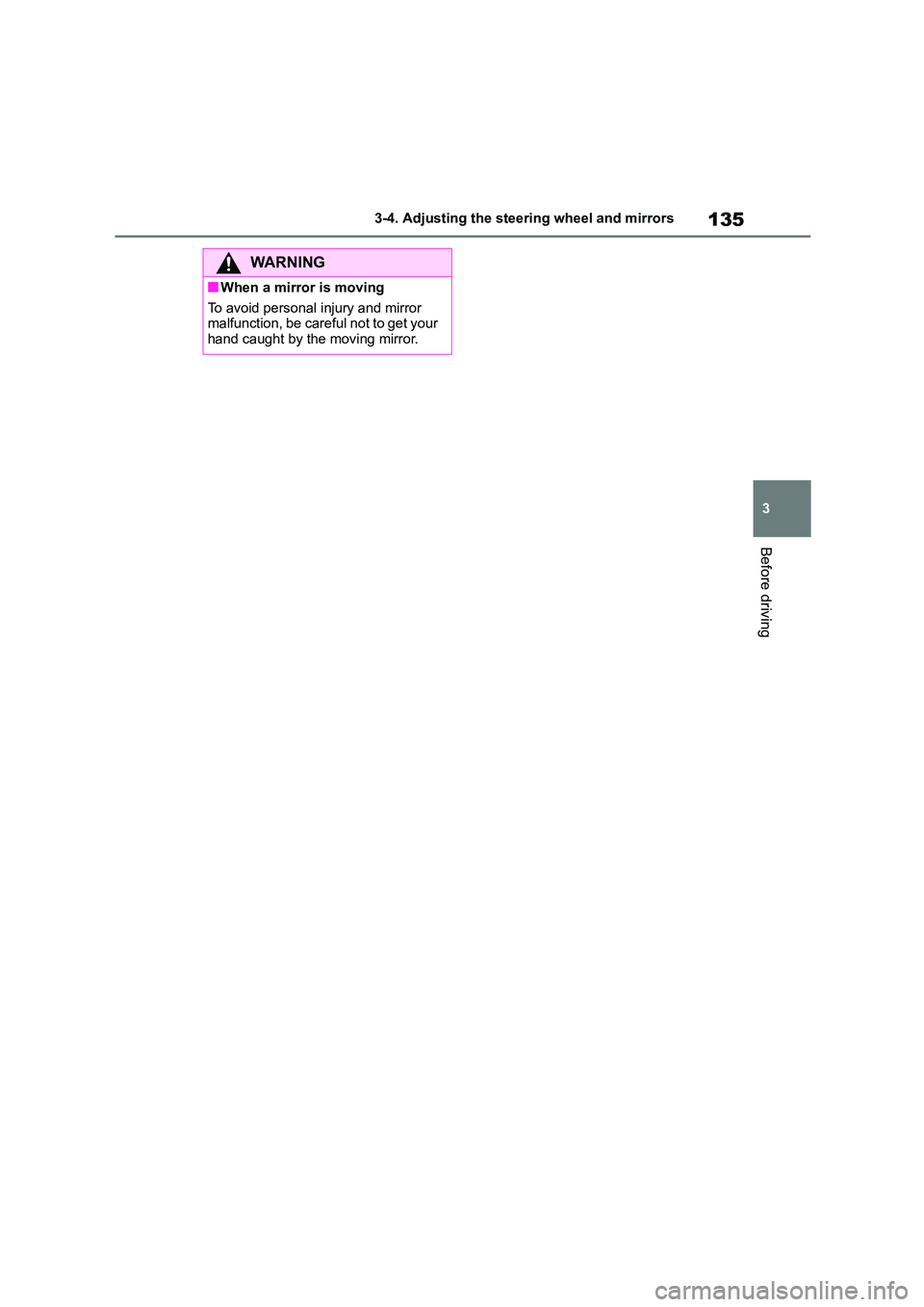

135
3
3-4. Adjusting the steering wheel and mirrors
Before driving
WA R N I N G
■When a mirror is moving
To avoid personal injury and mirror
malfunction, be careful not to get your hand caught by the moving mirror.

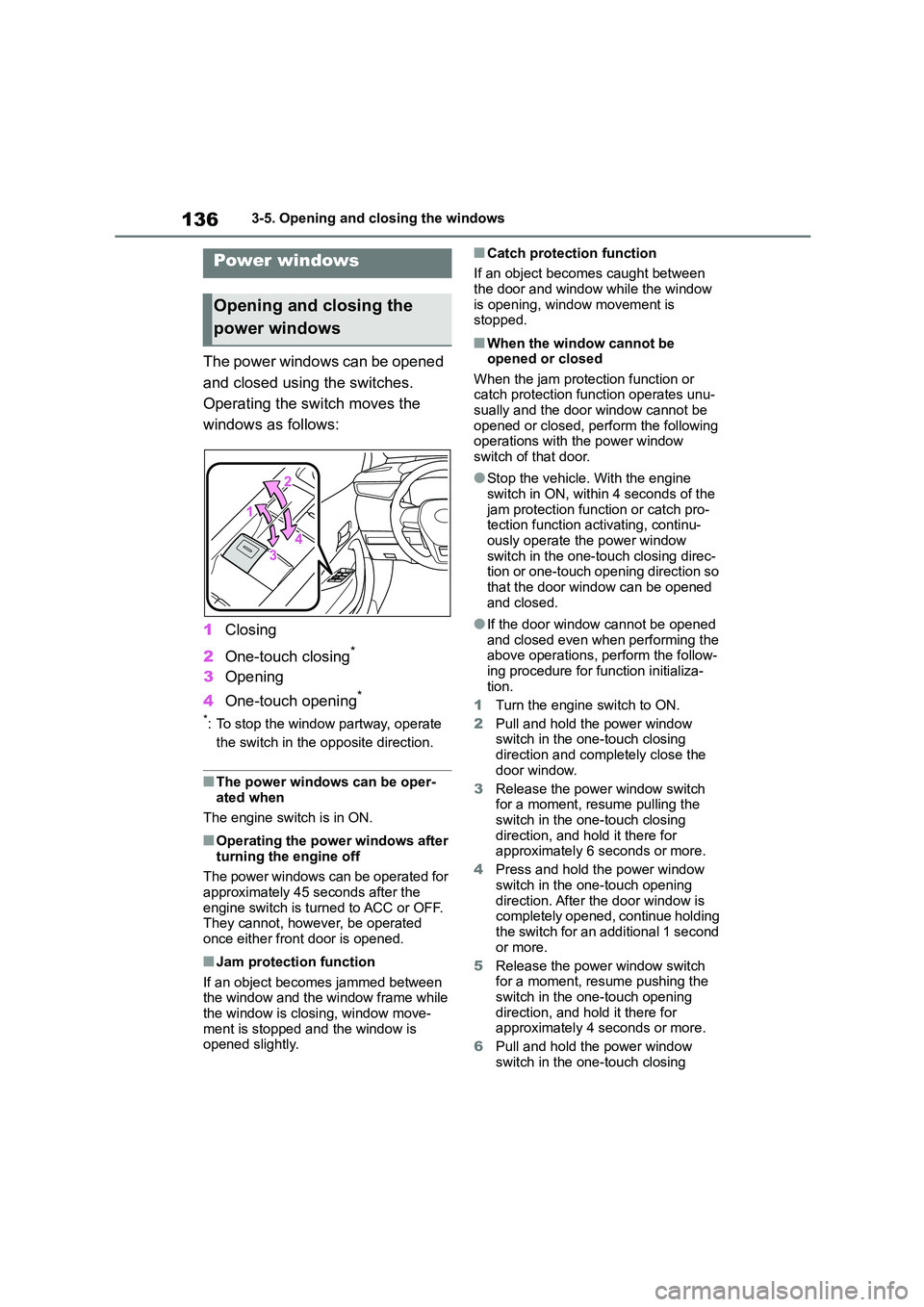

1363-5. Opening and closing the windows
3-5.Opening and closing the windows
The power windows can be opened
and closed using the switches.
Operating the switch moves the
windows as follows:
1 Closing
2 One-touch closing*
3Opening
4 One-touch opening*
*: To stop the window partway, operate
the switch in the opposite direction.
■The power windows can be oper-
ated when
The engine switch is in ON.
■Operating the power windows after
turning the engine off
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to ACC or OFF.
They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes jammed between
the window and the window frame while the window is closing, window move-
ment is stopped and the window is
opened slightly.
■Catch protection function
If an object becomes caught between the door and window while the window
is opening, window movement is
stopped.
■When the window cannot be opened or closed
When the jam protection function or
catch protection function operates unu- sually and the door window cannot be
opened or closed, perform the following
operations with the power window switch of that door.
●Stop the vehicle. With the engine switch in ON, within 4 seconds of the
jam protection function or catch pro-
tection function activating, continu- ously operate the power window
switch in the one-touch closing direc-
tion or one-touch opening direction so that the door window can be opened
and closed.
●If the door window cannot be opened
and closed even when performing the
above operations, perform the follow- ing procedure for function initializa-
tion.
1 Turn the engine switch to ON.
2 Pull and hold the power window
switch in the one-touch closing direction and completely close the
door window.
3 Release the power window switch
for a moment, resume pulling the switch in the one-touch closing
direction, and hold it there for
approximately 6 seconds or more.
4 Press and hold the power window switch in the one-touch opening
direction. After the door window is
completely opened, continue holding
the switch for an additional 1 second or more.
5 Release the power window switch
for a moment, resume pushing the
switch in the one-touch opening direction, and hold it there for
approximately 4 seconds or more.
6 Pull and hold the power window
switch in the one-touch closing
Power windows
Opening and closing the
power windows

137
3
3-5. Opening and closing the windows
Before driving
direction again. After the door win-
dow is completely closed, continue holding the switch for a further 1 sec-
ond or more.
If you release the switch while the win- dow is moving, start again from the
beginning.
If the window reverses and cannot be fully closed or opened, have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■Door lock linked window operation
●Vehicles without a smart entry & start
system: The power windows can be
opened and closed using the key.*
( P. 1 1 4 )
Vehicles with a smart entry & start system: The power windows can be
opened and closed using the mechan-
ical key.* ( P.512)
●The power windows can be opened
and closed using the wireless remote
control.* ( P.113)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
■Customization
Some functions can be customized.
( P.538)
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the
power window operations, including
the operation for the passengers. In order to prevent accidental opera-
tion, especially by a child, do not let
a child operate the power windows. It is possible for children and other
passengers to have body parts
caught in the power window. Also, when riding with a child, it is recom-
mended to use the window lock
switch. (P.138)
●Check to make sure that all passen-
gers do not have any part of their body in a position where it could be
caught when a window is being
operated.
●When using the wireless remote
control, key or mechanical key and operating the power windows, oper-
ate the power window after check-
ing to make sure that there is no possibility of any passenger having
any of their body parts caught in the
window. Also do not let a child oper- ate window by the wireless remote
control, key or mech anical key. It is
possible for children and other pas- sengers to get caught in the power
window.
●When exiting the vehicle, turn the
engine switch off, carry the key and
exit the vehicle along with the child.
There may be accidental opera- tion, due to mischief, etc., that may
possibly lead to an accident.

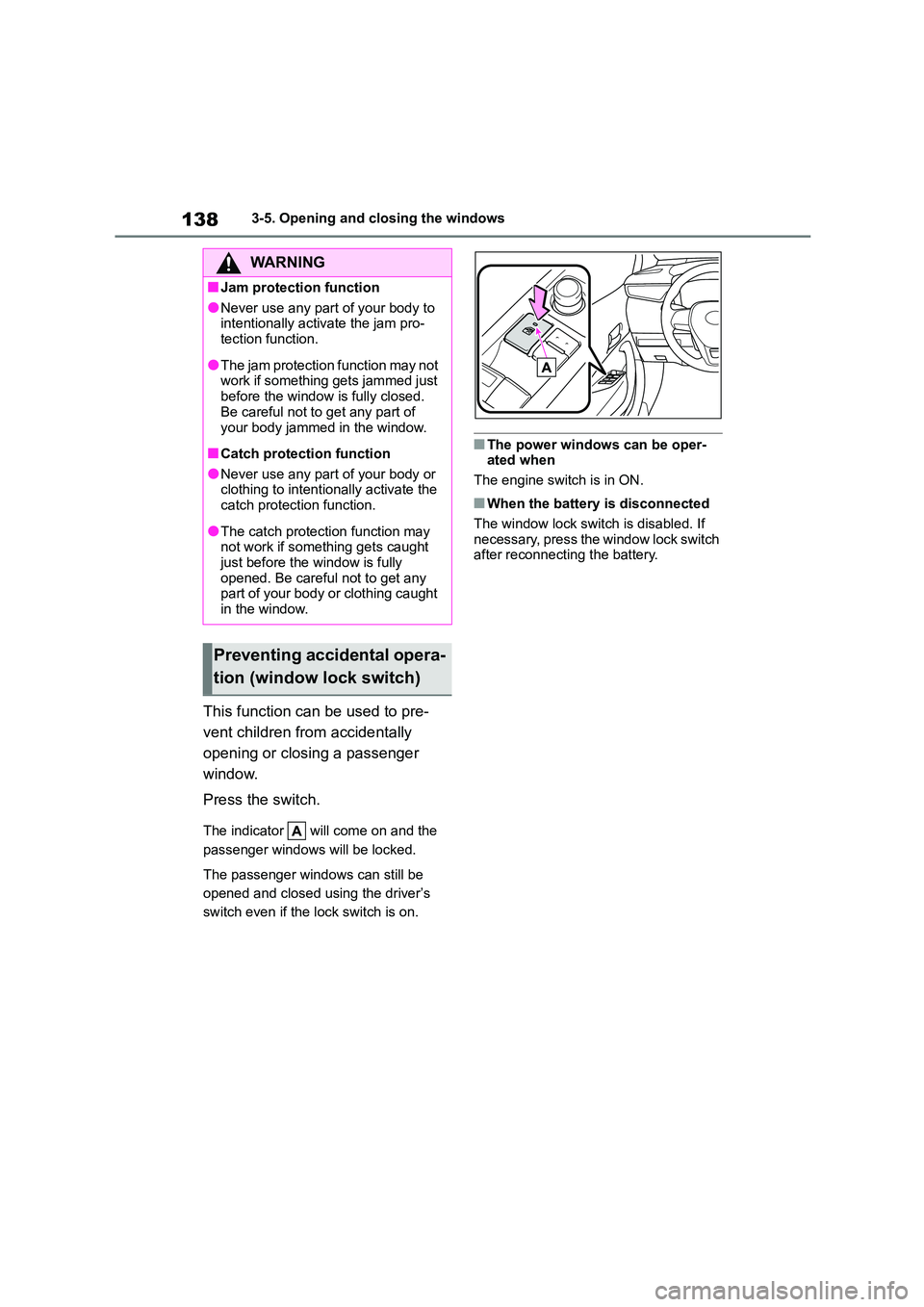

1383-5. Opening and closing the windows
This function can be used to pre-
vent children from accidentally
opening or closing a passenger
window.
Press the switch.
The indicator will come on and the
passenger windows will be locked.
The passenger windows can still be
opened and closed using the driver’s
switch even if the lock switch is on.
■The power windows can be oper- ated when
The engine switch is in ON.
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch
after reconnecting the battery.
WA R N I N G
■Jam protection function
●Never use any part of your body to
intentionally activate the jam pro- tection function.
●The jam protection function may not work if something gets jammed just
before the window is fully closed.
Be careful not to get any part of
your body jammed in the window.
■Catch protection function
●Never use any part of your body or clothing to intentionally activate the
catch protection function.
●The catch protection function may
not work if something gets caught
just before the window is fully opened. Be careful not to get any
part of your body or clothing caught
in the window.
Preventing accidental opera-
tion (window lock switch)

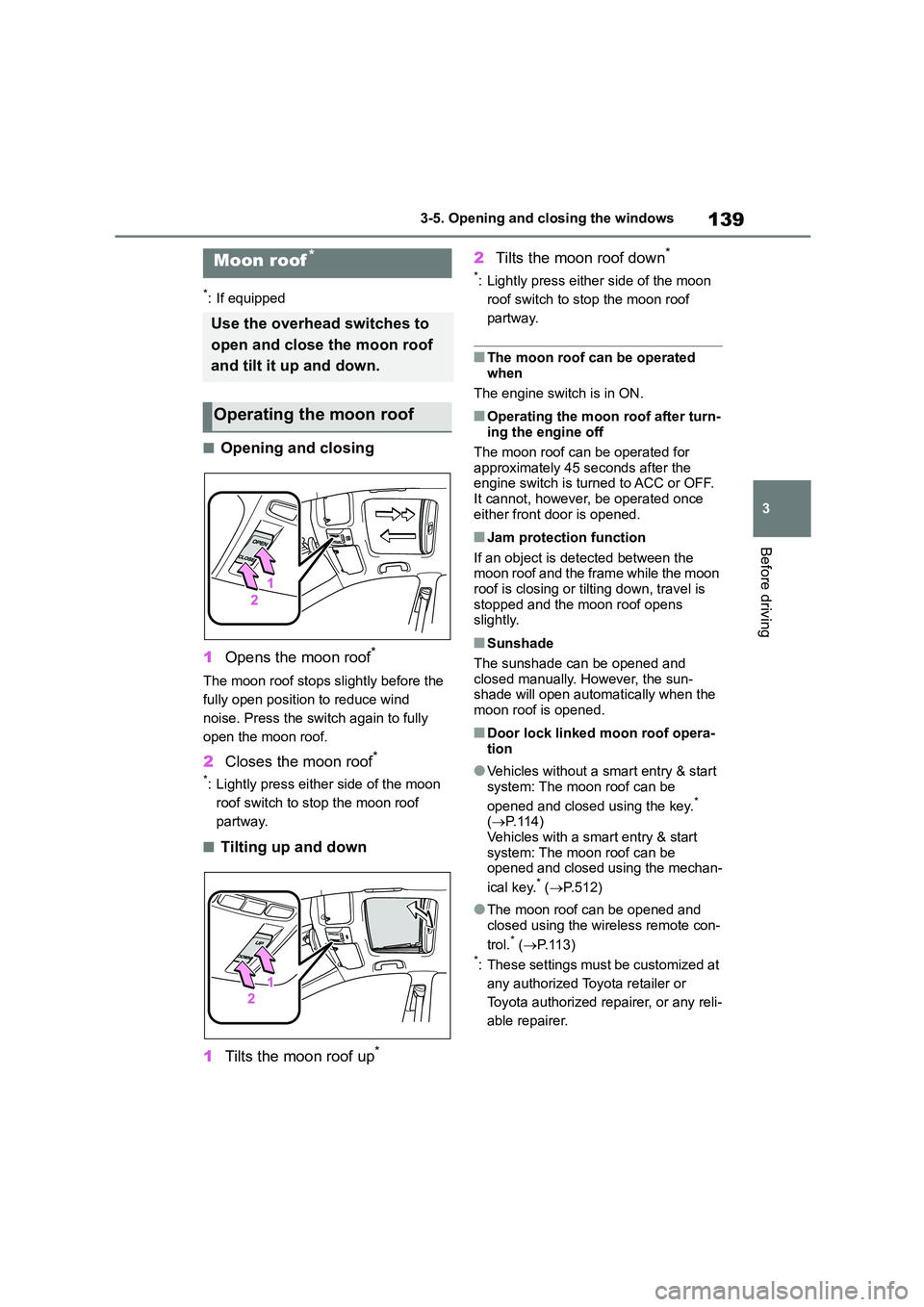

139
3
3-5. Opening and closing the windows
Before driving
*: If equipped
■Opening and closing
1 Opens the moon roof*
The moon roof stops slightly before the
fully open position to reduce wind
noise. Press the switch again to fully
open the moon roof.
2 Closes the moon roof*
*: Lightly press either side of the moon
roof switch to stop the moon roof
partway.
■Tilting up and down
1 Tilts the moon roof up*
2Tilts the moon roof down*
*: Lightly press either side of the moon
roof switch to stop the moon roof
partway.
■The moon roof can be operated
when
The engine switch is in ON.
■Operating the moon roof after turn- ing the engine off
The moon roof can be operated for
approximately 45 seconds after the engine switch is turned to ACC or OFF.
It cannot, however, be operated once
either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon
roof is closing or tilting down, travel is
stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and
closed manually. However, the sun- shade will open automatically when the
moon roof is opened.
■Door lock linked moon roof opera-
tion
●Vehicles without a smart entry & start
system: The moon roof can be
opened and closed using the key.* ( P. 1 1 4 )
Vehicles with a smart entry & start
system: The moon roof can be opened and closed using the mechan-
ical key.* ( P.512)
●The moon roof can be opened and
closed using the wireless remote con-
trol.* ( P.113)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
Moon roof*
Use the overhead switches to
open and close the moon roof
and tilt it up and down.
Operating the moon roof

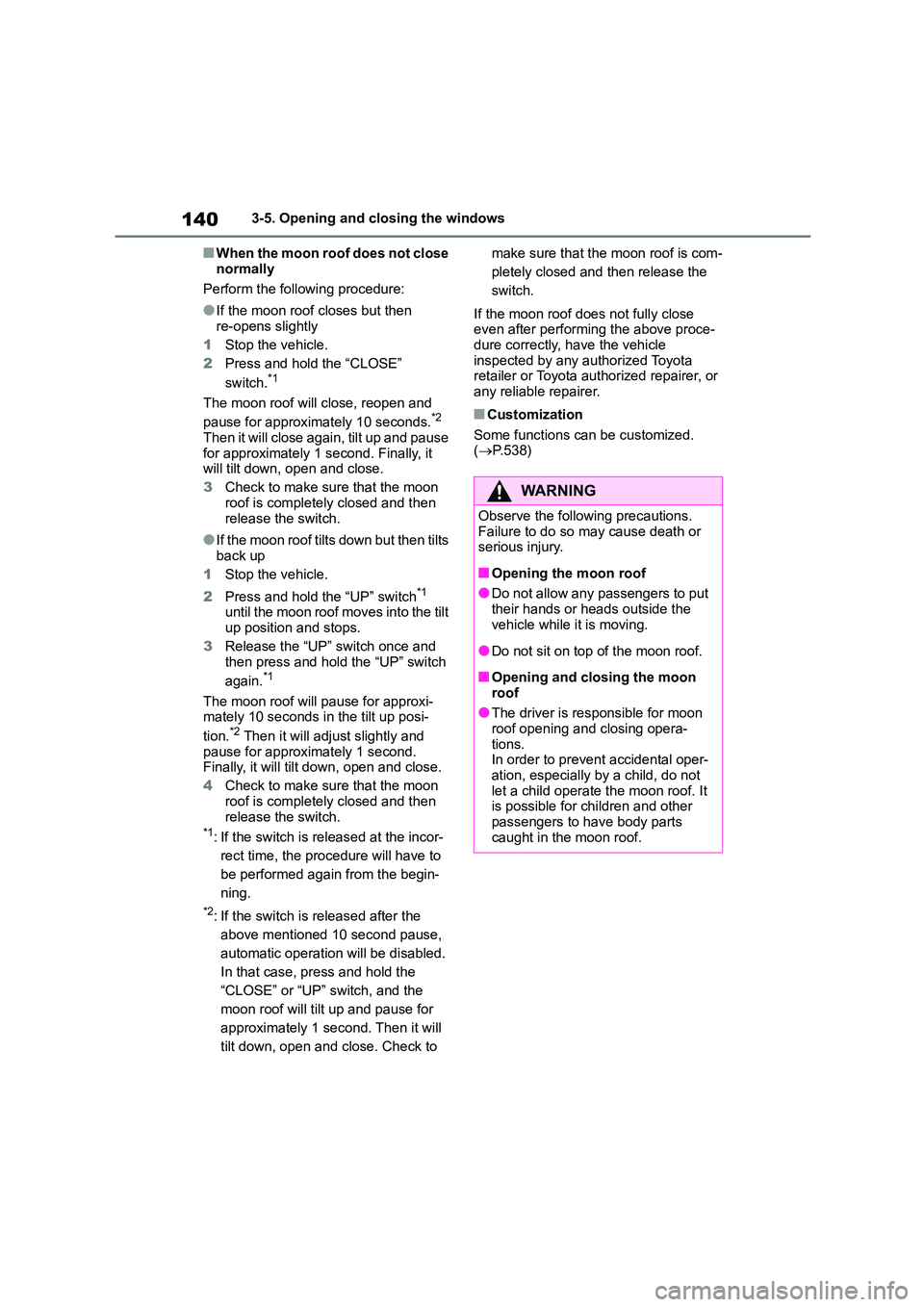

1403-5. Opening and closing the windows
■When the moon roof does not close
normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightly
1 Stop the vehicle.
2 Press and hold the “CLOSE”
switch.*1
The moon roof will close, reopen and
pause for approximately 10 seconds.*2
Then it will close again, tilt up and pause
for approximately 1 second. Finally, it will tilt down, open and close.
3 Check to make sure that the moon
roof is completely closed and then
release the switch.
●If the moon roof tilts down but then tilts
back up
1 Stop the vehicle.
2 Press and hold the “UP” switch*1 until the moon roof moves into the tilt
up position and stops.
3 Release the “UP” switch once and
then press and hold the “UP” switch
again.*1
The moon roof will pause for approxi-
mately 10 seconds in the tilt up posi-
tion.*2 Then it will adjust slightly and
pause for approximately 1 second.
Finally, it will tilt down, open and close.
4 Check to make sure that the moon roof is completely closed and then
release the switch.*1: If the switch is released at the incor-
rect time, the procedure will have to
be performed again from the begin-
ning.
*2: If the switch is released after the
above mentioned 10 second pause,
automatic operation will be disabled.
In that case, press and hold the
“CLOSE” or “UP” switch, and the
moon roof will tilt up and pause for
approximately 1 second. Then it will
tilt down, open and close. Check to
make sure that the moon roof is com-
pletely closed and then release the
switch.
If the moon roof does not fully close
even after performing the above proce- dure correctly, have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■Customization
Some functions can be customized.
( P.538)
WA R N I N G
Observe the following precautions. Failure to do so may cause death or
serious injury.
■Opening the moon roof
●Do not allow any passengers to put
their hands or heads outside the vehicle while it is moving.
●Do not sit on top of the moon roof.
■Opening and closing the moon
roof
●The driver is responsible for moon
roof opening and closing opera-
tions. In order to prevent accidental oper-
ation, especially by a child, do not
let a child operate the moon roof. It is possible for children and other
passengers to have body parts
caught in the moon roof.

141
3
3-5. Opening and closing the windows
Before driving

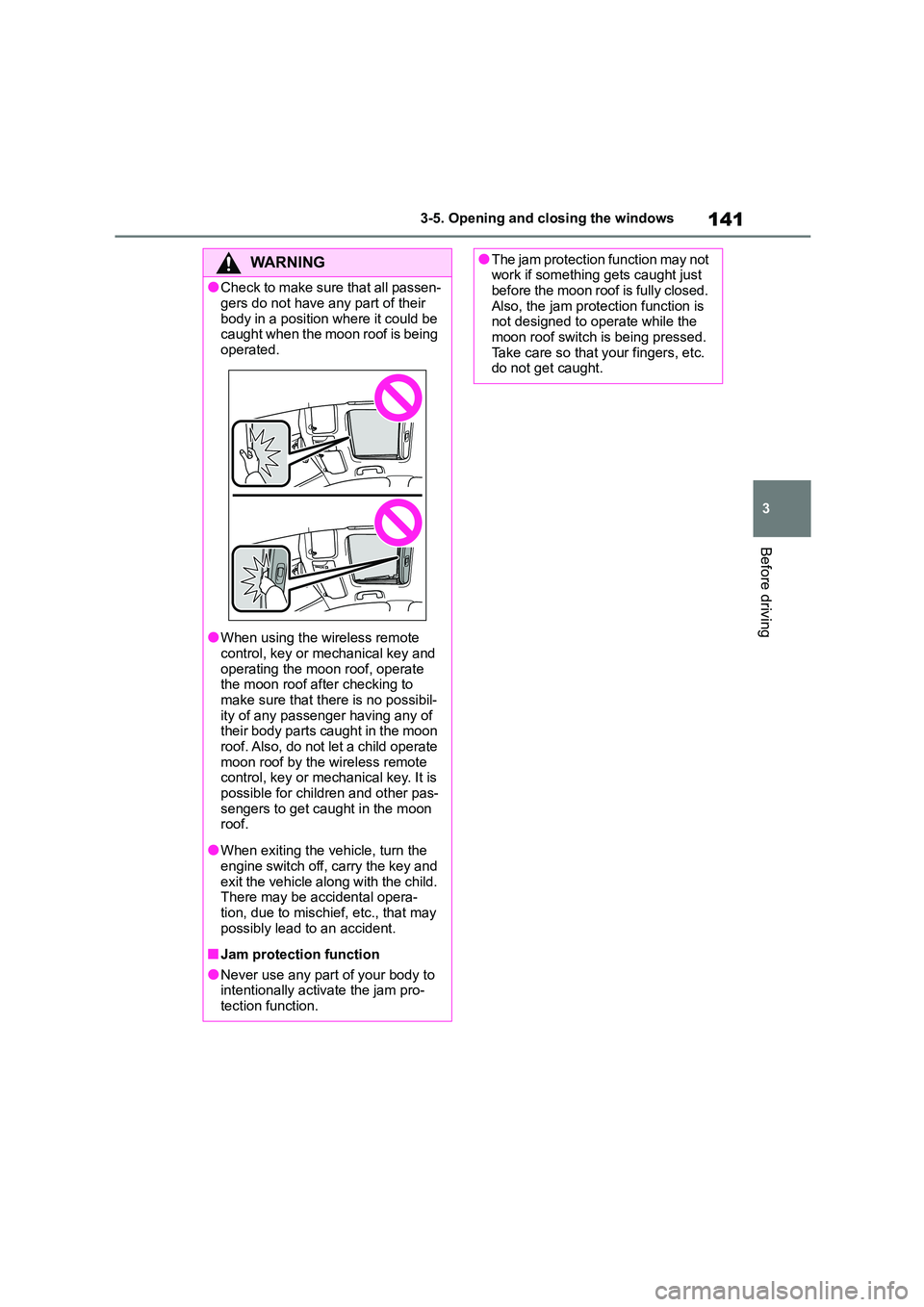

WA R N I N G
●Check to make sure that all passen-
gers do not have any part of their
body in a position where it could be caught when the moon roof is being
operated.
●When using the wireless remote
control, key or mechanical key and
operating the moon roof, operate the moon roof after checking to
make sure that there is no possibil-
ity of any passenger having any of their body parts caught in the moon
roof. Also, do not let a child operate
moon roof by the wireless remote control, key or mechanical key. It is
possible for children and other pas-
sengers to get caught in the moon roof.
●When exiting the vehicle, turn the engine switch off, carry the key and
exit the vehicle along with the child.
There may be accidental opera- tion, due to mischief, etc., that may
possibly lead to an accident.
■Jam protection function
●Never use any part of your body to
intentionally activate the jam pro- tection function.
●The jam protection function may not work if something gets caught just
before the moon roof is fully closed.
Also, the jam protection function is not designed to operate while the
moon roof switch is being pressed.
Take care so that your fingers, etc. do not get caught.

1423-5. Opening and closing the windows
