2022 TOYOTA COROLLA Owners Manual (in English)

527
9
9-1. Specifications
Vehicle specifications
■Oil capacity (Drain and refill
[Reference*])
1ZR-FAE engine
M15A-FKS engine
*: The engine oil capacity is a reference
quantity to be used when changing
the engine oil. Warm up and turn off
the engine, wait more than 5 minutes,
and check the oil level on the dip-
stick.
■Engine oil selection (1ZR-FAE
engine)
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
Preferred
Temperature range anticipated
before next oil change
SAE 0W-20 is filled in to your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather. If
SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with
SAE 0W-20 at the ne xt oil change.
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the
characteristic of the oil which
allows cold startability. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 20 in 0W-20 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
Research Octane Number95 or higher
Fuel tank capacity
(Reference)50.0 L (13.2 gal., 11.0 Imp. gal.)
Lubrication system
With filter4.2 L (4.4 qt., 3.7 Imp. qt.)
Without fil-
ter3.9 L (4.1 qt., 3.4 Imp. qt.)
With filter3.4 L (3.6 qt., 3.0 Imp. qt.)
Without fil-
ter3.2 L (3.4 qt., 2.8 Imp. qt.)

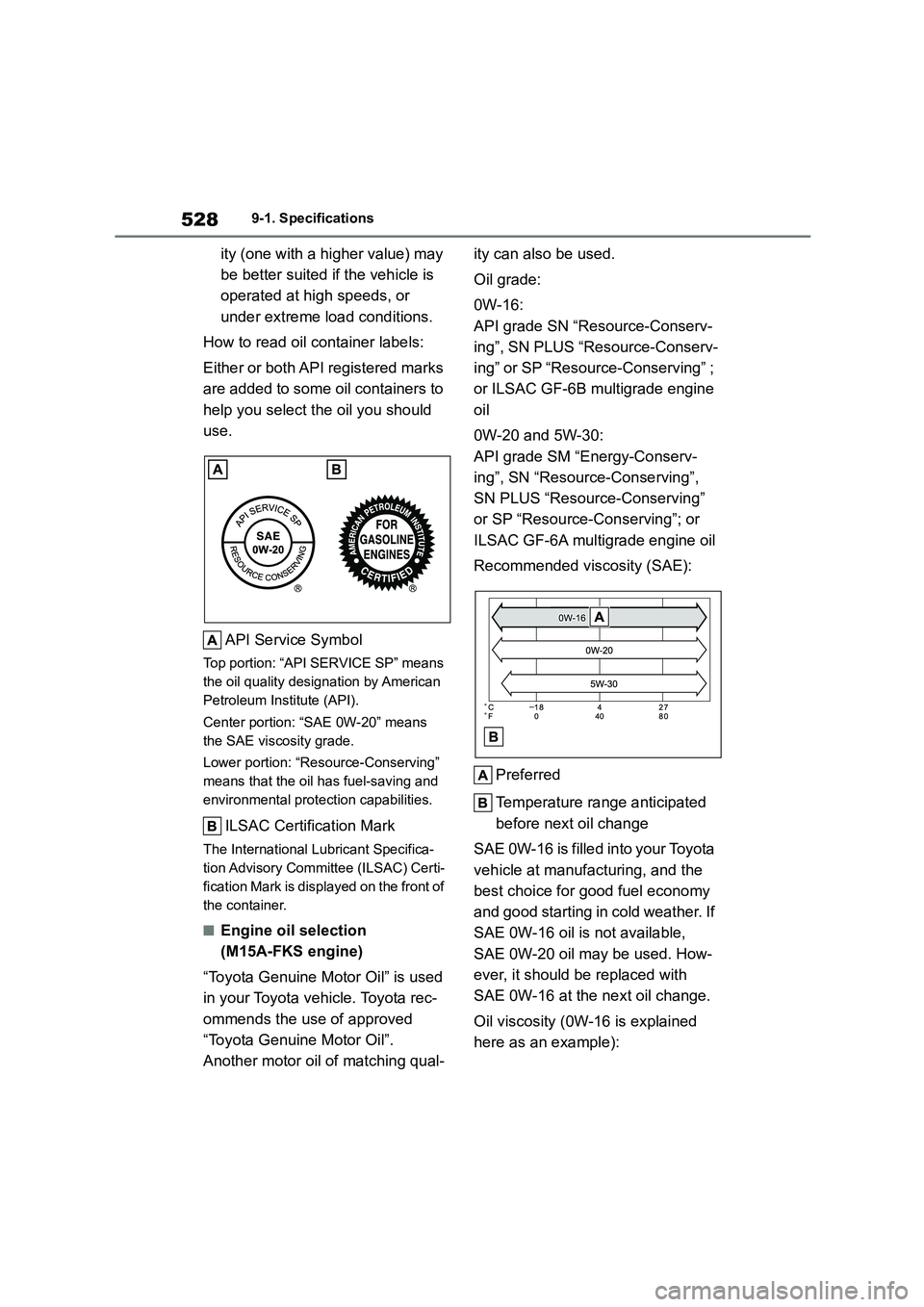

5289-1. Specifications
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Comm ittee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.
■Engine oil selection
(M15A-FKS engine)
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv-
ing”, SN PLUS “Resource-Conserv-
ing” or SP “Resource-Conserving” ;
or ILSAC GF-6B multigrade engine
oil
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
Preferred
Temperature range anticipated
before next oil change
SAE 0W-16 is filled in to your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather. If
SAE 0W-16 oil is not available,
SAE 0W-20 oil may be used. How-
ever, it should be replaced with
SAE 0W-16 at the ne xt oil change.
Oil viscosity (0W-16 is explained
here as an example):

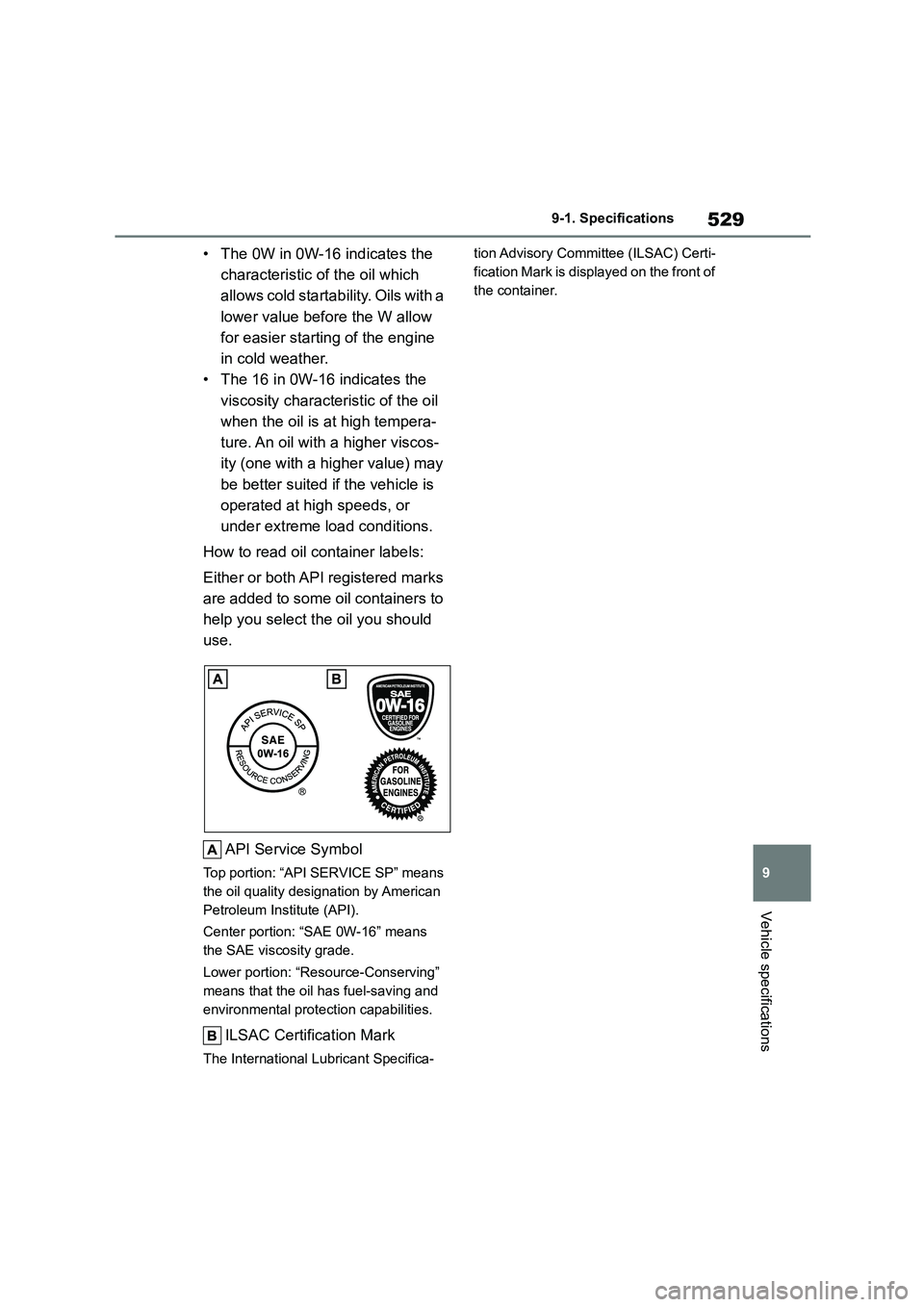

529
9
9-1. Specifications
Vehicle specifications
• The 0W in 0W-16 indicates the
characteristic of the oil which
allows cold startab ility. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 16 in 0W-16 indicates the
viscosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Commi ttee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.

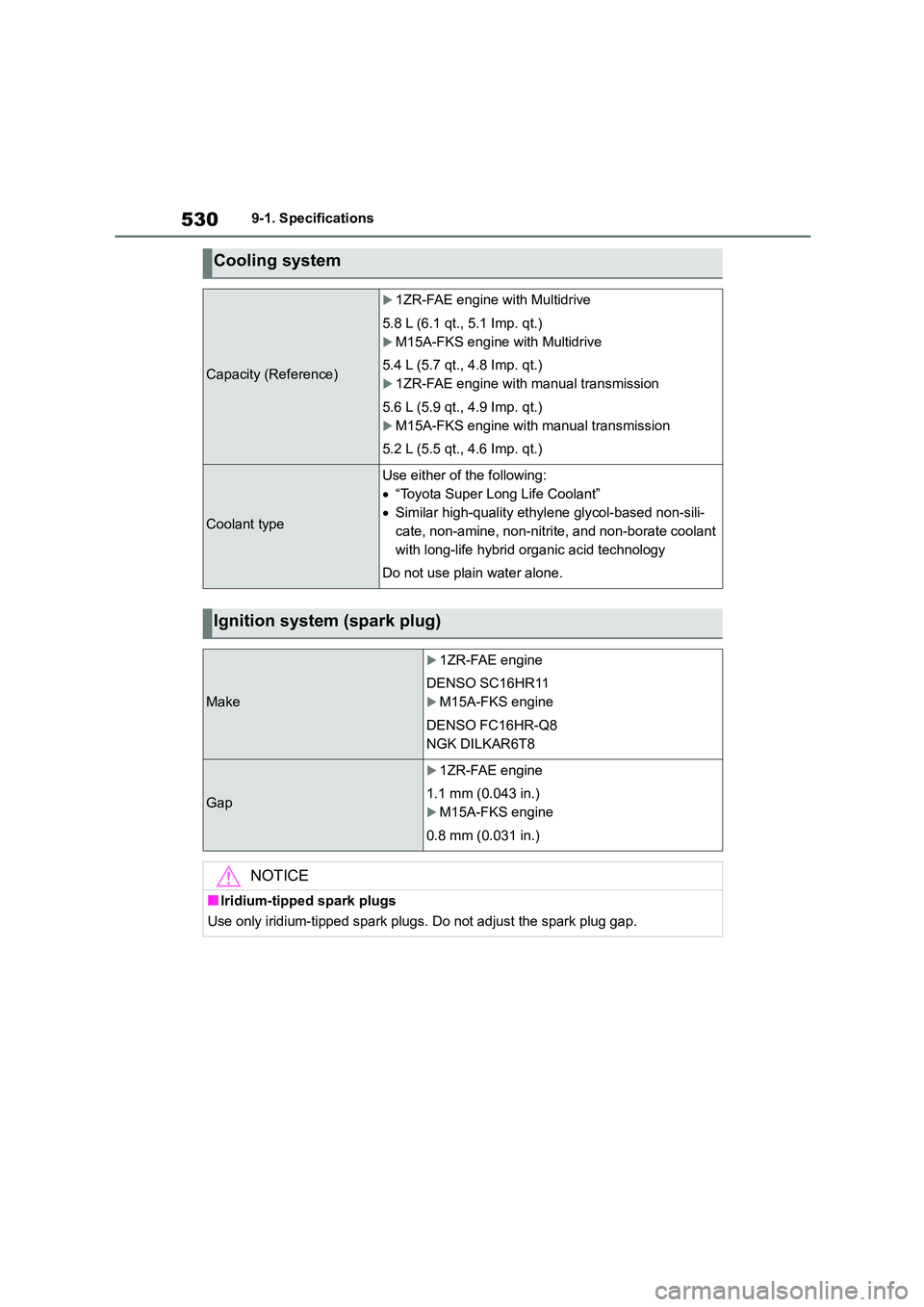

5309-1. Specifications
Cooling system
Capacity (Reference)
1ZR-FAE engine with Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
M15A-FKS engine with Multidrive
5.4 L (5.7 qt., 4.8 Imp. qt.)
1ZR-FAE engine with manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
M15A-FKS engine with manual transmission
5.2 L (5.5 qt., 4.6 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
Make
1ZR-FAE engine
DENSO SC16HR11
M15A-FKS engine
DENSO FC16HR-Q8
NGK DILKAR6T8
Gap
1ZR-FAE engine
1.1 mm (0.043 in.)
M15A-FKS engine
0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

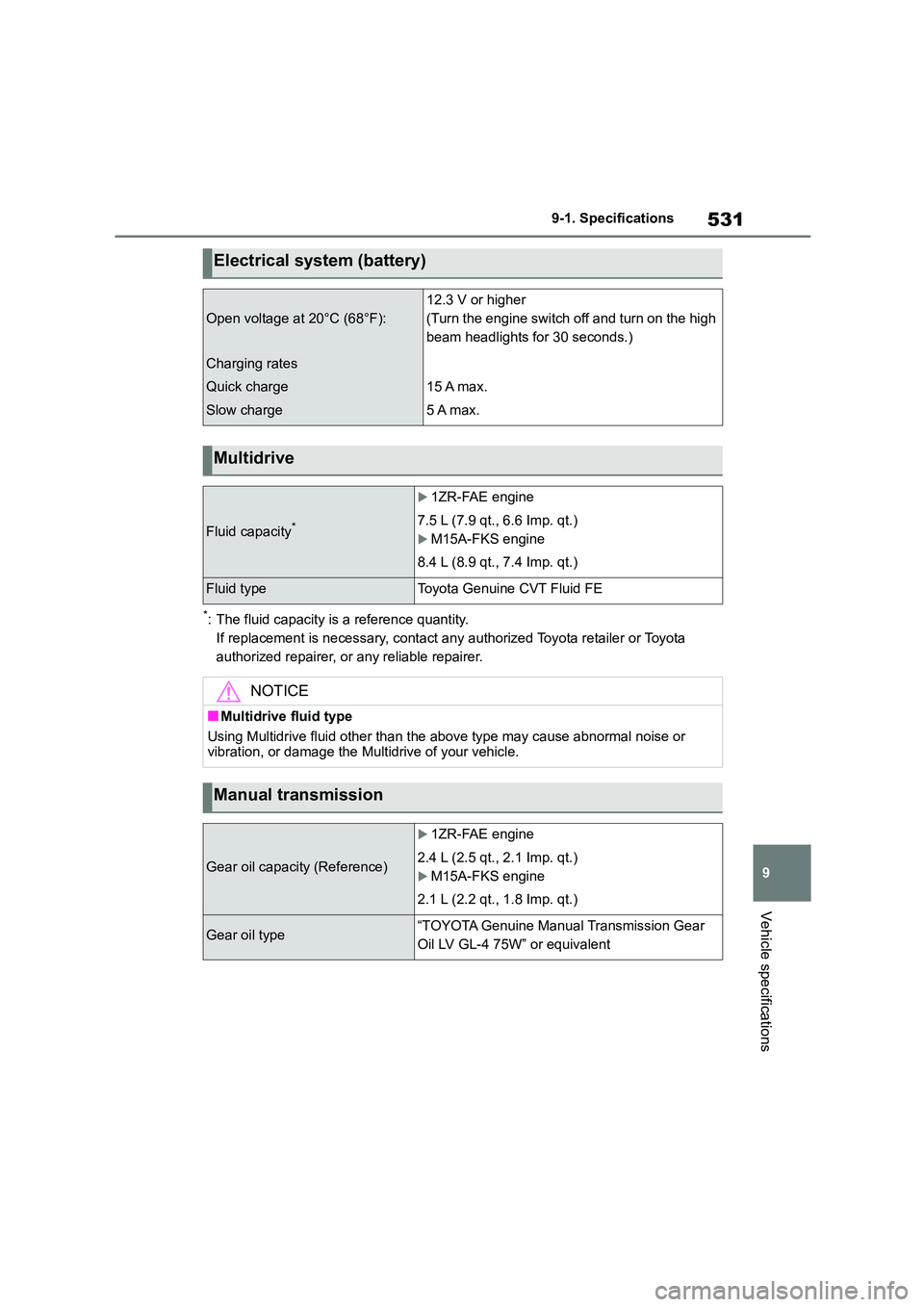

531
9
9-1. Specifications
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
Electrical system (battery)
Open voltage at 20°C (68°F):
12.3 V or higher
(Turn the engine switch off and turn on the high
beam headlights for 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Multidrive
Fluid capacity*
1ZR-FAE engine
7.5 L (7.9 qt., 6.6 Imp. qt.)
M15A-FKS engine
8.4 L (8.9 qt., 7.4 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■Multidrive fluid type
Using Multidrive fluid other than the above type may cause abnormal noise or
vibration, or damage the Multidrive of your vehicle.
Manual transmission
Gear oil capacity (Reference)
1ZR-FAE engine
2.4 L (2.5 qt., 2.1 Imp. qt.)
M15A-FKS engine
2.1 L (2.2 qt., 1.8 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent

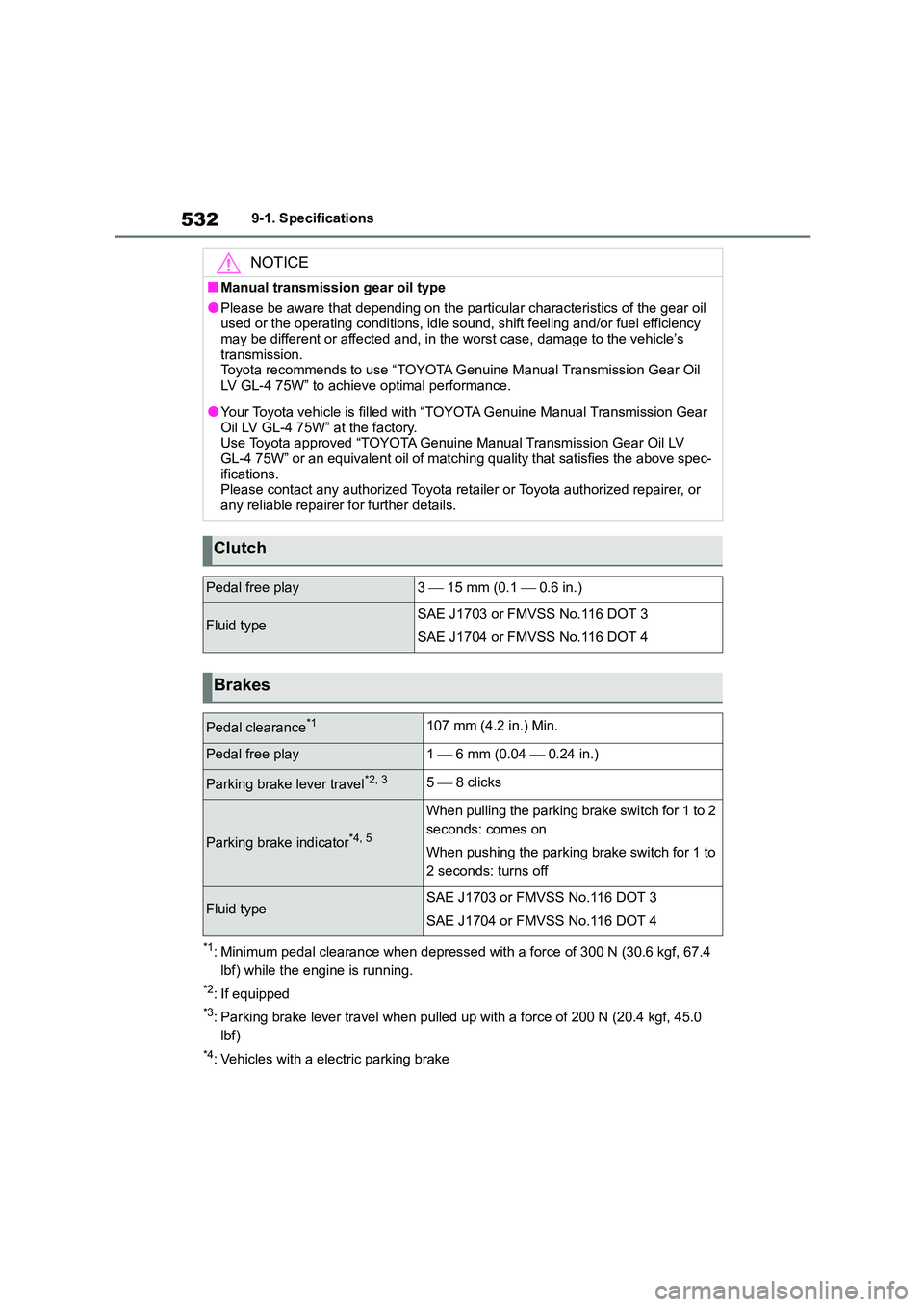

5329-1. Specifications
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.4
lbf) while the engine is running.
*2: If equipped
*3: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf, 45.0
lbf)
*4: Vehicles with a electric parking brake
NOTICE
■Manual transmission gear oil type
●Please be aware that depending on the particular characteristics of the gear oil
used or the operating conditions, idle sound, shift feeling and/or fuel efficiency may be different or affected and, in the worst case, damage to the vehicle’s
transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission Gear Oil LV GL-4 75W” to achieve optimal performance.
●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” at the factory. Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil LV
GL-4 75W” or an equivalent oil of matching quality that satisfies the above spec-
ifications. Please contact any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer for further details.
Clutch
Pedal free play3  15 mm (0.1  0.6 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4
Brakes
Pedal clearance*1107 mm (4.2 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake lever travel*2, 35  8 clicks
Parking brake indicator*4, 5
When pulling the parking brake switch for 1 to 2
seconds: comes on
When pushing the parking brake switch for 1 to
2 seconds: turns off
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4

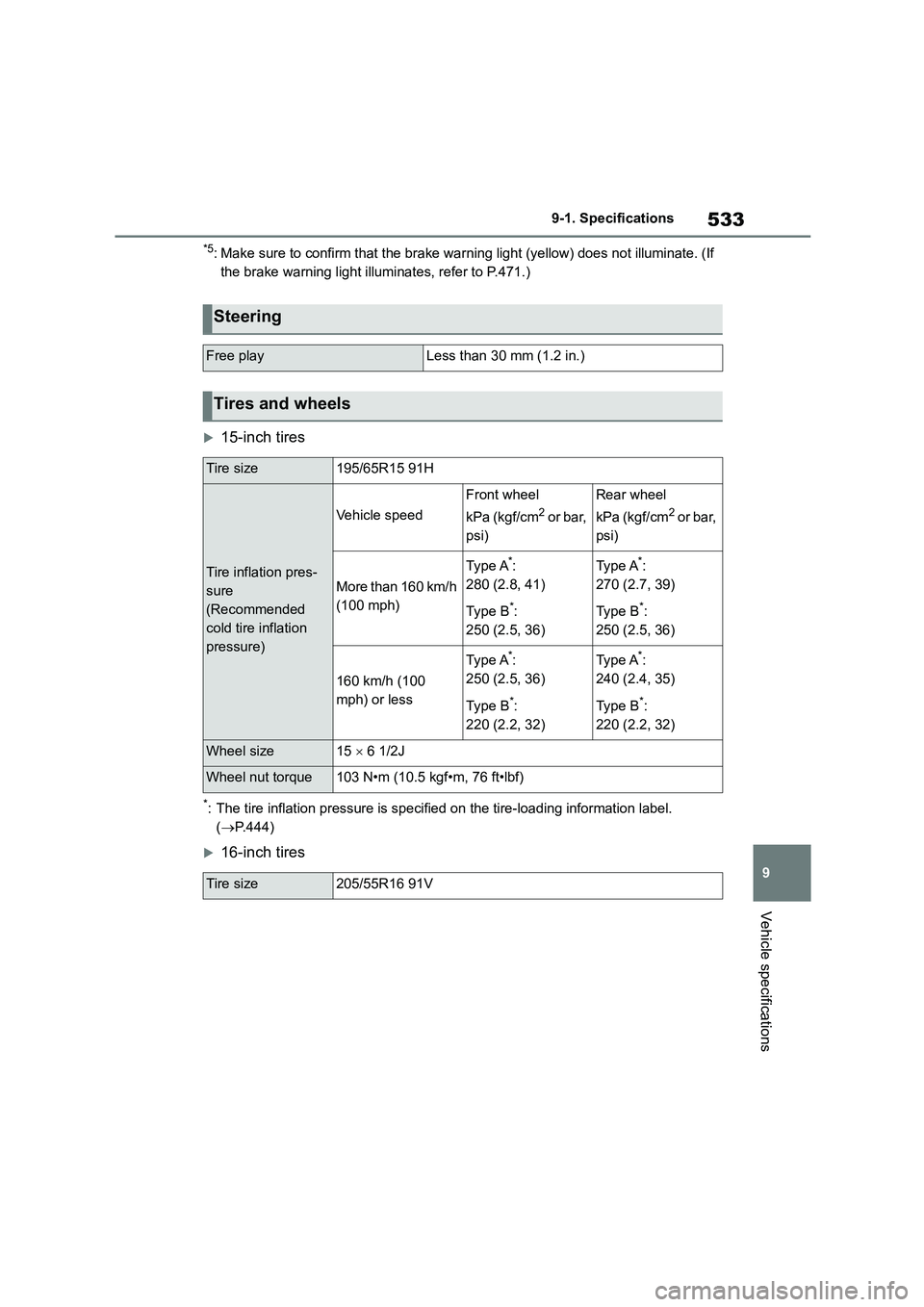

533
9
9-1. Specifications
Vehicle specifications
*5: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If
the brake warning light illuminates, refer to P.471.)
15-inch tires
*: The tire inflation pressure is specified on the tire-loading information label.
( P.444)
16-inch tires
Steering
Free playLess than 30 mm (1.2 in.)
Tires and wheels
Tire size195/65R15 91H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2 or bar,
psi)
Rear wheel
kPa (kgf/cm2 or bar,
psi)
More than 160 km/h
(100 mph)
Typ e A*:
280 (2.8, 41)
Typ e B*:
250 (2.5, 36)
Ty p e A*:
270 (2.7, 39)
Ty p e B*:
250 (2.5, 36)
160 km/h (100
mph) or less
Typ e A*:
250 (2.5, 36)
Typ e B*:
220 (2.2, 32)
Ty p e A*:
240 (2.4, 35)
Ty p e B*:
220 (2.2, 32)
Wheel size15  6 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size205/55R16 91V

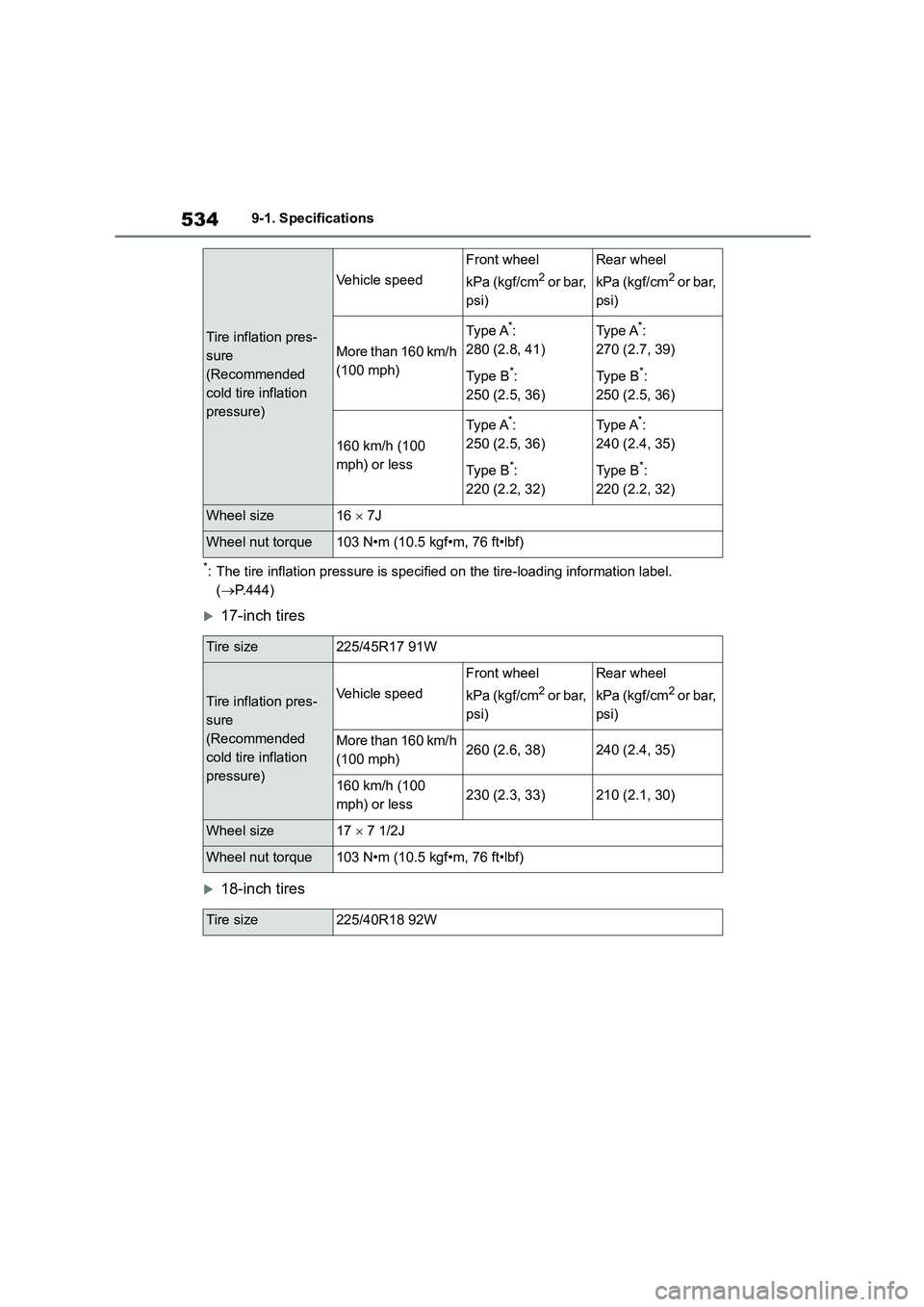

5349-1. Specifications
*: The tire inflation pressure is specified on the tire-loading information label.
( P.444)
17-inch tires
18-inch tires
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2 or bar,
psi)
Rear wheel
kPa (kgf/cm2 or bar,
psi)
More than 160 km/h
(100 mph)
Typ e A*:
280 (2.8, 41)
Typ e B*:
250 (2.5, 36)
Ty p e A*:
270 (2.7, 39)
Ty p e B*:
250 (2.5, 36)
160 km/h (100
mph) or less
Typ e A*:
250 (2.5, 36)
Typ e B*:
220 (2.2, 32)
Ty p e A*:
240 (2.4, 35)
Ty p e B*:
220 (2.2, 32)
Wheel size16  7J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size225/45R17 91W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2 or bar,
psi)
Rear wheel
kPa (kgf/cm2 or bar,
psi)
More than 160 km/h
(100 mph)260 (2.6, 38)240 (2.4, 35)
160 km/h (100
mph) or less230 (2.3, 33)210 (2.1, 30)
Wheel size17  7 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size225/40R18 92W
