8-2. Steps to take in an emergency
When trouble arises
13To inject the sealant and inflate
the tire, turn the compressor
switch on.
14 Inflate the tire until the recom-
mended pressure is reached.
The sealant will be injected and
the pressure will spike to
between 300 kPa (3.0 kgf/cm2
or bar, 44 psi) and 400 kPa (4.0
kgf/cm2 or bar, 58 psi), then
gradually decrease.
The air pressure gauge will dis-
play the actual tire inflation pres-
sure about 1 to 5 minutes after
the switch is turned on.
• Turn the compressor switch off and
then check the tire inflation pressure.
Being careful not to over inflate,
check and repeat the inflation proce-
dure until the specified tire inflation
pressure is reached.
• The tire can be inflated for about 5 to
20 minutes (depending on the out-
side temperature). If the tire inflation
pressure is still lower than the speci-
fied point after inflation for 25 min-
utes, the tire is too damaged to be
repaired. Turn the compressor switch
off and contact any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer.
• If the tire inflation pressure exceeds
the specified air pressure, let out
some air to adjust the tire inflation
pressure. ( P.537)
15With the compressor switch off,
pull out the power plug from the
power outlet socket and then
disconnect the hose from the
valve on the tire.
Some sealant may leak when the hose is removed.
16 Install the valve cap onto the
valve of the emergency repaired
tire.
17 Attach the air release cap to the
end of the hose.
If the air release cap is not attached, the sealant may leak and the vehicle

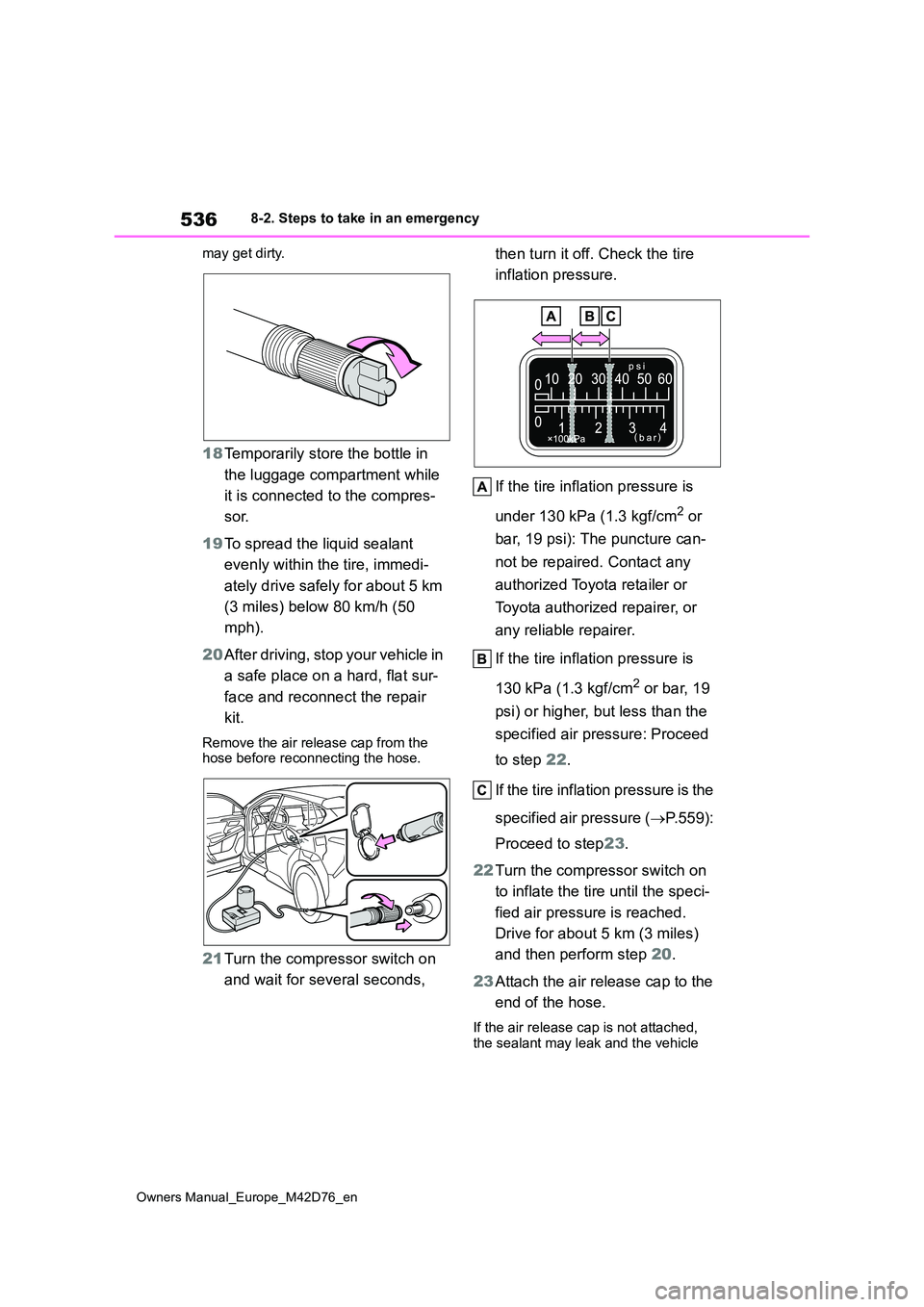

536
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
may get dirty.
18 Temporarily store the bottle in
the luggage compartment while
it is connected to the compres-
sor.
19 To spread the liquid sealant
evenly within the tire, immedi-
ately drive safely for about 5 km
(3 miles) below 80 km/h (50
mph).
20 After driving, stop your vehicle in
a safe place on a hard, flat sur-
face and reconnect the repair
kit.
Remove the air release cap from the hose before reconnecting the hose.
21 Turn the compressor switch on
and wait for several seconds,
then turn it off. Check the tire
inflation pressure.
If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm2 or
bar, 19 psi): The puncture can-
not be repaired. Contact any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
If the tire inflation pressure is
130 kPa (1.3 kgf/cm2 or bar, 19
psi) or higher, but less than the
specified air pressure: Proceed
to step 22.
If the tire inflation pressure is the
specified air pressure ( P.559):
Proceed to step 23.
22 Turn the compressor switch on
to inflate the tire until the speci-
fied air pressure is reached.
Drive for about 5 km (3 miles)
and then perform step 20.
23 Attach the air release cap to the
end of the hose.
If the air release cap is not attached, the sealant may leak and the vehicle

537
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
may get dirty.
24Store the bottle in the luggage
compartment while it is con-
nected to the compressor.
25 Taking precautions to avoid sud-
den braking, sudden accelera-
tion and sharp turns, drive
carefully at under 80 km/h (50
mph) to the nearest authorized
Toyota retailer or Toyota autho-
rized repairer, or any reliable
repairer that is less than 100 km
(62 miles) away for tire repair or
replacement.
For repair and replacement of a tire or disposal of the tire puncture repair kit, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
When having the tire repaired or
replaced, make sure to tell any autho- rized Toyota retailer or Toyota autho-rized repairer, or any reliable repairer
that the sealant is injected.
■If the tire is inflated to more than the specified air pressure
1 Disconnect the hose from the valve.
2 Install the air release cap to the end of the hose and push the protrusion
on the air release cap into the valve to let some air out.
3 Disconnect the hose from the valve,
remove the air release cap from the hose and then reconnect the hose.
4 Turn the compressor switch on and wait for several seconds, then turn it
off. Check that the air pressure indi- cator shows the specified air pres-sure is reached. ( P.559)
If the air pressure is under the desig- nated pressure, turn the compres-sor switch on again and repeat the
inflation procedure until the specified air pressure is reached.
■After a tire is repaired with the emergency tire puncture repair kit
●The tire pressure warning valve and transmitter should be replaced.
●Even if the tire inflation pressure is at the recommended level, the tire pres-
sure warning light may come on/flash.
WARNING
■When fixing the flat tire
●Stop your vehicle in a safe and flat
area.
●Do not touch the wheels or the area
around the brakes immediately after the vehicle has been driven. After the vehicle has been driven,
the wheels and the area around the brakes may be extremely hot. Touching these areas with hands,
feet or other body parts may result in burns.

538
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
WARNING
●Connect the valve and hose securely with the tire installed on
the vehicle.
If the hose is not properly connected
to the valve, air leakage may occur as
sealant may be sprayed out.
●If the hose comes off the valve while inflating the tire, there is a risk that the hose will move abruptly due
to air pressure.
●After inflation of the tire has com-
pleted, the sealant may splatter when the hose is disconnected or some air is let out of the tire.
●Follow the operation procedure to repair the tire. If the procedure is
not followed, the sealant may spray out.
●Keep back from the tire while it is being repaired, as there is a chance of it bursting while the repair opera-
tion is being performed. If you notice any cracks or deformation of the tire, turn off the compressor
switch and stop the repair operation immediately.
●The repair kit may overheat if oper-ated for a long period of time. Do not operate the compressor contin-
uously for more than 40 minutes.
●Parts of the repair kit become hot
during operation. Be careful han- dling the repair kit during and after operation. Do not touch the metal
part connecting the bottle and the compressor. It will be extremely hot.
●Do not attach the vehicle speed warning sticker to an area other than the one indicated. If the sticker
is attached to an area where an SRS airbag is located, such as the pad of the steering wheel, it may
prevent the SRS air bag from oper- ating properly.
■Driving to spread the liquid seal-ant evenly
Observe the following precautions to
reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Drive the vehicle carefully at a low speed. Be especially careful when
turning and cornering.
●If the vehicle does not drive straight
or you feel a pull through the steer- ing wheel, stop the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire
inflation pressure is 130 kPa (1.3
kgf/cm2 or bar, 19 psi) or less, the tire may be severely damaged.
NOTICE
■When performing an emergency repair
●Perform the emergency repair with-
out removing the nail or screw that has punctured the tread of the tire. If the object that has punctured the
tire is removed, repair by the emer- gency tire puncture repair kit may not be possible.
●The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
●Do not put the repair kit directly onto dusty ground such as sand at the side of the road. If the repair kit
vacuums up dust, etc., a malfunc- tion may occur.
●Make sure the sealant bottle of the repair kit is in a vertical position. The repair kit does not operate
properly when it is laid.

539
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
One of the following may be the
cause of the problem:
 The charging cable may be con-
nected to the vehicle. ( P.118)
 The electronic key may not be
functioning properly.* ( P.542)
 The traction battery may be com-
pletely discharged. Charge the
traction battery. ( P. 1 1 4 )
 There may be a malfunction in
the immobilizer system.* ( P.75)
 There may be a malfunction in
the shift control system.*
( P.245, 527)
 On some models: There may be
a malfunction in the steering lock
NOTICE
■Precautions for the emergency tire puncture repair kit
●The repair kit power source should be 12 V DC suitable for vehicle use. Do not connect the repair kit to any
other source.
●Place the repair kit in a storage to
prevent it from being exposed to dirt or water.
●Store the repair kit in the luggage compartment out of reach of chil-dren.
●Do not disassemble or modify the repair kit. Do not subject parts such
as the air pressure indicator to impacts. This may cause a malfunc-tion.
■To avoid damage to the tire pres-sure warning valves and trans-
mitters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is used, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer or other qualified ser-vice shop as soon as possible. After
use of liquid sealant, make sure to replace the tire pressure warning valve and transmitter when repairing
or replacing the tire. ( P.479)
If the EV system will not
start
Reasons for the EV system not
starting vary depending on the
situation. Check the following
and perform the appropriate
procedure:
Contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer if the problem cannot
be repaired, or if repair proce-
dures are unknown.
The EV system will not start
even though the correct
starting procedure is being
followed. ( P. 2 4 3 )

540
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
system.
 The EV system may be malfunc-
tioning due to an electrical prob-
lem such as electronic key
battery depletion or a blown fuse.
However, depending on the type
of malfunction, an interim mea-
sure is available to start the EV
system. ( P.540)
 There is a possibility that the
temperature of the traction bat-
tery is extremely low (approxi-
mately below -30°C [-22°F]).
( P.87, 244)
*: It may not be possible to shift the shift
position from P.
One of the following may be the
cause of the problem:
 The 12-volt battery may be dis-
charged. ( P.544)
 The 12-volt battery terminal con-
nections may be loose or cor-
roded. ( P.473)
One of the following may be the
cause of the problem:
 One or both of the 12-volt battery
terminals may be disconnected.
( P.473)
 The 12-volt battery may be dis-
charged. ( P.544)
Contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer if the problem cannot
be repaired, or if repair procedures are
unknown.
When the EV system does not
start, the following steps can be
used as an interim measure to start
the EV system if the power switch
is functioning normally.
Do not use this starting procedure
except in cases of emergency.
1 Set the parking brake.
2 Turn the power switch to ACC.*
3Press and hold the power switch
for about 15 seconds while
depressing the brake pedal
firmly.
Even if the EV system can be
started using the above steps, the
system may be malfunctioning.
Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
*: Setting can be customized. ( P.567)
The interior lights and head-
lights are dim, or the horn
does not sound or sounds at
a low volume.
The interior lights and head-
lights do not turn on, or the
horn does not sound.
Emergency start function

541
8
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
When trouble arises
1Open the hood.
2 Pull the ring section of the emer-
gency release lever and
remove.
3 Pull the ring section horizontally
toward the inside of the vehicle.
After the unlocking operation is com- pleted, push the ring part back to its
original position until it clicks into place.
Emergency release lever
■When unlocking with the emer- gency release lever
Be sure to observe the following.
If you lose your keys
New genuine keys can be
made by any authorized
Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer using another key
and the key number stamped
on your key number plate.
Keep the plate in a safe place
such as your wallet, not in the
vehicle.
NOTICE
■When an electronic key is lost
If the electronic key remains lost, the
risk of vehicle theft increases signifi- cantly. Visit any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately with all remaining electronic keys that were provided with your vehicle.
If the charging port lids
cannot be opened
If the charging port lids cannot
be opened when using the nor-
mal procedure, the following
procedure can be used to open
the charging port lids.
Opening the charging port
lids

542
Owners Manual_Europe_M42D76_en
8-2. Steps to take in an emergency
●Do not apply excessive force to the
ring part
●Do not pull horizontally too much
Use only in an emergency.
If the problem persists, have the vehicle
inspected any authorized Toyota retailer
or Toyota authorized repairer, or any reli-
able repairer immediately if this occurs.
■When the electronic key does not work properly
●Make sure that the smart entry & start system has not been deactivated at any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer. If it is off, turn the func-tion on.
●Check if battery-saving mode is set. If it is set, cancel the function. ( P.204)
Use the mechanical key (P.184)
If the electronic key
does not operate prop-
erly
If communication between the
electronic key and vehicle is
interrupted ( P.204) or the
electronic key cannot be used
because the battery is
depleted, the smart entry &
start system and wireless
remote control cannot be
used. In such cases, the doors
can be opened and the EV sys-
tem can be started by follow-
ing the procedure below.
NOTICE
■In case of a smart entry & start system malfunction or other key-related problems
Take your vehicle with all the elec- tronic keys provided with your vehicle, to any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.
Locking and unlocking the
doors
