2022 TOYOTA BZ4X clock setting

158
Owners Manual_Europe_M42D76_en
2-2. Charging
■EV system does not start after DC charging
Refer to the following tables and carry out the appropriate cor rection proce-
dures.
■Cannot charge at desired time
Likely causeCorrection procedure
System check is not completed properly
after charging.
Do a system check following the proce-
dures on P.131. If the system check can
not be completed properly even after
these procedures are performed, con-
tact any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
The DC charging connector is still con-
nected.
For safety, the EV system can not be
started when the DC charging connector
is connected. ( P.118)
Remove the DC charging connector
immediately after the charging is com-
pleted.
The DC charging system is malfunction-
ing
• Depending on the type of malfunction,
the EV system can be started after
closing the charging port lid.
• If the EV system can not be started,
contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer.
When charging schedule function does not operate normally
Likely causeCorrection procedure
The vehicle calendar and clock is not set
correctly.
Check the calendar setting and set it to
the correct date. ( P.178)

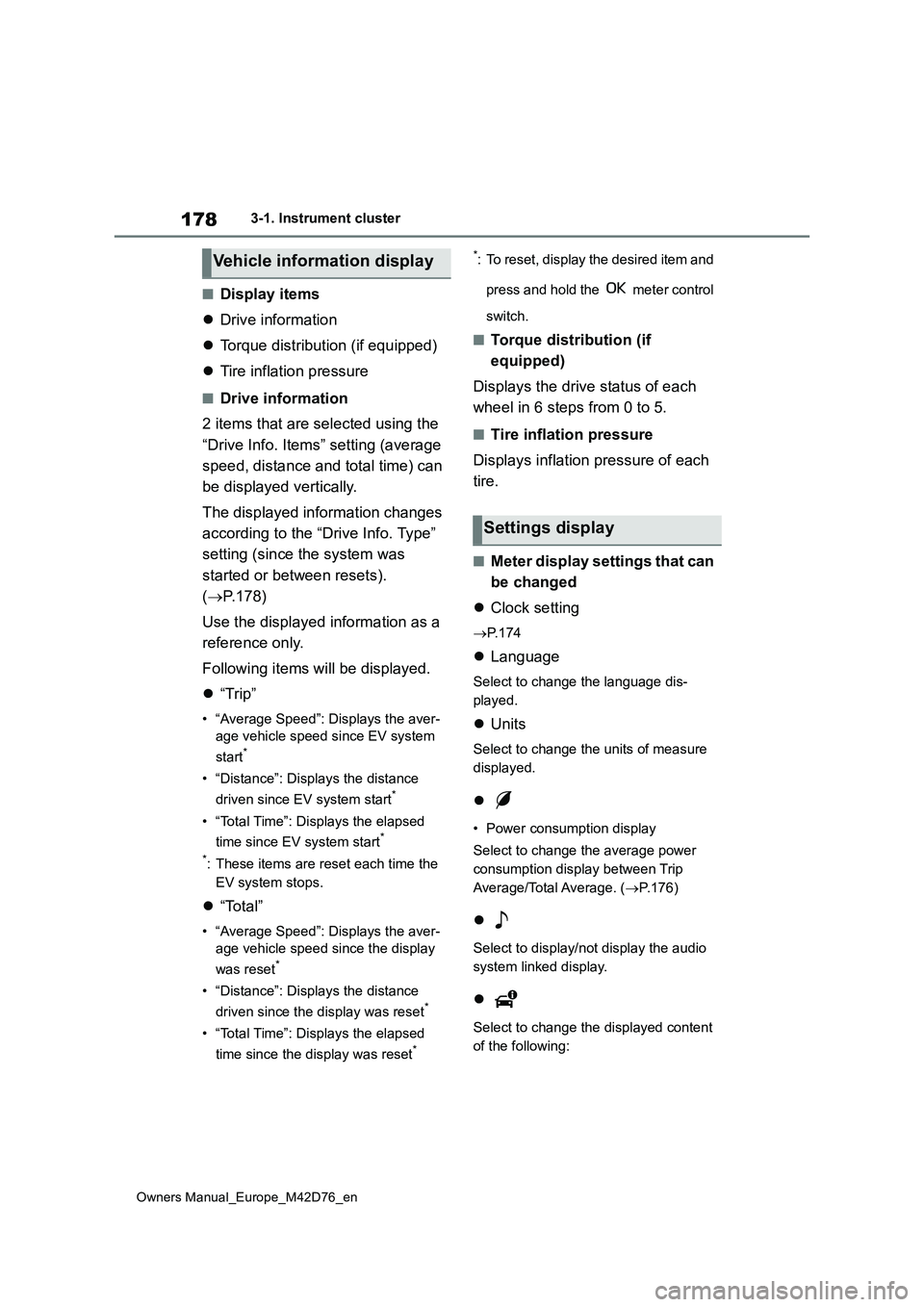

178
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster
■Display items
 Drive information
 Torque distribution (if equipped)
 Tire inflation pressure
■Drive information
2 items that are selected using the
“Drive Info. Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info. Type”
setting (since the system was
started or between resets).
( P.178)
Use the displayed information as a
reference only.
Following items will be displayed.
 “Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since EV system
start*
• “Distance”: Displays the distance
driven since EV system start*
• “Total Time”: Displays the elapsed
time since EV system start*
*: These items are reset each time the
EV system stops.
 “Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*: To reset, display the desired item and
press and hold the meter control
switch.
■Torque distribution (if
equipped)
Displays the drive status of each
wheel in 6 steps from 0 to 5.
■Tire inflation pressure
Displays inflation pressure of each
tire.
■Meter display settings that can
be changed
 Clock setting
P. 1 7 4
Language
Select to change the language dis-
played.
 Units
Select to change the units of measure
displayed.

• Power consumption display
Select to change the average power
consumption display between Trip
Average/Total Average. ( P.176)

Select to display/not display the audio
system linked display.

Select to change the displayed content
of the following:
Vehicle information display
Settings display

586
Owners Manual_Europe_M42D76_en
Alphabetical Index
Wiper lever ................................. 269
License plate lights ...................... 259
Light switch ................................ 259
Replacing light bulbs .................. 504
Light
Interior lights .............................. 432
Personal lights ........................... 433
Light bulbs
Replacing ................................... 504
Lights
AHB (Automatic High Beam) ..... 265
AHS (Adaptive High-beam System)
................................................. 262
Emergency flasher switch .......... 506
Extended Headlight Lighting system
................................................. 260
Fog light switch .......................... 268
Headlight switch ......................... 259
Interior light list ........................... 431
Luggage compartment light 191, 195
Replacing light bulbs .................. 504
Turn signal lever ........................ 253
Vanity lights ................................ 444
Locking and unlocking the AC
charging connector.................... 110
LTA (Lane Tracing Assist) ............ 294
Operation ................................... 294
Warning lights ............................ 518
Luggage cover .............................. 439
M
Maintenance
AC charging cable...................... 106
Do-it-yourself maintenance ........ 465
Maintenance data ...................... 554
Maintenance requirements ........ 463
Manual headlight leveling dial..... 261
Menu icons .................................... 175
Meter
Clock .......................................... 172
Indicators ................................... 169
Instrument panel light control ..... 175
Meter control switches ............... 176
Meters ........................................172
Multi-information display ............175
Settings ...................................... 178
Warning lights.............................515
Warning message ...................... 523
Mirrors
Inside rear view mirror................ 216
Outside rear view mirror defoggers
................................................. 422
Outside rear view mirrors ........... 217
Vanity mirrors .............................444
Motor
Compartment .............................470
Multi-information display ............. 175
Audio system-linked display ....... 177
Charging..... 117, 136, 145, 146, 160
Clock .......................................... 174
Cruise control .............................316
Driving information display ......... 176
Driving support system information
display ...................................... 177
Dynamic radar cruise control ..... 310
LDA (Lane Departure Alert) ........ 302
LTA (Lane Tracing Assist)........... 297
Menu icons ................................. 175
Meter control switches ............... 176
Navigation system-linked display177
Power consumption.................... 176
Settings ...................................... 178
Speed limiter .............................. 318
Suggestion function.................... 179
Tire pressure .............................. 477
Vehicle information display......... 178
Warning message ...................... 523
My Room Mode .............................145
Display ....................................... 145
Starting My Room Mode ............145
Warning messages..................... 146
