Vehicle status information and indicators
Vehicle status informa-
tion and indicators
3-1. Instrument cluster
Warning lights and indicators
....................................... 168
Gauges and meters .......... 172
Multi-information display ... 175

168
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster
3-1.In strument clu ste r
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle’s systems.
Warning lights and indicators
The warning lights and indicators on the instrument cluster and out-
side rear view mirrors inform the driver of the status of the v ehicle’s
various systems.
Warning lights and indicators displayed on the instrument
cluster
Warning lights
(Red)
Brake system warning light*1
( P.515)
(Yellow)
Brake system warning light*1
( P.515)
Charging system warning
light*2 ( P.515)
SRS warning light*1
( P.516)
ABS warning light*1
( P.516)
Inappropriate pedal opera-
tion warning light*2 ( P. 5 1 6 )
(Red)
Electric power steering sys-
tem warning light*1 ( P.517)
(Yellow)
Electric power steering sys-
tem warning light*1 ( P.517)
Traction battery charge
warning light ( P.517)

169
3
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster
Vehicle status information and indicators
*1: These lights come on when the
power switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
EV system is started, or after a few
seconds. There may be a malfunc-
tion in a system if the lights do not
come on, or turn off. Have the vehi-
cle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
*2: This light illuminates on the multi-
information display with a message.
The indicators inform the driver of
the operating state of the vehicle’s
various systems.
Driver’s and front passen-
ger’s seat belt reminder light
( P.517)
Rear passengers’ seat
belt reminder lights
( P.517)
Tire pressure warning light*1
( P.518)
(Orange)
LDA indicator (P.518)
(Orange)
LTA indicator (P.518)
Driving assist information
indicator*1 ( P.519)
(Flashes)
Toyota parking assist-sensor
OFF indicator*1 (if equipped)
( P.519)
(Orange)
Cruise control indicator
( P.519)
(Orange)
Dynamic radar cruise control
indicator ( P.520)
(Orange)
Speed limiter indicator (if
equipped) ( P.520)
(Flashes or illuminates)
PCS warning light*1
( P.520)
Slip indicator*1 ( P.520)
(Flashes)
Parking brake indicator
( P.521)
(Flashes)
Brake hold operated indica-
tor*1 ( P.521)
WARNING
■If a safety system warning light
does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the EV sys- tem, this could mean that these sys-tems are not available to help protect
you in an accident, which could result in death or serious injury. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( P.253)
Tail light indicator ( P.259)
Headlight high beam indica-
tor ( P.260)
AHS indicator (if equipped)
( P.262)
AHB indicator (if equipped)
( P.265)
Rear fog light indicator
( P.268)

170
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster
*1: These lights come on when the
power switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
EV system is started, or after a few
seconds. There may be a malfunc-
tion in a system if the lights do not
come on, or turn off. Have the vehi-
cle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
PCS warning light*1, 2
( P.283)
(*4)
Cruise control indicator
( P.316)
(*4)
Dynamic radar cruise control
indicator ( P.307)
(*4)
LDA indicator (P.302)
(*4)
Speed limiter indicator (if
equipped) ( P.318)
BSM outside rear view mirror
indicators*1, 5 (if equipped)
( P.324, 328, 343)
LDA OFF indicator*2
( P.302)
(*4)
LTA indicator (P.294)
Driving assist information
indicator*1, 2 ( P.324, 343,
348, 352)
Toyota parking assist-sensor
OFF indicator*1, 2 (if
equipped) ( P.333)
(Flashes)
Slip indicator*1 (P.407)
VSC OFF indicator*1, 2
( P.407)
Charging cable indicator
( P. 1 1 7 )
Smart entry & start system
indicator*3 ( P.243)
“READY” indicator ( P.243)
Parking brake indicator
( P.254)
Brake hold standby indica-
tor*1 ( P.257)
Brake hold operated indica-
tor*1 ( P.257)
Low outside temperature
indicator *7 ( P.173)
Security indicator ( P. 7 5 ,
77)
“PASSENGER AIR
BAG” indicator*1, 6
( P.47)
Eco mode indicator ( P. 4 0 1 )
Snow Mode indicator (if
equipped) ( P.401)
Downhill assist control sys-
tem indicator (if equipped)
( P.406)
Grip Control indicator (if
equipped) ( P.406)
Grip Control set speed indi-
cator (if equipped) ( P.406)
Regeneration Boost indicator
( P.251)
(*8)
SNOW/DIRT mode indicator
(if equipped) ( P.406)
(*8)
D.SNOW/MUD mode indica-
tor (if equipped) ( P.406)

171
3
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster
Vehicle status information and indicators
*2: This light comes on when the system
is turned off.
*3: This light illuminates on the multi-
information display with a message.
*4: Depending on the operating condi-
tion, the color and illuminating/flash-
ing state of the light change.
*5: This light illuminates on the outside
rear view mirrors.
*6: This light illuminates on the over-
head console.
*7: When the outside temperature is
approximately 3°C (37°F) or lower,
the indicator will flash for approxi-
mately 10 seconds, then stay on.
*8: Depending on the operating condi-
tion, the color of the light change.

172
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster

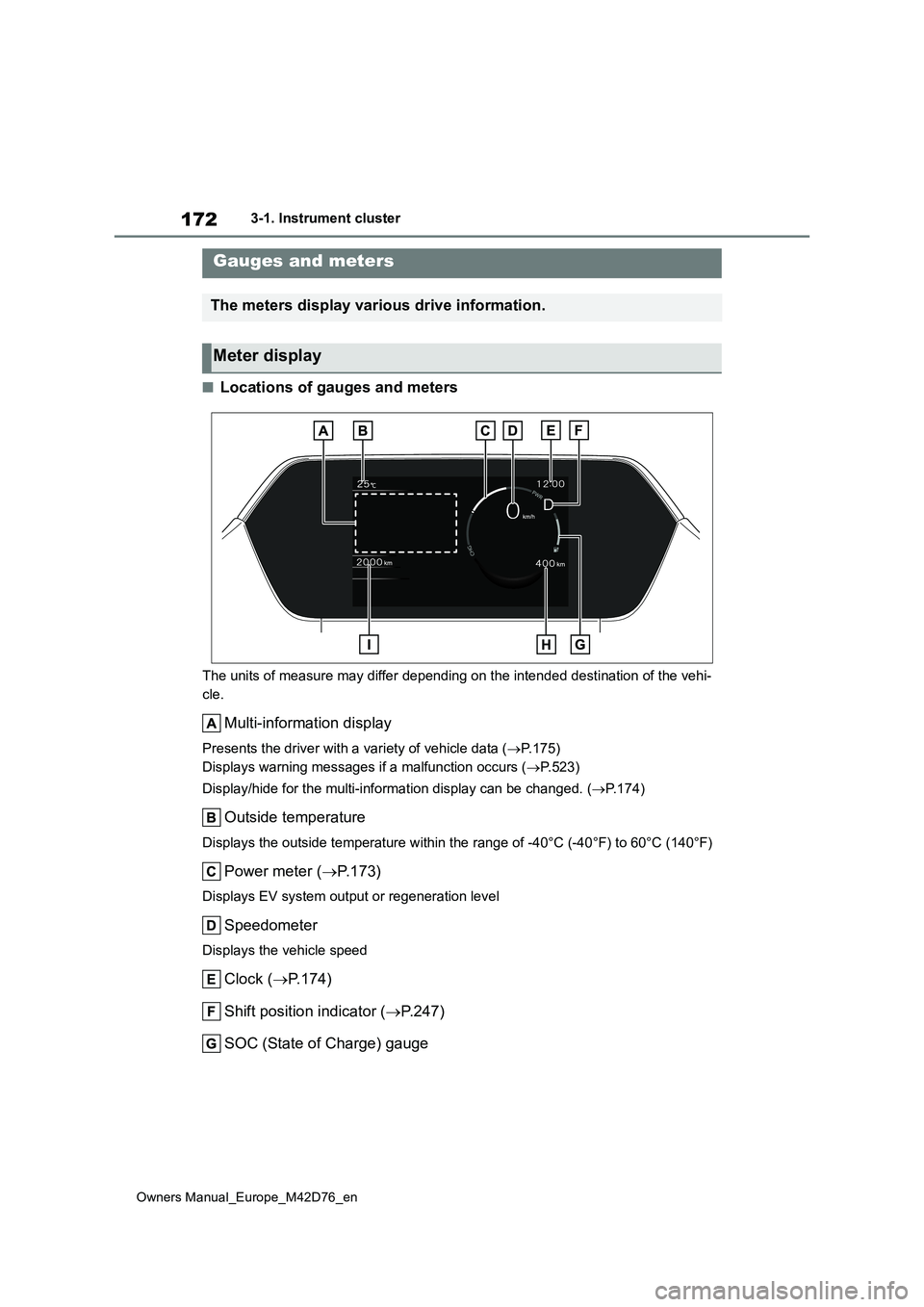

■Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehi-
cle.
Multi-information display
Presents the driver with a variety of vehicle data ( P.175)
Displays warning messages if a malfunction occurs ( P.523)
Display/hide for the multi-information display can be changed. (P.174)
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 60°C (140°F)
Power meter (P. 1 7 3 )
Displays EV system output or regeneration level
Speedometer
Displays the vehicle speed
Clock (P.174)
Shift position indicator ( P.247)
SOC (State of Charge) gauge
Gauges and meters
The meters display various drive information.
Meter display

173
3
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster
Vehicle status information and indicators
Displays the amount of charge remaining in the traction battery.
Driving range
Displays driving range with remaining charge. (P.247)
When the air conditioning system is operating, and the driving range with the
air conditioning system on are displayed.
Odometer and trip meter display ( P.174)
■Power meter
Charge area
Shows regeneration*1 status.
Regenerated energy will be used to
charge the EV battery (traction battery).
Power area
Displays the EV system output (acceler-
ation force) while driving.
Regeneration*1 restrictions refer-
ence display*2
In the following situations, regenerative
braking is restricted, and the references
for those restrictions are displayed in the
charge area.
• When the traction battery has a large
amount of charge and can no longer
be regenerated
• When the temperature of the traction
batter is extremely high or extremely
low
Output restrictions reference dis-
play*2
In the following situations, the output is
restricted, and the references for those
restrictions are displayed in the power
area.
• When the traction battery has a low
amount of charge and can no longer
output power
• When the temperature of the traction
batter is extremely high or extremely
low
*1: The meaning of “Regeneration” here
means converting kinetic energy into
electrical energy.
*2: This is a reference display, so it may
differ from the actual restriction
depending on the vehicle condition.
■Outside temperature display
●In the following situations, the correct outside temperature may not be dis-played, or the display may take longer
than normal to change: • When stopped, or driving at low speeds (less than 25 km/h [16 mph])
• When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)

174
Owners Manual_Europe_M42D76_en
3-1. Instrument cluster
●When “--” is displayed, the system
may be malfunctioning. Take your vehicle to any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
●When the outside temperature is
approximately 3°C (37°F) or lower, the
indicator will flash for approxi-
mately 10 seconds, then stay on.
■Liquid crystal display
 P. 1 7 6
■Customization
The gauges and meters can be custom-
ized in of the multi-information dis-
play. ( P.561)
The Multi-Information display can
be switched between display and
hidden.
■Display items
 Odometer
Displays the total distance the vehicle
has been driven.
 Trip meter A/Trip meter B
Displays the distance the vehicle has
been driven since the meter was last
reset. Trip meters A and B can be used
to record and display different distances
independently.
■Switching the display
The display switches each time the
switch is pressed. Also, when the
switch is continuously pressed
during the trip meter display, the
driving distance can be changed to
“0”.
The clocks on the following can be
adjusted on the audio system
screen.
 Multi-information display
 Audio system screen
For details, refer to “Multimedia owner’s
manual”.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crys-tal information display. At extremely
low temperatures, the information dis- play monitor may respond slowly, and display changes may be delayed.
Switching the meter display
Odometer and trip meter
display
Adjusting the clock
