2022 TOYOTA BZ4X Owners Manual (in English)

215
4
Owners Manual_Europe_M42D76_en
4-4. Adjusting the steering wheel and mirrors
Before driving
4-4.Adjusting the steering whe el an d mirrors
1Hold the steering wheel and
push the lever down.
2 Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
Press on or close to the mark.
Steering wheel
Adjustment procedure
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.Doing so may cause the driver to mis-
handle the vehicle and cause an acci- dent, resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is
securely locked. Otherwise, the steer- ing wheel may move suddenly, possi-bly causing an accident, resulting in
death or serious injury.
Sounding the horn

216
Owners Manual_Europe_M42D76_en
4-4. Adjusting the steering wheel and mirrors
The height of the rear view mirror
can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Responding to the level of bright-
ness of the headlights of vehicles
behind, the reflected light is auto-
matically reduced.
Turn the automatic anti-glare func-
tion mode on/off
When the automatic anti-glare function
is in ON mode, the indicator illumi-
nates. The function will set to ON mode
each time the power switch is turned to
ON.
Pressing the button turns the function
to OFF mode. (The indicator also
turns off.)
■To prevent sensor error
To ensure that the sensors operate
properly, do not touch or cover them.
Inside rear view mirror
The rear view mirror’s position
can be adjusted to enable suf-
ficient confirmation of the rear
view.
Adjusting the height of rear
view mirror
WARNING
■Caution while driving
Do not adjust the position of the mir-
ror while driving. Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
Anti-glare function

217
4
Owners Manual_Europe_M42D76_en
4-4. Adjusting the steering wheel and mirrors
Before driving
1To select a mirror to adjust, turn
the switch.
Left
Right
2 To adjust the mirror, operate the
switch.
Up
Right
Down
Left
■Mirror angle can be adjusted when
The power switch is in ACC or ON.
■Defogging the mirrors
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defoggers. ( P.422)
■Automatic adjustment of the mirror
angle (if equipped)
A desired mirror face angle can be entered to memory and recalled auto-
matically by the driving position memory. ( P.222)
Outside rear view mir-
rors
The rear view mirror’s position
can be adjusted to enable suf-
ficient confirmation of the rear
view.
WARNING
■Important points while driving
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious
injury.
●Do not adjust the mirrors while driv- ing.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and prop-erly adjusted before driving.
Adjustment procedure
WARNING
■When the mirror defoggers are
operating
Do not touch the rear view mirror sur- faces, as they can become very hot
and burn you.

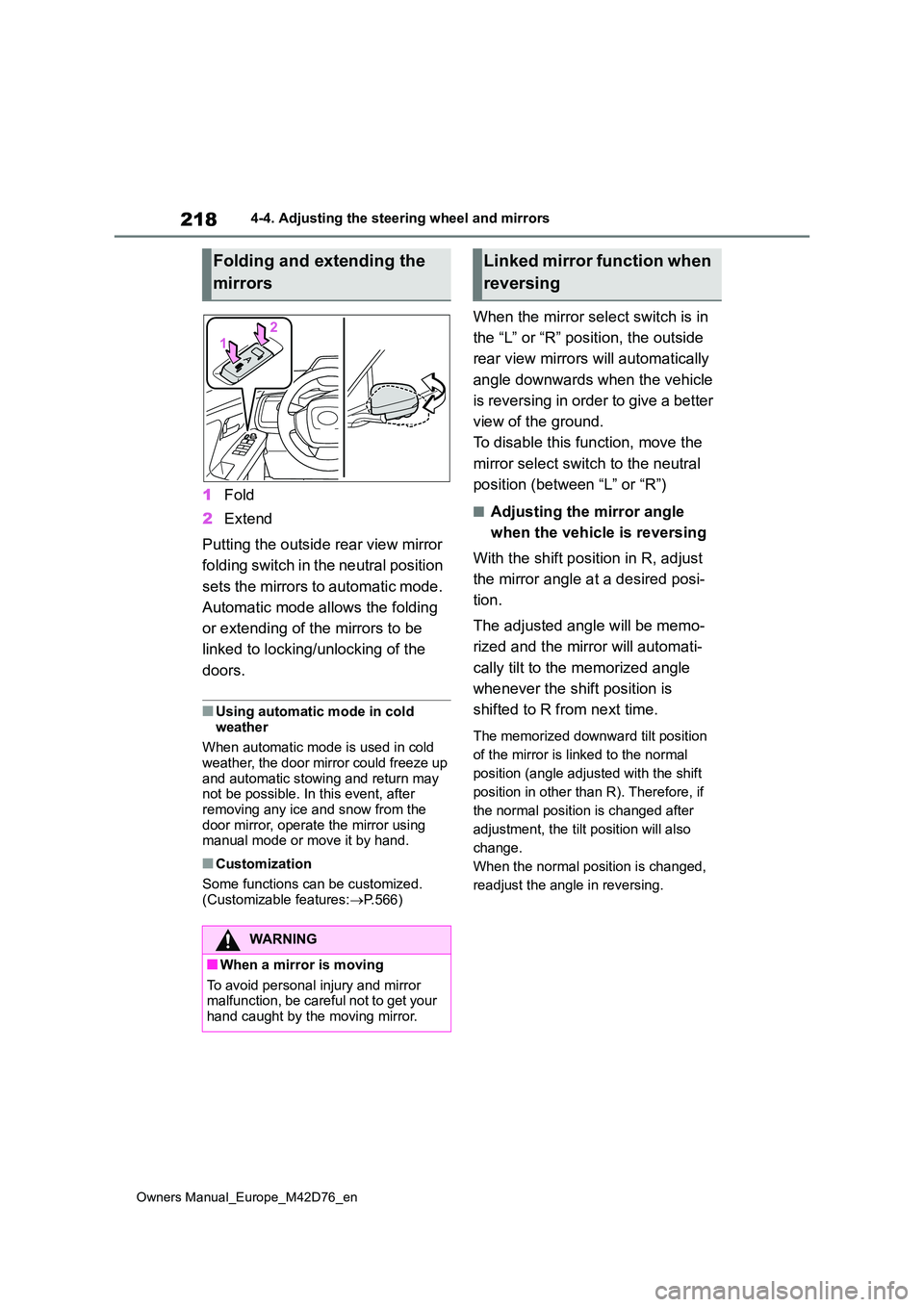

218
Owners Manual_Europe_M42D76_en
4-4. Adjusting the steering wheel and mirrors
1Fold
2 Extend
Putting the outside rear view mirror
folding switch in the neutral position
sets the mirrors to automatic mode.
Automatic mode allows the folding
or extending of the mirrors to be
linked to locking/unlocking of the
doors.
■Using automatic mode in cold
weather
When automatic mode is used in cold weather, the door mirror could freeze up
and automatic stowing and return may not be possible. In this event, after removing any ice and snow from the
door mirror, operate the mirror using manual mode or move it by hand.
■Customization
Some functions can be customized.
(Customizable features: P.566)
When the mirror select switch is in
the “L” or “R” position, the outside
rear view mirrors will automatically
angle downwards when the vehicle
is reversing in order to give a better
view of the ground.
To disable this function, move the
mirror select switch to the neutral
position (between “L” or “R”)
■Adjusting the mirror angle
when the vehicle is reversing
With the shift position in R, adjust
the mirror angle at a desired posi-
tion.
The adjusted angle will be memo-
rized and the mirror will automati-
cally tilt to the memorized angle
whenever the shift position is
shifted to R from next time.
The memorized downward tilt position
of the mirror is linked to the normal
position (angle adjusted with the shift
position in other than R). Therefore, if
the normal position is changed after
adjustment, the tilt position will also
change.
When the normal position is changed,
readjust the angle in reversing.
Folding and extending the
mirrors
WARNING
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand caught by the moving mirror.
Linked mirror function when
reversing

219
4
Owners Manual_Europe_M42D76_en
4-5. Opening, closing the windows
Before driving
4-5.Opening, closing the windows
The power windows can be opened
and closed using the switches.
1 Closing
2 One-touch closing*
3Opening
4 One-touch opening*
*: To stop the window partway, operate
the switch in the opposite direction.
■The power windows can be oper- ated when
The power switch is in ON.
■Operating the power windows after
turning the EV system off
The power windows can be operated for approximately 45 seconds even after
the power switch is turned to ACC or OFF. They cannot, however, be oper-ated once either front door is opened.
■Jam protection function
If an object becomes jammed between the window and the window frame while the window is closing, window move-
ment is stopped and the window is opened slightly.
■Catch protection function
If an object becomes caught between
the door and window while the window
is opening, window movement is stopped.
■When the window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and the side window cannot
be opened or closed, perform the follow- ing operations with the power window switch of that door.
●Stop the vehicle. With the power switch in ON, within 4 seconds of the
jam protection function or catch pro- tection function activating, continu-ously operate the power window
switch in the one-touch closing direc- tion or one-touch opening direction so that the side window can be opened
and closed.
●If the side window cannot be opened
and closed even when performing the above operations, perform the follow-ing procedure for function initializa-
tion.
1 Turn the power switch to ON.
2 Pull and hold the power window switch in the one-touch closing direction and completely close the
side window.
3 Release the power window switch for a moment, resume pulling the switch in the one-touch closing
direction, and hold it there for approximately 6 seconds or more.
4 Press and hold the power window switch in the one-touch opening
direction. After the side window is completely opened, continue holding the switch for an additional 1 second
or more.
5 Release the power window switch for a moment, resume pushing the switch in the one-touch opening
direction, and hold it there for approximately 4 seconds or more.
6 Pull and hold the power window switch in the one-touch closing
direction again. After the side win- dow is completely closed, continue
Power windows
Opening and closing the
power windows

220
Owners Manual_Europe_M42D76_en
4-5. Opening, closing the windows
holding the switch for a further 1 sec-
ond or more.
If you release the switch while the win- dow is moving, start again from the
beginning. If the window reverses and cannot be fully closed or opened, have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■Door lock linked window operation
●The power windows can be opened
and closed using the mechanical key.*
( P.543)
●The power windows can be opened
and closed using the wireless remote
control.* ( P.185)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
■Power windows open warning
buzzer
The buzzer sounds and message is shown on the multi-information display
in the instrument cluster when the power switch is turned off and the driver’s door is opened with the power windows open.
■Customization
Some functions can be customized. (Customizable features: P.566)
WARNING
Observe the following precautions. Failing to do so may result in death or
serious injury.
■Closing the windows
●The driver is responsible for all the
power window operations, including the operation for the passengers. In order to prevent accidental opera-
tion, especially by a child, do not let a child operate the power windows. It is possible for children and other
passengers to have body parts caught in the power window. Also, when riding with a child, it is recom-
mended to use the window lock switch. ( P.221)
●Check to make sure that all passen- gers do not have any part of their body in a position where it could be
caught when a window is being operated.
●When using the wireless remote control or mechanical key and oper-ating the power windows, operate
the power window after checking to make sure that there is no possibil-ity of any passenger having any of
their body parts caught in the win- dow. Also do not let a child operate window by the wireless remote con-
trol or mechanical key. It is possible for children and other passengers to get caught in the power window.

221
4
Owners Manual_Europe_M42D76_en
4-5. Opening, closing the windows
Before driving
This function is designed to prevent
children from accidentally opening
or closing a passenger window.
Press the switch.
The indicator will come on and the
passenger window will be locked.
The passenger windows can still be
opened and closed using the driver’s
switch even if the lock switch is on.
■The power windows can be oper- ated when
The power switch is in ON.
■When the 12-volt battery is discon- nected
The window lock switch is disabled. If
necessary, press the window lock switch after reconnecting the 12-volt battery.
WARNING
●When exiting the vehicle, turn the power switch off, carry the key and
exit the vehicle along with the child. There may be accidental opera-tion, due to mischief, etc., that may
possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intentionally activate the jam pro-tection function.
●The jam protection function may not work if something gets jammed just
before the window is fully closed. Be careful not to get any part of your body jammed in the window.
■Catch protection function
●Never use any part of your body or
clothing to intentionally activate the catch protection function.
●The catch protection function may not work if something gets caught just before the window is fully
opened. Be careful not to get any part of your body or clothing caught in the window.
Preventing accidental opera-
tion (window lock switch)

222
Owners Manual_Europe_M42D76_en
4-6. Favorite settings
4-6.Favo rite se ttin gs
*: If equipped
When all of the following have been
performed, the driver’s seat is auto-
matically adjusted to a position that
allows driver to enter and exit the
vehicle easily.
 The shift position has been
shifted to P.
 The power switch has been
turned to OFF.
 The driver’s seat belt has been
unfastened.
When any of the following has been
performed, the driver’s seat auto-
matically return to it original posi-
tion.
 The power switch has been
turned to ACC or ON.
 The driver’s seat belt has been
fastened.
■Operation of the power easy access system
When exiting the vehicle, the power
easy access system may not operate if the seat is already close to the rearmost position, etc.
Driving position mem-
or y*
This feature automatically
adjusts the positions of the
driver’s seat and outside rear
view mirrors to make entering
and exiting the vehicle easier
or to suit your preferences.
Your preferred driving posi-
tion (the position of the
driver’s seat) can be recorded
and recalled by pressing a but-
ton.
Two different driving positions
can be recorded into memory.
Each electronic key can be
registered to recall your pre-
ferred driving position.
My Settings: Up to 3 different
driving positions can be
recorded for each the driver
and guest that have been reg-
istered for My Settings. When
electronic key assignment is
registered for My Settings, the
driving position for each driver
can be recalled (memory recall
function).
For details about My Settings,
please refer to P.226.
Enabling easier driver entry
and exit (power easy access
system)
