2022 HYUNDAI IONIQ 5 Owners Manual

Maintenance
9-34

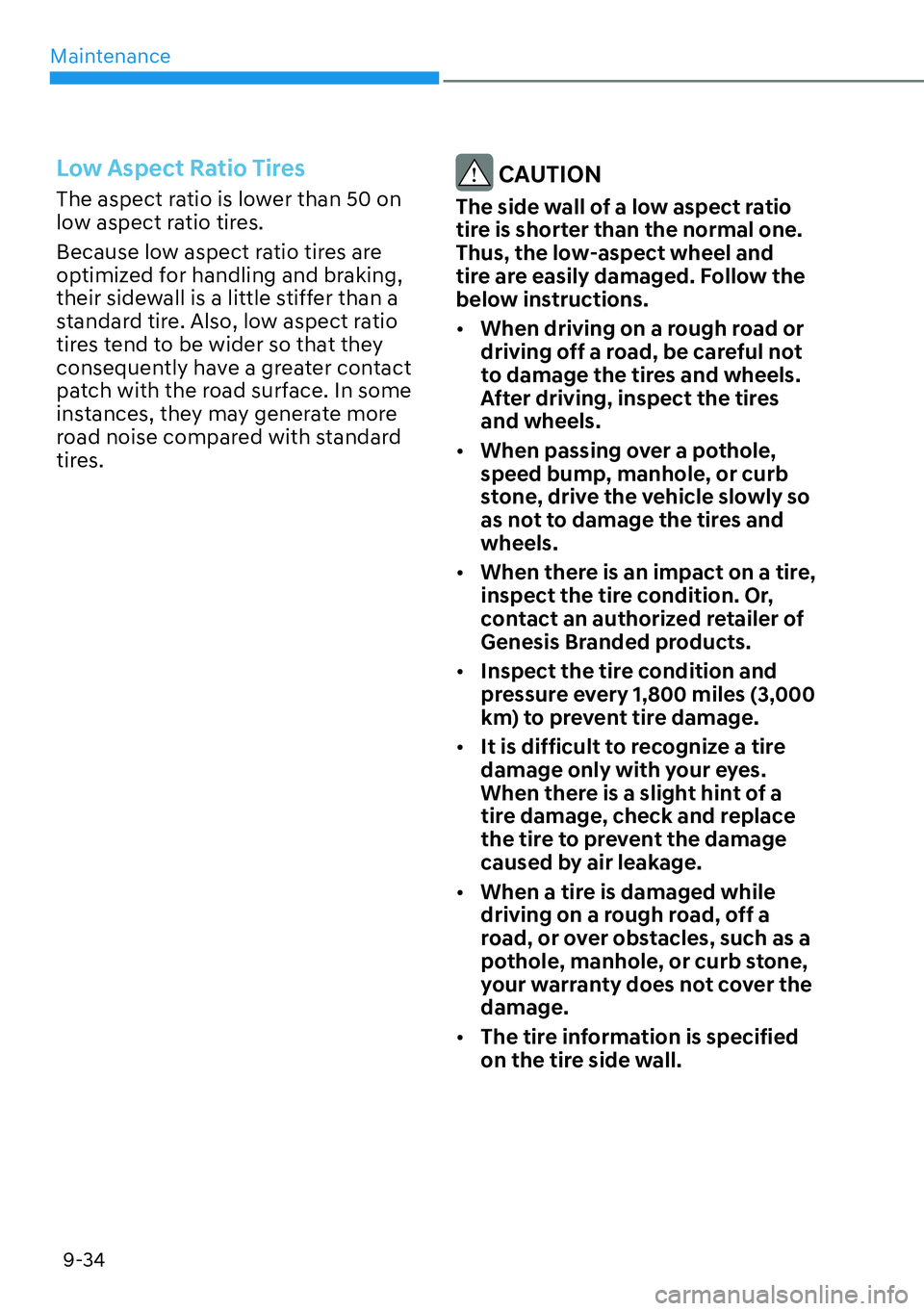

Low Aspect Ratio Tires
The aspect ratio is lower than 50 on
low aspect ratio tires.
Because low aspect ratio tires are
optimized for handling and braking,
their sidewall is a little stiffer than a
standard tire. Also, low aspect ratio
tires tend to be wider so that they
consequently have a greater contact
patch with the road surface. In some
instances, they may generate more
road noise compared with standard
tires.
CAUTION
The side wall of a low aspect ratio
tire is shorter than the normal one.
Thus, the low-aspect wheel and
tire are easily damaged. Follow the
below instructions.

[When driving on a rough road or
driving off a road, be careful not
to damage the tires and wheels.
After driving, inspect the tires
and wheels.

[When passing over a pothole,
speed bump, manhole, or curb
stone, drive the vehicle slowly so
as not to damage the tires and
wheels.

[When there is an impact on a tire,
inspect the tire condition. Or,
contact an authorized retailer of
Genesis Branded products.

[Inspect the tire condition and
pressure every 1,800 miles (3,000
km) to prevent tire damage.

[It is difficult to recognize a tire
damage only with your eyes.
When there is a slight hint of a
tire damage, check and replace
the tire to prevent the damage
caused by air leakage.

[When a tire is damaged while
driving on a rough road, off a
road, or over obstacles, such as a
pothole, manhole, or curb stone,
your warranty does not cover the
damage.

[The tire information is specified
on the tire side wall.

09
9-35

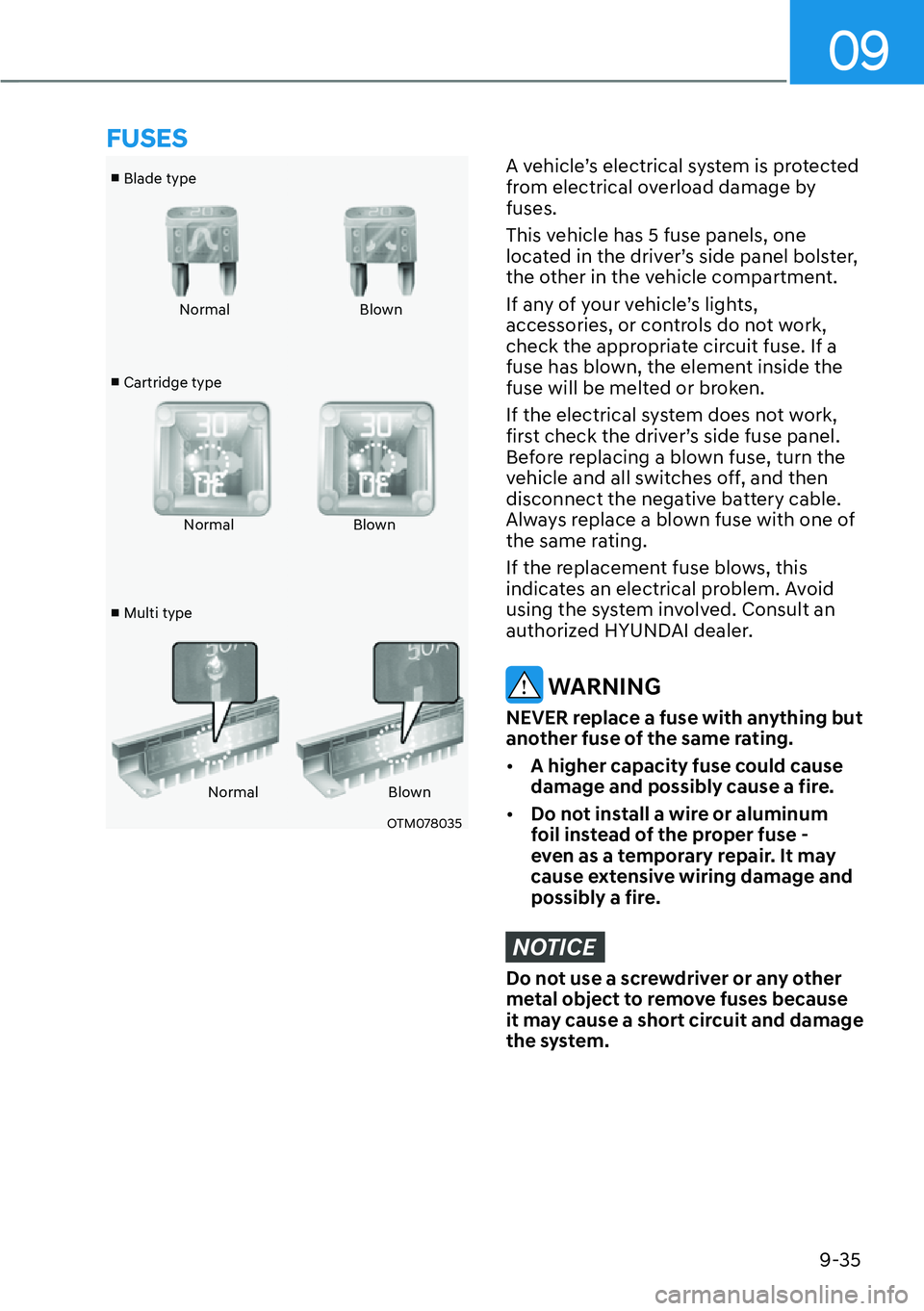

v
Blade type

v
Cartridge type

v
Multi typeNormal Blown
Normal Blown
Normal Blown
OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the vehicle compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
vehicle and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved. Consult an
authorized HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[A higher capacity fuse could cause
damage and possibly cause a fire.

[Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
FUSES

Maintenance
9-36
Instrument Panel Fuse
Replacement
„Driver’s side
ONE1091010
1. Turn the vehicle off.
2. Turn all other switches off.
3. Open the fuse panel cover.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
ONE1091011
5. Pull the suspected fuse straight out.
Use the removal tool (1) provided in
the motor compartment fuses panel
cover.
6. Check the removed fuse; replace it if
it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the motor compartment fuse panel).
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not need
for operating the vehicle, such as the
cigarette lighter fuse.
If the headlamps or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the motor compartment. If a fuse is
blown, it must be replaced with the same
rating.

09
9-37

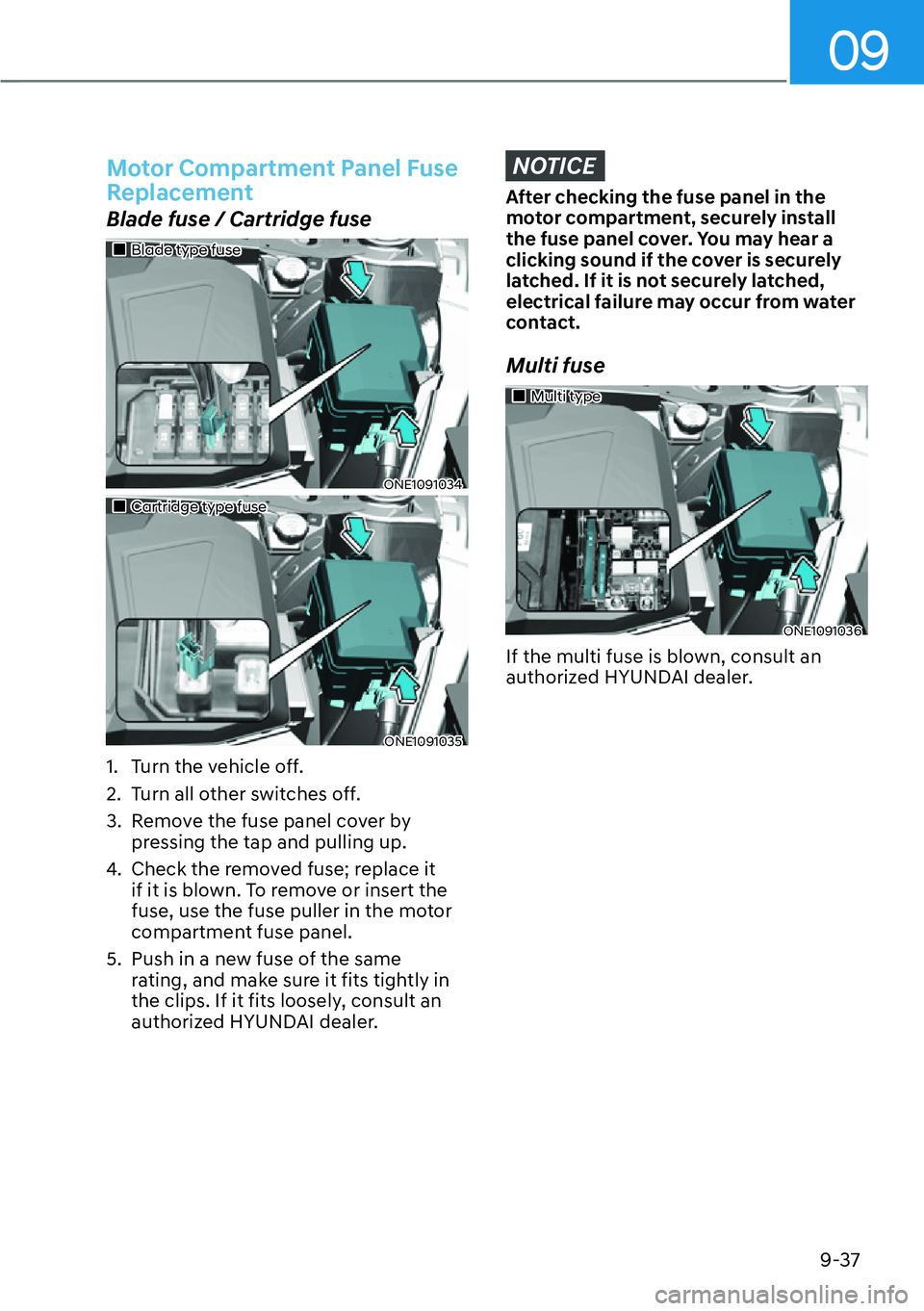

Motor Compartment Panel Fuse
Replacement
Blade fuse / Cartridge fuse
„Blade type fuse
ONE1091034
„Cartridge type fuse
ONE1091035
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it
if it is blown. To remove or insert the
fuse, use the fuse puller in the motor
compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
NOTICE
After checking the fuse panel in the
motor compartment, securely install
the fuse panel cover. You may hear a
clicking sound if the cover is securely
latched. If it is not securely latched,
electrical failure may occur from water
contact.
Multi fuse
„Multi type
ONE1091036
If the multi fuse is blown, consult an
authorized HYUNDAI dealer.

Maintenance
9-38
Fuse/Relay Panel Description
Instrument panel fuse panel
ONE1091012
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
ONE1091046N

09
9-39
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
Child Lock15A Child Lock Relay, Child Unlock Relay
A/BAG IND7.5A Overhead Console
MEMORY210A Head-Up Display
START7.5A VCU, IBU
S/CHARGE220A SDC
MIRR HTR10ADriver Outside Mirror Unit, Passenger Outside Mirror
Unit
T/GATE15A Liftgate Release Relay
EPCU210A Rear Inverter
MODULE37.5AMultifunction Switch, IBU, Stop Lamp Switch, Driver
Door Module
CLUSTER7.5A Head-Up Display, Instrument Cluster
IG3 810AV2L Unit, ICCU, VCMS, Rear Electronic Oil Pump,
CDM
IG3 710AIncar Temperature Sensor, A/V & Navigation
Head Unit, A/C PTC Heater, A/C Control Module,
Instrument Cluster, High-Voltage Charging Lamp
IAU10A IAU, BLE UNIT
S/CHARGER/VISION
ROOF20A SDC, Vison Roof
AFCU10A AFCU, Driver/Passenger Door Outside Handle

Maintenance
9-40
Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
FRT SEAT HEATER20AFront Air Ventilation Seat Control Module, Front Seat
Warmer Control Module
WASHER15A Multifunction Switch
IBU27.5A IBU
IG3 910A SCU, Rear Inverter, BMU
BMS10A BMU
A/BAG210A SRS Control Module
WIN LH25ADriver Safety Power Window Module, Passenger
Safety Power, Rear Power Window Switch LH
SPARE115A Not Used
E-SHIFTER310A Electronic ATM Shift Lever
MODULE410AFront/Rear Corner Radar LH/RH, Front/Rear Inverter,
Crash Pad Switch, ADAS Driving ECU, VESS Unit,
Front Radar, Front View Camera, ADAS Parking ECU
USB CHARGER15A Front USB Charger #1, Front USB Charger #2

09
9-41

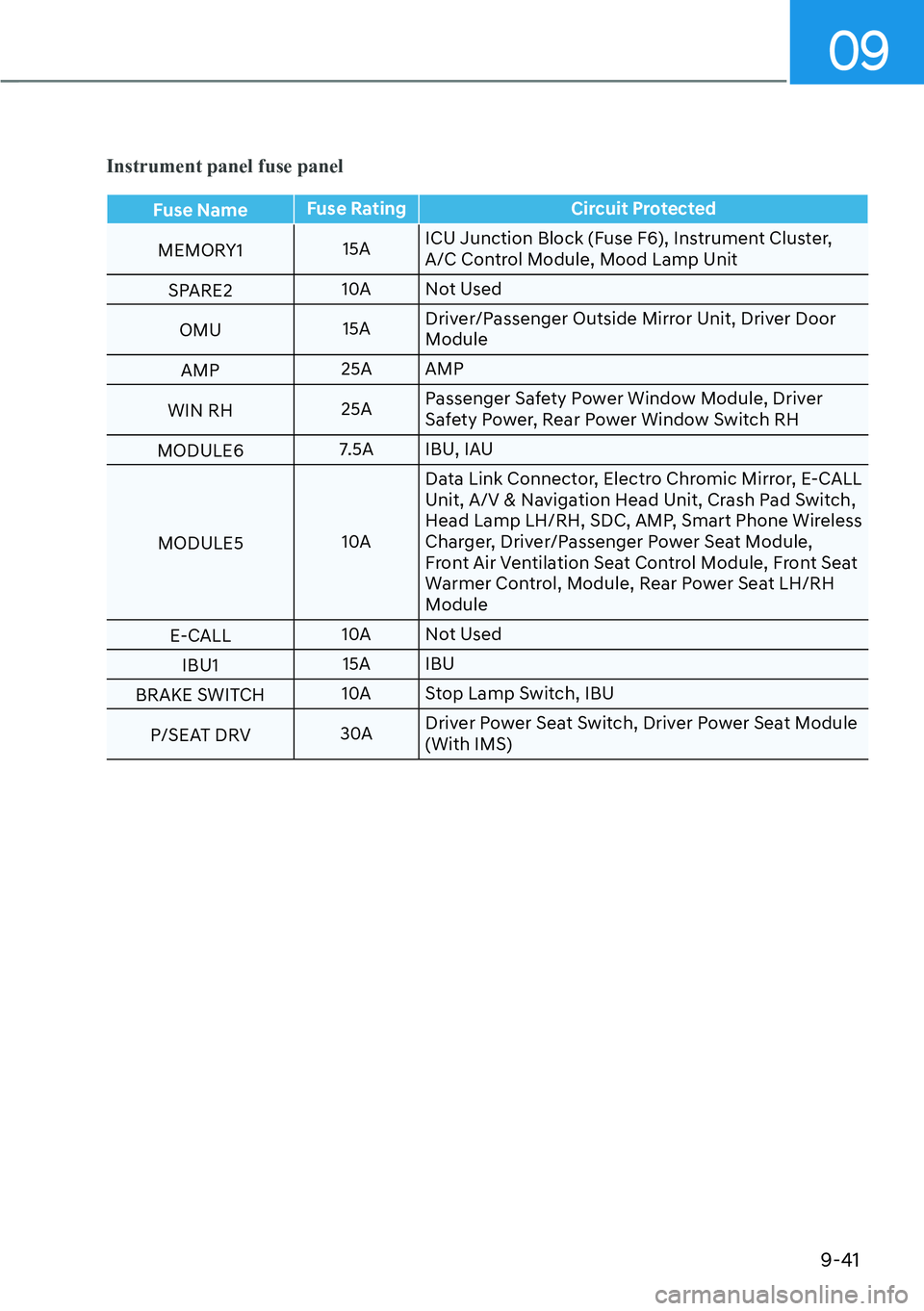

Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
MEMORY115AICU Junction Block (Fuse F6), Instrument Cluster,
A/C Control Module, Mood Lamp Unit
SPARE210A Not Used
OMU15ADriver/Passenger Outside Mirror Unit, Driver Door
Module
AMP25A AMP
WIN RH25APassenger Safety Power Window Module, Driver
Safety Power, Rear Power Window Switch RH
MODULE67.5A IBU, IAU
MODULE510AData Link Connector, Electro Chromic Mirror, E-CALL
Unit, A/V & Navigation Head Unit, Crash Pad Switch,
Head Lamp LH/RH, SDC, AMP, Smart Phone Wireless
Charger, Driver/Passenger Power Seat Module,
Front Air Ventilation Seat Control Module, Front Seat
Warmer Control, Module, Rear Power Seat LH/RH
Module
E-CALL10A Not Used
IBU115A IBU
BRAKE SWITCH10A Stop Lamp Switch, IBU
P/SEAT DRV30ADriver Power Seat Switch, Driver Power Seat Module
(With IMS)
