2022 HYUNDAI IONIQ 5 Owners Manual

05
5-65

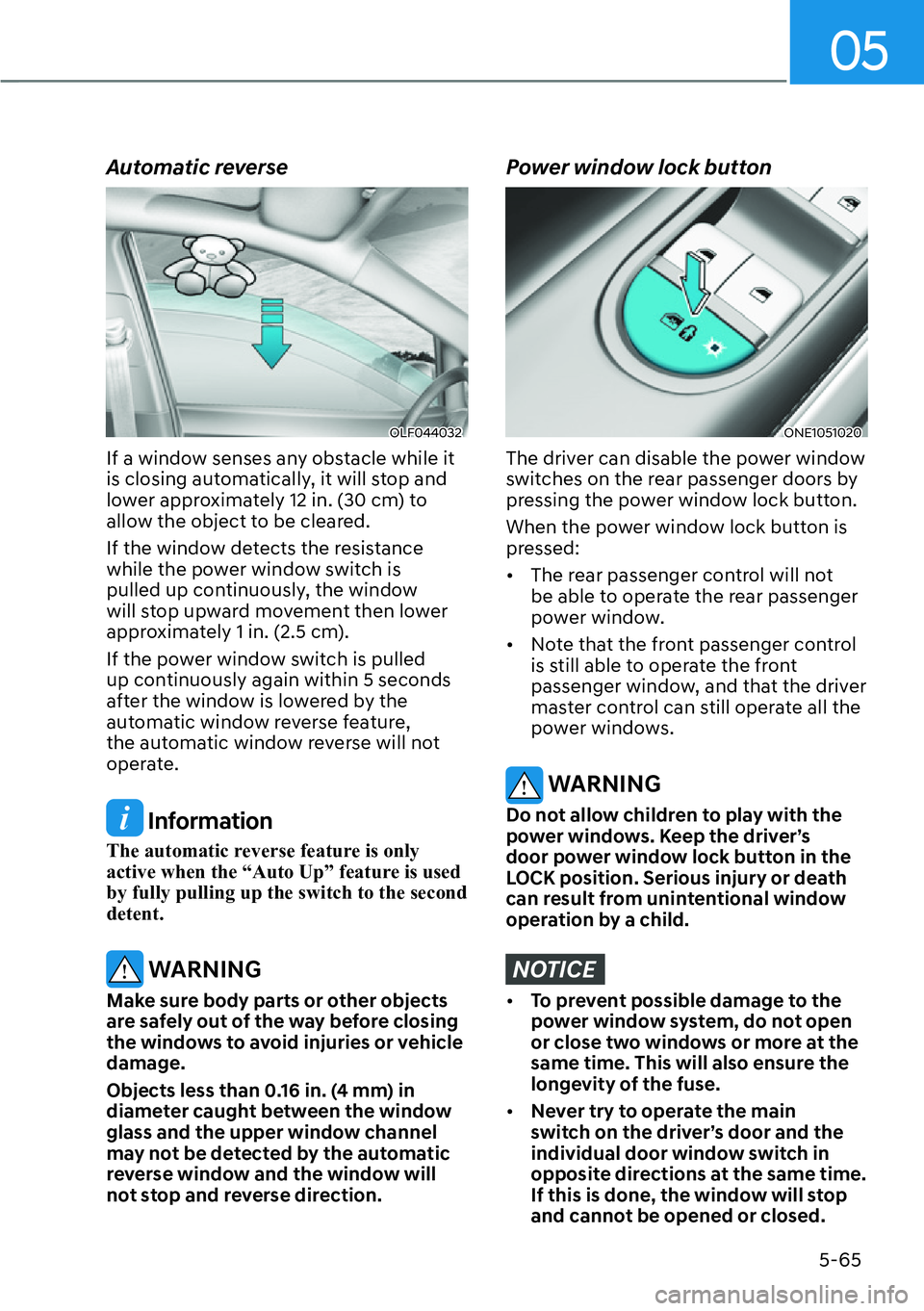

Automatic reverse
OLF044032
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
DFWLYHZKHQWKH

Convenience Features
5-66

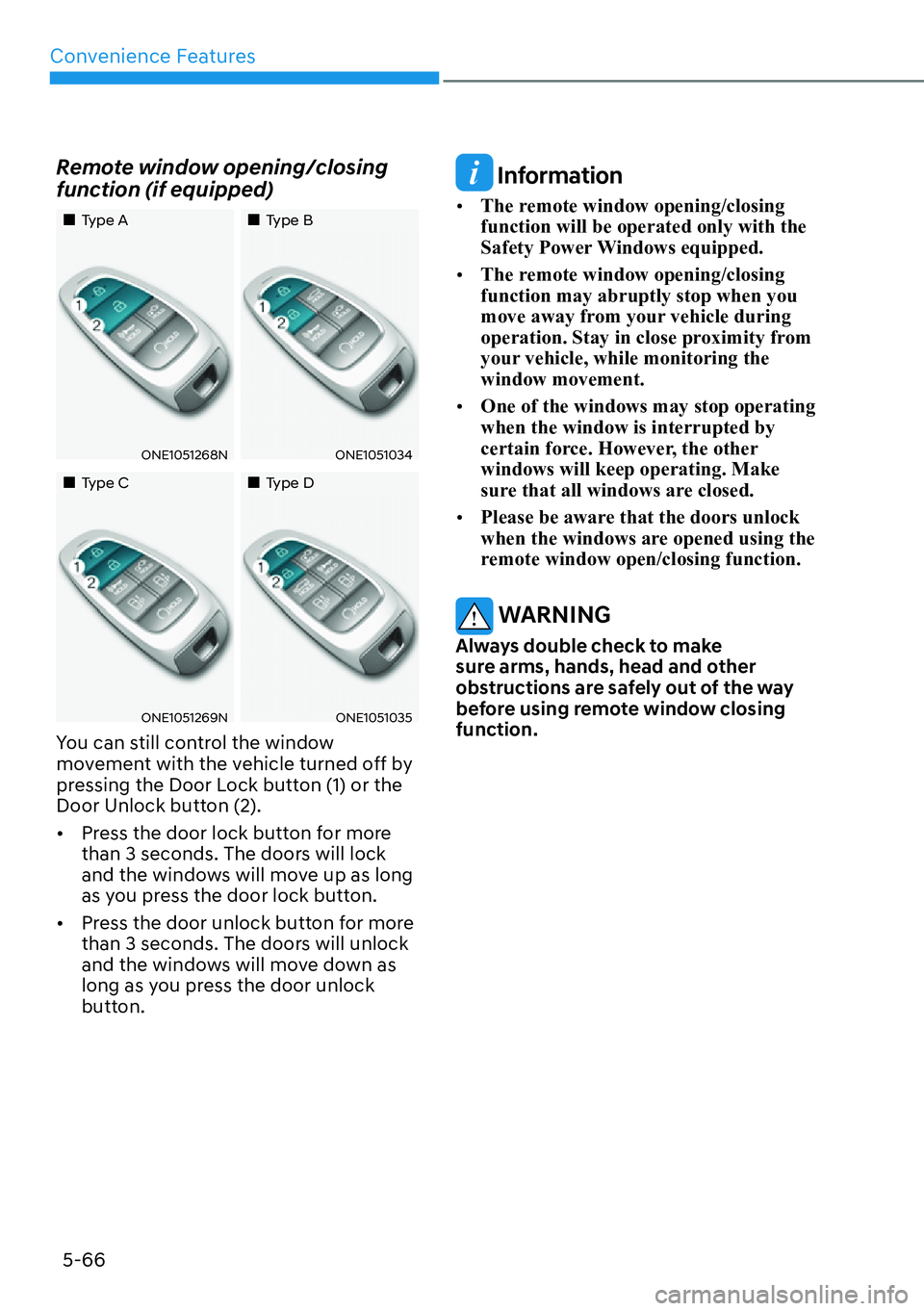

Remote window opening/closing
function (if equipped)
„Type A„Type B
ONE1051268NONE1051034
„Type C„Type D
ONE1051269NONE1051035
You can still control the window
movement with the vehicle turned off by
pressing the Door Lock button (1) or the
Door Unlock button (2).

[Press the door lock button for more
than 3 seconds. The doors will lock
and the windows will move up as long
as you press the door lock button.

[Press the door unlock button for more
than 3 seconds. The doors will unlock
and the windows will move down as
long as you press the door unlock
button.
Information

[The remote window opening/closing
function will be operated only with the
6DIHW\3RZHU:LQGRZVHTXLSSHG

[The remote window opening/closing
function may abruptly stop when you
move away from your vehicle during
operation. Stay in close proximity from
your vehicle, while monitoring the
window movement.

[One of the windows may stop operating
when the window is interrupted by
certain force. However, the other
ZLQGRZVZLOONHHSRSHUDWLQJ0DNH
sure that all windows are closed.

[3OHDVHEHDZDUHWKDWWKHGRRUVXQORFN
when the windows are opened using the
remote window open/closing function.
WARNING
Always double check to make
sure arms, hands, head and other
obstructions are safely out of the way
before using remote window closing
function.

05
5-67
ONE1051036

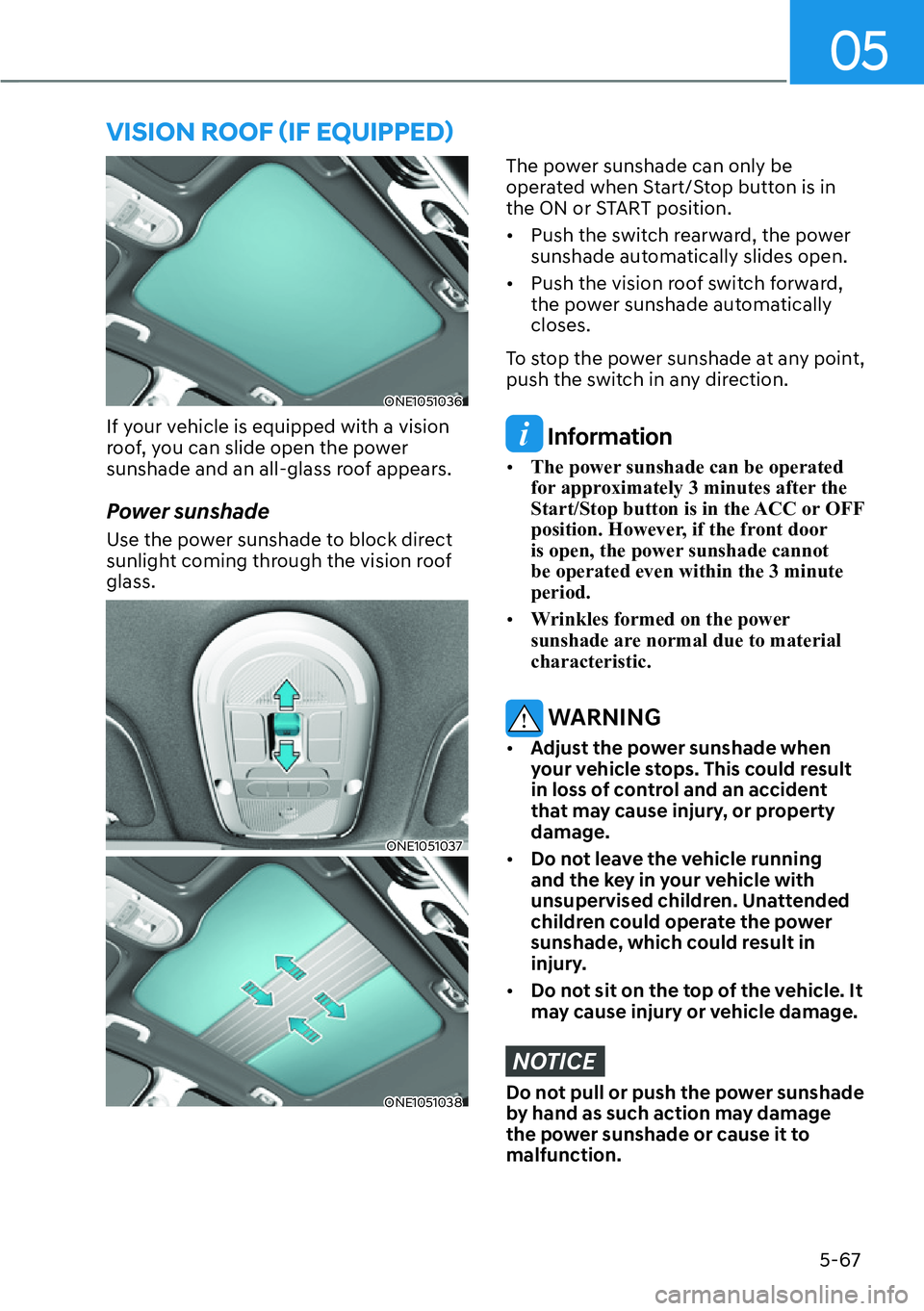

If your vehicle is equipped with a vision
roof, you can slide open the power
sunshade and an all-glass roof appears.
Power sunshade
Use the power sunshade to block direct
sunlight coming through the vision roof
glass.
ONE1051037
ONE1051038
The power sunshade can only be
operated when Start/Stop button is in
the ON or START position.

[Push the switch rearward, the power
sunshade automatically slides open.

[Push the vision roof switch forward,
the power sunshade automatically
closes.
To stop the power sunshade at any point,
push the switch in any direction.
Information

[The power sunshade can be operated
for approximately 3 minutes after the
Start/Stop button is in the ACC or OFF
position. However, if the front door
is open, the power sunshade cannot
be operated even within the 3 minute
period.

[:ULQNOHVIRUPHGRQWKHSRZHU
sunshade are normal due to material
characteristic.
WARNING

[Adjust the power sunshade when
your vehicle stops. This could result
in loss of control and an accident
that may cause injury, or property
damage.

[Do not leave the vehicle running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the power
sunshade, which could result in
injury.

[Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not pull or push the power sunshade
by hand as such action may damage
the power sunshade or cause it to
malfunction.
9,6,21522)

Convenience Features
5-68

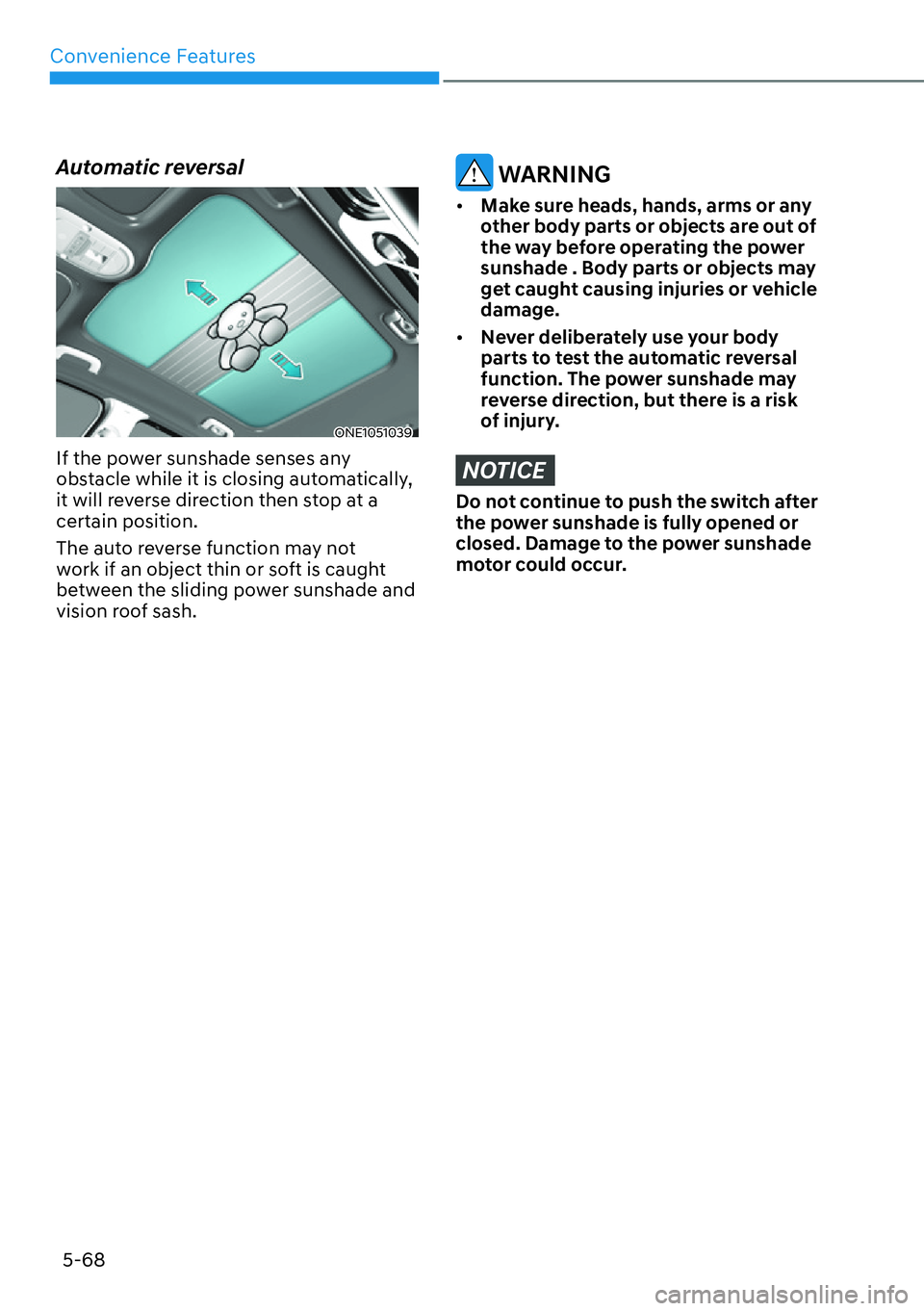

Automatic reversal
ONE1051039
If the power sunshade senses any
obstacle while it is closing automatically,
it will reverse direction then stop at a
certain position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding power sunshade and
vision roof sash.
WARNING

[Make sure heads, hands, arms or any
other body parts or objects are out of
the way before operating the power
sunshade . Body parts or objects may
get caught causing injuries or vehicle
damage.

[Never deliberately use your body
parts to test the automatic reversal
function. The power sunshade may
reverse direction, but there is a risk
of injury.
NOTICE
Do not continue to push the switch after
the power sunshade is fully opened or
closed. Damage to the power sunshade
motor could occur.

05
5-69
Resetting the Vision Roof
ONE1051037
In some circumstances resetting the
power sunshade operation may need to
be performed. Some instances where
resetting the power sunshade may be
required include:

[When the 12-volt battery is either
disconnected or discharged

[When the power sunshade fuse is
replaced

[If the power sunshade one-touch
AUTO OPEN/CLOSE operation is not
functioning properlyVision roof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle in
the ready mode. Start the vehicle in P
(Park).
2. Make sure the power sunshade is in
the fully closed position. If the power
sunshade is open, push the switch
forward until the power sunshade and
is fully closed.
3. Release the switch when the power
sunshade is fully closed.
4. Push the switch forward until the
power sunshade moves slightly. Then
release the switch.
5. Once again push and hold the switch
forward until the power sunshade
slides open and close. Do not release
the switch until the operation is
completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information
If the power sunshade is not reset when
the vehicle battery is disconnected or
discharged, or the power sunshade fuse
is blown, the power sunshade may not
operate normally.

Convenience Features
5-70

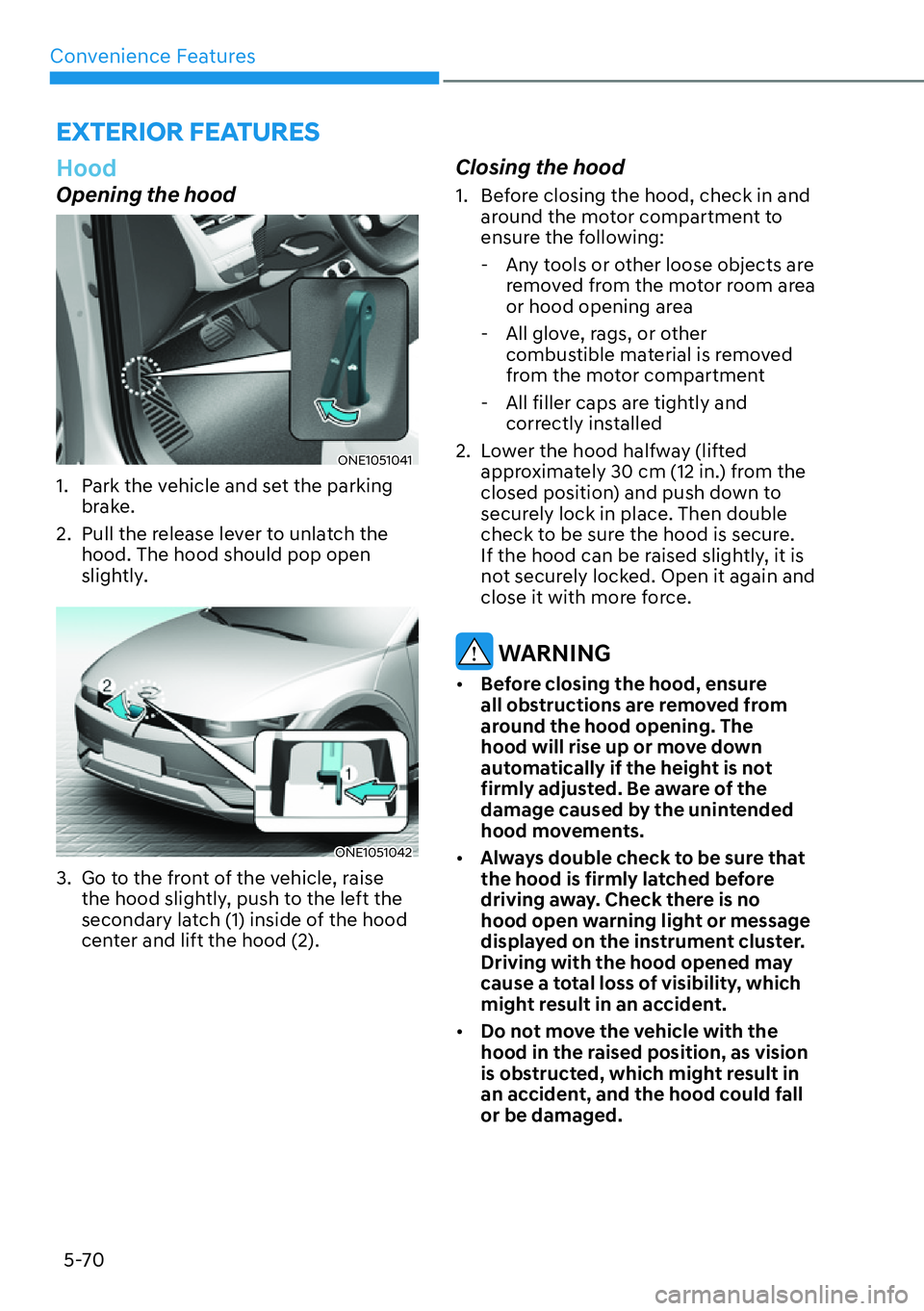

EXTERIOR FEATURES
Hood
Opening the hood
ONE1051041
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
ONE1051042
3. Go to the front of the vehicle, raise
the hood slightly, push to the left the
secondary latch (1) inside of the hood
center and lift the hood (2).
Closing the hood
1. Before closing the hood, check in and
around the motor compartment to
ensure the following:
- Any tools or other loose objects are
removed from the motor room area
or hood opening area
- All glove, rags, or other
combustible material is removed
from the motor compartment
- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted
approximately 30 cm (12 in.) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening. The
hood will rise up or move down
automatically if the height is not
firmly adjusted. Be aware of the
damage caused by the unintended
hood movements.

[Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.

05
5-71
Front trunk
Opening the Front Trunk
ONE1051213

[Open the hood

[Lift up the front trunk cover while
depressing the front trunk lever (1).
Closing the Front Trunk
Push down the front trunk cover to the
right position.
Information
Available front trunk weight

[:'OEVNJ

[$:'OEVNJ
Available front trunk weight depends on
the specifications.
WARNING

[NEVER make an attempt to get inside
the front trunk. It will cause a fatal
injury.

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening. The
hood will rise up or move down
automatically if the height is not
firmly adjusted. Be aware of the
damage caused by the unintended
hood movements.

[Never store cigarette lighters,
propane cylinders, or other
flammable/explosive materials in
the vehicle. These items may catch
fire and/or explode if the vehicle
is exposed to hot temperatures for
extended periods.
CAUTION

[Do not exceed the luggage volume
capacity of the front trunk. The
overweighted front trunk can be
severely damaged.

[Do not store the fragile objects in the
front trunk.

[ALWAYS keep the front trunk cover
closed securely while driving. Items
inside your vehicle are moving as fast
as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items can be damaged.

[Do not spray water in the front
trunk. Vehicle driving system may
get damaged since the front trunk
is located at the center of motor
compartment.

[Be careful when you store any liquid
in the front trunk. If liquid leak
outside the front trunk, it will cause a
damage to the electric devices in the
motor compartment.

[Do not press the front trunk cover
or place the objects on the front
trunk cover. It may be deformed or
damaged.

[When closing the front trunk cover,
be careful not to touch objects
inside the trunk. Loaded objects or
the front trunk may be deformed or
damaged and the front trunk cover
may be opened during driving due to
poor closing, resulting in joints and
damage.
NOTICE
To avoid possible theft, do not leave
valuables in the storage compartments.

Convenience Features
5-72

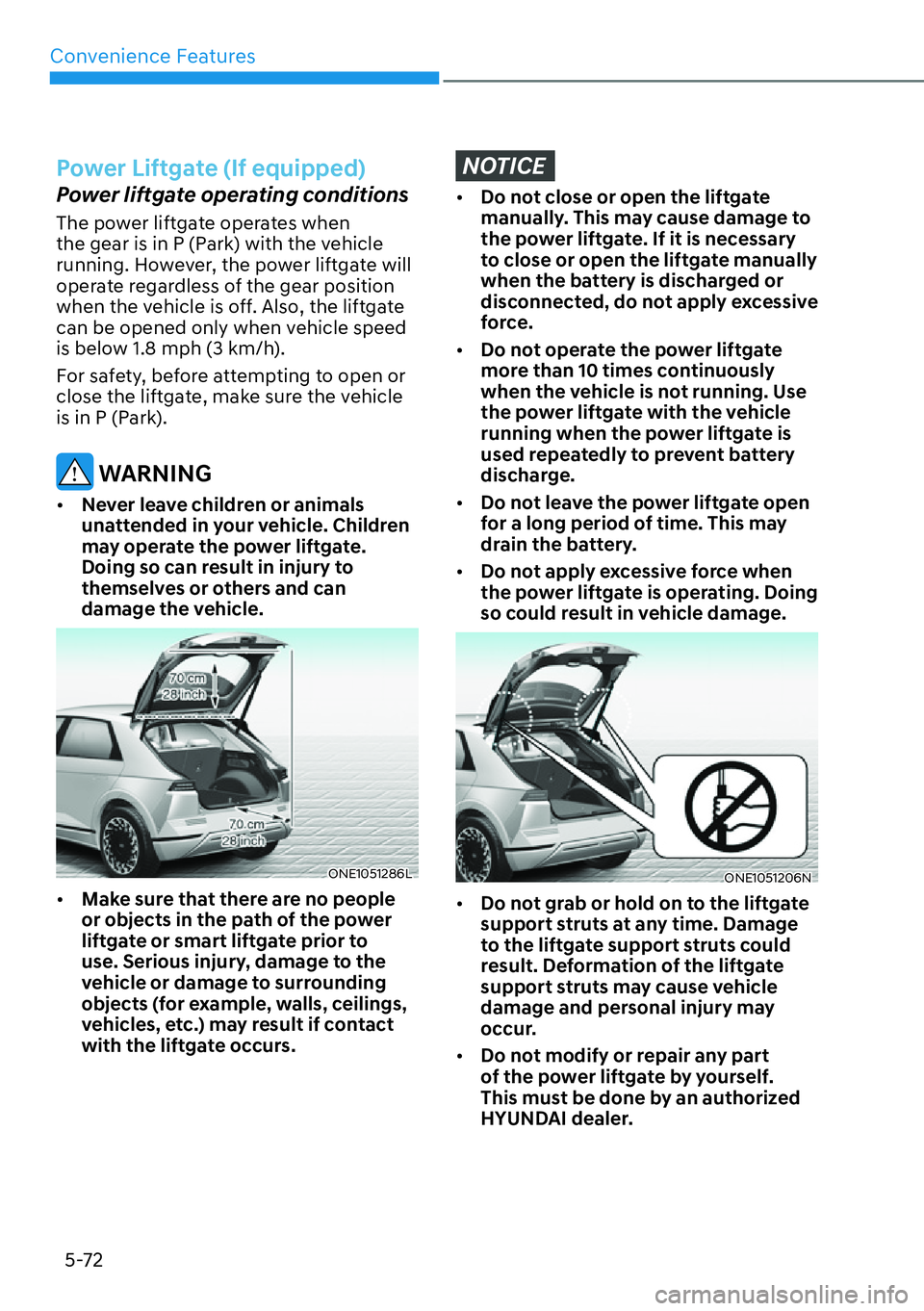

Power Liftgate (If equipped)
Power liftgate operating conditions
The power liftgate operates when
the gear is in P (Park) with the vehicle
running. However, the power liftgate will
operate regardless of the gear position
when the vehicle is off. Also, the liftgate
can be opened only when vehicle speed
is below 1.8 mph (3 km/h).
For safety, before attempting to open or
close the liftgate, make sure the vehicle
is in P (Park).
WARNING

[Never leave children or animals
unattended in your vehicle. Children
may operate the power liftgate.
Doing so can result in injury to
themselves or others and can
damage the vehicle.
ONE1051286L

[Make sure that there are no people
or objects in the path of the power
liftgate or smart liftgate prior to
use. Serious injury, damage to the
vehicle or damage to surrounding
objects (for example, walls, ceilings,
vehicles, etc.) may result if contact
with the liftgate occurs.
NOTICE

[Do not close or open the liftgate
manually. This may cause damage to
the power liftgate. If it is necessary
to close or open the liftgate manually
when the battery is discharged or
disconnected, do not apply excessive
force.

[Do not operate the power liftgate
more than 10 times continuously
when the vehicle is not running. Use
the power liftgate with the vehicle
running when the power liftgate is
used repeatedly to prevent battery
discharge.

[Do not leave the power liftgate open
for a long period of time. This may
drain the battery.

[Do not apply excessive force when
the power liftgate is operating. Doing
so could result in vehicle damage.
ONE1051206N

[Do not grab or hold on to the liftgate
support struts at any time. Damage
to the liftgate support struts could
result. Deformation of the liftgate
support struts may cause vehicle
damage and personal injury may
occur.

[Do not modify or repair any part
of the power liftgate by yourself.
This must be done by an authorized
HYUNDAI dealer.
