2022 HYUNDAI IONIQ 5 Owners Manual

Driving Your Vehicle
6-42
Good Braking Practices
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Shift the gear to the P (Park)
position, then apply the parking brake,
and press the Start/Stop button to the
OFF position.
Vehicles parked with the parking brake
not applied or not fully engaged may
roll inadvertently and may cause injury
to the driver and others. ALWAYS apply
the parking brake before exiting the
vehicle.Be aware of wet brakes. The brakes may
get wet if the vehicle is driven through
standing water or if it is washed. Your
vehicle will not stop as quickly if the
brakes are wet. Wet brakes may cause
the vehicle to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns to
normal. If the braking action does not
return to normal, stop as soon as it is safe
to do so and call an authorized HYUNDAI
dealer for assistance.
DO NOT drive with your foot resting on
the brake pedal. Even light, but constant
pedal pressure can result in the brakes
overheating, brake wear, and possibly
even brake failure.
If a tire goes flat while you are driving,
apply the brakes gently and keep the
vehicle pointed straight ahead while you
slow down. When you are moving slowly
enough for it to be safe to do so, pull off
the road and stop in a safe location.
Keep your foot firmly on the brake pedal
when the vehicle is stopped to prevent
the vehicle from rolling forward.

06
6-43

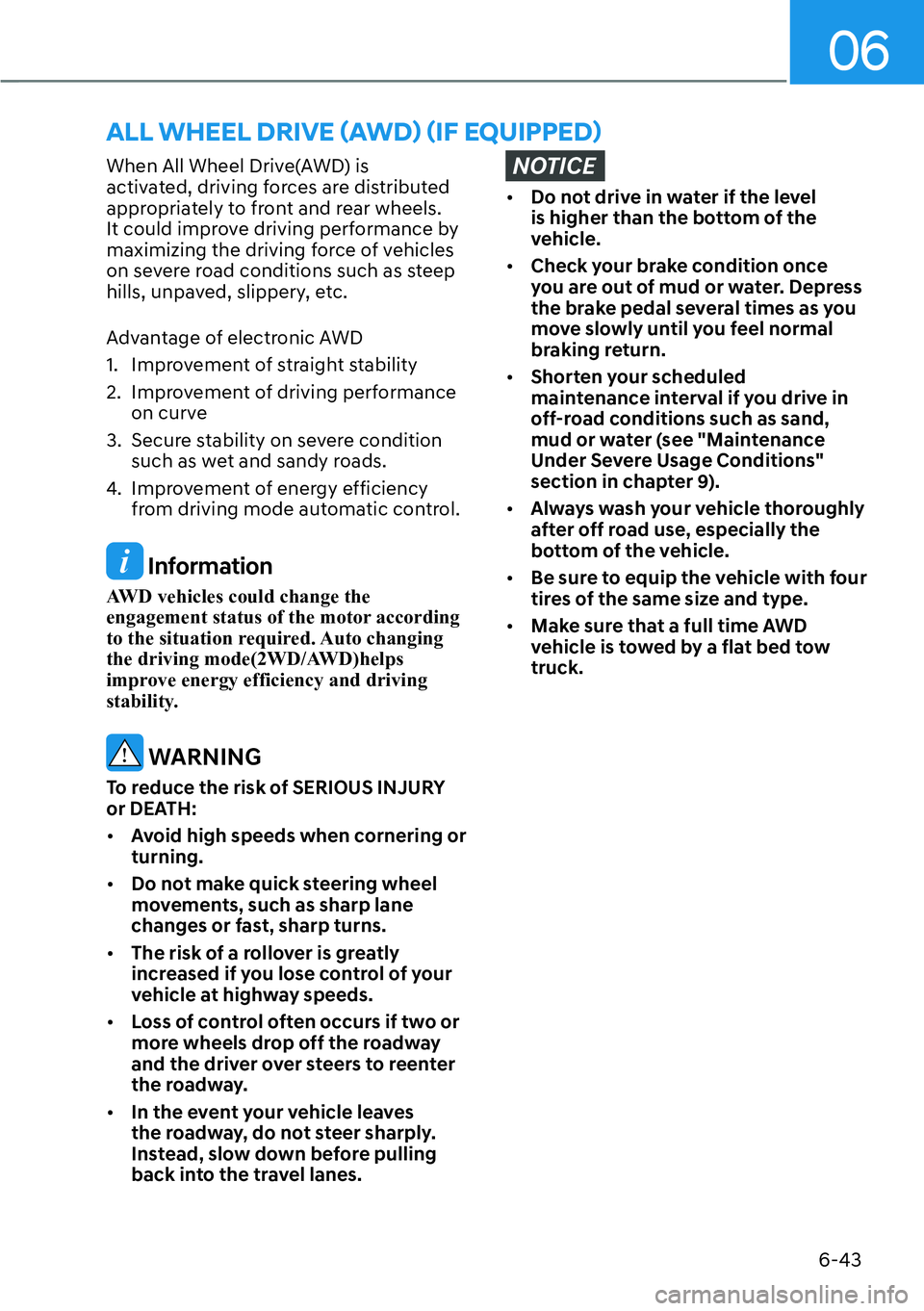

When All Wheel Drive(AWD) is
activated, driving forces are distributed
appropriately to front and rear wheels.
It could improve driving performance by
maximizing the driving force of vehicles
on severe road conditions such as steep
hills, unpaved, slippery, etc.
Advantage of electronic AWD
1. Improvement of straight stability
2. Improvement of driving performance
on curve
3. Secure stability on severe condition
such as wet and sandy roads.
4. Improvement of energy efficiency
from driving mode automatic control.
Information
AWD vehicles could change the
engagement status of the motor according
to the situation required. Auto changing
the driving mode(2WD/AWD)helps
improve energy efficiency and driving
stability.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:

[Avoid high speeds when cornering or
turning.

[Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.

[The risk of a rollover is greatly
increased if you lose control of your
vehicle at highway speeds.

[Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.

[In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.
NOTICE

[Do not drive in water if the level
is higher than the bottom of the
vehicle.

[Check your brake condition once
you are out of mud or water. Depress
the brake pedal several times as you
move slowly until you feel normal
braking return.

[Shorten your scheduled
maintenance interval if you drive in
off-road conditions such as sand,
mud or water (see "Maintenance
Under Severe Usage Conditions"
section in chapter 9).

[Always wash your vehicle thoroughly
after off road use, especially the
bottom of the vehicle.

[Be sure to equip the vehicle with four
tires of the same size and type.

[Make sure that a full time AWD
vehicle is towed by a flat bed tow
truck.
$//:+((/'5,9(
ã$:'
ä
ã,)(48,33('
ä

Driving Your Vehicle
6-44
For safe AWD operation
Before driving

[Make sure all passengers are wearing
seat belts.

[Sit upright and closer to the steering
wheel than usual. Adjust the steering
wheel to a position comfortable for
you to drive.
Driving on snow-covered or icy roads

[Start off slowly by applying the
accelerator pedal gently.

[Use snow tires or tire chains.

[Keep sufficient distance between your
vehicle and the vehicle in front of you.

[Using regenerative braking helps the
steering on the downhill. However, it
may be difficult to adjust the vehicle
while coasting using regenerative
braking, so avoid using the third level
of regenerative braking as much as
possible.

[Avoid speeding, rapid acceleration,
sudden brake applications, and sharp
turns to prevent skids.

[It is difficult to start again if the
vehicle stops on an uphill road. Keep
your distance from other vehicles and
drive slowly.
Information
When using Snow Tires, mount them on
all four wheels.
When using tire chains, install them on the
rear tires.
However, driving speed must be below 30
km/h and minimize the driving distance.
High-speed or long-term driving with
tire chains installed may malfunction or
damage the AWD system.
For more details on Snow Tires and Tire
Chains, refer to "Winter Driving" section
later in this chapter.
Driving in sand or mud

[Maintain slow and constant speed.

[Use tire chains driving in mud if
necessary.

[Keep sufficient distance between your
vehicle and the vehicle in front of you.

[Reduce vehicle speed and always
check the road condition.

[Avoid speeding, rapid acceleration,
sudden brake applications, and sharp
turns to prevent getting stuck.
NOTICE
When the vehicle is stuck in snow, sand
or mud, place a nonslip material under
the drive wheels to provide traction
OR slowly spin the wheels in forward
and reverse directions which causes
a rocking motion that may free the
vehicle.
Driving up or down hills

[Driving uphill
- Before starting off, check if it is
possible to drive uphill.
- Drive as straight as possible.

[Driving downhill
- Do not change gear while driving
downhill. Select gear before driving
downhill.
- Drive straight as possible.
WARNING
Exercise extreme caution driving up or
down steep hills. The vehicle may flip
over depending on the grade, terrain,
water and mud conditions.

06
6-45
WARNING
Do not drive across the contour of steep
hills. A slight change in the wheel angle
can destabilize the vehicle, or a stable
vehicle may lose stability if the vehicle
stops its forward motion. Your vehicle
may roll over and lead to a serious injury
or death.
Additional driving conditions

[Become familiar with the off-road
conditions before driving.

[Always pay attention when driving off-
road and avoid dangerous areas.

[Drive slowly when driving in heavy
wind.

[Reduce vehicle speed when
cornering. The center of gravity
of AWD vehicles is higher than
conventional 2WD vehicles, making
them more likely to roll over when you
rapidly turn corners.

[Always hold the steering wheel firmly
when you are driving off-road.
WARNING
Do not grab the inside of the steering
wheel when you are driving off-road.
You may hurt your arm by a sudden
steering maneuver or from steering
wheel rebound due to an impact with
objects on the ground. You could lose
control of the steering wheel which may
lead to serious injury or death.
Emergency Precautions
Tires
When replacing tires, be sure to equip
all four tires with the same size, type,
tread patterns, brand and load-carrying
capacity.
WARNING
Do not use tire and wheel with different
size and type from the one originally
installed on your vehicle. It can affect
the safety and performance of your
vehicle, which could lead to steering
failure or rollover causing serious injury.

Driving Your Vehicle
6-46
WARNING
ONE1061023K
Never start or run the vehicle while
an AWD vehicle is raised on a jack.
The vehicle can slip or roll off of a jack
causing serious injury or death to you or
those nearby.
Towing
AWD vehicles must be towed with
a wheel lift and dollies or flatbed
equipment with all the wheels off the
ground. For more details, refer to
"Towing" section in chapter 8.
Vehicle inspection

[If the vehicle needs to be operated on
a vehicle lift do not attempt to stop
any of the four wheels from turning.
This could damage the AWD system.

[Never engage the parking brake while
running the vehicle on a car lift. This
may damage the AWD system.
Dynamometer testing
An AWD vehicle must be tested on a
special four wheel chassis dynamometer.
ONE1061024JP[A] : Roll tester (Speedometer),
[B] : Temporary free roller
An AWD vehicle should not be tested
on a 2WD roll tester. If a 2WD roll tester
must be used, perform the following
procedure:
1. Check the tire pressures
recommended for your vehicle.
2. Place the rear wheels on the roll tester
for a speedometer test as shown in
the illustration.
3. Release the parking brake.
4. Place the front wheels on the
temporary free roller as shown in the
illustration.
WARNING
Keep away from the front of the vehicle
while the vehicle is in gear on the
dynamometer. The vehicle can jump
forward and cause serious injury or
death.

06
6-47

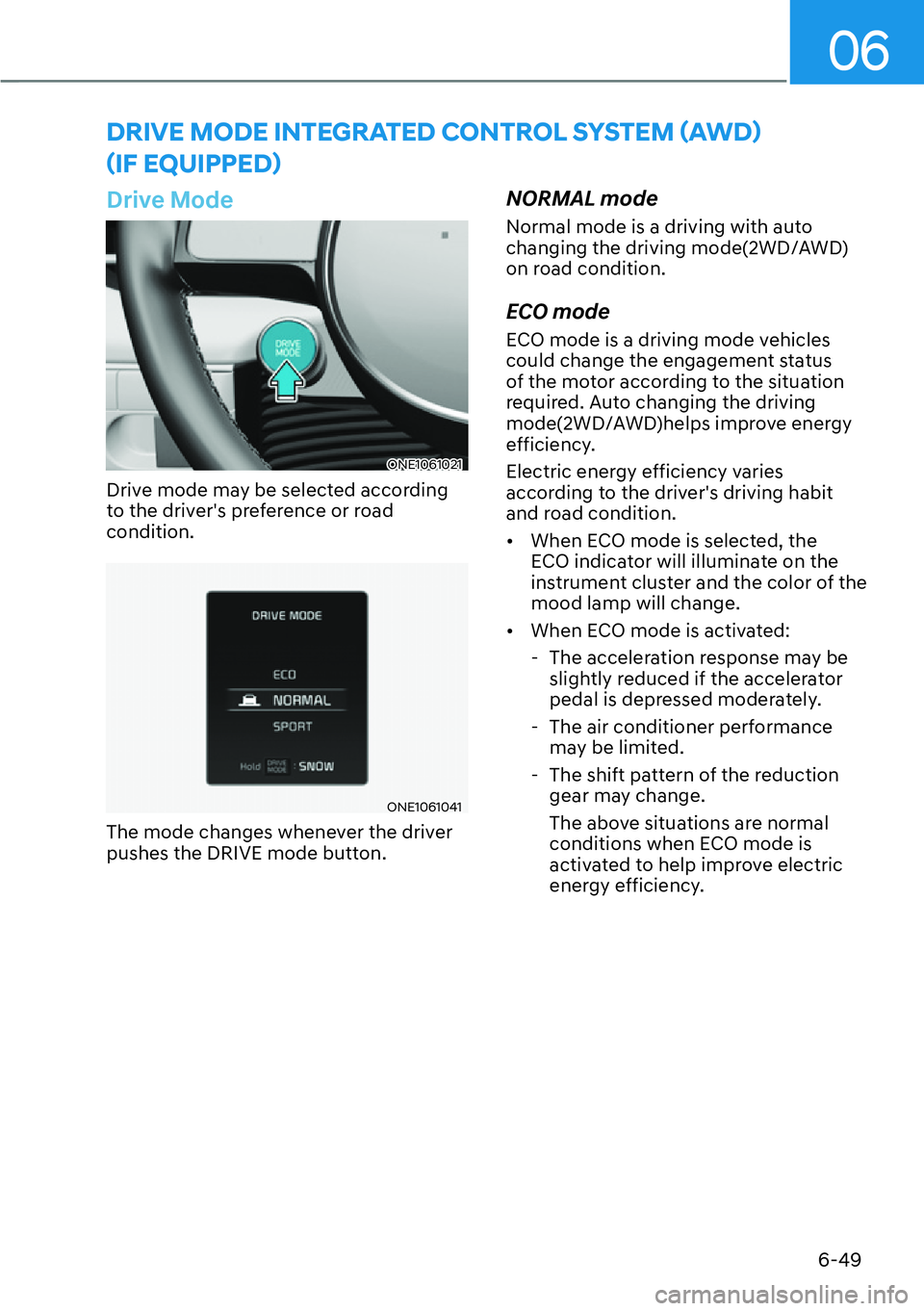

Drive Mode
ONE1061021
Drive mode may be selected according
to the driver's preference or road
condition.
ONE1061041
The mode changes whenever the driver
pushes the DRIVE MODE button.
NORMAL mode
Normal mode is a driving mode used
when driving on general roads, city
center and highways.
ECO mode
ECO mode is a driving mode improving
energy efficiency by controlling motors
and reduction gear.
Electric energy efficiency varies
according to the driver's driving habit
and road condition.

[When ECO mode is selected, the
ECO indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.

[When ECO mode is activated:
- The acceleration response may be
slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance
may be limited.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.

[When coolant temperature is low:
The system will be limited until motor
performance becomes normal.

[When driving up a hill:
The system will be limited to gain
power when driving uphill because
motor torque is restricted.
'5,9(02'(,17(*5$7('&21752/6<67(0

Driving Your Vehicle
6-48

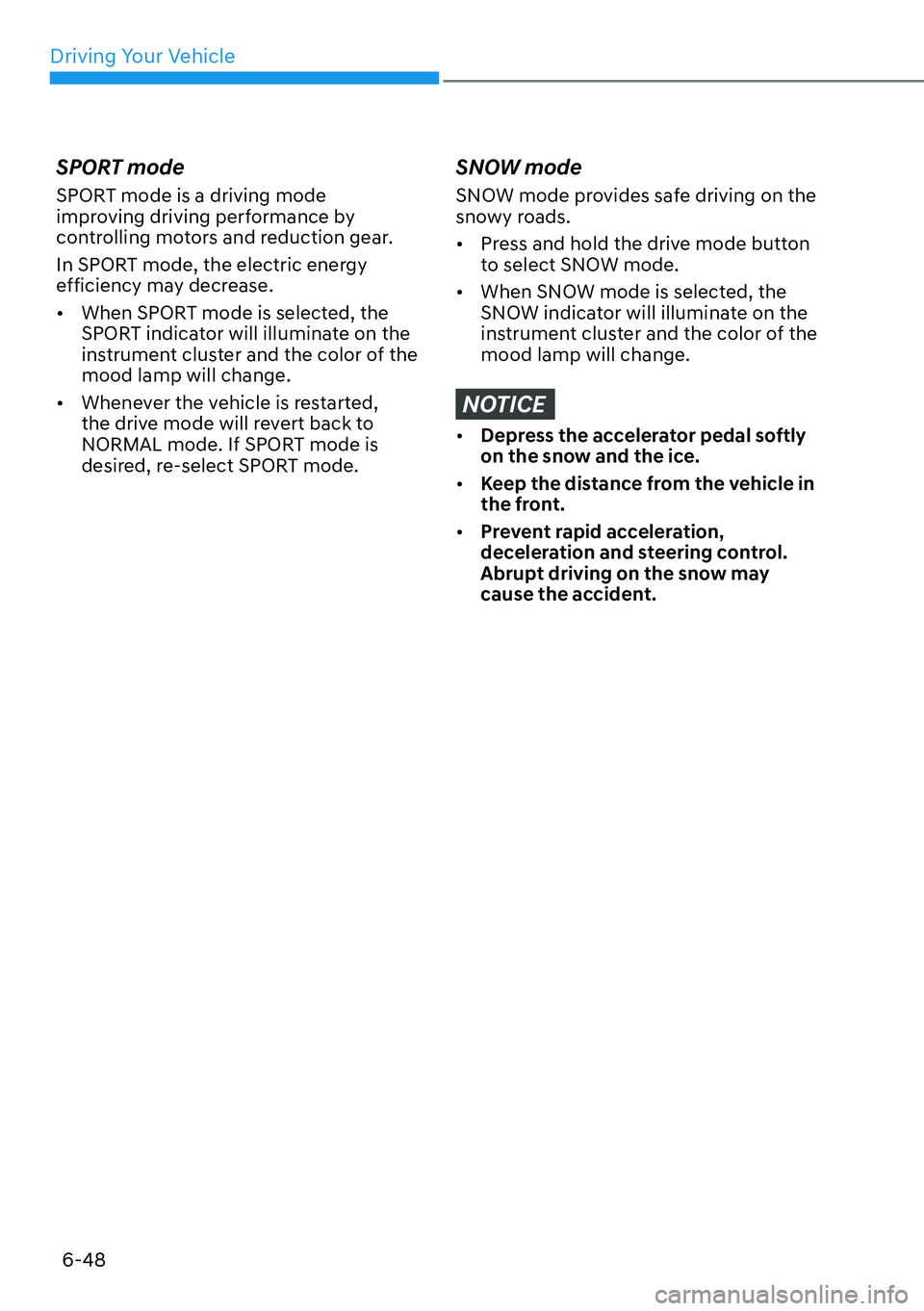

SPORT mode
SPORT mode is a driving mode
improving driving performance by
controlling motors and reduction gear.
In SPORT mode, the electric energy
efficiency may decrease.

[When SPORT mode is selected, the
SPORT indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.

[Whenever the vehicle is restarted,
the drive mode will revert back to
NORMAL mode. If SPORT mode is
desired, re-select SPORT mode.
SNOW mode
SNOW mode provides safe driving on the
snowy roads.

[Press and hold the drive mode button
to select SNOW mode.

[When SNOW mode is selected, the
SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
NOTICE

[Depress the accelerator pedal softly
on the snow and the ice.

[Keep the distance from the vehicle in
the front.

[Prevent rapid acceleration,
deceleration and steering control.
Abrupt driving on the snow may
cause the accident.

06
6-49
Drive Mode
ONE1061021
Drive mode may be selected according
to the driver's preference or road
condition.
ONE1061041
The mode changes whenever the driver
pushes the DRIVE mode button.
NORMAL mode
Normal mode is a driving with auto
changing the driving mode(2WD/AWD)
on road condition.
ECO mode
ECO mode is a driving mode vehicles
could change the engagement status
of the motor according to the situation
required. Auto changing the driving
mode(2WD/AWD)helps improve energy
efficiency.
Electric energy efficiency varies
according to the driver's driving habit
and road condition.

[When ECO mode is selected, the
ECO indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.

[When ECO mode is activated:
- The acceleration response may be
slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance
may be limited.
- The shift pattern of the reduction
gear may change.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
'5,9(02'(,17(*5$7('&21752/6<67(0
