2022 HYUNDAI IONIQ 5 Owners Manual

Driver Assistance System
7-174
WARNING
Take the following precautions when
using Remote Smart Parking Assist:

[The driver is responsible for safe
parking and exit when using Remote
Smart Parking Assist.

[When using Remote Smart Parking
Assist, stay out of the way in the
direction the vehicle moves for your
safety.

[Always check surroundings when
using Remote Smart Parking Assist.
You may collide with pedestrians,
animals, or objects if they are near
the sensor or are in the sensor’s blind
spot area.

[A collision may occur if a pedestrian,
animal, or object suddenly appears
while Remote Smart Parking Assist is
operating.

[Do not use Remote Smart Parking
Assist when under the influence of
alcohol.

[Do not let children or other people to
use the smart key.

[If Remote Smart Parking Assist is
used continuously for a long period,
it may adversely affect Remote
Smart Parking Assist performance.

[Remote Smart Parking Assist may not
operate properly if the vehicle needs
wheel alignment adjustment such
as when the vehicle tilts to one side.
Have the vehicle be inspected by an
authorized HYUNDAI dealer.

[Noise may be heard when braking
occurs by Remote Smart Parking
Assist or when the brake pedal is
depressed by the driver.

[Remote Smart Parking Assist may
suddenly apply the brake to avoid
collision.

[Use Remote Smart Parking Assist
only in a parking space that is large
enough for the vehicle to move
safely.
NOTICE

[If the 3rd stage warning (continuous
beep) of the Forward/Reverse
Parking Distance Warning sounds
while Remote Smart Parking
Assist is operating, it means the
obstacle detected is close to your
vehicle. At this time, Remote Smart
Parking Assist will temporarily stop
operating. Make sure there are no
pedestrians, animals, or objects
around your vehicle.

[Depending on brake operation, the
stop lights may come on while the
vehicle is moving.

[If the vehicle is remotely started that
has been parked in cold weather for
a long time, the operation of Remote
Smart Parking function may be
delayed or canceled depending on
vehicle condition.

07
7-175

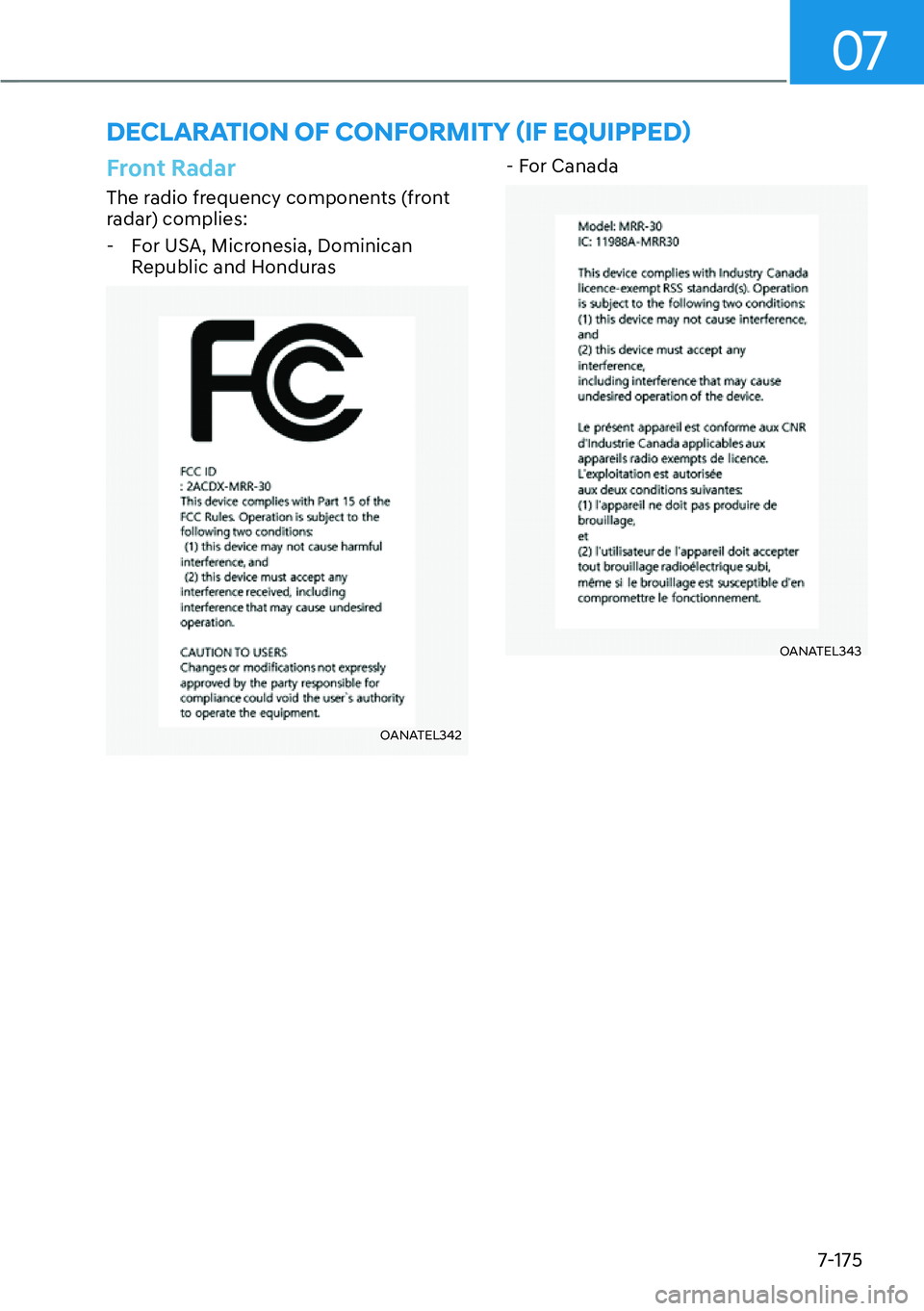

'(&/$5$7,212)&21)250,7<

Driver Assistance System
7-176

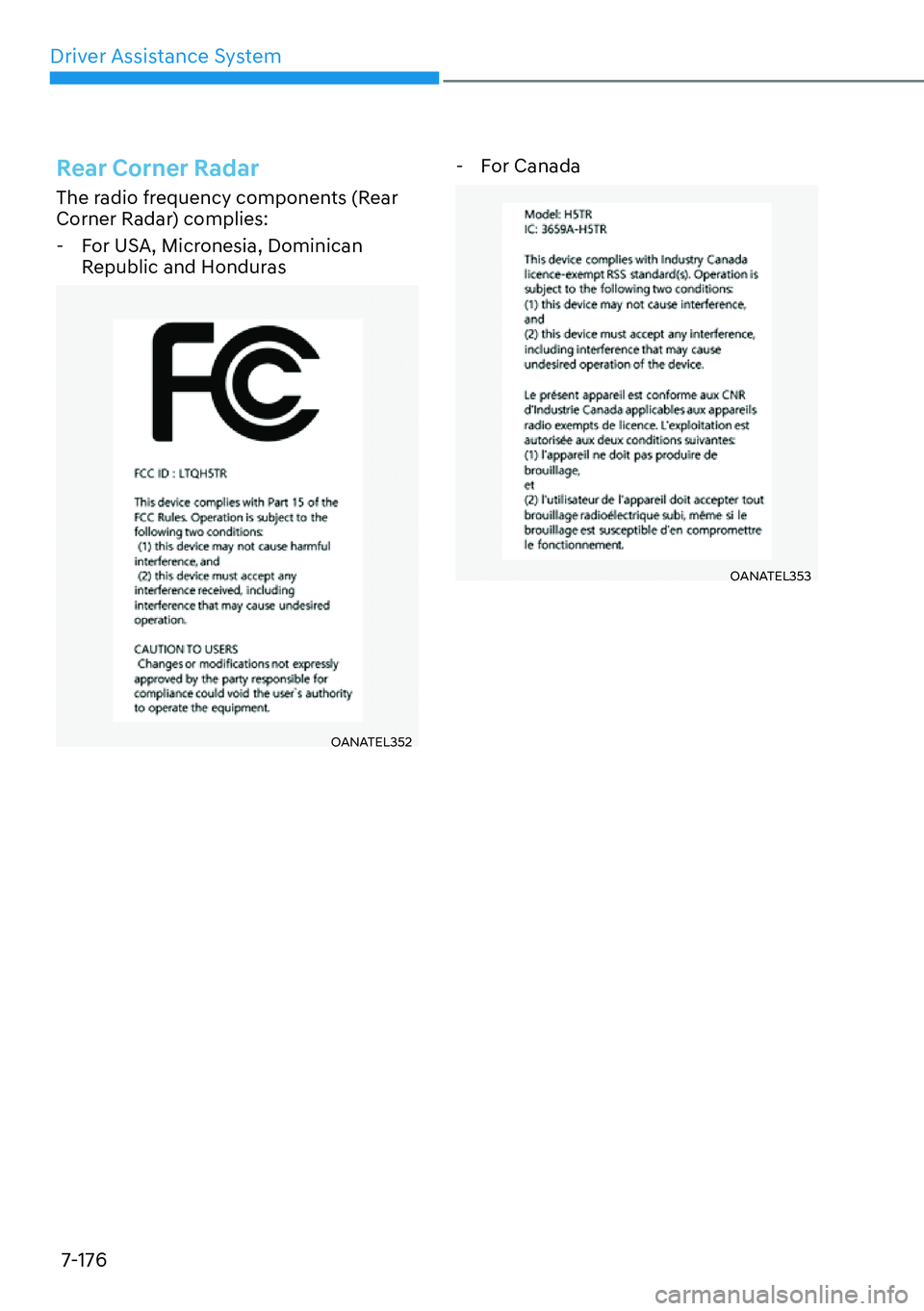

Rear Corner Radar
The radio frequency components (Rear
Corner Radar) complies:
- For USA, Micronesia, Dominican
Republic and Honduras
OANATEL352
- For Canada
OANATEL353

8
Hazard Warning Flasher ................................................................................... 8-2
In Case of an Emergency While Driving .......................................................... 8-2
If the Vehicle Stalls While Driving ............................................................................... 8-2
If the Vehicle Stalls at A Crossroad or Crossing ......................................................... 8-2
If You Have a Flat Tire While Driving ...........................................................................8-3
If the vehicle will not start ................................................................................ 8-3Confirm the EV Battery is not Low on the Charge Gauge .........................................8-3
Jump Starting (12V battery) ............................................................................. 8-4
Tire Pressure Monitoring System (TPMS) .........................................................8-7
Check Tire Pressure ...................................................................................................... 8-7
Tire Pressure Monitoring System ............................................................................... 8-8
Low Tire Pressure Warning Light ................................................................................ 8-9
Low Tire Pressure Position and Tire Pressure Telltale ............................................... 8-9
TPMS (Tire Pressure Monitoring System) Malfunction Indicator ............................ 8-10
Changing a Tire with TPMS ....................................................................................... 8-10
If You have a Flat Tire (with Tire Mobility Kit) ................................................. 8-12Introduction ................................................................................................................ 8-12
Notes on the Safe Use of the Tire Mobility Kit ......................................................... 8-13
Components of the Tire Mobility Kit ......................................................................... 8-14
Using the Tire Mobility Kit When a Tire is Flat .......................................................... 8-15
How to Adjust Tire Pressure ...................................................................................... 8-18
Towing ..............................................................................................................8-19Towing Service ........................................................................................................... 8-19
Removable Towing Hook .......................................................................................... 8-20
8. Emergency Situations

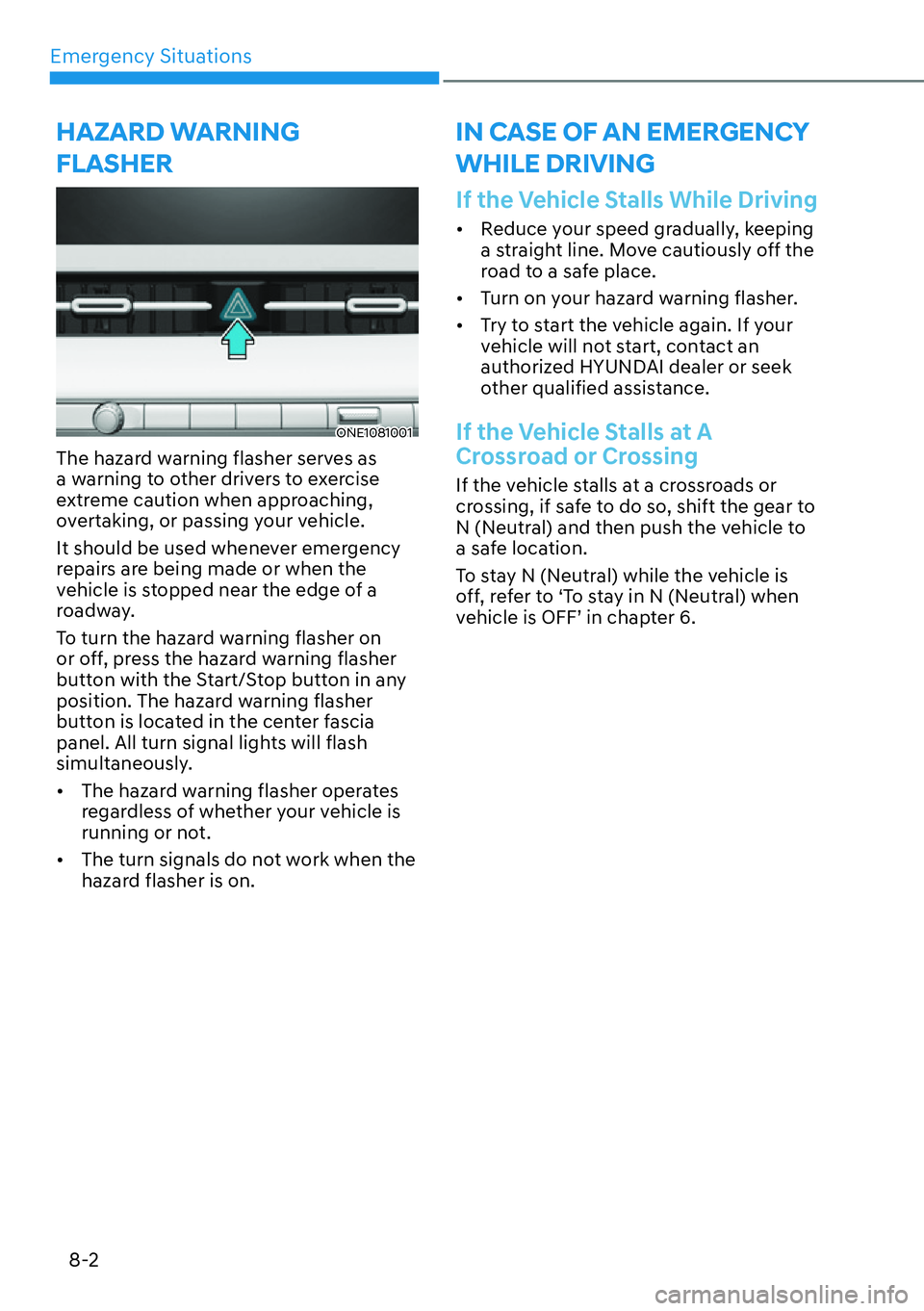

Emergency Situations
8-2
ONE1081001
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.
To turn the hazard warning flasher on
or off, press the hazard warning flasher
button with the Start/Stop button in any
position. The hazard warning flasher
button is located in the center fascia
panel. All turn signal lights will flash
simultaneously.

[The hazard warning flasher operates
regardless of whether your vehicle is
running or not.

[The turn signals do not work when the
hazard flasher is on.
If the Vehicle Stalls While Driving

[Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.

[Turn on your hazard warning flasher.

[Try to start the vehicle again. If your
vehicle will not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
If the Vehicle Stalls at A
Crossroad or Crossing
If the vehicle stalls at a crossroads or
crossing, if safe to do so, shift the gear to
N (Neutral) and then push the vehicle to
a safe location.
To stay N (Neutral) while the vehicle is
off, refer to ‘To stay in N (Neutral) when
vehicle is OFF’ in chapter 6.
HAZARD WARNING
FLASHERIN CASE OF AN EMERGENCY
WHILE DRIVING

08
8-3

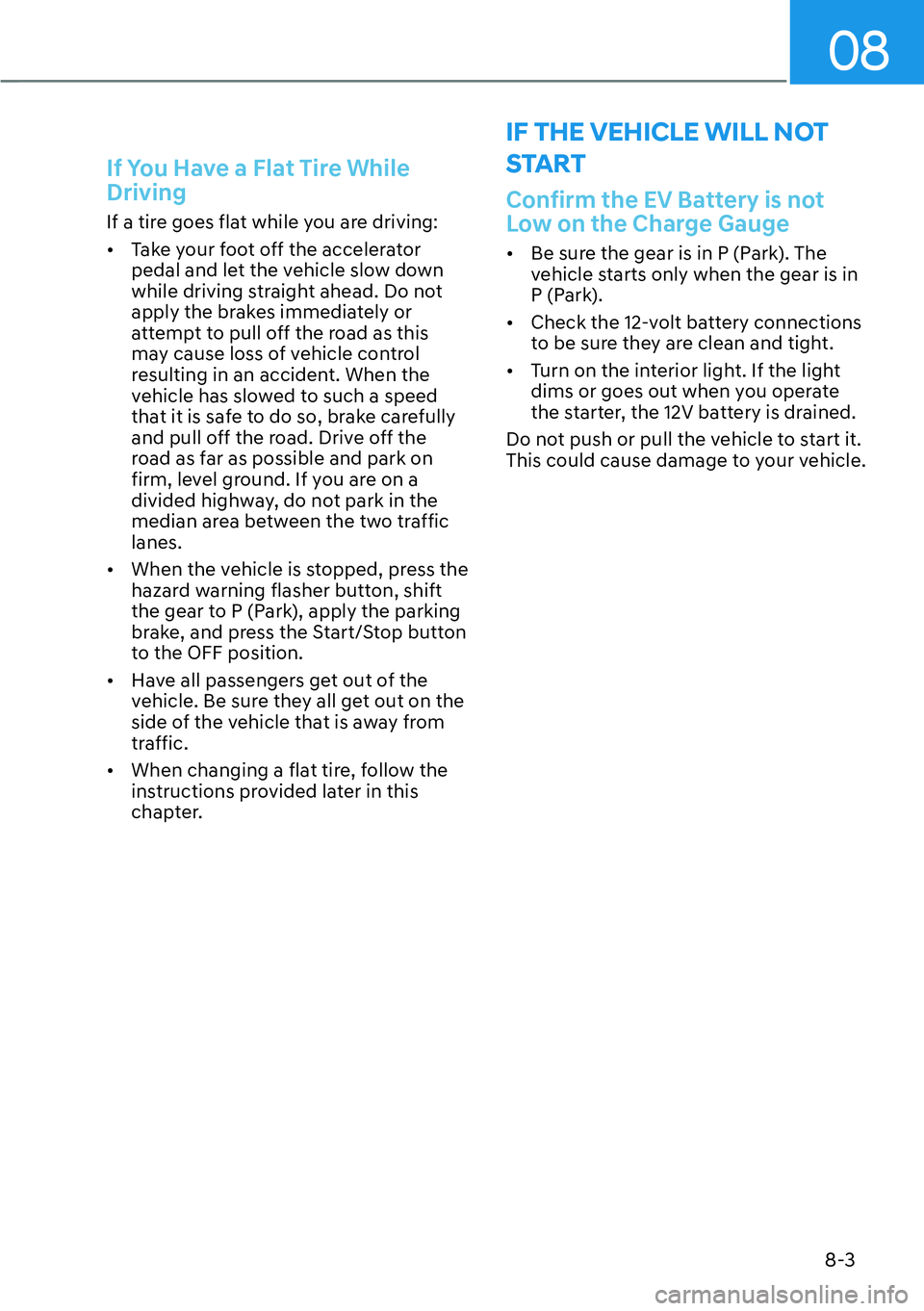

If You Have a Flat Tire While
Driving
If a tire goes flat while you are driving:

[Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead. Do not
apply the brakes immediately or
attempt to pull off the road as this
may cause loss of vehicle control
resulting in an accident. When the
vehicle has slowed to such a speed
that it is safe to do so, brake carefully
and pull off the road. Drive off the
road as far as possible and park on
firm, level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.

[When the vehicle is stopped, press the
hazard warning flasher button, shift
the gear to P (Park), apply the parking
brake, and press the Start/Stop button
to the OFF position.

[Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.

[When changing a flat tire, follow the
instructions provided later in this
chapter.
IF THE VEHICLE WILL NOT
START
Confirm the EV Battery is not
Low on the Charge Gauge

[Be sure the gear is in P (Park). The
vehicle starts only when the gear is in
P (Park).

[Check the 12-volt battery connections
to be sure they are clean and tight.

[Turn on the interior light. If the light
dims or goes out when you operate
the starter, the 12V battery is drained.
Do not push or pull the vehicle to start it.
This could cause damage to your vehicle.

Emergency Situations
8-4
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about how to properly jump start
your vehicle, have a service technician or
towing service do it for you.
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present
in battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you feel
pain or a burning sensation, get medical
attention immediately.

[When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.

[Do not attempt to jump start your
vehicle if your battery is frozen.

[NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.

[The electrical ignition system works
with high voltage.
NEVER touch these components
with the vehicle running or when
the Start/Stop button is in the ON
position.

[The electrical ignition system works
with high voltage. NEVER touch
these components with the (
)
indicator ON or when the START/
STOP button is in the ON position.

[Do not allow the (+) and (-) jumper
cables to touch. It may cause sparks.

[The battery may rupture or explode
when you jump start with a low or
frozen battery.

[Do not directly connect the (-) to the
jump cable. Connect the (-) to the
one of the metallic parts located far
from the jump cable in the vehicle.
The direct (-) connection to the jump
cable may cause an explosion.

[Be sure to use only 12V battery to
jump start. Using batteries with other
voltages to jump start can damage
the battery or even provoke an
explosion.
-80367$57,1*

08
8-5
Jump starting procedure
Information
When you jump start your vehicle,
use the jumper terminal in the motor
compartment.
1. Position the vehicles close enough
that the jumper cables will reach, but
do not allow the vehicle body parts to
contact.
2. Avoid fans or any moving parts in the
motor compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such as
radios, lights, air conditioning, etc.
Put the vehicles in P (Park) and set the
parking brake. Turn both vehicles OFF.
4. Open the hood.
5. Remove the battery cover located
inside of the front trunk.
6. Remove the motor compartment fuse
box cover.
CAUTION
Before jump starting, make sure to
correctly identify the positive (+) and
negative (-) terminals to avoid reverse
polarity connections.
ONE1081003
7. Connect the jumper cables in
the exact sequence shown in the
illustration. First connect one jumper
cable to the red, positive (+) jumper
terminal of your vehicle (1).
8. Connect the other end of the jumper
cable to the red, positive (+) battery/
jumper terminal of the assisting
vehicle (2).
9. Connect the second jumper cable to
the black, negative (-) battery/jumper
terminal of the assisting vehicle (3).
10. Connect the other end of the second
jumper cable to the black, negative (-)
chassis ground of your vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
WARNING
Do not connect the jumper cable to
the negative (-) jumper terminal of the
discharged battery. A spark could cause
the battery to explode and lead to a
personal injury or vehicle damage.
