2022 HYUNDAI IONIQ 5 Owners Manual

02
2-11

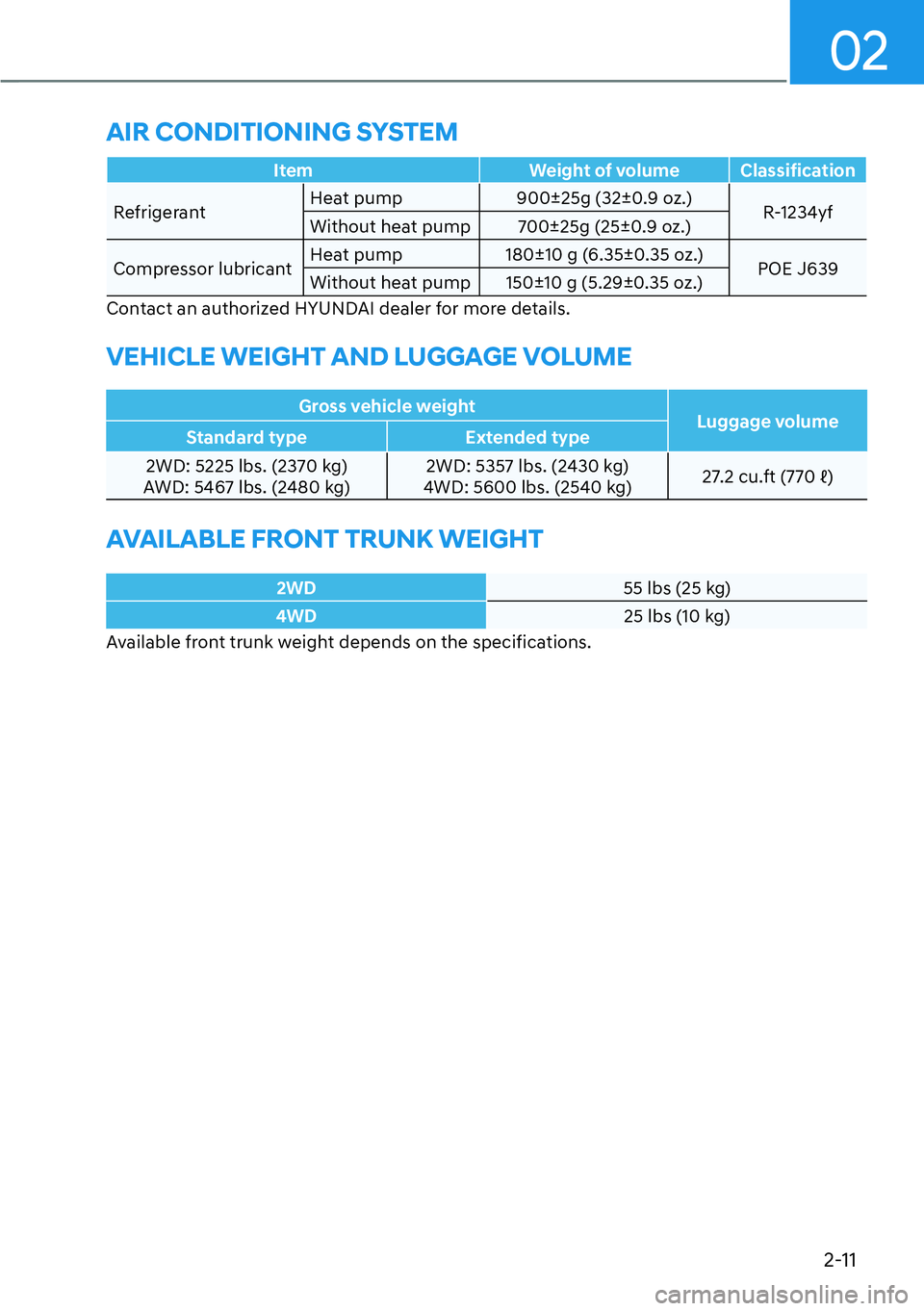

Item Weight of volume Classification
RefrigerantHeat pump 900±25g (32±0.9 oz.)
R-1234yf
Without heat pump 700±25g (25±0.9 oz.)
Compressor lubricantHeat pump 180±10 g (6.35±0.35 oz.)
POE J639
Without heat pump 150±10 g (5.29±0.35 oz.)
Contact an authorized HYUNDAI dealer for more details.
VEHICLE WEIGHT AND LUGGAGE VOLUME
Gross vehicle weight
Luggage volume
Standard type Extended type
2WD: 5225 lbs. (2370 kg)
AWD: 5467 lbs. (2480 kg)2WD: 5357 lbs. (2430 kg)
4WD: 5600 lbs. (2540 kg)FXIW
b
AVAILABLE FRONT TRUNK WEIGHT
2WD55 lbs (25 kg)
4WD25 lbs (10 kg)
Available front trunk weight depends on the specifications.
AIR CONDITIONING SYSTEM

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
To help achieve proper vehicle performance and durability, use only lubricants of the
proper quality.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Reduction gear fluid2WD Rear3.6~3.7 US qt.
a
b
HK ATF 65 SP4M-1
4WDFront3.4~3.5 US qt.
a
b
Rear3.6~3.7 US qt.
a
b
CoolantStandard typewith heat
pump2WD86TW
b
Designated coolant
water for electric
vehicles 4WD86TW
b
without heat
pump2WD86TW
b
4WD86TW
b
Extended typewith heat
pump2WD86TW
b
4WD86TW
b
without heat
pump2WD86TW
b
4WD86TW
b
LCW
CoolantStandard typewith heat
pump2WD86TW
b
4WD86TW
b
without heat
pump2WD86TW
b
4WD86TW
b
Extended typewith heat
pump2WD86TW
b
4WD86TW
b
without heat
pump2WD86TW
b
4WD86TW
b
Brake fluid As requiredSAE J1704 DOT-
4 LV, FMVSS 116
DOT-4, ISO 4925
CLASS-6
RECOMMENDED LUBRICANTS AND CAPACITIES

02
2-13
VEHICLE IDENTIFICATION
180%(5
ã9,1
ä
„Frame number
ONE1011020N
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the right front seat. To check the
number, open the cover.
„VIN label (if equipped)
ONE1011021
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
ONE1011022
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).

Vehicle Information, Consumer Information and Reporting Safety Defects
2-14

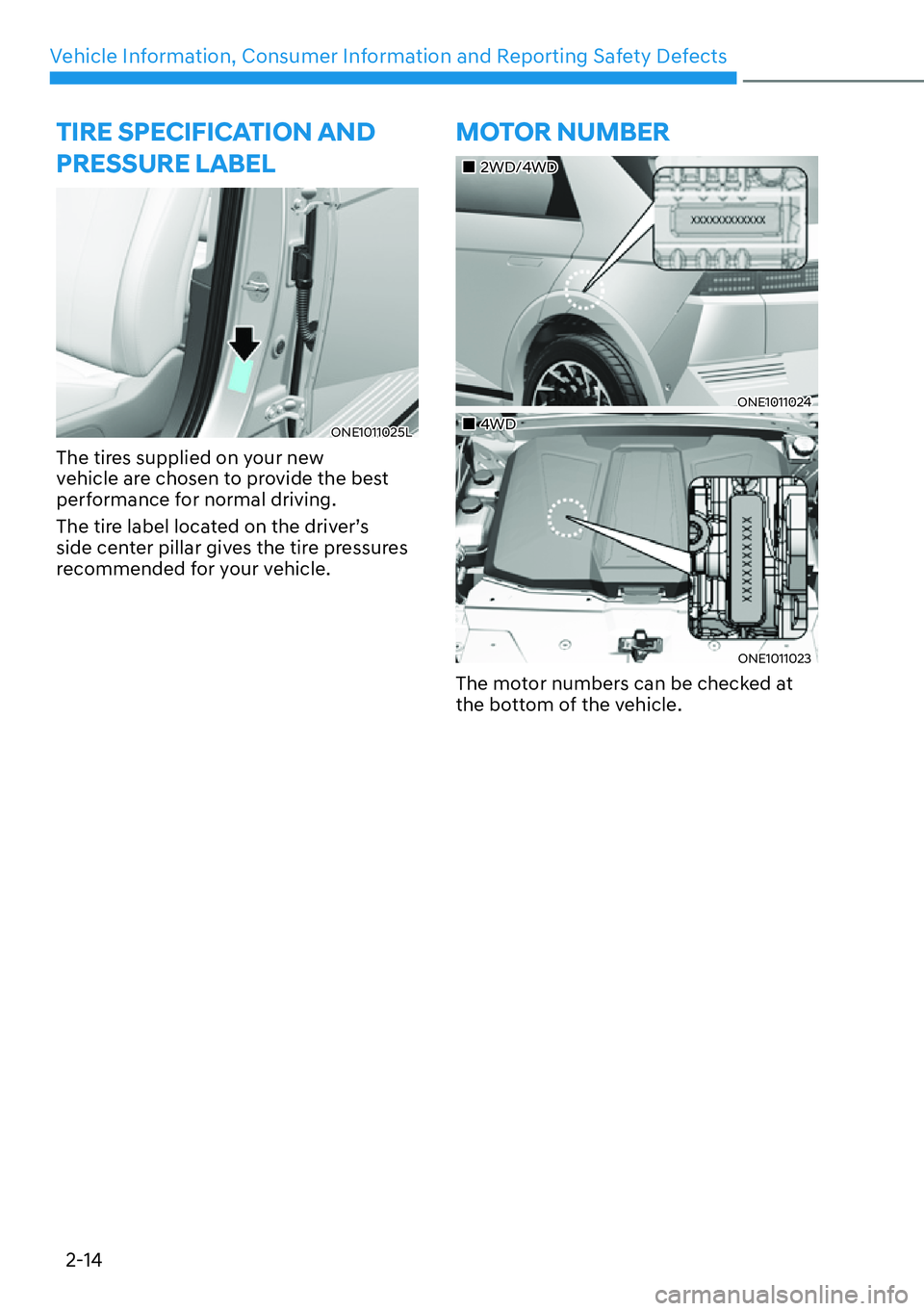

TIRE SPECIFICATION AND
PRESSURE LABEL
ONE1011025L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
MOTOR NUMBER
„2WD/4WD
ONE1011024
„4WD
ONE1011023
The motor numbers can be checked at
the bottom of the vehicle.

02
2-15
AIR CONDITIONER
COMPRESSOR LABEL
ONE1011026L
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).
REFRIGERANT LABEL
ONE1051075
The refrigerant label provides
information such as refrigerant type and
amount. (R-1234yf)

Vehicle Information, Consumer Information and Reporting Safety Defects
2-16

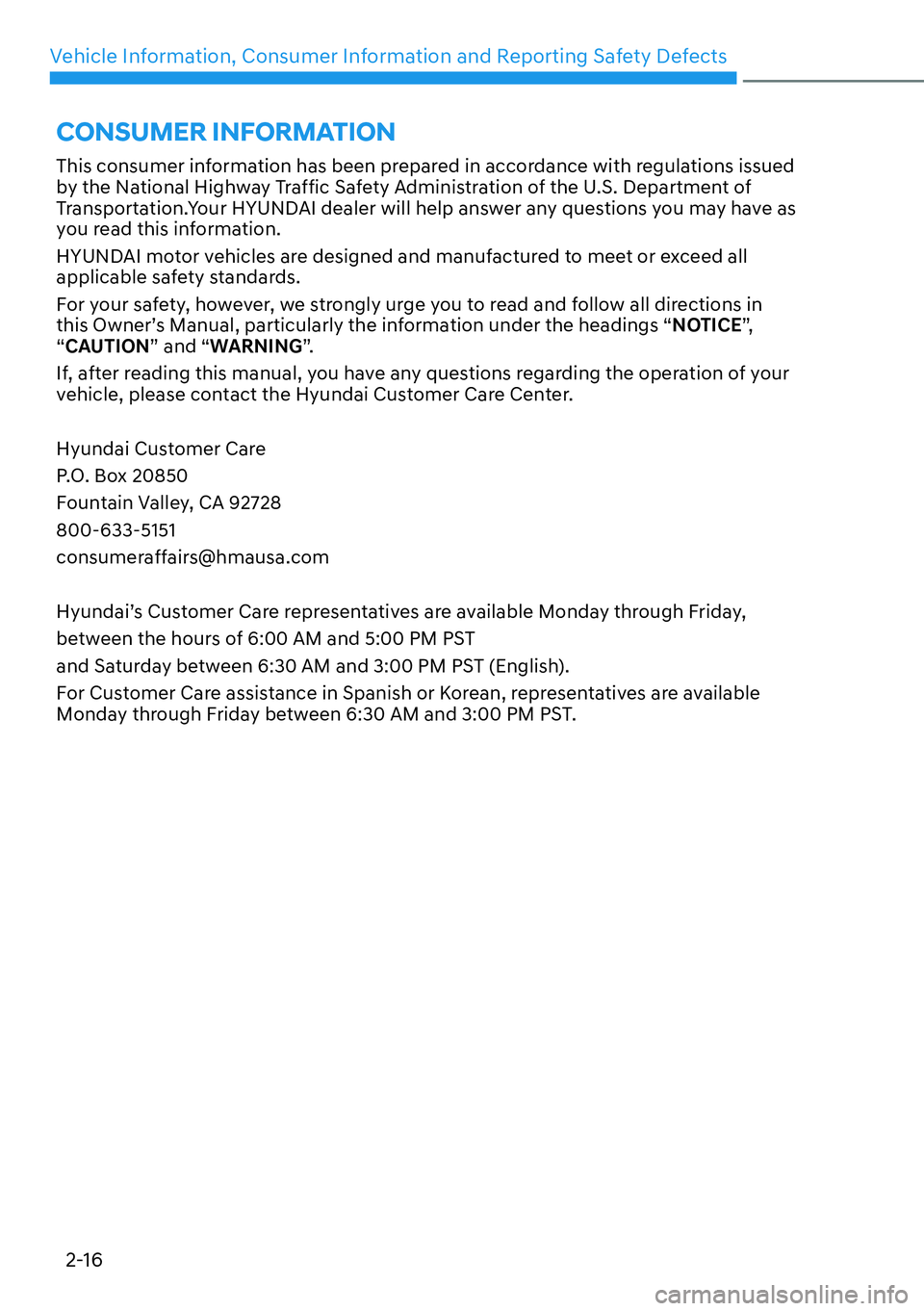

This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
CONSUMER INFORMATION

02
2-17

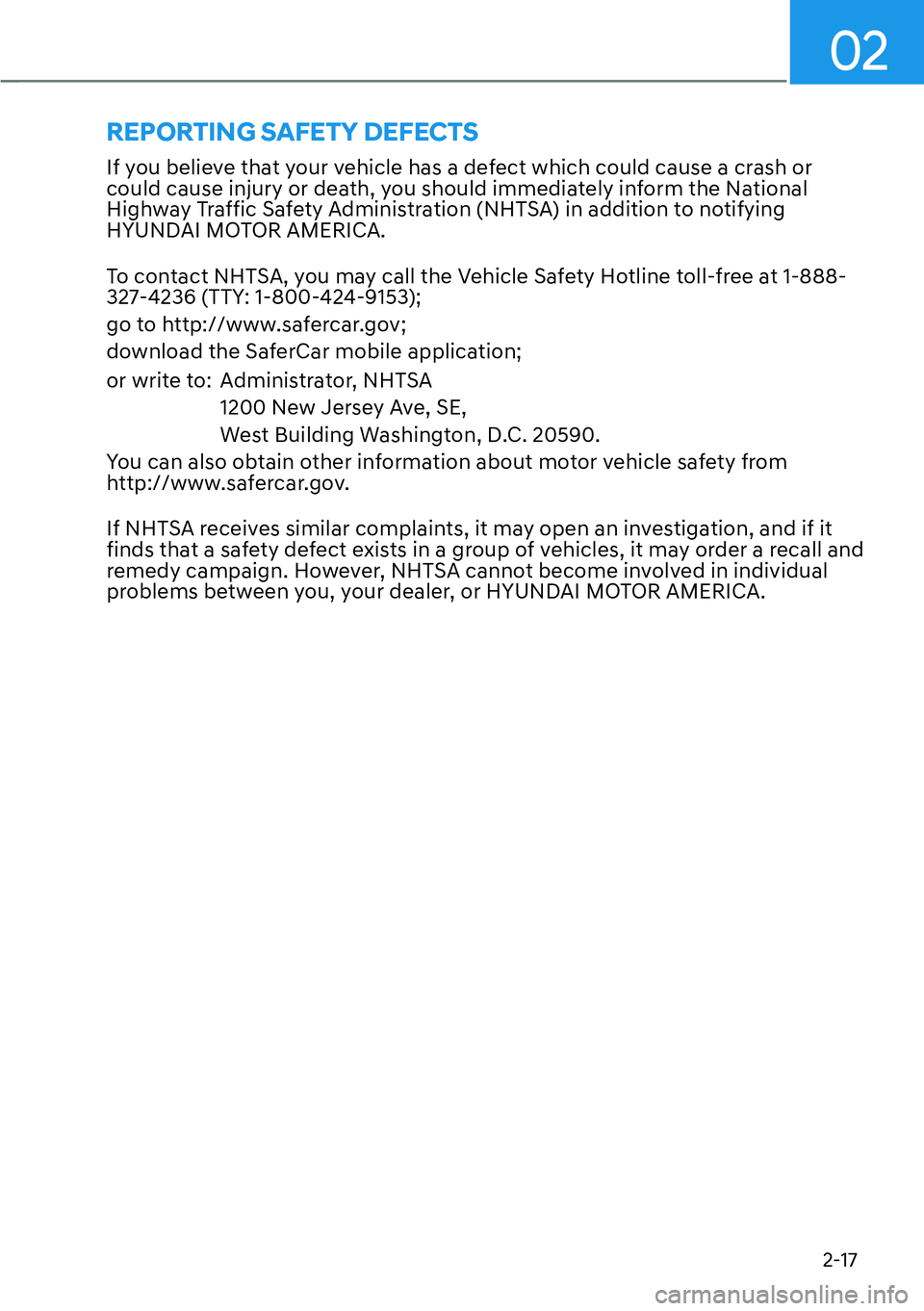

If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA
1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or HYUNDAI MOTOR AMERICA.
REPORTING SAFETY DEFECTS

3
3. Seats & Safety System
Important Safety Precautions ...........................................................................3-2Always Wear Your Seat Belt ......................................................................................... 3-2
Restrain All Children ..................................................................................................... 3-2
Air Bag Hazards ............................................................................................................ 3-2
Driver Distraction ......................................................................................................... 3-2
Control Your Speed ...................................................................................................... 3-2
Keep Your Vehicle In Safe Condition ........................................................................... 3-2
Seats .................................................................................................................. 3-3Safety Precautions .......................................................................................................3-6
Front Seats ....................................................................................................................3-7
Rear Seats ................................................................................................................... 3-16
Head Restraint ............................................................................................................3-20
Seat Warmers ............................................................................................................. 3-24
Air Ventilation Seats ................................................................................................... 3-26
Advanced Rear Occupant Alert (ROA) ...................................................................... 3-28
Seat Belts ......................................................................................................... 3-29Seat Belt Safety Precautions ..................................................................................... 3-29
Seat Belt Warning Light .............................................................................................3-30
Seat Belt Restraint System .........................................................................................3-31
Additional Seat Belt Safety Precautions ...................................................................3-36
Care of Seat Belts .......................................................................................................3-38
Child Restraint System (CRS) ......................................................................... 3-39
Children Always in the Rear .......................................................................................3-39
Selecting a Child Restraint System (CRS) ................................................................ 3-40
Installing a Child Restraint System (CRS) ................................................................. 3-41
Air Bag - Supplemental Restraint System ..................................................... 3-49Where are the Air Bags? ............................................................................................. 3-51
How does the Air Bags System Operate? .................................................................3-54
What to Expect After an Air Bag Inflates ..................................................................3-58
Occupant Classification System (OCS) .....................................................................3-59
Why didn’t my air bag go off in a collision? ..............................................................3-65
SRS Care ..................................................................................................................... 3-7 0
Additional Safety Precautions .................................................................................... 3-71
Air Bag Warning Labels ............................................................................................... 3-71
