2022 HYUNDAI IONIQ 5 Owners Manual

Driving Your Vehicle

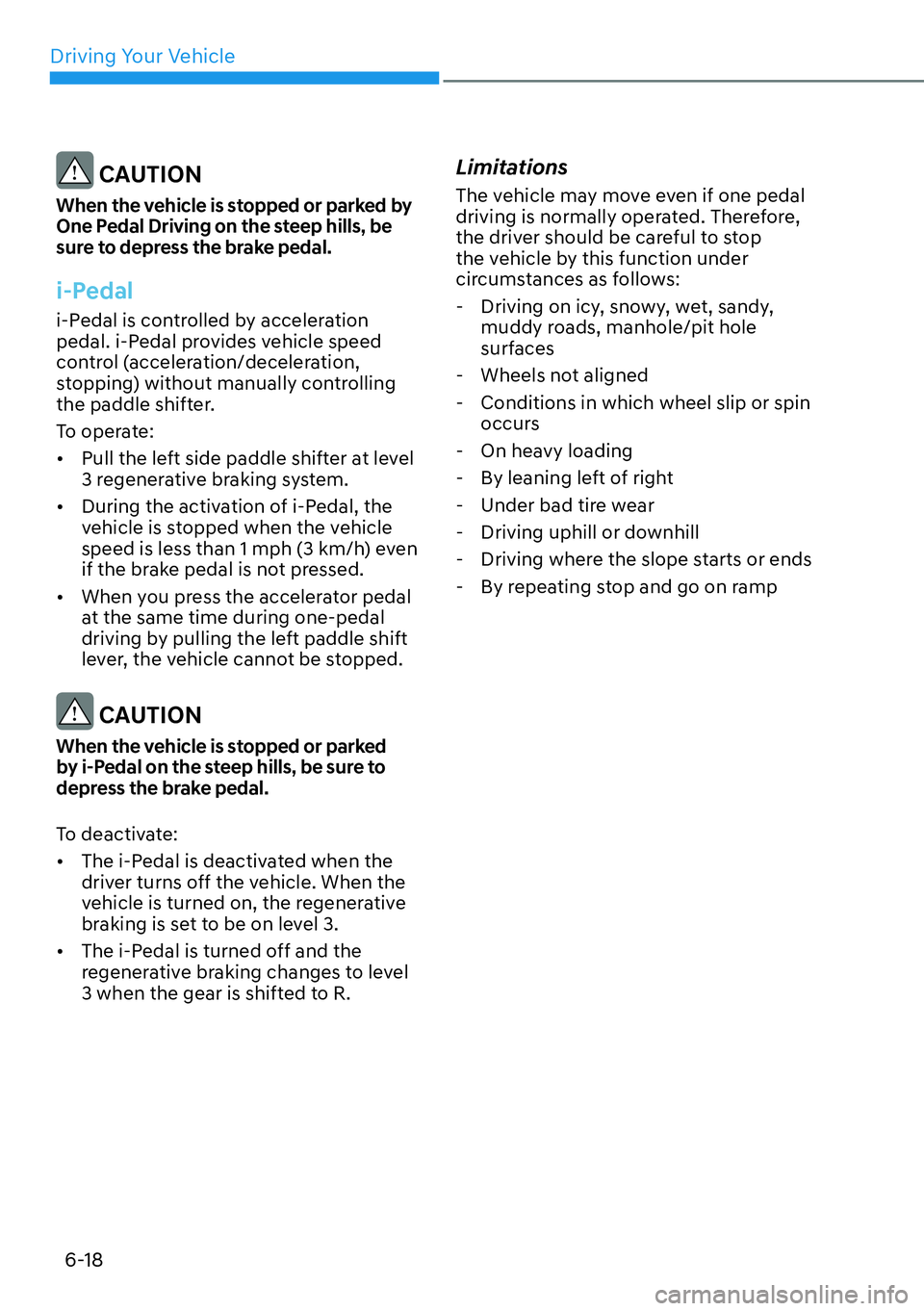

6-18
CAUTION
When the vehicle is stopped or parked by
One Pedal Driving on the steep hills, be
sure to depress the brake pedal.
i-Pedal
i-Pedal is controlled by acceleration
pedal. i-Pedal provides vehicle speed
control (acceleration/deceleration,
stopping) without manually controlling
the paddle shifter.
To operate:

[Pull the left side paddle shifter at level
3 regenerative braking system.

[During the activation of i-Pedal, the
vehicle is stopped when the vehicle
speed is less than 1 mph (3 km/h) even
if the brake pedal is not pressed.

[When you press the accelerator pedal
at the same time during one-pedal
driving by pulling the left paddle shift
lever, the vehicle cannot be stopped.
CAUTION
When the vehicle is stopped or parked
by i-Pedal on the steep hills, be sure to
depress the brake pedal.
To deactivate:

[The i-Pedal is deactivated when the
driver turns off the vehicle. When the
vehicle is turned on, the regenerative
braking is set to be on level 3.

[The i-Pedal is turned off and the
regenerative braking changes to level
3 when the gear is shifted to R.
Limitations
The vehicle may move even if one pedal
driving is normally operated. Therefore,
the driver should be careful to stop
the vehicle by this function under
circumstances as follows:
- Driving on icy, snowy, wet, sandy,
muddy roads, manhole/pit hole
surfaces
- Wheels not aligned
- Conditions in which wheel slip or spin
occurs
- On heavy loading
- By leaning left of right
- Under bad tire wear
- Driving uphill or downhill
- Driving where the slope starts or ends
- By repeating stop and go on ramp

06

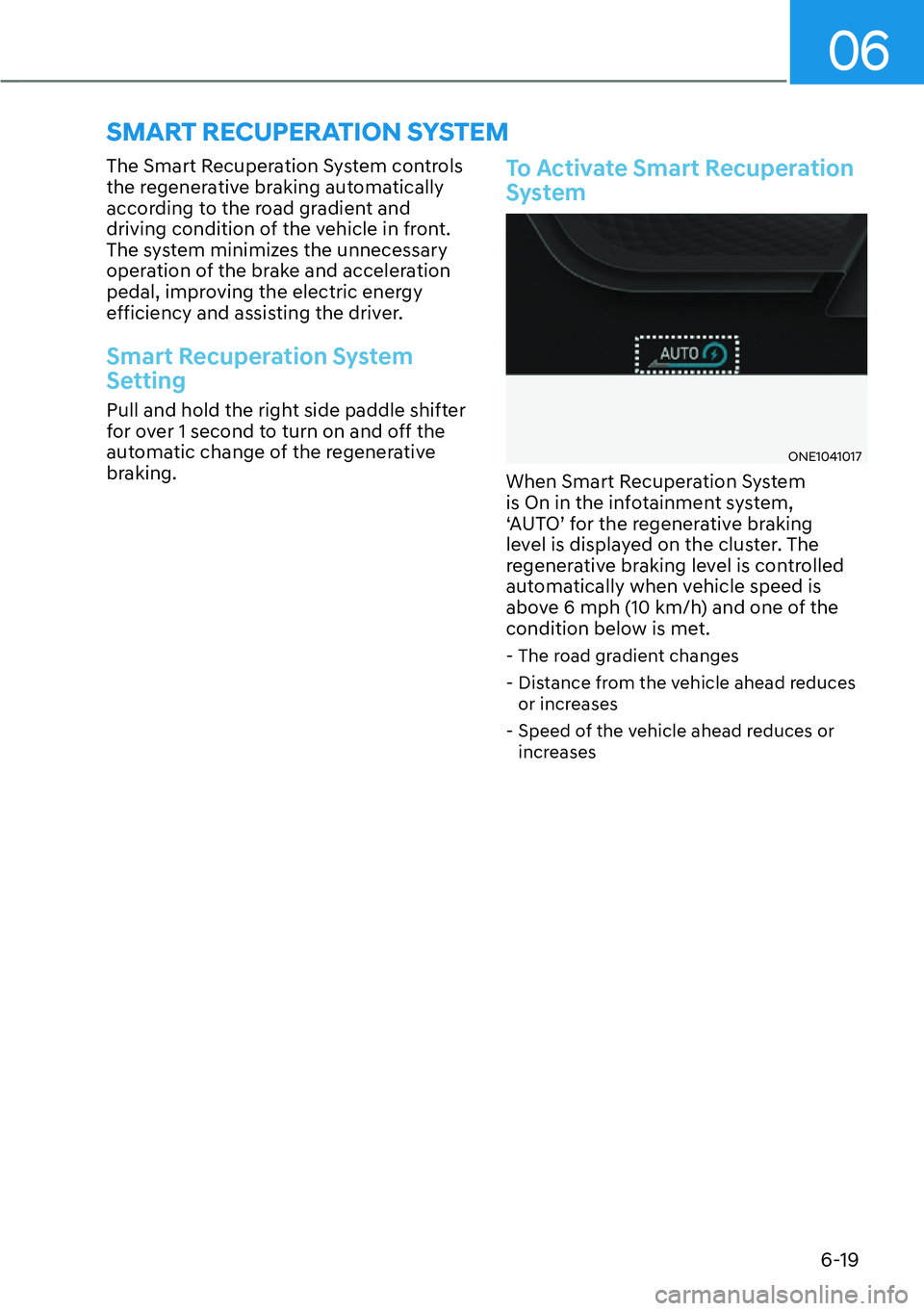

6-19
60$575(&83(5$7,216<67(0
The Smart Recuperation System controls
the regenerative braking automatically
according to the road gradient and
driving condition of the vehicle in front.
The system minimizes the unnecessary
operation of the brake and acceleration
pedal, improving the electric energy
efficiency and assisting the driver.
Smart Recuperation System
Setting
Pull and hold the right side paddle shifter
for over 1 second to turn on and off the
automatic change of the regenerative
braking.
To Activate Smart Recuperation
System
ONE1041017
When Smart Recuperation System
is On in the infotainment system,
‘AUTO’ for the regenerative braking
level is displayed on the cluster. The
regenerative braking level is controlled
automatically when vehicle speed is
above 6 mph (10 km/h) and one of the
condition below is met.
- The road gradient changes
- Distance from the vehicle ahead reduces
or increases
- Speed of the vehicle ahead reduces or
increases

Driving Your Vehicle

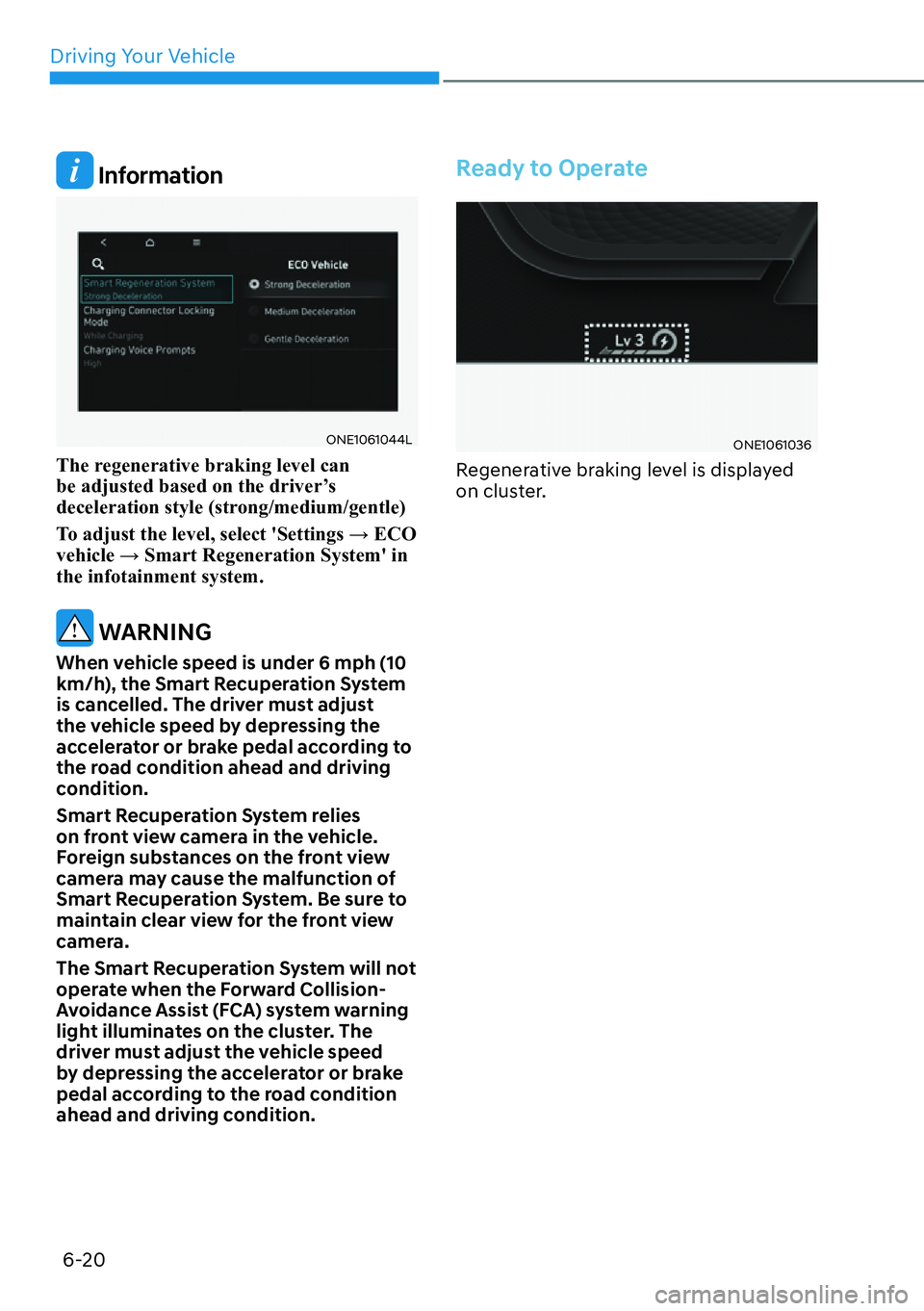

6-20
Information
ONE1061044L
The regenerative braking level can
be adjusted based on the driver’s
deceleration style (strong/medium/gentle)
7RDGMXVWWKHOHYHOVHOHFW
6HWWLQJV
:(&2
YHKLFOH
:6PDUW5HJHQHUDWLRQ6\VWHP
LQ
the infotainment system.
WARNING
When vehicle speed is under 6 mph (10
km/h), the Smart Recuperation System
is cancelled. The driver must adjust
the vehicle speed by depressing the
accelerator or brake pedal according to
the road condition ahead and driving
condition.
Smart Recuperation System relies
on front view camera in the vehicle.
Foreign substances on the front view
camera may cause the malfunction of
Smart Recuperation System. Be sure to
maintain clear view for the front view
camera.
The Smart Recuperation System will not
operate when the Forward Collision-
Avoidance Assist (FCA) system warning
light illuminates on the cluster. The
driver must adjust the vehicle speed
by depressing the accelerator or brake
pedal according to the road condition
ahead and driving condition.
Ready to Operate
ONE1061036
Regenerative braking level is displayed
on cluster.

06

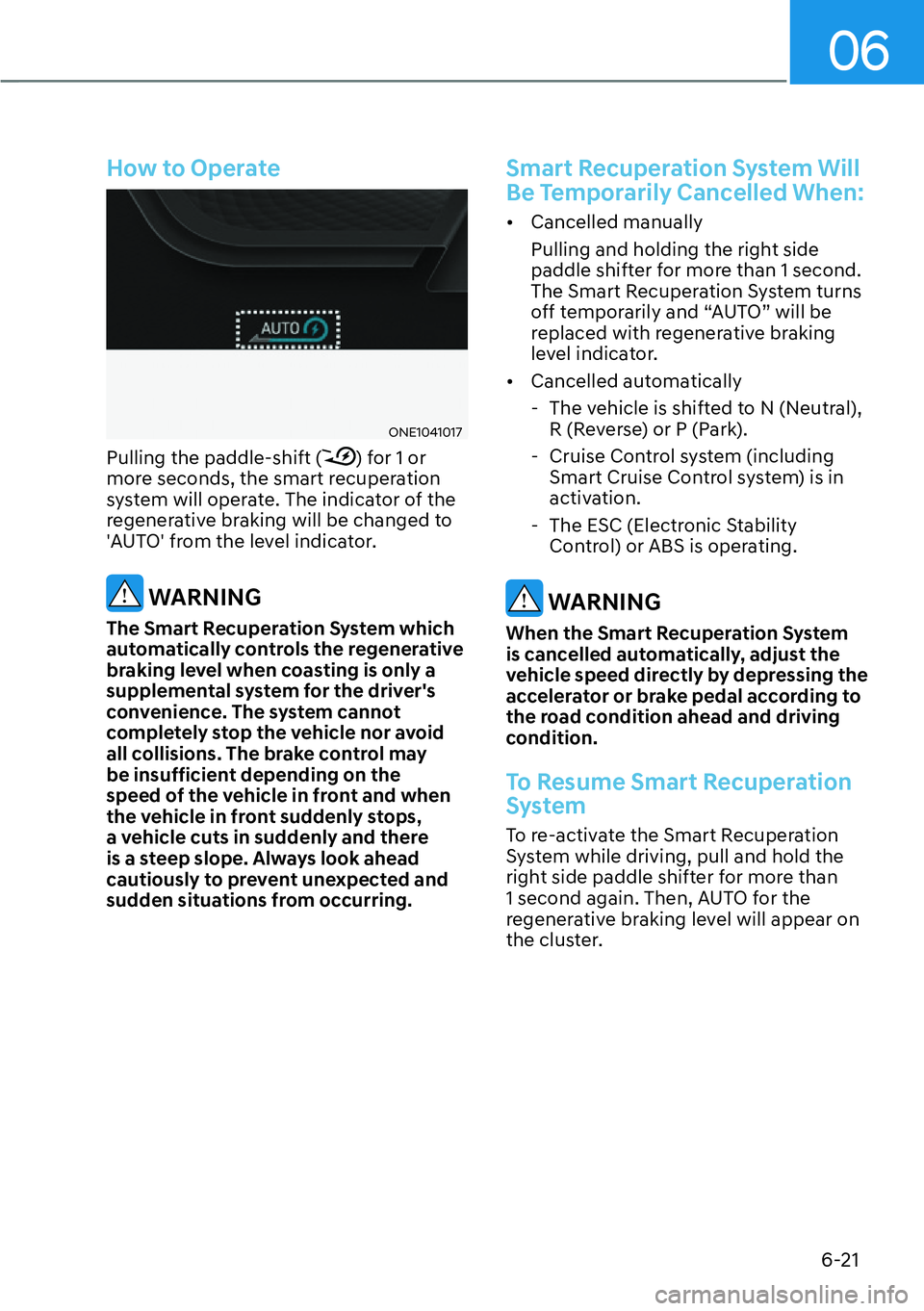

6-21
How to Operate
ONE1041017
Pulling the paddle-shift () for 1 or
more seconds, the smart recuperation
system will operate. The indicator of the
regenerative braking will be changed to
'AUTO' from the level indicator.
WARNING
The Smart Recuperation System which
automatically controls the regenerative
braking level when coasting is only a
supplemental system for the driver's
convenience. The system cannot
completely stop the vehicle nor avoid
all collisions. The brake control may
be insufficient depending on the
speed of the vehicle in front and when
the vehicle in front suddenly stops,
a vehicle cuts in suddenly and there
is a steep slope. Always look ahead
cautiously to prevent unexpected and
sudden situations from occurring.
Smart Recuperation System Will
Be Temporarily Cancelled When:

[Cancelled manually
Pulling and holding the right side
paddle shifter for more than 1 second.
The Smart Recuperation System turns
off temporarily and “AUTO” will be
replaced with regenerative braking
level indicator.

[Cancelled automatically
- The vehicle is shifted to N (Neutral),
R (Reverse) or P (Park).
- Cruise Control system (including
Smart Cruise Control system) is in
activation.
- The ESC (Electronic Stability
Control) or ABS is operating.
WARNING
When the Smart Recuperation System
is cancelled automatically, adjust the
vehicle speed directly by depressing the
accelerator or brake pedal according to
the road condition ahead and driving
condition.
To Resume Smart Recuperation
System
To re-activate the Smart Recuperation
System while driving, pull and hold the
right side paddle shifter for more than
1 second again. Then, AUTO for the
regenerative braking level will appear on
the cluster.

Driving Your Vehicle
6-22
Vehicle-to-Vehicle Distance
Recognition Sensor (Front
Radar)
ONE1071018
[2] : Front radar
For detail location of sensor, refer to the picture
above.
In order for the Smart Recuperation
System to operate properly, always make
sure the radar sensor cover is clean and
free of dirt, snow, and debris. Dirt, snow,
or foreign substances on the lens may
adversely affect the sensing performance
of the sensor. In this case, the system
operation may stop temporarily and not
operate normally.
CAUTION

[Do not apply license plate frame or
foreign objects such as a bumper
sticker or a bumper guard near the
radar sensor. Doing so may adversely
affect the sensing performance of
the radar.

[Always keep the radar sensor and
lens cover clean and free of dirt and
debris.

[Use only a soft cloth to wash the
vehicle. Do not spray pressurized
water directly on the sensor or
sensor cover.

[Be careful not to apply unnecessary
force on the radar sensor or sensor
cover. If the sensor is forcibly
moved out of proper alignment,
the Smart Recuperation System
may not operate correctly. In this
case, a warning message may not
be displayed. Have the vehicle
inspected by an authorized HYUNDAI
dealer.

[If the front bumper becomes
damaged in the area around the
radar sensor, the Smart Recuperation
System may not operate properly.
Have the vehicle authorized
HYUNDAI dealer.

[Use only genuine parts or the
equivalent specified for your vehicle
to repair or replace a damaged
sensor or sensor cover. Do not apply
paint to the sensor cover.

06
6-23
System Malfunction
OOSEV040521L
Check smart recuperation system
The message will appear when the
system is not functioning normally. The
system will be cancelled and the word
'AUTO' on the cluster will disappear and
instead display regenerative braking
level. Check for foreign substances on
the front radar. Remove any dirt, snow, or
foreign material that could interfere with
the radar sensors. If the system still does
not operate normally, take your vehicle
to an authorized HYUNDAI dealer and
have the system checked.
Limitations of the System
The Smart Recuperation System may
not operate properly in certain situations
when the driving condition is beyond the
performance of the front radar sensor.
Driver's attention is required in such
cases when the system does not react
properly or operate unintentionally.
On curves
OTM058117
When coasting on the curve, the system
may not detect the vehicle in your lane
and the regenerative braking level will
reduce automatically, making you feel
that the vehicle is accelerating.
Also, if the system suddenly recognizes
the vehicle in front, the regenerative
braking level will increase automatically,
making you feel that the vehicle is
decelerating.
The driver must maintain a safe braking
distance, and if necessary, depress the
brake pedal to reduce your driving speed
in order to maintain a safe distance.
OTM058073
Your vehicle speed can be reduced due
to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate speed. Check to be sure
that the road conditions permit safe
operation of the Smart Recuperation
System.

Driving Your Vehicle
6-24
On inclines
ONE1071209
When coasting on an uphill or downhill,
the system may not detect the vehicle in
your lane and the regenerative braking
level will reduce automatically, making
you feel that the vehicle is accelerating.
Also, if the system suddenly recognizes
the vehicle in front, the regenerative
braking level will increase automatically,
making you feel that the vehicle is
decelerating.
The driver must maintain a safe braking
distance, and if necessary, depress the
brake pedal to reduce your driving speed
in order to maintain a safe distance.
Lane changing
OTM058074

[A vehicle which moves into your lane
from an adjacent lane cannot be
recognized by the sensor until it is in
the sensor's detection range.

[The radar may not detect immediately
when a vehicle cuts in suddenly.
Always pay attention to the traffic,
road and driving conditions.

06
6-25
Vehicle recognition
OTM058128
Some vehicles in your lane cannot be
recognized by the sensor:
- Narrow vehicles such as motorcycles or
bicycles
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Stopped vehicles (When the vehicle
ahead drives away, the system may not
detect a stopped vehicle.)
- Vehicles with small rear profile such as
trailers with no loads
A vehicle ahead cannot be recognized
correctly by the sensor if any of following
occurs:
- When the vehicle is pointing upwards
due to overloading in the luggage
compartment.
- While the steering wheel is operating.
- When driving to one side of the lane.
- When driving on narrow lanes or on
curves.
- Apply the brake or accelerator pedal if
necessary.
WARNING
When using the Smart Recuperation
System take the following precautions:

[If an emergency stop is necessary,
you must apply the brakes.

[Keep a safe distance according to
road conditions and vehicle speed. If
the vehicle to vehicle distance is too
close during a high-speed driving, a
serious collision may result.

[Always maintain sufficient braking
distance and decelerate your vehicle
by applying the brakes if necessary.

[The Smart Recuperation System
cannot recognize a stopped vehicle,
pedestrians or an oncoming vehicle.
Always look ahead cautiously to
prevent unexpected and sudden
situations from occurring.

[Vehicles moving in front of you with
a frequent lane changes may cause
a delay in the system's reaction or
may cause the system to react to a
vehicle actually in an adjacent lane.
Always drive cautiously to prevent
unexpected and sudden situations
from occurring.

[The Smart Recuperation System
may not recognize complex driving
situations so always pay attention to
driving conditions and control your
vehicle speed.
NOTICE
The Smart Recuperation System may
not operate temporarily due to:

[Electrical interference

[Modifying the suspension

[Differences of tire abrasion or tire
pressure

[Installing different type of tires
