2022 HYUNDAI IONIQ 5 Owners Manual

Seats & Safety System
3-10
ONE1031090N
Lumbar support
To adjust the lumbar support:

[Press the front portion of the switch
(1) to increase the support or the rear
portion of the switch (2) to decrease
the support.
NOTICE
Do not continue to operate the lumbar
support when the lumbar support
provides its maximum support. Damage
to the lumbar support motor could
occur.
Power adjustment (if equipped)
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
ONE1031006N
Forward and rearward adjustment
To move the seat forward or rearward:
1. Push the control switch forward or
rearward.
2. Release the switch once the seat
reaches the desired position.

03

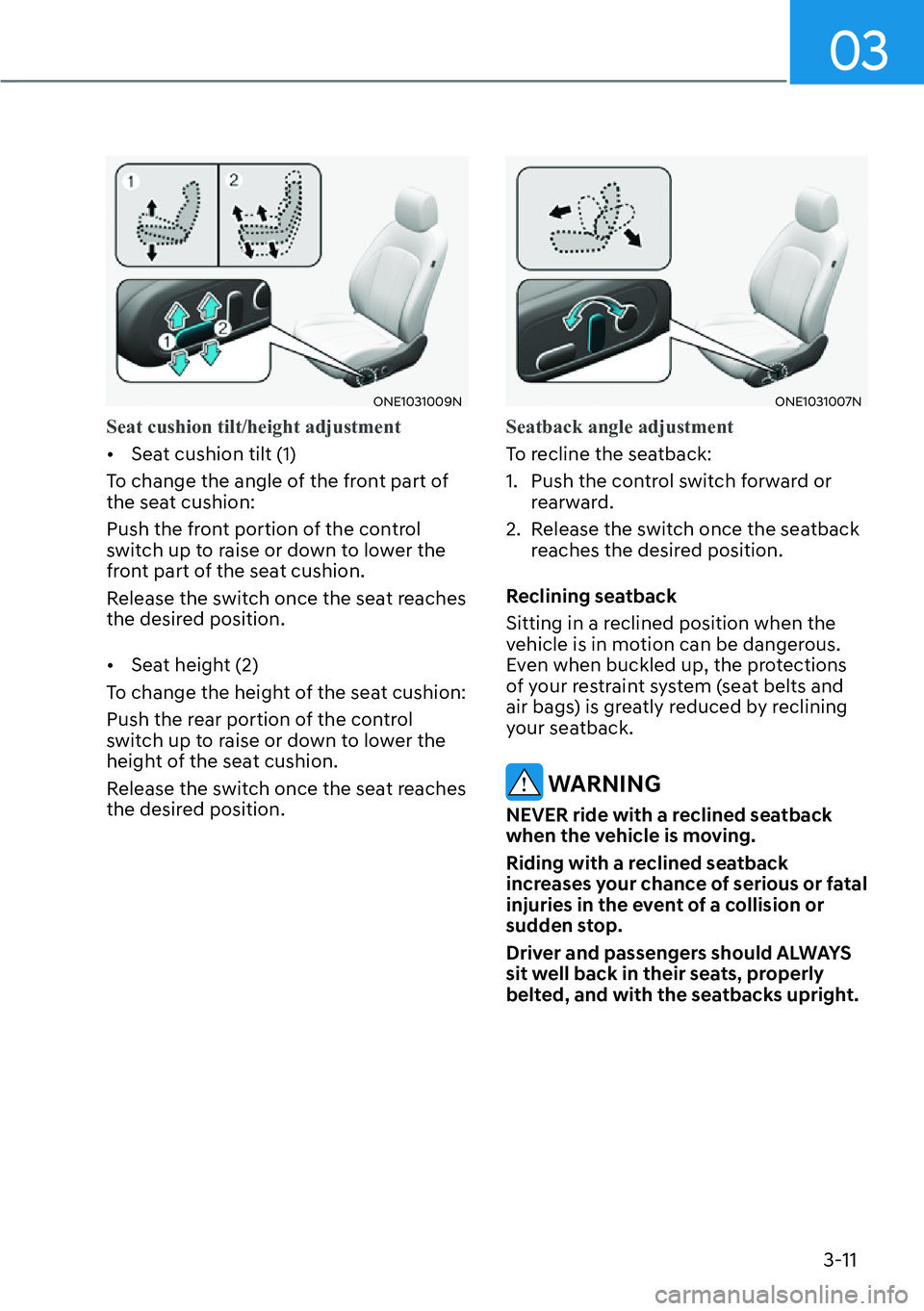

3-11
ONE1031009N
Seat cushion tilt/height adjustment

[Seat cushion tilt (1)
To change the angle of the front part of
the seat cushion:
Push the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion.
Release the switch once the seat reaches
the desired position.

[Seat height (2)
To change the height of the seat cushion:
Push the rear portion of the control
switch up to raise or down to lower the
height of the seat cushion.
Release the switch once the seat reaches
the desired position.
ONE1031007N
Seatback angle adjustment
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and
air bags) is greatly reduced by reclining
your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Driver and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.

Seats & Safety System

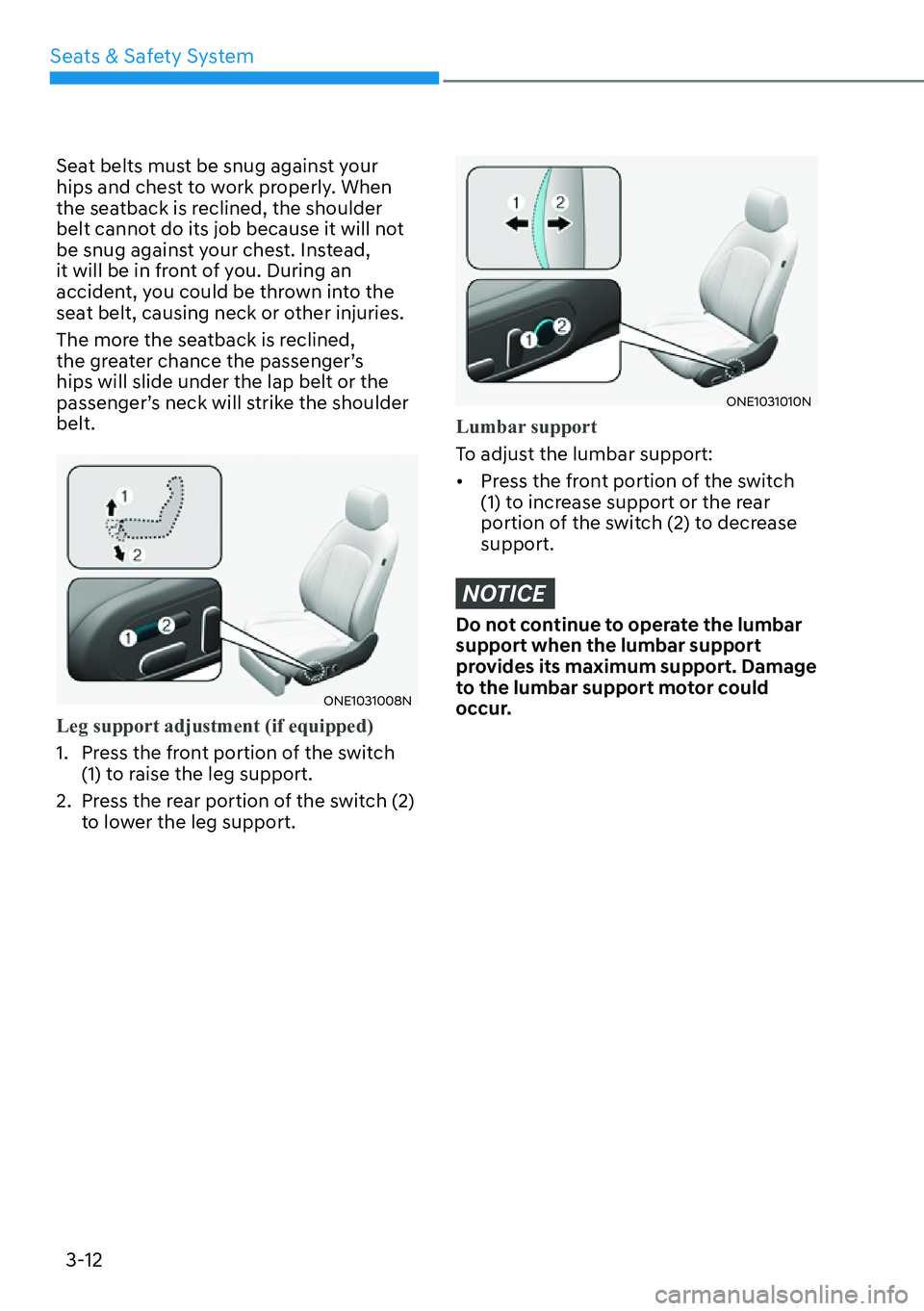

3-12
Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
ONE1031008N
Leg support adjustment (if equipped)
1. Press the front portion of the switch
(1) to raise the leg support.
2. Press the rear portion of the switch (2)
to lower the leg support.
ONE1031010N
Lumbar support
To adjust the lumbar support:

[Press the front portion of the switch
(1) to increase support or the rear
portion of the switch (2) to decrease
support.
NOTICE
Do not continue to operate the lumbar
support when the lumbar support
provides its maximum support. Damage
to the lumbar support motor could
occur.

03

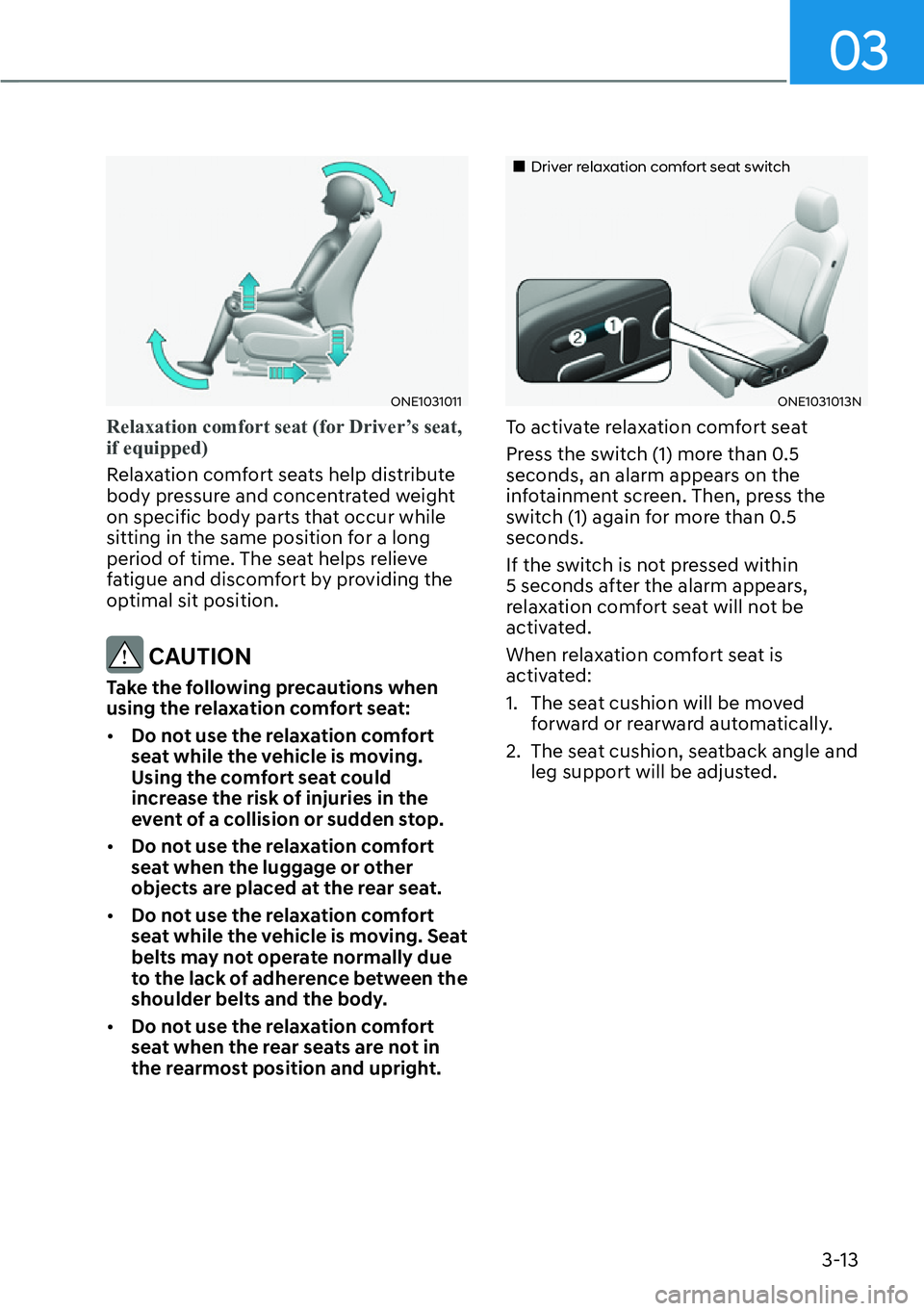

3-13
ONE1031011
Relaxation comfort seat (for Driver’s seat,
if equipped)
Relaxation comfort seats help distribute
body pressure and concentrated weight
on specific body parts that occur while
sitting in the same position for a long
period of time. The seat helps relieve
fatigue and discomfort by providing the
optimal sit position.
CAUTION
Take the following precautions when
using the relaxation comfort seat:

[Do not use the relaxation comfort
seat while the vehicle is moving.
Using the comfort seat could
increase the risk of injuries in the
event of a collision or sudden stop.

[Do not use the relaxation comfort
seat when the luggage or other
objects are placed at the rear seat.

[Do not use the relaxation comfort
seat while the vehicle is moving. Seat
belts may not operate normally due
to the lack of adherence between the
shoulder belts and the body.

[Do not use the relaxation comfort
seat when the rear seats are not in
the rearmost position and upright.
„Driver relaxation comfort seat switch
ONE1031013N
To activate relaxation comfort seat
Press the switch (1) more than 0.5
seconds, an alarm appears on the
infotainment screen. Then, press the
switch (1) again for more than 0.5
seconds.
If the switch is not pressed within
5 seconds after the alarm appears,
relaxation comfort seat will not be
activated.
When relaxation comfort seat is
activated:
1. The seat cushion will be moved
forward or rearward automatically.
2. The seat cushion, seatback angle and
leg support will be adjusted.

Seats & Safety System

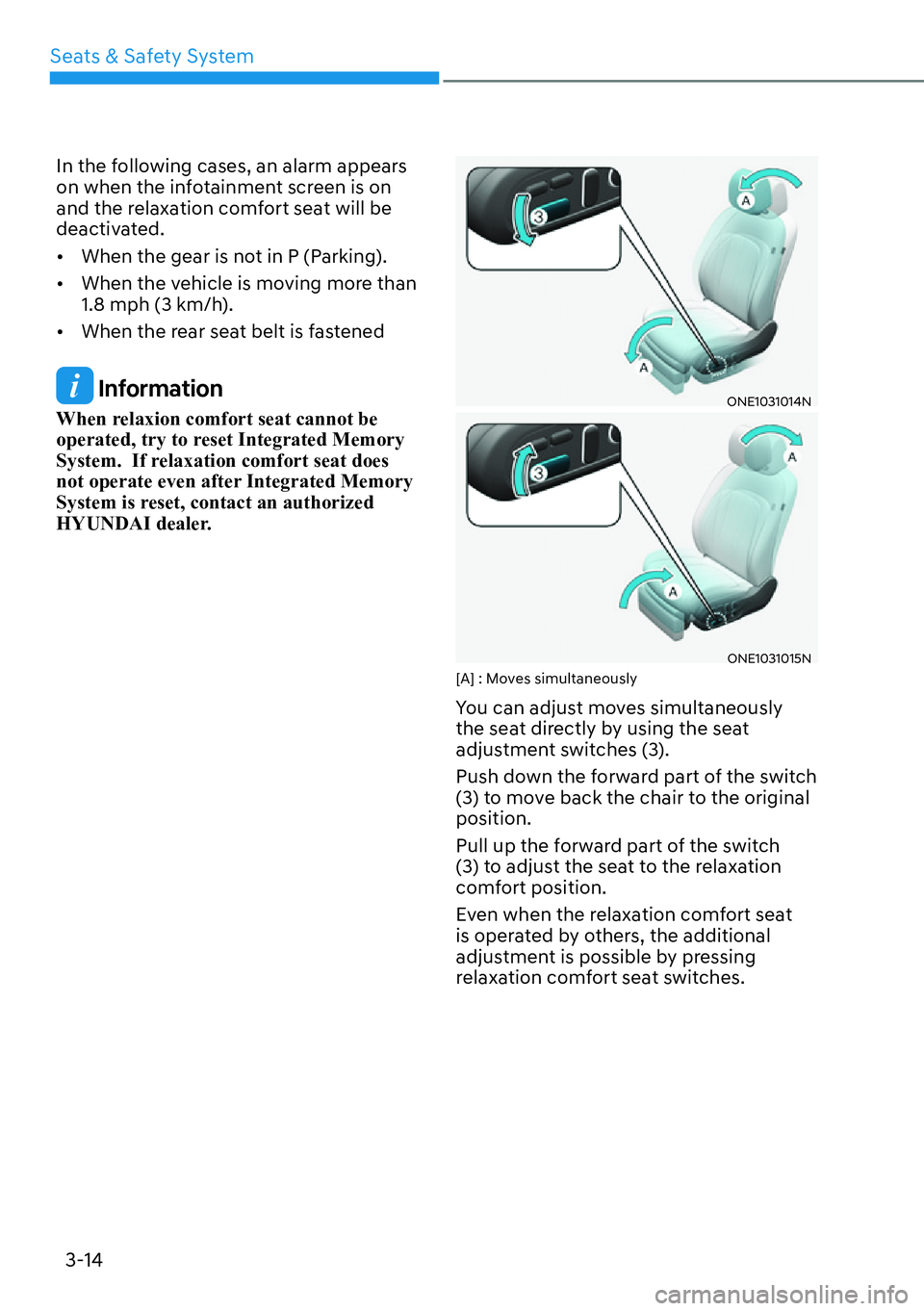

3-14
In the following cases, an alarm appears
on when the infotainment screen is on
and the relaxation comfort seat will be
deactivated.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).

[When the rear seat belt is fastened
Information
When relaxion comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
HYUNDAI dealer. ONE1031014N
ONE1031015N[A] : Moves simultaneously
You can adjust moves simultaneously
the seat directly by using the seat
adjustment switches (3).
Push down the forward part of the switch
(3) to move back the chair to the original
position.
Pull up the forward part of the switch
(3) to adjust the seat to the relaxation
comfort position.
Even when the relaxation comfort seat
is operated by others, the additional
adjustment is possible by pressing
relaxation comfort seat switches.

03

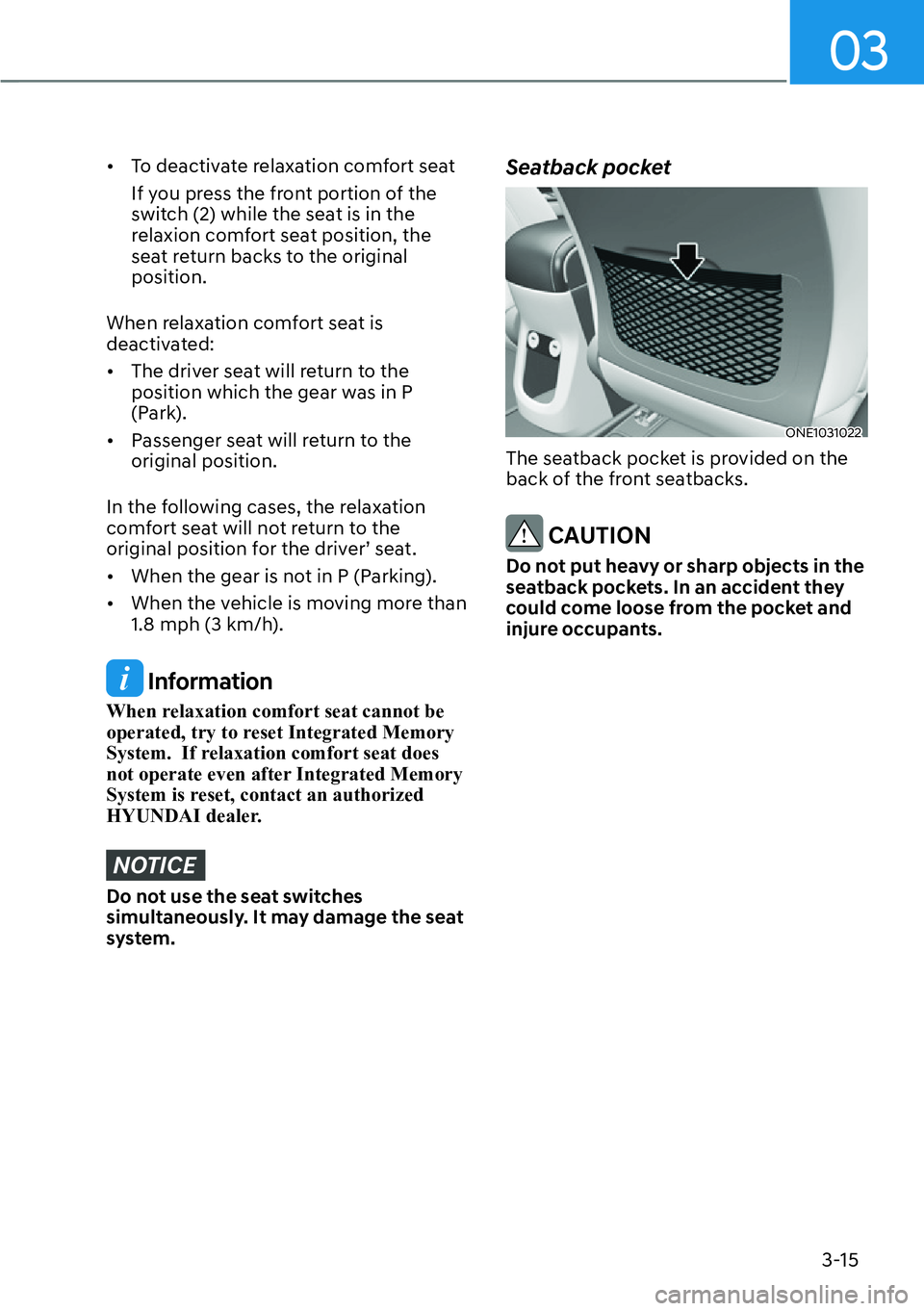

3-15

[To deactivate relaxation comfort seat
If you press the front portion of the
switch (2) while the seat is in the
relaxion comfort seat position, the
seat return backs to the original
position.
When relaxation comfort seat is
deactivated:

[The driver seat will return to the
position which the gear was in P
(Park).

[Passenger seat will return to the
original position.
In the following cases, the relaxation
comfort seat will not return to the
original position for the driver’ seat.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).
Information
When relaxation comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
HYUNDAI dealer.
NOTICE
Do not use the seat switches
simultaneously. It may damage the seat
system.
Seatback pocket
ONE1031022
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.

Seats & Safety System

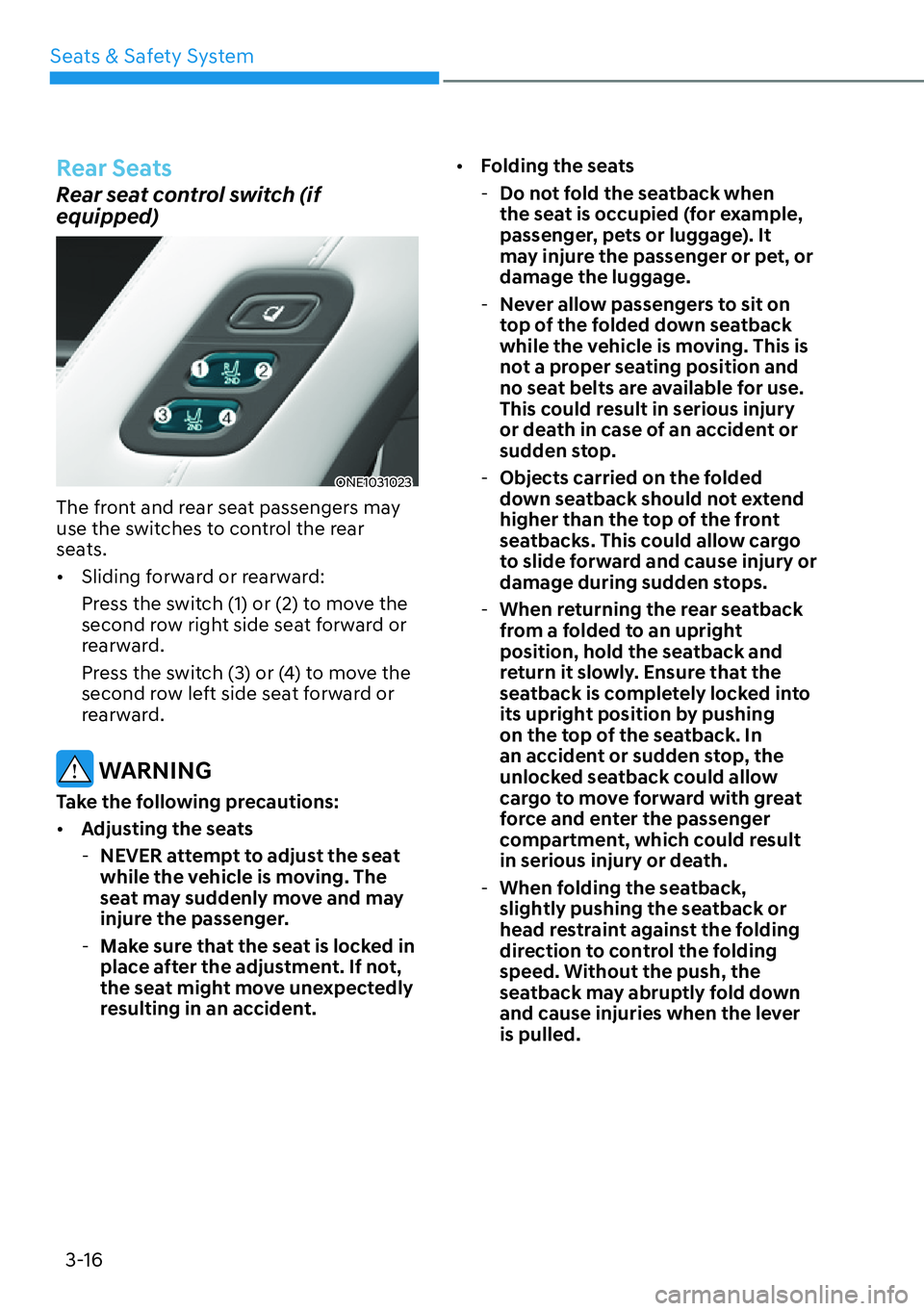

3-16
Rear Seats
Rear seat control switch (if
equipped)
ONE1031023
The front and rear seat passengers may
use the switches to control the rear
seats.

[Sliding forward or rearward:
Press the switch (1) or (2) to move the
second row right side seat forward or
rearward.
Press the switch (3) or (4) to move the
second row left side seat forward or
rearward.
WARNING
Take the following precautions:

[Adjusting the seats
-NEVER attempt to adjust the seat
while the vehicle is moving. The
seat may suddenly move and may
injure the passenger.
-Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
[Folding the seats
-Do not fold the seatback when
the seat is occupied (for example,
passenger, pets or luggage). It
may injure the passenger or pet, or
damage the luggage.
-Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This is
not a proper seating position and
no seat belts are available for use.
This could result in serious injury
or death in case of an accident or
sudden stop.
-Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.
-When returning the rear seatback
from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked into
its upright position by pushing
on the top of the seatback. In
an accident or sudden stop, the
unlocked seatback could allow
cargo to move forward with great
force and enter the passenger
compartment, which could result
in serious injury or death.
-When folding the seatback,
slightly pushing the seatback or
head restraint against the folding
direction to control the folding
speed. Without the push, the
seatback may abruptly fold down
and cause injuries when the lever
is pulled.

03

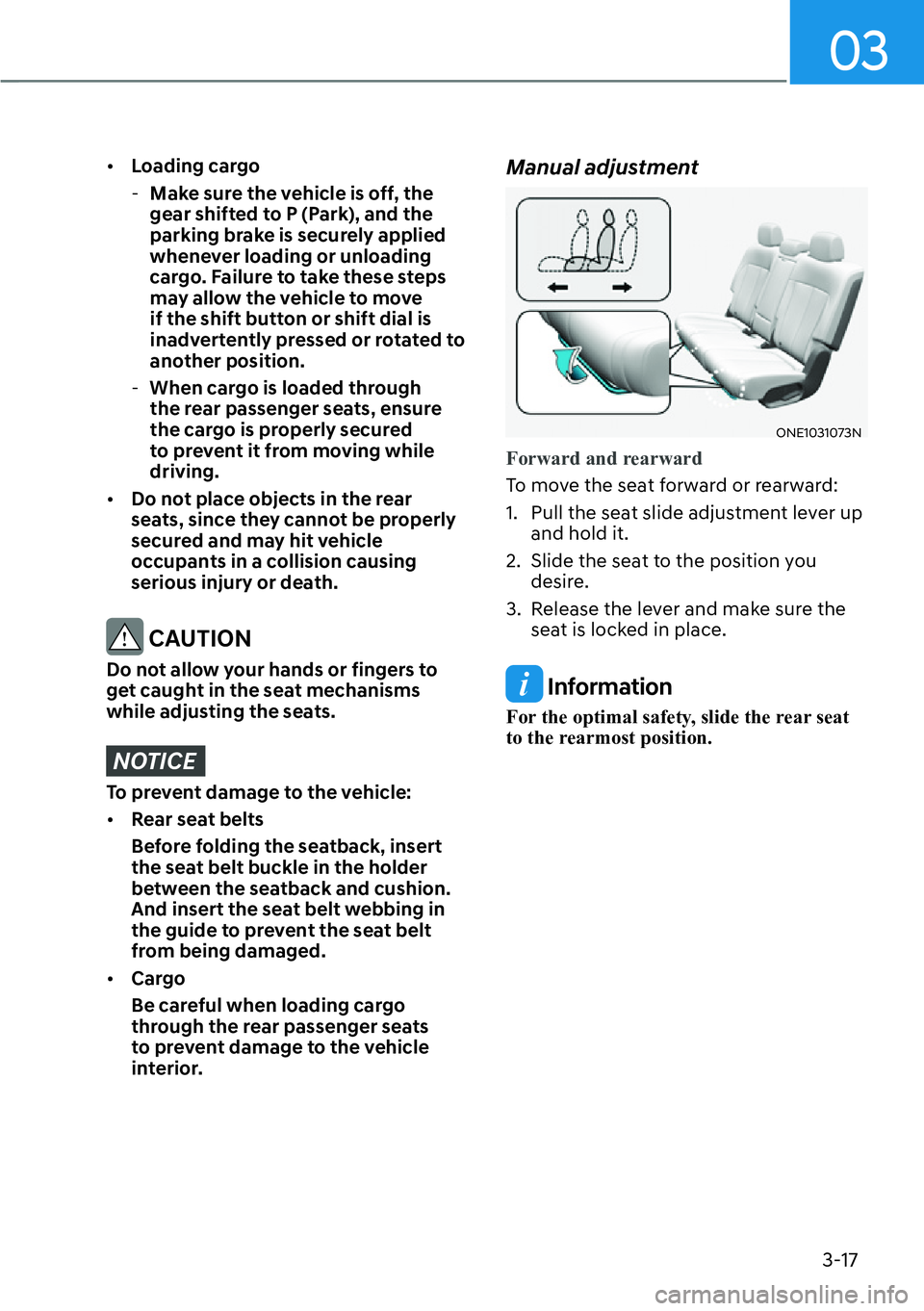

3-17

[Loading cargo
-Make sure the vehicle is off, the
gear shifted to P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move
if the shift button or shift dial is
inadvertently pressed or rotated to
another position.
-When cargo is loaded through
the rear passenger seats, ensure
the cargo is properly secured
to prevent it from moving while
driving.

[Do not place objects in the rear
seats, since they cannot be properly
secured and may hit vehicle
occupants in a collision causing
serious injury or death.
CAUTION
Do not allow your hands or fingers to
get caught in the seat mechanisms
while adjusting the seats.
NOTICE
To prevent damage to the vehicle:

[Rear seat belts
Before folding the seatback, insert
the seat belt buckle in the holder
between the seatback and cushion.
And insert the seat belt webbing in
the guide to prevent the seat belt
from being damaged.

[Cargo
Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.
Manual adjustment
ONE1031073N
Forward and rearward
To move the seat forward or rearward:
1. Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure the
seat is locked in place.
Information
For the optimal safety, slide the rear seat
to the rearmost position.
