Driver Assistance System
7-142
Reverse Parking Collision-Avoidance
Assist can warn the driver or assist with
braking to help reduce the possibility of
collision with a pedestrian or an object
when backing up.
Detecting sensor
ONE1071038N
ONE1071051N[1] : Rear view camera,
[2] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
Reverse Parking Collision-
Avoidance Assist Settings
Setting features
Parking Safety

[With the vehicle on, select or deselect

S'ULYHU$VVLVWDQFH

07
7-143
ONE1071282N

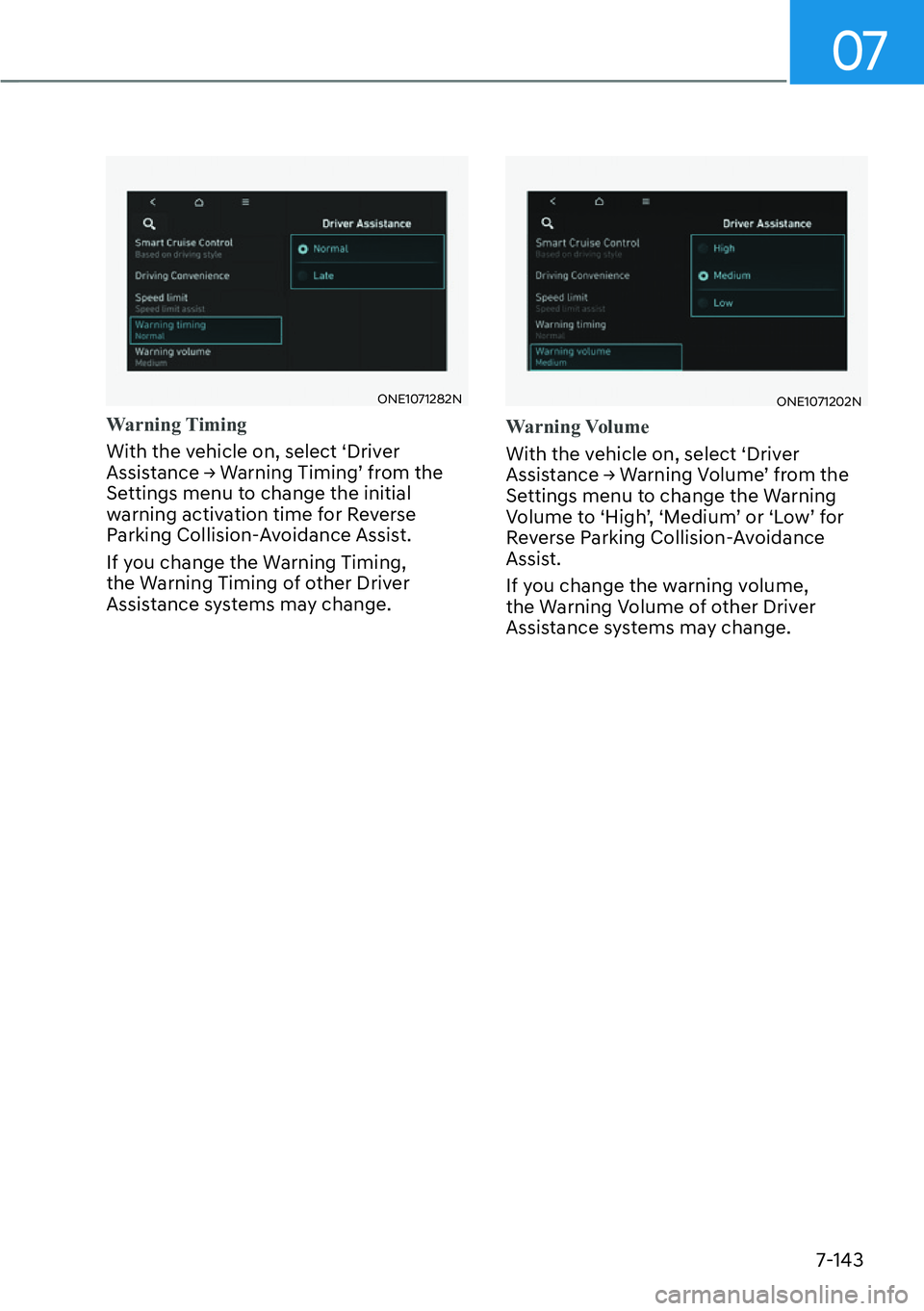

Warning Timing
With the vehicle on, select ‘Driver
$VVLVWDQFH

Driver Assistance System
7-144
Reverse Parking Collision-
Avoidance Assist Operation
Operating conditions
If ‘Rear Active Assist’ or ‘Rear Warning
Only’ is set from the Settings menu,
Reverse Parking Collision-Avoidance
Assist will be in the ready status when
the following conditions are satisfied:
- The liftgate is closed
- The gear is shifted to R (Reverse)
- Vehicle speed is below 6 mph (10
km/h)
- Reverse Parking Collision-Avoidance
Assist components such as the rear
view camera and the rear ultrasonic
sensors are in normal conditions
When Reverse Parking Collision-
Avoidance Assist activates, a line
appears behind the vehicle image in the
instrument cluster.
Reverse Parking Collision-Avoidance
Assist operates only once after the gear
is shifted to R (Reverse). To reactivate
Reverse Parking Collision-Avoidance
Assist, shift the gear from another gear
to R (Reverse).
ONE1071053
Rear Active Assist

[If Reverse Parking Collision-Avoidance
Assist detects a risk of collision with
a pedestrian or an object, Reverse
Parking Collision-Avoidance Assist
will warn the driver with an audible
warning and warning message on the
cluster. When Rear View Monitor is
operating, a warning will appear on
the infotainment system screen.

[If Reverse Parking Collision-Avoidance
Assist detects an imminent collision
with a pedestrian or an object behind
the vehicle, Reverse Parking Collision-
Avoidance Assist will assist you with
braking. The driver needs to pay
attention as the brake assist will end
within 5 minutes. The driver must
immediately depress the brake pedal
and check vehicle surroundings.

[Brake control will end when:
- The gear is shifted to P (Park) or D
(Drive).
- The driver depresses the brake
pedal with sufficient power
- Braking assist has last for
approximately 5 minutes, the
Electronic Parking Brake (EPB)
is engaged at the brake assist is
released

[The warning will turn off when:
- The gear is shifted to P (Park), N
(Neutral), or D (Drive)

07
7-145
Rear Warning Only

[If Reverse Parking Collision-Avoidance
Assist detects a risk of collision with
a pedestrian or an object, Reverse
Parking Collision-Avoidance Assist
will warn the driver with an audible
warning and warning message on the
cluster. When Rear View Monitor is
operating, a warning will appear on
the infotainment system screen.

[If ‘Rear Warning Only’ is selected,
braking will not be assisted.

[The warning will turn off when the
gear is shifted to P (Park), N (Neutral)
or D (Drive).
Reverse Parking Collision-
Avoidance Assist Malfunction
and Limitations
Reverse Parking Collision-
Avoidance Assist malfunction
ONE1071106L
When Reverse Parking Collision-
Avoidance Assist or other related
functions are not working properly, the
‘Check Parking Safety system’ warning
message will appear on the cluster, and
Reverse Parking Collision-Avoidance
Assist will turn off automatically.
Have the vehicle be inspected by an
authorized HYUNDAI dealer.
Reverse Parking Collision-Avoidance
Assist disabled
ONE1071037N
The rear view camera is used as a
detecting sensor to detect pedestrians. If
the camera lens is covered with foreign
material, such as snow or rain, it may
adversely affect camera performance
and Reverse Parking Collision-Avoidance
Assist may not operate properly. Always
keep the camera lens clean.
ONE1071055N
The rear ultrasonic sensors are located
inside the rear bumper to detect objects
in the rear area. If the sensors are
covered with foreign material, such as
snow or rain, it may adversely affect
sensor performance and Reverse Parking
Collision-Avoidance Assist may not
operate properly. Always keep the rear
bumper clean.

Driver Assistance System
7-146
„Rear view camera„Rear ultrasonic sensor
ONE1071056LONE1071106LThe ‘Camera error or blockage’ or
‘Ultrasonic sensor error or blockage’
warning message will appear on the
cluster if the following situations occur:
- The rear view camera or rear
ultrasonic sensor(s) is covered with
foreign material, such as snow or rain,
etc.
- There is inclement weather, such as
heavy snow, heavy rain, etc.
If this occurs, Reverse Parking Collision-
Avoidance Assist may turn off or may not
operate properly. Check whether the rear
view camera and rear ultrasonic sensors
are clean.
Limitations of Reverse Parking
Collision-Avoidance Assist
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn
the driver even if there are pedestrians
or objects under the following
circumstances:

[Any non-factory equipment or
accessory is installed

[Your vehicle is unstable due to an
accident or other causes

[Bumper height or rear ultrasonic
sensor installation has been modified

[Rear view camera or rear ultrasonic
sensor(s) is damaged

[Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.

[The surrounding is very bright or very
dark

[Outside temperature is very high or
very low

[The wind is either strong (above
12 mph (20 km/h)) or blowing
perpendicular to the rear bumper

[Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle

[An ultrasonic sensor with similar
frequency is near your vehicle

[There is ground height difference
between the vehicle and the
pedestrian

[The image of the pedestrian in the
rear view camera is indistinguishable
from the background

07
7-147

[The pedestrian is near the rear edge of
the vehicle

[The pedestrian is not standing upright

[The pedestrian is either very short or
very tall for Reverse Parking Collision-
Avoidance Assist to detect

[The pedestrian or cyclist is wearing
clothing that easily blends into the
background, making it difficult to
detect

[The pedestrian is wearing clothing
that does not reflect ultrasonic waves
well

[Size, thickness, height, or shape of
the object does not reflect ultrasonic
waves well (for example, pole, bush,
curbs, carts, edge of a wall, etc.)

[The pedestrian or the object is moving

[The pedestrian or the object is very
close to the rear of the vehicle

[A wall is behind the pedestrian or the
object

[The object is not located at the rear
center of your vehicle

[The object is not parallel to the rear
bumper

[The road is slippery or inclined

[The driver backs up the vehicle
immediately after shifting to R
(Reverse)

[The driver accelerates or circles the
vehicleReverse Parking Collision-Avoidance
Assist may unnecessarily warn the driver
or assist with braking even if there are
no pedestrians or objects under the
following circumstances:

[Any non-factory equipment or
accessory is installed

[Your vehicle is unstable due to an
accident or other causes

[Bumper height or rear ultrasonic
sensor installation has been modified

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.

[The pattern on the road is mistaken
for a pedestrian

[There is shadow or light reflecting on
the ground

[Pedestrians or objects are around the
path of the vehicle

[Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle

[Your vehicle is backing towards a
narrow passage or parking space

[Your vehicle is backing towards an
uneven road surface, such as an
unpaved road, gravel, bump, gradient,
etc.

[A trailer or carrier is installed on the
rear of your vehicle

[An ultrasonic sensor with similar
frequency is near your vehicle

Driver Assistance System
7-148
WARNING
Take the following precautions when
using Reverse Parking Collision-
Avoidance Assist:

[Always pay extreme caution while
driving. The driver is responsible for
controlling the brake for safe driving.

[Always pay attention to road and
traffic conditions while driving,
whether or not there is a warning.

[Always look around your vehicle to
make sure there are no pedestrians
or objects before moving the vehicle.

[The performance of Reverse Parking
Collision-Avoidance Assist may
vary under certain conditions. If
vehicle speed is above 2 mph (4
km/h), Reverse Parking Collision-
Avoidance Assist will provide
collision avoidance assist only when
pedestrians are detected. Always
look around and pay attention when
backing up your vehicle.

[Some objects may not be detected
by the rear ultrasonic sensors due
to the objects distance, size or
material, all of which can limit the
effectiveness of the sensor.

[Reverse Parking Collision-Avoidance
Assist may not operate properly
or may operate unnecessarily
depending on the road conditions
and the surroundings.

[Do not solely rely on Reverse Parking
Collision-Avoidance Assist. Doing
so may lead to vehicle damage or
injuries.
CAUTION

[Noise may be heard when sudden
braking occurs to avoid a collision.

[If any other warning sound such
as the seat belt warning chime is
already generated, Reverse Parking
Collision-Avoidance Assist warning
may not sound.

[Reverse Parking Collision-Avoidance
Assist may not work properly if the
bumper has been damaged, replaced
or repaired.

[Reverse Parking Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.

[Playing the vehicle audio system at
high volume may prevent passengers
from hearing Reverse Parking
Collision-Avoidance Assist warning
sounds.

[Turn off Reverse Parking Collision-
Avoidance Assist when towing a
trailer. If towing and moving in
reverse, Reverse Parking Collision-
Avoidance Assist will activate as it
detects the trailer.

[The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
-The ESC (Electronic Stability
Control) warning light is on
-ESC (Electronic Stability Control) is
engaged in a different function

07
7-149
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensors:

[Always keep the rear view camera
and rear ultrasonic sensors clean.

[Do not use any cleanser containing
acid or alkaline detergents when
cleaning the rear view camera lens.
Use only a mild soap or neutral
detergent, and rinse thoroughly with
water.

[Do not spray the rear view camera or
the rear ultrasonic sensors or their
surrounding area directly with a
high pressure washer. It may cause
the rear view camera or the rear
ultrasonic sensors to malfunction.

[Do not apply objects, such as a
bumper sticker or a bumper guard,
near the rear view camera or rear
ultrasonic sensors or apply paint to
the bumper. Doing so may adversely
affect the performance of Reverse
Parking Collision-Avoidance Assist.

[Never disassemble or apply impact
on the rear view camera or the rear
ultrasonic sensors components.

[Do not apply unnecessary force on
the rear view camera or the rear
ultrasonic sensors. Reverse Parking
Collision-Avoidance Assist may
not operate properly if the rear
view camera or the rear ultrasonic
sensor(s) is forcibly moved out of
proper alignment. Have the vehicle
be inspected by an authorized
HYUNDAI dealer.
Information
Reverse Parking Collision-Avoidance
Assist can detect a pedestrian or an object
when:

[A pedestrian is standing behind the
vehicle

[A large obstacle, such as a vehicle,
is parked in the rear center of your
vehicle
