Driver Assistance System
7-54

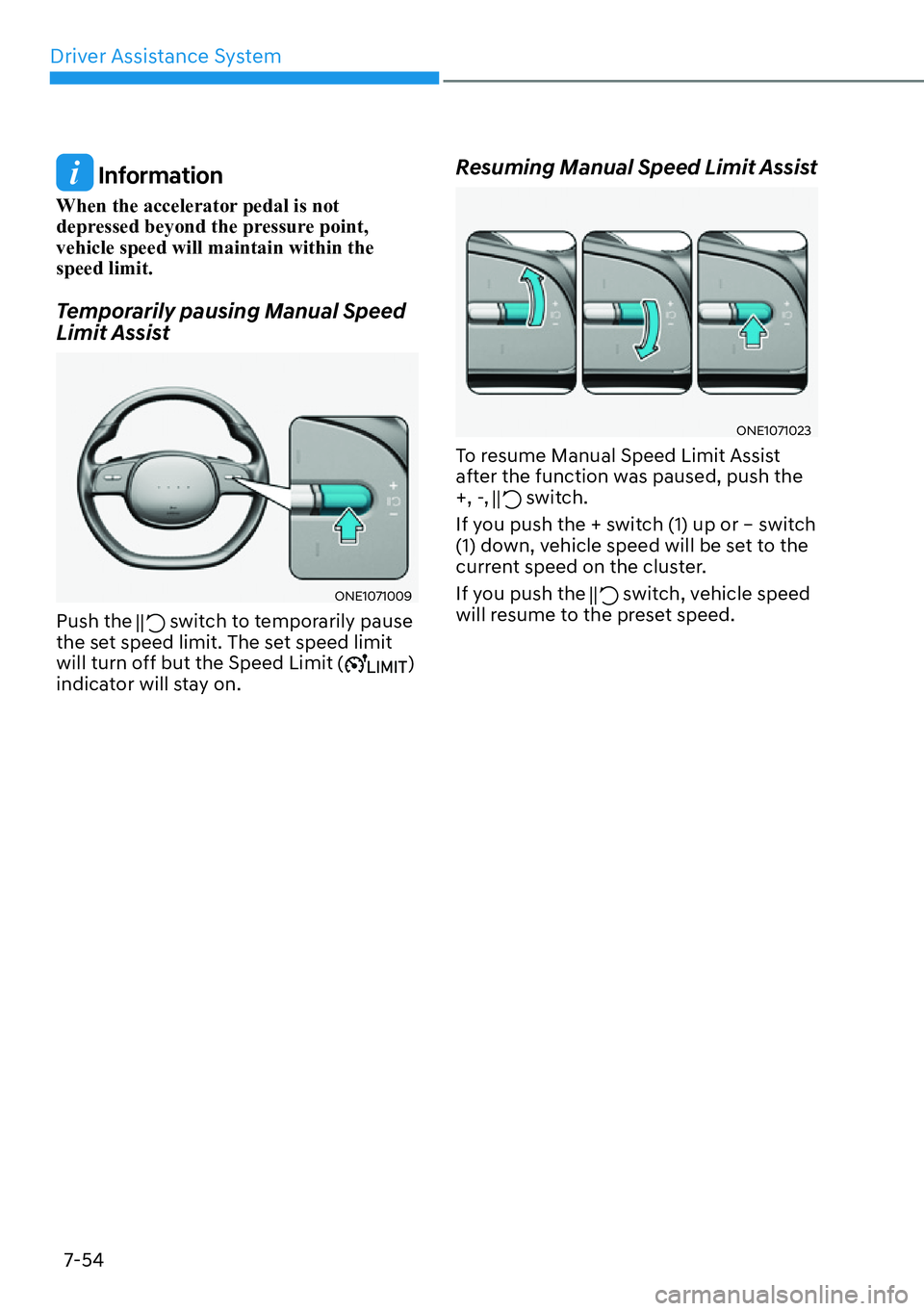

Information
When the accelerator pedal is not
depressed beyond the pressure point,
vehicle speed will maintain within the
speed limit.
Temporarily pausing Manual Speed
Limit Assist
ONE1071009
Push the switch to temporarily pause
the set speed limit. The set speed limit
will turn off but the Speed Limit (
)
indicator will stay on.
Resuming Manual Speed Limit Assist
ONE1071023
To resume Manual Speed Limit Assist
after the function was paused, push the
+, -,
switch.
If you push the + switch (1) up or – switch
(1) down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle speed
will resume to the preset speed.

07
7-55

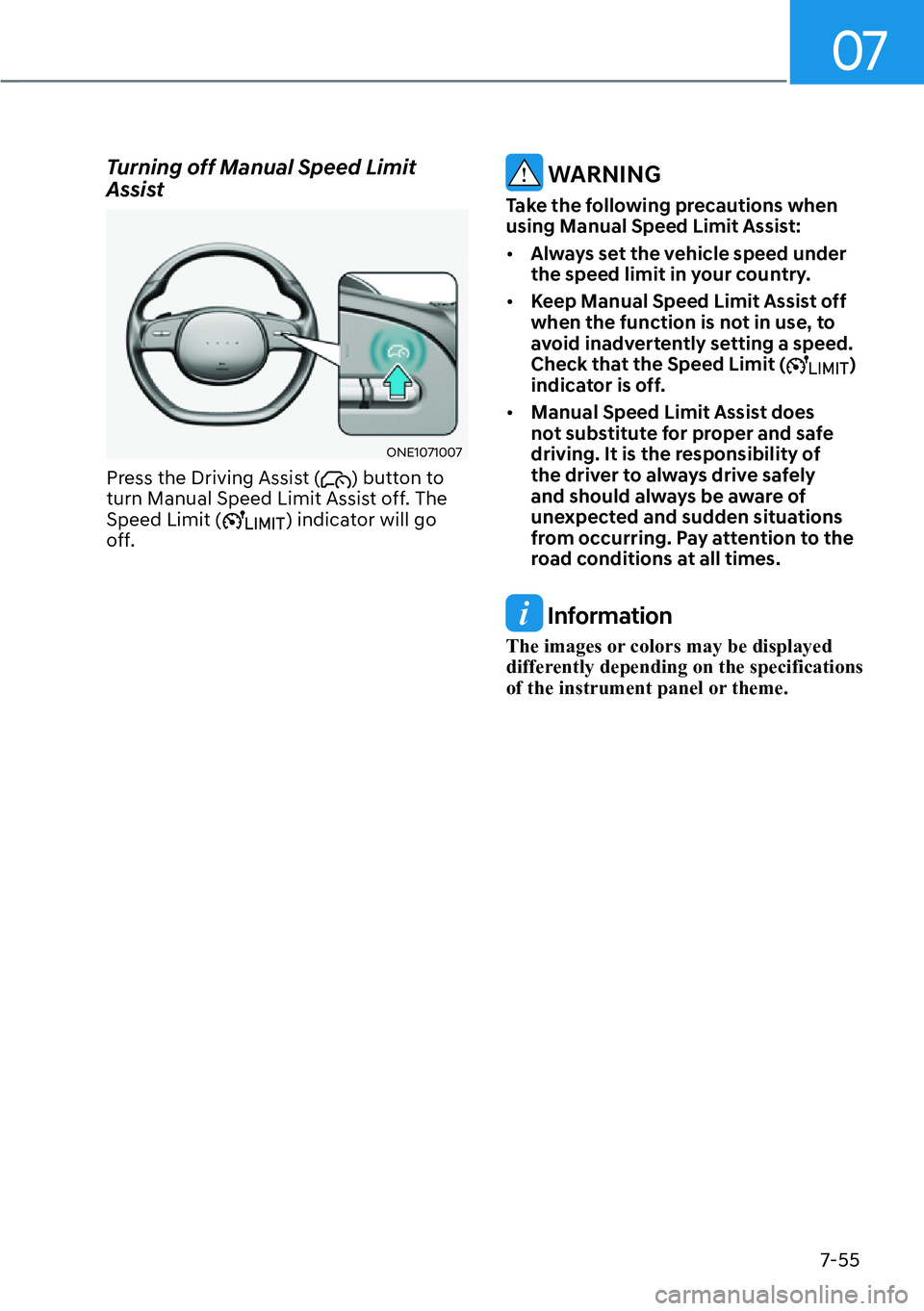

Turning off Manual Speed Limit
Assist
ONE1071007
Press the Driving Assist () button to
turn Manual Speed Limit Assist off. The
Speed Limit (
) indicator will go
off.
WARNING
Take the following precautions when
using Manual Speed Limit Assist:

[Always set the vehicle speed under
the speed limit in your country.

[Keep Manual Speed Limit Assist off
when the function is not in use, to
avoid inadvertently setting a speed.
Check that the Speed Limit (
)
indicator is off.

[Manual Speed Limit Assist does
not substitute for proper and safe
driving. It is the responsibility of
the driver to always drive safely
and should always be aware of
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.
Information
The images or colors may be displayed
differently depending on the specifications
of the instrument panel or theme.

Driver Assistance System
7-56
Intelligent Speed Limit Assist uses
information from the detected road sign
and navigation system to inform the
driver of the speed limit of the current
road. Also, Intelligent Speed Limit Assist
helps the driver to maintain within the
speed limit of the road.
CAUTION

[Intelligent Speed Limit Assist may
not operate properly if the function is
used in other countries.

[Update your navigation regularly to
ensure that Intelligent Speed Limit
Assist works properly.
Detecting sensor
ONE1071002K[1]: Front view camera
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in this chapter.
Information
If the navigation system is available, the
information from the navigation system is
used along with the road sign information
detected by the front view camera.
Intelligent Speed Limit Assist
Settings
Setting features
ONE1071200L
Speed Limit
With the vehicle on, select or deselect

S'ULYHU$VVLVWDQFH

07
7-57

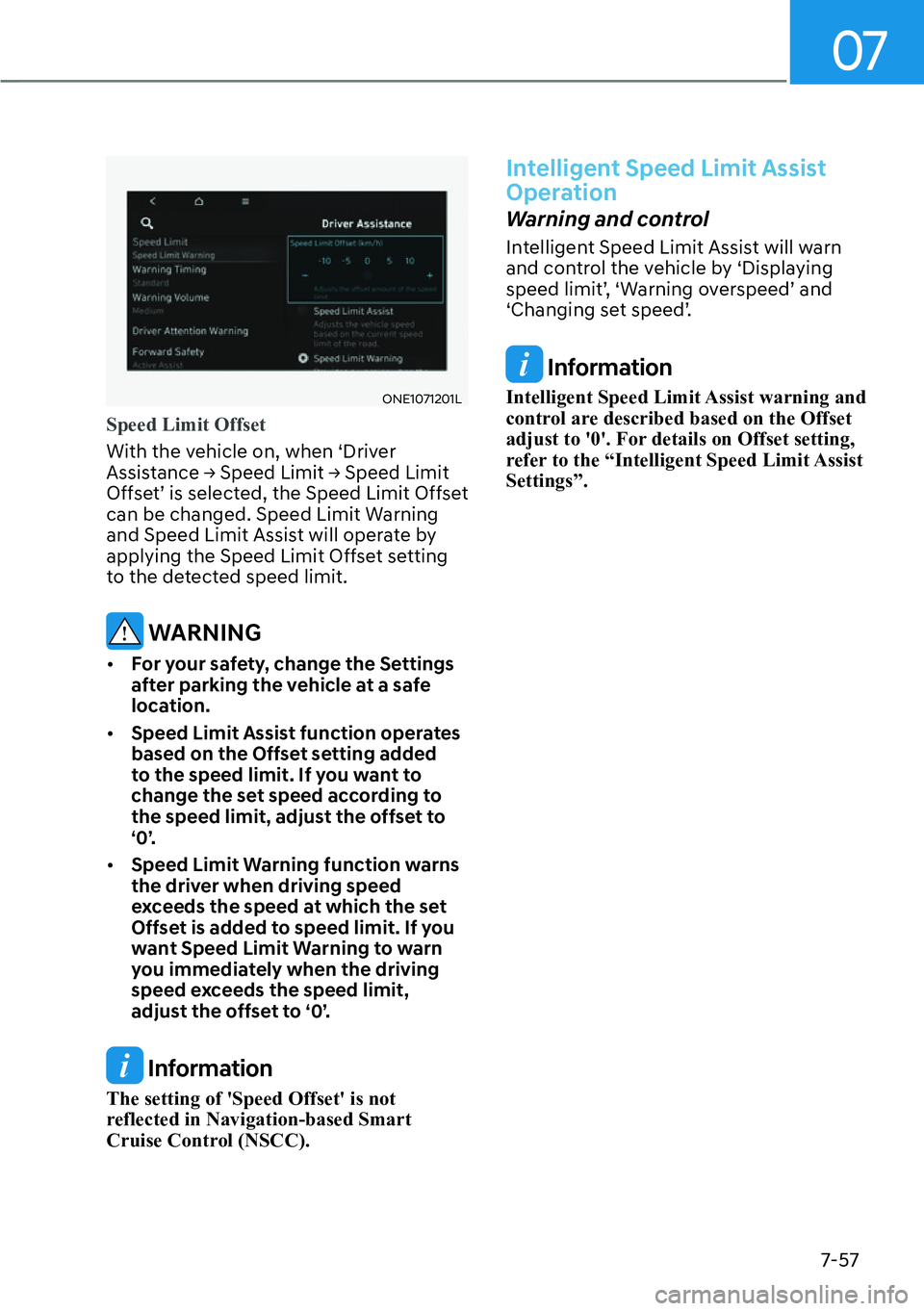

ONE1071201L
Speed Limit Offset
With the vehicle on, when ‘Driver
$VVLVWDQFH

Driver Assistance System
7-58
ONE1071260N
Displaying speed limit
Speed limit information is displayed on
the instrument cluster.
Information

[If speed limit information of the road
cannot be recognized, '---' sign will be
displayed. Please refer to "Limitations
of Intelligent Speed Limit Assist" if the
road signs are difficult to recognize.

[Supplementary sign displayed under
the speed limit or overtaking restriction
sign means the conditions under which
the signs must be followed. If the
supplementary sign is not recognized, it
will be displayed as blank.
ONE1071261N
Warning overspeed
When driving at a speed higher than the
displayed speed limit, the speed limit is
displayed in red.
ONE1071084NONE1071085N
Changing set speed
If the speed limit of the road changes
during the operation of Manual Speed
Limit Assist or Smart Cruise Control, an
arrow in the direction of up or down is
displayed to inform the driver that the set
speed needs to be changed. At this time,
the driver can change the set speed
according to the speed limit by using the
+ or – switch on the steering wheel.

07
7-59

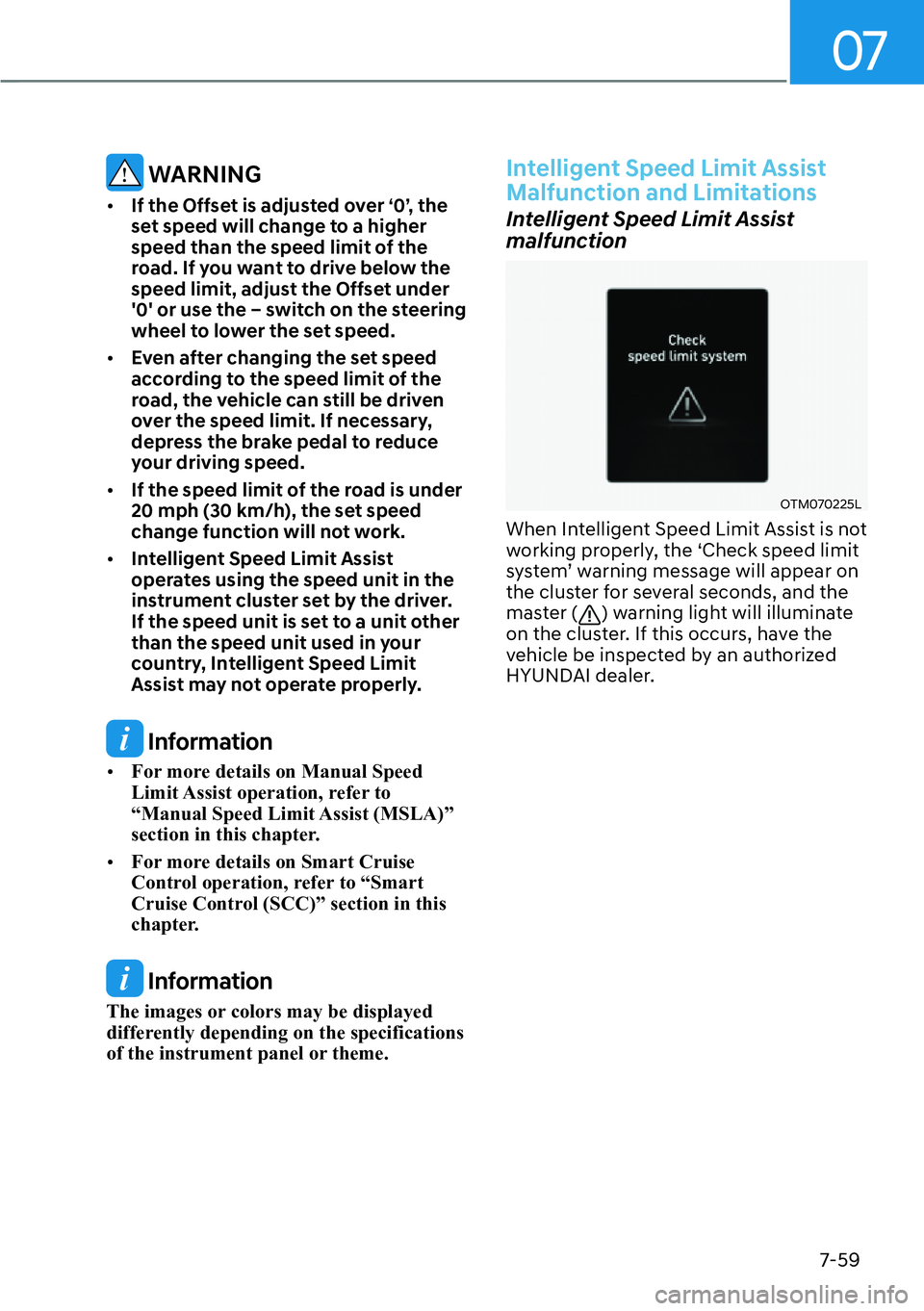

WARNING

[If the Offset is adjusted over ‘0’, the
set speed will change to a higher
speed than the speed limit of the
road. If you want to drive below the
speed limit, adjust the Offset under
'0' or use the – switch on the steering
wheel to lower the set speed.

[Even after changing the set speed
according to the speed limit of the
road, the vehicle can still be driven
over the speed limit. If necessary,
depress the brake pedal to reduce
your driving speed.

[If the speed limit of the road is under
20 mph (30 km/h), the set speed
change function will not work.

[Intelligent Speed Limit Assist
operates using the speed unit in the
instrument cluster set by the driver.
If the speed unit is set to a unit other
than the speed unit used in your
country, Intelligent Speed Limit
Assist may not operate properly.
Information

[For more details on Manual Speed
Limit Assist operation, refer to
“Manual Speed Limit Assist (MSLA)”
section in this chapter.

[For more details on Smart Cruise
Control operation, refer to “Smart
Cruise Control (SCC)” section in this
chapter.
Information
The images or colors may be displayed
differently depending on the specifications
of the instrument panel or theme.
Intelligent Speed Limit Assist
Malfunction and Limitations
Intelligent Speed Limit Assist
malfunction
OTM070225L
When Intelligent Speed Limit Assist is not
working properly, the ‘Check speed limit
system’ warning message will appear on
the cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If this occurs, have the
vehicle be inspected by an authorized
HYUNDAI dealer.

Driver Assistance System
7-60
Intelligent Speed Limit Assist
disabled
OIK070145L
When the front windshield where the
front view camera is located is covered
with foreign material, such as snow
or rain, it can reduce the detecting
performance and temporarily limit or
disable Intelligent Speed Limit Assist.
If this occurs, the ‘Speed limit system
disabled. Camera obscured’ warning
message will appear on the cluster.
Intelligent Speed Limit Assist will operate
properly when snow, rain or foreign
material is removed.
If Intelligent Speed Limit Assist does
not operate properly after it is removed,
have the vehicle be inspected by an
authorized HYUNDAI dealer.
WARNING

[Even though the warning message or
warning light does not appear on the
cluster, Intelligent Speed Limit Assist
may not operate properly.

[If the detecting sensor is
contaminated immediately after
starting the vehicle, Intelligent
Speed Limit Assist may not operate
properly.
Limitations of Intelligent Speed
Limit Assist
Intelligent Speed Limit Assist may not
operate properly, or it may operate
unexpectedly under the following
circumstances:

[The road sign is contaminated or
indistinguishable
- The road sign is difficult to see due
to bad weather, such as rain, snow,
fog, etc.
- The road sign is not clear or
damaged
- The road sign is partially obscured
by surrounding objects or shadow
- A road sign near the road you are
driving is detected

[The road signs do not conform to the
standard
- The text or picture on the road sign
is different from the standard
- The road sign is installed between
the main line and the exit road or
between diverging roads
- There is no conditional road signs
on the road sign located on the exit
road
- A sign is attached to another vehicle

07
7-61

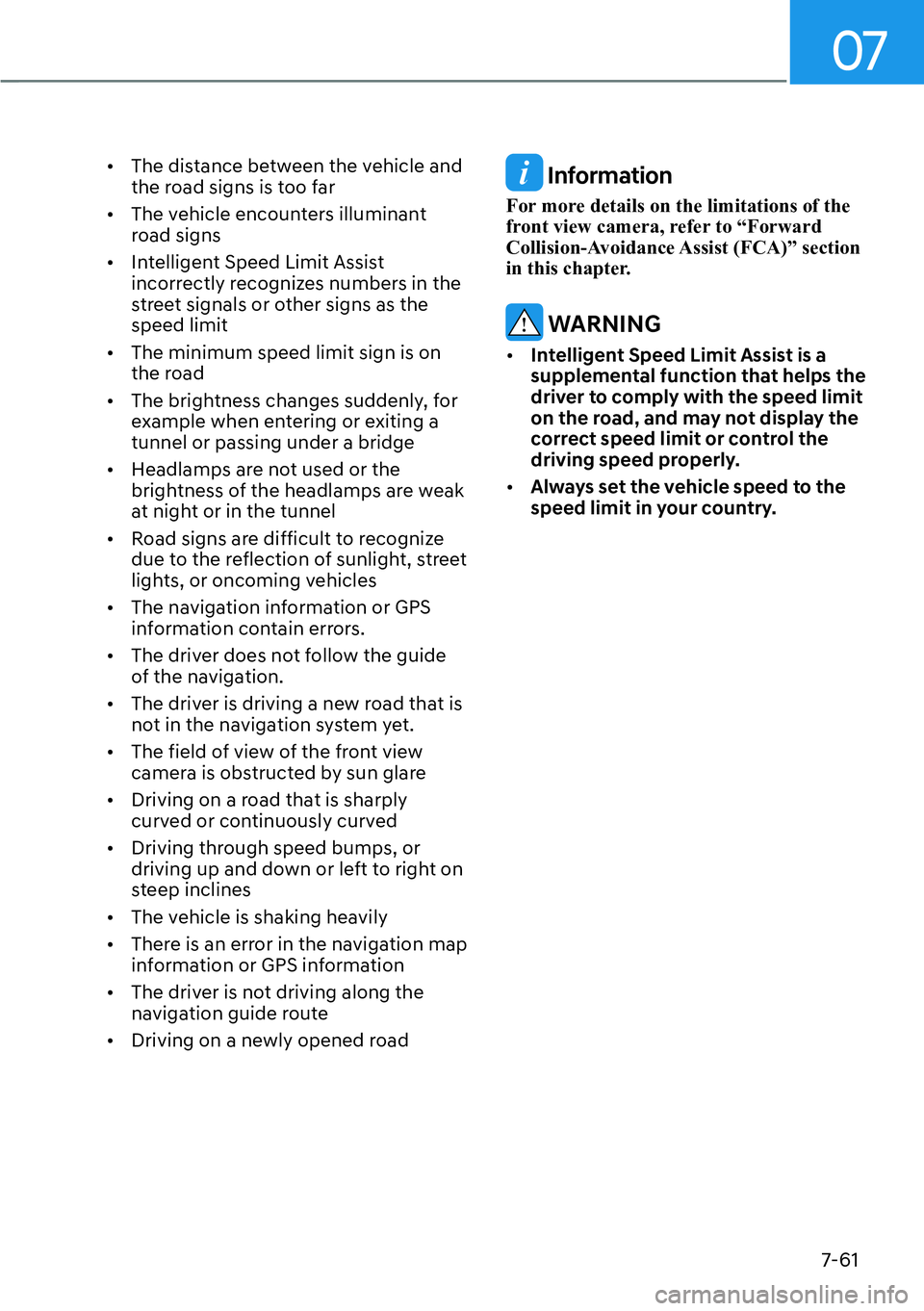

[The distance between the vehicle and
the road signs is too far

[The vehicle encounters illuminant
road signs

[Intelligent Speed Limit Assist
incorrectly recognizes numbers in the
street signals or other signs as the
speed limit

[The minimum speed limit sign is on
the road

[The brightness changes suddenly, for
example when entering or exiting a
tunnel or passing under a bridge

[Headlamps are not used or the
brightness of the headlamps are weak
at night or in the tunnel

[Road signs are difficult to recognize
due to the reflection of sunlight, street
lights, or oncoming vehicles

[The navigation information or GPS
information contain errors.

[The driver does not follow the guide
of the navigation.

[The driver is driving a new road that is
not in the navigation system yet.

[The field of view of the front view
camera is obstructed by sun glare

[Driving on a road that is sharply
curved or continuously curved

[Driving through speed bumps, or
driving up and down or left to right on
steep inclines

[The vehicle is shaking heavily

[There is an error in the navigation map
information or GPS information

[The driver is not driving along the
navigation guide route

[Driving on a newly opened road Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.
WARNING

[Intelligent Speed Limit Assist is a
supplemental function that helps the
driver to comply with the speed limit
on the road, and may not display the
correct speed limit or control the
driving speed properly.

[Always set the vehicle speed to the
speed limit in your country.
