Electric Charging Door
ONE1Q011040
The electric charging door will open and
close as follows.
CHARGING ELECTRIC VEHICLE
Methods Open Close
Touch and Push
ONE1Q011064ONE1Q011067
Smart Key
ONE1Q011066
Voice RecognitionWNE1-208
(Limited to areas where voice recognition is applied)
Information

[The charging door automatically closes when:
-The charging connector is disconnected
-The charging procedure has not done for a certain amount of time while the
charging door is opened.
-The gear is in D (drive), N (neutral), or R (Reverse).

[After replacing battery (12 volt), open and close the charging door once to check that
the charging door automatic opening mechanism is functioning properly.

[When replacing the charging door, be sure to disconnect the vehicle-side wiring
connector of the charging door module and reconnect it to ensure normal operation of
the charging door.

01
1-29

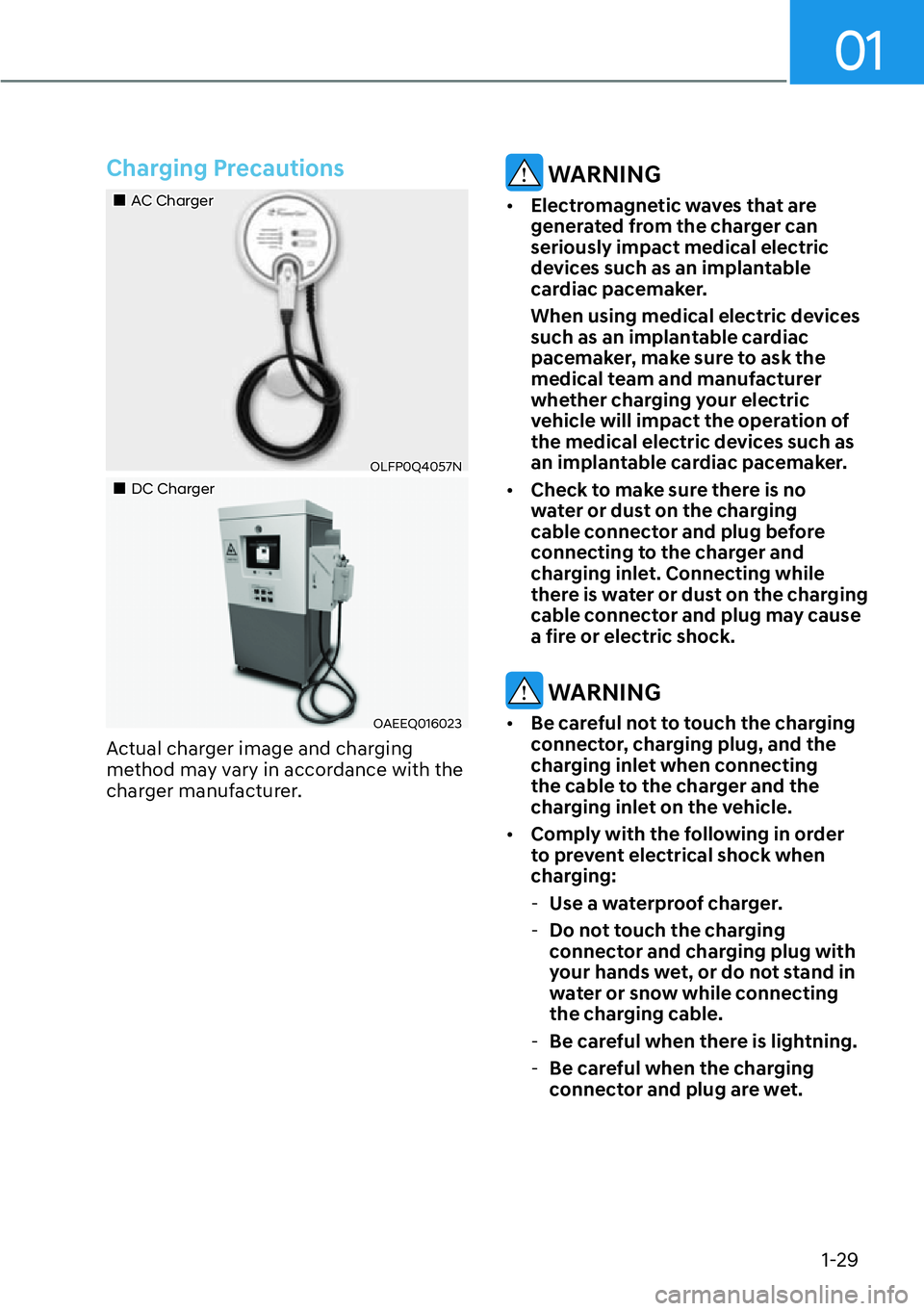

Charging Precautions
„AC Charger
OLFP0Q4057N
„DC Charger
OAEEQ016023
Actual charger image and charging
method may vary in accordance with the
charger manufacturer.
WARNING

[Electromagnetic waves that are
generated from the charger can
seriously impact medical electric
devices such as an implantable
cardiac pacemaker.
When using medical electric devices
such as an implantable cardiac
pacemaker, make sure to ask the
medical team and manufacturer
whether charging your electric
vehicle will impact the operation of
the medical electric devices such as
an implantable cardiac pacemaker.

[Check to make sure there is no
water or dust on the charging
cable connector and plug before
connecting to the charger and
charging inlet. Connecting while
there is water or dust on the charging
cable connector and plug may cause
a fire or electric shock.
WARNING

[Be careful not to touch the charging
connector, charging plug, and the
charging inlet when connecting
the cable to the charger and the
charging inlet on the vehicle.

[Comply with the following in order
to prevent electrical shock when
charging:
-Use a waterproof charger.
-Do not touch the charging
connector and charging plug with
your hands wet, or do not stand in
water or snow while connecting
the charging cable.
-Be careful when there is lightning.
-Be careful when the charging
connector and plug are wet.

Foreword / Starting your Electric vehicle
1-30
WARNING

[Immediately stop charging when
you find abnormal symptoms (odor,
smoke).

[Replace the charging cable if the
cable coating is damaged to prevent
electrical shock.

[When connecting or removing the
charging cable, make sure to hold
the charging connector handle and
charging plug.
If you pull the cable itself (without
using the handle), the internal
wires may be disconnected or get
damaged. This may lead to electric
shock or fire.
CAUTION

[Always keep the charging connector
and charging plug in clean and
dry condition. Be sure to keep the
charging cable in a condition where
there is no water or moisture.

[Be sure to use only certified electric
vehicle charger. Using uncertified
charger may cause the damage to
the vehicle.

[Before charging the battery, turn the
vehicle OFF.

[When the vehicle is switched OFF
while charging, the cooling fan
inside the motor compartment may
automatically operate. Do not touch
the cooling fan while charging.

[Be careful not to drop the charging
connector. The charging connector
can be damaged.
How to Check the Symbol on the
Charging Label
ONE1Q011081L
You can find the charging label when
opening the charging door.
Charging label
ONE1Q011086
1. Warning for high voltage
2. Caution
3. Charging voltage and current
WARNING
Risk of failure, fire, injury, etc., are
expected when using the charging
connector with unmatched symbol.

01
1-31
Disconnecting Charging
Connector in Emergency
ONE1Q011045
If the charging connector does not
disconnect from the charging inlet due to
battery discharge and failure of electric
wires, open the liftgate and slightly pull
the emergency cable in the cargo
area. The charging connector will be
disconnected from the charging inlet.
AC Charge
„AC Charger
OLFP0Q4057N
Actual charger image and charging
method may vary in accordance with the
charger manufacturer.
How to Connect AC Charger
1. Depress the brake pedal and apply the
parking brake.
2. Turn OFF all switches, shift to P (Park),
and turn OFF the vehicle. If charging is
initiated without the gear in P (Park),
the charging will start after the gear is
automatically shifted to P (Park).
ONE1Q011040
3. Open the charging door.
For more details, refer to ‘Electric
charging door’ in this chapter.
Information
If you cannot open the charging door due
to freezing weather, tap lightly or remove
any ice near the charging door. Do not try
to forcibly open the charging door.
4. Check if there is dust on the charging
connector and charging inlet.
5. Hold the charging connector handle
and connect it to the vehicle charging
inlet. Push the connector all the way
in. If the charging connector and
charging terminal are not connected
properly, this may cause a fire.
Information
Locking Charging Cable
6HOHFW

Foreword / Starting your Electric vehicle
1-32
6. Connect the charging plug to the
electric outlet at a AC charging station
to start charging.
ONE1Q011041
7. Check if the charging connector
indicator light () of the high
voltage battery in the instrument
cluster is turned ON. Charging is not
active when the charging connector
indicator light (
) is OFF.
When the charging connector and
charging plug are not connected
properly, reconnect the charging
cable to charge.
Information

[(YHQWKRXJKFKDUJLQJLVSRVVLEOHZLWK
the Start/Stop button in the ON/START
position, for you safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to
P (Park). After charging has started,
you can use electrical components such
as the radio by pressing the Start/Stop
button to the ACC or ON position.

[During AC charging, the radio
reception may be bad.

[During charging, the gear cannot be
shifted from P (Park) to any other gear.
ONE1Q011058E
8. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute. When
scheduled charging or scheduled
air conditioner/heater is set, the
estimated charging time is displayed
as “--” .
Information
Depending on the condition and durability
of the high voltage battery, charger
specifications, and ambient temperature,
the time required for charging the battery
may vary.

01
1-33
Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.
How to Disconnect AC Charger
„AC Charger
OLFP0Q4057N
1. When charging is complete, remove
the charging plug from the electrical
outlet of the AC charging station.
ONE1Q011044
2. Hold the charging connector handle
and pull it out.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked or the charging connector
is in the LOCK mode. Unlock all doors to
disconnect the charging connector from
the inlet.
However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the
inlet when charging is completed.
If the charging connector is disconnected
while the release button is not pressed, the
connector and the inlet may be damaged.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
If the release button does not work even
after the all doors are unlocked, pull
the emergency lift cable in the motor
room and press the release button in the
connector to disconnect it from the vehicle.
If the release button still does not work,
consult an authorized HYUNDAI dealer.
3. Make sure to completely close the
charging door.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.

Foreword / Starting your Electric vehicle
1-34
DC Charge
„DC Charger
OAEEQ016023
You can charge at high speeds at public
charging stations. Refer to the respective
company’s manual that is provided for
each DC charger type.
Battery performance and durability can
deteriorate if the DC charger is used
constantly.
Use of DC charge should be minimized
in order to help prolong high voltage
battery life.
Actual charger image and charging
method may vary in accordance with
the charger manufacturer.
Information
If you use a DC charger when the vehicle
is already fully charged, some DC
chargers will send out an error message.
When the vehicle is fully charged, do not
charge the vehicle.
How to Connect DC Charger
1. Depress the brake pedal and apply the
parking brake.
2. Turn OFF all switches, shift to P (Park),
and turn OFF the vehicle.
ONE1Q011040
3. Open the charging door.
For more details, refer to ‘Electric
Charging Door’ in this chapter.
Information
If you cannot open the charging door due
to freezing weather, tap lightly or remove
any ice near the charging door. Do not try
to forcibly open the charging door.
4. Check whether there is dust or foreign
substances inside the charging
connector and charging inlet.
5. Hold the charging connector handle
and connect it to the vehicle charging
inlet. Push the connector all the way
in. If the charging connector and
charging terminal are not connected
properly, this may cause a fire.
Refer to the manual for each type of
DC charger for how to charge and
remove the charger.

01
1-35
ONE1Q011041
6. Check if the charging connector
indicator light () of the high voltage
battery in the instrument cluster is
turned ON. Charging connector is not
active when the charging connector
indicator light (
) is OFF.
When the charging connector is not
connected properly, reconnect the
charging cable to charge it again.
During cold weather, DC charging
may not be available to prevent high
voltage battery degradation.
Information
To control the temperature of the high
voltage battery while charging or when
the battery temperature is high, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation of the air conditioner
compressor and cooling fan, but it is a
normal condition when charging the high
voltage battery. Also, the air conditioner’s
performance may be degraded due to
operation of the cooling system to charge
the high voltage battery. This is a normal
condition.
Information
(YHQWKRXJKFKDUJLQJLVSRVVLEOHZLWK
the Start/Stop button in the ON/START
position, for you safety, start charging
when the Start/Stop button is in the
OFF position and the vehicle shifted to P
(Park). After charging has started, you
can use electrical components such as the
radio by pressing the Start/Stop button to
the ACC or ON position.
During charging, the gear cannot be
shifted from P (Park) to any other gear.
ONE1Q011059E
7. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the estimated charging time
is also displayed on the instrument
cluster for about 1 minute.
