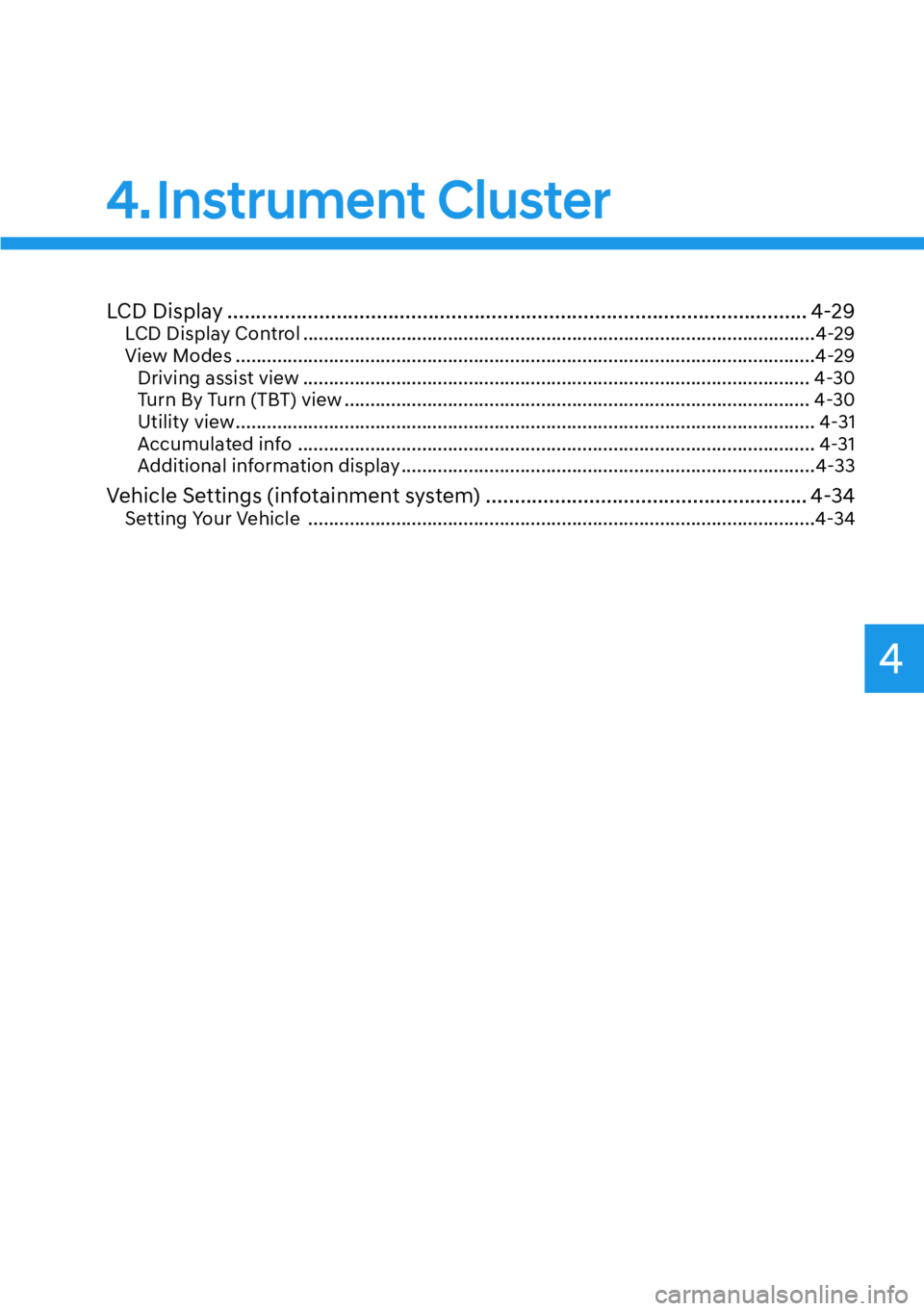

2022 HYUNDAI IONIQ 5 Owners Manual

4
LCD Display ..................................................................................................... 4-29LCD Display Control ...................................................................................................4-29
View Modes ................................................................................................................4-29
Driving assist view .................................................................................................. 4-30
Turn By Turn (TBT) view .......................................................................................... 4-30
Utility view ................................................................................................................ 4-31
Accumulated info .................................................................................................... 4-31
Additional information display ................................................................................4-33
Vehicle Settings (infotainment system) ........................................................ 4-34Setting Your Vehicle ..................................................................................................4-34
4. Instrument Cluster

4-4

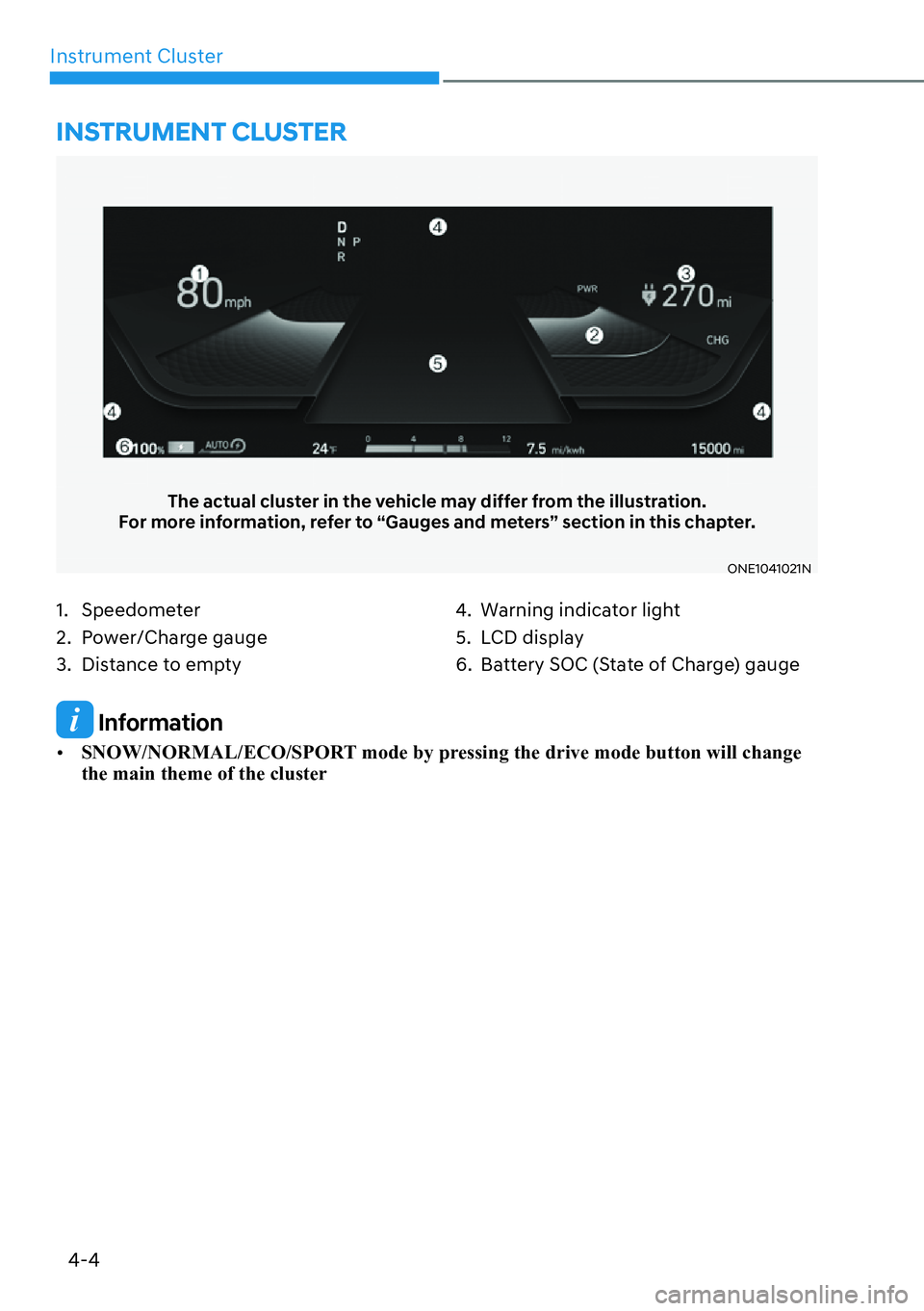

Instrument Cluster
1. Speedometer
2. Power/Charge gauge
3. Distance to empty4. Warning indicator light
5. LCD display
6. Battery SOC (State of Charge) gauge
INSTRUMENT CLUSTER
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
ONE1041021N
Information

[SNOW/NORMAL/ECO/SPORT mode by pressing the drive mode button will change
the main theme of the cluster

04
4-5

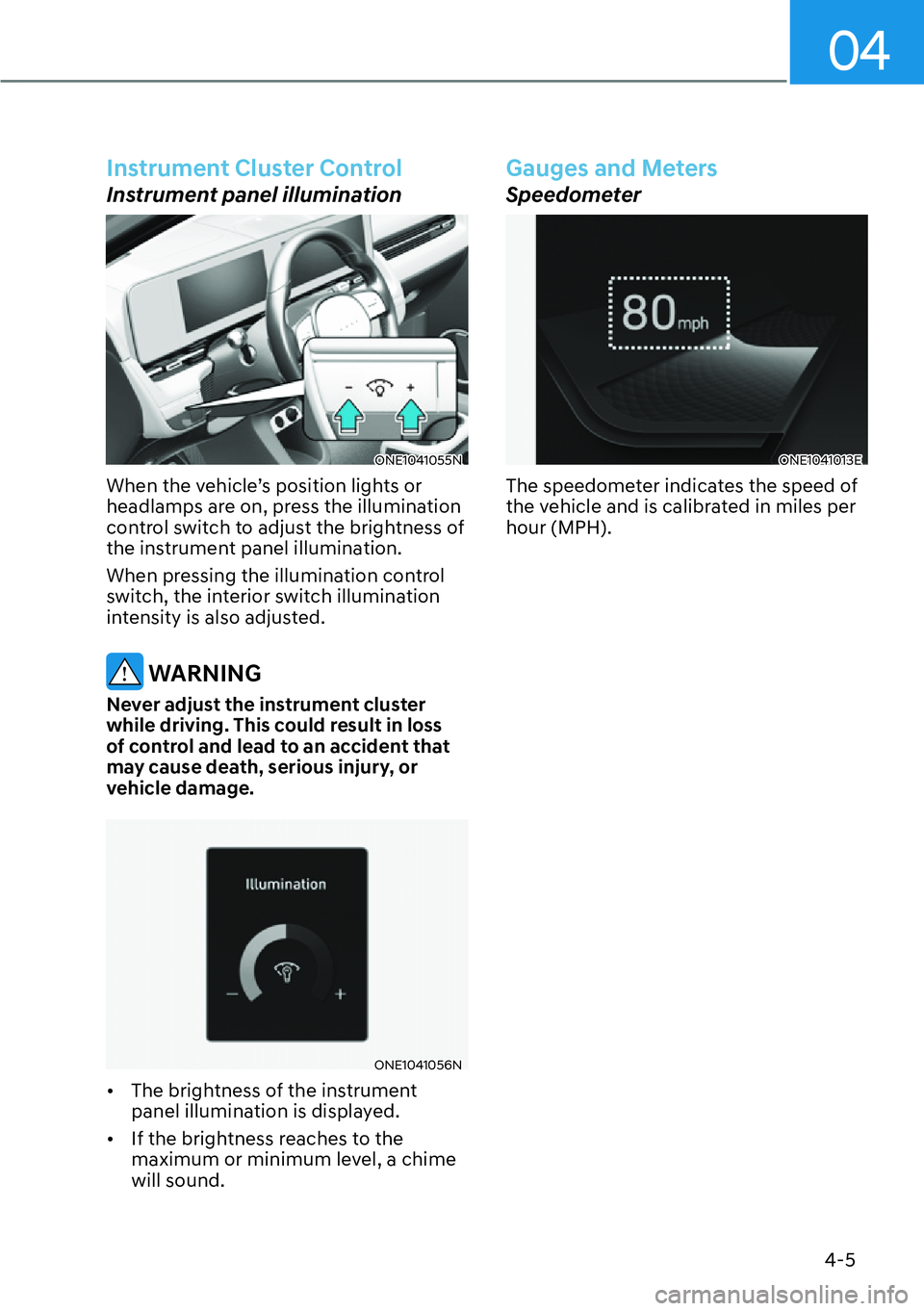

Instrument Cluster Control
Instrument panel illumination
ONE1041055N
When the vehicle’s position lights or
headlamps are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity is also adjusted.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
vehicle damage.
ONE1041056N

[The brightness of the instrument
panel illumination is displayed.

[If the brightness reaches to the
maximum or minimum level, a chime
will sound.
Gauges and Meters
Speedometer
ONE1041013E
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (MPH).

Instrument Cluster
4-6

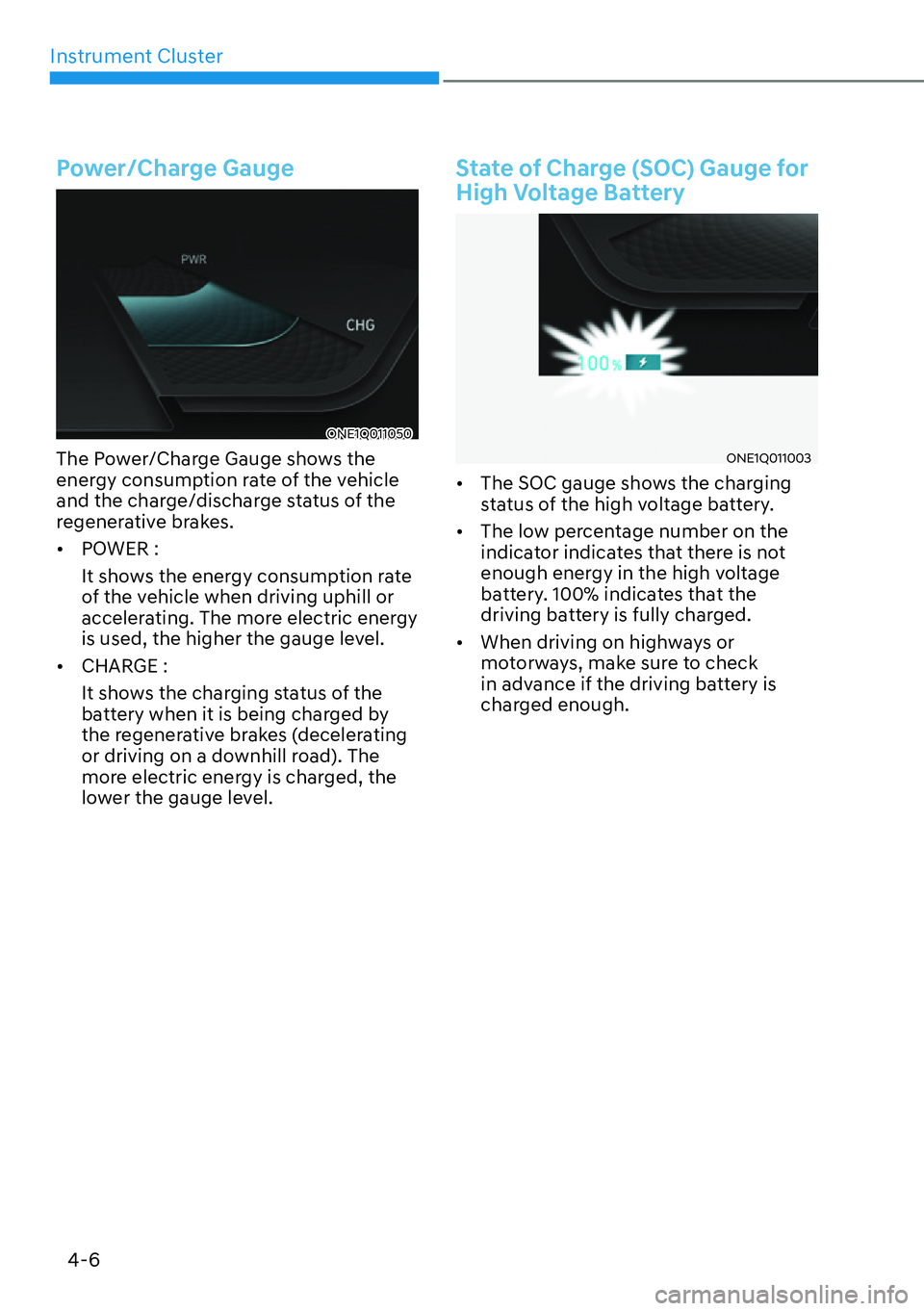

Power/Charge Gauge
ONE1Q011050
The Power/Charge Gauge shows the
energy consumption rate of the vehicle
and the charge/discharge status of the
regenerative brakes.

[POWER :
It shows the energy consumption rate
of the vehicle when driving uphill or
accelerating. The more electric energy
is used, the higher the gauge level.

[CHARGE :
It shows the charging status of the
battery when it is being charged by
the regenerative brakes (decelerating
or driving on a downhill road). The
more electric energy is charged, the
lower the gauge level.
State of Charge (SOC) Gauge for
High Voltage Battery
ONE1Q011003

[The SOC gauge shows the charging
status of the high voltage battery.

[The low percentage number on the
indicator indicates that there is not
enough energy in the high voltage
battery. 100% indicates that the
driving battery is fully charged.

[When driving on highways or
motorways, make sure to check
in advance if the driving battery is
charged enough.

04
4-7
ONE1Q011011

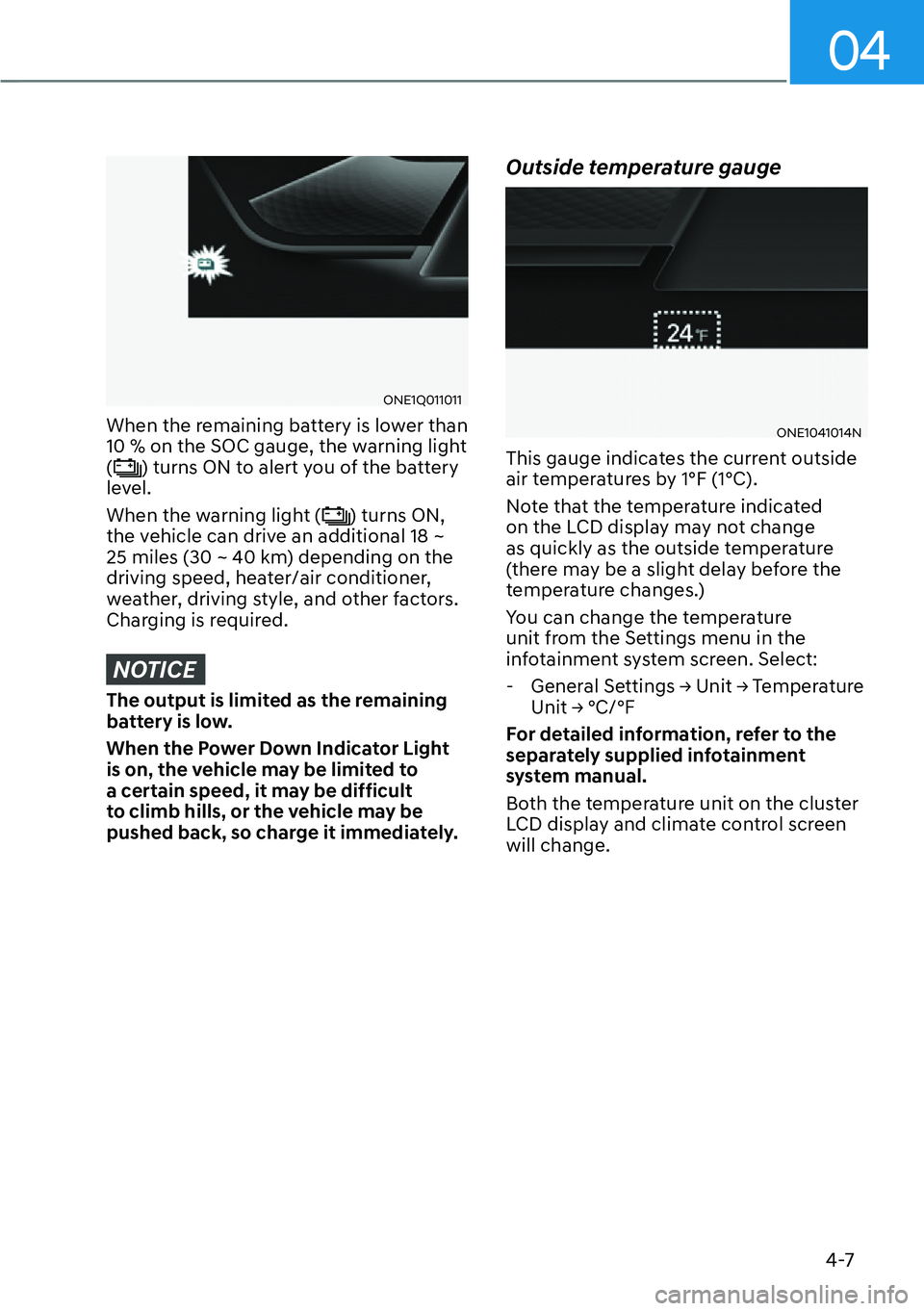

When the remaining battery is lower than
10 % on the SOC gauge, the warning light
(
) turns ON to alert you of the battery
level.
When the warning light (
) turns ON,
the vehicle can drive an additional 18 ~
25 miles (30 ~ 40 km) depending on the
driving speed, heater/air conditioner,
weather, driving style, and other factors.
Charging is required.
NOTICE
The output is limited as the remaining
battery is low.
When the Power Down Indicator Light
is on, the vehicle may be limited to
a certain speed, it may be difficult
to climb hills, or the vehicle may be
pushed back, so charge it immediately.
Outside temperature gauge
ONE1041014N
This gauge indicates the current outside
air temperatures by 1°F (1°C).
Note that the temperature indicated
on the LCD display may not change
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature
unit from the Settings menu in the
infotainment system screen. Select:
-*HQHUDO6HWWLQJV

Instrument Cluster
4-8

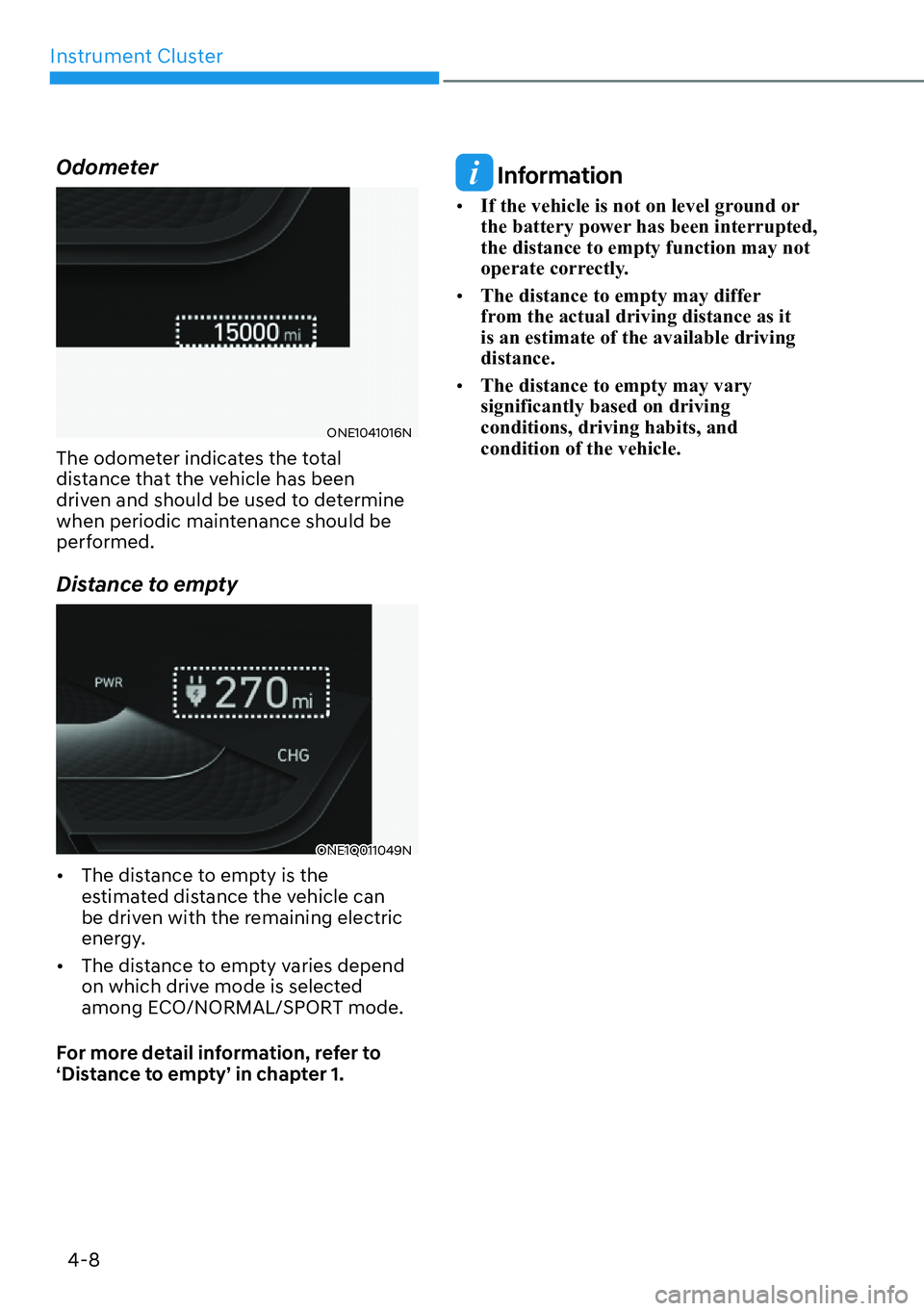

Odometer
ONE1041016N
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
Distance to empty
ONE1Q011049N

[The distance to empty is the
estimated distance the vehicle can
be driven with the remaining electric
energy.

[The distance to empty varies depend
on which drive mode is selected
among ECO/NORMAL/SPORT mode.
For more detail information, refer to
‘Distance to empty’ in chapter 1.
Information

[If the vehicle is not on level ground or
the battery power has been interrupted,
the distance to empty function may not
operate correctly.

[The distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.

[The distance to empty may vary
significantly based on driving
conditions, driving habits, and
condition of the vehicle.

04
4-9
Reduction Gear Shift Indicator
ONE1041015
The indicator displays which gear is
selected.
Regenerative braking level indicator
ONE1061036
The regenerative brake indicates the
level of the regenerative braking that
you set. And it also indicates Smart
regenerative system’s operation status.
For more details, refer to "Regenerative
Braking System" in chapter 6.
Warning and Indicator Lights
Information
Make sure that all warning lights are OFF
after starting the vehicle. If any light is
still ON, this indicates a situation that
needs attention.
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven.
- ON : Normal driving is possible.
- OFF : Normal driving is not possible,
or a problem has occurred.
- Blinking : Emergency driving.
When the ready indicator goes OFF
or blinks, there is a problem with the
system. In this case, have your vehicle
inspected by an authorized HYUNDAI
dealer.
Service warning light
This warning light illuminates:

[When the START/STOP button is in the
ON position.
- It illuminates for approximately 3
seconds and then goes off.

[When there is a problem with related
parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have your vehicle inspected
by an authorized HYUNDAI dealer.

Instrument Cluster
4-10

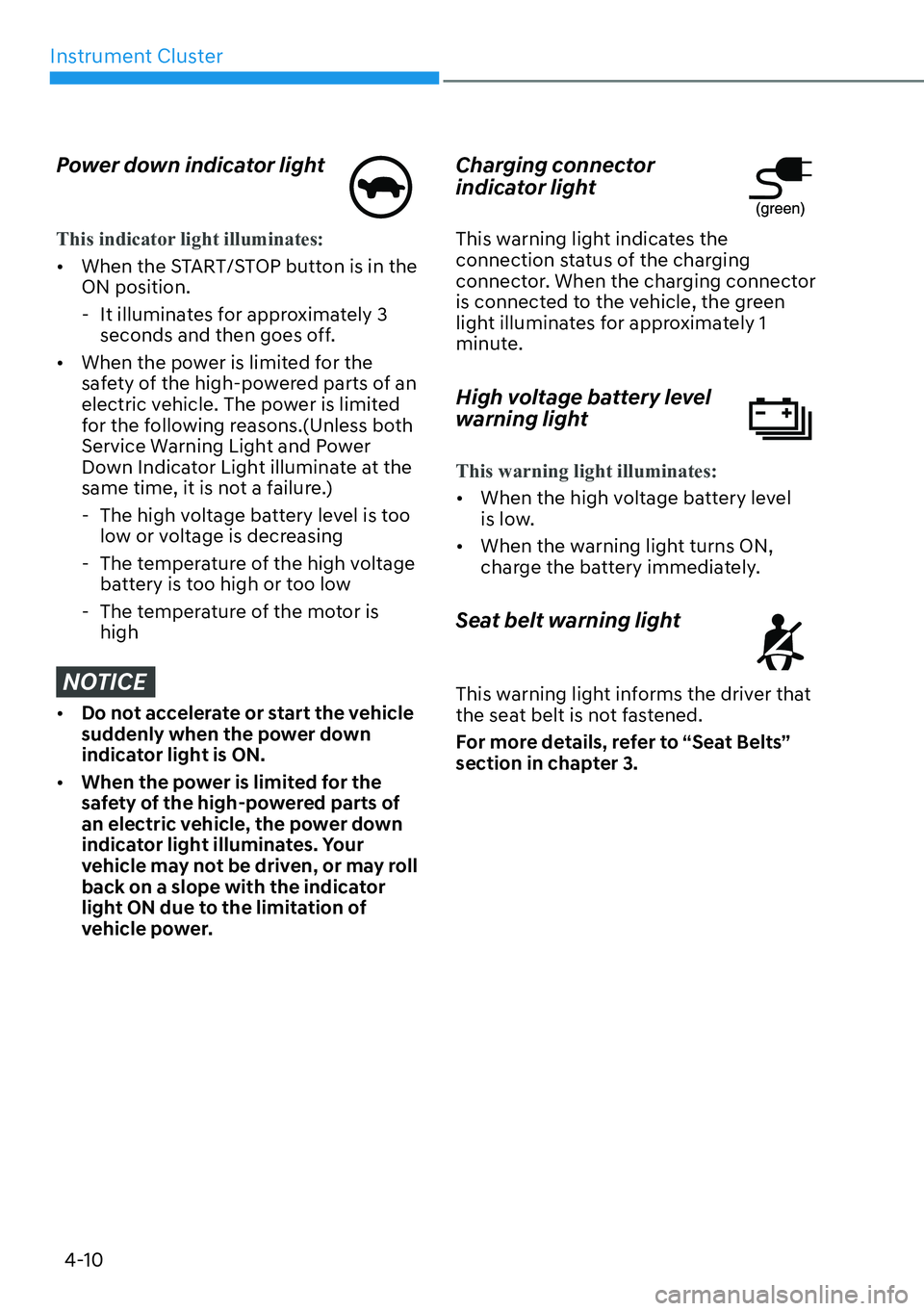

Power down indicator light
This indicator light illuminates:

[When the START/STOP button is in the
ON position.
- It illuminates for approximately 3
seconds and then goes off.

[When the power is limited for the
safety of the high-powered parts of an
electric vehicle. The power is limited
for the following reasons.(Unless both
Service Warning Light and Power
Down Indicator Light illuminate at the
same time, it is not a failure.)
- The high voltage battery level is too
low or voltage is decreasing
- The temperature of the high voltage
battery is too high or too low
- The temperature of the motor is
high
NOTICE

[Do not accelerate or start the vehicle
suddenly when the power down
indicator light is ON.

[When the power is limited for the
safety of the high-powered parts of
an electric vehicle, the power down
indicator light illuminates. Your
vehicle may not be driven, or may roll
back on a slope with the indicator
light ON due to the limitation of
vehicle power.
Charging connector
indicator light
This warning light indicates the
connection status of the charging
connector. When the charging connector
is connected to the vehicle, the green
light illuminates for approximately 1
minute.
High voltage battery level
warning light
This warning light illuminates:

[When the high voltage battery level
is low.

[When the warning light turns ON,
charge the battery immediately.
Seat belt warning light
This warning light informs the driver that
the seat belt is not fastened.
For more details, refer to “Seat Belts”
section in chapter 3.
