2022 HYUNDAI IONIQ 5 Owners Manual

Foreword / Starting your Electric vehicle
1-44

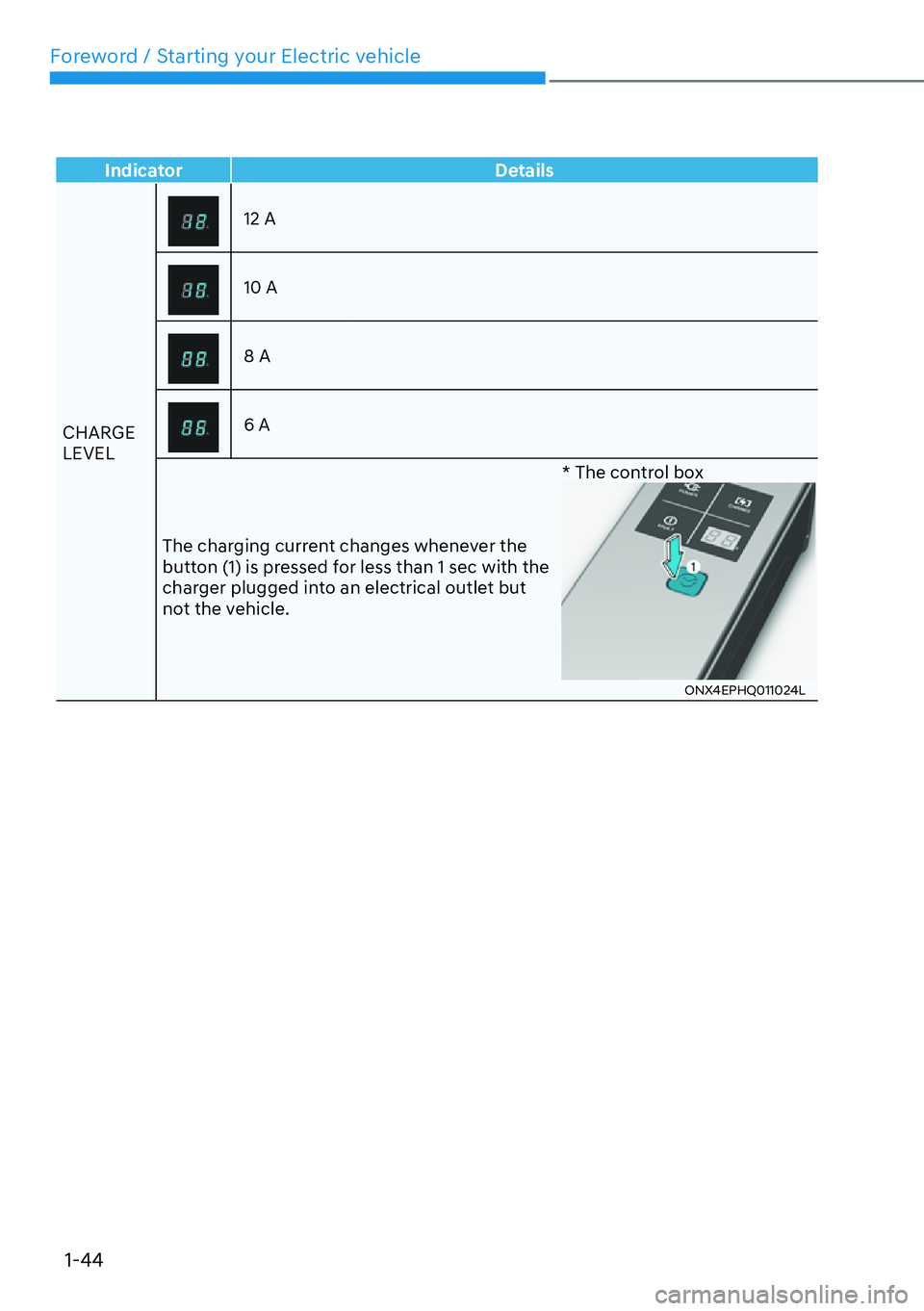

Indicator Details
CHARGE
LEVEL
12 A
10 A
8 A
6 A
The charging current changes whenever the
button (1) is pressed for less than 1 sec with the
charger plugged into an electrical outlet but
not the vehicle.* The control box
ONX4EPHQ011024L

01
1-45

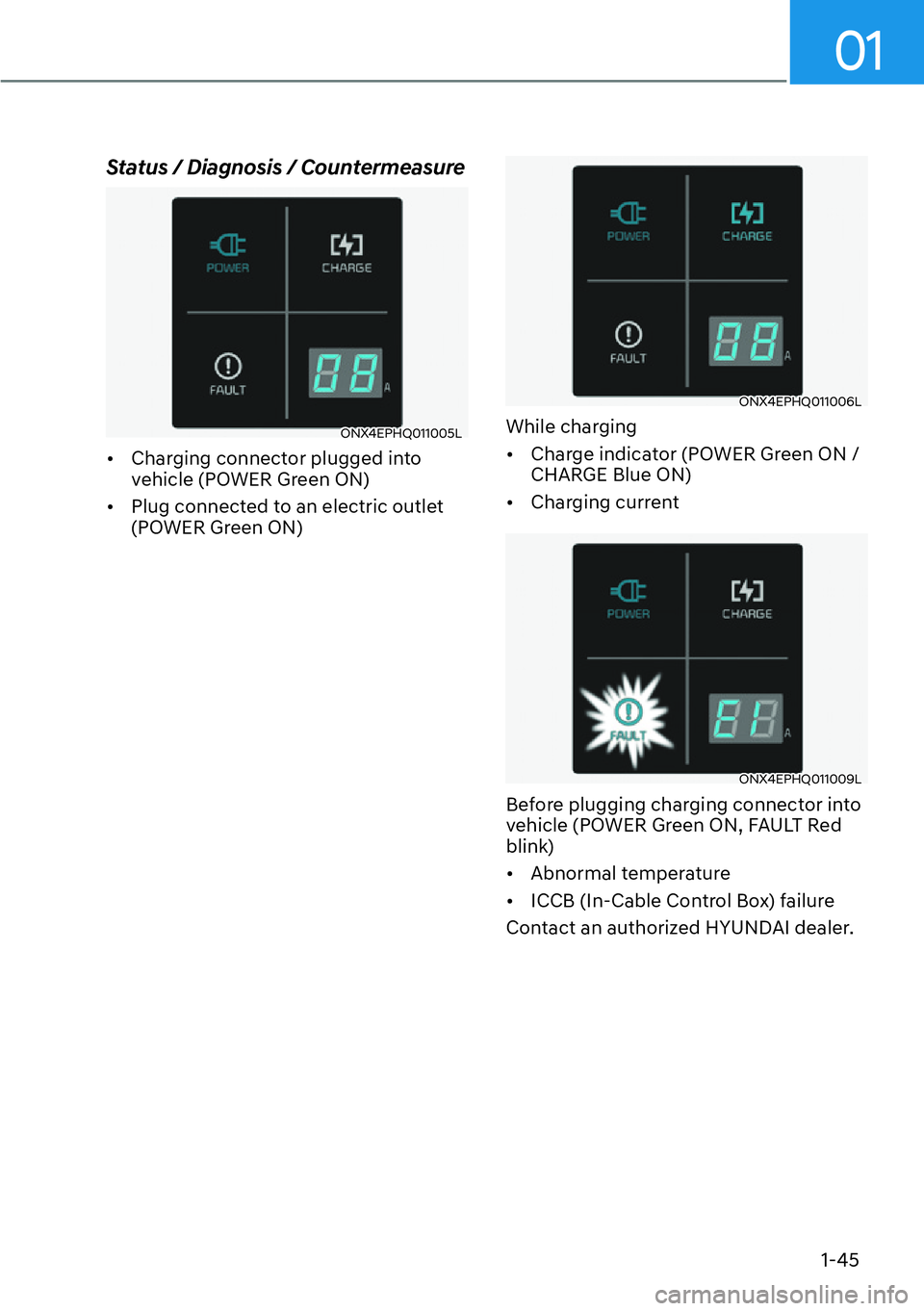

Status / Diagnosis / Countermeasure
ONX4EPHQ011005L

[Charging connector plugged into
vehicle (POWER Green ON)

[Plug connected to an electric outlet
(POWER Green ON)
ONX4EPHQ011006L
While charging

[Charge indicator (POWER Green ON /
CHARGE Blue ON)

[Charging current
ONX4EPHQ011009L
Before plugging charging connector into
vehicle (POWER Green ON, FAULT Red
blink)

[Abnormal temperature

[ICCB (In-Cable Control Box) failure
Contact an authorized HYUNDAI dealer.

Foreword / Starting your Electric vehicle
1-46

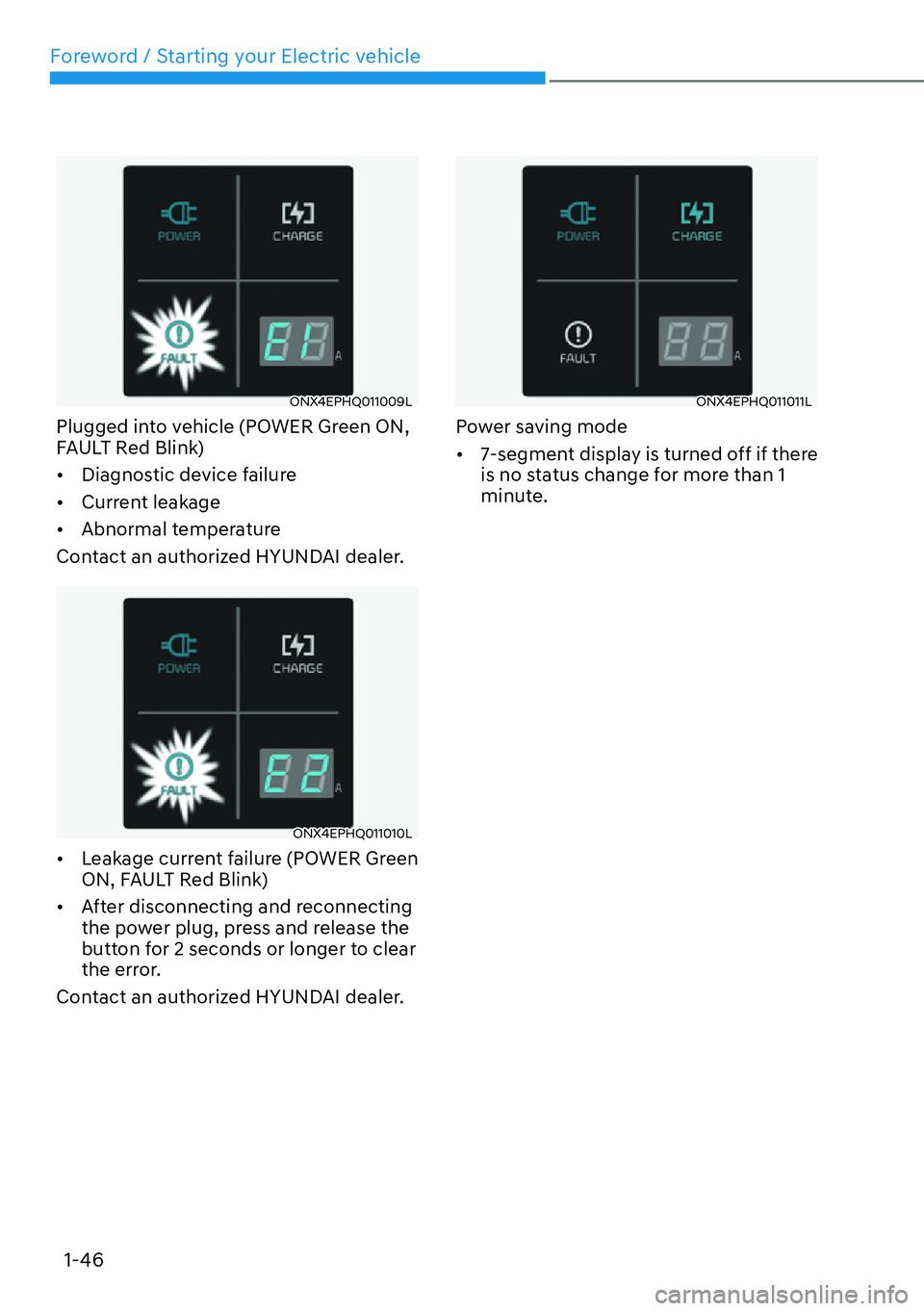

ONX4EPHQ011009L
Plugged into vehicle (POWER Green ON,
FAULT Red Blink)

[Diagnostic device failure

[Current leakage

[Abnormal temperature
Contact an authorized HYUNDAI dealer.
ONX4EPHQ011010L

[Leakage current failure (POWER Green
ON, FAULT Red Blink)

[After disconnecting and reconnecting
the power plug, press and release the
button for 2 seconds or longer to clear
the error.
Contact an authorized HYUNDAI dealer.
ONX4EPHQ011011L
Power saving mode

[7-segment display is turned off if there
is no status change for more than 1
minute.

01
1-47
How to Disconnect Portable Charger
(ICCB: In-Cable Control Box)
ONE1Q011044
1. Hold the charging connector handle
and pull it out.
Information
To prevent charging cable theft,
the charging connector cannot be
disconnected from the inlet when the
doors are locked or the charging connector
is in the LOCK mode. Unlock all doors to
disconnect the charging connector from
the inlet.
However, if the vehicle is in the charging
connector AUTO mode, the charging
connector automatically unlocks from the
inlet when charging is completed.
If the charging connector is disconnected
while the release button is not pressed, the
connector and the inlet may be damaged.
For more details, refer to “Charging
Connector AUTO/ LOCK Mode” in this
chapter.
If the release button does not work even
after the all doors are unlocked, pull
the emergency lift cable in the motor
room and press the release button in the
connector to disconnect it from the vehicle.
If the release button still does not work,
consult an authorized HYUNDAI dealer.2. Make sure to completely close the
charging door.
OAEE046507N
3. Disconnect the plug from the
household electric outlet. Do not pull
the cable when disconnecting the
plug.
4. Close the protection caps of the
charging connector and the charging
plug to protect them from foreign
substances.
5. If the personal charging connector is
used, store the connector in the cable
compartment.

Foreword / Starting your Electric vehicle
1-48

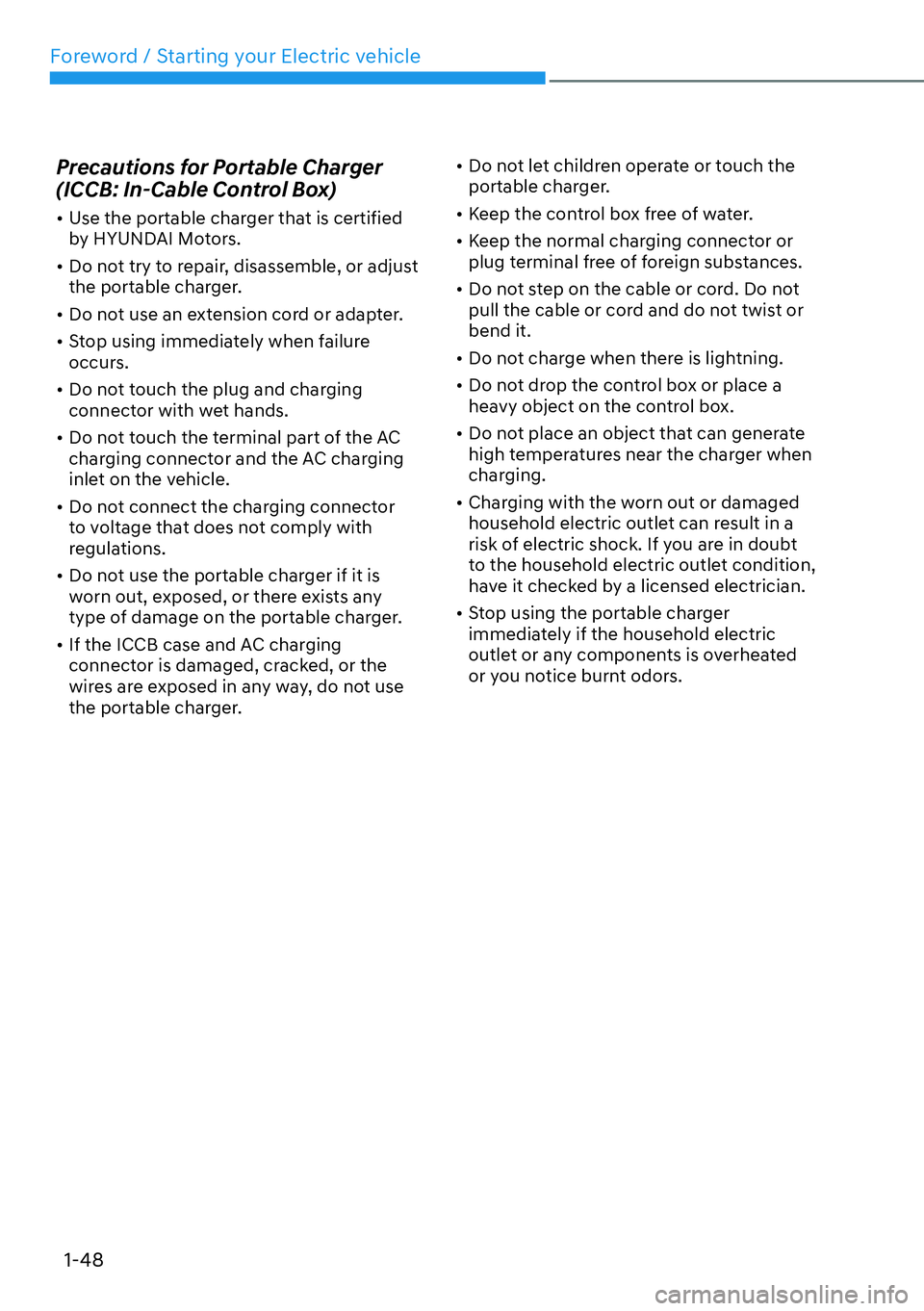

Precautions for Portable Charger
(ICCB: In-Cable Control Box)

[Use the portable charger that is certified
by HYUNDAI Motors.

[Do not try to repair, disassemble, or adjust
the portable charger.

[Do not use an extension cord or adapter.

[Stop using immediately when failure
occurs.

[Do not touch the plug and charging
connector with wet hands.

[Do not touch the terminal part of the AC
charging connector and the AC charging
inlet on the vehicle.

[Do not connect the charging connector
to voltage that does not comply with
regulations.

[Do not use the portable charger if it is
worn out, exposed, or there exists any
type of damage on the portable charger.

[If the ICCB case and AC charging
connector is damaged, cracked, or the
wires are exposed in any way, do not use
the portable charger.
[Do not let children operate or touch the
portable charger.

[Keep the control box free of water.

[Keep the normal charging connector or
plug terminal free of foreign substances.

[Do not step on the cable or cord. Do not
pull the cable or cord and do not twist or
bend it.

[Do not charge when there is lightning.

[Do not drop the control box or place a
heavy object on the control box.

[Do not place an object that can generate
high temperatures near the charger when
charging.

[Charging with the worn out or damaged
household electric outlet can result in a
risk of electric shock. If you are in doubt
to the household electric outlet condition,
have it checked by a licensed electrician.

[Stop using the portable charger
immediately if the household electric
outlet or any components is overheated
or you notice burnt odors.

01
1-49

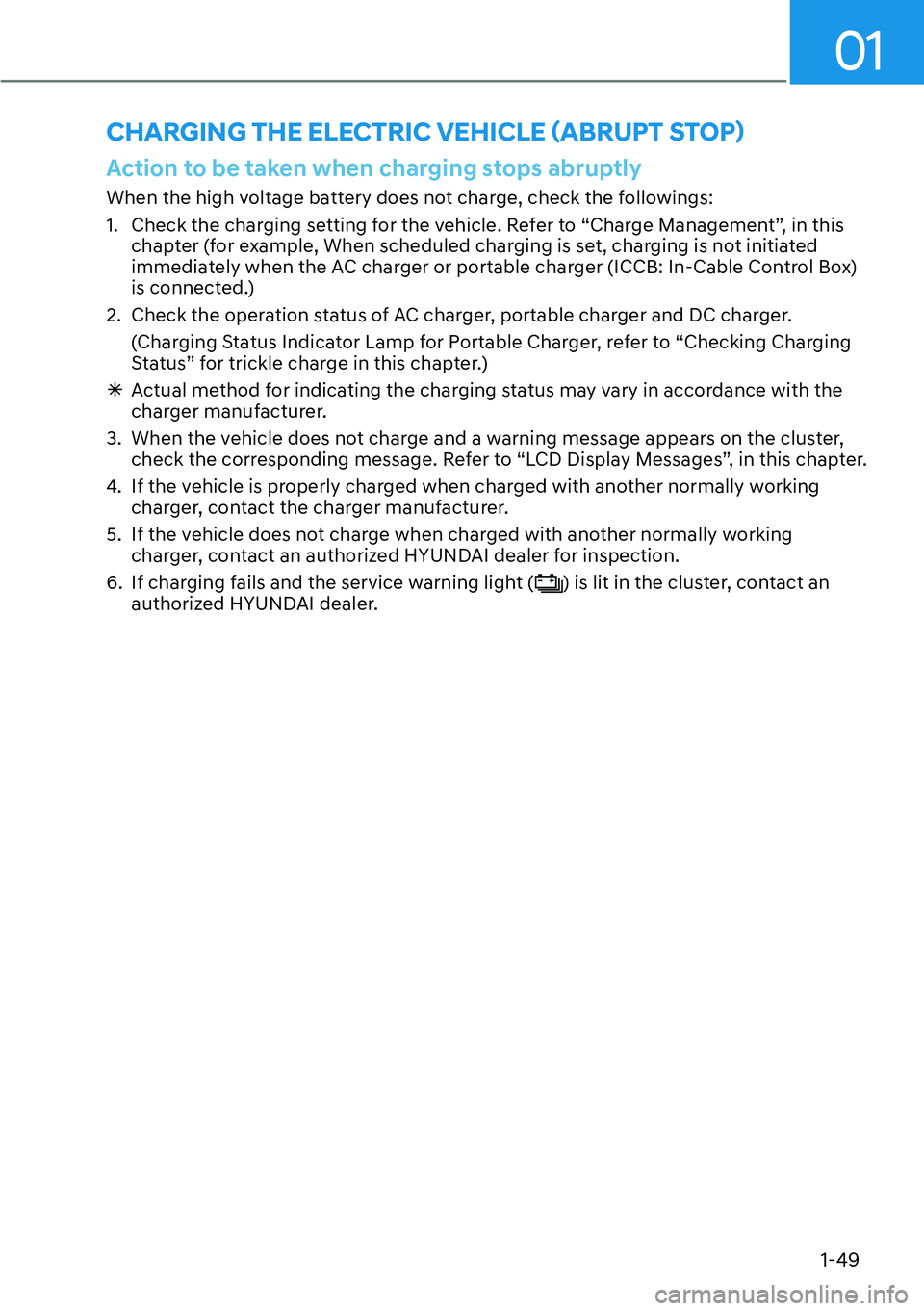

&+$5*,1*7+((/(&75,&9(+,&/(

Foreword / Starting your Electric vehicle
1-50
DRIVING ELECTRIC VEHICLE
How to Start the Vehicle
1. Holding the smart key, sit in the
driver’s seat.
2. Fasten the seat belt before starting
the vehicle.
3. Make sure to engage the parking
brake.
4. Turn OFF all electrical devices.
5. Make sure to depress and hold the
brake pedal.
6. While depressing the brake pedal,
shift to P (Park).
7. Depress and hold the brake pedal
while pressing the Start/Stop button.
ONE1Q011047
8. When the “” indicator is ON,
you can drive the vehicle.
When the “
” indicator is OFF,
you cannot drive the vehicle. Start the
vehicle again.
9. Depress and hold the brake pedal and
shift to the desired position.
Information
While the charging cable is connected, the
gear cannot be shift from P (Park) to any
other gear for safety reasons.10. Release the parking brake and slowly
release the brake pedal. Check if the
vehicle slowly moves forward, then
depress the accelerator pedal.
How to Stop the Vehicle
1. Hold down the brake pedal while the
vehicle is parked.
2. While depressing the brake pedal,
shift to P (Park).
3. While depressing the brake pedal,
engage the parking brake.
4. While depressing the brake pedal,
press the Start/Stop button and turn
off the vehicle.
ONE1Q011048
5. Check if the “” indicator is
turned OFF on the instrument cluster.
When the “
” indicator is ON
and the gear is in a position other than
P (Park), the driver can accidently
depress the accelerator pedal, causing
the vehicle to move unexpectedly.

01
1-51
Virtual Engine Sound System
The Virtual Engine Sound System
generates engine sound for pedestrians
to hear vehicle sound because there is
no sound while the Electric Vehicle (EV)
is operating.

[If the vehicle is in the ready (
)
mode and the gear is not in P (Park),
the VESS will be operated.

[When the gear is shifted to R
(Reverse), an additional warning
sound will be heard.
CAUTION

[The vehicle is much quieter while
driving than a conventional gasoline-
powered vehicle. Be aware of your
surroundings and always drive safely.

[After you park the vehicle or while
you are waiting at a traffic light,
check whether there are children or
obstacles around the vehicle.

[Check if there is something behind
the vehicle when driving in reverse.
Pedestrians may not hear the sound
of the vehicle.
Distance to Empty
ONE1Q011099N
The distance to empty is displayed
differently according to the selected
drive mode in the Drive Mode Integrated
Control System.
For more information, refer to “Drive
Mode Integrated Control System” in
chapter 6.
When destination is not set

[On average, a vehicle can drive about
200 miles (320 km) (Standard type) /
300 miles (400 km) (Extended type).

[Under certain circumstances where
the air conditioner/heater is ON,
the distance to empty is impacted,
resulting in a possible distance range
from 106 ~ 286 miles (170 ~ 460 km)
(Standard type) / 130 ~ 300 miles
(210 ~ 570 km) (Extended type).
When using the heater during cold
weather or driving at high speed, the
high voltage battery consumes a lot
more electricity. This may reduce the
distance to empty significantly.

[After ‘0 km’ has been displayed,
the vehicle can drive an additional
2~5 miles (3~8 km) depending on
driving speed, heater/air conditioner,
weather, driving style, and other
factors.
