2022 HYUNDAI ELANTRA Owners Manual

Maintenance
9-48
'ULYHU

09
9-49
OCN7090014NOCN7090014N
Engine compartment fuse panel
ODN8089017ODN8089017
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
1RWDOOIXVHSDQHOGHVFULSWLRQVLQWKLV
PDQXDOPD\EHDSSOLFDEOHWR\RXUYHKLFOH
WKHLQIRUPDWLRQLVDFFXUDWHDWWKHWLPHRI
SULQWLQJ:KHQ\RXLQVSHFWWKHIXVHSDQHO
LQ\RXUYHKLFOHUHIHUWRWKHIXVHSDQHO
ODEHO
CN7 HMA 9.indd 9-492020-12-03 9:42:31

Maintenance
9-50
(QJLQHFRPSDUWPHQWIXVHSDQHO
Type Fuse NameFuse Rating Circuit Protected
MULTI
FUSE-3ALT150A
180A[Smartstream G 2.0 Atkinson with AMS2]
Alternator, (Fuse - ABS1, ABS2, EOP1, POWER
OUTLET1)
[Smartstream G 2.0 Atkinson & Smartstream
G1.6 T-GDi without AMS2] Alternator, (Fuse -
ABS1, ABS2, POWER OUTLET1)
MDPS180A MDPS Unit
MULTI
FUSE-2COOLING
FAN260A [G4FP] Cooling Fan Controller
DCT340A [G4FP] SGA
MULTI
FUSE-1B+560APCB Block (Engine Control Relay, Fuse -
ECU3, ECU4, HORN, WIPER, A/C)
B+160AICU Junction Block (IPS2/IPS5/IPS6/IPS7/
IPS14)
B+260AICU Junction Block (IPS1/IPS4/IPS8/IPS9/
IPS10)
B+350AICU Junction Block (Fuse - TRUNK, AMP,
SAFETY P/WINDOW DRV, P/SEAT DRV, P/
SEAT PASS, S/HEATER FRT, S/HEATER RR,
Long Term Load Latch Relay)
EPB60A ESC Control Module
PTC HEATER50A PTC HEATER
BLOWER40A BLOWER, Multipurpose Check Connector
IG140AE/R Junction Block (PDM (IG1/ACC) Relay),
Ignition Switch
IG240AE/R Junction Block (PDM (IG2) Relay, Start
Relay), Ignition Switch
CN7 HMA 9.indd 9-502020-12-03 9:42:31

09
9-51
(QJLQHFRPSDUWPHQWIXVHSDQHO
Type Fuse NameFuse Rating Circuit Protected
FUSEPOWER
OUTLET220A
Front Power Outlet
POWER
OUTLET320A Not Used
COOLING
FAN140ACooling Fan (Smartstream G 2.0 Atkinson
only)
DCT140A [G4FP] TCM
DCT240A [G4FP] TCM
REAR
HEATED40A Rear glass heated
B+440AICU Junction Block (Fuse - AIR BAG2,
IBU1, BRAKE SWITCH, DOOR LOCK, IAU,
MODULE1, SUNROOF,Power Window Relay)
AMS10A Battery Sensor
TCU110A [DCT] TCM, [M/T] Ignition Lock
FUEL PUMP20AFuel Pump Control Module (T-GDI), Fuel
Pump Motor (NU MPI AKS)
CVVD40A [G4FP] CVVD Actuator
ABS140AABS Control Module, ESC Control Module,
Multipurpose Check Connector
ABS230AABS Control Module, ESC Control Module,
Multipurpose Check Connector
EOP130AElectronic Oil Pump (Smartstream G 2.0
Atkinson ISG only)
POWER
OUTLET140A P/OUTLET FRT
CN7 HMA 9.indd 9-512020-12-03 9:42:31

Maintenance
9-52
(QJLQHFRPSDUWPHQWIXVHSDQHO
Fuse NameFuse Rating Circuit Protected
WIPER25A Wiper Motor
ECU415A PCM/ECM
A/C10A[G4FM] A/C Compressor (Smartstream G 2.0 Atkinson
only)
HORN15A Horn
IGN COIL20A Ignition Coil #1~#4
ECU315A PCM/ECM
SENSOR310A E/R Junction Block (Fuel Pump Relay)
ECU210A PCM/ECM (Smartstream G1.6 T-GDi only)
SENSOR210A[G4NS] Variable Intake Solenoid Valve, Oil Pump
Solenoid Valve, Oil Control Valve #1/#2, Canister Close
Valve, Purge Control Solenoid Valve,
PCB Block (A/C Relay), E/R Junction Block (Cooling
Fan1/2 Relay)
[G4FP] Variable Oil Pump Solenoid, Oil Control Valve
#1/#2, Purge ControL Solenoid Valve, RCV Control
Solenoid Valve, CanisteR Close Valve
ECU510ACVVD Actuator (Smartstream G1.6 T-GDi only), ECM/
PCM, Ignition Lock
SENSOR115A Oxygen Sensor (UP/DOWN)
ABS310AABS Control Module, ESC Control Module, Multipurpose
Check Connector
INJECTOR15A[G4FM/G4FG/G4NA] Injector #1~#4 (Smartstream G 2.0
Atkinson only)
ECU120A PCM/ECM
TCU215ATransaxle Range Switch, [G4FP] TCM (Smartstream G1.6
T-GDi & DCT only)
CN7 HMA 9.indd 9-522020-12-03 9:42:31

09
9-53
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
Information
7KHKHDGODPSDQGWDLOODPSOHQVHVFRXOG
DSSHDUIURVW\LIWKHYHKLFOHLVZDVKHGDIWHU
GULYLQJRUWKHYHKLFOHLVGULYHQDWQLJKWLQ
ZHWZHDWKHU7KLVFRQGLWLRQLVFDXVHGE\
WHPSHUDWXUHGLIIHUHQFHEHWZHHQWKHODPS
LQVLGHDQGRXWVLGHDQGGRHVQRWLQGLFDWH
DSUREOHPZLWK\RXUYHKLFOH:KHQ
PRLVWXUHFRQGHQVHVLQWKHODPSLWZLOOEH
UHPRYHGDIWHUGULYLQJZLWKWKHKHDGODPS
RQ7KHUHPRYDEOHOHYHOPD\GLIIHU
GHSHQGLQJRQODPSVL]HODPSSRVLWLRQ
DQGHQYLURQPHQWDOFRQGLWLRQ+RZHYHULI
PRLVWXUHLVQRWUHPRYHGKDYHWKHYHKLFOH
LQVSHFWHGE\DQDXWKRUL]HG+<81'$,
GHDOHU
WARNING
• Prior to replacing a lamp, depress
the foot brake, move the shift button
into P (Park) apply the parking brake,
place the ignition switch to the
LOCK/OFF position, and take the key
with you when leaving the vehicle
to avoid sudden movement of the
vehicle and to prevent possible
electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
• When the bulb is disconnected or the
lamp connector is removed while the
lamp is operating normally, the fuse
box electronics may recognize the
lamp as a malfunction. Therefore, a
fault record for the lamp may remain
in the Diagnostic Trouble Code (DTC)
recorded in the fuse box.
Headlamp, Parking Lamp,
Daytime Running Light, Turn
Signal Lamp and Side Marker
OCN7090015NOCN7090015N
OCN7090016NOCN7090016N
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Daytime running lamp (DRL)/
Parking lamp
(4) Turn signal lamp
(5) Side marker
LIGHT BULBS
CN7 HMA 9.indd 9-532020-12-03 9:42:31

Maintenance
9-54

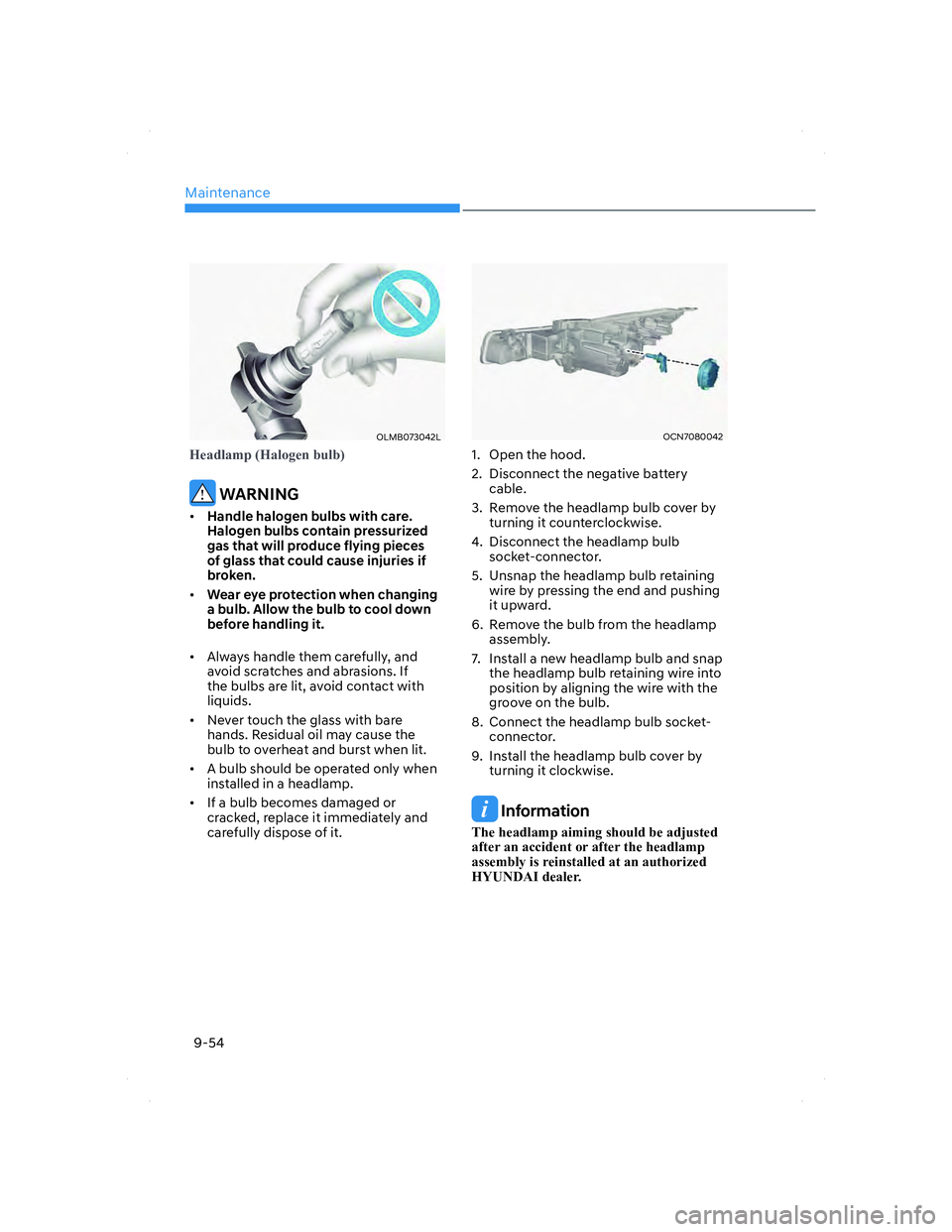

OLMB073042LOLMB073042L
+HDGODPS+DORJHQEXOE
WARNING
• Handle halogen bulbs with care.
Halogen bulbs contain pressurized
gas that will produce flying pieces
of glass that could cause injuries if
broken.
• Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.
• Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only when
installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
OCN7080042OCN7080042
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the headlamp bulb cover by
turning it counterclockwise.
4. Disconnect the headlamp bulb
socket-connector.
5. Unsnap the headlamp bulb retaining
wire by pressing the end and pushing
it upward.
6. Remove the bulb from the headlamp
assembly.
7. Install a new headlamp bulb and snap
the headlamp bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
8. Connect the headlamp bulb socket-
connector.
9. Install the headlamp bulb cover by
turning it clockwise.
Information
7KHKHDGODPSDLPLQJVKRXOGEHDGMXVWHG
DIWHUDQDFFLGHQWRUDIWHUWKHKHDGODPS
DVVHPEO\LVUHLQVWDOOHGDWDQDXWKRUL]HG
+<81'$,GHDOHU
CN7 HMA 9.indd 9-542020-12-03 9:42:31

09
9-55

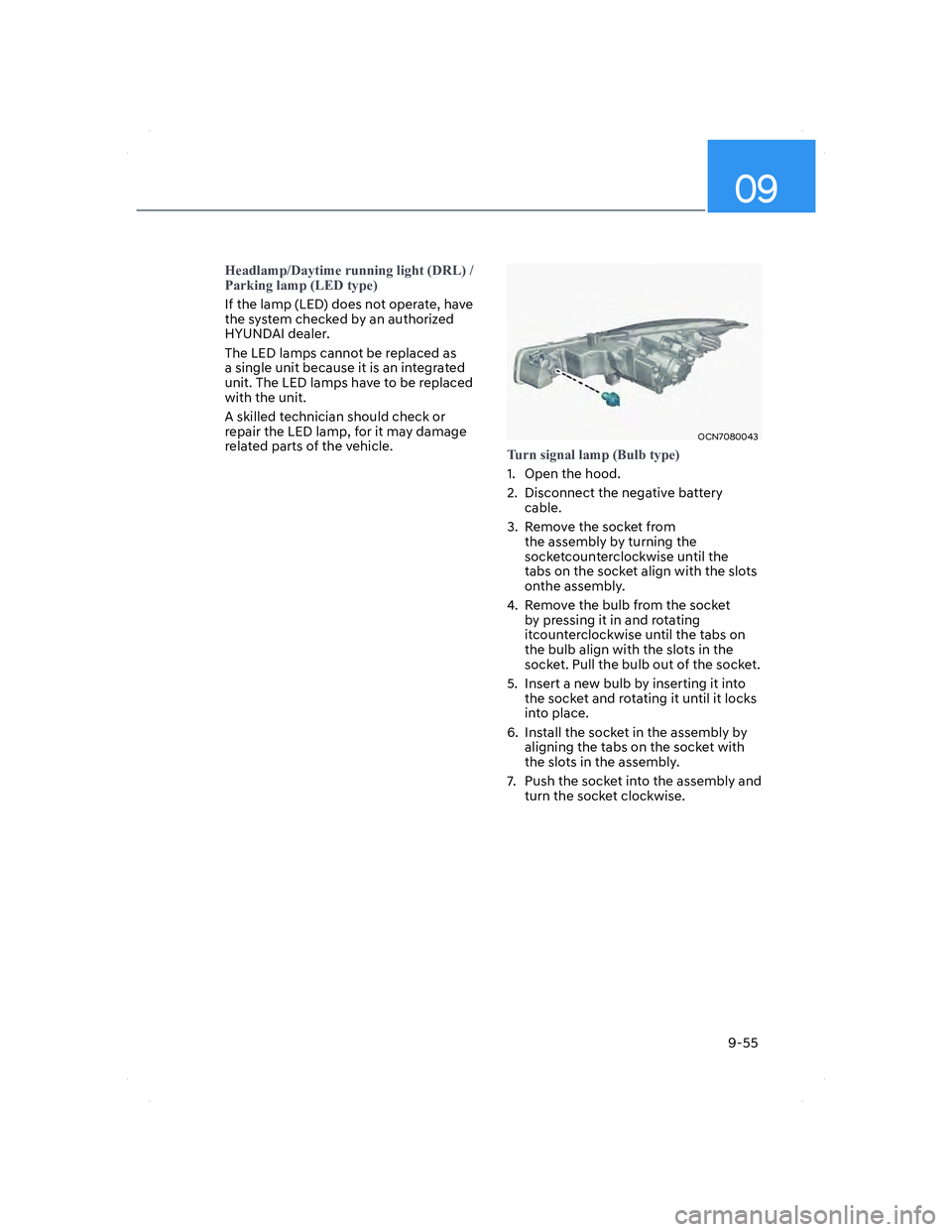

+HDGODPS'D\WLPHUXQQLQJOLJKW'5/
3DUNLQJODPS/('W\SH
If the lamp (LED) does not operate, have
the sy
stem checked by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps have to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
OCN7080043OCN7080043
7XUQVLJQDOODPS%XOEW\SH
1. Open the hood.
2. Disconnect the negative battery
cable.
3. Remove the socket from
the assembly by turning the
socketcounterclockwise until the
tabs on the socket align with the slots
onthe assembly.
4. Remove the bulb from the socket
by pressing it in and rotating
itcounterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the socket.
5. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and
turn the socket clockwise.
CN7 HMA 9.indd 9-552020-12-03 9:42:32
