Vehicle Information

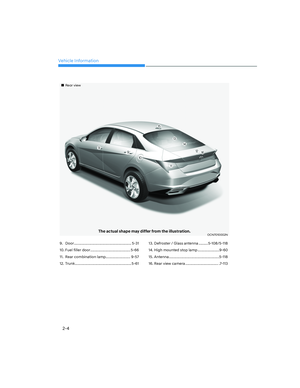

„Rear view
The actual shape may differ from the illustration.OCN7010002N

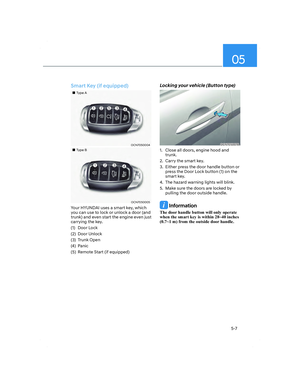

9. Door ........................................................ 5-31

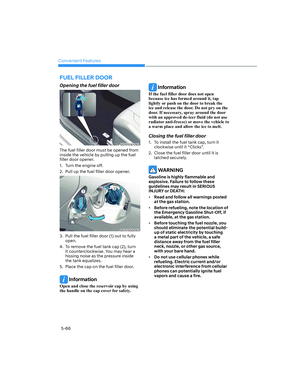

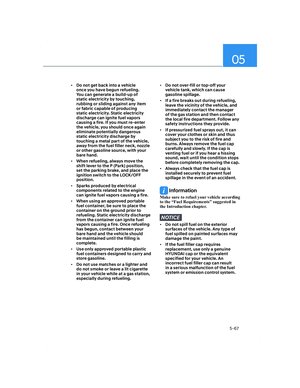

10. Fuel filler door ....................................... 5-66
11. Rear combination lamp........................ 9-57
12. Trunk ....................................................... 5-6113. Defroster / Glass antenna .........5-108/5-118

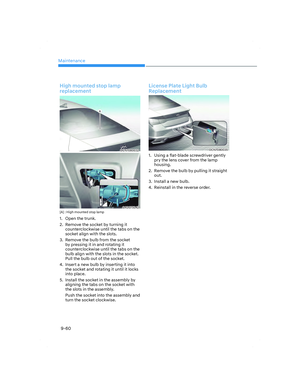

14. High mounted stop lamp .....................9-60

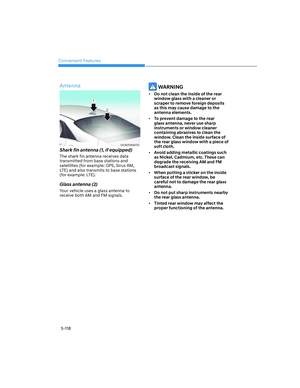

15. Antenna .................................................5-118

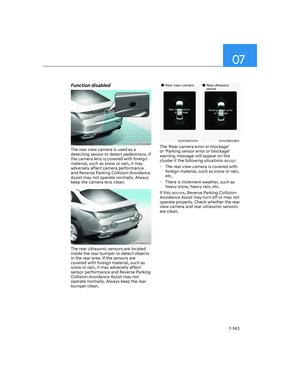

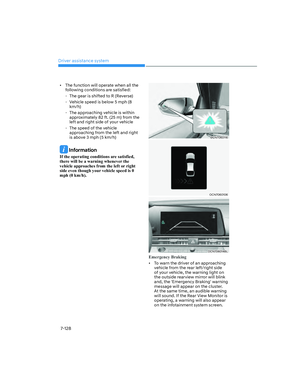

16. Rear view camera ................................ .7-113

2-5
02
9. Door ........................................................ 5-31
10. Fuel filler door ....................................... 5-66
11. Rear combination lamp........................ 9-57
12. Trunk ....................................................... 5-6113. Defroster / Glass antenna .........5-108/5-118
14. High mounted stop lamp .....................9-60
15. Antenna .................................................5-118
16. Rear view camera ................................. 7-113

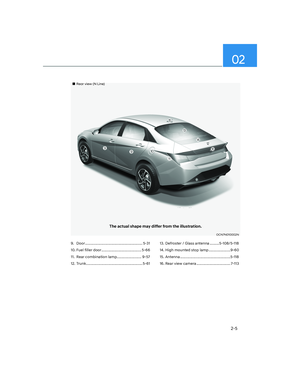

„Rear view (N Line)
The actual shape may differ from the illustration.
OCN7N010002N

2-6
Vehicle Information

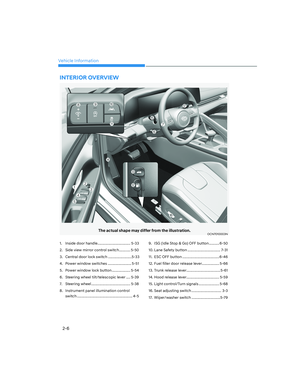

The actual shape may differ from the illustration.OCN7010003N

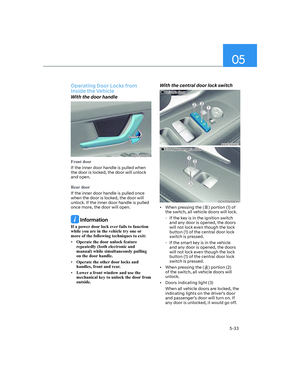

1. Inside door handle ................................ 5-33
2. Side view mirror control switch ........... 5-50
3. Central door lock switch .......................5-33

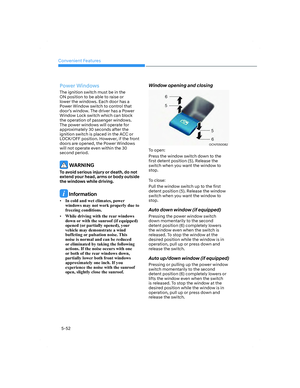

4. Power window switches ....................... 5-51

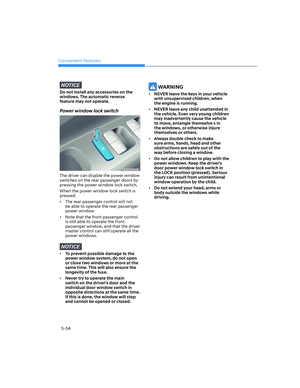

5. Power window lock button .................. 5-54
6. Steering wheel tilt/telescopic lever .... 5-39

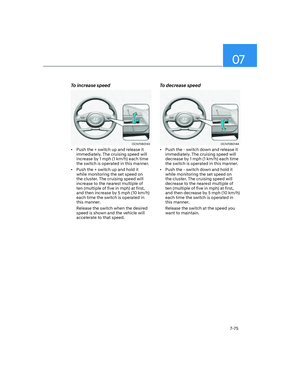

7. Steering wheel ...................................... 5-38
8. Instrument panel illumination control

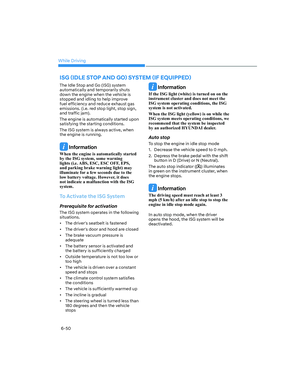

switch ...................................................... 4-59. ISG (Idle Stop & Go) OFF button .......... 6-50

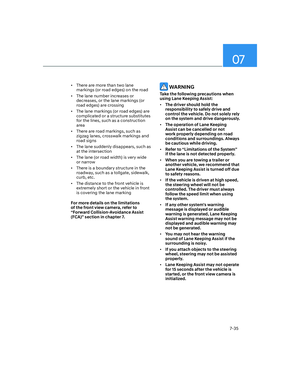

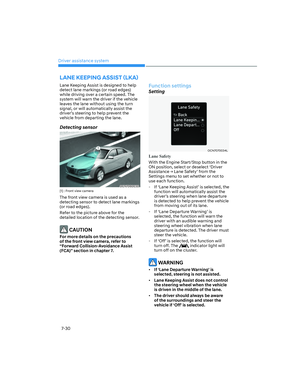

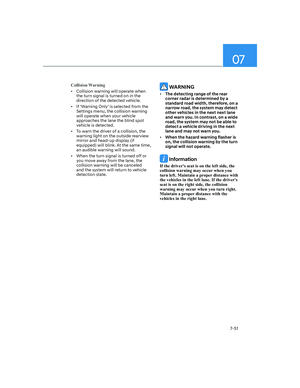

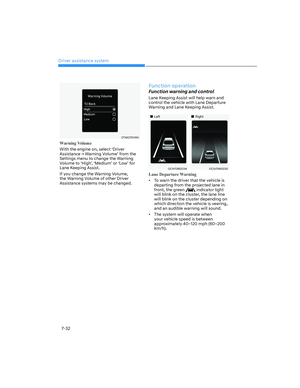

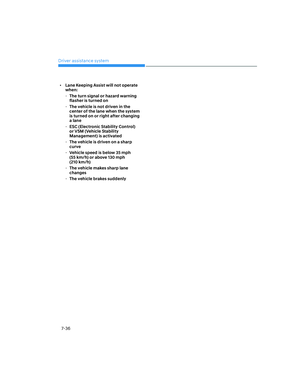

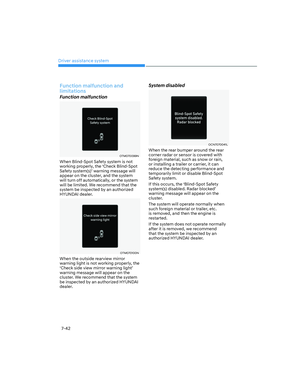

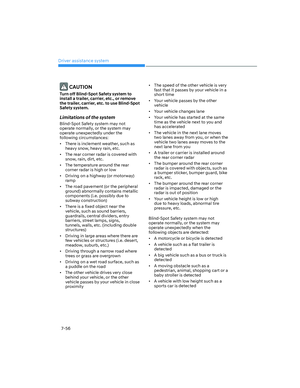

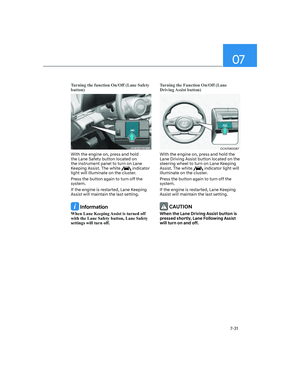

10. Lane Safety button ................................ 7-31

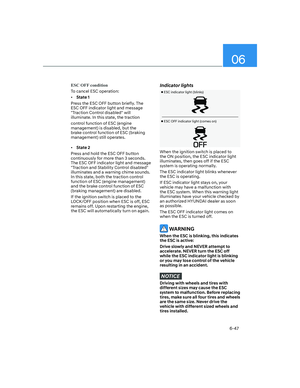

11. ESC OFF button .................................... 6-46
12. Fuel filler door release lever ................. 5-66
13. Trunk release lever ................................. 5-61
14. Hood release lever ................................ 5-59

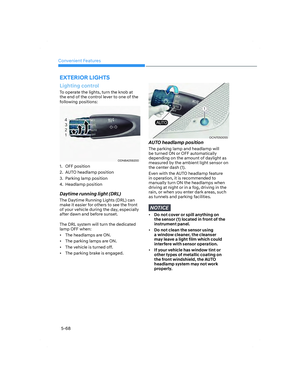

15. Light control/Turn signals .................... 5-68

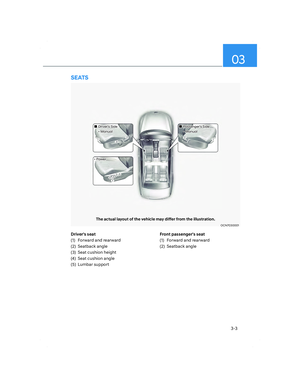

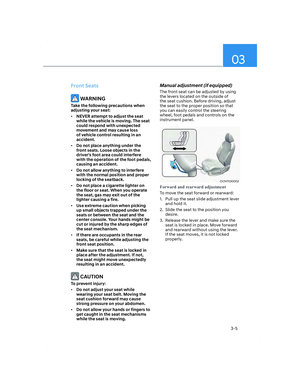

16. Seat adjusting switch ............................. 3-3
17. Wiper/washer switch ............................5-79
INTERIOR OVERVIEW

2-7
02

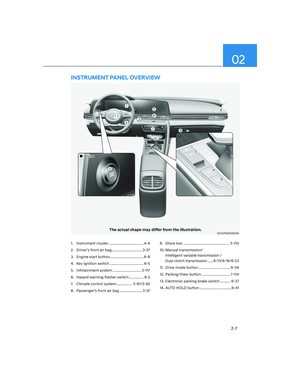

The actual shape may differ from the illustration.OCN7N010021N
INSTRUMENT PANEL OVERVIEW

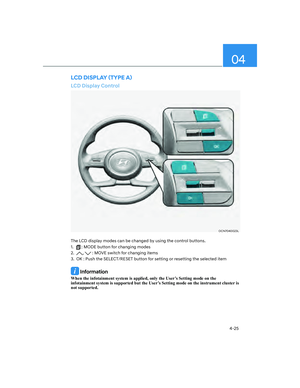

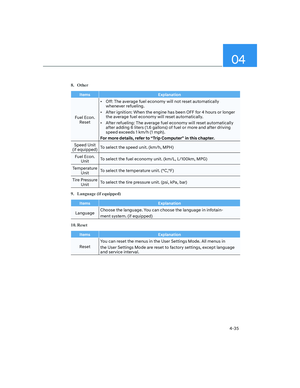

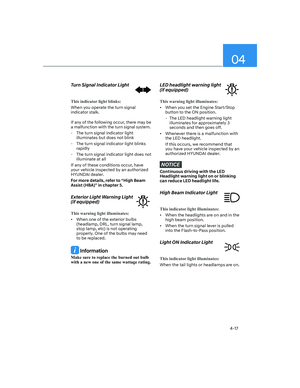

1. Instrument cluster .................................. 4-4

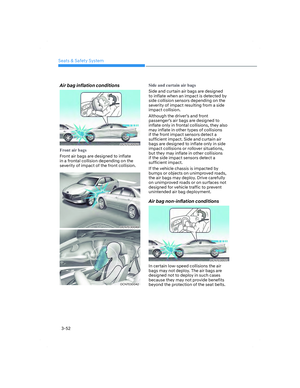

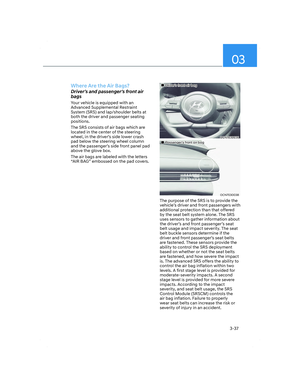

2. Driver’s front air bag ..............................3-37

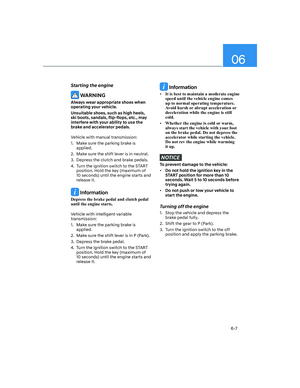

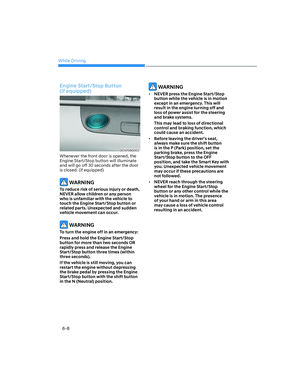

3. Engine start button................................. 6-8

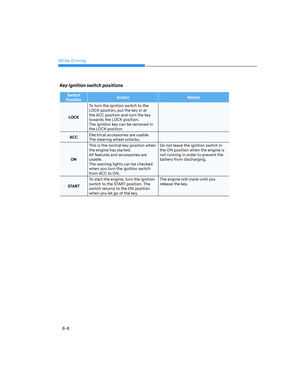

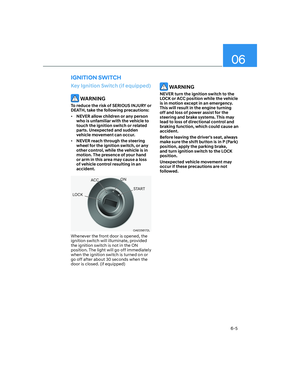

4. Key ignition switch ................................. 6-5

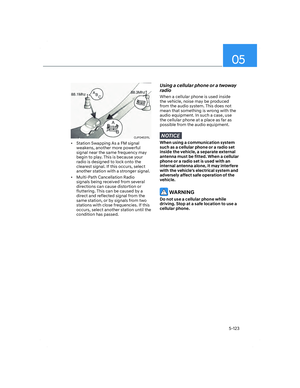

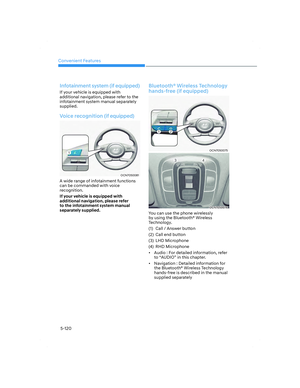

5. Infotainment system ............................ 5-117

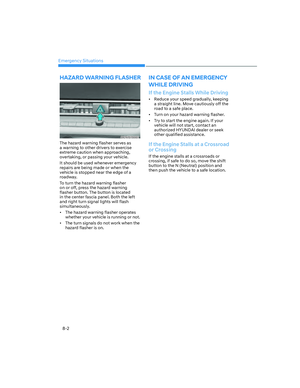

6. Hazard warning flasher switch .............. 8-2

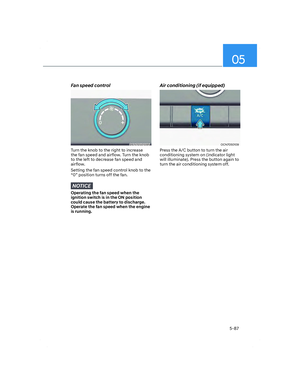

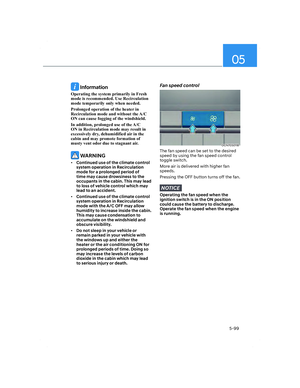

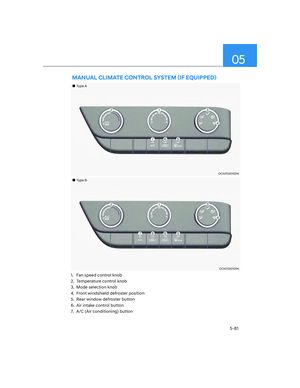

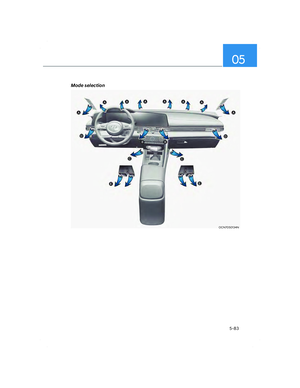

7. Climate control system ............... 5-81/5-92

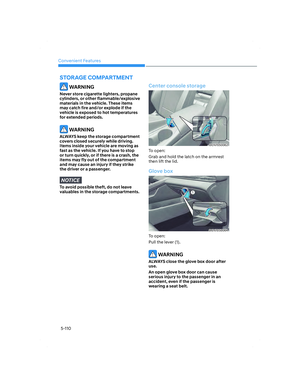

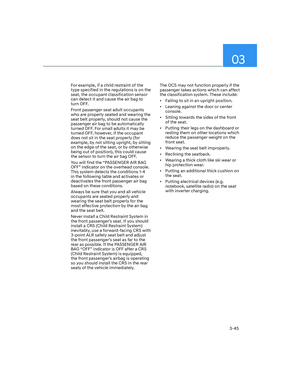

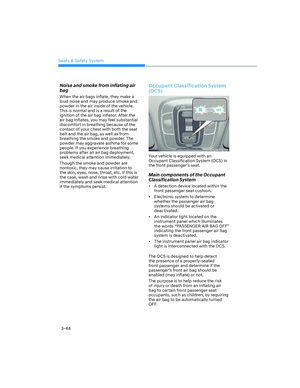

8. Passenger’s front air bag ......................3-379. Glove box ............................................. 5-110

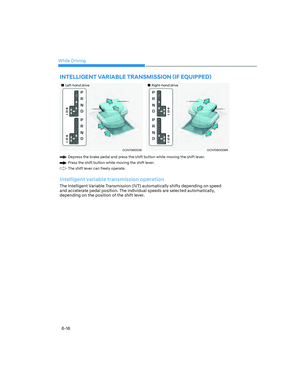

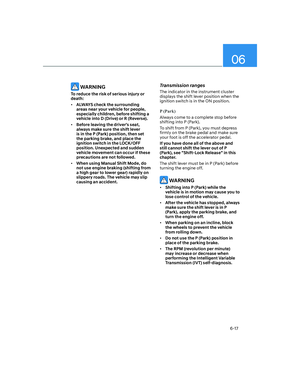

10. Manual transmission/
Intelligent variable transmission /
Dual clutch transmission ..... 6-13/6-16/6-23

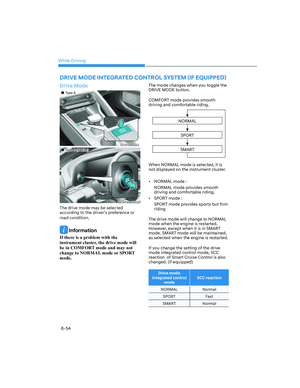

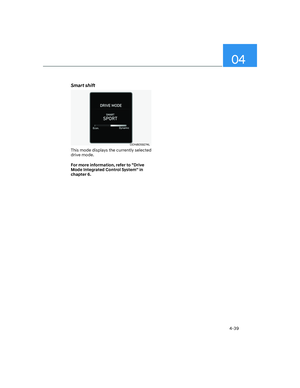

11. Drive mode button ............................... 6-54

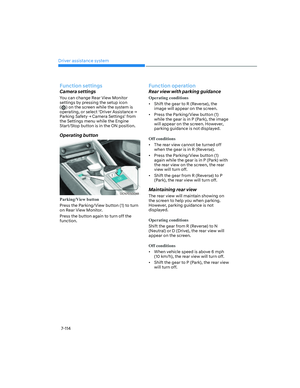

12. Parking/View button ............................ 7-114

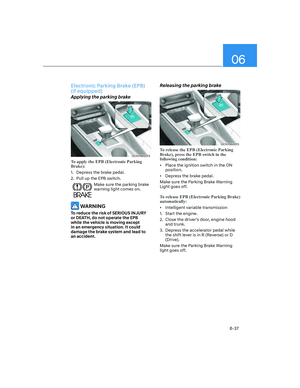

13. Electronic parking brake switch .......... 6-37
14. AUTO HOLD button ...............................6-41
„N Line

2-8
Vehicle Information

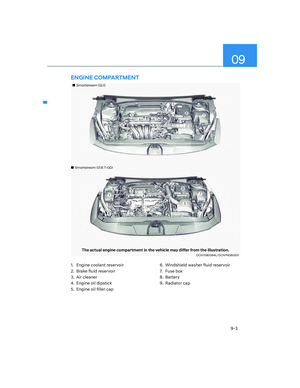

„Smartstream G 2.0 Atkinson
„Smartstream G1.6 T-GDi
The actual engine room in the vehicle may differ from the illustration.OCN7080064L/OCN7N080001
ENGINE COMPARTMENT

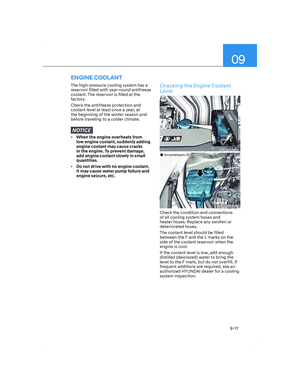

1. Engine coolant reservoir .......................9-18
2. Brake fluid reservoir ............................. 9-20

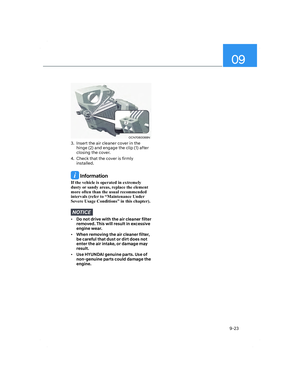

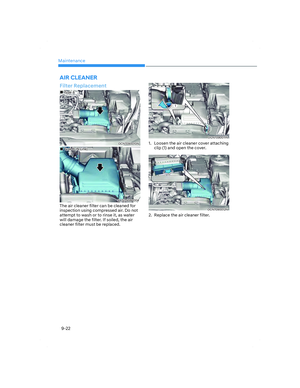

3. Air cleaner ............................................. 9-22

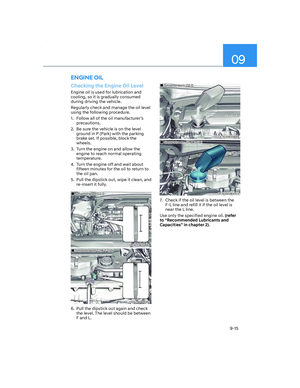

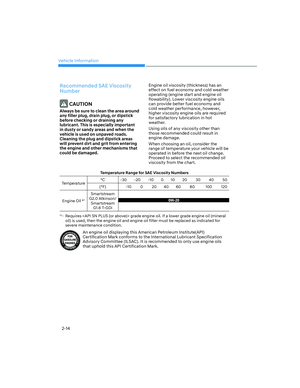

4. Engine oil dipstick ................................ .9-15
5. Engine oil filler cap ................................ 9-156. Windshield washer fluid reservoir ........ 9-21

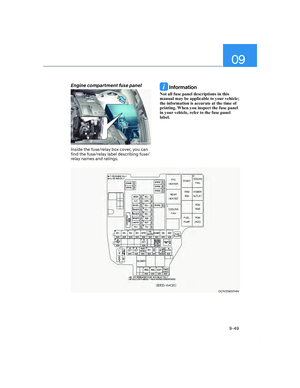

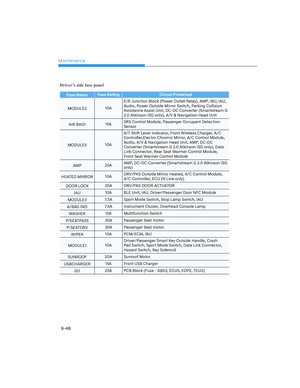

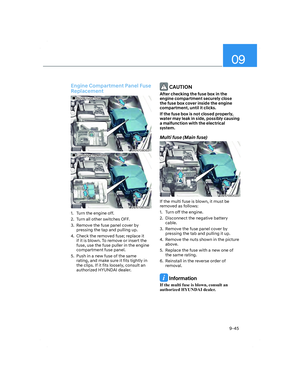

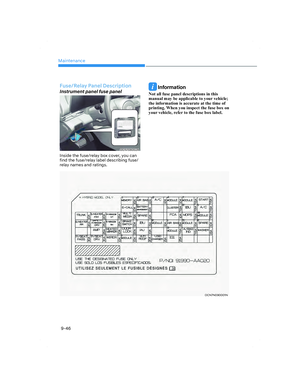

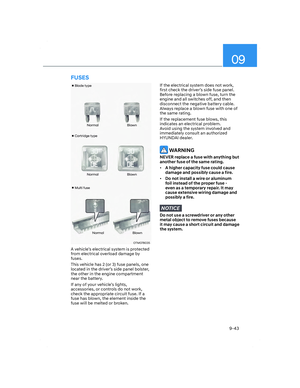

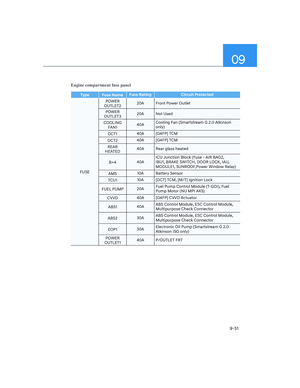

7. Fuse box ................................................ 9-43
8. Battery ....................................................9-27
9. Radiator cap ...........................................9-18

02
2-9

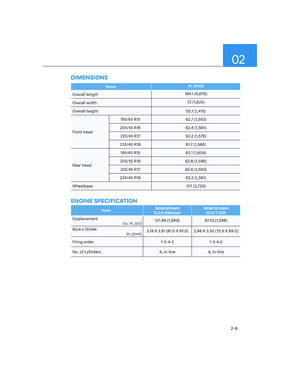

DIMENSIONS
Itemsin. (mm)
Overall length184.1 (4,676)
Overall width72 (1,825)
Overall height 55.7 (1,415)
Front tread195/65 R15 62.7 (1,593)
205/55 R16 62.4 (1,585)
225/45 R17 62.2 (1,579)
235/40 R18 61.7 (1,566)
Rear tread 195/65 R15 63.1 (1,604)
205/55 R16 62.8 (1,596)
225/45 R17 62.6 (1,590)
235/40 R18 62.2 (1,581)
Wheelbase 107 (2,720)
ENGINE SPECIFICATION
ItemSmartstream
G 2.0 AtkinsonSmartstream
G1.6 T-GDi
Displacement
cu. in. (cc) 121.99 (1,999) 97.52 (1,598)
Bore x Stroke
in. (mm)3.19 X 3.81 (81.0 X 97.0) 2.98 X 3.50 (75.6 X 89.0)
Firing order 1-3-4-2 1-3-4-2
No. of cylinders 4, in-line 4, in-line

Vehicle Information
2-10

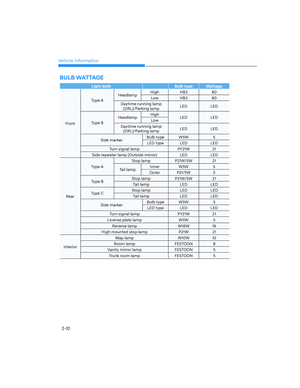

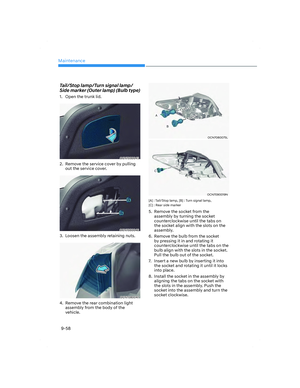

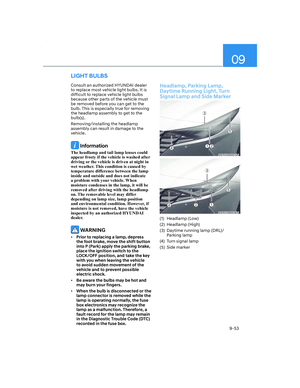

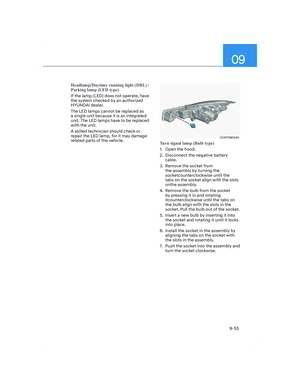

BULB WATTAGE
Light bulb Bulb type Wattage

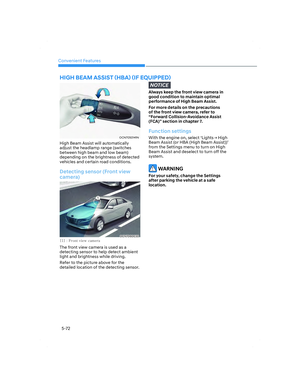

FrontType AHeadlampHigh HB3 60
Low HB3 60
Daytime running lamp
(DRL)/Parking lampLED LED
Type BHeadlampHigh
LED LED
Low
Daytime running lamp
(DRL)/Parking lampLED LED

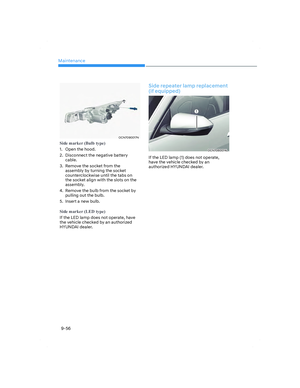

Side markerBulb type W5W 5
LED type LED LED
Turn signal lamp PY21W 21
Side repeater lamp (Outside mirror) LED LED
RearType AStop lamp P21W/5W 21
Tail lampInner W5W 5
Outer P21/5W 5
Type BStop lamp P21W/5W 21
Tail lamp LED LED
Type CStop lamp LED LED
Tail lamp LED LED
Side markerBulb type W5W 5
LED type LED LED
Turn signal lamp PY21W 21
License plate lamp W5W 5
Reverse lamp W16W 16
High mounted stop lamp P21W 21
InteriorMap lamp W10W 10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Trunk room lamp FESTOON 5

02
2-11

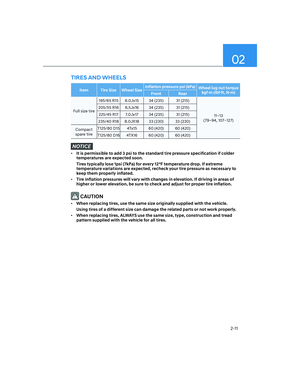

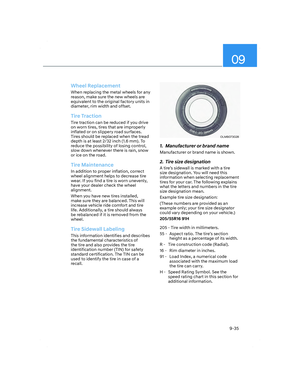

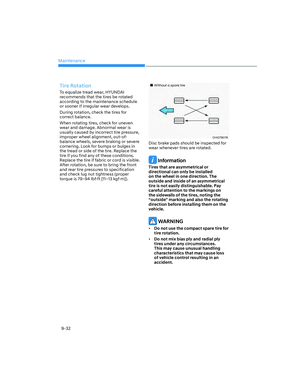

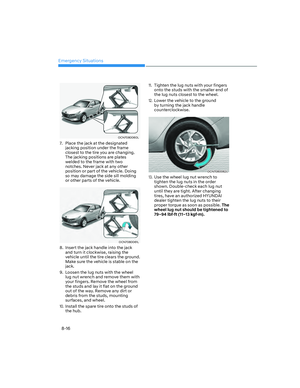

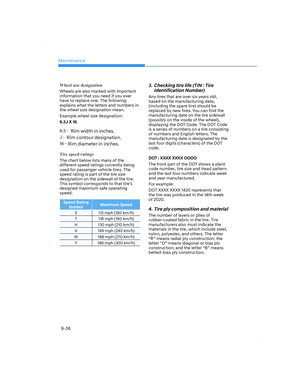

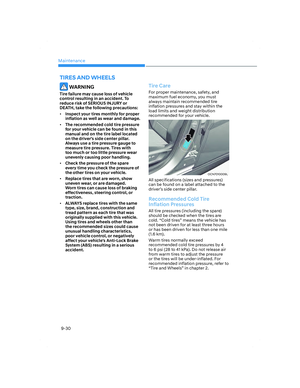

TIRES AND WHEELS
Item Tire Size Wheel SizeInflation pressure psi (kPa)
Wheel lug nut torque
kgf·m (lbf·ft, N·m)
Front Rear
Full size tire195/65 R15 6.0Jx15 34 (235) 31 (215)
11~13
(79~94, 107~127) 205/55 R16 6.5Jx16 34 (235) 31 (215)
225/45 R17 7.0Jx17 34 (235) 31 (215)
235/40 R18 8.0JX18 33 (230) 33 (230)

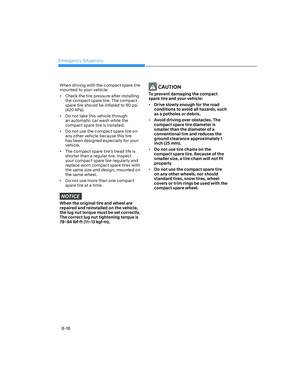

Compact
spare tire T125/80 D15 4Tx15 60 (420) 60 (420)
T125/80 D16 4TX16 60 (420) 60 (420)
NOTICE

[It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
