2022 HYUNDAI ELANTRA Owners Manual

05
5-49
Side View Mirrors
OCN7050019OCN7050019
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE
• Do not scrape ice off the mirror face;
this may damage the surface of the
glass.
• If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.
CN7 HMA 5.indd 5-492020-12-03 9:20:50

Convenient Features
5-50

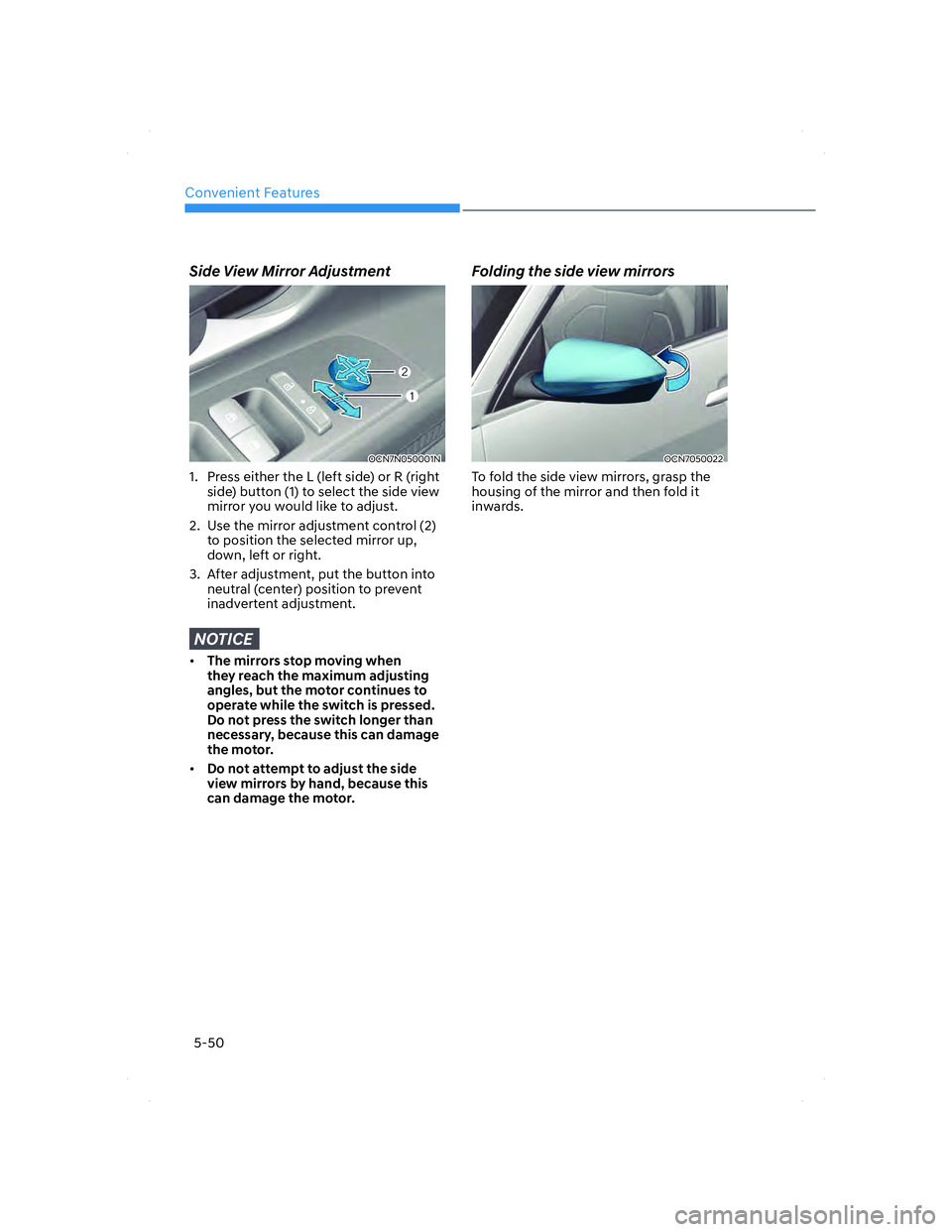

Side View Mirror Adjustment
OCN7N050001NOCN7N050001N
1. Press either the L (left side) or R (right
side) button (1) to select the side view
mirror you would like to adjust.
2. Use the mirror adjustment control (2)
to position the selected mirror up,
down, left or right.
3. After adjustment, put the button into
neutral (center) position to prevent
inadvertent adjustment.
NOTICE
• The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.
• Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side view mirrors
OCN7050022OCN7050022
To fold the side view mirrors, grasp the
housing of the mirror and then fold it
inwards.

CN7 HMA 5.indd 5-502020-12-03 9:20:50

5-51
05

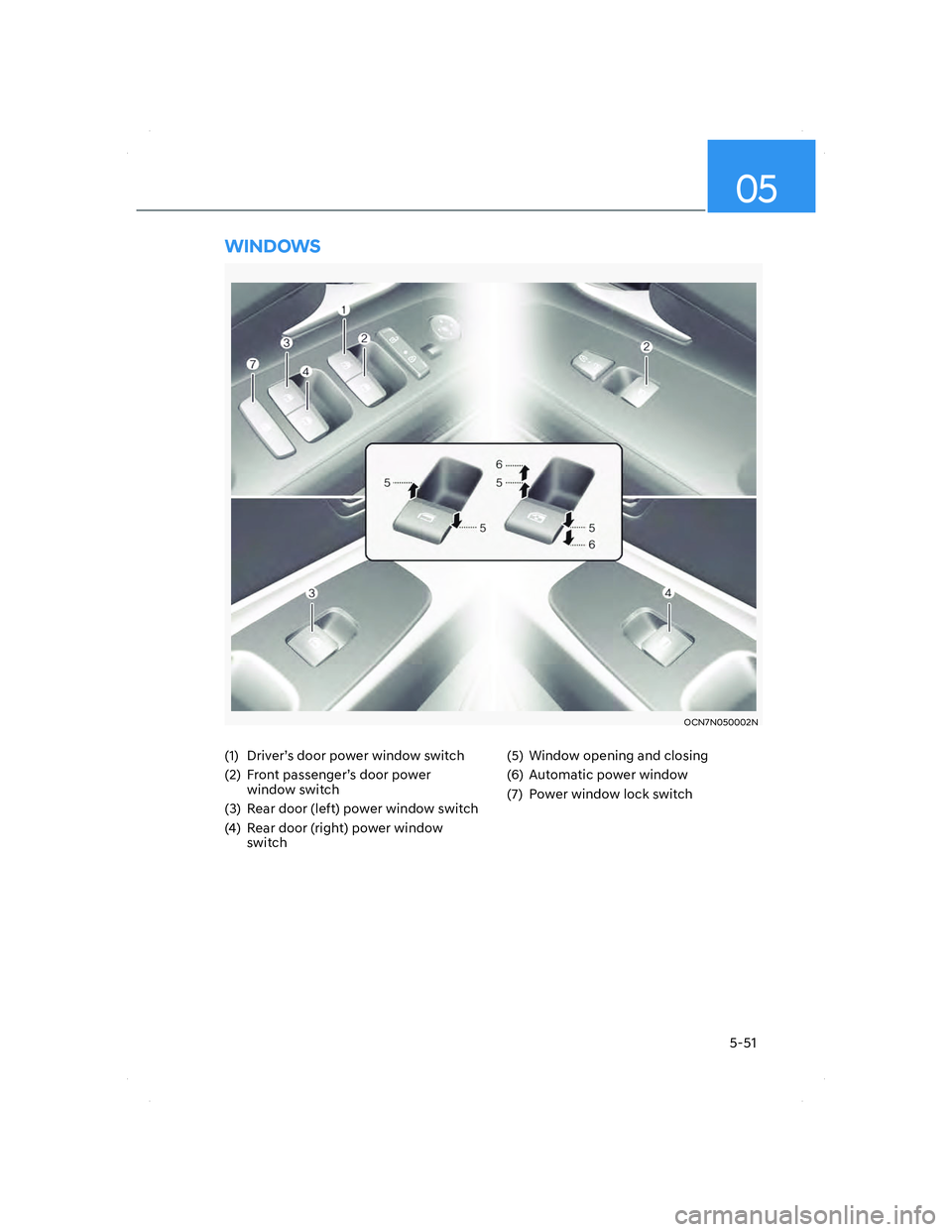

(1) Driver’s door power window switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window
switch(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
WINDOWS
OCN7N050002NOCN7N050002N
CN7 HMA 5.indd 5-512020-12-03 9:20:50

Convenient Features
5-52

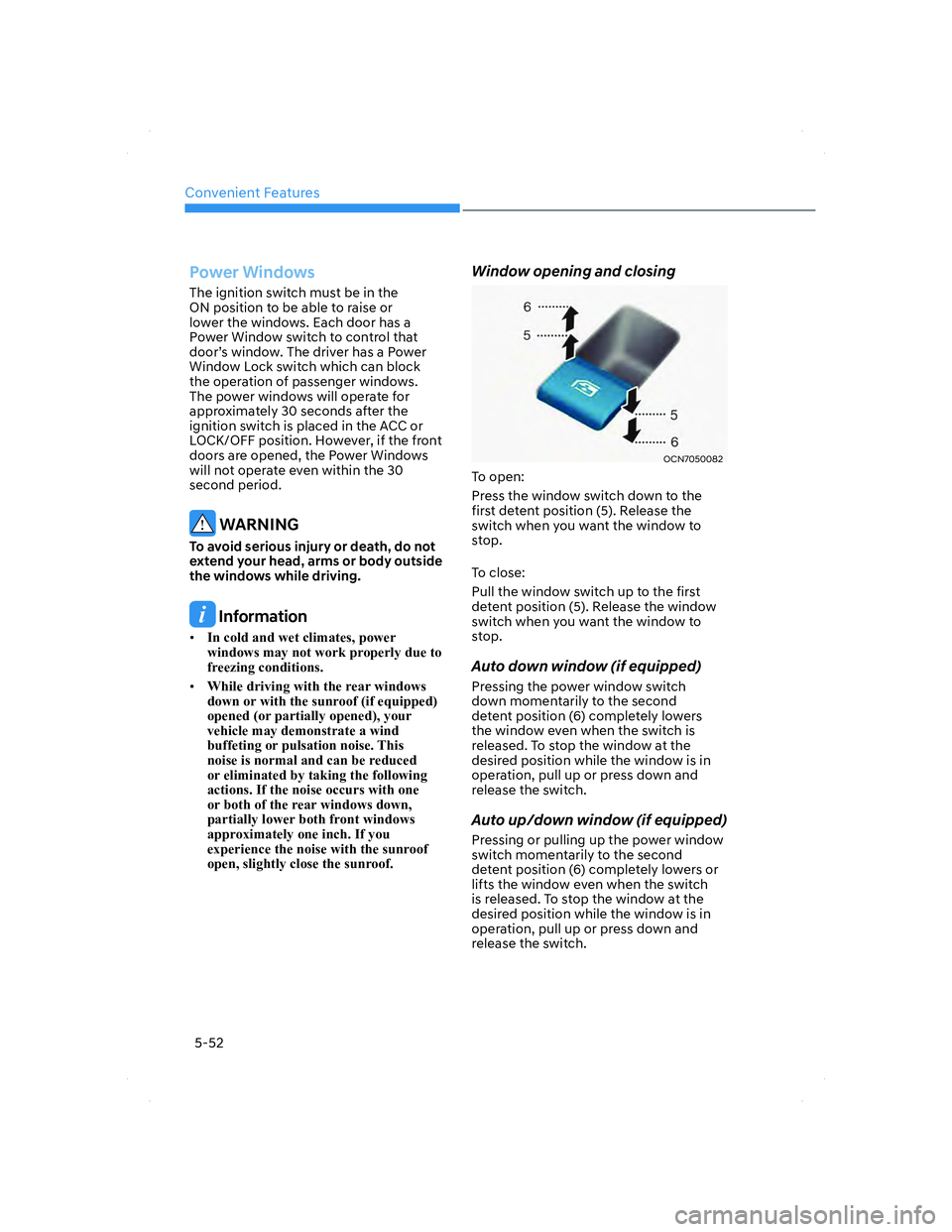

Power Windows
The ignition switch must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 30 seconds after the
ignition switch is placed in the ACC or
LOCK/OFF position. However, if the front
doors are opened, the Power Windows
will not operate even within the 30
second period.
WARNING
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows while driving.
Information
• ,QFROGDQGZHWFOLPDWHVSRZHU
ZLQGRZVPD\QRWZRUNSURSHUO\GXHWR
IUHH]LQJFRQGLWLRQV
• :KLOHGULYLQJZLWKWKHUHDUZLQGRZV
GRZQRUZLWKWKHVXQURRILIHTXLSSHG
RSHQHGRUSDUWLDOO\RSHQHG\RXU
YHKLFOHPD\GHPRQVWUDWHDZLQG
EXIIHWLQJRUSXOVDWLRQQRLVH7KLV
QRLVHLVQRUPDODQGFDQEHUHGXFHG
RUHOLPLQDWHGE\WDNLQJWKHIROORZLQJ
DFWLRQV,IWKHQRLVHRFFXUVZLWKRQH
RUERWKRIWKHUHDUZLQGRZVGRZQ
SDUWLDOO\ORZHUERWKIURQWZLQGRZV
DSSUR[LPDWHO\RQHLQFK,I\RX
H[SHULHQFHWKHQRLVHZLWKWKHVXQURRI
RSHQVOLJKWO\FORVHWKHVXQURRI
Window opening and closing
OCN7050082OCN7050082
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto down window (if equipped)
Pressing the power window switch
down momentarily to the second
detent position (6) completely lowers
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
CN7 HMA 5.indd 5-522020-12-03 9:20:51

05
5-53
To reset the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch to the ON
position.
2. Close the window and continue
pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
checked by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.
Automatic reverse (if equipped)
OCN7050026OCN7050026
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 inches (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 inch (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
7KHDXWRPDWLFUHYHUVHIHDWXUHLVRQO\
DFWLYHZKHQWKH

Convenient Features
5-54
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
Power window lock switch
OCN7050027OCN7050027
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock switch.
When the power window lock switch is
pressed:
• The rear passenger control will not
be able to operate the rear passenger
power window
• Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
NOTICE
• To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
• Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
WARNING
• NEVER leave the keys in your vehicle
with unsupervised children, when
the engine is running.
• NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselve s in
the windows, or otherwise injure
themselves or others.
• Always double check to make
sure arms, hands, head and other
obstructions are safely out of the
way before closing a window.
• Do not allow children to play with the
power windows. Keep the driver’s
door power window lock switch in
the LOCK position (pressed). Serious
injury can result from unintentional
window operation by the child.
• Do not extend your head, arms or
body outside the windows while
driving.
CN7 HMA 5.indd 5-542020-12-03 9:20:51

05
5-55
SUNROOF
ãIF EQUIPPED
ä
OCN7050028OCN7050028
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof control switch located
on the overhead console.
The sunroof can only be opened, closed,
or tilted when the ignition switch is in the
ON position.
The sunroof can be operated for
approximately 3 minutes after the
ignition switch is turned to the ACC or
OFF position.
However, if the front door is opened, the
sunroof cannot be operated even within
the 3 minutes period.
Information
• ,QFROGDQGZHWFOLPDWHVWKHVXQURRI
PD\QRWZRUNSURSHUO\GXHWRIUHH]LQJ
FRQGLWLRQV
• $IWHUWKHYHKLFOHLVZDVKHGRULQD
UDLQVWRUPEHVXUHWRZLSHRIIDQ\
ZDWHUWKDWLVRQWKHVXQURRIEHIRUH
RSHUDWLQJLW
WARNING
• Never adjust the sunroof or sunshade
while driving. This could result in
loss of control and an accident that
may cause death, serious injury, or
property damage.
• Make sure heads, other body parts
or objects are out of the way before
using the sunroof.
• Do not extend your head, arms or
body outside the sunroof while
driving, to avoid serious injury.
• Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle.
It may cause injuries or vehicle
damage.
NOTICE
• Do not continue to move the sunroof
control lever after the sunroof is fully
opened, closed, or tilted. Damage
to the motor or system components
could occur.
• Make sure the sunroof is closed fully
when leaving your vehicle. If the
sunroof is open, rain or snow may
leak through the sunroof and wet the
interior as well as allow theft.
CN7 HMA 5.indd 5-552020-12-03 9:20:51

Convenient Features
5-56
Sunroof opening and closing
OCN7050031OCN7050031
To open or close the sunroof(manual
slide feature), push the sunroof control
lever backward or forward to the first
detent position.
To open the sunroof (auto slide feature),
push the sunroof control lever backward
to the second detent position.
The sunroof will slide to the
recommended open position before the
maximum slide open position.
To stop the sunroof sliding at any
point, push the sunroof control lever
momentarily.
To open the sunroof to the maximum
slide open position, press the lever
towards the rear of the vehicle once
again and hold it until the sunroof slide
all the way open.
Information
7RUHGXFHZLQGQRLVHZKLOHGULYLQJ
ZHUHFRPPHQG\RXWRGULYHDWWKH
UHFRPPHQGHGSRVLWLRQEHIRUHWKH
PD[LPXPVOLGHRSHQSRVLWLRQ
Automatic reverse (if equipped)
ODH043039ODH043039
If an object or part of the body is
detected while the sunroof glass is
closing automatically, it will reverse the
direction, and then stop.
The auto reverse function does not work
if a tiny obstacle is between the sliding
glass and the sunroof sash. You should
always check that all passengers and
objects are away from the sunroof before
closing it.
WARNING
Small objects that can get caught
between the sliding glass and the
sunroof sash may not be detected
by the automatic reverse system. In
this case, the sunroof glass will not
detect the object and will not reverse
direction.
CN7 HMA 5.indd 5-562020-12-03 9:20:51
